Model Whirlpool EHT171XKWR0 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

1

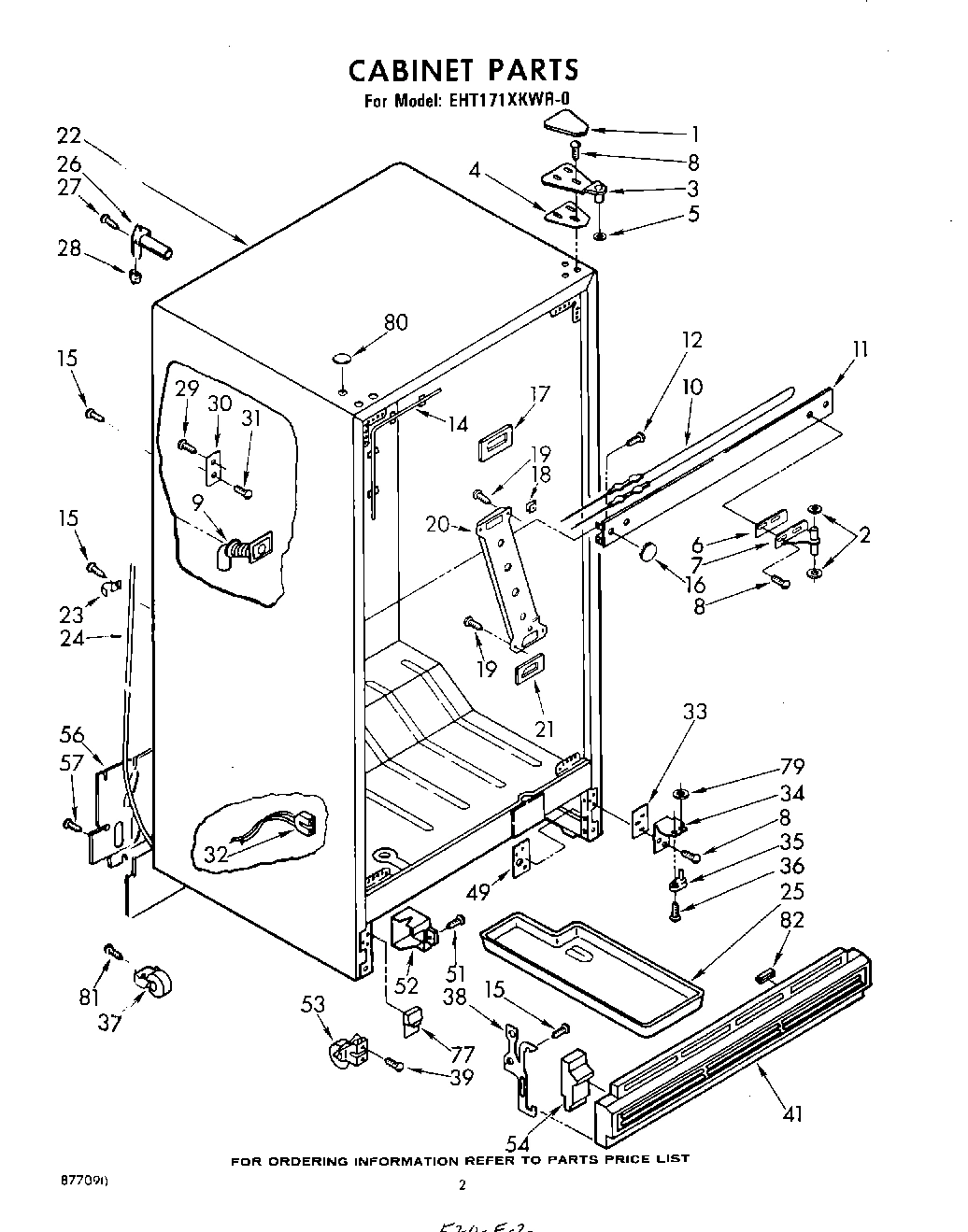

Stud, Evaporator Cover WPL 526383 Contact Us For Availability

1

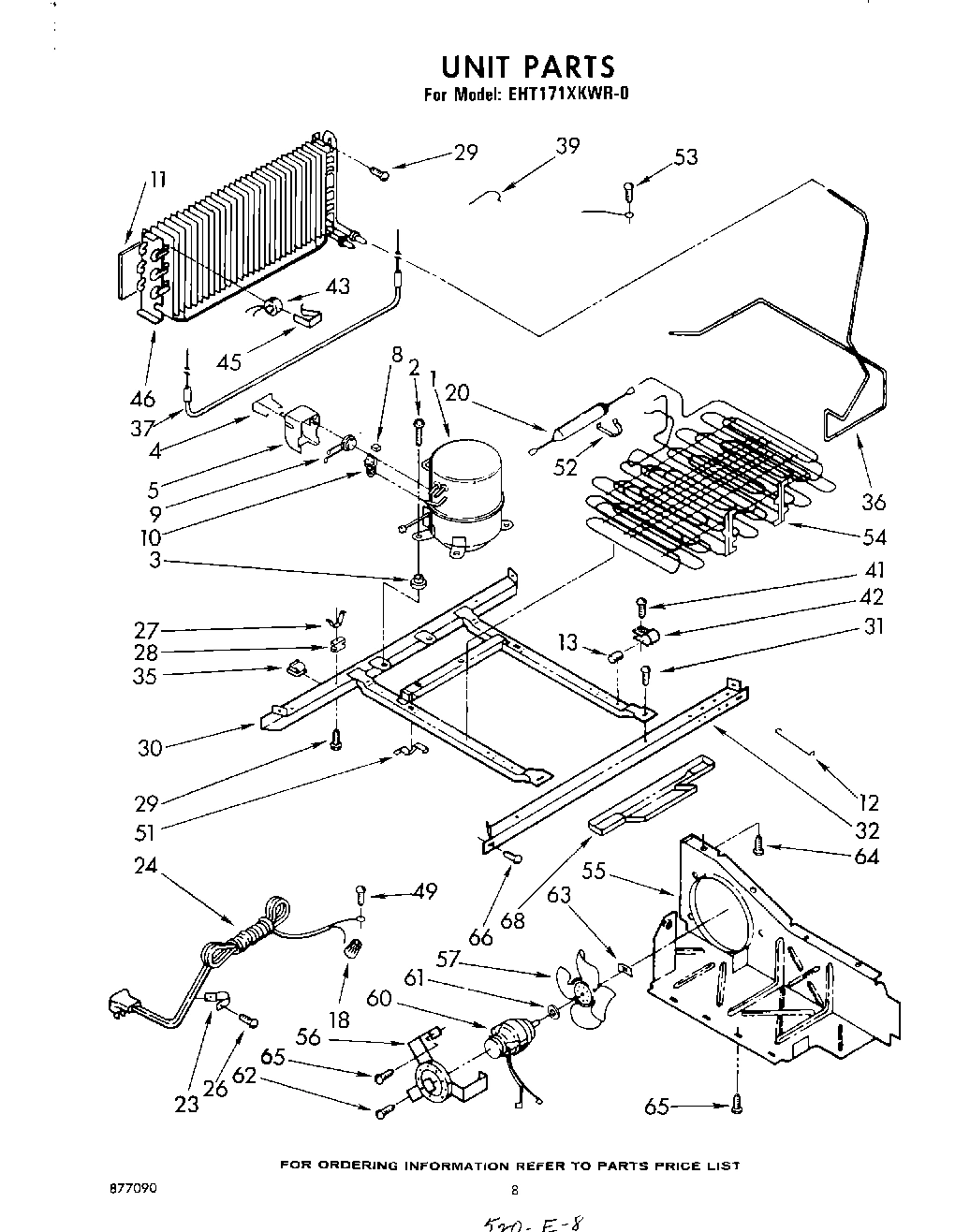

Compressor WPL 464064 Contact Us For Availability

1

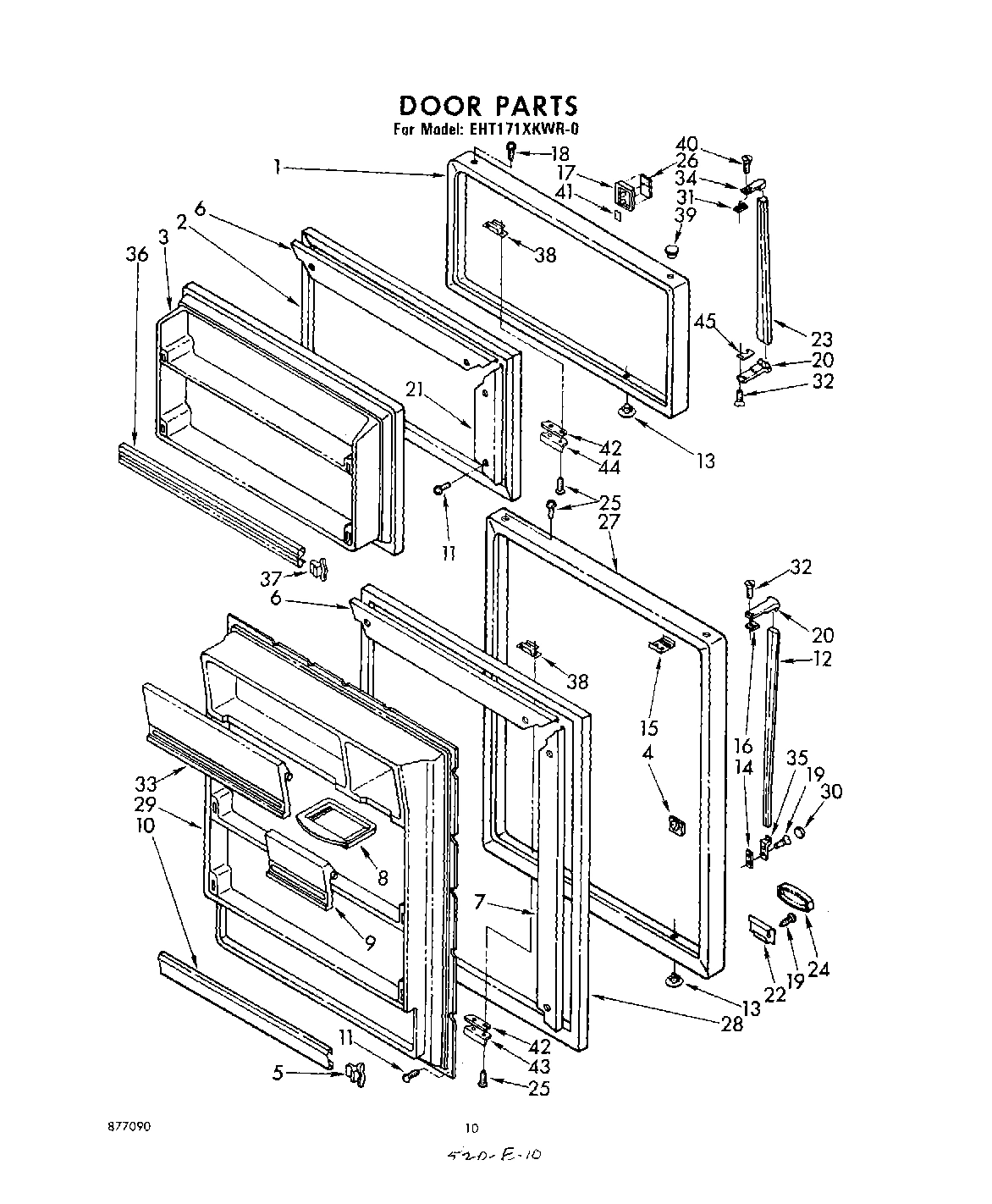

Cover, Hinge (Coffee) WPL 989895 Contact Us For Availability

1

Cover, Hinge (Golden Harvest) WPL 989896 Contact Us For Availability

1

Cover, Hinge (New Avocado) WPL 989897 Contact Us For Availability

1

Door, Freezer (White) WPL 988531 Contact Us For Availability

1

Door, Freezer (Coffee) WPL 990635 Contact Us For Availability

1

Door, Freezer (New Avocado) WPL 990636 Contact Us For Availability

1

Door, Freezer (Golden Harvest) WPL 990637 Contact Us For Availability

1

Door, Freezer (Almond) WPL 990638 Contact Us For Availability

2

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $93.54

2

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

2

Grommet WPL 842339 Contact Us For Availability

2

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

3

Liner (Not A Serviceable Part) WPL ARI39395A8 Contact Us For Availability

3

Grommet (4) WPL 547283 Contact Us For Availability

3

Hinge & Shim (Top) WPL 842038 Contact Us For Availability

3

Panel, Interior WPL 481966 Contact Us For Availability

4

Cover, Motor WPL 836474 Contact Us For Availability

4

Spring WPL 531318 Contact Us For Availability

4

Shim, Top Hinge (.030) WPL 836151 Contact Us For Availability

4

Plate, Tap (2) WPL 991739 Contact Us For Availability

5

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

5

WP839904 Whirlpool Refrigerator Endcap Trim In Stock WPL WP839904 $3.70

5

Gasket WPL 836475 Contact Us For Availability

5

Case, Relay WPL 549945 Contact Us For Availability

6

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

6

Shim (.030) WPL 836155 Contact Us For Availability

6

Retainer, Top & Bottom (2) WPL 836118 Contact Us For Availability

7

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

7

Hinge & Shim (Center) WPL 836152 Contact Us For Availability

7

Retainer, Side (2) WPL 836117 Contact Us For Availability

8

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

8

Cap, Receptacle WPL 850738 Contact Us For Availability

8

Bumper WPL 547272 Contact Us For Availability

8

Screw, 12-14 x 3/4 (Repair) WPL 488949 Contact Us For Availability

9

Scroll, Fan WPL 935067 Contact Us For Availability

9

Overload WPL 549041 Contact Us For Availability

9

Fitting, Drain WPL 836096 Contact Us For Availability

9

Door, Butter WPL 984845 Contact Us For Availability

Support, Cover WPL 848562 No Longer Available

Relay (Alternate) WPL 989661 Contact Us For Availability

Relay WPL 989662 Contact Us For Availability

Heater, Mullion WPL 989256 Contact Us For Availability

Trim, Shelf (2) WPL 936881 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Baffle, Air WPL 981726 Contact Us For Availability

Rail, Center (White) WPL 836067 Contact Us For Availability

Rail, Center (Coffee) WPL 989908 Contact Us For Availability

Rail, Center (Golden Harvest) WPL 989909 Contact Us For Availability

Rail, Center (New Avocado) WPL 989910 Contact Us For Availability

Rail, Center (Almond) WPL 989911 Contact Us For Availability

Cover, Evaporator WPL 986628 Contact Us For Availability

Guard, Fan WPL 850156 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Screw, 10 x 3/8 WPL 487470 Contact Us For Availability

Handle, Center WPL 982946 Contact Us For Availability

Plug, Hole (2) (White) WPL 534927 Contact Us For Availability

Plug, Hole (5) WPL 519890 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Plug, Hole (2) (Almond) WPL 989197 Contact Us For Availability

Plug, Hole (2) (Coffee) WPL 989878 Contact Us For Availability

Plug, Hole (2) (Golden Harvest) WPL 989879 Contact Us For Availability

Plug, Hole (2) (New Avocado) WPL 989880 Contact Us For Availability

14

Shim, Handle WPL 992872 Contact Us For Availability

14

Stud, Retainer (4) WPL 836374 Contact Us For Availability

14

Stile, Heater WPL 531670 Contact Us For Availability

15

Wiring, Wrapper (Ice Maker) WPL 481658 Contact Us For Availability

15

Plate, Tap (2) WPL 987822 Contact Us For Availability

Spacer, Insulator (8) WPL 539760 Contact Us For Availability

Plug, Hole (2) (White) WPL 835974 Contact Us For Availability

Plug, Hole (2) (Almond) WPL 989193 Contact Us For Availability

Plug, Hole (2) (Coffee) WPL 989881 Contact Us For Availability

Plug, Hole (2) (Golden Harvest) WPL 989882 Contact Us For Availability

Plug, Hole (2) (New Avocado) WPL 989883 Contact Us For Availability

Spacer, Handle WPL 845298 Contact Us For Availability

17

Grommet, Post WPL 836409 Contact Us For Availability

17

Gasket Inlet WPL 836565 Contact Us For Availability

17

Escutcheon, Nameplate WPL 849310 Contact Us For Availability

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Nut, Wire WPL 227991 Contact Us For Availability

Nut, Speed (4) WPL 488564 Contact Us For Availability

Screw, 6-32 x 1/2 WPL 488915 Contact Us For Availability

Screw (Repair) WPL 488925 Contact Us For Availability

19

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

Spacer, Insulator (2) WPL 836040 Contact Us For Availability

Duct, Air WPL 934057 Contact Us For Availability

Cap, Handle WPL 983543 Contact Us For Availability

21

Plug, Hole (2) WPL 659598 Contact Us For Availability

21

Gasket Outlet WPL 934058 Contact Us For Availability

21

Retainer, Side (2) WPL 836119 Contact Us For Availability

22

Grommet, Wiring WPL 851020 Contact Us For Availability

22

Cabinet (Not A Serviceable Part) WPL ARI39394A6 Contact Us For Availability

22

Clip, Medallion WPL 843213 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

Reinforcement, Ladder WPL 984146 Contact Us For Availability

Clamp WPL 836077 Contact Us For Availability

Handle, Center WPL 982944 Contact Us For Availability

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $38.47

Ladder, Shelf (2) WPL 934267 Contact Us For Availability

Cord, Service WPL 850626 Contact Us For Availability

Medallion (White) WPL 848382 Contact Us For Availability

Medallion (Coffee) WPL 989901 Contact Us For Availability

Medallion (New Avocado) WPL 989902 Contact Us For Availability

Medallion (Golden Harvest) WPL 989903 Contact Us For Availability

Medallion (Almond) WPL 989904 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

Tray, Evaporating WPL 842041 Contact Us For Availability

Grommet (3) WPL 509812 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

26

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

26

Grommet (4) WPL 848445 Contact Us For Availability

26

Insert, Nameplate WPL 937807 Contact Us For Availability

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

Screw, 8 x 1-1/4 (3) WPL 488357 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Door, Refrigerator (White) WPL 937714 Contact Us For Availability

Door, Refrigerator (Coffee) WPL 937715 Contact Us For Availability

Door, Refrigerator (Golden Harvest) WPL 937716 Contact Us For Availability

Door, Refrigerator (New Avocado) WPL 937717 Contact Us For Availability

Door, Refrigerator (Almond) WPL 937718 Contact Us For Availability

28

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $112.07

28

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

28

Grommet (4) WPL 548737 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Ladder (Center) WPL 936230 Contact Us For Availability

Screw, 8-32 x 1-1/2 WPL 488684 Contact Us For Availability

Panel, Interior WPL 482374 Contact Us For Availability

WP1101634 Whirlpool Refrigerator Cover In Stock WPL WP1101634 $4.50

Grommet, Water Inlet WPL 534348 Contact Us For Availability

Frame WPL 548654 Contact Us For Availability

Strap, Ground WPL 547603 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Screw, 8-32 x 1-1/4 (3) WPL 488960 Contact Us For Availability

Screw (Repair) WPL 488980 Contact Us For Availability

Shim WPL 848338 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Trim, Shelf Front WPL 935215 Contact Us For Availability

Rail, Front WPL 548662 Contact Us For Availability

Wiring, Water Valve WPL 548734 Contact Us For Availability

WPL 488923 WPL 488923 Contact Us For Availability

33

Shim (Bottom) (.030) WPL 836196 Contact Us For Availability

33

WPL 985007 WPL 985007 Contact Us For Availability

34

Cover, Meat Pan WPL 938710 Contact Us For Availability

34

Butt, Hinge WPL 836159 Contact Us For Availability

34

WPL 983544 WPL 983544 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

WP2183139 Whirlpool Refrigerator Handle End C Backorder WPL WP2183139 $25.33

Pin, Hinge WPL 654366 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Support, Ladder (2) WPL 520959 Contact Us For Availability

Exchanger, Heat WPL 989552 Contact Us For Availability

WPL 837789 WPL 837789 Contact Us For Availability

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

WPL 839975 WPL 839975 Contact Us For Availability

Pan Shelf, Cantilever WPL 936284 Contact Us For Availability

Heater, Defrost WPL 992942 Contact Us For Availability

38

Overlay, Pan WPL 986968 Contact Us For Availability

38

Support, Grille (2) WPL 844614 Contact Us For Availability

38

WPL 988402 WPL 988402 Contact Us For Availability

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

Gasket, Front (2) WPL 982160 Contact Us For Availability

Clip, Heater (2) WPL 850721 Contact Us For Availability

Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability

WPL 989196 WPL 989196 Contact Us For Availability

WPL 989892 WPL 989892 Contact Us For Availability

WPL 989894 WPL 989894 Contact Us For Availability

40

Shelf, Cantilever (3) WPL 936768 Contact Us For Availability

40

WPL 488927 WPL 488927 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Switch, Power Saver WPL 845049 Contact Us For Availability

Pan, Slide & Cover (2) WPL 844080 Contact Us For Availability

Grille, Exterior (Whit WPL 841670 Contact Us For Availability

WPL 989941 WPL 989941 Contact Us For Availability

WPL 989943 WPL 989943 Contact Us For Availability

WPL 989945 WPL 989945 Contact Us For Availability

WPL 989947 WPL 989947 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

42

Trim, Shelf Front WPL 849261 Contact Us For Availability

42

Clamp (2) WPL 510716 Contact Us For Availability

42

WPL 836158 WPL 836158 Contact Us For Availability

43

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

43

Escutcheon, Power Saver WPL 936965 Contact Us For Availability

43

WPL 836163 WPL 836163 Contact Us For Availability

44

Gasket, Rear (2) WPL 982158 Contact Us For Availability

44

WPL 987999 WPL 987999 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Gasket, Air Return (2) WPL 981725 Contact Us For Availability

Pan, Crisper (2) WPL 983812 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 484310 WPL 484310 Contact Us For Availability

WPL 511881 WPL 511881 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 877090 WPL 877090 Contact Us For Availability

WPL 936760 WPL 936760 Contact Us For Availability

WPL 938411 WPL 938411 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 987867 WPL 987867 Contact Us For Availability

46

Stud, Shelf (2) WPL 836423 Contact Us For Availability

46

Evaporator WPL 851785 Contact Us For Availability

48

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

49

WPL 836162 WPL 836162 Contact Us For Availability

50

Knob, Retainer WPL 837444 Contact Us For Availability

51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

51

Clip (2) WPL 548744 Contact Us For Availability

52

Container Timer WPL 983079 Contact Us For Availability

52

Clamp WPL 548508 Contact Us For Availability

52

WPL 549947 WPL 549947 Contact Us For Availability

53

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

53

Timer, Defrost (8 Hour) WPL 851161 Contact Us For Availability

53

WPL 981127 WPL 981127 Contact Us For Availability

54

Condenser Assembly WPL 481846 Contact Us For Availability

54

WPL 836372 WPL 836372 Contact Us For Availability

55

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

55

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

55

Baffle WPL 850764 Contact Us For Availability

56

Bracket, Motor WPL 548695 Contact Us For Availability

56

WPL 850459 WPL 850459 Contact Us For Availability

57

Fan WPL 989524 Contact Us For Availability

58

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

58

Stud, Saddle (R.S.) WPL 523263 Contact Us For Availability

60

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

61

WASHER WPL 531107 Contact Us For Availability

62

Grommet WPL 538449 Contact Us For Availability

62

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

63

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

64

Screw, 8-32 x 1/2 WPL 488845 Contact Us For Availability

65

Stud, Shelf (2) WPL 521878 Contact Us For Availability

66

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Pan, Drip WPL 989269 Contact Us For Availability

72

Gasket, Evaporator Cover (2) WPL 981749 Contact Us For Availability

73

Post, Crisper WPL 836410 Contact Us For Availability

74

Shelf, Freezer WPL 935163 Contact Us For Availability

Stud, Shelf (2) WPL 536475 Contact Us For Availability

WPL 838535 WPL 838535 Contact Us For Availability

WPL 989928 WPL 989928 Contact Us For Availability

WPL 989929 WPL 989929 Contact Us For Availability

WPL 989930 WPL 989930 Contact Us For Availability

WPL 989931 WPL 989931 Contact Us For Availability

78

Stud, Crisper Sup WPL 836412 Contact Us For Availability

79

WPL 659776 WPL 659776 Contact Us For Availability

WPL 842031 WPL 842031 Contact Us For Availability

WPL 989195 WPL 989195 Contact Us For Availability

WPL 989875 WPL 989875 Contact Us For Availability

WPL 989876 WPL 989876 Contact Us For Availability

WPL 989877 WPL 989877 Contact Us For Availability

81

WPL 488454 WPL 488454 Contact Us For Availability

82

WPL 546131 WPL 546131 Contact Us For Availability

84

WPL 836492 WPL 836492 Contact Us For Availability

85

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

87

WPL 983809 WPL 983809 Contact Us For Availability
