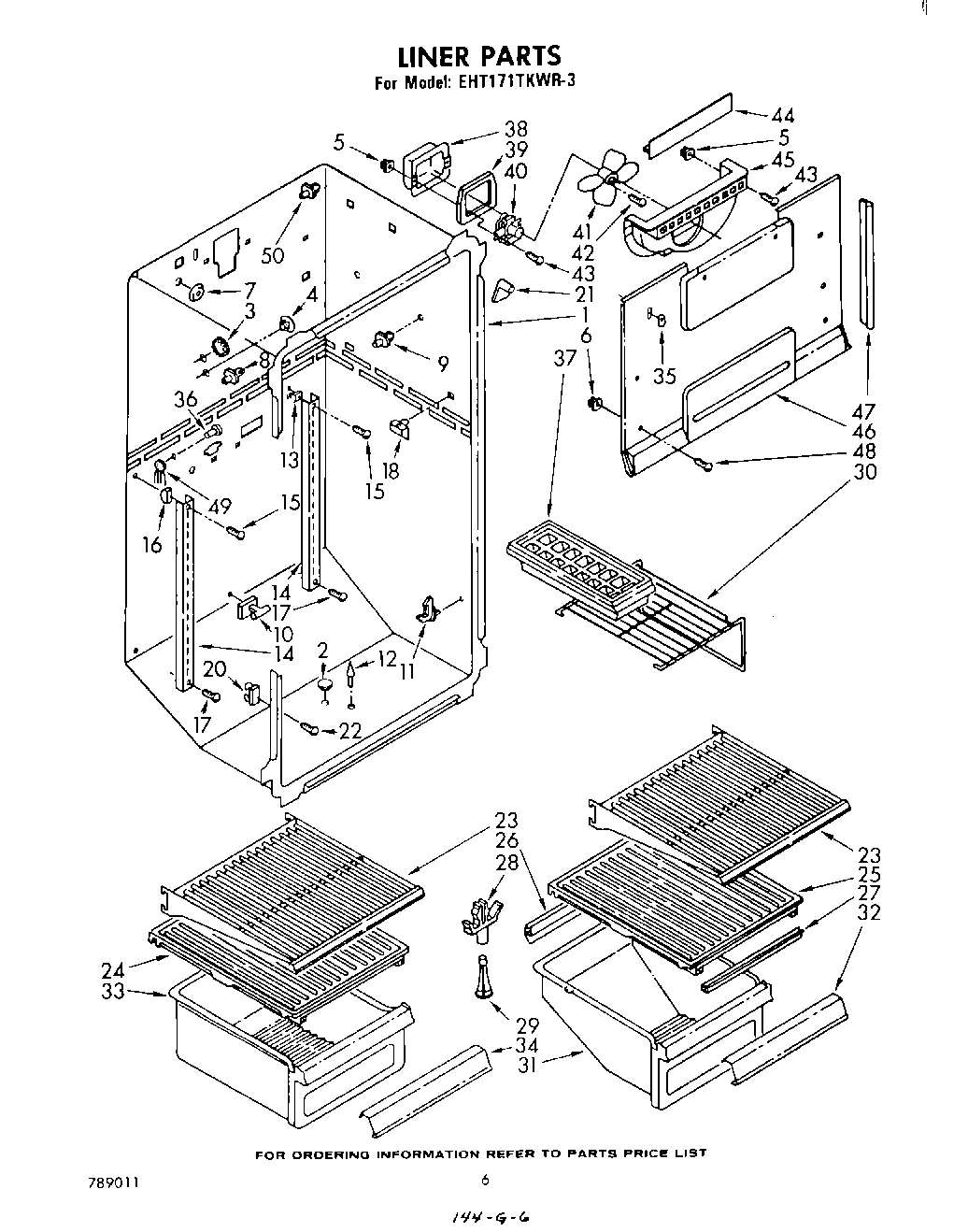

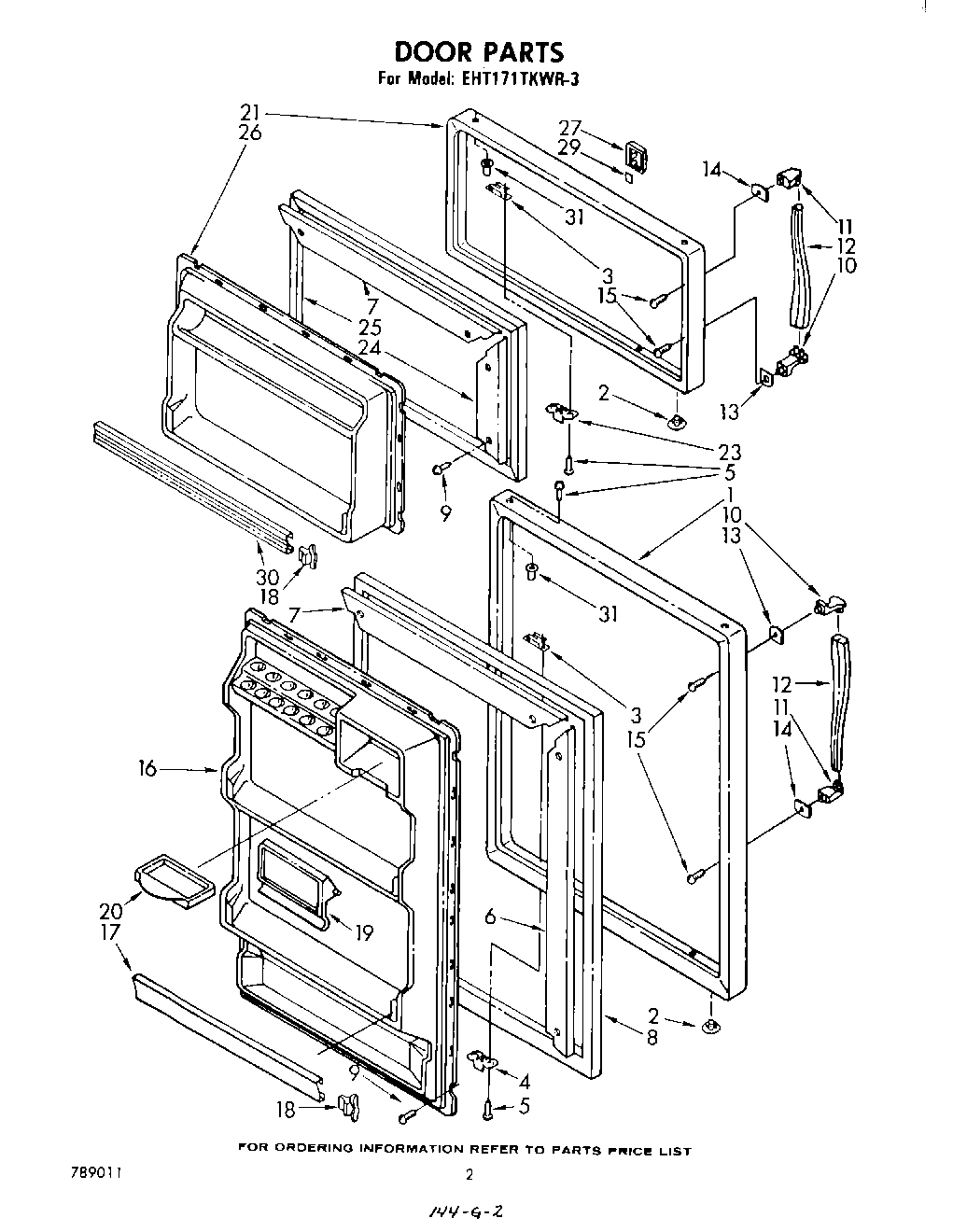

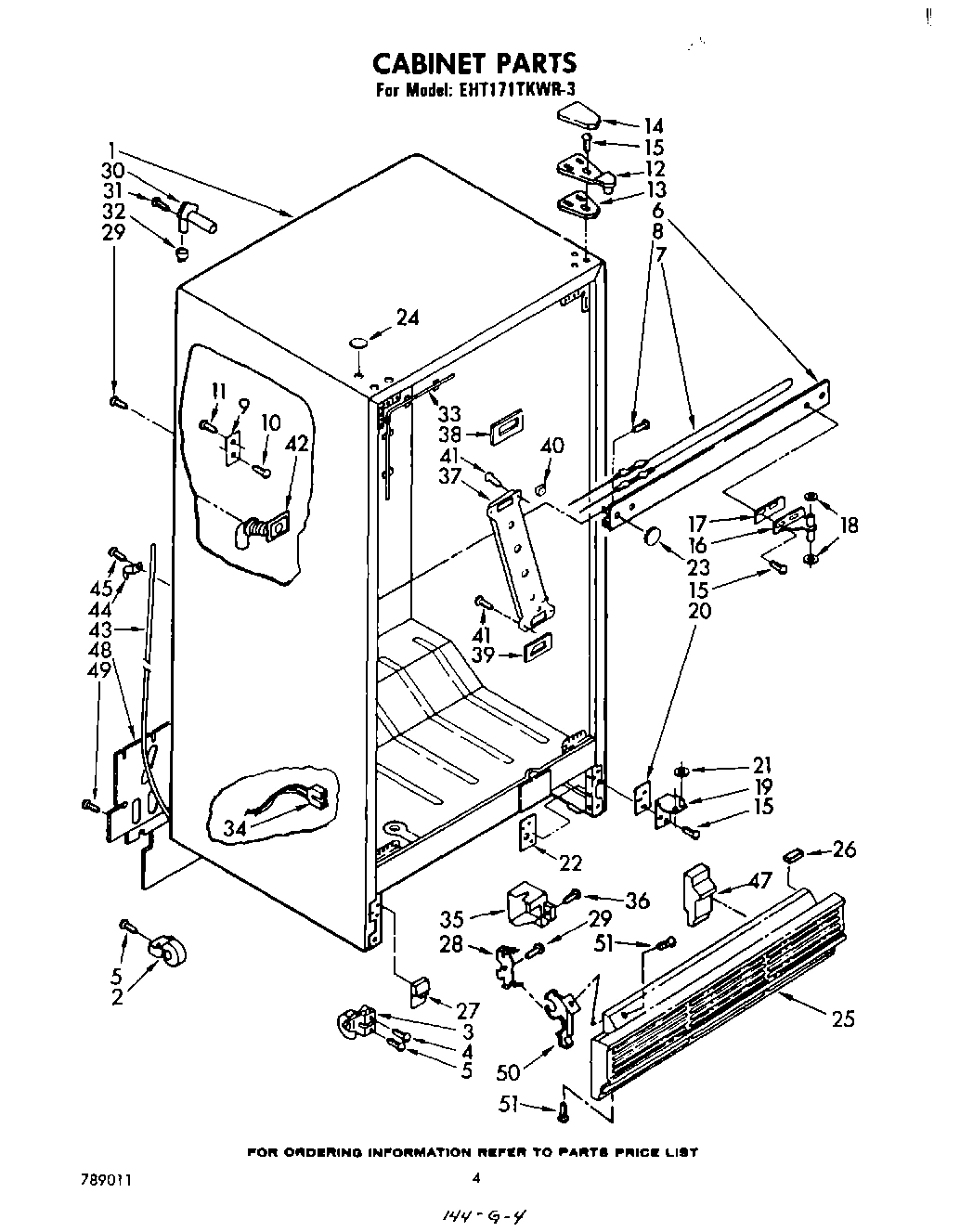

Model Whirlpool EHT171TKWR3 TOP MOUNT REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

1

Compartment Separator Bottom WPL 981727 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI39392A7 Contact Us For Availability

1

Exterior Door Panel (White) WPL 945767 Contact Us For Availability

1

Exterior Door Panel (Coffee) WPL 945768 Contact Us For Availability

1

Exterior Door Panel (Golden Harvest) WPL 945769 Contact Us For Availability

1

Exterior Door Panel (New Avocado) WPL 945770 Contact Us For Availability

1

Exterior Door Panel (Almond) WPL 945771 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI39393A3 Contact Us For Availability

2

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

2

Hole Plug (White) WPL 534927 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

2

Hole, Plug (Coffee) WPL 989878 Contact Us For Availability

2

Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability

2

Hole Plug (New Avocado) WPL 989880 Contact Us For Availability

2

Drain Cover WPL 835370 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

Gasket, Air Return WPL 981725 Contact Us For Availability

3

Roller, Front WPL 981127 Contact Us For Availability

3

Hole Plug (5) WPL 519890 Contact Us For Availability

4

Insulation, Separator WPL 991172 Contact Us For Availability

4

Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Hole Plug (2) WPL 659598 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Separator, Top Compartment WPL 848422 Contact Us For Availability

5

Grommet WPL 842339 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability

6

Center Rail (White) WPL 836067 Contact Us For Availability

6

Center Rail (Coffee) WPL 989908 Contact Us For Availability

6

Center Rail (Golden Harvest) WPL 989909 Contact Us For Availability

6

Center Rail (New Avocado) WPL 989910 Contact Us For Availability

6

Center Rail (Almond) WPL 989911 Contact Us For Availability

6

Retainer, Gasket Side WPL 836117 Contact Us For Availability

6

Grommet WPL 848445 Contact Us For Availability

7

Breaker, Mullion (Bottom) WPL 836025 Contact Us For Availability

7

Heater, Mullion WPL 989256 Contact Us For Availability

7

Retainer, Gasket Top & Bottom WPL 836118 Contact Us For Availability

7

Grommet, Water Inlet WPL 534348 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

Screw, No.8 x 3/8 WPL 488624 Contact Us For Availability

8

Breaker Trim R.S. WPL 836028 Contact Us For Availability

8

Screw (Repair) WPL 487470 Contact Us For Availability

8

Shelf Stud (2) WPL 982642 Contact Us For Availability

9

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

9

Shelf Stud (2) WPL 536475 Contact Us For Availability

9

Breaker Trim L.S. WPL 836032 Contact Us For Availability

9

Strap, Ground WPL 547603 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Breaker Trim Bottom WPL 836026 Contact Us For Availability

Handle, End WPL 982947 Contact Us For Availability

Stud, Support Rear WPL 836412 Contact Us For Availability

Shelf Stud (2) WPL 836423 Contact Us For Availability

Breaker Clip, Wrap WPL 845807 Contact Us For Availability

Screw, 8-32 x 1-1/2 WPL 488684 Contact Us For Availability

Handle, End WPL 982948 Contact Us For Availability

Grommet, Crisper Cover WPL 836409 Contact Us For Availability

Breaker Clip, Line WPL 836090 Contact Us For Availability

Hinge Assembly Top WPL 842039 Contact Us For Availability

Handle, Center WPL 982978 Contact Us For Availability

Breaker, Trim Clip WPL 534365 Contact Us For Availability

Shim, Hinge Top WPL 836151 Contact Us For Availability

Shim Handle WPL 941917 Contact Us For Availability

Screw Anchor (2) WPL 983604 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Breaker, Mullion (Top) WPL 836223 Contact Us For Availability

Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Hinge Cover (New Avocado) WPL 989897 Contact Us For Availability

Shim Handle WPL 941918 Contact Us For Availability

Shelf, Ladder (2) WPL 934267 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

Breaker Trim, R.S. WPL 836027 Contact Us For Availability

Screw, No.8 x 1/4 (2) WPL 488357 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

Screw WPL 488818 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

Breaker Trim, L.S. WPL 836031 Contact Us For Availability

Hinge, Center WPL 836153 Contact Us For Availability

Interior, Door Panel WPL 986896 Contact Us For Availability

Breaker Trim Top Freezer WPL 836078 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Door, Trim (2) WPL 982341 Contact Us For Availability

Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

WP839975 Whirlpool Refrigerator Endcap Trim Backorder WPL WP839975 $3.70

Retainer, Stud (4) WPL 836374 Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

19

Hinge (Bottom) WPL 836686 Contact Us For Availability

19

Door, Butter WPL 983749 Contact Us For Availability

20

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

20

Shim, Hinge Bottom WPL 836196 Contact Us For Availability

20

Insulator Spacer WPL 539760 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Tray, Evaporating WPL 842041 Contact Us For Availability

Light Lens WPL 983910 Contact Us For Availability

Exterior Door Freezer (White) WPL 945781 Contact Us For Availability

Exterior Door Freezer (Coffee) WPL 945782 Contact Us For Availability

Exterior Door Freezer (Golden Harvest) WPL 945783 Contact Us For Availability

Exterior Door Freezer (New Avocado) WPL 945784 Contact Us For Availability

Exterior Door Freezer (Almond) WPL 945785 Contact Us For Availability

Insulator Spacer WPL 836040 Contact Us For Availability

22

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

22

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

22

Tap Plate WPL 836162 Contact Us For Availability

Hole, Plug (White) WPL 835974 Contact Us For Availability

Hole, Plug (Almond) WPL 989193 Contact Us For Availability

Hole Plug (Coffee) WPL 989881 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 989882 Contact Us For Availability

Hole Plug (New Avocado) WPL 989883 Contact Us For Availability

Bracket, Door Stop WPL 944035 Contact Us For Availability

Shelf, Cantilever WPL 936848 Contact Us For Availability

Hole Plug (White) WPL 842031 Contact Us For Availability

Hole Plug (Almond) WPL 989195 Contact Us For Availability

Hole Plug (Coffee) WPL 989875 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 989876 Contact Us For Availability

Hole Plug (New Avocado) WPL 989877 Contact Us For Availability

Retainer Gasket Side WPL 836119 Contact Us For Availability

Cover, Meat Pan WPL 845606 Contact Us For Availability

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

Timer, Container WPL 983079 Contact Us For Availability

Exterior, Grille (White) WPL 944233 Contact Us For Availability

Exterior, Grille (Coffee) WPL 944234 Contact Us For Availability

Exterior, Grille (Golden Harvest) WPL 944235 Contact Us For Availability

Exterior Grille (New Avocado) WPL 944236 Contact Us For Availability

Exterior, Grille (Almond) WPL 944237 Contact Us For Availability

Cover, Pan Slide WPL 836453 Contact Us For Availability

Timer, 8 Hr. WPL 851161 Contact Us For Availability

Bumper, Grille WPL 546131 Contact Us For Availability

Interior Panel Freezer WPL 983155 Contact Us For Availability

Crisper Gasket, Rear WPL 840002 Contact Us For Availability

Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability

Filler, Corner (White) WPL 838535 Contact Us For Availability

Filler, Corner (Coffe WPL 989928 Contact Us For Availability

WPL 989929 WPL 989929 Contact Us For Availability

WPL 989930 WPL 989930 Contact Us For Availability

WPL 989931 WPL 989931 Contact Us For Availability

Escutcheon, Nameplate WPL 945117 Contact Us For Availability

Crisper Gasket, Front WPL 840003 Contact Us For Availability

28

Support, Crisper WPL 848562 Contact Us For Availability

28

WPL 989068 WPL 989068 Contact Us For Availability

29

WP819470 Whirlpool Refrigerator Thermostat Backorder WPL WP819470 $62.70

29

Post, Crisper WPL 836410 Contact Us For Availability

29

Tape Strip WPL 991259 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Trim, Shelf WPL 843707 Contact Us For Availability

Wire, Shelf F.C. WPL 982313 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

Bracket, Thermostat WPL 848446 Contact Us For Availability

Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability

Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Kit, E WPL 484310 Contact Us For Availability

WPL 509929 WPL 509929 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 789011 WPL 789011 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 944196 WPL 944196 Contact Us For Availability

WPL 944197 WPL 944197 Contact Us For Availability

WPL 945759 WPL 945759 Contact Us For Availability

WPL 946551 WPL 946551 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Pan, Crisper WPL 983812 Contact Us For Availability

32

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

32

Knob, Temperature WPL 836482 Contact Us For Availability

32

Overlay Pan WPL 984745 Contact Us For Availability

33

Panel, Control WPL 942214 Contact Us For Availability

33

WPL 531670 WPL 531670 Contact Us For Availability

33

Pan, Meat WPL 987757 Contact Us For Availability

34

WPL 548734 WPL 548734 Contact Us For Availability

34

Overlay Pan WPL 984744 Contact Us For Availability

35

Air Diffuser WPL 836487 Contact Us For Availability

35

WPL 549947 WPL 549947 Contact Us For Availability

35

Hole Plug, Evaporator WPL 659776 Contact Us For Availability

36

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

36

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

36

Receptacle Cap WPL 850738 Contact Us For Availability

37

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

37

WPL 934057 WPL 934057 Contact Us For Availability

38

Damper, Air WPL 836247 Contact Us For Availability

38

WPL 836565 WPL 836565 Contact Us For Availability

38

Fan Cover Motor WPL 836474 Contact Us For Availability

39

Retainer, Damper WPL 836493 Contact Us For Availability

39

WPL 934058 WPL 934058 Contact Us For Availability

39

Gasket, Cover WPL 836475 Contact Us For Availability

40

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

40

WPL 488564 WPL 488564 Contact Us For Availability

41

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

41

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

41

Control Knob WPL 837445 Contact Us For Availability

42

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

42

Knob, Retainer WPL 837444 Contact Us For Availability

42

WPL 836096 WPL 836096 Contact Us For Availability

43

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

43

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

43

Drain Pan WPL 836199 Contact Us For Availability

44

Gasket Pan WPL 843290 Contact Us For Availability

44

WPL 836077 WPL 836077 Contact Us For Availability

44

Gasket, Sealing WPL 935068 Contact Us For Availability

45

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

45

Drain Fitting WPL 841770 Contact Us For Availability

45

Scroll, Fan WPL 935067 Contact Us For Availability

46

Cup, Drain WPL 836095 Contact Us For Availability

46

Cover, Evaporator WPL 986628 Contact Us For Availability

47

WPL 836372 WPL 836372 Contact Us For Availability

47

Gasket Cover WPL 981749 Contact Us For Availability

48

WPL 850459 WPL 850459 Contact Us For Availability

49

Wiring (Ice Maker) WPL 481782 Contact Us For Availability

50

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

50

Stud WPL 526383 Contact Us For Availability

51

WPL 489085 WPL 489085 Contact Us For Availability

52

Clamp WPL 548508 Contact Us For Availability

53

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

54

Condenser & Precooler WPL 851275 Contact Us For Availability

55

Baffle WPL 850764 Contact Us For Availability

56

Bracket, Motor WPL 548695 Contact Us For Availability

57

Fan WPL 989524 Contact Us For Availability

60

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

62

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

63

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

64

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

66

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Pan, Drip WPL 989269 Contact Us For Availability
