Model Whirlpool EHD192XKWR0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
04 - LINER

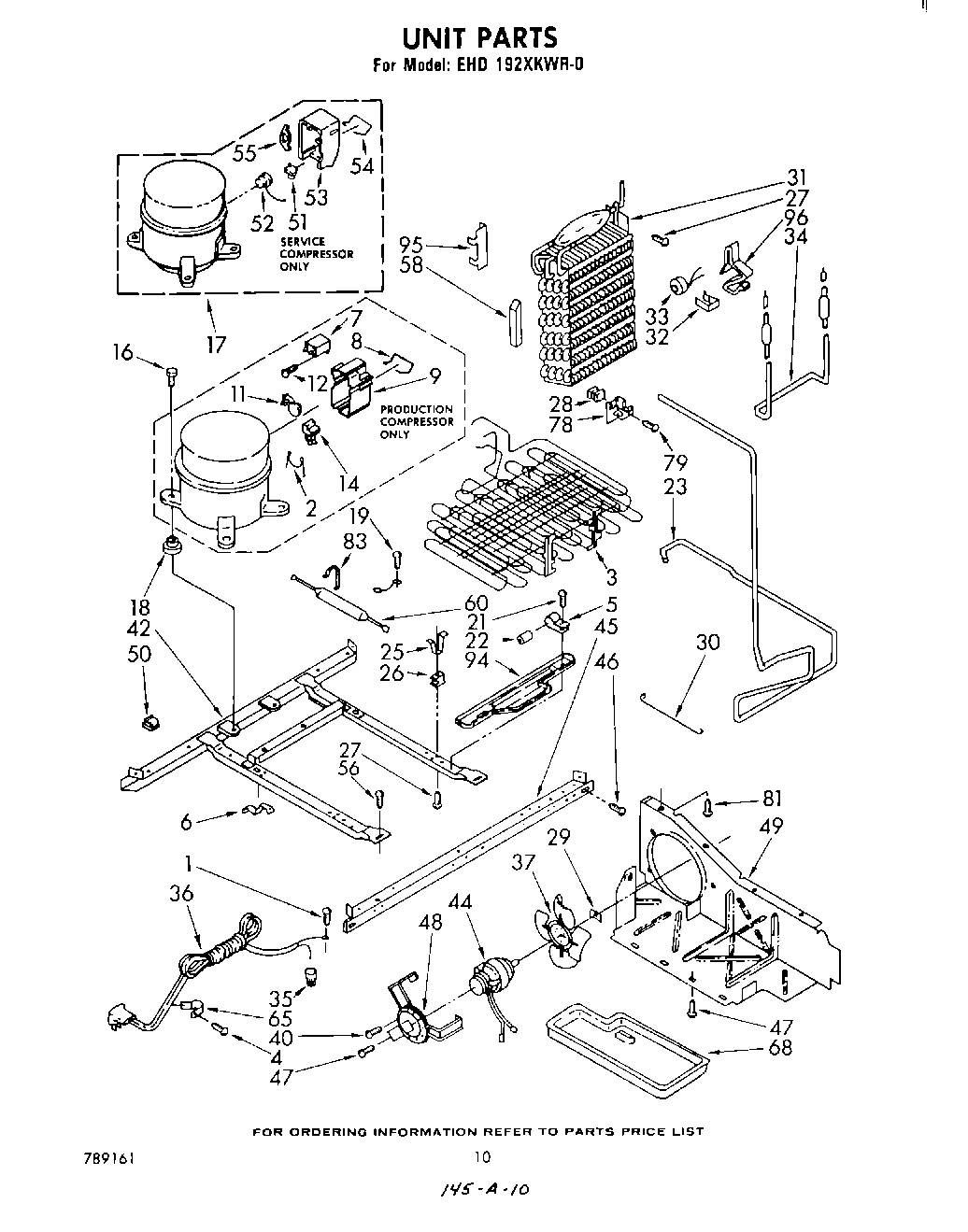

06 - UNIT

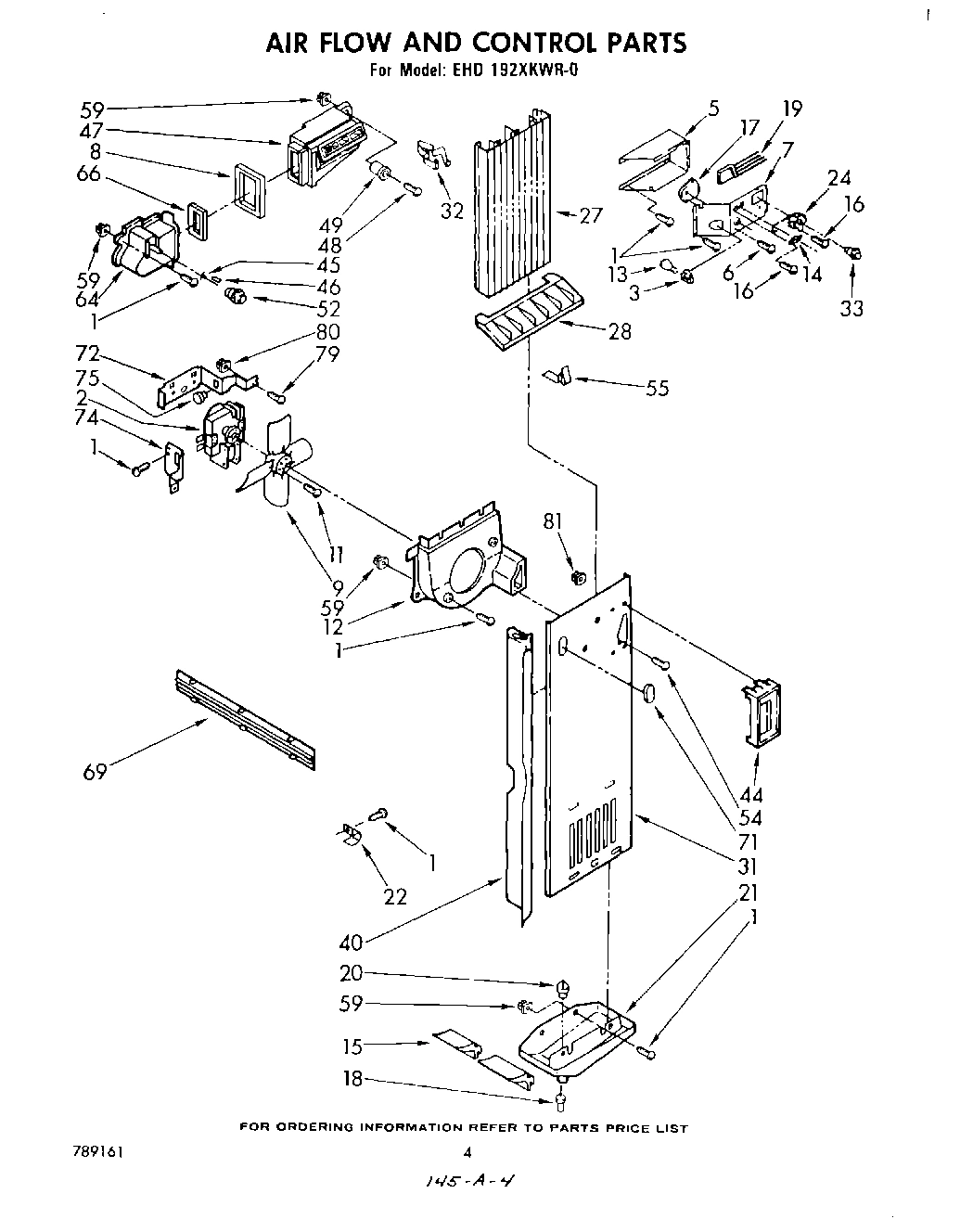

03 - AIR FLOW AND CONTROL

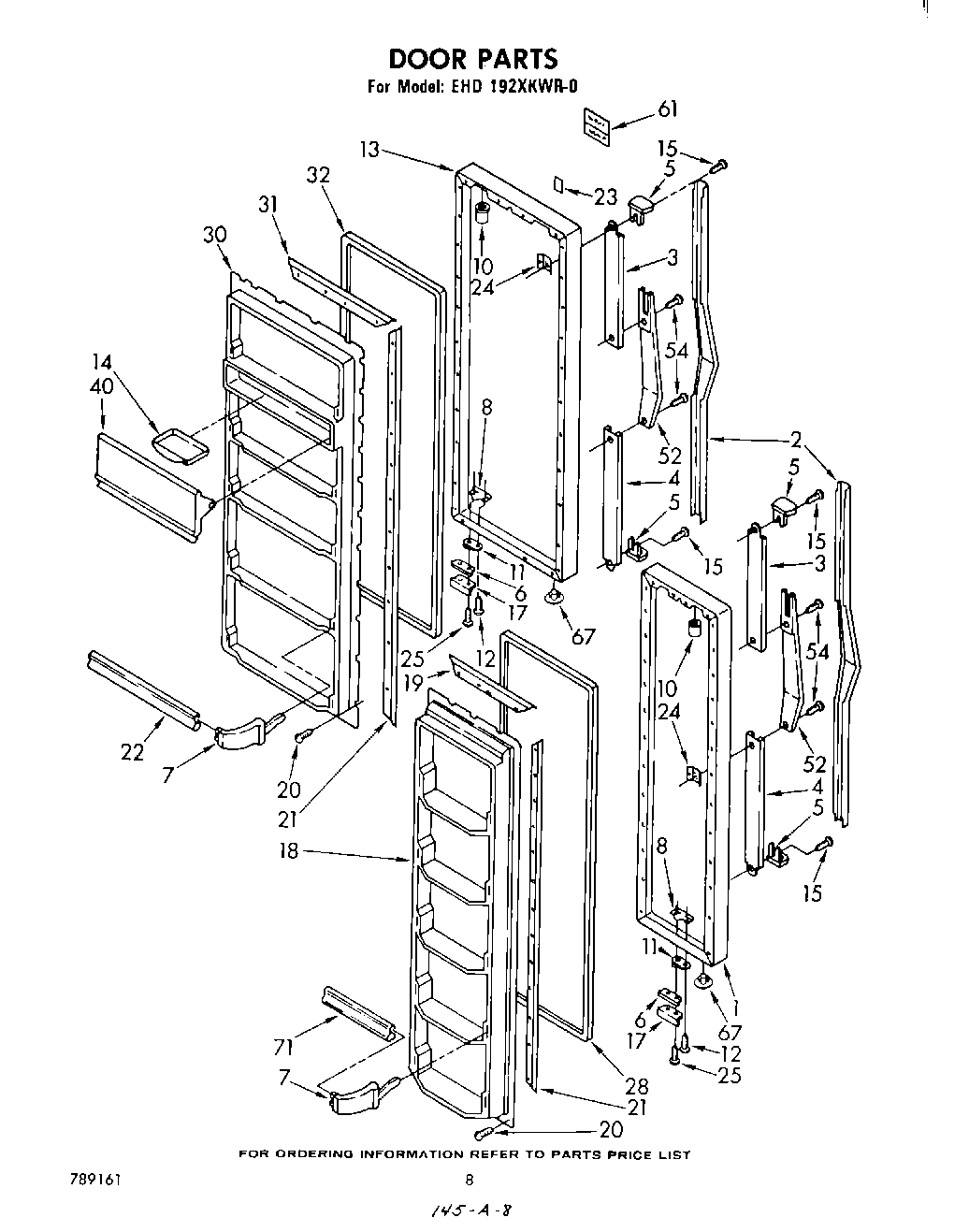

05 - DOOR , LIT/OPTIONAL
Common parts from model Whirlpool EHD192XKWR0 SIDE BY SIDE REFRIGERATOR
1
Screw, Ground WPL 488474 Contact Us For Availability
1
Freezer, Door Panel (Toast) WPL 1100366 Contact Us For Availability
1
Freezer, Door Panel (Platinum) WPL 1100367 Contact Us For Availability
1
Door, Freezer (White) WPL 936639 Contact Us For Availability
1
Door, Freezer (Coffee) WPL 936640 Contact Us For Availability
1
Door, Freezer (Golden Harvest) WPL 936641 Contact Us For Availability
1
Door, Freezer (New Avocado) WPL 936642 Contact Us For Availability
1
Door, Freezer (Almond) WPL 936643 Contact Us For Availability
2
Baffle, Liner Top WPL 836216 Contact Us For Availability
2
Overload Spring WPL 943320 Contact Us For Availability
2
Insert, Handle WPL 848330 Contact Us For Availability
3
Condenser WPL 943480 Contact Us For Availability
3
Retainer, Top WPL 987008 Contact Us For Availability
4
Slide, Freezer Bin (2) WPL 982321 Contact Us For Availability
4
Retainer, Bottom WPL 987010 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
5
Box, Control WPL 984550 Contact Us For Availability
5
Cap, Handle (2) WPL 987006 Contact Us For Availability
6
Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability
6
Support, Light Lens (L.S.) (2) WPL 842356 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
7
Stud, Shelf (4) WPL 536475 Contact Us For Availability
7
Front, Control Box WPL 934045 Contact Us For Availability
8
Overlay, Pan WPL 988255 Contact Us For Availability
8
Strap, Cover WPL 943322 Contact Us For Availability
8
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
8
Tap Plate, Door Closer WPL 988402 Contact Us For Availability
9
Grommet (2) WPL 533881 Contact Us For Availability
9
Cover WPL 943321 Contact Us For Availability
9
Blade, Fan WPL 839859 Contact Us For Availability
10
Clip, Tubular (6) WPL 843945 Contact Us For Availability
10
Cap, Hinge (2) WPL 509929 Contact Us For Availability
11
Support, Shelf (2) WPL 210518 Contact Us For Availability
11
Overload WPL 945585 Contact Us For Availability
12
Screw, 8 x 1 WPL 487979 Contact Us For Availability
12
Scroll Fan WPL 991285 Contact Us For Availability
13
Plug, Hole (5) WPL 519890 Contact Us For Availability
13
Refrigerator, Door Panel (Toast) WPL 1100364 Contact Us For Availability
13
Refrigerator, Door Panel (Platinum) WPL 1100365 Contact Us For Availability
13
Door, Refrigerator (White) WPL 936632 Contact Us For Availability
13
Door, Refrigerator (Coffee) WPL 936633 Contact Us For Availability
13
Door, Refrigerator (Golden Harvest) WPL 936634 Contact Us For Availability
13
Door, Refrigerator (New Avocado) WPL 936635 Contact Us For Availability
13
Door, Refrigerator (Almond) WPL 936636 Contact Us For Availability
14
Plug, Hole (2) WPL 659598 Contact Us For Availability
14
Relay WPL 945507 Contact Us For Availability
15
Stud, Shelf (3) WPL 521878 Contact Us For Availability
15
Gasket, Drain Pan WPL 845564 Contact Us For Availability
15
Screw, 10-32 x 5/8 WPL 488928 Contact Us For Availability
16
Support, Light Lens (R.S.) WPL 984552 Contact Us For Availability
17
Timer, Defrost (10 Hr.) WPL 943435 Contact Us For Availability
17
Bracket, Door Stop WPL 988420 Contact Us For Availability
18
Fitting, Drain WPL 841770 Contact Us For Availability
18
Panel, Interior WPL 937457 Contact Us For Availability
19
Trim, Shelf Front WPL 935337 Contact Us For Availability
19
Wiring Cabinet (Defrost Timer) WPL 481782 Contact Us For Availability
19
Retainer, Top & Bottom (2) WPL 836122 Contact Us For Availability
20
Shelf, Ice Pan (2) WPL 992343 Contact Us For Availability
20
Cap, Drain WPL 842259 Contact Us For Availability
21
Trim, Shelf Front WPL 849263 Contact Us For Availability
21
Pan, Drain WPL 842404 Contact Us For Availability
21
Retainer, Side Gasket (2) WPL 836120 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
22
Clamp, Tube WPL 836077 Contact Us For Availability
22
Trim, Shelf (5) WPL 985494 Contact Us For Availability
23
Exchanger, Heat WPL 945503 Contact Us For Availability
23
Tape WPL 991259 Contact Us For Availability
24
Stud, Saddle (R.S.) (2) WPL 523263 Contact Us For Availability
24
Stud, Saddle (L.S.) (2) WPL 523264 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
25
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
25
Screw (Repair) WPL 488930 Contact Us For Availability
26
Grommet WPL 943447 Contact Us For Availability
27
Duct, Air WPL 842399 Contact Us For Availability
28
Grommet WPL 944454 Contact Us For Availability
28
Cover, End Cap WPL 836144 Contact Us For Availability
29
Stud, Shelf (8) WPL 529758 Contact Us For Availability
30
Screw, 8-32 x 1-1/4 (2) WPL 488960 Contact Us For Availability
30
Screw (Repair) WPL 488980 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
30
Panel, Interior WPL 981428 Contact Us For Availability
31
Shim, Hinge (Bottom) (Repair) (.030) WPL 836196 Contact Us For Availability
31
Evaporator WPL 945577 Contact Us For Availability
31
Cover, Evaporator WPL 984466 Contact Us For Availability
31
Retainer, Top & Bottom Gasket (2) WPL 836121 Contact Us For Availability
32
Stud, Shelf (2) WPL 845986 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
33
Stud, Retainer (2) WPL 512900 Contact Us For Availability
33
Knob, Thermostat WPL 836482 Contact Us For Availability
34
Hinge, Butt R.H. WPL 986763 Contact Us For Availability
34
Hinge, Butt L.H. WPL 986764 Contact Us For Availability
35
Bumper (2) WPL 546131 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability
36
Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability
36
Grille, Exterior (White) WPL 944233 Contact Us For Availability
36
Grille, Exterior (Coffee) WPL 944234 Contact Us For Availability
36
Grille, Exterior (Golden Harvest) WPL 944235 Contact Us For Availability
36
Grille, Exterior (New Avocado) WPL 944236 Contact Us For Availability
36
Grille, Exterior (Almond) WPL 944237 Contact Us For Availability
36
Cord, Service WPL 850626 Contact Us For Availability
37
Div WPL 985463 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
40
Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability
40
Gasket (2) WPL 841606 Contact Us For Availability
40
Door, Compartment WPL 985459 Contact Us For Availability
41
WPL 851020 WPL 851020 Contact Us For Availability
42
WPL 488913 WPL 488913 Contact Us For Availability
42
Frame WPL 945457 Contact Us For Availability
43
WPL 548734 WPL 548734 Contact Us For Availability
44
WPL 842435 WPL 842435 Contact Us For Availability
44
Grille WPL 835740 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
45
Retainer, Damper WPL 938439 Contact Us For Availability
46
WPL 843334 WPL 843334 Contact Us For Availability
46
Stud, Shelf (2) WPL 652675 Contact Us For Availability
46
Knob, Retainer WPL 837444 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
Air Diffuser Assembly WPL 946145 Contact Us For Availability
48
WPL 836174 WPL 836174 Contact Us For Availability
48
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
WPL 836108 WPL 836108 Contact Us For Availability
49
Baffle, Air WPL 850764 Contact Us For Availability
50
WPL 836447 WPL 836447 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
51
WPL 843888 WPL 843888 Contact Us For Availability
51
Relay WPL 549500 Contact Us For Availability
52
WPL 836213 WPL 836213 Contact Us For Availability
52
Lens, Refrigerator Light WPL 943218 Contact Us For Availability
52
Overload WPL 936073 Contact Us For Availability
52
Knob, Temperature Control (Includes Illus. 46 WPL 837445 Contact Us For Availability
52
Handle WPL 987009 Contact Us For Availability
53
WPL 843335 WPL 843335 Contact Us For Availability
53
Terminal Cover WPL 549336 Contact Us For Availability
54
WPL 843887 WPL 843887 Contact Us For Availability
54
Gasket, Crisper (Rear) WPL 987420 Contact Us For Availability
54
Terminal Strap WPL 549342 Contact Us For Availability
55
WPL 836090 WPL 836090 Contact Us For Availability
55
Spring, Overload WPL 549086 Contact Us For Availability
55
Baffle, Air WPL 987954 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
57
WPL 836446 WPL 836446 Contact Us For Availability
57
Pan, Crisper WPL 983814 Contact Us For Availability
58
WPL ARI39349A9 WPL ARI39349A9 Contact Us For Availability
58
Gasket, crisper (Front) WPL 987419 Contact Us For Availability
58
Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability
59
WPL 842178 WPL 842178 Contact Us For Availability
59
Grommet WPL 842339 Contact Us For Availability
60
WPL 851874 WPL 851874 Contact Us For Availability
61
Nameplate Assembly WPL 945120 Contact Us For Availability
64
Scoop, Air WPL 841269 Contact Us For Availability
66
Gasket Scoop WPL 844871 Contact Us For Availability
67
Plug, Hole (2) WPL 534927 Contact Us For Availability
68
Tray, Evaporating WPL 842041 Contact Us For Availability
69
Cover, Exchanger WPL 836514 Contact Us For Availability
70
Slide & Cover WPL 991760 Contact Us For Availability
71
WPL 876029 WPL 876029 Contact Us For Availability
71
WPL 479502 WPL 479502 Contact Us For Availability
71
WPL 799344 WPL 799344 Contact Us For Availability
71
Slide & Cover WPL 983817 Contact Us For Availability
71
Plug, Hole WPL 659776 Contact Us For Availability
71
Energy Label WPL 1100053 Contact Us For Availability
71
Consumer Buy Guide WPL 1100055 Contact Us For Availability
71
Ename WPL 261886 Contact Us For Availability
71
WPL 261887 WPL 261887 Contact Us For Availability
71
WPL 261888 WPL 261888 Contact Us For Availability
71
WPL 261889 WPL 261889 Contact Us For Availability
71
WPL 261890 WPL 261890 Contact Us For Availability
71
WPL 261891 WPL 261891 Contact Us For Availability
71
WPL 350941 WPL 350941 Contact Us For Availability
71
WPL 484310 WPL 484310 Contact Us For Availability
71
WPL 542639 WPL 542639 Contact Us For Availability
71
WPL 72108 WPL 72108 Contact Us For Availability
71
WPL 789161 WPL 789161 Contact Us For Availability
71
WPL 799340 WPL 799340 Contact Us For Availability
71
WPL 799351 WPL 799351 Contact Us For Availability
71
WPL 799832 WPL 799832 Contact Us For Availability
71
WPL 799908 WPL 799908 Contact Us For Availability
71
WPL 935361 WPL 935361 Contact Us For Availability
71
WPL 944001 WPL 944001 Contact Us For Availability
71
WPL 945511 WPL 945511 Contact Us For Availability
71
WPL 978883 WPL 978883 Contact Us For Availability
72
Bracket (Single) WPL 548264 Contact Us For Availability
73
Pan, Meat WPL 983811 Contact Us For Availability
74
Bracket (Double) WPL 548263 Contact Us For Availability
75
Grommet (3) WPL 548268 Contact Us For Availability
76
Shelf (2) WPL 992342 Contact Us For Availability
78
Grommet (4) WPL 512923 Contact Us For Availability
78
Support, Evaporator WPL 842436 Contact Us For Availability
79
Ladder (2) WPL 934264 Contact Us For Availability
80
Grommet (2) WPL 538449 Contact Us For Availability
81
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
81
Grommet WPL 848445 Contact Us For Availability
83
Stud, Shelf WPL 658944 Contact Us For Availability
83
Clamp, Drier WPL 548508 Contact Us For Availability
84
Screw, 8-15 x 1-1/4 WPL 487559 Contact Us For Availability
86
Lens, Freezer Light WPL 985456 Contact Us For Availability
88
WPL 987179 WPL 987179 Contact Us For Availability
90
Bin, Freezer WPL 985469 Contact Us For Availability
92
Shelf, Solid WPL 837202 Contact Us For Availability
93
WPL 488949 WPL 488949 Contact Us For Availability
93
Trim, Shelf WPL 841025 Contact Us For Availability
94
Shelf, Cantilever (4) WPL 935316 Contact Us For Availability
94
Pan, Drip WPL 945572 Contact Us For Availability
95
WPL 981127 WPL 981127 Contact Us For Availability
95
Shield, Heat (2) WPL 549435 Contact Us For Availability
96
WPL 978029 WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 549419 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
99
WPL 841648 WPL 841648 Contact Us For Availability
101
WPL 850457 WPL 850457 Contact Us For Availability
103
WPL 836079 WPL 836079 Contact Us For Availability
104
WPL 836080 WPL 836080 Contact Us For Availability
105
WPL 488280 WPL 488280 Contact Us For Availability
110
WPL 836372 WPL 836372 Contact Us For Availability
131
WPL 1100172 WPL 1100172 Contact Us For Availability
131
WPL 989895 WPL 989895 Contact Us For Availability
131
WPL 989896 WPL 989896 Contact Us For Availability
131
WPL 989897 WPL 989897 Contact Us For Availability
134
WPL 984102 WPL 984102 Contact Us For Availability
135
WPL 985468 WPL 985468 Contact Us For Availability
136
WPL 486214 WPL 486214 Contact Us For Availability
× ![]()
