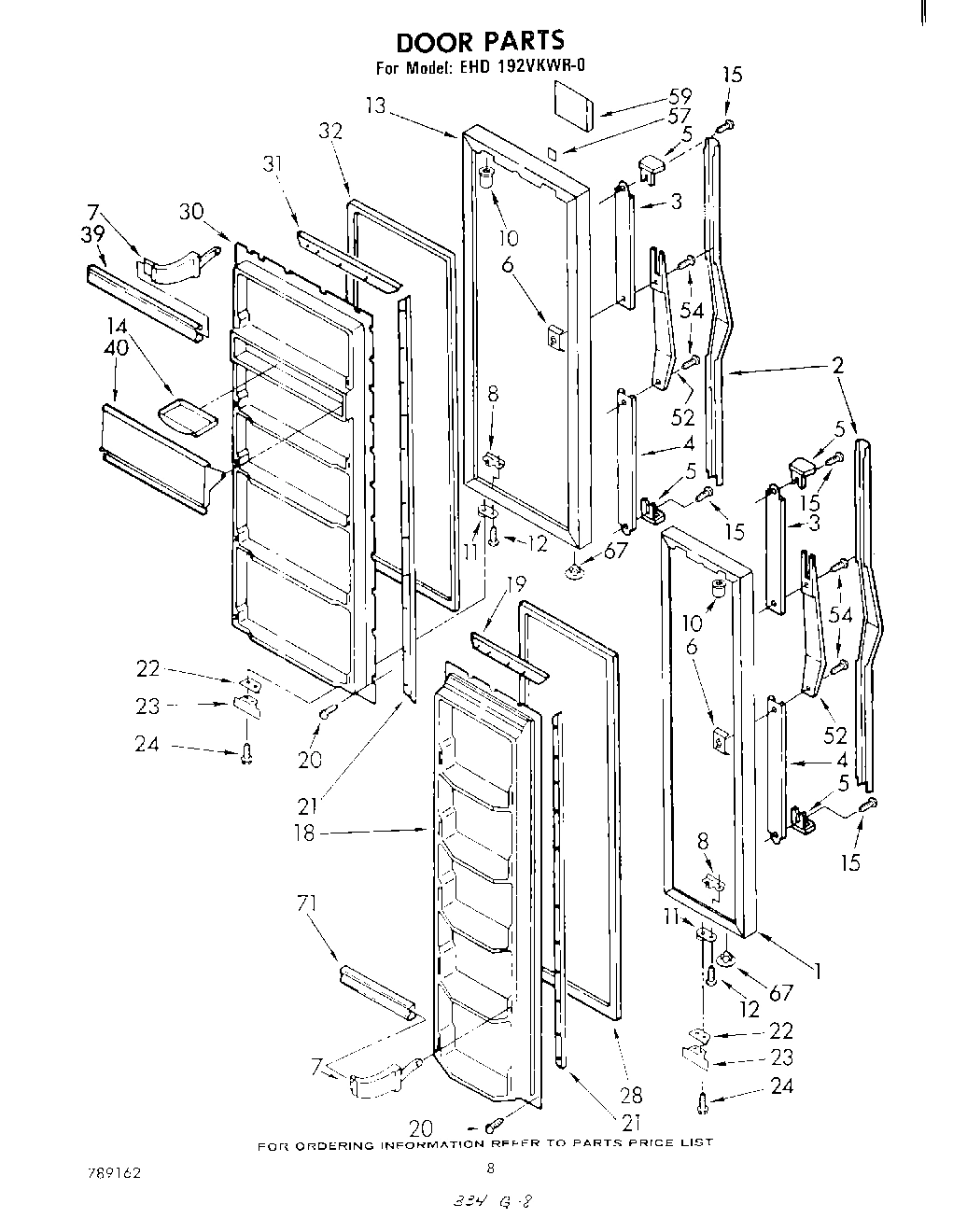

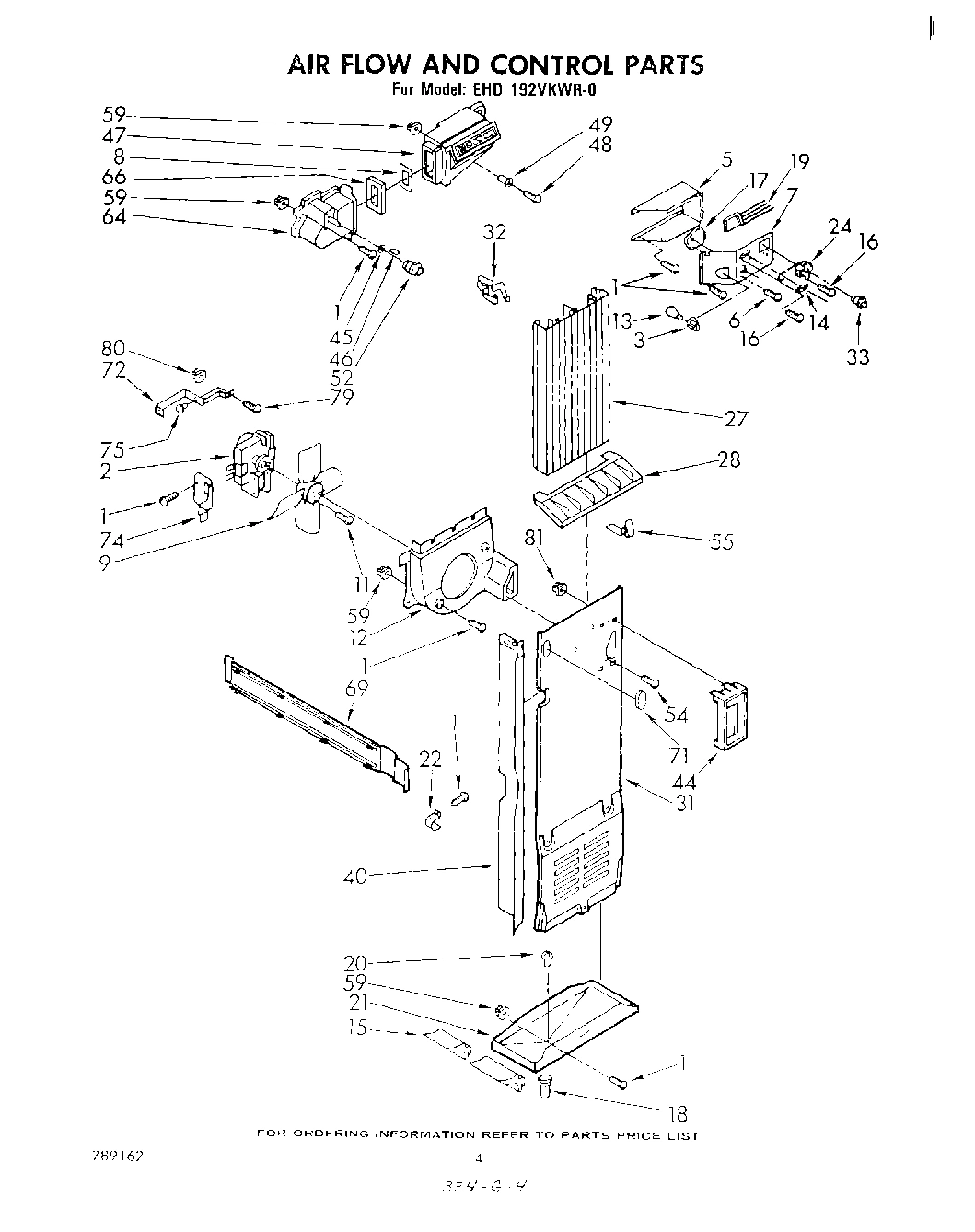

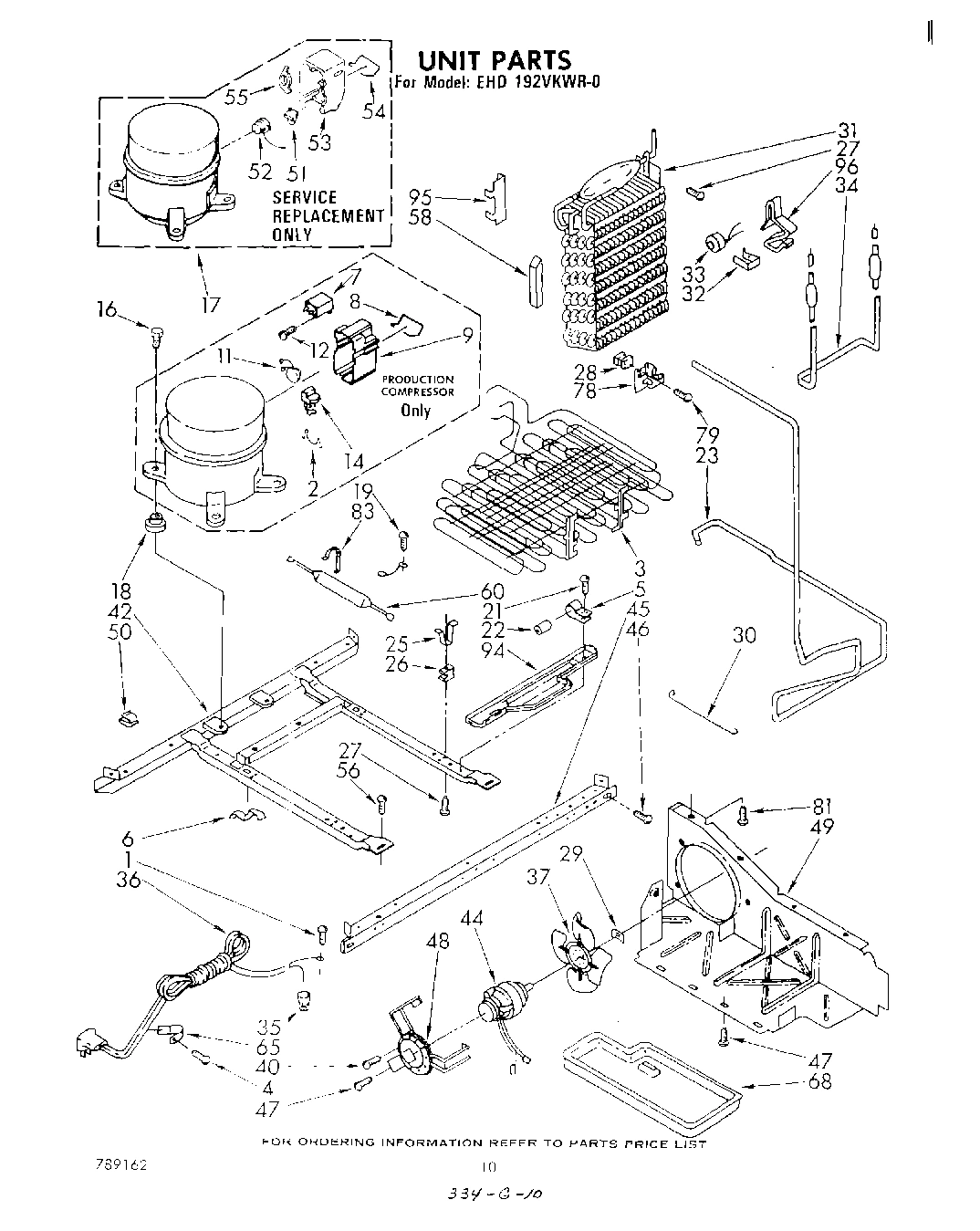

Model Whirlpool EHD192VKWR0 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

Cabinet (Not A Serviceable Part) WPL ARI39344A8 Contact Us For Availability

1

Freezer, Door Panel (Toast) WPL 1100366 Contact Us For Availability

1

Freezer, Door Panel (Platinum) WPL 1100367 Contact Us For Availability

1

Door, Freezer (White) WPL 936639 Contact Us For Availability

1

Door, Freezer (Coffee) WPL 936640 Contact Us For Availability

1

Door, Freezer (Golden Harvest) WPL 936641 Contact Us For Availability

1

Door, Freezer (New Avocado) WPL 936642 Contact Us For Availability

1

Door, Freezer (Almond) WPL 936643 Contact Us For Availability

1

Screw, Ground WPL 488474 Contact Us For Availability

2

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $84.04

2

Clip, Heater (2) WPL 510291 Contact Us For Availability

2

Insert, Handle (Toast) WPL 1101293 Contact Us For Availability

2

Insert, Handle (Platinum) WPL 1101294 Contact Us For Availability

2

Insert, Handle (White, Coffee, & Almond) WPL 845888 Contact Us For Availability

2

Insert, Handle (New Avocado) WPL 845889 Contact Us For Availability

2

Insert, Handle (Golden Harvest) WPL 845890 Contact Us For Availability

2

Overload Spring WPL 943320 Contact Us For Availability

3

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

3

Wiring, Liner (Ice Maker) WPL 481658 Contact Us For Availability

3

Retainer, Top WPL 987008 Contact Us For Availability

3

Condenser WPL 943480 Contact Us For Availability

4

Retainer, Bottom WPL 987010 Contact Us For Availability

5

Cap, Receptacle WPL 850738 Contact Us For Availability

5

Cap, Handle (2) WPL 987006 Contact Us For Availability

5

Clamp (2) WPL 510716 Contact Us For Availability

5

Box, Control WPL 984550 Contact Us For Availability

6

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

6

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

6

Pad, Foam WPL 992358 Contact Us For Availability

6

Clip (2) WPL 548744 Contact Us For Availability

7

WP849996 Whirlpool Refrigerator Endcap Trim In Stock WPL WP849996 $3.70

7

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

7

Stud, Shelf (4) WPL 536475 Contact Us For Availability

7

Plate, Tap (2) WPL 836162 Contact Us For Availability

7

Front, Control Box WPL 934045 Contact Us For Availability

8

Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability

8

Tap Plate, Door Closer WPL 988402 Contact Us For Availability

8

Strap, Cover WPL 943322 Contact Us For Availability

8

Gasket, Air Diffuser WPL 842394 Contact Us For Availability

9

Clip, Stile Heater (6) WPL 935663 Contact Us For Availability

9

Cover WPL 943321 Contact Us For Availability

9

Blade, Fan WPL 839859 Contact Us For Availability

10

Cap, Hinge (2) WPL 509929 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Extension Fitting WPL 841646 Contact Us For Availability

Overload WPL 945585 Contact Us For Availability

12

Scroll Fan WPL 991285 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Heater, Stile WPL 934447 Contact Us For Availability

Refrigerator, Door Panel (Toast) WPL 1100364 Contact Us For Availability

Refrigerator, Door Panel (Platinum) WPL 1100365 Contact Us For Availability

Door, Refrigerator (White) WPL 936632 Contact Us For Availability

Door, Refrigerator (Coffee) WPL 936633 Contact Us For Availability

Door, Refrigerator (Golden Harvest) WPL 936634 Contact Us For Availability

Door, Refrigerator (New Avocado) WPL 936635 Contact Us For Availability

Door, Refrigerator (Almond) WPL 936636 Contact Us For Availability

14

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

14

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

14

Relay WPL 945507 Contact Us For Availability

15

Screw, 10-32 x 5/8 WPL 488928 Contact Us For Availability

15

Gasket, Drain Pan WPL 845564 Contact Us For Availability

16

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

17

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $276.71

17

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

17

Timer, Defrost (10 Hr.) WPL 943435 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

Panel, Interior (For Platinum Model Only) WPL 937457 Contact Us For Availability

Panel, Interior WPL 943828 Contact Us For Availability

Fitting, Drain WPL 841770 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

Retainer, Top & Bottom (2) WPL 836122 Contact Us For Availability

Wiring Cabinet (Defrost Timer) WPL 481782 Contact Us For Availability

20

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

20

Cap, Drain WPL 842259 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Fitting, Water Tube WPL 653113 Contact Us For Availability

Retainer, Side Gasket (2) WPL 836120 Contact Us For Availability

Pan, Drain WPL 842404 Contact Us For Availability

Center Rail & Bracket Assembly (Toast) WPL 1100362 Contact Us For Availability

Center Rail & Bracket Assembly (Platinum) WPL 1100363 Contact Us For Availability

Center Rail & Bracket Assembly (White) WPL 985979 Contact Us For Availability

Center Rail & Bracket Assembly (Coffee) WPL 989924 Contact Us For Availability

Center Rail & Bracket Assembly (Golden Harves WPL 989925 Contact Us For Availability

Center Rail & Bracket Assembly (New Avocado) WPL 989926 Contact Us For Availability

Center Rail & Bracket Assembly (Almond) WPL 989927 Contact Us For Availability

Shim WPL 988421 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Clamp, Tube WPL 836077 Contact Us For Availability

23

Box, Junction WPL 549947 Contact Us For Availability

23

Bracket, Door Stop WPL 988420 Contact Us For Availability

23

Exchanger, Heat WPL 945503 Contact Us For Availability

24

WP4317800 Whirlpool Refrigerator Thermostat In Stock WPL WP4317800 $113.21

24

Screw, 8 x 5/8 WPL 488549 Contact Us For Availability

25

Clamp (4) WPL 548738 Contact Us For Availability

26

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

26

Grommet WPL 943447 Contact Us For Availability

27

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

27

Duct, Air WPL 842399 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $132.43

Drain Fitting WPL 836068 Contact Us For Availability

Grommet WPL 944454 Contact Us For Availability

Cover, End Cap WPL 836144 Contact Us For Availability

29

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

29

Hinge, Top WPL 842039 Contact Us For Availability

Shim, Hinge Top WPL 836192 Contact Us For Availability

P WPL 943827 Contact Us For Availability

WPL 981428 WPL 981428 Contact Us For Availability

Guard, Fan WPL 850156 Contact Us For Availability

Shim, Hinge (Bottom) (Repair) (.030) WPL 836196 Contact Us For Availability

WPL 836121 WPL 836121 Contact Us For Availability

Evaporator WPL 945577 Contact Us For Availability

Cover, Evaporator WPL 984466 Contact Us For Availability

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $119.63

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

Screw, 8-22 x 5/16 WPL 489085 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

33

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

33

Clip, Grille WPL 989068 Contact Us For Availability

33

Knob, Thermostat WPL 836482 Contact Us For Availability

34

WP549433 Whirlpool Refrigerator Heater Backorder WPL WP549433 $70.25

34

Hinge, Butt R.H. WPL 986763 Contact Us For Availability

34

Hinge, Butt L.H. WPL 986764 Contact Us For Availability

35

Bumper (2) WPL 546131 Contact Us For Availability

35

Wire Connector WPL 227991 Contact Us For Availability

Exterior, Grille (Toast) WPL 1100307 Contact Us For Availability

Exterior, Grille (Platinum) WPL 1100308 Contact Us For Availability

Grille, Exterior (White) WPL 944233 Contact Us For Availability

Grille, Exterior (Coffee) WPL 944234 Contact Us For Availability

Grille, Exterior (Golden Harvest) WPL 944235 Contact Us For Availability

Grille, Exterior (New Avocado) WPL 944236 Contact Us For Availability

Grille, Exterior (Almond) WPL 944237 Contact Us For Availability

Cord, Service WPL 850626 Contact Us For Availability

37

Blade, Fan WPL 989524 Contact Us For Availability

38

Divider Mullion WPL 985463 Contact Us For Availability

39

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

39

WPL 849806 WPL 849806 Contact Us For Availability

40

WPL 935322 WPL 935322 Contact Us For Availability

40

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

40

Gasket (2) WPL 841606 Contact Us For Availability

41

WPL 851020 WPL 851020 Contact Us For Availability

42

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

42

WPL 488913 WPL 488913 Contact Us For Availability

42

Frame WPL 945457 Contact Us For Availability

43

WPL 548734 WPL 548734 Contact Us For Availability

44

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

WPL 842435 WPL 842435 Contact Us For Availability

44

Grille WPL 835740 Contact Us For Availability

45

WPL 849479 WPL 849479 Contact Us For Availability

45

Rail, Front WPL 548662 Contact Us For Availability

45

Retainer, Damper WPL 938439 Contact Us For Availability

46

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

46

WPL 843334 WPL 843334 Contact Us For Availability

46

Knob, Retainer WPL 837444 Contact Us For Availability

47

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

47

Air Diffuser Assembly WPL 946145 Contact Us For Availability

48

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

48

WPL 836174 WPL 836174 Contact Us For Availability

48

Bracket, Fan Motor WPL 548695 Contact Us For Availability

49

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

49

WPL 836108 WPL 836108 Contact Us For Availability

49

Baffle, Air WPL 850764 Contact Us For Availability

50

WPL 836447 WPL 836447 Contact Us For Availability

50

Clip, Wire (2) WPL 548745 Contact Us For Availability

51

WPL 843888 WPL 843888 Contact Us For Availability

51

Relay WPL 549500 Contact Us For Availability

Lens, Refrigerator Light WPL 943218 Contact Us For Availability

WPL 836213 WPL 836213 Contact Us For Availability

WPL 987009 WPL 987009 Contact Us For Availability

Overload WPL 936073 Contact Us For Availability

Knob, Temperature Control (Includes Illus. 46 WPL 837445 Contact Us For Availability

53

WPL 843335 WPL 843335 Contact Us For Availability

53

Terminal Cover WPL 549336 Contact Us For Availability

54

Gasket, Crisper (Rear) WPL 987420 Contact Us For Availability

54

WPL 843887 WPL 843887 Contact Us For Availability

54

Terminal Strap WPL 549342 Contact Us For Availability

55

WPL 836090 WPL 836090 Contact Us For Availability

55

Spring, Overload WPL 549086 Contact Us For Availability

55

Baffle, Air WPL 987954 Contact Us For Availability

56

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

Pan, Crisper (For Platinum Model Only) WPL 1100370 Contact Us For Availability

Pan, Crisper WPL 935313 Contact Us For Availability

WPL 836446 WPL 836446 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

58

Gasket, crisper (Front) WPL 987419 Contact Us For Availability

58

WPL ARI39345A7 WPL ARI39345A7 Contact Us For Availability

58

Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability

Slide & Cover Meat Pan (Almond) WPL 945338 Contact Us For Availability

Slide & Cover Meat Pan (For Platinum Model On WPL 983817 Contact Us For Availability

WPL 842178 WPL 842178 Contact Us For Availability

Grommet WPL 842339 Contact Us For Availability

WPL 945121 WPL 945121 Contact Us For Availability

60

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

60

WPL 851874 WPL 851874 Contact Us For Availability

64

Scoop, Air WPL 841269 Contact Us For Availability

65

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

66

Gasket Scoop WPL 844871 Contact Us For Availability

67

WPL 534927 WPL 534927 Contact Us For Availability

68

Tray, Evaporating WPL 842041 Contact Us For Availability

69

Cover, Exhanger WPL 836514 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

Slide & Cover, Crisper Pan (Light Smoke) WPL 936584 Contact Us For Availability

WPL 1100052 WPL 1100052 Contact Us For Availability

WPL 1100053 WPL 1100053 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 484310 WPL 484310 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 789162 WPL 789162 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 936844 WPL 936844 Contact Us For Availability

WPL 944001 WPL 944001 Contact Us For Availability

WPL 945511 WPL 945511 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Plug, Hole WPL 659776 Contact Us For Availability

72

Bracket (Single) WPL 548264 Contact Us For Availability

73

Meat, Pan (For Platinum Model Only) WPL 1101297 Contact Us For Availability

73

Pan, Meat WPL 935315 Contact Us For Availability

74

Bracket (Double) WPL 548263 Contact Us For Availability

75

Grommet (3) WPL 548268 Contact Us For Availability

76

Shelf (2) WPL 992342 Contact Us For Availability

78

Anchor (4) WPL 983604 Contact Us For Availability

78

Support, Evaporator WPL 842436 Contact Us For Availability

79

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

79

Ladder (2) WPL 934264 Contact Us For Availability

80

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

80

Grommet (2) WPL 538449 Contact Us For Availability

81

Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability

81

Grommet WPL 848445 Contact Us For Availability

83

Stud, Shelf WPL 658944 Contact Us For Availability

83

Clamp, Drier WPL 548508 Contact Us For Availability

84

Screw, 8-15 x 1-1/4 WPL 487559 Contact Us For Availability

86

Lens, Freezer Light WPL 985456 Contact Us For Availability

88

WPL 987179 WPL 987179 Contact Us For Availability

90

Bin, Freezer (For Platinum Model WPL 1100373 Contact Us For Availability

90

WPL 935319 WPL 935319 Contact Us For Availability

91

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

92

WPL 837202 WPL 837202 Contact Us For Availability

92

WPL 935318 WPL 935318 Contact Us For Availability

93

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

93

WPL 841025 WPL 841025 Contact Us For Availability

93

WPL 488949 WPL 488949 Contact Us For Availability

94

WPL 936796 WPL 936796 Contact Us For Availability

94

Pan, Drip WPL 945572 Contact Us For Availability

95

WPL 981127 WPL 981127 Contact Us For Availability

95

Shield, Heat (2) WPL 549435 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clamp (4) WPL 549419 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

99

WPL 841648 WPL 841648 Contact Us For Availability

101

WPL 850457 WPL 850457 Contact Us For Availability

103

WPL 836079 WPL 836079 Contact Us For Availability

104

WPL 836080 WPL 836080 Contact Us For Availability

105

WPL 488280 WPL 488280 Contact Us For Availability

110

WPL 836372 WPL 836372 Contact Us For Availability

111

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

115

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WPL 1100172 WPL 1100172 Contact Us For Availability

WPL 989895 WPL 989895 Contact Us For Availability

WPL 989896 WPL 989896 Contact Us For Availability

WPL 989897 WPL 989897 Contact Us For Availability

134

WPL 984102 WPL 984102 Contact Us For Availability

135

WPL 985468 WPL 985468 Contact Us For Availability

136

WPL 486214 WPL 486214 Contact Us For Availability
