Model Whirlpool EHD191ZKWR0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
07 - CABINET
03 - AIR FLOW AND CONTROL , PARTS NOT IL

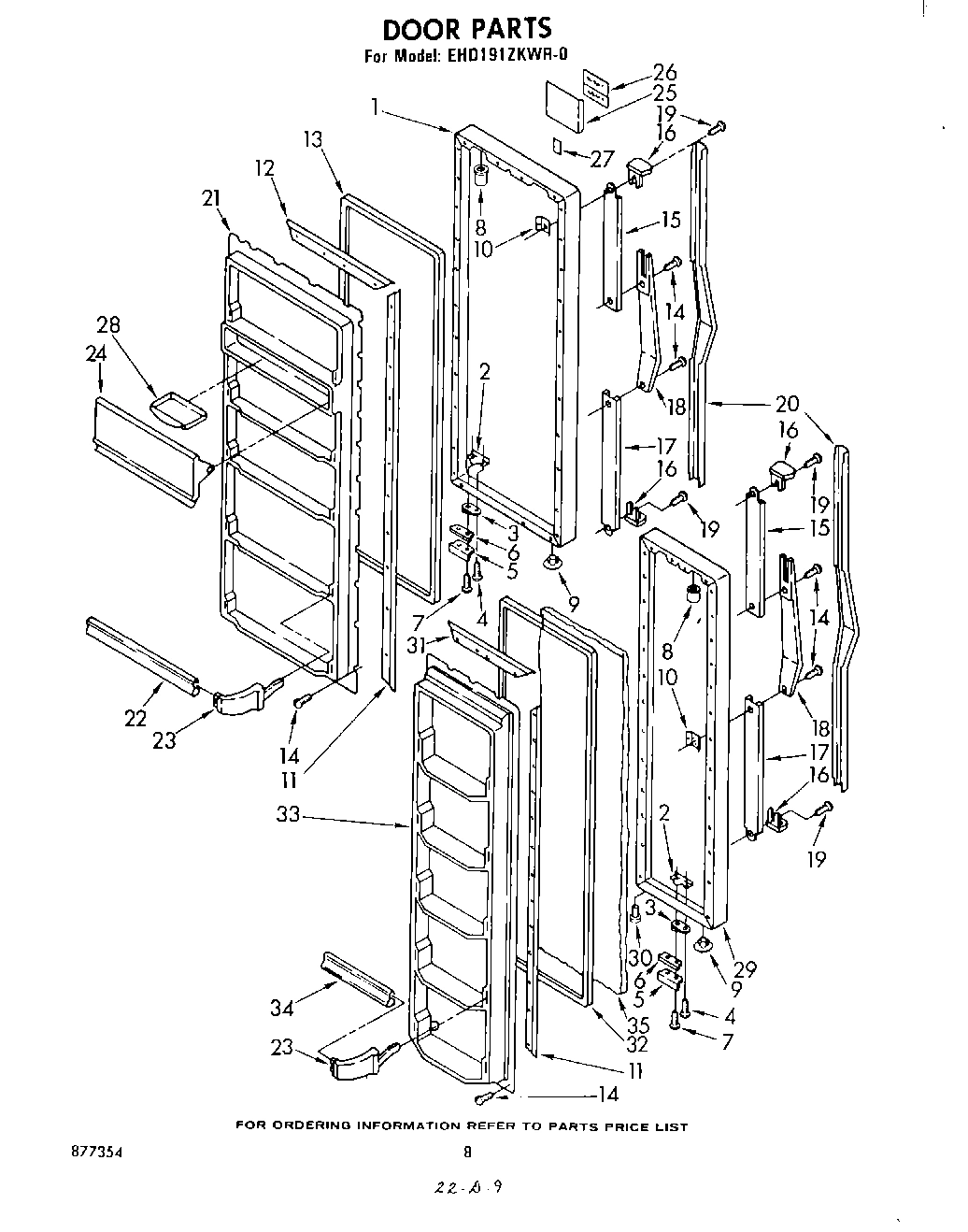

05 - DOOR

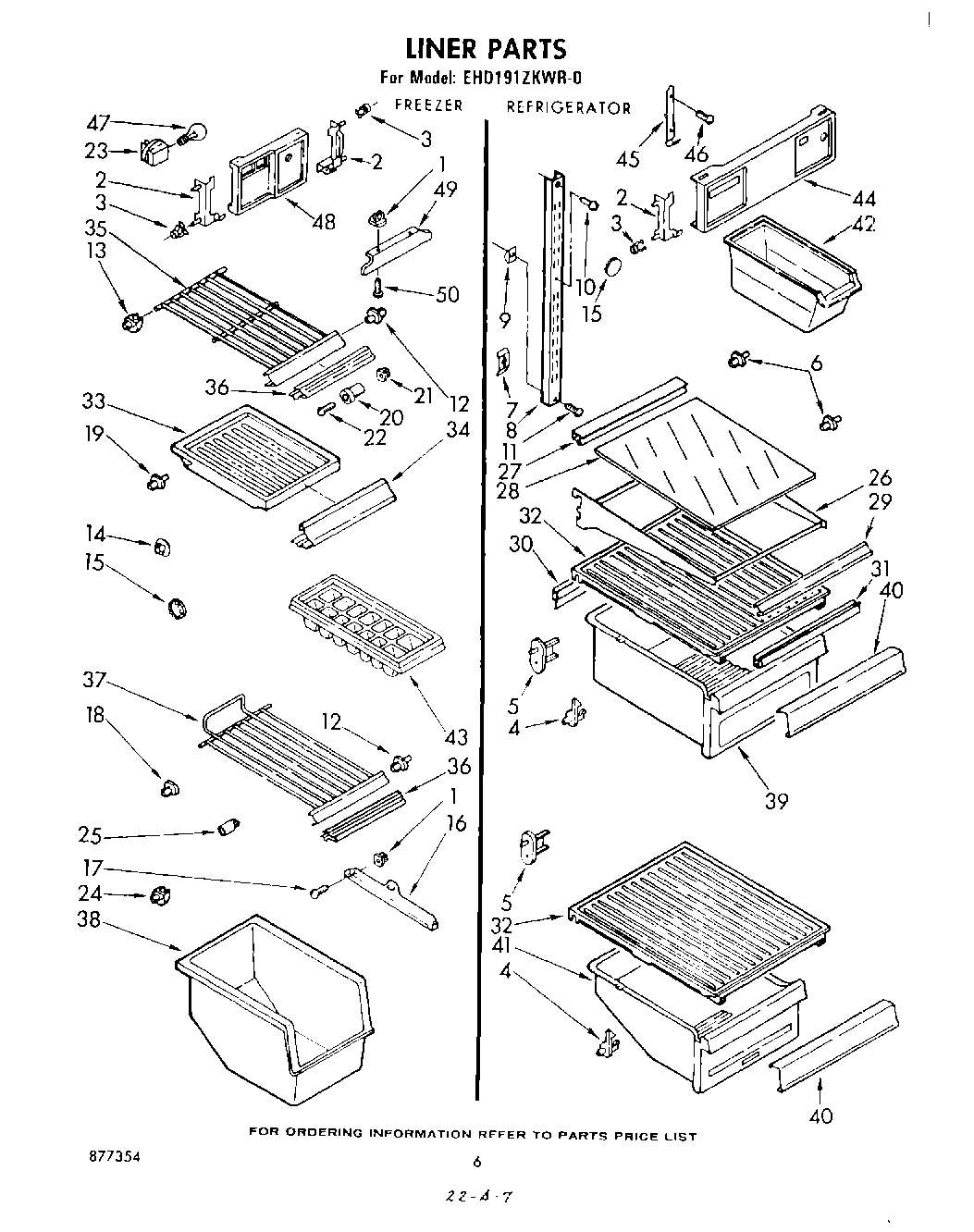

04 - LINER

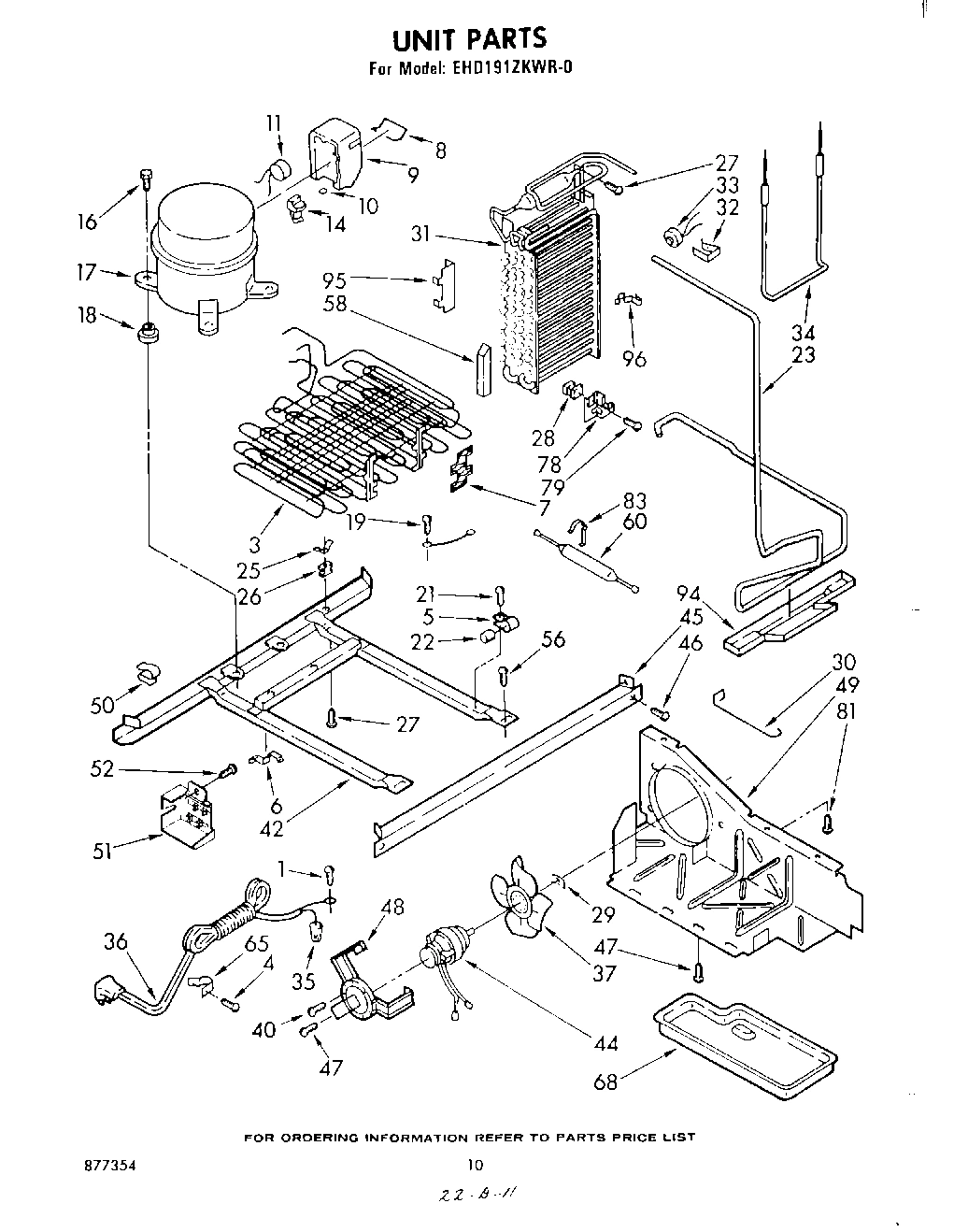

06 - UNIT

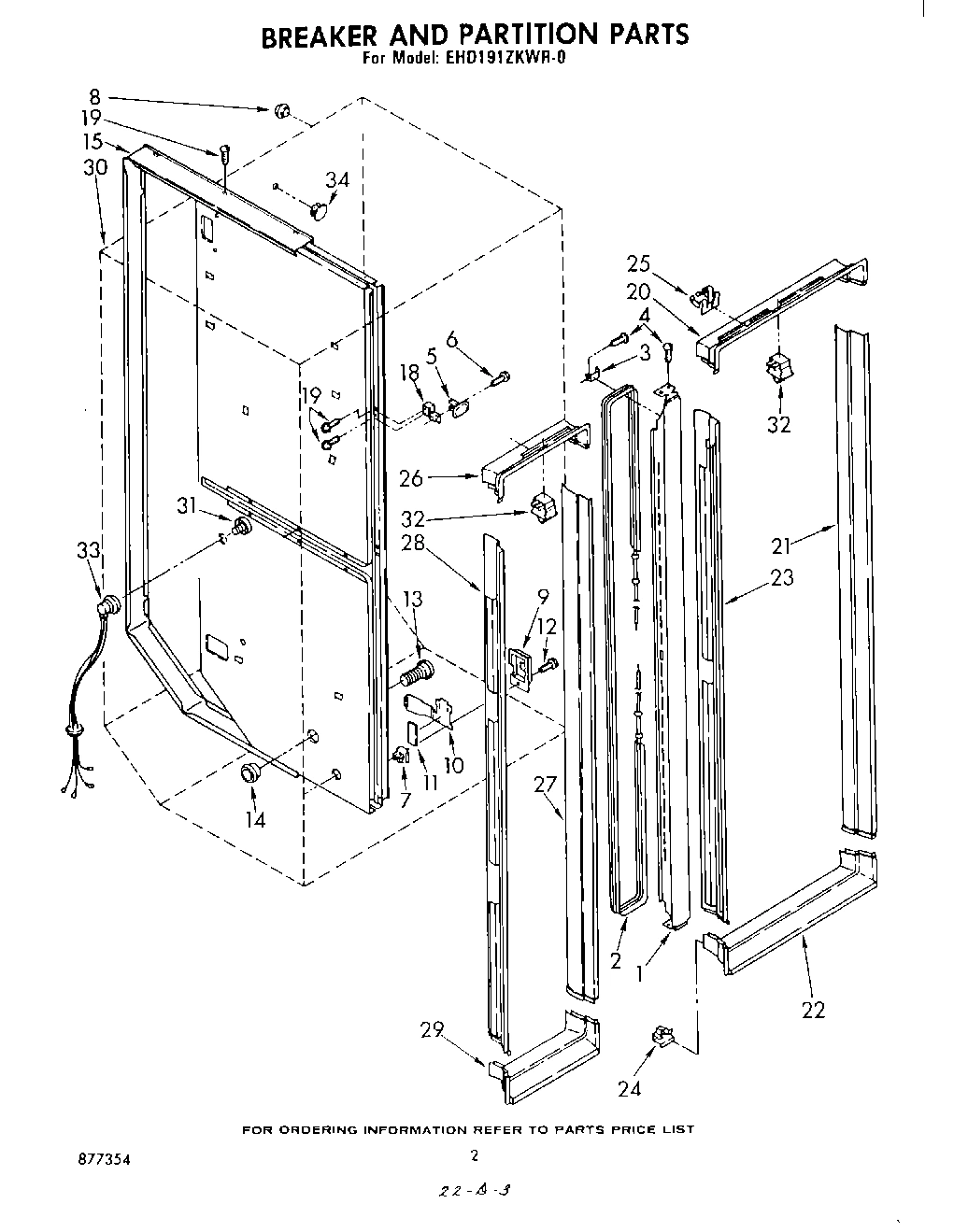

02 - BREAKER AND PARTITION
Common parts from model Whirlpool EHD191ZKWR0 SIDE BY SIDE REFRIGERATOR
1
Refrigerator, Door Panel (White) WPL 936632 Contact Us For Availability
1
Refrigerator, Door Panel (Coffee) WPL 936633 Contact Us For Availability
1
Refrigerator, Door Panel (Golden Harvest) WPL 936634 Contact Us For Availability
1
Refrigerator, Door Panel (New Avocado) WPL 936635 Contact Us For Availability
1
Refrigerator, Door Panel (Almond) WPL 936636 Contact Us For Availability
1
Screw, Ground WPL 488474 Contact Us For Availability
1
Center Rail, Mullion (White) WPL 985979 Contact Us For Availability
1
Center Rail, Mullion (Coffee) WPL 989924 Contact Us For Availability
1
Center Rail, Mullion (Golden Harvest) WPL 989925 Contact Us For Availability
1
Center Rail, Mullion (Avocado) WPL 989926 Contact Us For Availability
1
Center Rail, Mullion (Almond) WPL 989927 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability
2
Support, Light Lens (L.S.) WPL 842356 Contact Us For Availability
2
Heater, Mullion WPL 851874 Contact Us For Availability
3
Hole, Plug WPL 659776 Contact Us For Availability
3
Clip, Tubular (6) WPL 843945 Contact Us For Availability
3
Condenser WPL 481846 Contact Us For Availability
3
Retainer Clip, Heater (2) WPL 510291 Contact Us For Availability
4
Box, Control WPL 984550 Contact Us For Availability
4
Shelf Stud (2) WPL 652675 Contact Us For Availability
4
Screw, 8 x 3/8 (4) WPL 488624 Contact Us For Availability
5
Bracket, Door Stop WPL 988420 Contact Us For Availability
5
Shelf Stud (2) WPL 845986 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
5
Mullion, Rail WPL 836080 Contact Us For Availability
6
Shelf, Stud (4) WPL 536475 Contact Us For Availability
6
Control Box, Front WPL 984573 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
6
Screw, 8 x 3/4 WPL 488280 Contact Us For Availability
7
Grommet WPL 842339 Contact Us For Availability
7
Defrost Timer, 8 Hour WPL 851160 Contact Us For Availability
7
Screw, 8 x 5/8 (2) WPL 488549 Contact Us For Availability
7
Screw Anchor (4) WPL 983604 Contact Us For Availability
7
Space Condenser (4) WPL 987210 Contact Us For Availability
8
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
8
Shelfladder (2) WPL 934264 Contact Us For Availability
8
Strap, Cover WPL 531318 Contact Us For Availability
8
Grommet, Wiring WPL 851020 Contact Us For Availability
9
Hole Plug (Almond) WPL 989197 Contact Us For Availability
9
Hole, Plug (Coffee) WPL 989878 Contact Us For Availability
9
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
9
Hole Plug (New Avocado) WPL 989880 Contact Us For Availability
9
Cover WPL 549945 Contact Us For Availability
9
Escutcheon, Meat Control WPL 985468 Contact Us For Availability
10
Screw, 8 x 1-1/4 (4) WPL 488357 Contact Us For Availability
10
Bumper WPL 547272 Contact Us For Availability
10
Slide, Meat Control WPL 984102 Contact Us For Availability
11
Shim, Door Closer WPL 987179 Contact Us For Availability
11
Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability
11
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
11
Screw (Repair) WPL 488980 Contact Us For Availability
11
Overload WPL 549041 Contact Us For Availability
11
Pad, Foam WPL 992358 Contact Us For Availability
12
Retainer, Gasket Top & Bottom (2) WPL 836121 Contact Us For Availability
12
Shelf, Stud WPL 529758 Contact Us For Availability
12
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
13
Knob, Temperature Control WPL 836482 Contact Us For Availability
13
Shelf, Saddle R.S. WPL 523263 Contact Us For Availability
13
Shelf, Saddle L.S. WPL 523264 Contact Us For Availability
13
Retainer, Hole Insert WPL 843888 Contact Us For Availability
14
Duct, Air WPL 842399 Contact Us For Availability
14
Hole Plug (2) WPL 659598 Contact Us For Availability
14
Relay WPL 989662 Contact Us For Availability
14
Insert, Hole WPL 843887 Contact Us For Availability
15
Baffle, Air WPL 987954 Contact Us For Availability
15
Retainer, Top WPL 987008 Contact Us For Availability
15
Hole Plug (6) WPL 519890 Contact Us For Availability
15
Gasket, Divider WPL 842435 Contact Us For Availability
16
Grille, Freezer WPL 835740 Contact Us For Availability
16
End Cap WPL 987006 Contact Us For Availability
16
Slide, Freezer Bin WPL 982321 Contact Us For Availability
16
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
17
Retainer, Botom WPL 987010 Contact Us For Availability
17
Screw, 8 x 1 (4) WPL 487979 Contact Us For Availability
17
Compressor WPL 464063 Contact Us For Availability
18
Blade, Fan WPL 839859 Contact Us For Availability
18
Handle WPL 987009 Contact Us For Availability
18
Stud, Retainer (2) WPL 512900 Contact Us For Availability
18
Grommet (4) WPL 547283 Contact Us For Availability
18
Mullion, Stabilizer WPL 836079 Contact Us For Availability
19
Screw, 10-32 x 5/8 (2) WPL 488928 Contact Us For Availability
19
Shelf Stud WPL 521878 Contact Us For Availability
20
Fan, Bracket Double WPL 548263 Contact Us For Availability
20
Insert WPL 848330 Contact Us For Availability
20
Stud, Shelf WPL 658944 Contact Us For Availability
20
Trim, Breaker (Top) WPL 843335 Contact Us For Availability
21
Fan, Bracket Single WPL 548264 Contact Us For Availability
21
Grommet WPL 538449 Contact Us For Availability
21
Panel, Interior WPL 981428 Contact Us For Availability
21
Trim, Breaker (R.S.) WPL 842178 Contact Us For Availability
22
Wire, Water Valve WPL 548734 Contact Us For Availability
22
Grommet, Fan WPL 548268 Contact Us For Availability
22
Trim, Shelf (5) WPL 985494 Contact Us For Availability
22
Screw, 8-15 x 1-1/4 WPL 487559 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
22
Trim, Breaker (Bottom) WPL 836446 Contact Us For Availability
23
Drain Fitting, Liner WPL 836068 Contact Us For Availability
23
Exchanger, Heat WPL 941662 Contact Us For Availability
23
Trim, Breaker (L.S.) WPL 836213 Contact Us For Availability
24
Extension Fitting WPL 841646 Contact Us For Availability
24
Com\pa\rtment\ Do\or, Utility WPL 942170 Contact Us For Availability
24
Shelf, Support (2) WPL 210518 Contact Us For Availability
24
Breaker Retainer (5) WPL 836090 Contact Us For Availability
25
Clip, Extension WPL 841648 Contact Us For Availability
25
Scroll Fan WPL 991285 Contact Us For Availability
25
Escutcheon, Nameplate WPL 849310 Contact Us For Availability
25
Grommet WPL 533881 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
25
Clip, Breaker (4) WPL 849479 Contact Us For Availability
26
Air Scoop WPL 841269 Contact Us For Availability
26
Insert, Nameplate WPL 848308 Contact Us For Availability
26
Shelf Cantilever WPL 936796 Contact Us For Availability
26
Grommet (4) WPL 548737 Contact Us For Availability
26
Breaker Trim, Top Freezer WPL 843334 Contact Us For Availability
27
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
27
Gasket, Air Scoop WPL 844871 Contact Us For Availability
27
Tape Strip WPL 991259 Contact Us For Availability
27
Retainer, Glass Shelf WPL 942189 Contact Us For Availability
27
Breaker Trim R.S. WPL 836108 Contact Us For Availability
28
Retainer, Damper WPL 516847 Contact Us For Availability
28
Glass, Cantilever Shelf WPL 942188 Contact Us For Availability
28
Grommet WPL 514357 Contact Us For Availability
28
Breaker Trim L.S. WPL 836174 Contact Us For Availability
29
Control Knob Assembly WPL 837445 Contact Us For Availability
29
Freezer, Door Panel (White) WPL 936639 Contact Us For Availability
29
Freezer, Door Panel (Coffee) WPL 936640 Contact Us For Availability
29
Freezer, Door Panel (Golden Harvest) WPL 936641 Contact Us For Availability
29
Freezer, Door Panel (New Avocado) WPL 936642 Contact Us For Availability
29
Freezer, Door Panel (Almond) WPL 936643 Contact Us For Availability
29
Trim, Shelf Front WPL 935337 Contact Us For Availability
29
Breaker Trim, Bottom WPL 836447 Contact Us For Availability
30
Insert, Baffle WPL 836372 Contact Us For Availability
30
Knob, Retainer WPL 837444 Contact Us For Availability
30
Hole Plug WPL 849391 Contact Us For Availability
30
Crisper Gasket Rear WPL 987420 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
30
Liner (Not A Serviceable Part) WPL ARI39342A5 Contact Us For Availability
31
Cover, Compartment WPL 850457 Contact Us For Availability
31
Cover, Evaporator WPL 984466 Contact Us For Availability
31
Retainer Gasket Top & Bottom WPL 836122 Contact Us For Availability
31
Crisper Gasket Front WPL 987419 Contact Us For Availability
31
Evaporator WPL 851439 Contact Us For Availability
31
Receptacle Cap WPL 850738 Contact Us For Availability
32
Grommet WPL 848445 Contact Us For Availability
32
Pan Slide & Cover WPL 936584 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
33
Panel, Interior F.C. WPL 937457 Contact Us For Availability
33
Solid Shelf WPL 837202 Contact Us For Availability
33
Liner, Wiring (Ice Maker) WPL 481658 Contact Us For Availability
34
Cover, End Cap WPL 836144 Contact Us For Availability
34
Plug, Hole WPL 534927 Contact Us For Availability
34
Trim Interior Door Shelf WPL 935361 Contact Us For Availability
34
Trim Solid Shelf WPL 841025 Contact Us For Availability
35
Gasket, Evaporator Cover WPL 841606 Contact Us For Availability
35
Wire, Shelf F.C. WPL 992342 Contact Us For Availability
35
Nut, Wire WPL 227991 Contact Us For Availability
36
Air Diffuser WPL 991158 Contact Us For Availability
36
Trim, Shelf Front WPL 849263 Contact Us For Availability
36
Cord, Service WPL 850626 Contact Us For Availability
37
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
37
Shelf, Ice Cube Pan WPL 992343 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
38
Freezer Bin, Plastic WPL 940719 Contact Us For Availability
39
Pan, Crisper WPL 940716 Contact Us For Availability
40
Drain Pan WPL 842404 Contact Us For Availability
40
Overlay, Pan WPL 988255 Contact Us For Availability
40
Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability
41
Fitting, Drain WPL 841770 Contact Us For Availability
41
Meat Pan WPL 940718 Contact Us For Availability
42
Gasket, Drain Pan WPL 845564 Contact Us For Availability
42
Frame WPL 548654 Contact Us For Availability
43
Cap, Drain WPL 842259 Contact Us For Availability
44
Cover, Heat Exchanger WPL 836514 Contact Us For Availability
44
Light Lens, R.C. WPL 936966 Contact Us For Availability
45
Tube Clamp WPL 836077 Contact Us For Availability
45
Support, Light Lens WPL 984552 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
46
Wiring, Liner (Defrost Timer) WPL 481782 Contact Us For Availability
47
WPL 876029 WPL 876029 Contact Us For Availability
47
WPL 479502 WPL 479502 Contact Us For Availability
47
WPL 799344 WPL 799344 Contact Us For Availability
47
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
47
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
47
Enamel, Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability
47
Enamel, Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
47
Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
47
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
47
WPL 350941 WPL 350941 Contact Us For Availability
47
WPL 511881 WPL 511881 Contact Us For Availability
47
WPL 515393 WPL 515393 Contact Us For Availability
47
WPL 542639 WPL 542639 Contact Us For Availability
47
WPL 72108 WPL 72108 Contact Us For Availability
47
WPL 799340 WPL 799340 Contact Us For Availability
47
WPL 799351 WPL 799351 Contact Us For Availability
47
WPL 799832 WPL 799832 Contact Us For Availability
47
WPL 799833 WPL 799833 Contact Us For Availability
47
WPL 799908 WPL 799908 Contact Us For Availability
47
WPL 877354 WPL 877354 Contact Us For Availability
47
WPL 934460 WPL 934460 Contact Us For Availability
47
WPL 942172 WPL 942172 Contact Us For Availability
47
WPL 942173 WPL 942173 Contact Us For Availability
47
WPL 942174 WPL 942174 Contact Us For Availability
47
WPL 978883 WPL 978883 Contact Us For Availability
47
WPL 984640 WPL 984640 Contact Us For Availability
48
Light Lens, F.C. WPL 985456 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Baffle, Liner Top WPL 836216 Contact Us For Availability
49
Baffle, Air WPL 850764 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
51
Box, Junction WPL 549947 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
58
Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability
68
Tray, Evaporating WPL 842041 Contact Us For Availability
78
Support, Evaporator WPL 842436 Contact Us For Availability
81
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
83
Clamp, Drier WPL 548508 Contact Us For Availability
94
Pan, Drip WPL 989269 Contact Us For Availability
95
Shield, Heat (2) WPL 549435 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 549419 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
