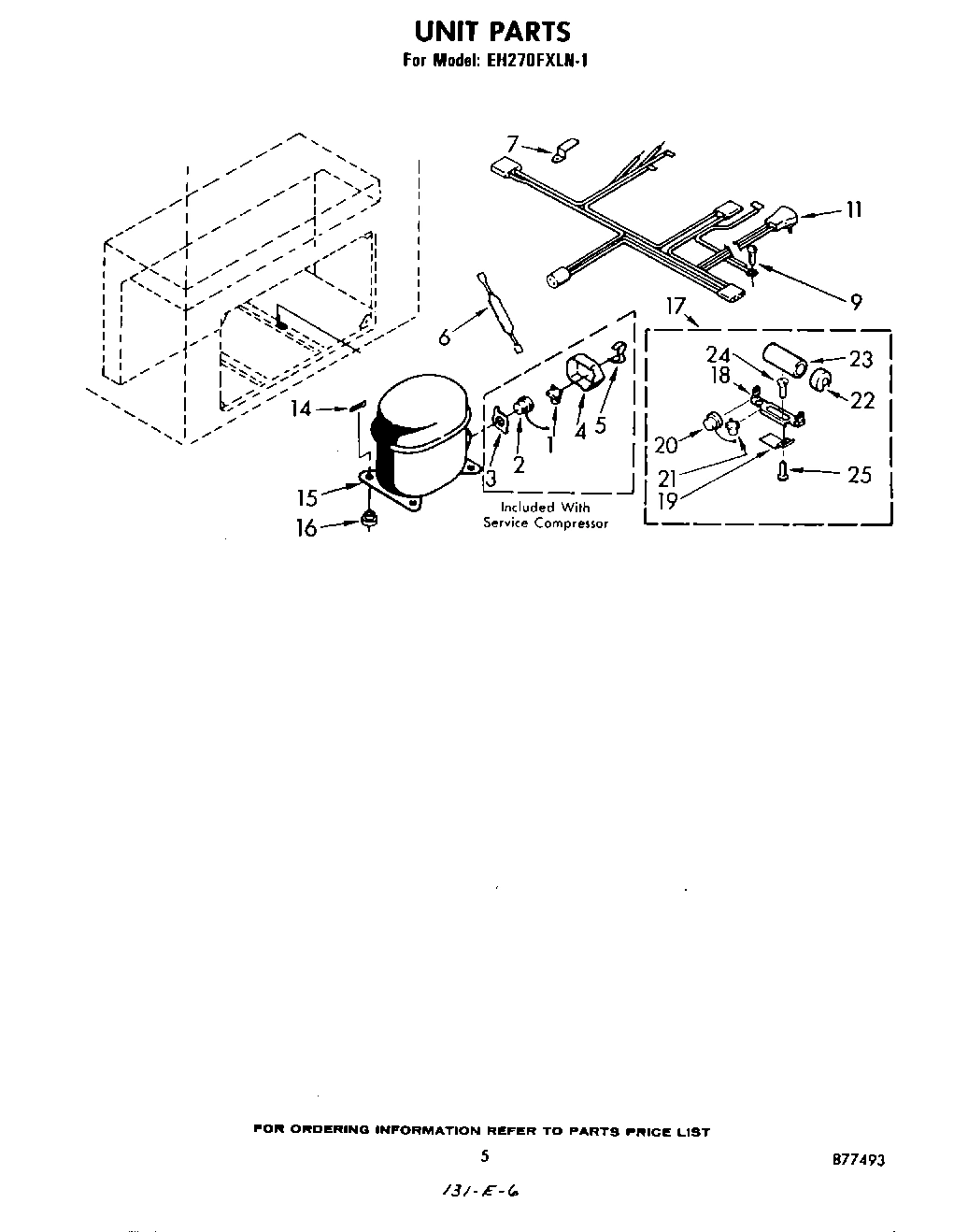

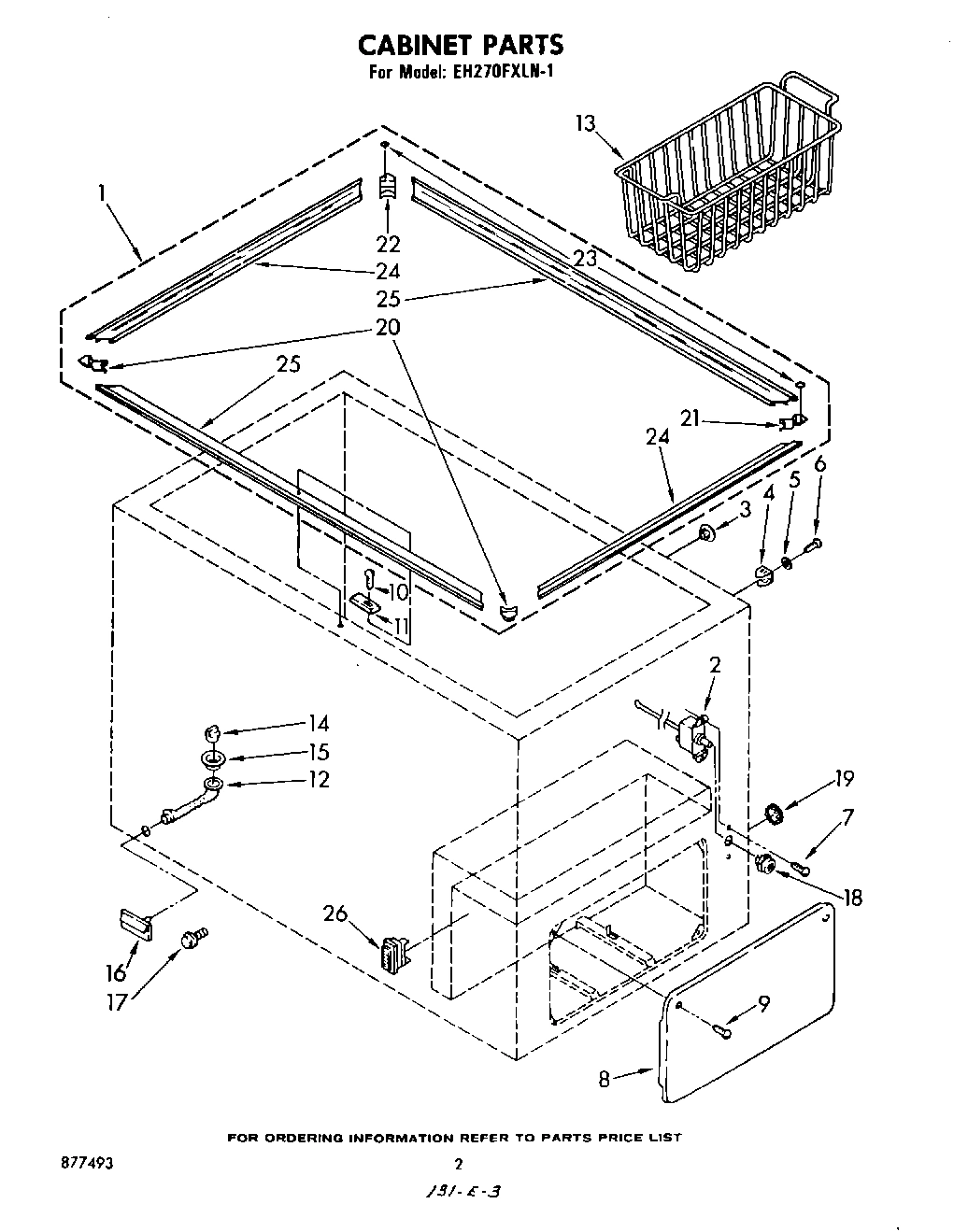

Model Whirlpool EH270FXLN1 CHEST FREEZER – Common Parts &amp; Diagrams

1

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $5.89

1

Relay WPL 753525 Contact Us For Availability

2

Overload WPL 753526 Contact Us For Availability

2

Deflector, Light (Finish) WPL 594459 Contact Us For Availability

3

Spring, Overload WPL 560851 Contact Us For Availability

3

``O`` Ring WPL 753610 Contact Us For Availability

4

Clip (50) WPL 596788 Contact Us For Availability

4

Cover, Terminal WPL 589230 Contact Us For Availability

5

Strap, Cover WPL 560850 Contact Us For Availability

6

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

7

Clip WPL 653035 Contact Us For Availability

8

Gasket, Handle WPL 589208 Contact Us For Availability

9

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

9

Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability

10

Lock WPL 586331 Contact Us For Availability

11

Harness, Wiring WPL 586946 Contact Us For Availability

12

Handle WPL 728289 Contact Us For Availability

13

Clip WPL 586335 Contact Us For Availability

14

Plug, Drain WPL 576342 Contact Us For Availability

14

Clip, Compressor Mounting (4) WPL 596514 Contact Us For Availability

14

Shroud WPL 753586 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

Ferrule, Drain WPL 576343 Contact Us For Availability

Compressor (Also Includes Items 1, 2, 3, 4, & WPL 702218 Contact Us For Availability

Plate, Bolt WPL 581219 Contact Us For Availability

16

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

16

Cover, Drain WPL 753073 Contact Us For Availability

16

Hook, Lock WPL 586468 Contact Us For Availability

17

Adapter, Hose WPL 596259 Contact Us For Availability

17

Start Kit WPL 482706 Contact Us For Availability

17

Screw WPL 681569 Contact Us For Availability

18

Knob, Control WPL 727020 Contact Us For Availability

18

Bracket, Capacitor (Used On Start Kit 482706) WPL 35564 Contact Us For Availability

18

Wire, Harness Door WPL 592866 Contact Us For Availability

19

Plug, Button WPL 681494 Contact Us For Availability

19

Bracket, Support (Used On Start Kit 482706) WPL 549939 Contact Us For Availability

19

Panel, Exterior Door WPL 728296 Contact Us For Availability

20

Corner, Front (2) WPL 728392 Contact Us For Availability

20

Overload (Used On Start Kit 482706) WPL 482708 Contact Us For Availability

20

Lampholder WPL 594815 Contact Us For Availability

21

Corner (Right Rear) WPL 702459 Contact Us For Availability

21

Relay (Used On Start Kit 482706) WPL 482707 Contact Us For Availability

22

Corner (Left Rear) WPL 702460 Contact Us For Availability

22

Cap, Capacitor (Used On Start Kit 482706) WPL 482157 Contact Us For Availability

22

Bar, L.H. Torsion WPL 728042 Contact Us For Availability

23

WP482156 Whirlpool Refrigerator Capacitor In Stock WPL WP482156 $38.92

23

Grommet (2) WPL 728362 Contact Us For Availability

23

Bar, R.H. Torsion WPL 728043 Contact Us For Availability

Collar, End (2) WPL 728412 Contact Us For Availability

Screw (2) (Used On Start Kit 482706) WPL 487631 Contact Us For Availability

Hinge, L.H. WPL 753874 Contact Us For Availability

Hinge, R.H. WPL 753875 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

Access Valve (5/8``) WPL 978029 Contact Us For Availability

Collar (2) (Front & Rear) WPL 728417 Contact Us For Availability

Screw (Used On Start Kit 482706) WPL 488487 Contact Us For Availability

Access Valve (1/2``) WPL 978028 Contact Us For Availability

Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Light, Indicator WPL 556230 Contact Us For Availability

Book, Freezing WPL 656493 Contact Us For Availability

Kit, Precooler (1 Required) WPL 702171 Contact Us For Availability

Kit, Condenser (1 Required) WPL 702200 Contact Us For Availability

Guide, Use & Care WPL 728130 Contact Us For Availability

Tech Sheet WPL 728380 Contact Us For Availability

Energy Guide WPL 753928 Contact Us For Availability

Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability

List, Parts WPL 877493 Contact Us For Availability

Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

Gasket WPL 753929 Contact Us For Availability

27

Panel, Interior WPL 753930 Contact Us For Availability

28

Connector, Wire WPL 596707 Contact Us For Availability

30

Lens, Light WPL 753871 Contact Us For Availability

33

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64
