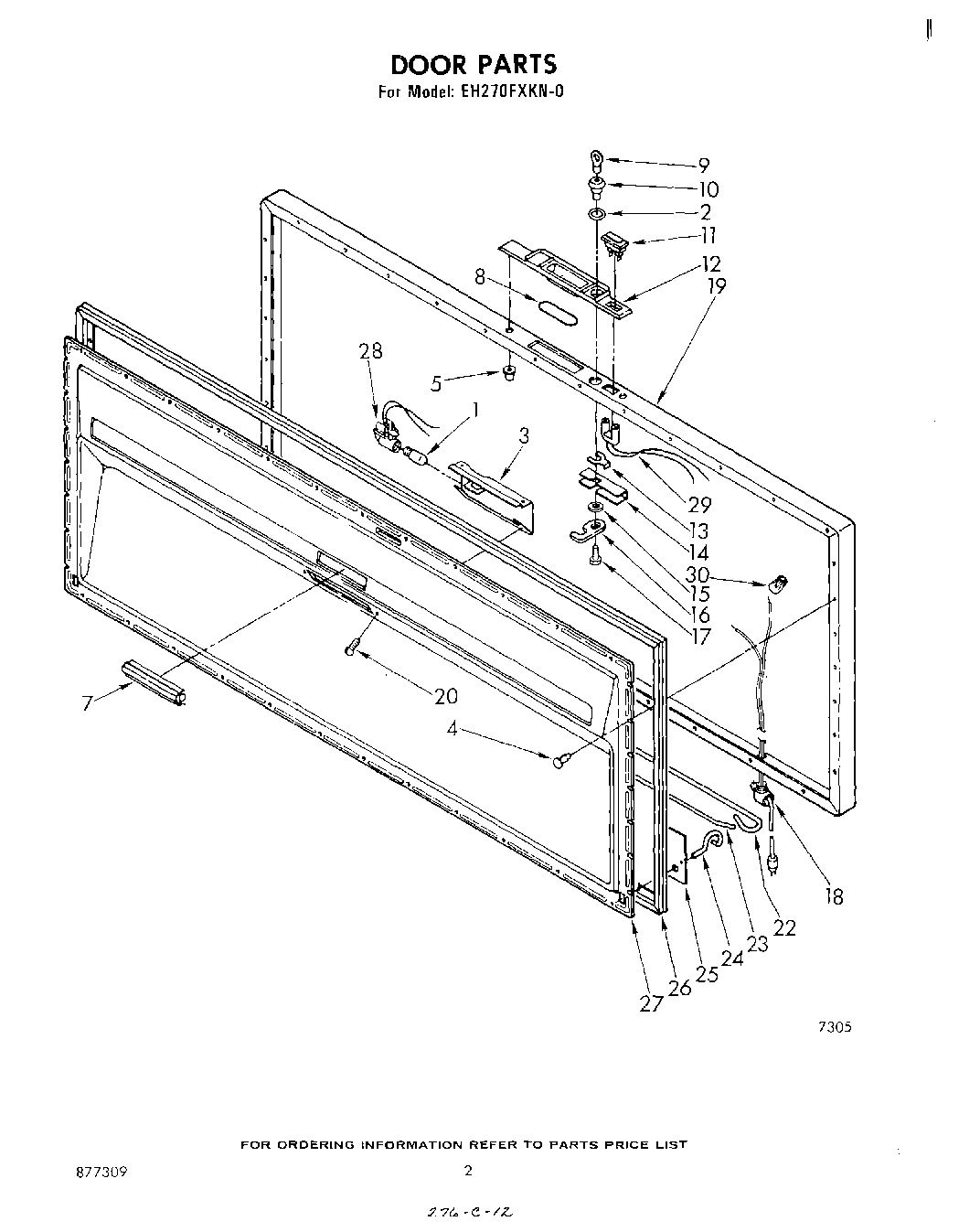

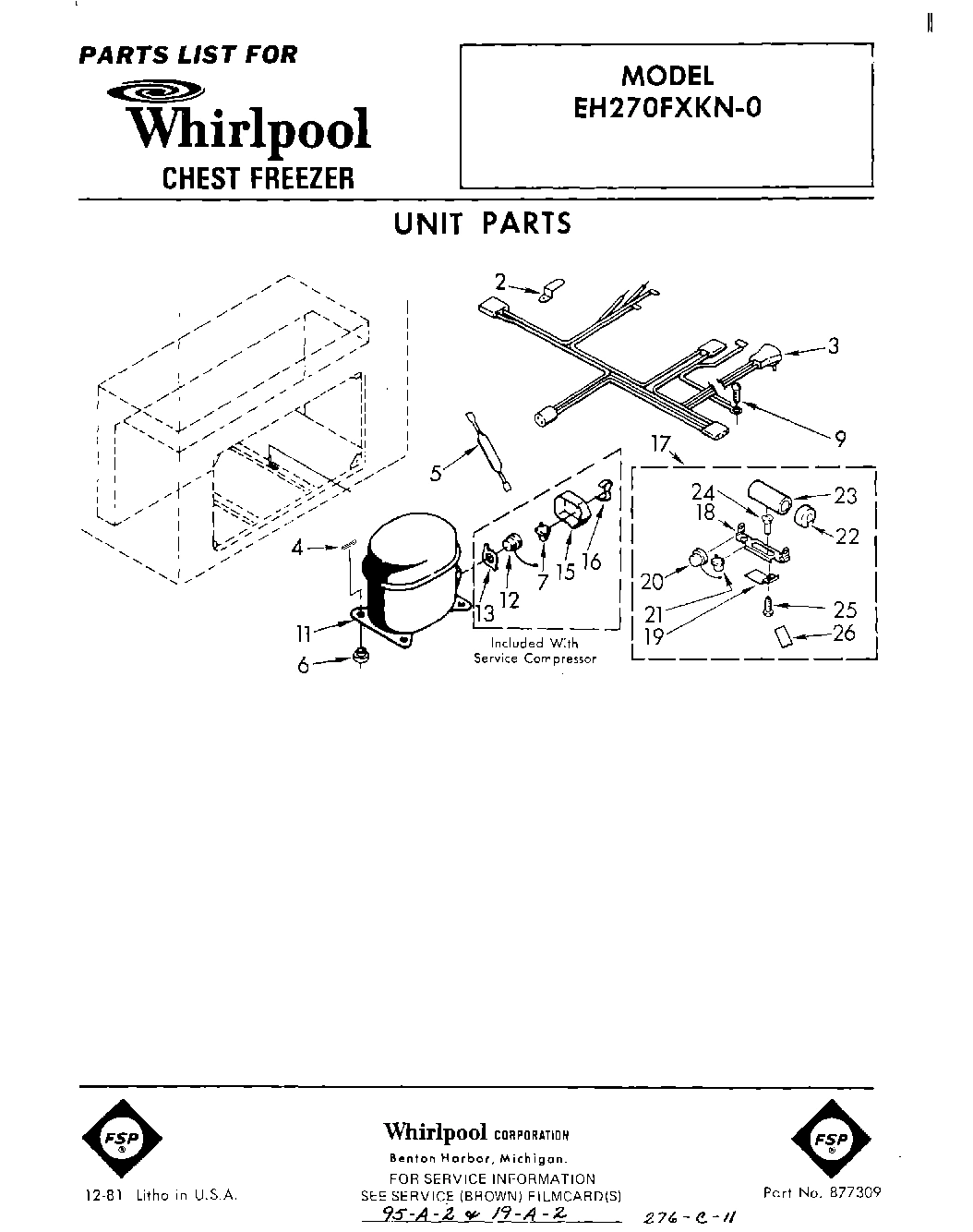

Model Whirlpool EH270FXKN0 CHEST FREEZER – Common Parts & Diagrams
02 - SECTION
01 - SECTION
03 - SECTION
Common parts from model Whirlpool EH270FXKN0 CHEST FREEZER
1
Plug, Drain WPL 576342 Contact Us For Availability
2
Clip, Plug Holding WPL 653035 Contact Us For Availability
2
Ferrule, Drain WPL 576343 Contact Us For Availability
3
Harness, Wiring WPL 586946 Contact Us For Availability
3
Tube, Drain WPL 556624 Contact Us For Availability
4
Clip, Compressor Mounting (4) WPL 596514 Contact Us For Availability
4
Screw WPL 681362 Contact Us For Availability
5
Box, Strike WPL 556612 Contact Us For Availability
6
Plug Button (2) WPL 482584 Contact Us For Availability
7
Relay, Starting WPL 753525 Contact Us For Availability
7
Plug Button WPL 481494 Contact Us For Availability
8
Cover, Drain WPL 753073 Contact Us For Availability
9
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
9
Adapter, Hose WPL 596259 Contact Us For Availability
10
Rod Holder (2) WPL 556013 Contact Us For Availability
11
Light, Indicator WPL 592121 Contact Us For Availability
11
Compressor (Also Order 482331 Installation Ki WPL 702218 Contact Us For Availability
12
Overload WPL 753526 Contact Us For Availability
12
Screw WPL 681322 Contact Us For Availability
13
Spring WPL 560851 Contact Us For Availability
13
Basket (3) WPL 753696 Contact Us For Availability
14
Control, Temperature WPL 592855 Contact Us For Availability
15
Cover WPL 589230 Contact Us For Availability
16
Hook, Lock WPL 586468 Contact Us For Availability
16
Strap, Cover WPL 560850 Contact Us For Availability
17
Screw WPL 681569 Contact Us For Availability
17
Start Kit WPL 482398 Contact Us For Availability
18
Harness, Wiring WPL 592866 Contact Us For Availability
18
Bracket, Capacitor (Used On Start Kit 482398) WPL 482158 Contact Us For Availability
19
Panel, Exterior Door (Almond) WPL 753931 Contact Us For Availability
19
Bracket, Support (Used On Start Kit 482398) WPL 549939 Contact Us For Availability
19
Collar WPL 594499 Contact Us For Availability
20
Overload (Used On Start Kit 482398) WPL 850842 Contact Us For Availability
21
Relay (Used On Start Kit 482398) WPL 482399 Contact Us For Availability
22
Torsion Bar, L.H. WPL 592174 Contact Us For Availability
22
Cap, Capacitor (Used On Start Kit 482398) WPL 482157 Contact Us For Availability
23
Torsion Bar, R.H. WPL 592173 Contact Us For Availability
23
Knob WPL 727020 Contact Us For Availability
24
Hinge, R.H. WPL 586669 Contact Us For Availability
24
Hinge, L.H. WPL 586673 Contact Us For Availability
24
Screw (2) (Used On Start Kit 482398) WPL 487631 Contact Us For Availability
24
Screw WPL 595022 Contact Us For Availability
25
Cover, Hinge (2) WPL 566219 Contact Us For Availability
25
Door WPL 753077 Contact Us For Availability
26
Gasket WPL 753929 Contact Us For Availability
26
Clip, Terminal WPL 978510 Contact Us For Availability
26
Screw WPL 681318 Contact Us For Availability
27
Panel, Interior WPL 753930 Contact Us For Availability
28
Lampholder WPL 594815 Contact Us For Availability
29
Plug, Indicator Light WPL 592869 Contact Us For Availability
30
Access Valve (5/8``) WPL 978029 Contact Us For Availability
30
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
30
Connector, Wire WPL 596707 Contact Us For Availability
30
Book, How To Freeze WPL 656493 Contact Us For Availability
30
Guide, Use & Care WPL 727554 Contact Us For Availability
30
Energy Guide WPL 753928 Contact Us For Availability
30
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
30
List, Parts WPL 877309 Contact Us For Availability
30
Access Valve (1/2``) WPL 978028 Contact Us For Availability
30
Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability
30
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
× ![]()
