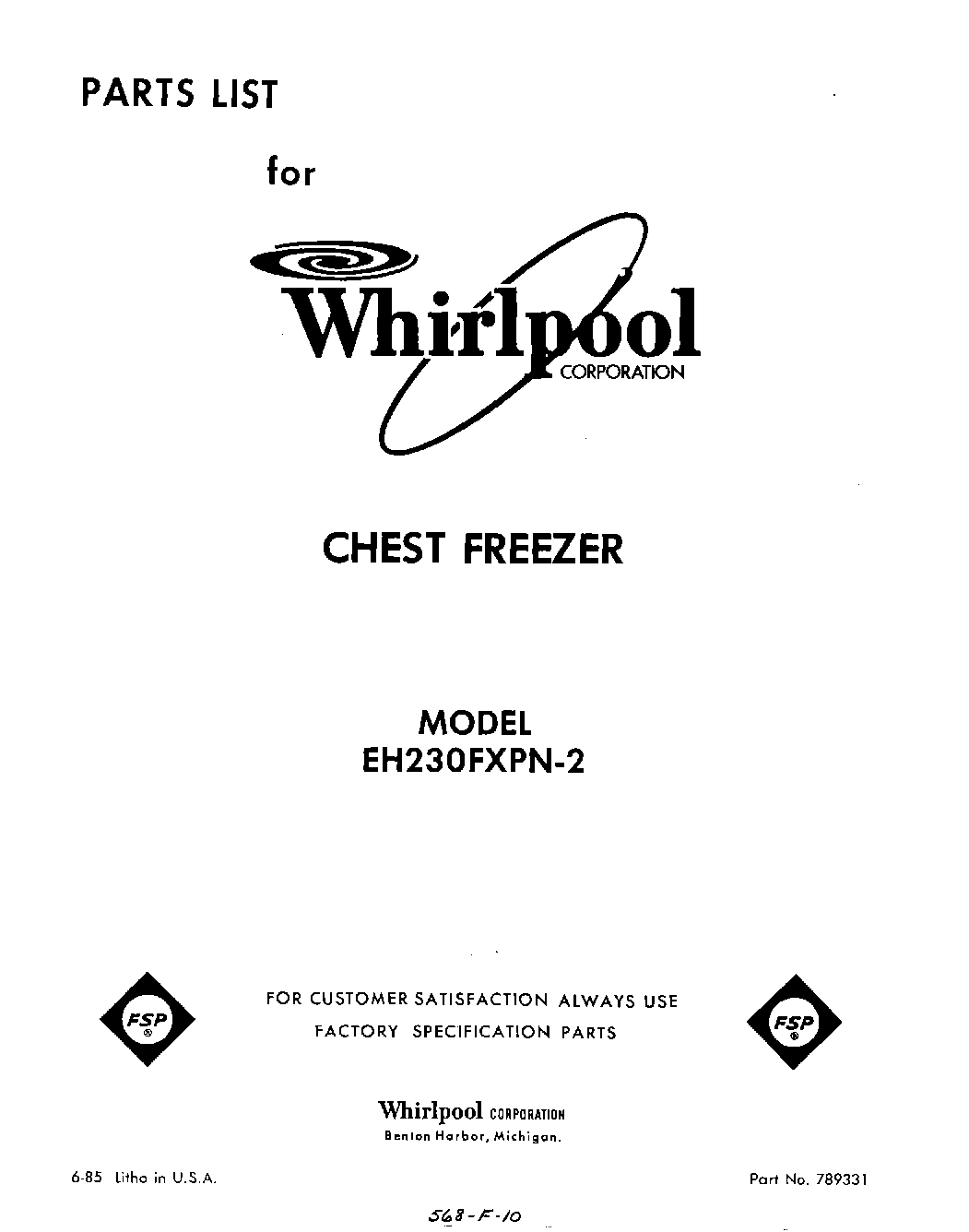

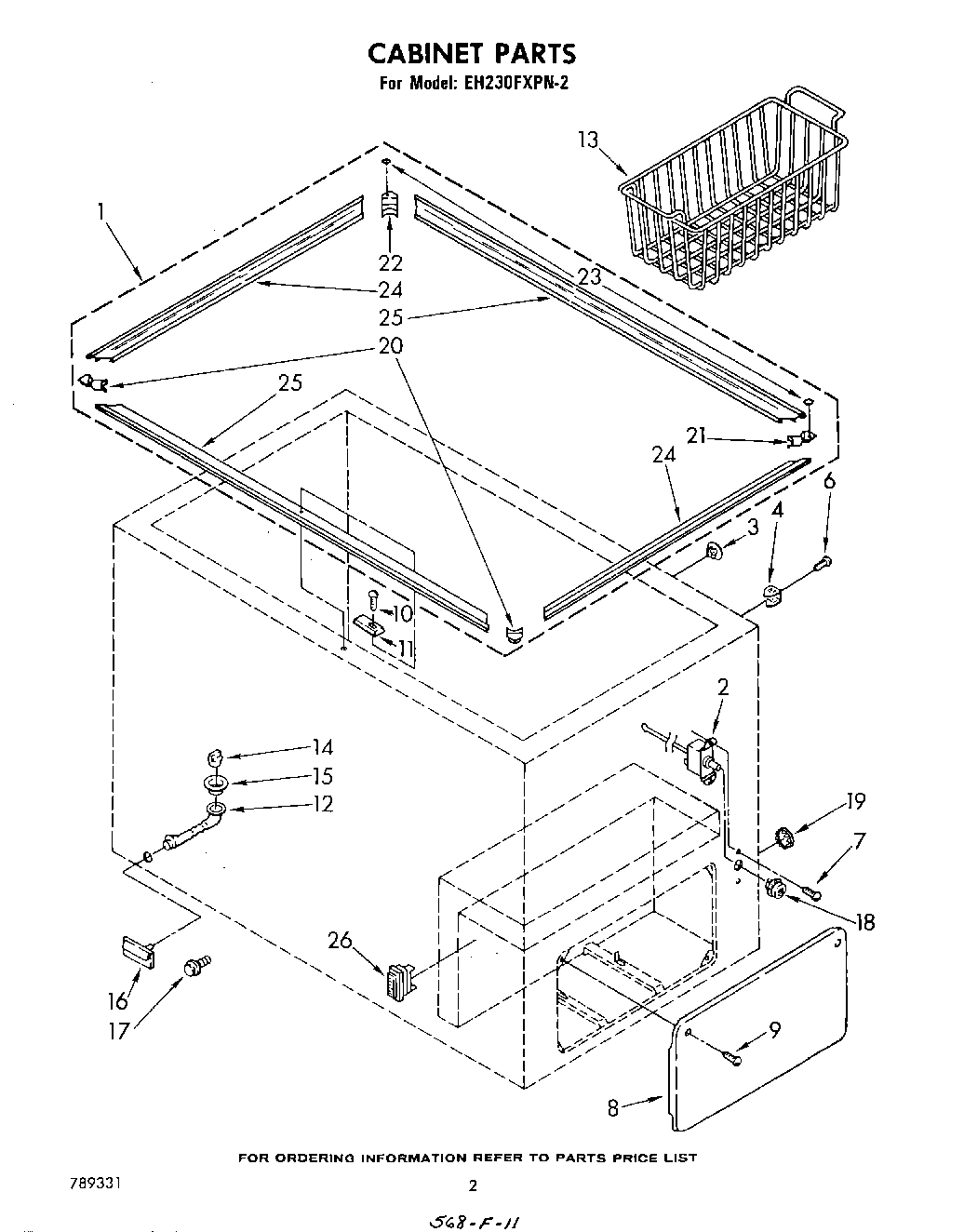

Model Whirlpool EH230FXPN2 CHEST FREEZER – Common Parts &amp; Diagrams

1

W10873798 Whirlpool Refrigerator Light Bulb Backorder WPL W10873798 $7.37

1

Relay (Used W/Original Compressor) WPL 945507 Contact Us For Availability

2

Overload (Used W/Original Compressor) WPL 728778 Contact Us For Availability

2

Deflector, Light (Finish) WPL 594459 Contact Us For Availability

3

Plug Button (2) WPL 482584 Contact Us For Availability

3

Spring, Overload (Used W/Original Compressor) WPL 943320 Contact Us For Availability

3

``O`` Ring WPL 753610 Contact Us For Availability

4

Clip (46) WPL 596788 Contact Us For Availability

4

Rod Holder Assembly (2) WPL 556013 Contact Us For Availability

4

Cover, Terminal (Used W/Original Compressor) WPL 943321 Contact Us For Availability

5

Strap, Cover (Used W/Original Compressor) WPL 943322 Contact Us For Availability

5

Decal WPL 730037 Contact Us For Availability

6

Screw (2) WPL 681672 Contact Us For Availability

6

Drier WPL 728583 Contact Us For Availability

7

Screw WPL 595022 Contact Us For Availability

7

Clip WPL 653035 Contact Us For Availability

8

Door WPL 753077 Contact Us For Availability

8

Washer WPL 680975 Contact Us For Availability

8

Gasket, Handle WPL 727809 Contact Us For Availability

9

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

9

Screw WPL 681318 Contact Us For Availability

9

Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability

10

Screw WPL 681362 Contact Us For Availability

10

Lock WPL 586331 Contact Us For Availability

11

Box, Strike WPL 556612 Contact Us For Availability

11

Harness, Wiring WPL 730241 Contact Us For Availability

12

Tube, Drain WPL 556624 Contact Us For Availability

12

Handle WPL 728289 Contact Us For Availability

13

Basket (3) WPL 730212 Contact Us For Availability

13

Clip WPL 983465 Contact Us For Availability

14

Plug, Drain WPL 576342 Contact Us For Availability

14

Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

Ferrule, Drain WPL 576343 Contact Us For Availability

Compressor WPL 482614 Contact Us For Availability

Plate, Bolt WPL 728115 Contact Us For Availability

16

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

16

Cover, Drain WPL 753073 Contact Us For Availability

16

Hook, Lock WPL 728222 Contact Us For Availability

17

Adapter, Hose WPL 594467 Contact Us For Availability

17

Spring, Overload (Used W/Service Compressor) WPL 549086 Contact Us For Availability

17

Screw WPL 681569 Contact Us For Availability

18

Knob, Control WPL 727020 Contact Us For Availability

18

Overload (Used W/Service Compressor) WPL 989518 Contact Us For Availability

18

Wire, Harness Door WPL 728838 Contact Us For Availability

19

Plug, Button WPL 681494 Contact Us For Availability

19

Relay (Used W/ Service Compressor) WPL 989509 Contact Us For Availability

19

Panel, Exterior Door WPL 728295 Contact Us For Availability

20

Corner, Front (2) WPL 728585 Contact Us For Availability

20

Cover (Used W/ Service Compressor) WPL 549505 Contact Us For Availability

20

Lampholder WPL 594815 Contact Us For Availability

21

Corner (Right Rear) WPL 702459 Contact Us For Availability

21

Strap (Used W/Service Compressor) WPL 549342 Contact Us For Availability

22

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

22

Corner (Left Rear) WPL 702460 Contact Us For Availability

22

Bar, L.H. Torsion WPL 728040 Contact Us For Availability

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

Access Valve (5/8``) WPL 978029 Contact Us For Availability

Grommet (2) WPL 728362 Contact Us For Availability

Access Valve (1/2``) WPL 978028 Contact Us For Availability

Bar, R.H. Torsion WPL 728041 Contact Us For Availability

24

Collar, End (2) WPL 728412 Contact Us For Availability

24

Hinge, L.H. WPL 753874 Contact Us For Availability

24

Hinge, R.H. WPL 753875 Contact Us For Availability

25

Collar (2) (Front & Rear) WPL 728416 Contact Us For Availability

25

Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Transformer, Stepdown (230-115 Volt) WPL 515393 Contact Us For Availability

Light, Indicator WPL 556230 Contact Us For Availability

Kit, Precooler (1 Required) WPL 702171 Contact Us For Availability

Kit, Condenser (1 Required) WPL 702200 Contact Us For Availability

Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

Gasket WPL 753080 Contact Us For Availability

27

Panel, Interior WPL 730148 Contact Us For Availability

28

Connector, Wire WPL 596707 Contact Us For Availability

33

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64
