Model Whirlpool EH18VSXLN3 CHEST FREEZER – Common Parts & Diagrams
01 - SECTION
04 - SECTION
02 - SECTION

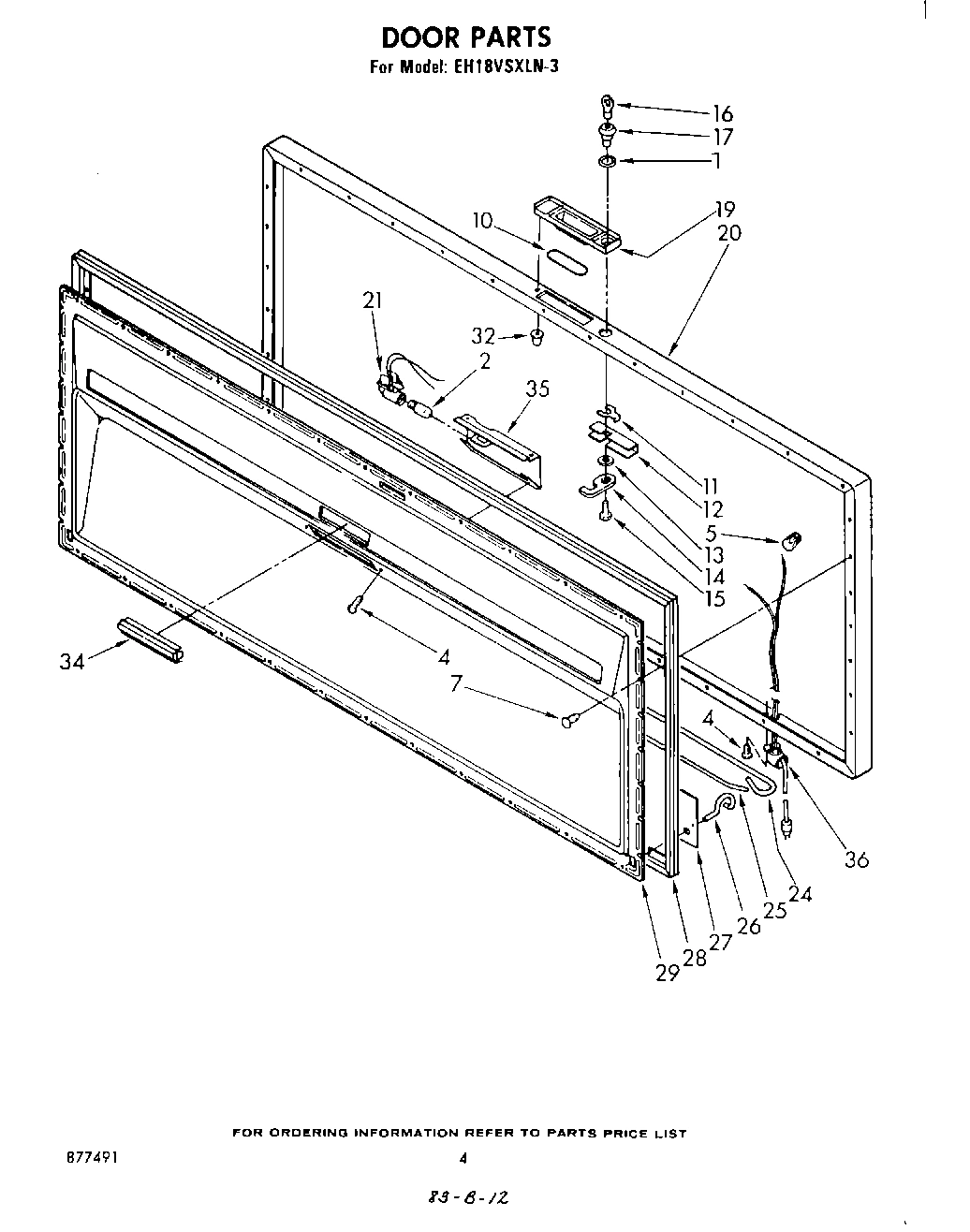

03 - SECTION
Common parts from model Whirlpool EH18VSXLN3 CHEST FREEZER
1
Collar Kit (Items 20, 21, 22, 23, 24 & 25 Are WPL 702456 Contact Us For Availability
1
``O`` Ring WPL 753610 Contact Us For Availability
2
Control, Cold WPL 728369 Contact Us For Availability
3
Plug Button (2) WPL 482584 Contact Us For Availability
4
Rod Holder Assembly (2) WPL 556013 Contact Us For Availability
5
Connector WPL 596707 Contact Us For Availability
6
Screw (2) WPL 681646 Contact Us For Availability
7
Clip (40) WPL 596788 Contact Us For Availability
7
Screw WPL 595022 Contact Us For Availability
8
Door WPL 753077 Contact Us For Availability
9
Screw WPL 681318 Contact Us For Availability
10
Screw WPL 681362 Contact Us For Availability
10
Gasket, Handle WPL 589208 Contact Us For Availability
11
Box, Strike WPL 556612 Contact Us For Availability
11
Clip, Spring WPL 586335 Contact Us For Availability
12
Tube, Drain WPL 556624 Contact Us For Availability
12
Shroud, Lock WPL 753586 Contact Us For Availability
13
Basket (2) WPL 753696 Contact Us For Availability
13
Plate, Bolt WPL 581219 Contact Us For Availability
14
Plug, Drain WPL 576342 Contact Us For Availability
14
Hook, Lock WPL 586468 Contact Us For Availability
15
Ferrule, Drain WPL 576343 Contact Us For Availability
15
Screw WPL 681569 Contact Us For Availability
16
Cover, Drain WPL 753073 Contact Us For Availability
17
Adapter, Hose WPL 596259 Contact Us For Availability
17
Lock WPL 586331 Contact Us For Availability
18
Bracket, Mounting (Used on Start Kit 482477) WPL 549939 Contact Us For Availability
18
Knob, Control WPL 727020 Contact Us For Availability
19
Screw (Used on Start Kit 482477) WPL 488487 Contact Us For Availability
19
Plug, Button WPL 681494 Contact Us For Availability
19
Handle WPL 728289 Contact Us For Availability
20
Overload (Used on Service Compressor 588602) WPL 594317 Contact Us For Availability
20
Corner, Front (2) WPL 728392 Contact Us For Availability
20
Panel, Door Exterior WPL 728294 Contact Us For Availability
21
Spring, Overload (Used on Service Compressor WPL 560851 Contact Us For Availability
21
Corner (Right Rear) WPL 702459 Contact Us For Availability
21
Lampholder & Switch Assembly WPL 594815 Contact Us For Availability
22
Relay (Used on Service Compressor 588602) WPL 579958 Contact Us For Availability
22
Corner (Left Rear) WPL 702460 Contact Us For Availability
23
Cover, Terminal (Used on Service Compressor 5 WPL 560849 Contact Us For Availability
23
Grommet (2) WPL 728362 Contact Us For Availability
24
Strap, Cover (Used on Service Compressor 5886 WPL 560850 Contact Us For Availability
24
Collar, End (2) WPL 728412 Contact Us For Availability
24
Bar, L.H. Torsion WPL 728038 Contact Us For Availability
25
Washer, Compr WPL 680975 Contact Us For Availability
25
Collar (2) (Front & Rear) WPL 728415 Contact Us For Availability
25
Bar, R.H. Torsion WPL 728039 Contact Us For Availability
26
WPL 876112 WPL 876112 Contact Us For Availability
26
Housing (Freezer Alarm) WPL 753676 Contact Us For Availability
26
Hinge, L.H. WPL 753874 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
27
WPL 653035 WPL 653035 Contact Us For Availability
27
Alarm Assembly WPL 728307 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
28
WPL 753505 WPL 753505 Contact Us For Availability
28
Sensor Kit (Alarm) WPL 702428 Contact Us For Availability
28
Gasket WPL 753001 Contact Us For Availability
29
WPL 978029 WPL 978029 Contact Us For Availability
29
P WPL 799344 Contact Us For Availability
29
(12 Oz. Spray Can) (Leveler, Enamel (12 Oz. S WPL 206925 Contact Us For Availability
29
Book, How To Freeze WPL 656493 Contact Us For Availability
29
Tech Sheet WPL 728389 Contact Us For Availability
29
Guide, Use & Care WPL 728395 Contact Us For Availability
29
Energy Guide WPL 728409 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
WPL 799351 WPL 799351 Contact Us For Availability
29
WPL 877491 WPL 877491 Contact Us For Availability
29
WPL 978028 WPL 978028 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
29
Panel, Door Interior WPL 753910 Contact Us For Availability
32
Clip, Tubular (2) WPL 681513 Contact Us For Availability
34
Lens, Light WPL 753871 Contact Us For Availability
35
Light, Deflector WPL 594459 Contact Us For Availability
36
Harness Assembly WPL 592866 Contact Us For Availability
× ![]()
