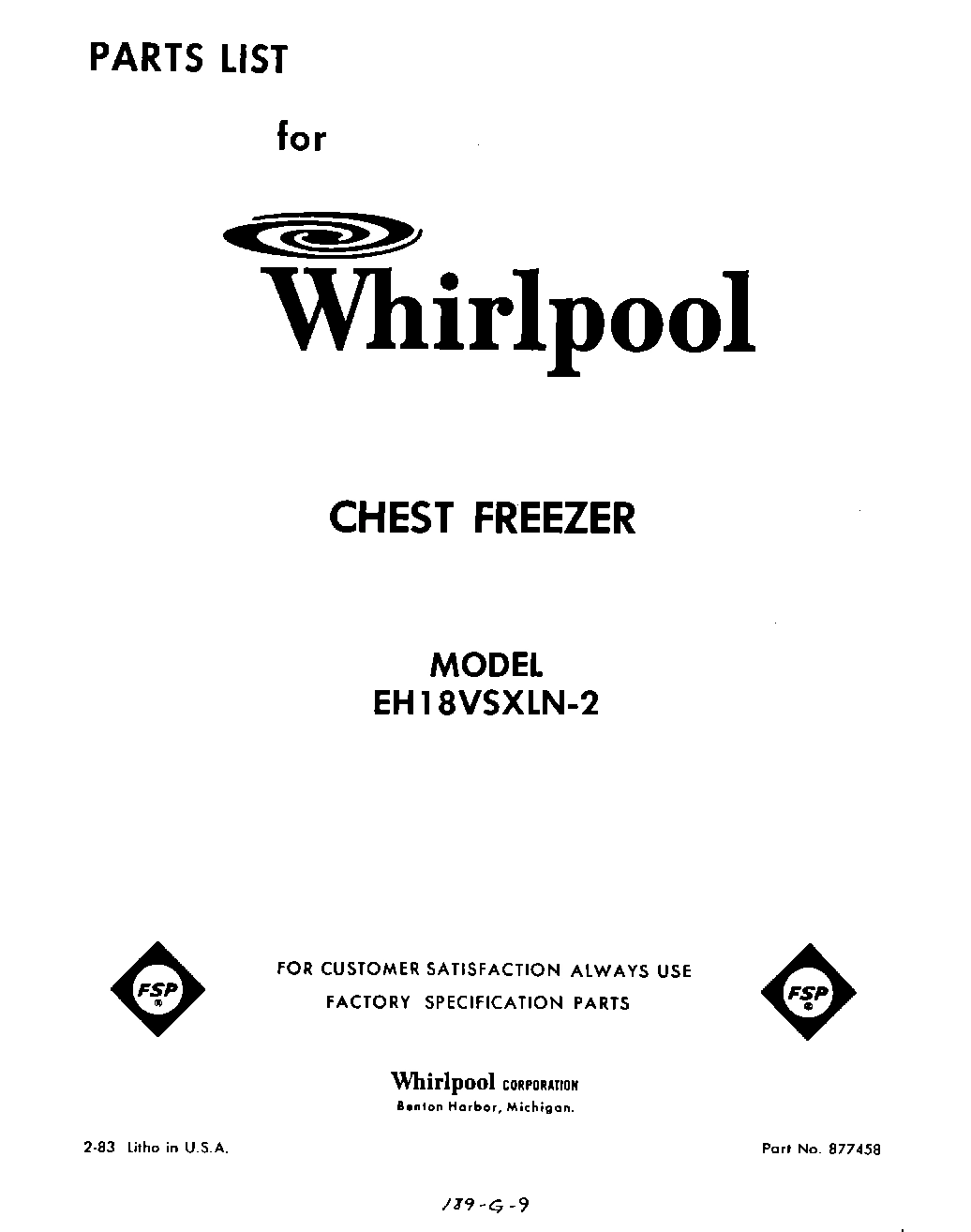

Model Whirlpool EH18VSXLN2 CHEST FREEZER – Common Parts &amp; Diagrams

1

Collar Kit (Items 20, 21, 22, 23, 24 & 25 Are WPL 702346 Contact Us For Availability

2

Control, Cold WPL 592856 Contact Us For Availability

2

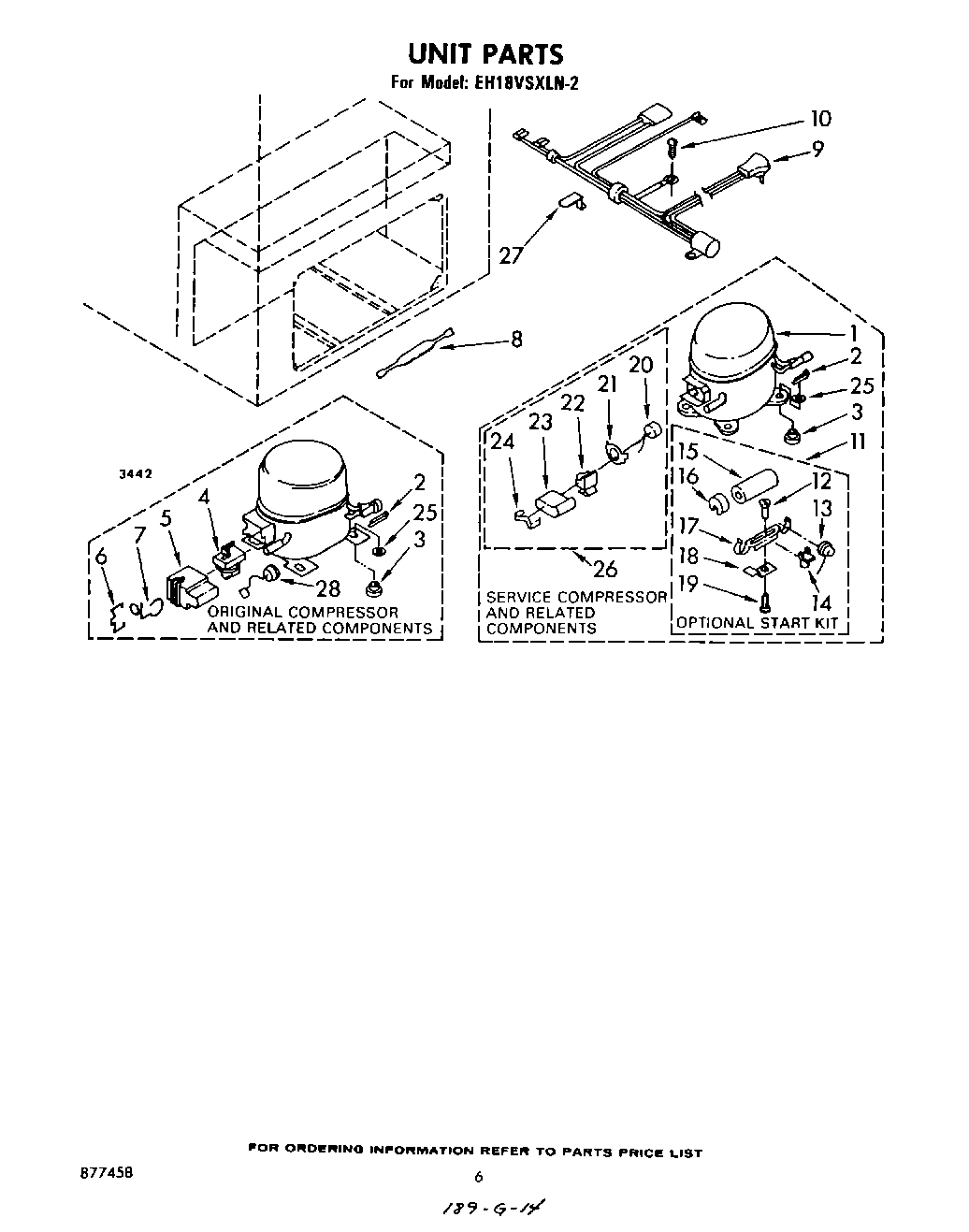

Clip, Compressor Mounting (4) WPL 596514 Contact Us For Availability

3

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

3

Plug Button (2) WPL 482584 Contact Us For Availability

4

Rod Holder Assembly (2) WPL 556013 Contact Us For Availability

4

Relay, Starting (Used W/Original Compressor) WPL 753504 Contact Us For Availability

5

Cover, Relay & Overload Assembly (Used W/Orig WPL 727044 Contact Us For Availability

6

Screw (2) WPL 681646 Contact Us For Availability

6

Strap, Relay & Overload Cover (Used W/Origina WPL 727045 Contact Us For Availability

7

Screw WPL 595022 Contact Us For Availability

7

Clip, Cover (Used W/Original Compressor) WPL 727046 Contact Us For Availability

8

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

8

Door WPL 753077 Contact Us For Availability

9

Screw WPL 681318 Contact Us For Availability

9

Harness, Wiring WPL 586612 Contact Us For Availability

10

Screw WPL 681362 Contact Us For Availability

10

Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability

11

Box, Strike WPL 556612 Contact Us For Availability

11

Start Kit (Used W/Service Compressor 588602) WPL 482477 Contact Us For Availability

12

Tube, Drain WPL 556624 Contact Us For Availability

12

Screw (2) (Used on Start Kit 482477) WPL 487631 Contact Us For Availability

13

Basket (2) WPL 753696 Contact Us For Availability

13

Overload (Used on Start Kit 482477) WPL 482478 Contact Us For Availability

14

Plug, Drain WPL 576342 Contact Us For Availability

14

Relay (Used on Start Kit 482477) WPL 549936 Contact Us For Availability

15

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $40.86

15

Ferrule, Drain WPL 576343 Contact Us For Availability

16

WP842177 Whirlpool Refrigerator Door Key In Stock WPL WP842177 $2.51

16

Cover, Drain WPL 753073 Contact Us For Availability

16

Cap, Capacitor (Used on Start Kit 482477) WPL 482157 Contact Us For Availability

17

Adapter, Hose WPL 596259 Contact Us For Availability

17

Support, Bracket (Used on Start Kit 482477) WPL 482158 Contact Us For Availability

18

Knob, Control WPL 727020 Contact Us For Availability

18

Bracket, Mounting (Used on Start Kit 482477) WPL 549939 Contact Us For Availability

19

Plug, Button WPL 681494 Contact Us For Availability

19

Screw (Used on Start Kit 482477) WPL 488487 Contact Us For Availability

20

Corner, Front (2) WPL 753953 Contact Us For Availability

20

Overload (Used on Service Compressor 588602) WPL 594317 Contact Us For Availability

21

Corner (Right Rear) WPL 702339 Contact Us For Availability

21

Spring, Overload (Used on Service Compressor WPL 560851 Contact Us For Availability

22

Corner (Left Rear) WPL 702338 Contact Us For Availability

22

Relay (Used on Service Compressor 588602) WPL 579958 Contact Us For Availability

23

Grommet (2) WPL 728362 Contact Us For Availability

23

Cover, Terminal (Used on Service Compressor 5 WPL 560849 Contact Us For Availability

24

Bar, L.H. Torsion WPL 728038 Contact Us For Availability

24

Collar, End (2) WPL 753661 Contact Us For Availability

24

Strap, Cover (Used on Service Compressor 5886 WPL 560850 Contact Us For Availability

25

Bar, R.H. Torsion WPL 728039 Contact Us For Availability

25

Collar (2) (Front & Rear) WPL 753664 Contact Us For Availability

25

Washer, Compr WPL 680975 Contact Us For Availability

Hinge, L.H. WPL 753874 Contact Us For Availability

Hinge, R.H. WPL 753875 Contact Us For Availability

Housing (Freezer Alarm) WPL 753676 Contact Us For Availability

WPL 876112 WPL 876112 Contact Us For Availability

27

Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability

27

Alarm Assembly WPL 728307 Contact Us For Availability

27

WPL 653035 WPL 653035 Contact Us For Availability

28

Gasket WPL 753001 Contact Us For Availability

28

Sensor Kit (Alarm) WPL 702428 Contact Us For Availability

28

WPL 753505 WPL 753505 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPL 978029 WPL 978029 Contact Us For Availability

P WPL 799344 Contact Us For Availability

Panel, Door Interior WPL 753910 Contact Us For Availability

(12 Oz. Spray Can) (Leveler, Enamel (12 Oz. S WPL 206925 Contact Us For Availability

Book, How To Freeze WPL 656493 Contact Us For Availability

Guide, Use & Care WPL 728131 Contact Us For Availability

Tech Sheet WPL 753524 Contact Us For Availability

Energy Guide WPL 753907 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 877458 WPL 877458 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

Clip, Tubular (2) WPL 681513 Contact Us For Availability

34

Lens, Light WPL 753871 Contact Us For Availability

35

Light, Deflector WPL 594459 Contact Us For Availability

36

Harness Assembly WPL 592866 Contact Us For Availability
