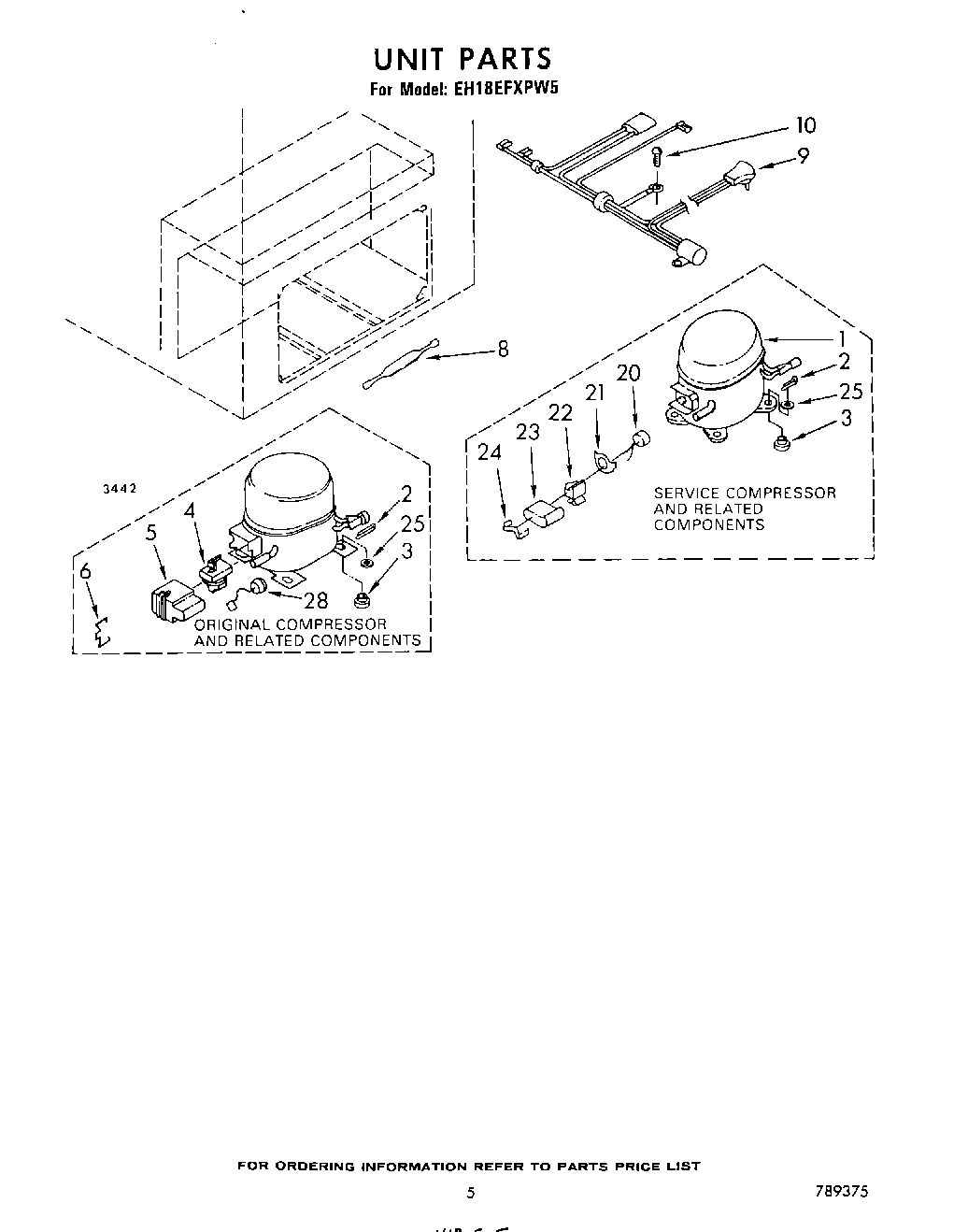

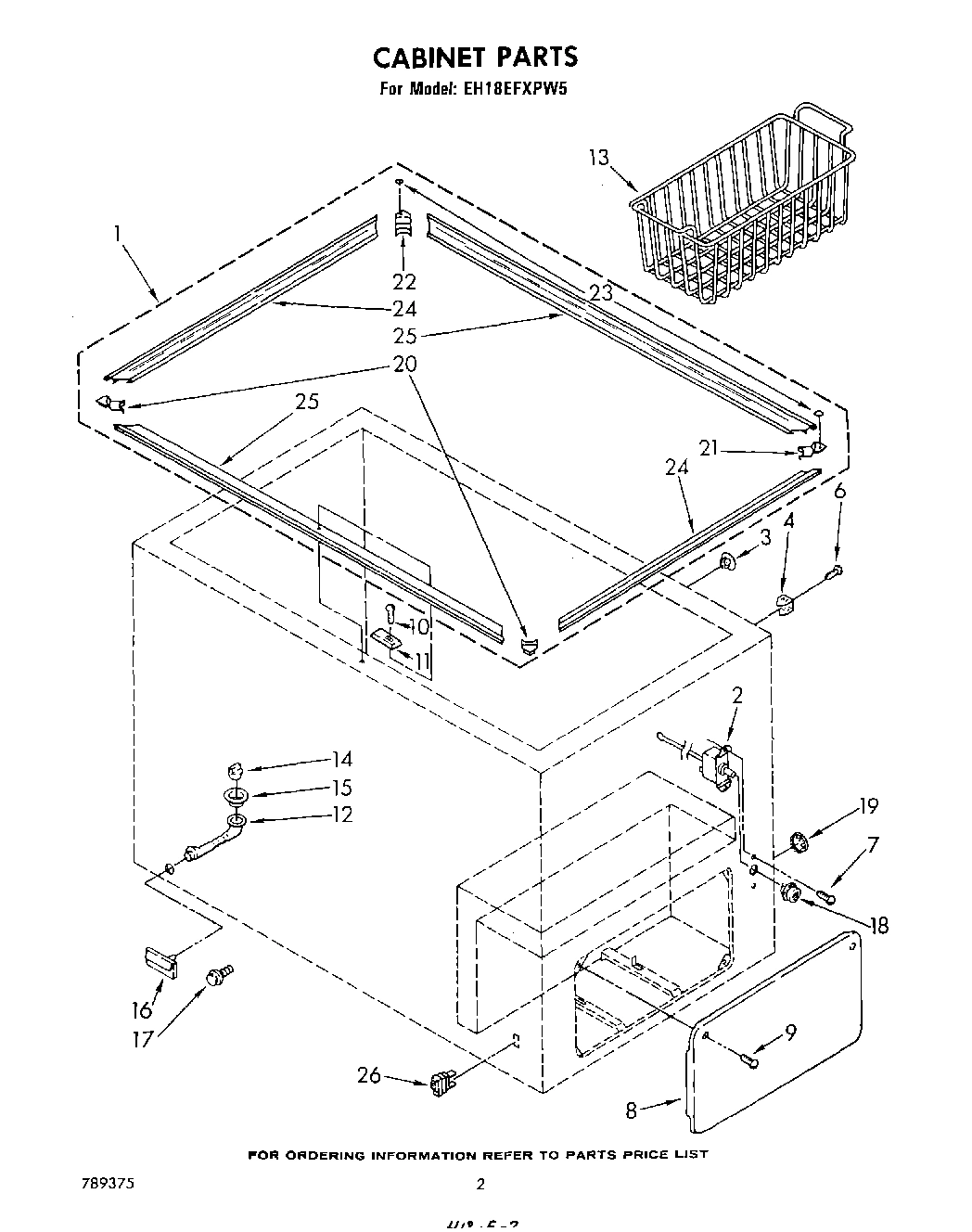

Model Whirlpool EH18EFXPW5 CHEST FREEZER – Common Parts & Diagrams

1
``O`` Ring
``O`` Ring WPL 753610 Contact Us For Availability
View on Model
2
Clip, Compressor Mounting (4)
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
View on Model
3
Hole Plug
Hole Plug WPL 534927 Contact Us For Availability
View on Model
4
Relay, Starting (Used W/Original Compressor)
Relay, Starting (Used W/Original Compressor) WPL 946615 Contact Us For Availability
View on Model
4
Decal, Panel
Decal, Panel WPL 730151 Contact Us For Availability
View on Model
5
Cover, Terminal (Used W/Original Compressor)
Cover, Terminal (Used W/Original Compressor) WPL 1105015 Contact Us For Availability
View on Model
6
Screw (2)
Screw (2) WPL 681672 Contact Us For Availability
View on Model
6
Strap, Relay & Overload Cover (Used W/Origina
Strap, Relay & Overload Cover (Used W/Origina WPL 938384 Contact Us For Availability
View on Model
7
Clip (40)
Clip (40) WPL 596788 Contact Us For Availability
View on Model
7
Screw
Screw WPL 595022 Contact Us For Availability
View on Model
8
Door
Door WPL 556069 Contact Us For Availability
View on Model
8
Drier
Drier WPL 728583 Contact Us For Availability
View on Model
9
Screw
Screw WPL 681318 Contact Us For Availability
View on Model
9
Harness, Wiring
Harness, Wiring WPL 586946 Contact Us For Availability
View on Model
10
Screw
Screw WPL 681362 Contact Us For Availability
View on Model
10
Screw, 8-32 x 5/8
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
View on Model
10
Gasket, Handle
Gasket, Handle WPL 727809 Contact Us For Availability
View on Model
11
Box, Strike
Box, Strike WPL 556612 Contact Us For Availability
View on Model
11
Clip, Spring
Clip, Spring WPL 983465 Contact Us For Availability
View on Model
12
Tube, Drain
Tube, Drain WPL 556624 Contact Us For Availability
View on Model
13
Basket
Basket WPL 730212 Contact Us For Availability
View on Model
13
Plate, Bolt
Plate, Bolt WPL 728115 Contact Us For Availability
View on Model
14
Plug, Drain
Plug, Drain WPL 576342 Contact Us For Availability
View on Model
14
Hook, Lock
Hook, Lock WPL 728222 Contact Us For Availability
View on Model
15
Ferrule, Drain
Ferrule, Drain WPL 576343 Contact Us For Availability
View on Model
15
Screw
Screw WPL 681569 Contact Us For Availability
View on Model
16
Cover, Drain
Cover, Drain WPL 730152 Contact Us For Availability
View on Model
17
Adapter, Hose
Adapter, Hose WPL 594467 Contact Us For Availability
View on Model
17
Lock
Lock WPL 586331 Contact Us For Availability
View on Model
18
Knob, Control
Knob, Control WPL 595722 Contact Us For Availability
View on Model
19
Plug, Button
Plug, Button WPL 681494 Contact Us For Availability
View on Model
19
Handle
Handle WPL 730153 Contact Us For Availability
View on Model
20
Corner, Front (2)
Corner, Front (2) WPL 728585 Contact Us For Availability
View on Model
20
Overload (Used On Service Compressor)
Overload (Used On Service Compressor) WPL 936073 Contact Us For Availability
View on Model
20
Panel, Door Exterior
Panel, Door Exterior WPL 730164 Contact Us For Availability
View on Model
21
Corner (Right Rear)
Corner (Right Rear) WPL 702459 Contact Us For Availability
View on Model
21
Spring, Overload (Used On Service Compressor)
Spring, Overload (Used On Service Compressor) WPL 549086 Contact Us For Availability
View on Model
22
Corner (Left Rear)
Corner (Left Rear) WPL 702460 Contact Us For Availability
View on Model
22
Relay (Used On Service Compressor)
Relay (Used On Service Compressor) WPL 549500 Contact Us For Availability
View on Model
23
Grommet (2)
Grommet (2) WPL 728362 Contact Us For Availability
View on Model
23
Cover, Terminal (Used On Service Compressor)
Cover, Terminal (Used On Service Compressor) WPL 549336 Contact Us For Availability
View on Model
24
Collar, End (2)
Collar, End (2) WPL 728412 Contact Us For Availability
View on Model
24
Strap, Cover (Used On Service Compressor)
Strap, Cover (Used On Service Compressor) WPL 549342 Contact Us For Availability
View on Model
24
Bar, L.H. Torsion
Bar, L.H. Torsion WPL 728038 Contact Us For Availability
View on Model
25
Collar (2) (Front & Rear)
Collar (2) (Front & Rear) WPL 728415 Contact Us For Availability
View on Model
25
Washer, Compressor Mounting (4)
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
View on Model
25
Bar, R.H. Torsion
Bar, R.H. Torsion WPL 728039 Contact Us For Availability
View on Model
26
Access Valve (5/8``)
Access Valve (5/8``) WPL 978029 Contact Us For Availability
View on Model
26
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
26
(12 Oz. Spray Can) (Leveler, Enamel (12 Oz. S
(12 Oz. Spray Can) (Leveler, Enamel (12 Oz. S WPL 206925 Contact Us For Availability
View on Model
26
Light, Indicator
Light, Indicator WPL 556230 Contact Us For Availability
View on Model
26
Enamel, Black (1 Qt. Uncut)
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
View on Model
26
Access Valve (1/2``)
Access Valve (1/2``) WPL 978028 Contact Us For Availability
View on Model
26
Hinge, L.H.
Hinge, L.H. WPL 753874 Contact Us For Availability
View on Model
26
Hinge, R.H.
Hinge, R.H. WPL 753875 Contact Us For Availability
View on Model
27
Cover, Hinge Rod (2)
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
View on Model
28
Overload (Used W/Original Compressor)
Overload (Used W/Original Compressor) WPL 946616 Contact Us For Availability
View on Model
28
Gasket
Gasket WPL 592924 Contact Us For Availability
View on Model
29
Panel, Door Interior
Panel, Door Interior WPL 730184 Contact Us For Availability
View on Model
