Model Whirlpool EH18EFXPW2 CHEST FREEZER – Common Parts & Diagrams

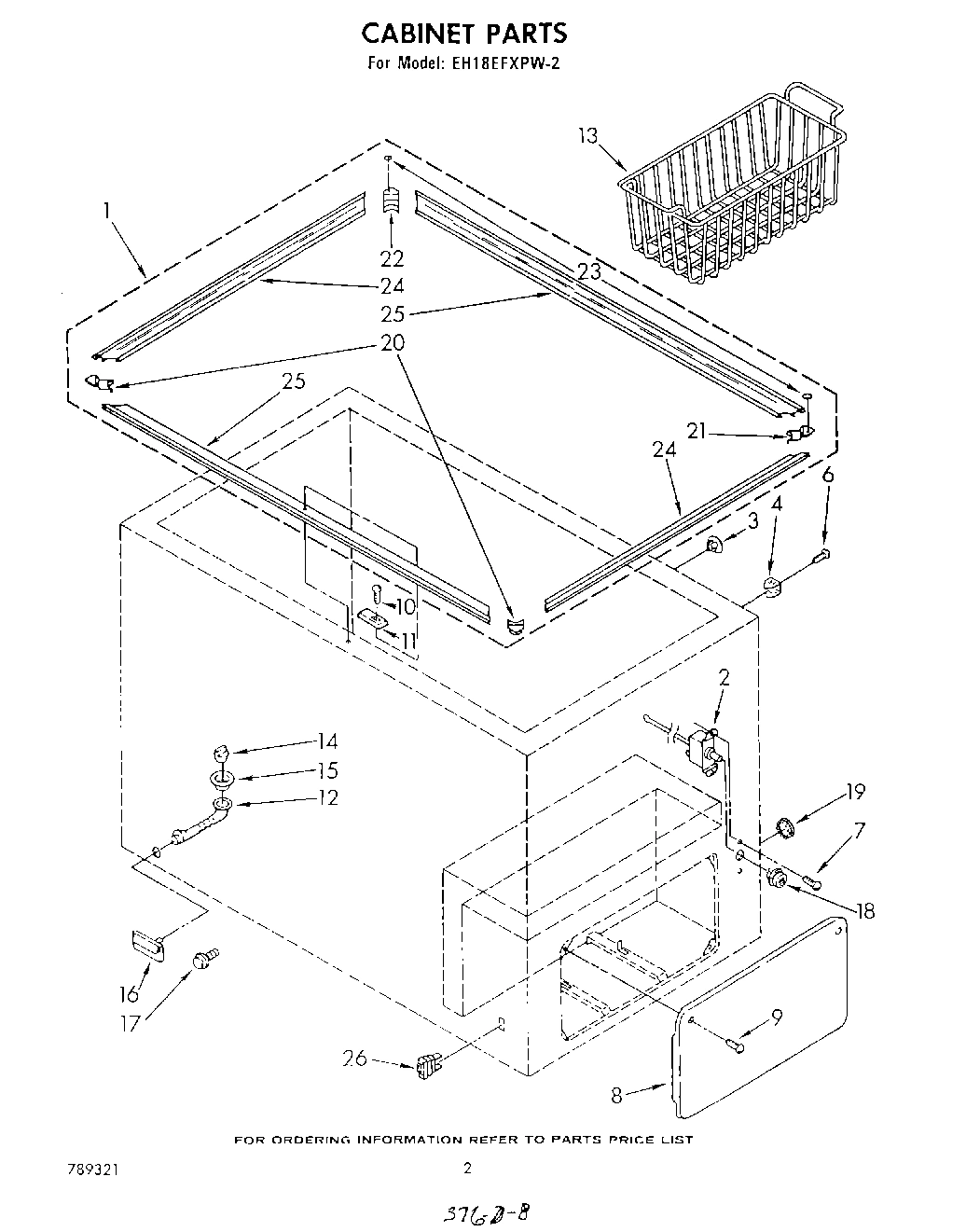

02 - SECTION

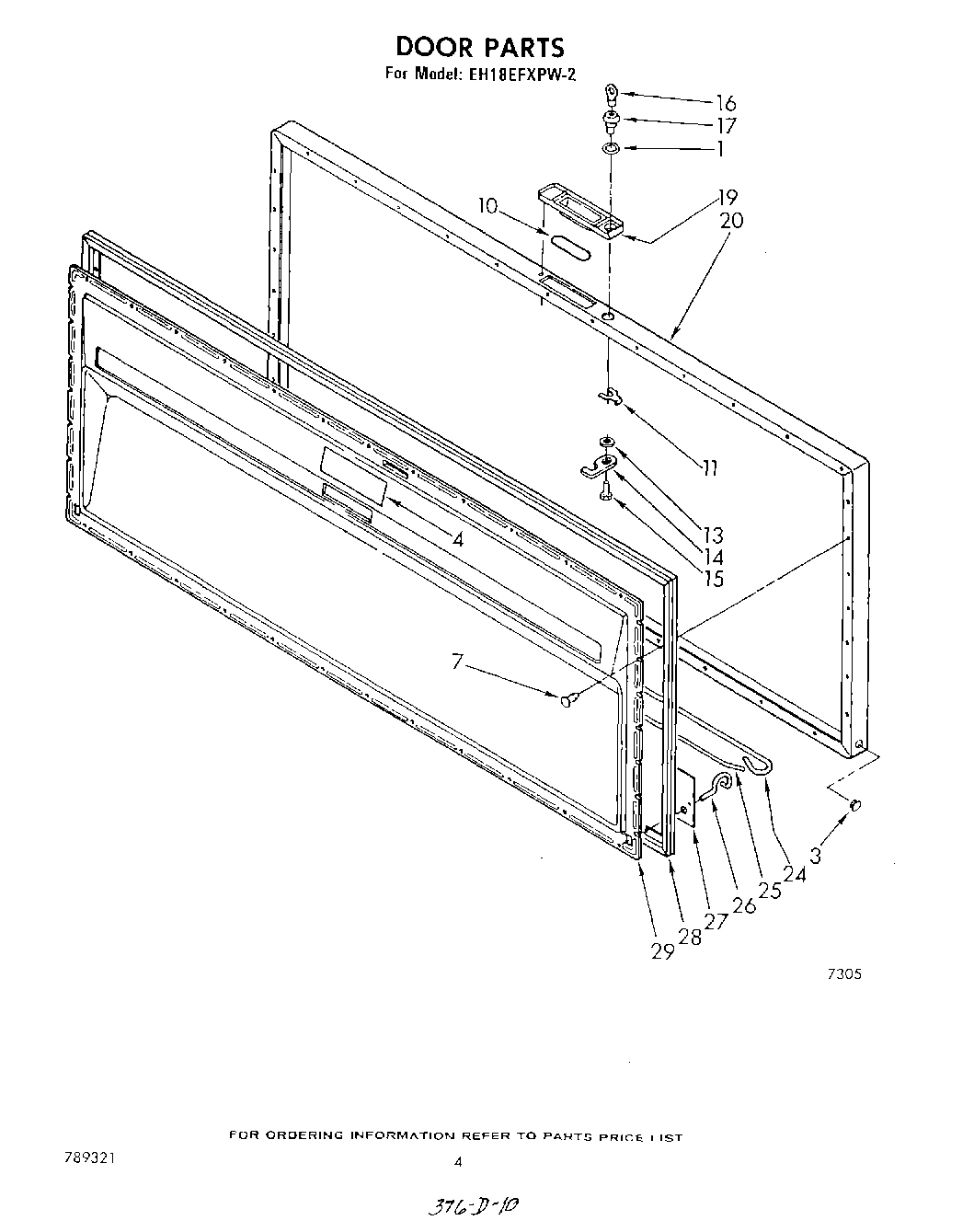

03 - SECTION

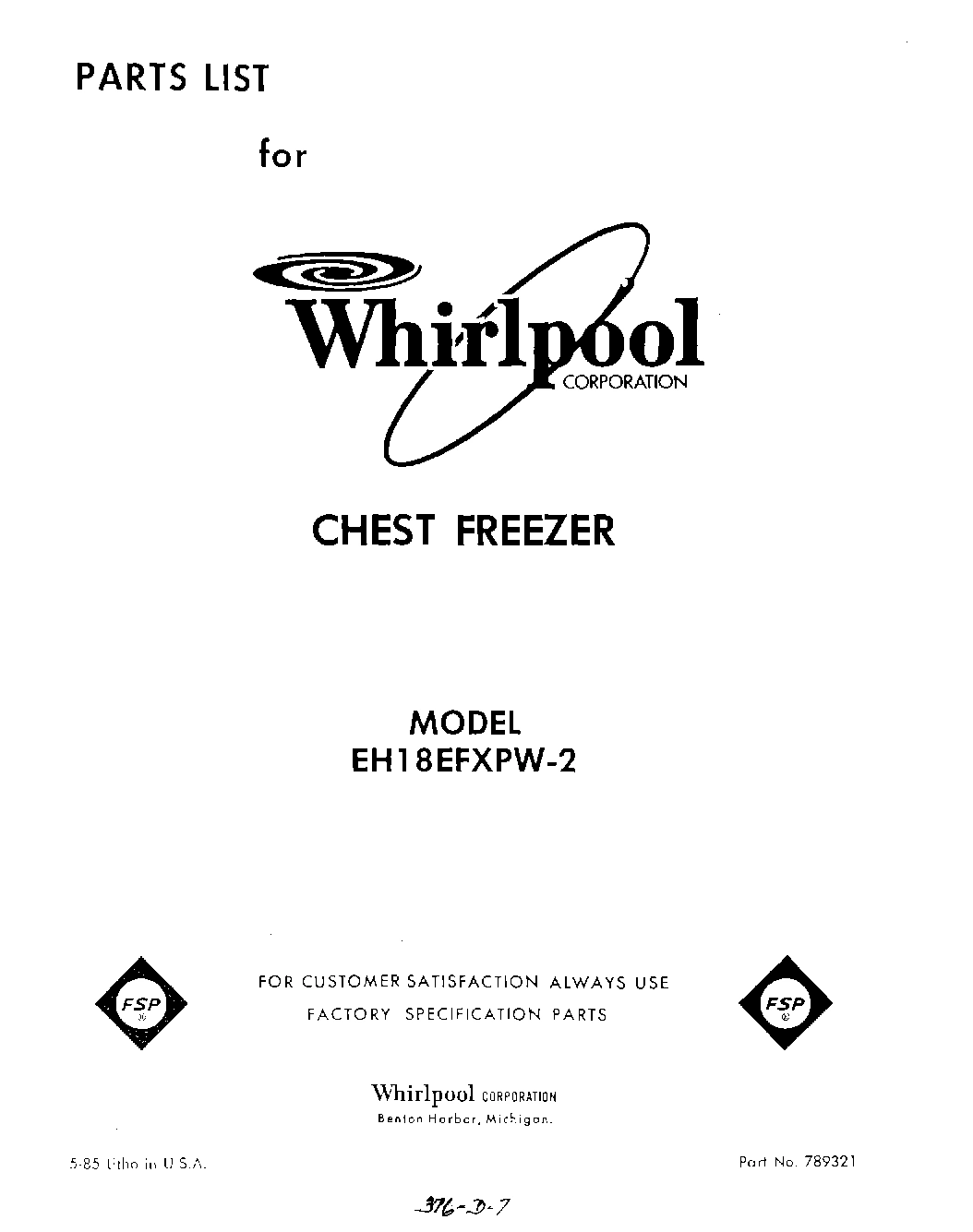

01 - SECTION

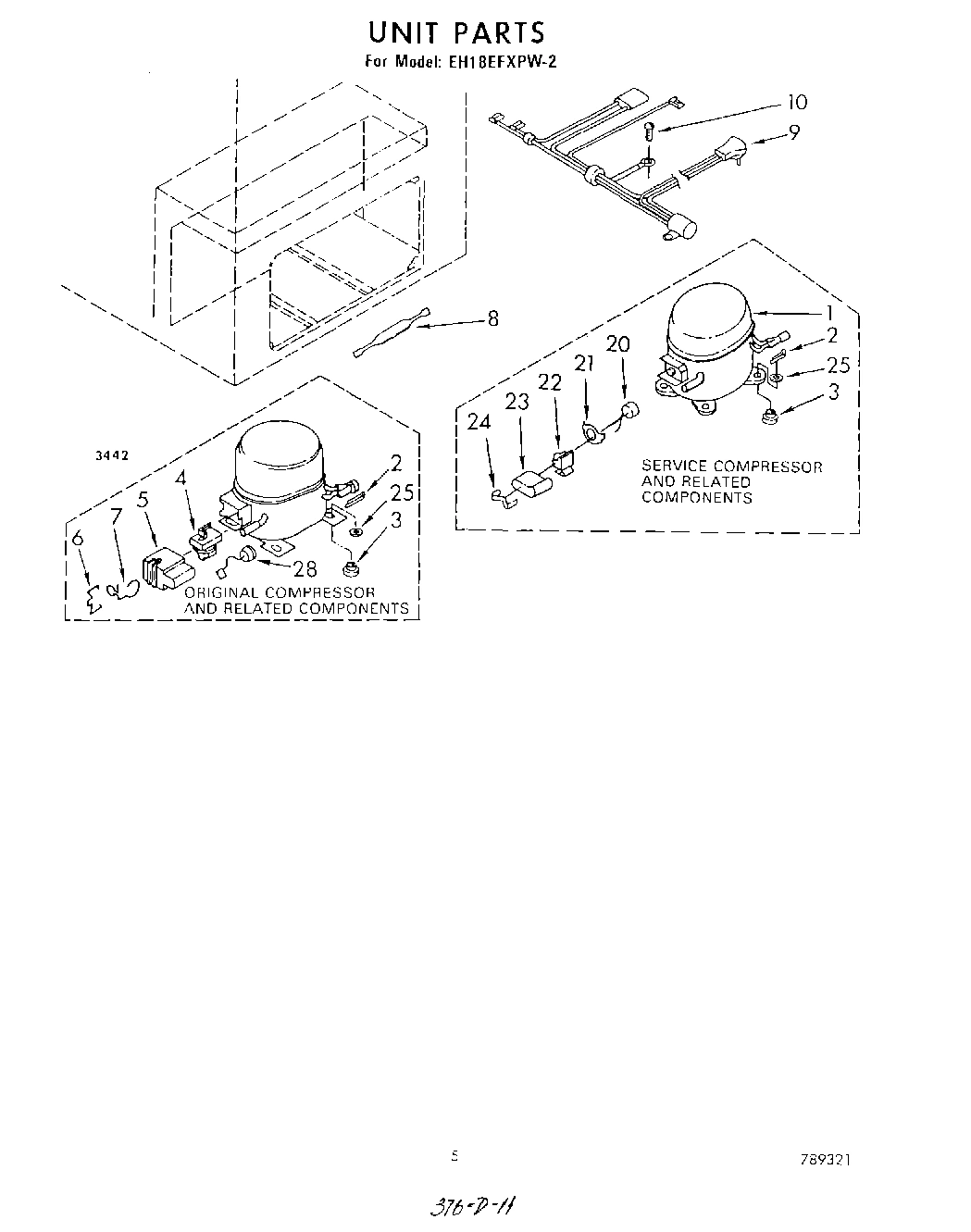

04 - SECTION
Common parts from model Whirlpool EH18EFXPW2 CHEST FREEZER
1
``O`` Ring WPL 753610 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
3
Hole Plug WPL 534927 Contact Us For Availability
4
Decal, Panel WPL 730151 Contact Us For Availability
4
Relay, Starting (Used W/Original Compressor) WPL 753504 Contact Us For Availability
5
Cover, Relay & Overload Assembly (Used W/Orig WPL 727044 Contact Us For Availability
6
Screw (2) WPL 681672 Contact Us For Availability
6
Strap, Relay & Overload Cover (Used W/Origina WPL 727045 Contact Us For Availability
7
Clip (40) WPL 596788 Contact Us For Availability
7
Screw WPL 595022 Contact Us For Availability
7
Clip, Cover (Used W/Original Compressor) WPL 727046 Contact Us For Availability
8
Door WPL 556069 Contact Us For Availability
8
Drier WPL 728583 Contact Us For Availability
9
Screw WPL 681318 Contact Us For Availability
9
Harness, Wiring WPL 586946 Contact Us For Availability
10
Screw WPL 681362 Contact Us For Availability
10
Gasket, Handle WPL 727809 Contact Us For Availability
10
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
11
Box, Strike WPL 556612 Contact Us For Availability
11
Clip, Spring WPL 983465 Contact Us For Availability
12
Tube, Drain WPL 556624 Contact Us For Availability
13
Basket WPL 730212 Contact Us For Availability
13
Plate, Bolt WPL 728115 Contact Us For Availability
14
Plug, Drain WPL 576342 Contact Us For Availability
14
Hook, Lock WPL 728222 Contact Us For Availability
15
Ferrule, Drain WPL 576343 Contact Us For Availability
15
Screw WPL 681569 Contact Us For Availability
16
Cover, Drain WPL 730152 Contact Us For Availability
17
Adapter, Hose WPL 594467 Contact Us For Availability
17
Lock WPL 586331 Contact Us For Availability
18
Knob, Control WPL 595722 Contact Us For Availability
19
Plug, Button WPL 681494 Contact Us For Availability
19
Handle WPL 730153 Contact Us For Availability
20
Corner, Front (2) WPL 728585 Contact Us For Availability
20
Panel, Door Exterior WPL 730164 Contact Us For Availability
20
Overload (Used On Service Compressor) WPL 936073 Contact Us For Availability
21
Corner (Right Rear) WPL 702459 Contact Us For Availability
21
Spring, Overload (Used On Service Compressor) WPL 549086 Contact Us For Availability
22
Corner (Left Rear) WPL 702460 Contact Us For Availability
22
Relay (Used On Service Compressor) WPL 549500 Contact Us For Availability
23
Grommet (2) WPL 728362 Contact Us For Availability
23
Cover, Terminal (Used On Service Compressor) WPL 549336 Contact Us For Availability
24
Collar, End (2) WPL 728412 Contact Us For Availability
24
Bar, L.H. Torsion WPL 728038 Contact Us For Availability
24
Strap, Cover (Used On Service Compressor) WPL 549342 Contact Us For Availability
25
Collar (2) (Front & Rear) WPL 728415 Contact Us For Availability
25
Bar, R.H. Torsion WPL 728039 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
26
Access Valve (5/8``) WPL 978029 Contact Us For Availability
26
Light, Indicator WPL 556230 Contact Us For Availability
26
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
26
Access Valve (1/2``) WPL 978028 Contact Us For Availability
26
Hinge, L.H. WPL 753874 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
28
Gasket WPL 592924 Contact Us For Availability
28
Overload (Used W/Original Compressor) WPL 753505 Contact Us For Availability
29
Panel, Door Interior WPL 730184 Contact Us For Availability
× ![]()
