Model Whirlpool EH185FXTQ01 CHEST FREEZER – Common Parts & Diagrams

1
OWNERS MANUAL
OWNERS MANUAL WPL W10326796 Contact Us For Availability
View on Model
1
ENERGY GUIDE
ENERGY GUIDE WPL W10326821 Contact Us For Availability
View on Model
1

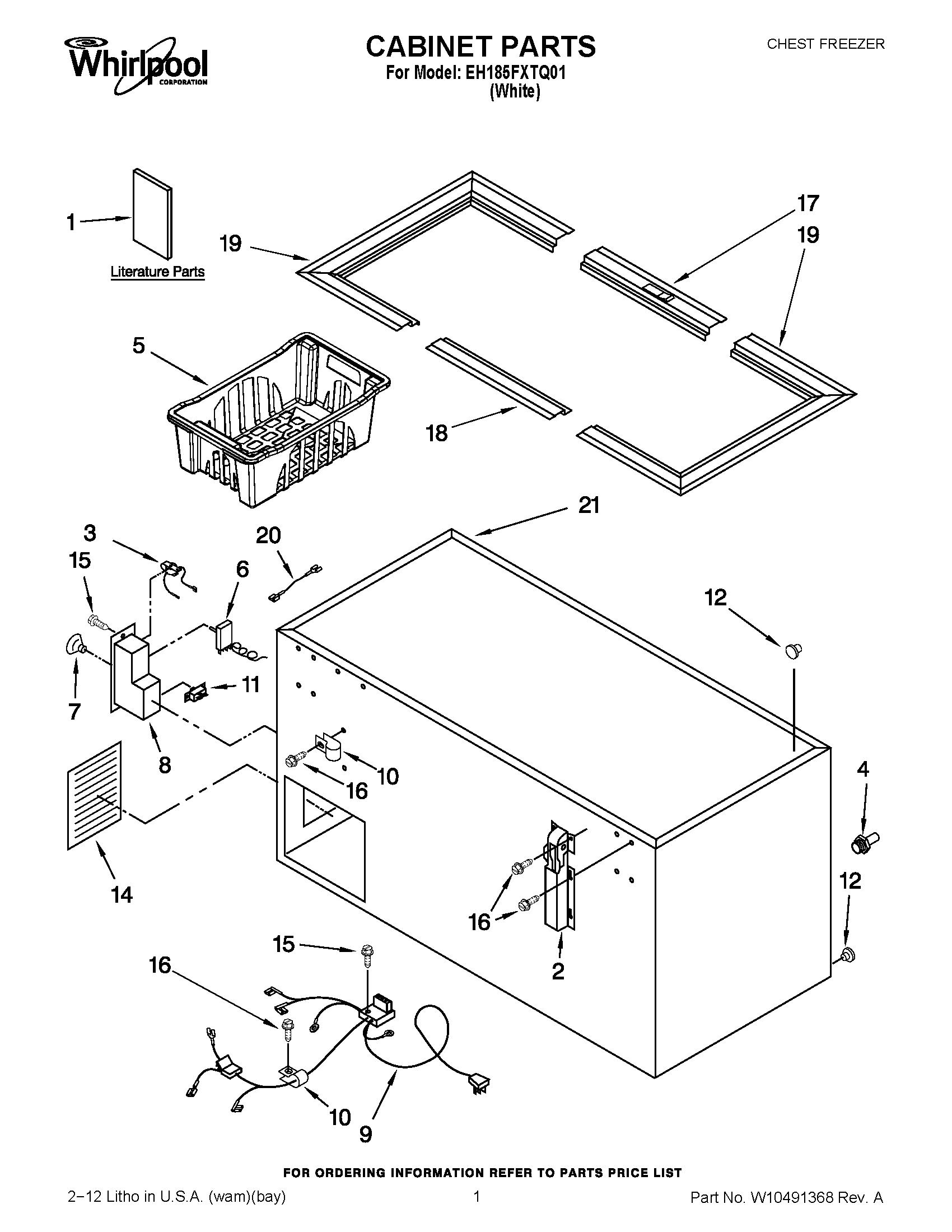

EXTERIOR DOOR PANEL (INCLUDES INSULATION)
EXTERIOR DOOR PANEL (INCLUDES INSULATION) WPL 435652803 Contact Us For Availability
View on Model
2
HINGE, ASSEMBLY
HINGE, ASSEMBLY WPL 434582012 Contact Us For Availability
View on Model
2
LOCK
LOCK WPL 335284001 Contact Us For Availability
View on Model
3
ALARM (BUZZER)
ALARM (BUZZER) WPL 232304 Contact Us For Availability
View on Model
3
HOOK BOLT, LOCK
HOOK BOLT, LOCK WPL 235195006 Contact Us For Availability
View on Model
4
DRAIN, ADAPTER
DRAIN, ADAPTER WPL 133178 Contact Us For Availability
View on Model
4
KEY
KEY WPL 126356 Contact Us For Availability
View on Model
5
BASKET
BASKET WPL 436033002 Contact Us For Availability
View on Model
5
HANDLE
HANDLE WPL 435663149 Contact Us For Availability
View on Model
6
THERMOSTAT
THERMOSTAT WPL 435940004 Contact Us For Availability
View on Model
6
CLIP, OBLONG
CLIP, OBLONG WPL 324059024 Contact Us For Availability
View on Model
7

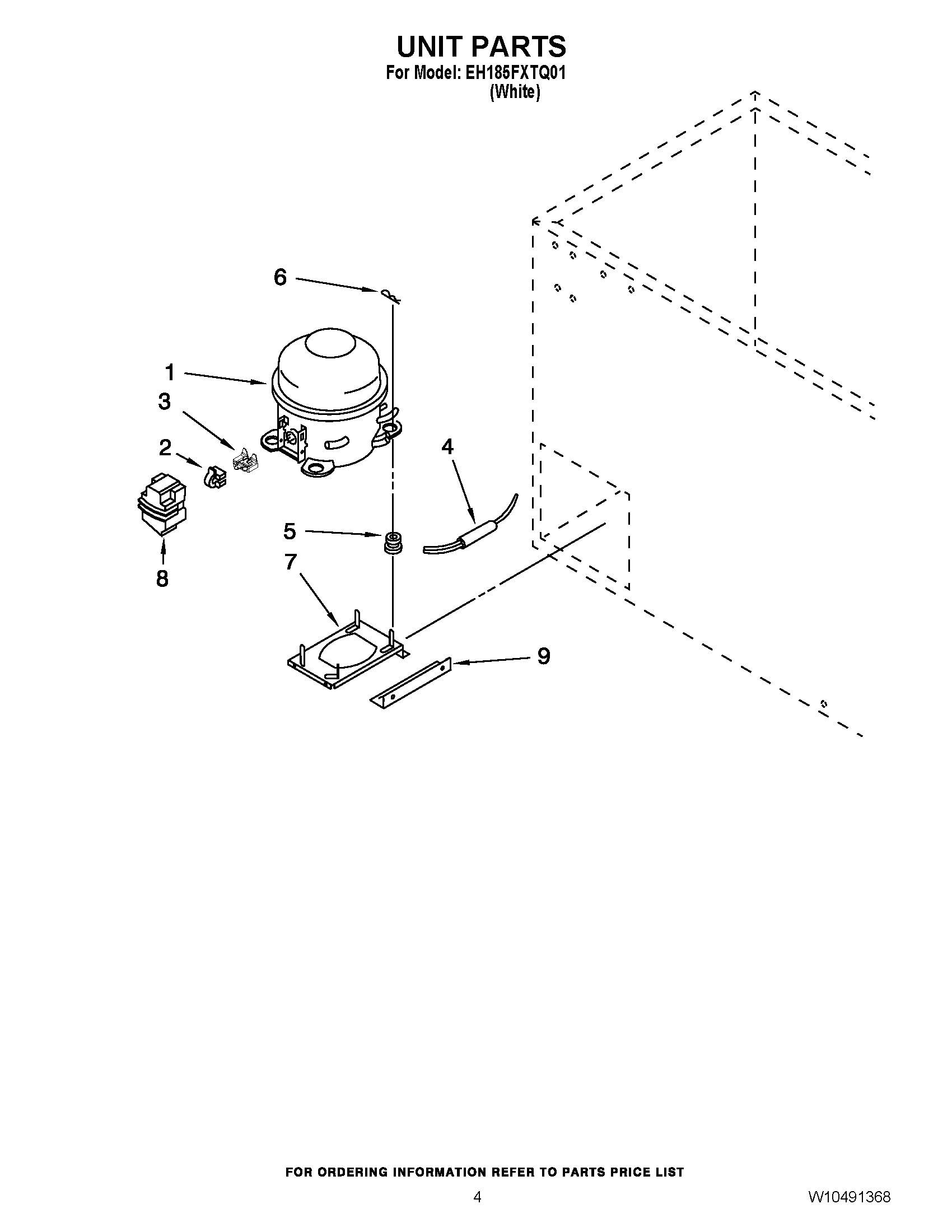

COMPRESSOR BASE
COMPRESSOR BASE WPL 435083001 Contact Us For Availability
View on Model
7
KNOB, THERMOSTAT
KNOB, THERMOSTAT WPL 436019001 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL 324004100 Contact Us For Availability
View on Model
8
COVER
COVER WPL 335171003 Contact Us For Availability
View on Model
8
CONTROL BOX
CONTROL BOX WPL 435976001 Contact Us For Availability
View on Model
8
INTERIOR DOOR PANEL
INTERIOR DOOR PANEL WPL 437095002 Contact Us For Availability
View on Model
9
BRACE
BRACE WPL 381556001 Contact Us For Availability
View on Model
9
HARNESS, WIRING
HARNESS, WIRING WPL 435521002 Contact Us For Availability
View on Model
10
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 375560003 Contact Us For Availability
View on Model
11
SWITCH, ALARM
SWITCH, ALARM WPL 232307 Contact Us For Availability
View on Model
11
BULB, LIGHT
BULB, LIGHT WPL 124397001 Contact Us For Availability
View on Model
12
PLUG, DRAIN
PLUG, DRAIN WPL 333211001 Contact Us For Availability
View on Model
12
SOCKET, LIGHT
SOCKET, LIGHT WPL 335862001 Contact Us For Availability
View on Model
13
GASKET
GASKET WPL 435260011 Contact Us For Availability
View on Model
14
ACCESS PANEL
ACCESS PANEL WPL 435099001 Contact Us For Availability
View on Model
14
GASKET, CLIP
GASKET, CLIP WPL 225702006 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 324004049 Contact Us For Availability
View on Model
15
SHIELD, HEAT
SHIELD, HEAT WPL 230045001 Contact Us For Availability
View on Model
16
SCREW
SCREW WPL 324004005 Contact Us For Availability
View on Model
16
REFLECTOR, LIGHT
REFLECTOR, LIGHT WPL 325693001 Contact Us For Availability
View on Model
17
FRONT, BREAKER STRIP
FRONT, BREAKER STRIP WPL 435011004 Contact Us For Availability
View on Model
18
REAR, BREAKER STRIP
REAR, BREAKER STRIP WPL 435010004 Contact Us For Availability
View on Model
18
CLIP, SPRING
CLIP, SPRING WPL 126359 Contact Us For Availability
View on Model
19
END, BREAKER STRIP (2)
END, BREAKER STRIP (2) WPL 435397004 Contact Us For Availability
View on Model
19
SWITCH, LIGHT
SWITCH, LIGHT WPL 335645001 Contact Us For Availability
View on Model
20
WIRE, LEAD (OPTIONAL)
WIRE, LEAD (OPTIONAL) WPL 330389079 Contact Us For Availability
View on Model
20
HARNESS, WIRING (LID)
HARNESS, WIRING (LID) WPL 435641002 Contact Us For Availability
View on Model
21
CABINET (NOT A SERVICEABLE PART)
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
View on Model
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (1
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, WHITE (1 WPL 799344 Contact Us For Availability
View on Model
NI
Clip, Gasket (Kit Of 60)
Clip, Gasket (Kit Of 60) WPL 4356489 Contact Us For Availability
View on Model
