Model Whirlpool EH185FXTQ00 CHEST FREEZER – Common Parts & Diagrams
01 - CABINET PARTS
03 - UNIT PARTS

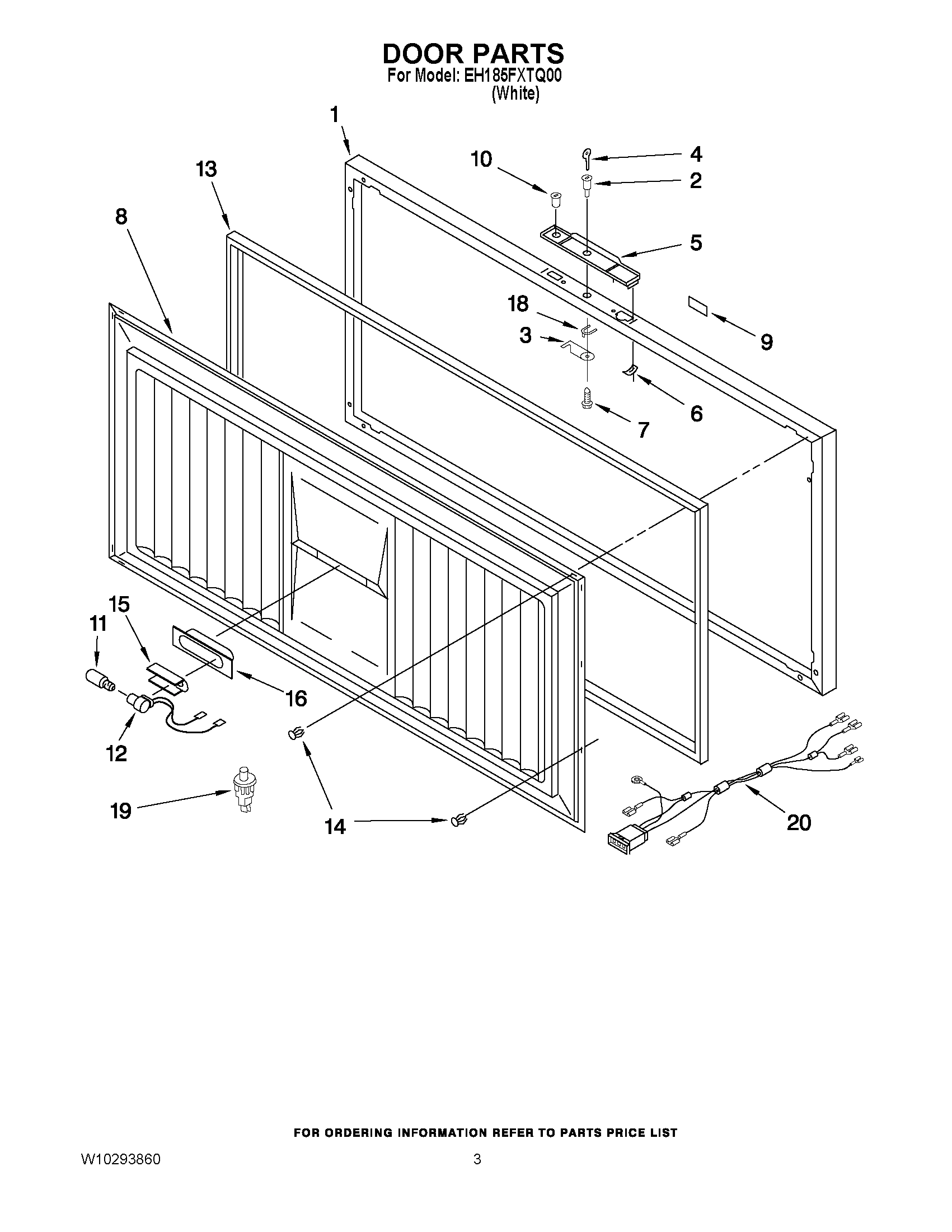

02 - DOOR PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool EH185FXTQ00 CHEST FREEZER
1
EXTERIOR DOOR PANEL (INCLUDES INSULATION) WPL W10296519 Contact Us For Availability
2
Relay WPL 4356738 Contact Us For Availability
4
Key WPL 4356304 Contact Us For Availability
5
Compressor, Mounting Grommet WPL 4356335 Contact Us For Availability
5
HANDLE WPL 68001700 Contact Us For Availability
6
COMPRESSOR, HITCH PIN WPL W10202610 Contact Us For Availability
7
Knob, Thermostat WPL 4356769 Contact Us For Availability
7
Compressor, Base WPL 4356590 Contact Us For Availability
8
Capacitor WPL 8210309 Contact Us For Availability
8
INTERIOR DOOR PANEL WPL W10296521 Contact Us For Availability
9
Harness, Wiring WPL 8210325 Contact Us For Availability
10
LIGHT, INDICATOR WPL W10295029 Contact Us For Availability
12
Plug, Drain WPL 4356456 Contact Us For Availability
12
Socket, Light WPL 4356874 Contact Us For Availability
13
GASKET WPL 435260011 Contact Us For Availability
14
Gasket, Clip WPL 4356703 Contact Us For Availability
14
Access Panel WPL 4356622 Contact Us For Availability
15
Shield, Heat WPL 4356704 Contact Us For Availability
18
Clip, Spring WPL 4356493 Contact Us For Availability
19
END, BREAKER STRIP (2) WPL W10296516 Contact Us For Availability
20
Divider (Optional) WPL 4356477 Contact Us For Availability
24
Alarm (Buzzer) WPL 8210321 Contact Us For Availability
27
Wire, Lead WPL 8210324 Contact Us For Availability
NI
REFRIGERANT CHARGE (4.8 OZ. (R-134A)) WPL NP Contact Us For Availability
NI
Clip, Gasket (Kit Of 60) WPL 4356489 Contact Us For Availability
× ![]()
