Model Whirlpool EH180FXTN00 CHEST FREEZER – Common Parts & Diagrams
04 - SECTION
02 - SECTION

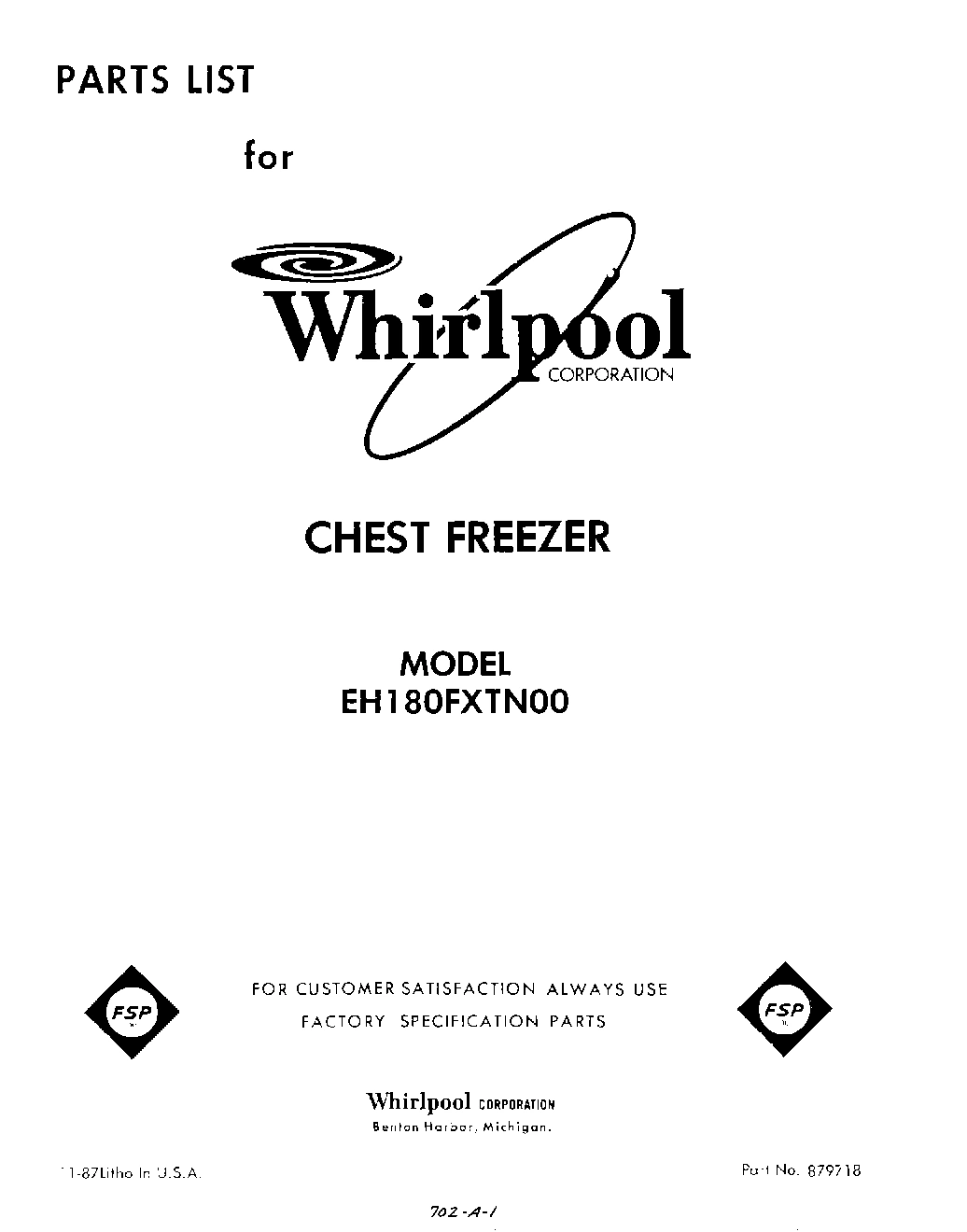

01 - SECTION

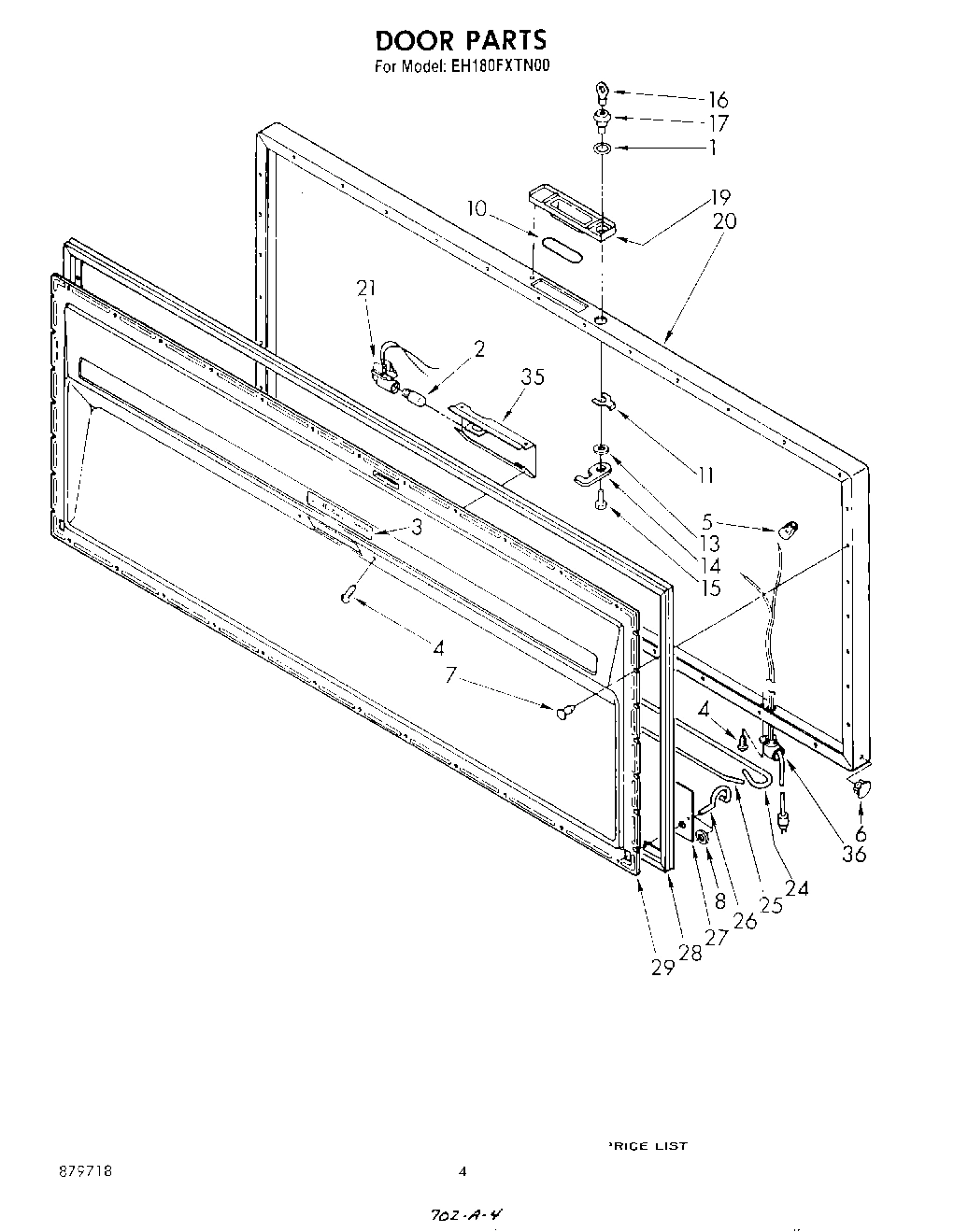

03 - SECTION
Common parts from model Whirlpool EH180FXTN00 CHEST FREEZER
xLeveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
Tech Sheet WPL LIT1108365 Contact Us For Availability
Book, How To Freeze WPL LIT656493 Contact Us For Availability
Guide, Use & Care WPL LIT730759 Contact Us For Availability
Energy Guide WPL LIT730944 Contact Us For Availability
List, Parts WPL LIT879718 Contact Us For Availability
1
``O`` Ring WPL 753610 Contact Us For Availability
2
Control, Cold WPL 728368 Contact Us For Availability
3
Plug Button (2) WPL 482584 Contact Us For Availability
3
Decal WPL 730715 Contact Us For Availability
4
Hinge, Rod Holder (2) WPL 730964 Contact Us For Availability
5
Connector WPL 596707 Contact Us For Availability
6
Screw (2) WPL 681672 Contact Us For Availability
6
Hole Plug (2) WPL 989197 Contact Us For Availability
7
Clip (40) WPL 596788 Contact Us For Availability
7
Screw WPL 595022 Contact Us For Availability
8
Door WPL 753077 Contact Us For Availability
8
Hinge Seal (2) WPL 730726 Contact Us For Availability
9
Screw WPL 681318 Contact Us For Availability
10
Screw WPL 681362 Contact Us For Availability
10
Gasket, Handle WPL 727809 Contact Us For Availability
11
Box, Strike WPL 730718 Contact Us For Availability
11
Clip, Spring WPL 983465 Contact Us For Availability
12
Tube, Drain WPL 556624 Contact Us For Availability
13
Basket WPL 730212 Contact Us For Availability
13
Plate, Bolt WPL 728115 Contact Us For Availability
14
Plug, Drain WPL 576342 Contact Us For Availability
14
Hook, Lock WPL 728222 Contact Us For Availability
15
Ferrule, Drain WPL 576343 Contact Us For Availability
15
Screw WPL 680483 Contact Us For Availability
16
Cover, Drain WPL 730730 Contact Us For Availability
17
Coupling, Male Hose WPL 594467 Contact Us For Availability
17
Lock WPL 586331 Contact Us For Availability
18
Knob, Control WPL 727020 Contact Us For Availability
19
Handle WPL 730714 Contact Us For Availability
20
Corner (4) WPL 730717 Contact Us For Availability
20
Panel, Door Exterior WPL 730752 Contact Us For Availability
21
Lampholder & Switch Assembly WPL 594815 Contact Us For Availability
24
Strap, Cover (Used On Service Compressor) WPL 938384 Contact Us For Availability
24
Collar, End (2) WPL 730716 Contact Us For Availability
24
Bar, L.H. Torsion WPL 728038 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
25
Collar (2) (Front & Rear) WPL 730750 Contact Us For Availability
25
Bar, R.H. Torsion WPL 728039 Contact Us For Availability
26
Access Valve (5/8``) WPL 978029 Contact Us For Availability
26
Light, Indicator WPL 556230 Contact Us For Availability
26
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
26
Access Valve (1/2``) WPL 978028 Contact Us For Availability
26
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
26
Hinge, L.H. WPL 753874 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
27
Clip WPL 653035 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
28
Overload (Used W/Original Compressor) WPL 1114260 Contact Us For Availability
28
Gasket WPL 728687 Contact Us For Availability
29
Nut WPL 489142 Contact Us For Availability
29
Panel, Door Interior WPL 730756 Contact Us For Availability
30
Washer WPL 489143 Contact Us For Availability
35
Light, Deflector WPL 594458 Contact Us For Availability
36
Harness Assembly WPL 728838 Contact Us For Availability
× ![]()
