Model Whirlpool EH180FXPN5 CHEST FREEZER – Common Parts & Diagrams

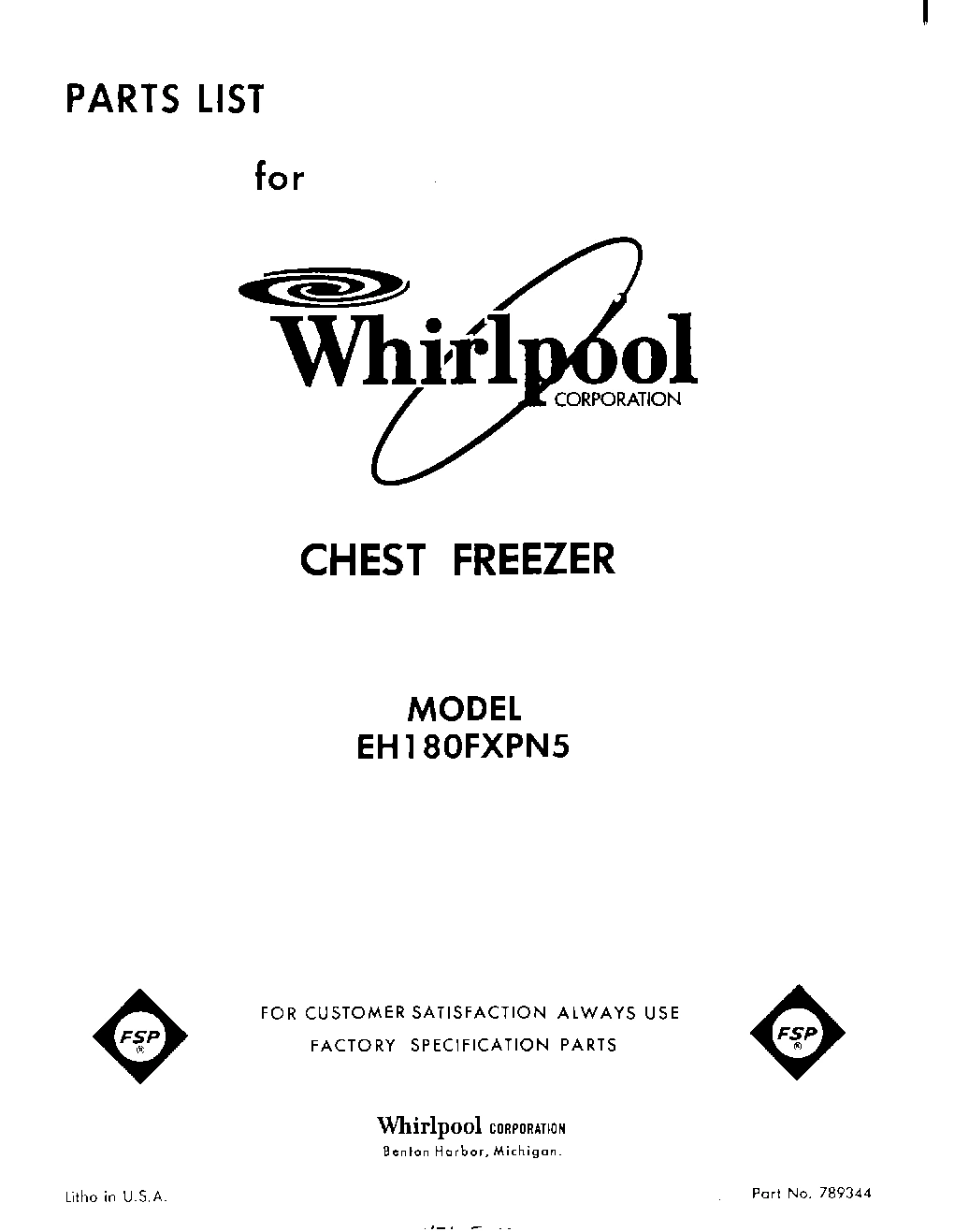

01 - SECTION

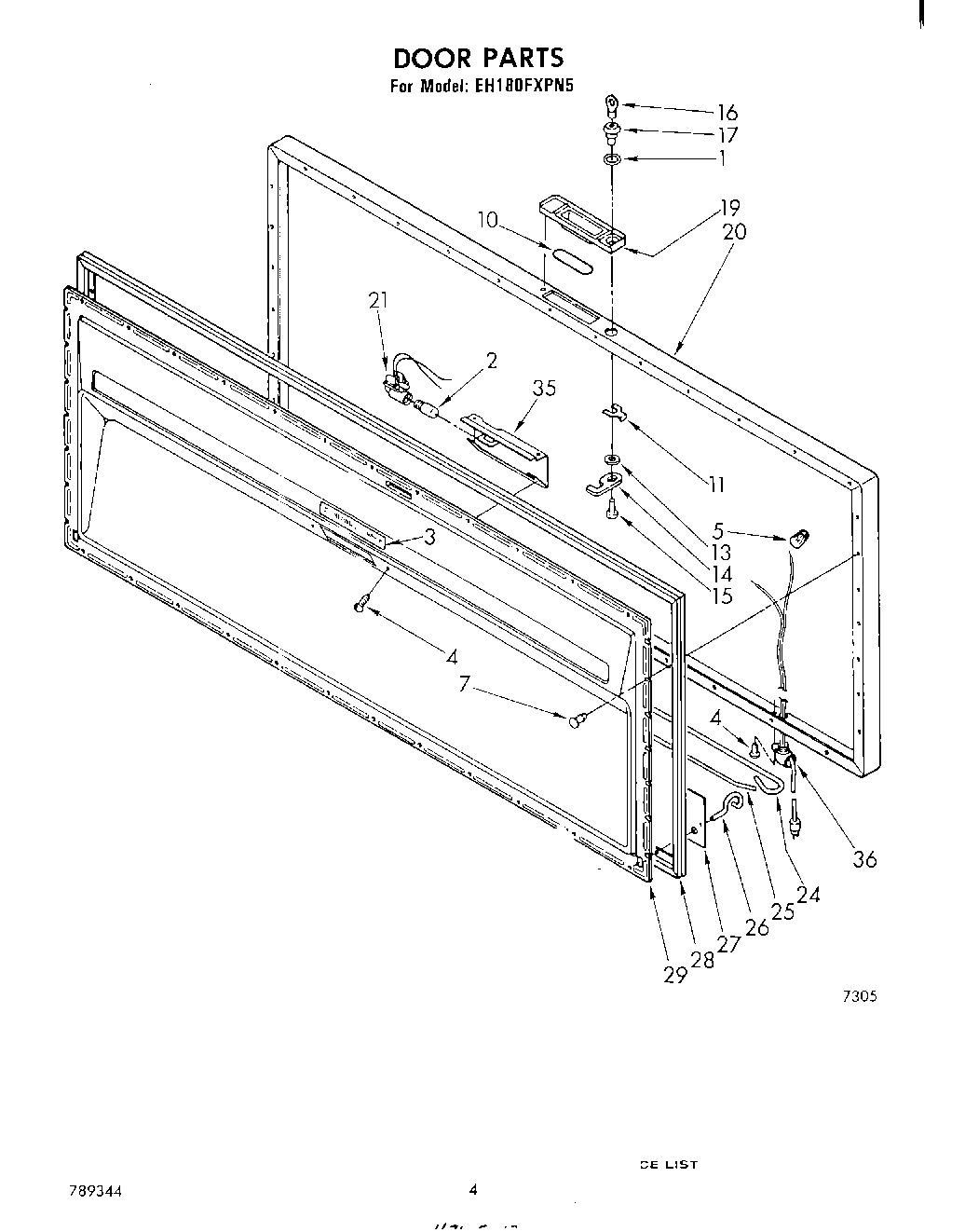

03 - SECTION

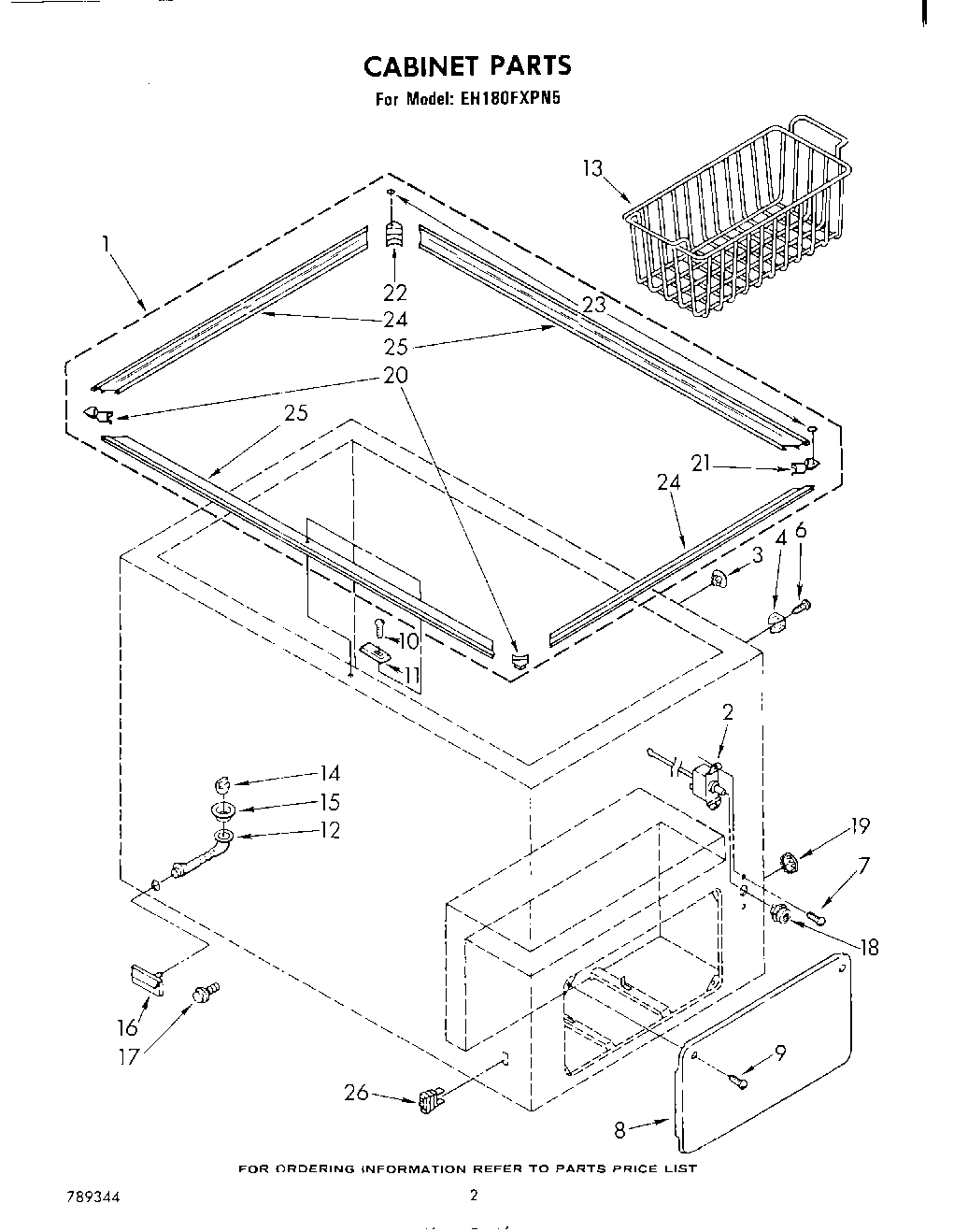

02 - SECTION

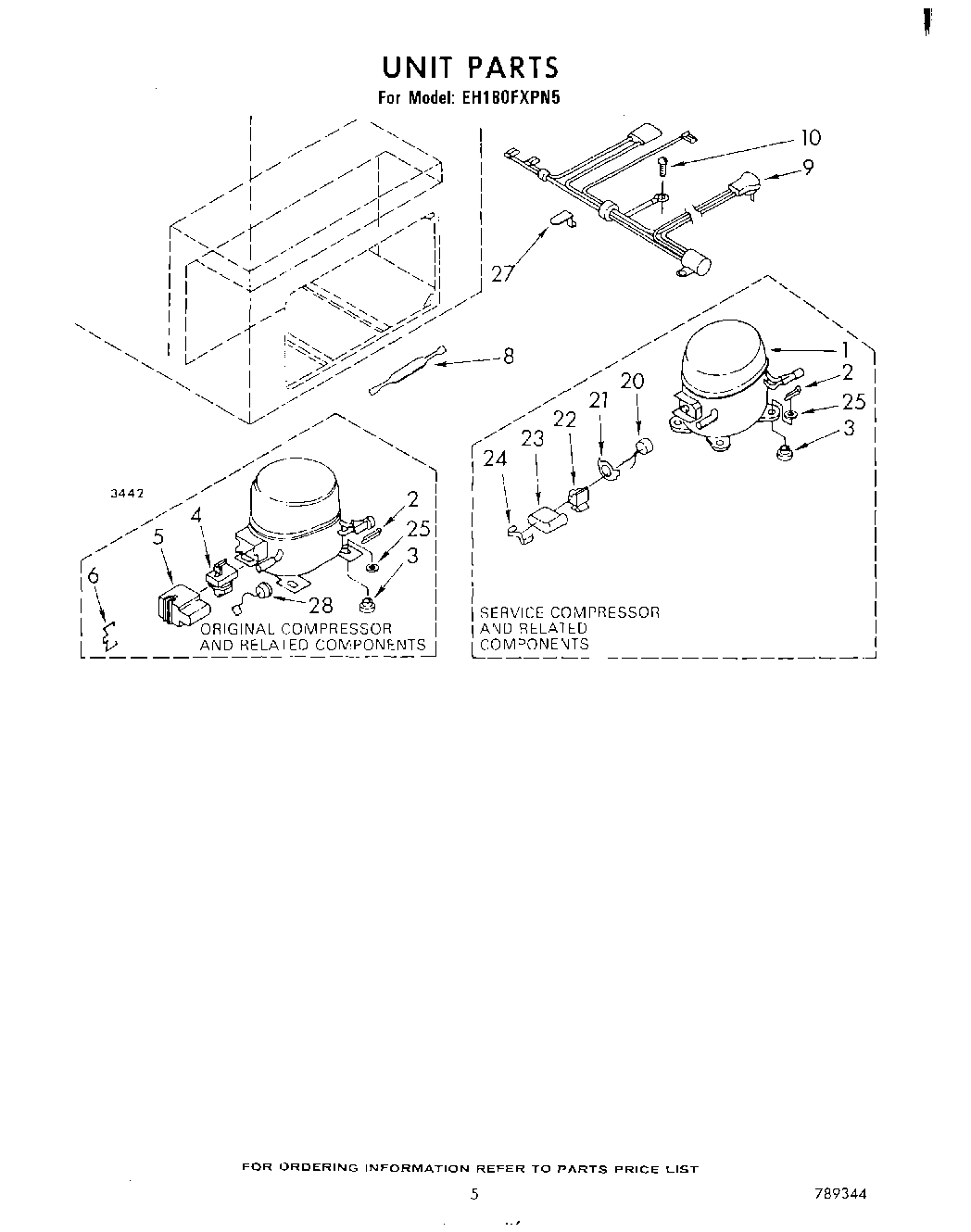

04 - SECTION
Common parts from model Whirlpool EH180FXPN5 CHEST FREEZER
1
Collar Kit (Items 20, 21, 22, 23, 24 & 25 Are WPL 702456 Contact Us For Availability
2
Control, Cold WPL 728369 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
3
Plug Button (2) WPL 482584 Contact Us For Availability
4
Rod Holder Assembly (2) WPL 556013 Contact Us For Availability
4
Relay, Starting (Used W/Original Compressor) WPL 946615 Contact Us For Availability
5
Cover, Terminal (Used W/Original Compressor) WPL 1105015 Contact Us For Availability
6
Screw (2) WPL 681646 Contact Us For Availability
6
Strap, Relay & Overload Cover (Used W/Origina WPL 938384 Contact Us For Availability
7
Clip (40) WPL 596788 Contact Us For Availability
7
Screw WPL 595022 Contact Us For Availability
8
Door WPL 753077 Contact Us For Availability
8
Drier WPL 728583 Contact Us For Availability
9
Screw WPL 681318 Contact Us For Availability
9
Harness, Wiring WPL 730032 Contact Us For Availability
10
Screw WPL 681362 Contact Us For Availability
10
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
11
Box, Strike WPL 556612 Contact Us For Availability
12
Tube, Drain WPL 556624 Contact Us For Availability
13
Basket WPL 730212 Contact Us For Availability
14
Plug, Drain WPL 576342 Contact Us For Availability
15
Ferrule, Drain WPL 576343 Contact Us For Availability
16
Cover, Drain WPL 753073 Contact Us For Availability
17
Adapter, Hose WPL 596259 Contact Us For Availability
18
Knob, Control WPL 727020 Contact Us For Availability
19
Plug, Button WPL 681494 Contact Us For Availability
20
Corner, Front (2) WPL 728585 Contact Us For Availability
20
Overload (Used On Service Compressor 702217) WPL 936073 Contact Us For Availability
21
Corner (Right Rear) WPL 702459 Contact Us For Availability
21
Spring, Overload (Used On Service Compressor WPL 549086 Contact Us For Availability
22
Corner (Left Rear) WPL 702460 Contact Us For Availability
22
Relay (Used On Service Compressor 702217) WPL 549500 Contact Us For Availability
23
Grommet (2) WPL 728362 Contact Us For Availability
23
Cover, Terminal (Used On Service Compressor 7 WPL 549336 Contact Us For Availability
24
Collar, End (2) WPL 728412 Contact Us For Availability
24
Strap, Cover (Used On Service Compressor) WPL 549342 Contact Us For Availability
25
Bar, R.H. Torsion WPL 728039 Contact Us For Availability
25
Collar (2) (Front & Rear) WPL 728415 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
26
WPL 978029 WPL 978029 Contact Us For Availability
26
Hinge, L.H. WPL 753874 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
26
(12 Oz. Spray Can) (Leveler, Enamel (12 Oz. S WPL 206925 Contact Us For Availability
26
Light, Indicator WPL 556230 Contact Us For Availability
26
(12 Oz. Spray Can) (Enamel, Black (1 Qt. Uncu WPL 799340 Contact Us For Availability
26
WPL 978028 WPL 978028 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
26
WPL LIT656493 WPL LIT656493 Contact Us For Availability
26
WPL LIT728786 WPL LIT728786 Contact Us For Availability
26
WPL LIT730051 WPL LIT730051 Contact Us For Availability
26
WPL LIT730096 WPL LIT730096 Contact Us For Availability
26
WPL LIT789344 WPL LIT789344 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
27
Clip WPL 653035 Contact Us For Availability
28
Gasket WPL 753001 Contact Us For Availability
28
Overload (Used W/Original Compressor) WPL 946616 Contact Us For Availability
29
Panel, Door Interior WPL 730142 Contact Us For Availability
35
Light, Deflector WPL 594459 Contact Us For Availability
36
Harness Assembly WPL 728838 Contact Us For Availability
× ![]()
