Model Whirlpool EH15EFXRW5 CHEST FREEZER – Common Parts & Diagrams

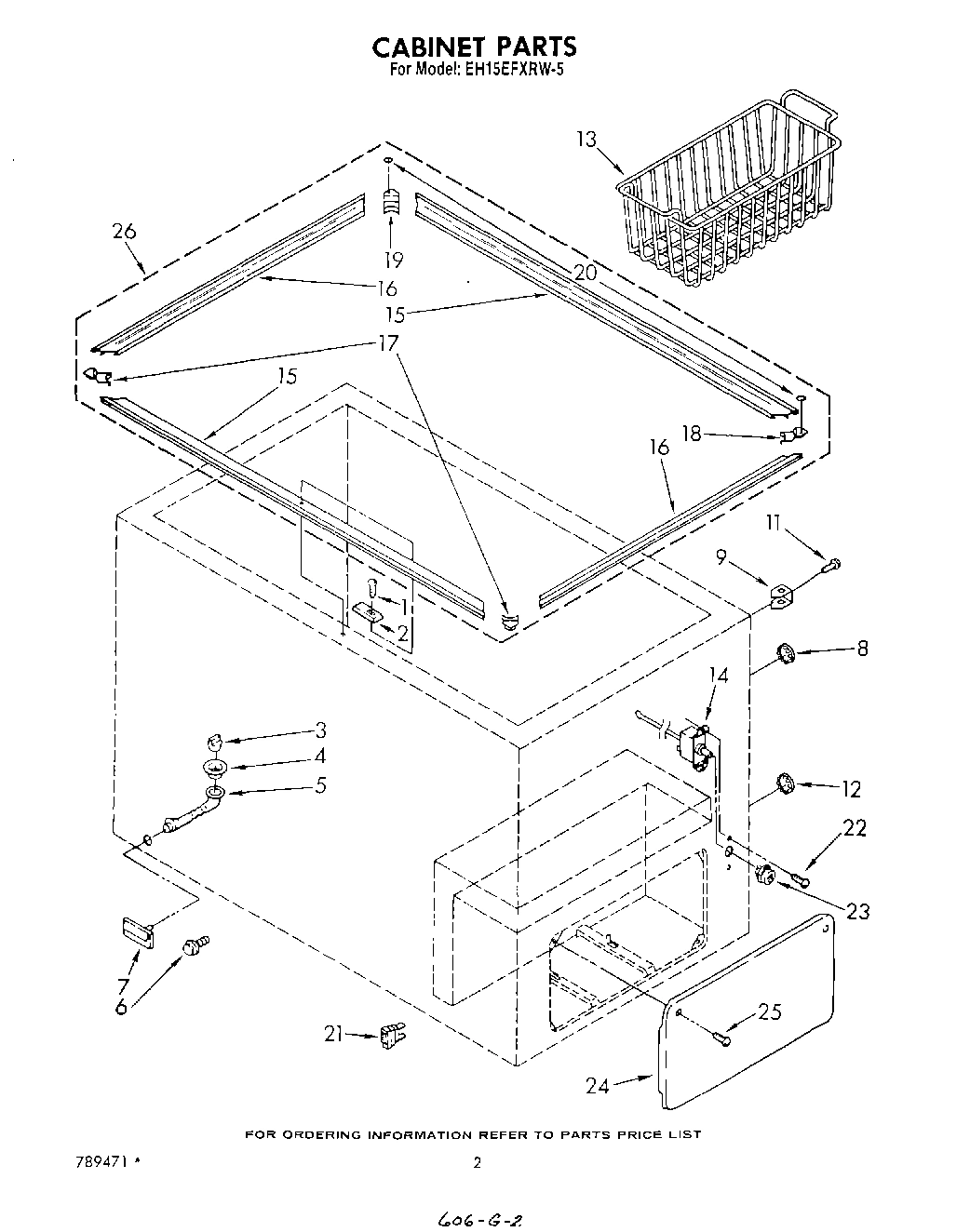

02 - SECTION

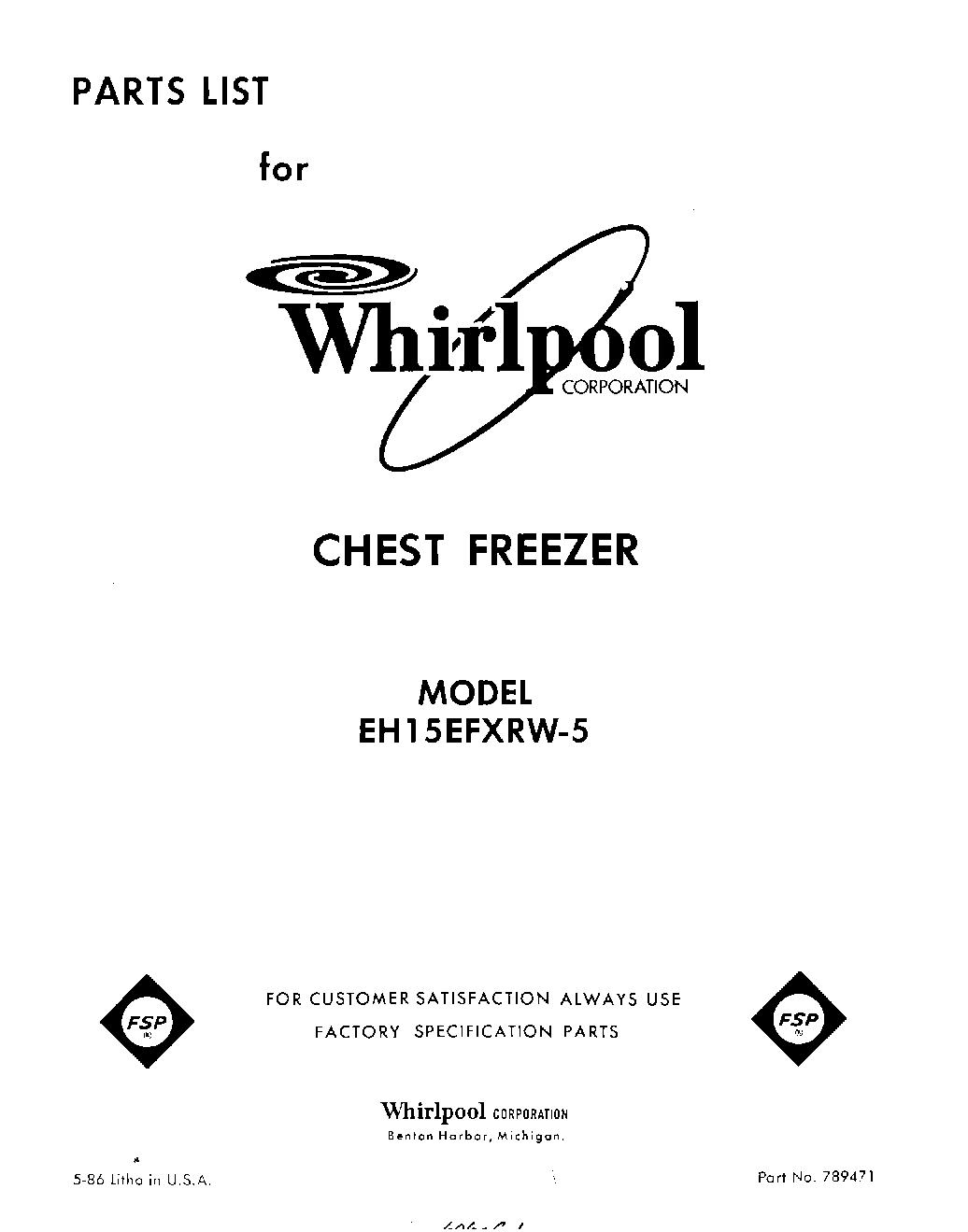

01 - SECTION
03 - SECTION
04 - SECTION
Common parts from model Whirlpool EH15EFXRW5 CHEST FREEZER
1
``O`` Ring WPL 753610 Contact Us For Availability
1
Compressor (Service Replacement) (Items No. 2 WPL 482981 Contact Us For Availability
2
Decal, Panel WPL 730151 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
3
Plug, Hole WPL 534927 Contact Us For Availability
4
Deflector, Light WPL 594458 Contact Us For Availability
4
Relay (Used W/Original Compressor) WPL 938385 Contact Us For Availability
5
Tape, Foil Backed WPL 568386 Contact Us For Availability
6
Adapter, Hose WPL 594467 Contact Us For Availability
6
Harness, Door WPL 592866 Contact Us For Availability
7
Clip (36) WPL 596788 Contact Us For Availability
7
Cover, Drain WPL 730152 Contact Us For Availability
8
Plug Button WPL 482584 Contact Us For Availability
8
Holder, Lamp WPL 594815 Contact Us For Availability
8
Drier WPL 728583 Contact Us For Availability
9
Rod Holder Assembly WPL 556013 Contact Us For Availability
9
Harness, Wiring WPL 586946 Contact Us For Availability
10
Gasket, Handle WPL 727809 Contact Us For Availability
10
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
11
Bolt, Machine WPL 681672 Contact Us For Availability
11
Clip, Lock WPL 983465 Contact Us For Availability
12
Plug, Button WPL 681494 Contact Us For Availability
12
Wire, Connector WPL 596707 Contact Us For Availability
13
Basket WPL 730212 Contact Us For Availability
13
Plate, Bolt WPL 728115 Contact Us For Availability
14
Control, Cold WPL 728368 Contact Us For Availability
14
Hook, Lock WPL 728222 Contact Us For Availability
15
Collar (2) (Front & Rear) WPL 728414 Contact Us For Availability
15
Screw WPL 681569 Contact Us For Availability
16
Collar, End (2) WPL 728412 Contact Us For Availability
17
Corner, Front (2) WPL 728585 Contact Us For Availability
17
Lock WPL 586331 Contact Us For Availability
18
Corner (Right Rear) WPL 702459 Contact Us For Availability
19
Corner (Left Rear) WPL 702460 Contact Us For Availability
19
Handle WPL 730153 Contact Us For Availability
20
Grommet (2) WPL 728362 Contact Us For Availability
20
Panel, Door Exterior WPL 730162 Contact Us For Availability
20
Overload (Used On Service Compressor) WPL 1105077 Contact Us For Availability
21
Light, Indicator WPL 556230 Contact Us For Availability
21
Capacitor (Used On Service Compressor) WPL 482996 Contact Us For Availability
22
Screw (2) WPL 595022 Contact Us For Availability
22
Relay (Used W/Service Compressor) WPL 1100806 Contact Us For Availability
23
Knob, Control WPL 554577 Contact Us For Availability
23
Cover, Terminal (Used On Service Compressor) WPL 1105015 Contact Us For Availability
24
Door WPL 556069 Contact Us For Availability
24
Torsion Bar, L.H. WPL 728036 Contact Us For Availability
24
Strap, Cover (Used On Service Compressor) WPL 938384 Contact Us For Availability
25
Screw WPL 681318 Contact Us For Availability
25
Torsion Bar, R.H. WPL 728037 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
26
Access Valve (5/8``) WPL 978029 Contact Us For Availability
26
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
26
Collar Kit (Items 15, 16, 17 18, 19, and 20 A WPL 702455 Contact Us For Availability
26
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
26
Access Valve (1/2``) WPL 978028 Contact Us For Availability
26
Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability
26
Hinge, L.H. WPL 753874 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
27
Overload (Used W/Original Compressor) WPL 730224 Contact Us For Availability
28
Gasket WPL 592945 Contact Us For Availability
28
Nut (Used W/Service Compressor) WPL 489142 Contact Us For Availability
29
Panel, Door Interior WPL 730595 Contact Us For Availability
29
Washer (Used W/Service Compressor) WPL 489143 Contact Us For Availability
× ![]()
