Model Whirlpool EH151FXTQ00 CHEST FREEZER – Common Parts & Diagrams

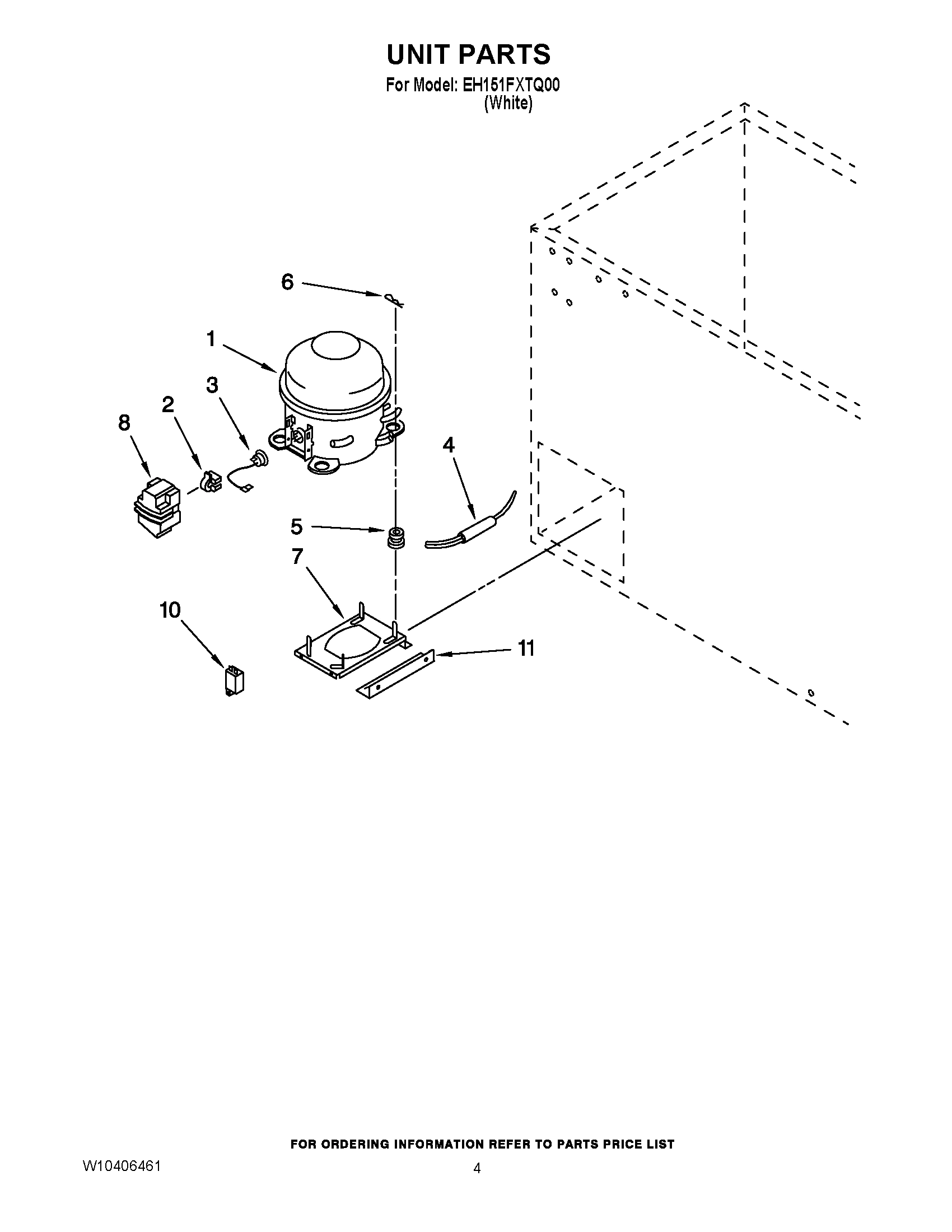

03 - UNIT PARTS

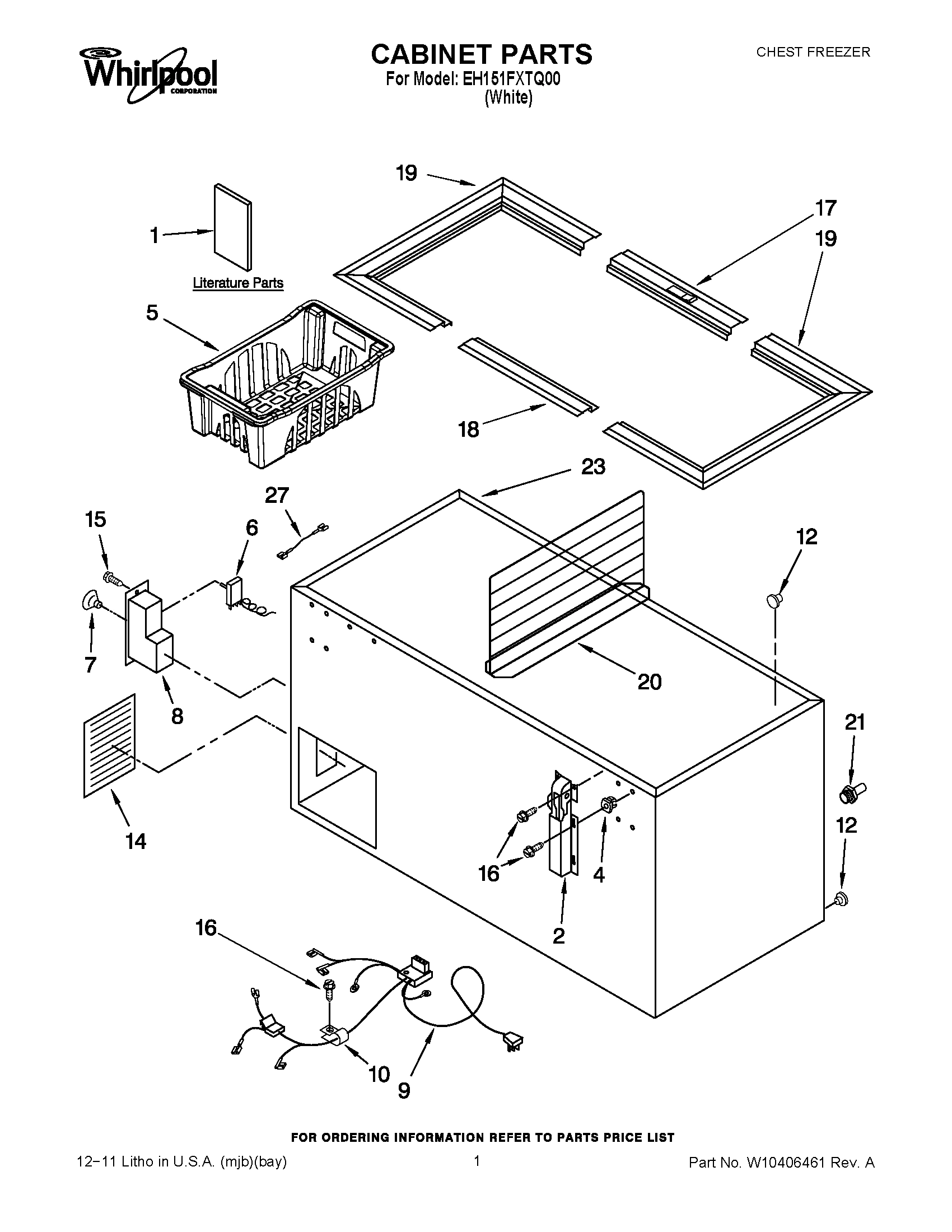

01 - CABINET PARTS

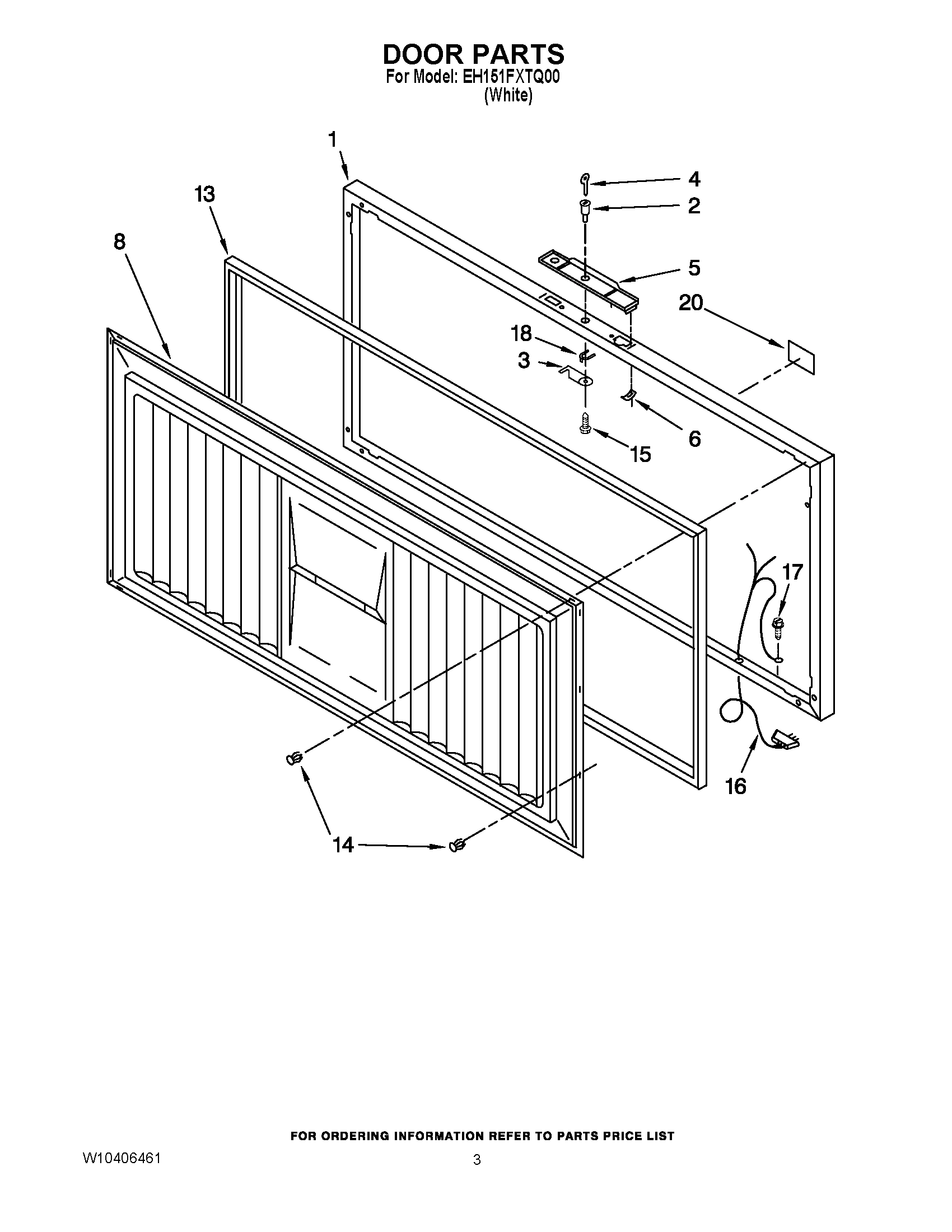

02 - DOOR PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool EH151FXTQ00 CHEST FREEZER
1
OWNERS MANUAL WPL W10326796 Contact Us For Availability
1
ENERGY GUIDE/TAG WPL W10326817 Contact Us For Availability
1
EXTERIOR DOOR PANEL WPL 435652302 Contact Us For Availability
2
Relay WPL 4356738 Contact Us For Availability
2
HINGE, ASSEMBLY WPL 434582008 Contact Us For Availability
2
LOCK KIT WPL 335284001 Contact Us For Availability
3
HOOK BOLT, LOCK WPL 4357289 Contact Us For Availability
4
KEY WPL 126355 Contact Us For Availability
5
HANDLE WPL 435663032 Contact Us For Availability
6
Clip, Oblong WPL 4356306 Contact Us For Availability
7
Knob, Thermostat WPL 4356769 Contact Us For Availability
8
Interior, Door Panel WPL 4356361 Contact Us For Availability
12
Drain Plug WPL 4356456 Contact Us For Availability
13
GASKET WPL 435260005 Contact Us For Availability
14
Clip, Gasket WPL 4356703 Contact Us For Availability
14
Access Panel WPL 4356622 Contact Us For Availability
16
HARNESS, WIRING (LID) WPL W10364532 Contact Us For Availability
18
Clip, Spring WPL 4356493 Contact Us For Availability
20
Divider (Optional) WPL 4356477 Contact Us For Availability
23
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
27
Wire, Lead WPL 8210324 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, ALMOND (1 WPL 978883 Contact Us For Availability
× ![]()
