Model Whirlpool EH150FXPN5 CHEST FREEZER – Common Parts & Diagrams
03 - SECTION
01 - SECTION

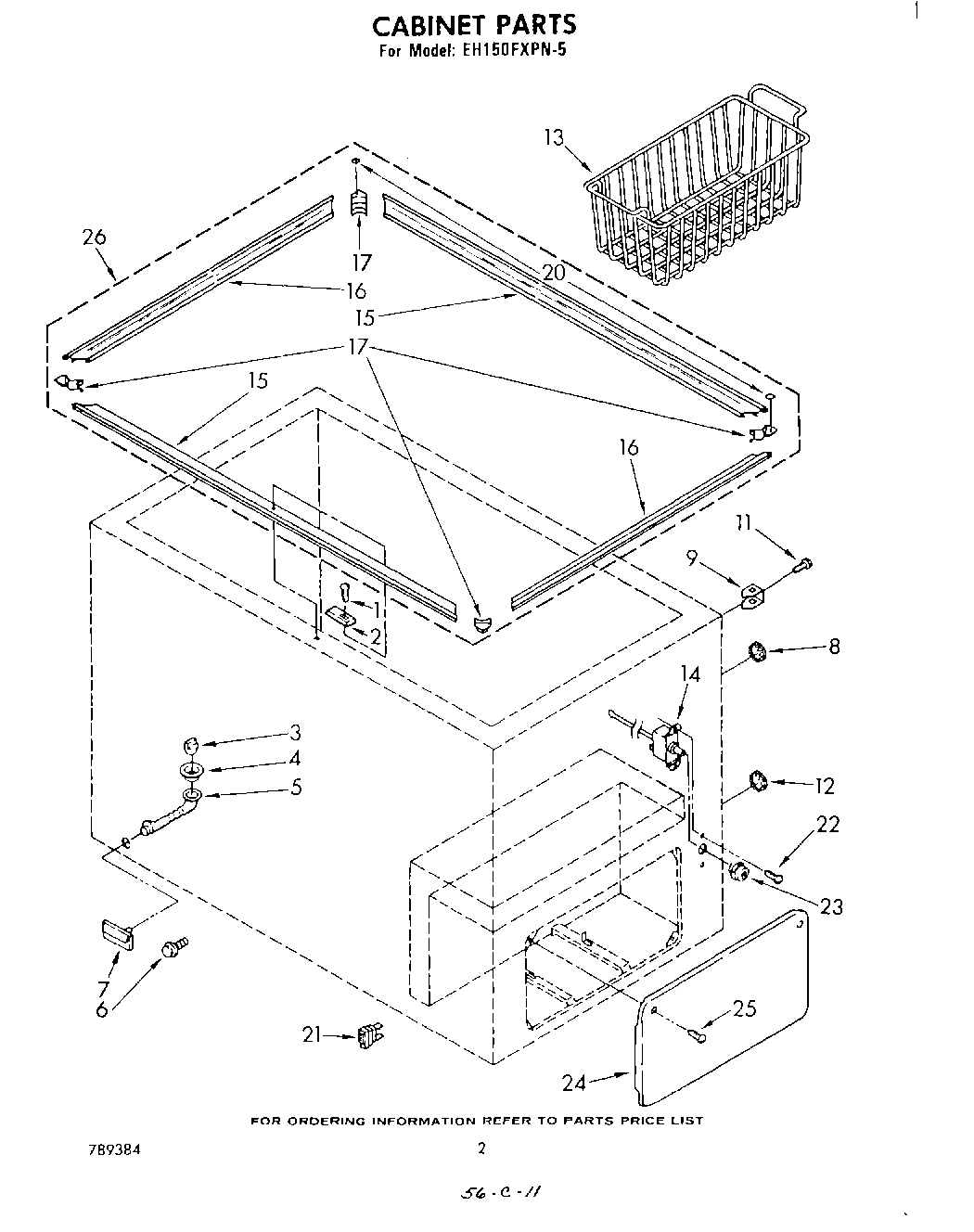

02 - SECTION
04 - SECTION
Common parts from model Whirlpool EH150FXPN5 CHEST FREEZER
xLeveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
xEnamel, Black (12 Oz. Spray Can) WPL 799399 Contact Us For Availability
Book, How To Freeze WPL LIT656493 Contact Us For Availability
Tech WPL LIT728786 Contact Us For Availability
WPL LIT730051 WPL LIT730051 Contact Us For Availability
WPL LIT730095 WPL LIT730095 Contact Us For Availability
WPL LIT789384 WPL LIT789384 Contact Us For Availability
1
Screw WPL 681362 Contact Us For Availability
2
Box, Strike WPL 556612 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
3
Plug, Drain WPL 576342 Contact Us For Availability
4
Ferrule, Drain WPL 576343 Contact Us For Availability
4
Relay (Used W/Original Compressor) WPL 730223 Contact Us For Availability
5
Tube, Drain WPL 556624 Contact Us For Availability
5
Cover, Terminal (Used W/Original Compressor) WPL 1105015 Contact Us For Availability
6
Adapter, Hose WPL 594467 Contact Us For Availability
7
Clip (36) WPL 596788 Contact Us For Availability
7
Cover, Drain WPL 753073 Contact Us For Availability
7
Clamp (Used W/Original Compressor) WPL 938384 Contact Us For Availability
8
Plug Button WPL 482584 Contact Us For Availability
8
Drier WPL 728583 Contact Us For Availability
9
Rod Holder Assembly WPL 556013 Contact Us For Availability
9
Harness, Wiring WPL 730032 Contact Us For Availability
10
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
11
Bolt, Machine WPL 681672 Contact Us For Availability
12
Plug, Button WPL 681494 Contact Us For Availability
13
Basket (2) WPL 730212 Contact Us For Availability
14
Control, Cold WPL 728368 Contact Us For Availability
15
Collar (2) (Front & Rear) WPL 728414 Contact Us For Availability
16
Collar, End (2) WPL 728412 Contact Us For Availability
17
Corner, Front WPL 728585 Contact Us For Availability
20
Grommet (2) WPL 728362 Contact Us For Availability
20
Overload (Used On Service Compressor) WPL 936073 Contact Us For Availability
21
Light, Indicator WPL 556230 Contact Us For Availability
21
Spring, Overload (Used On Service Compressor) WPL 549086 Contact Us For Availability
22
Screw (2) WPL 595022 Contact Us For Availability
22
Relay (Used On Service Compressor) WPL 549500 Contact Us For Availability
23
Knob, Control WPL 727020 Contact Us For Availability
23
Cover, Terminal (Used On Service Compressor) WPL 549336 Contact Us For Availability
24
Door WPL 753077 Contact Us For Availability
24
Strap, Cover (Used On Service Compressor) WPL 549342 Contact Us For Availability
25
Screw WPL 681318 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
26
Access Valve (5/8``) WPL 978029 Contact Us For Availability
26
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
26
Collar Kit (Items 15, 16, 17, and 20 Are Incl WPL 702455 Contact Us For Availability
26
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
26
Access Valve (1/2``) WPL 978028 Contact Us For Availability
26
Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability
26
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
26
Clip, Holding WPL 653035 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
27
Overload WPL 730224 Contact Us For Availability
28
Gasket WPL 753440 Contact Us For Availability
29
Panel, Door Interior WPL 730137 Contact Us For Availability
31
Harness, Exterior Door WPL 728838 Contact Us For Availability
34
Decal, Door Panel WPL 730037 Contact Us For Availability
35
Deflector, Light WPL 594459 Contact Us For Availability
36
Lampholder WPL 594815 Contact Us For Availability
× ![]()
