Model Whirlpool EH150FXGW02 CHEST FREEZER – Common Parts & Diagrams
01 - SECTION
03 - SECTION

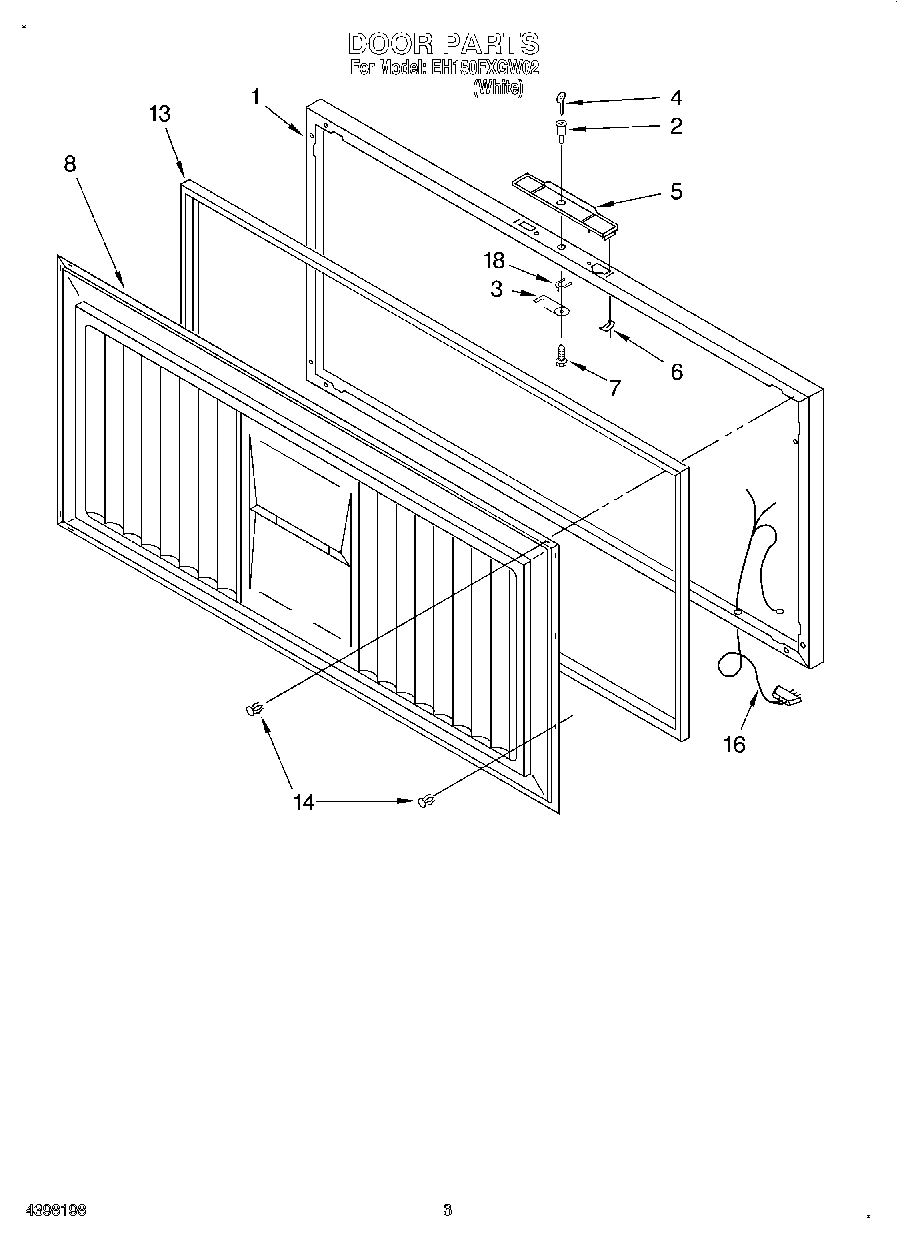

02 - SECTION
Common parts from model Whirlpool EH150FXGW02 CHEST FREEZER
1
Compressor (Includes Items 2, 3, 4, 5, 6 & 9) WPL 4356662 Contact Us For Availability
1
Exterior Door Panel (Includes Insulation) WPL 4356658 Contact Us For Availability
2
Relay WPL 4356663 Contact Us For Availability
3
Clip, Cover WPL 4356406 Contact Us For Availability
4
Key WPL 4356304 Contact Us For Availability
5
Wire Basket WPL 4356322 Contact Us For Availability
5
Compressor, Mounting Grommet WPL 4356335 Contact Us For Availability
5
Handle WPL 4356648 Contact Us For Availability
6
Compressor, Hitch Pin WPL 4356336 Contact Us For Availability
6
Clip, Oblong WPL 4356306 Contact Us For Availability
7
Knob, Thermostat WPL 4356585 Contact Us For Availability
7
Base, Compressor WPL 4356590 Contact Us For Availability
8
Capacitor WPL 4356665 Contact Us For Availability
8
Interior, Door Panel WPL 4356536 Contact Us For Availability
9
External, Wiring Harness WPL 4356692 Contact Us For Availability
9
Cover WPL 4356666 Contact Us For Availability
10
Overload WPL 4356664 Contact Us For Availability
12
Drain Plug WPL 4356456 Contact Us For Availability
13
Insert, Control WPL 4356584 Contact Us For Availability
13
Gasket WPL 4356693 Contact Us For Availability
14
Access Panel WPL 4356622 Contact Us For Availability
14
Gasket, Clip WPL 4356317 Contact Us For Availability
16
Wire Harness WPL 4356668 Contact Us For Availability
18
Clip, Spring WPL 4356493 Contact Us For Availability
20
Divider (Optional) WPL 4356477 Contact Us For Availability
22
Clip, Gasket (Kit Of 60) WPL 4356703 Contact Us For Availability
22
Clip WPL 4356403 Contact Us For Availability
22
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
× ![]()
