Model Whirlpool EH150CXSW00 CHEST FREEZER – Common Parts & Diagrams
03 - SECTION
01 - SECTION

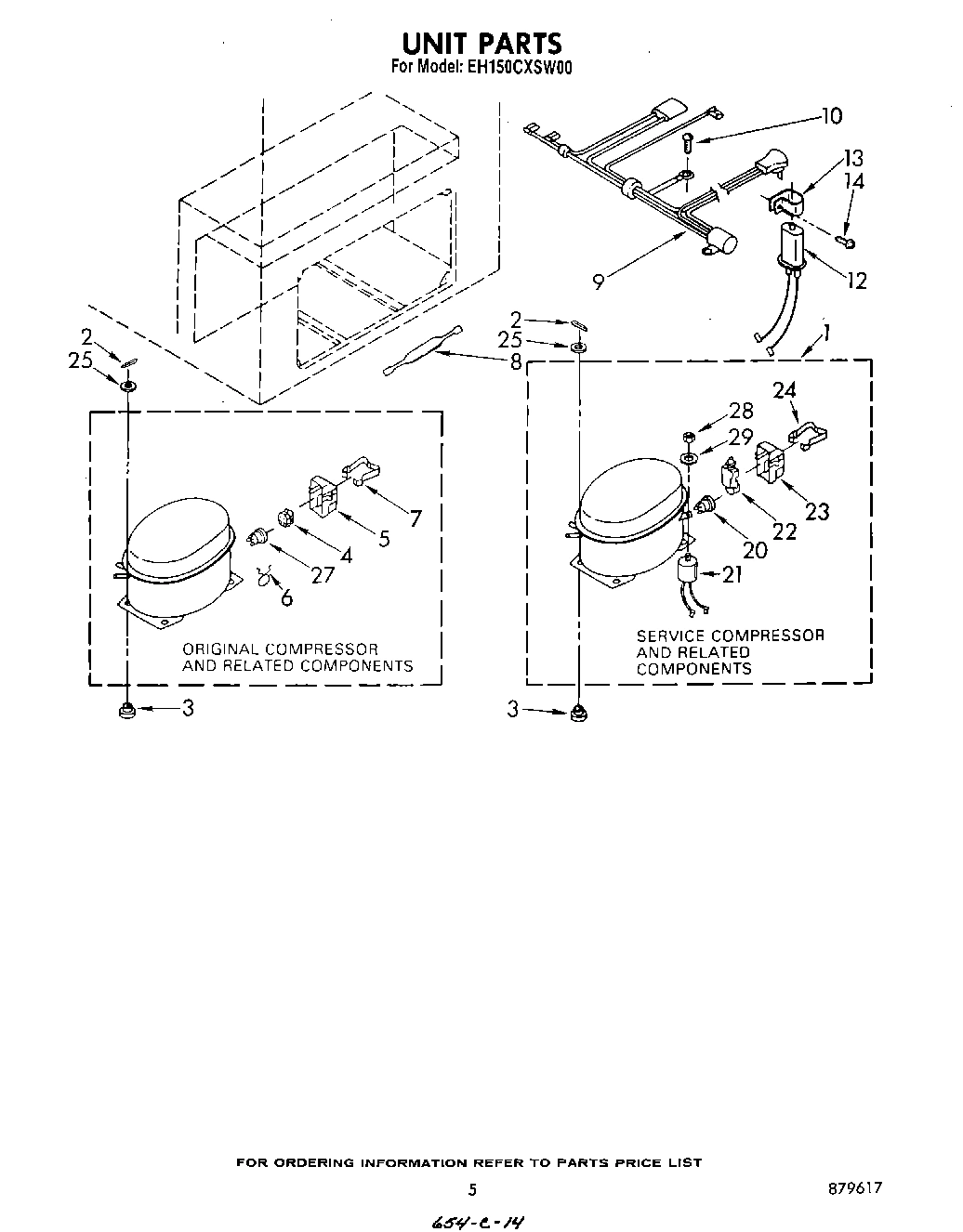

04 - SECTION

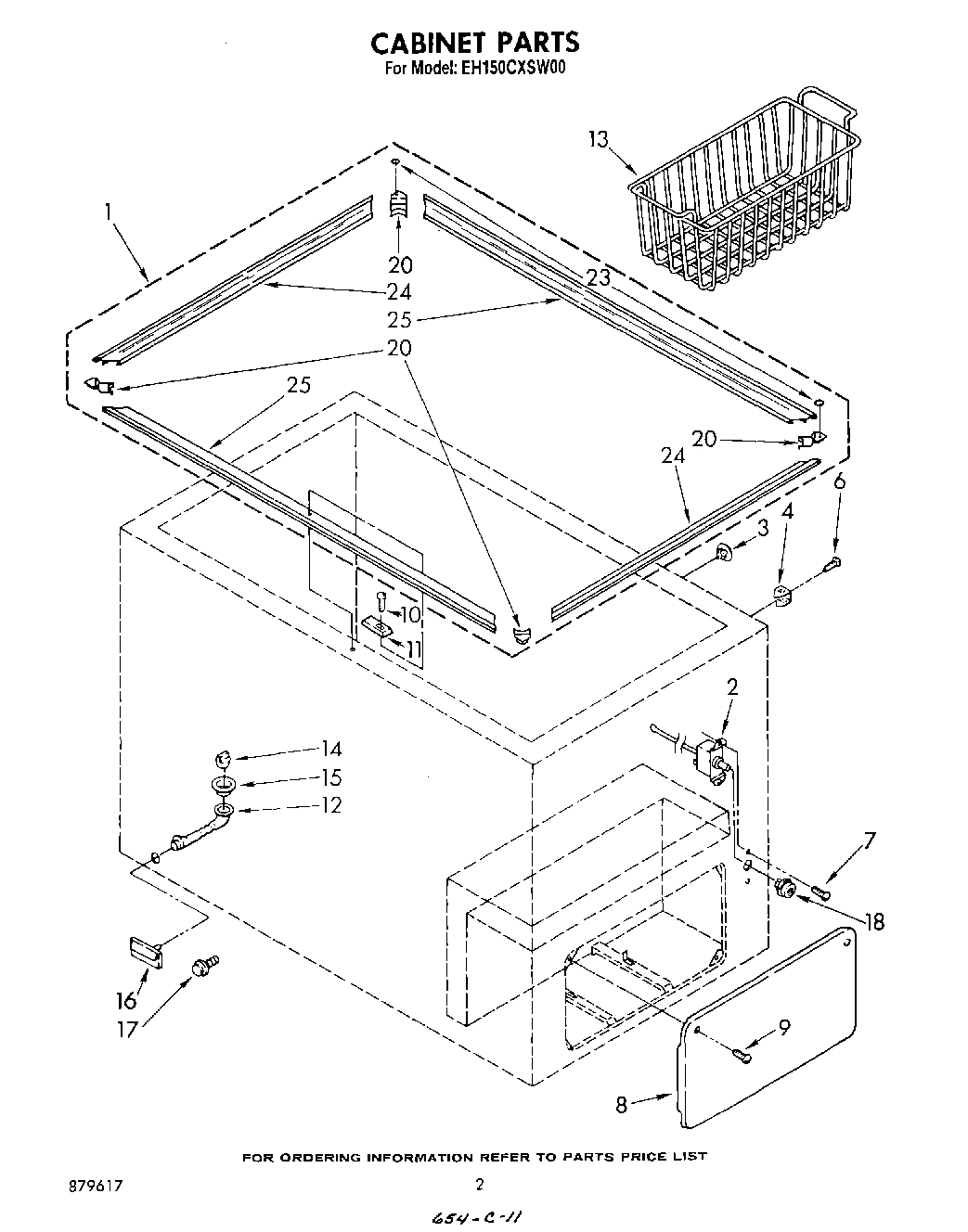

02 - SECTION
Common parts from model Whirlpool EH150CXSW00 CHEST FREEZER
xLeveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
Tech Sheet WPL LIT1108365 Contact Us For Availability
Book, How To Freeze WPL LIT656493 Contact Us For Availability
Energy Guide WPL LIT730732 Contact Us For Availability
Use & Care Guide WPL LIT730800 Contact Us For Availability
List, Parts WPL LIT879617 Contact Us For Availability
1
Compressor (Service Replacement) (Items No.20 WPL 482981 Contact Us For Availability
1
Collar Kit (Items 20, 23, 24 & 25 Are Include WPL 702455 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
2
Control, Cold WPL 728368 Contact Us For Availability
3
Plug Button (2) WPL 482584 Contact Us For Availability
4
Rod Holder Assembly (2) WPL 556013 Contact Us For Availability
5
Clip (36) WPL 596788 Contact Us For Availability
5
Cover, Relay & Overload Assembly (Used W/Orig WPL 1108115 Contact Us For Availability
6
Overload, Spring (Used W/Original Compressor) WPL 1114190 Contact Us For Availability
6
Bolt (2) WPL 681672 Contact Us For Availability
7
Screw WPL 595022 Contact Us For Availability
8
Drier WPL 728583 Contact Us For Availability
8
Door WPL 556069 Contact Us For Availability
9
Harness, Wiring WPL 1114279 Contact Us For Availability
9
Screw WPL 681318 Contact Us For Availability
10
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
10
Screw WPL 681362 Contact Us For Availability
11
Box, Strike WPL 730369 Contact Us For Availability
12
Capacitor WPL 1108074 Contact Us For Availability
12
Tube, Drain WPL 556624 Contact Us For Availability
13
Basket WPL 730212 Contact Us For Availability
14
Hinge, R.H. WPL 753875 Contact Us For Availability
14
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
14
Plug, Drain WPL 576342 Contact Us For Availability
15
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
15
Ferrule, Drain WPL 576343 Contact Us For Availability
16
Gasket WPL 592945 Contact Us For Availability
16
Cover, Drain WPL 576341 Contact Us For Availability
17
Panel, Interior WPL 730796 Contact Us For Availability
17
Adapter, Hose WPL 594467 Contact Us For Availability
18
Knob, Control WPL 554577 Contact Us For Availability
20
Overload (Used on Service Compressor 482981) WPL 1105077 Contact Us For Availability
20
Corner, Front (2) WPL 728585 Contact Us For Availability
21
Capacitor (Used on Service Compressor 482981) WPL 482996 Contact Us For Availability
22
Relay (Used W/Service Compressor) WPL 1100806 Contact Us For Availability
23
Cover, Terminal (Used On Service Compressor) WPL 1105015 Contact Us For Availability
23
Grommet (2) WPL 728362 Contact Us For Availability
24
Strap, Cover (Used on Service Compressor 4829 WPL 938384 Contact Us For Availability
24
Collar, End (2) WPL 728412 Contact Us For Availability
25
Access Valve (5/8``) WPL 978029 Contact Us For Availability
25
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
25
Collar (2) (Front & Rear) WPL 728414 Contact Us For Availability
25
Access Valve (1/2``) WPL 978028 Contact Us For Availability
25
Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability
26
``O`` Ring WPL 753610 Contact Us For Availability
27
Overload (Used w/Original Compressor) WPL 1114286 Contact Us For Availability
28
Nut WPL 489142 Contact Us For Availability
29
Washer WPL 489143 Contact Us For Availability
× ![]()
