Model Whirlpool EH120FXSN00 CHEST FREEZER – Common Parts & Diagrams
02 - SECTION
04 - SECTION

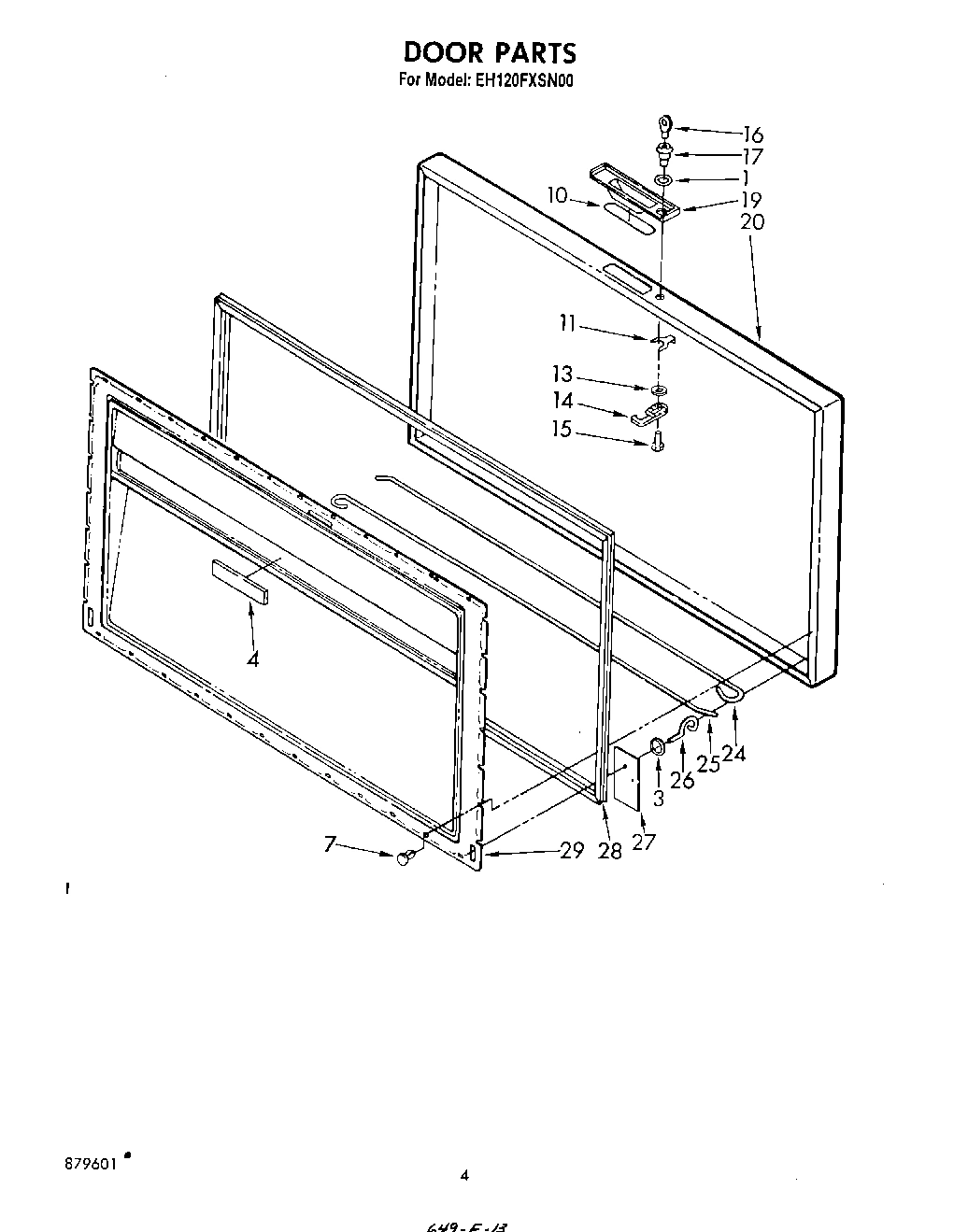

03 - SECTION

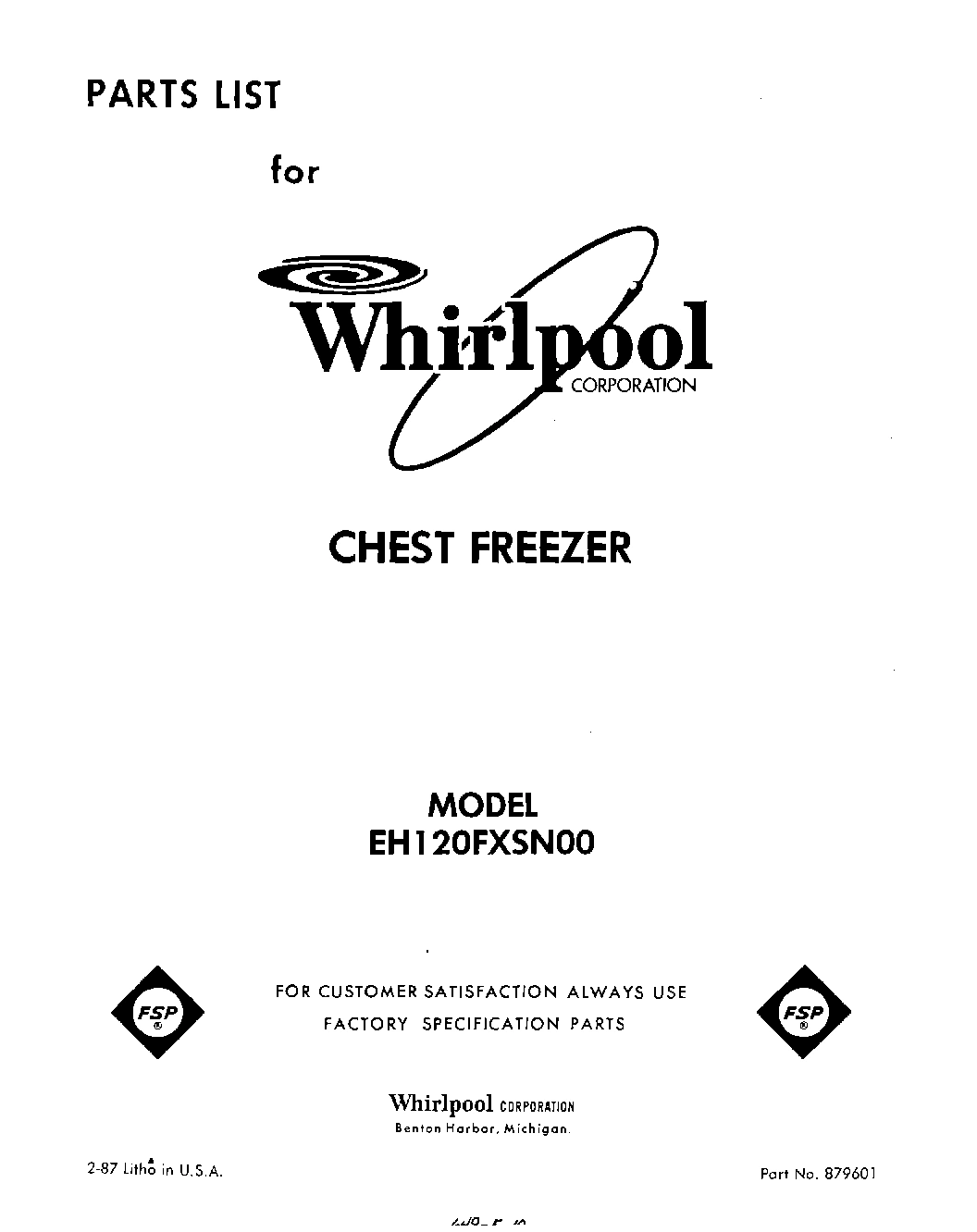

01 - SECTION
Common parts from model Whirlpool EH120FXSN00 CHEST FREEZER
Access Valve (5/8``) WPL 978029 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Compressor (Service Replacement) (Items No.20 WPL 482980 Contact Us For Availability
1
``O`` Ring WPL 753610 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
3
Hinge, Seal WPL 730726 Contact Us For Availability
4
Plug Button (2) WPL 482584 Contact Us For Availability
4
Door Panel, Decal WPL 730715 Contact Us For Availability
5
Cover, Relay & Overload Assembly (Used W/Orig WPL 1108264 Contact Us For Availability
6
Overload, Spring (Used W/Original Compressor) WPL 1108266 Contact Us For Availability
7
Clip (32) WPL 596788 Contact Us For Availability
7
Screw WPL 595022 Contact Us For Availability
7
Clamp (Used W/Original Compressor) WPL 1108265 Contact Us For Availability
8
Door WPL 753077 Contact Us For Availability
8
Drier WPL 728583 Contact Us For Availability
9
Screw WPL 681318 Contact Us For Availability
9
Harness, Wiring WPL 586946 Contact Us For Availability
10
Screw WPL 681362 Contact Us For Availability
10
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
10
Gasket, Handle WPL 727809 Contact Us For Availability
11
Box, Strike WPL 730718 Contact Us For Availability
11
Clip, Lock WPL 983465 Contact Us For Availability
12
Tube, Drain WPL 556624 Contact Us For Availability
13
Basket WPL 730875 Contact Us For Availability
13
Plate, Lock WPL 728115 Contact Us For Availability
14
Plug, Drain WPL 576342 Contact Us For Availability
14
Hook, Lock WPL 728222 Contact Us For Availability
15
Ferrule, Drain WPL 576343 Contact Us For Availability
15
Screw WPL 680483 Contact Us For Availability
16
Cover, Drain WPL 730730 Contact Us For Availability
17
Adapter, Hose WPL 594467 Contact Us For Availability
17
Lock Assembly WPL 586331 Contact Us For Availability
18
Knob, Control WPL 727020 Contact Us For Availability
19
Rod Holder (2) WPL 556013 Contact Us For Availability
19
Handle WPL 730714 Contact Us For Availability
20
Overload (Used W/Service Compressor) WPL 1100807 Contact Us For Availability
20
Panel, Door Exterior WPL 730722 Contact Us For Availability
21
Screw WPL 681672 Contact Us For Availability
21
Capacitor (Used W/Service Compressor) WPL 482996 Contact Us For Availability
22
Corner (4) WPL 730717 Contact Us For Availability
22
Relay (Used W/Service Compressor) WPL 1100806 Contact Us For Availability
23
Cover, Terminal (Used On Service Compressor) WPL 1105015 Contact Us For Availability
24
Strap, Cover (Used W/Service Compressor) WPL 938384 Contact Us For Availability
24
Bar, L.H. Torsion WPL 728034 Contact Us For Availability
25
Collar, End (2) WPL 730716 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
25
Bar, R.H. Torsion WPL 728035 Contact Us For Availability
26
Collar (2) (Front & Rear) WPL 730729 Contact Us For Availability
26
Hinge, L.H. WPL 753874 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
27
Grommet (2) WPL 728362 Contact Us For Availability
27
Overload (Used W/Original Compressor) WPL 1108281 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
28
Clip WPL 653035 Contact Us For Availability
28
Gasket, Door WPL 728804 Contact Us For Availability
29
Nut (Used W/Service Compressor) WPL 489142 Contact Us For Availability
29
Panel, Door Interior WPL 730727 Contact Us For Availability
30
Washer (Used W/Service Compressor) WPL 489143 Contact Us For Availability
× ![]()
