Model Whirlpool EH120CXPW5 CHEST FREEZER – Common Parts & Diagrams
01 - SECTION

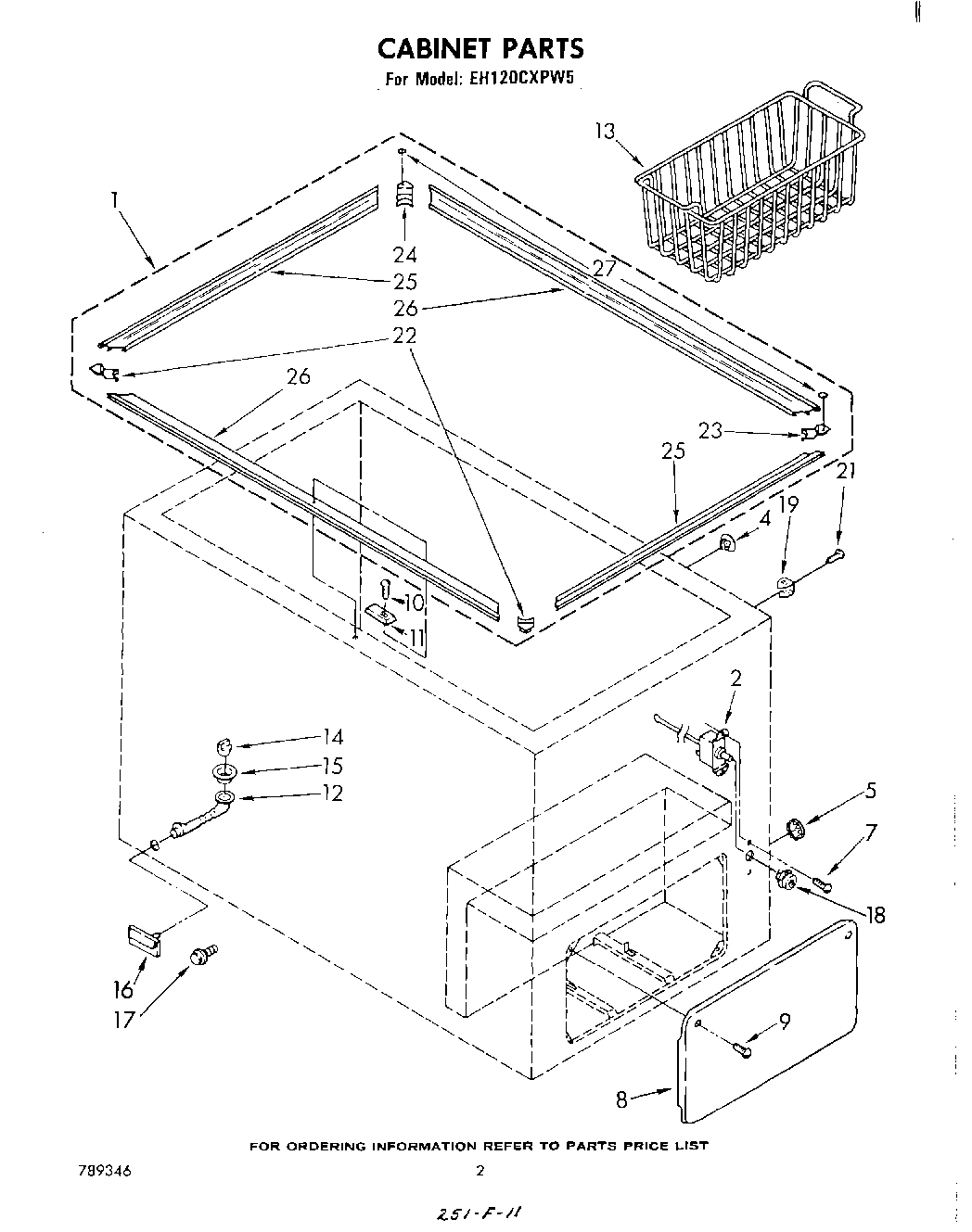

02 - SECTION

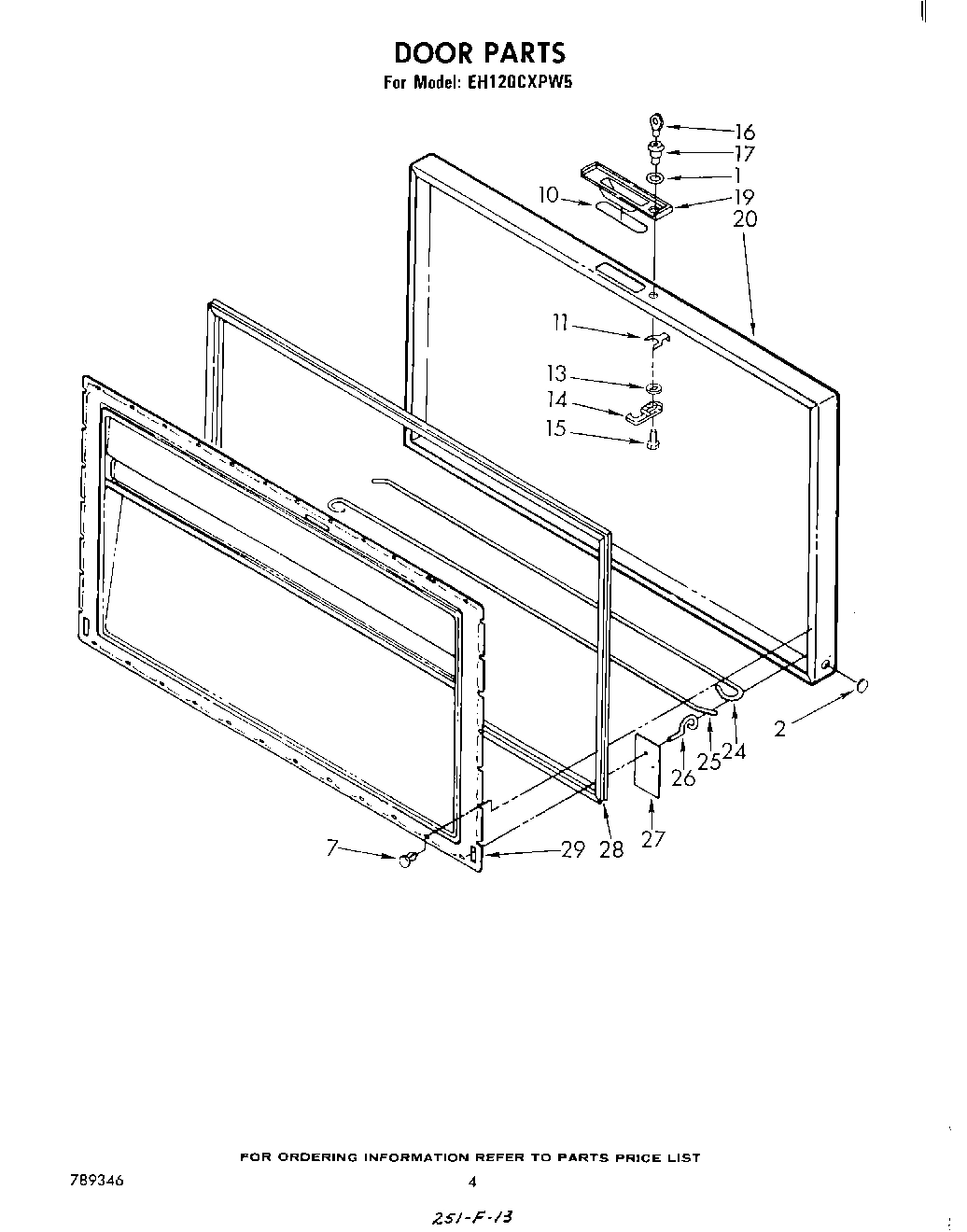

03 - SECTION

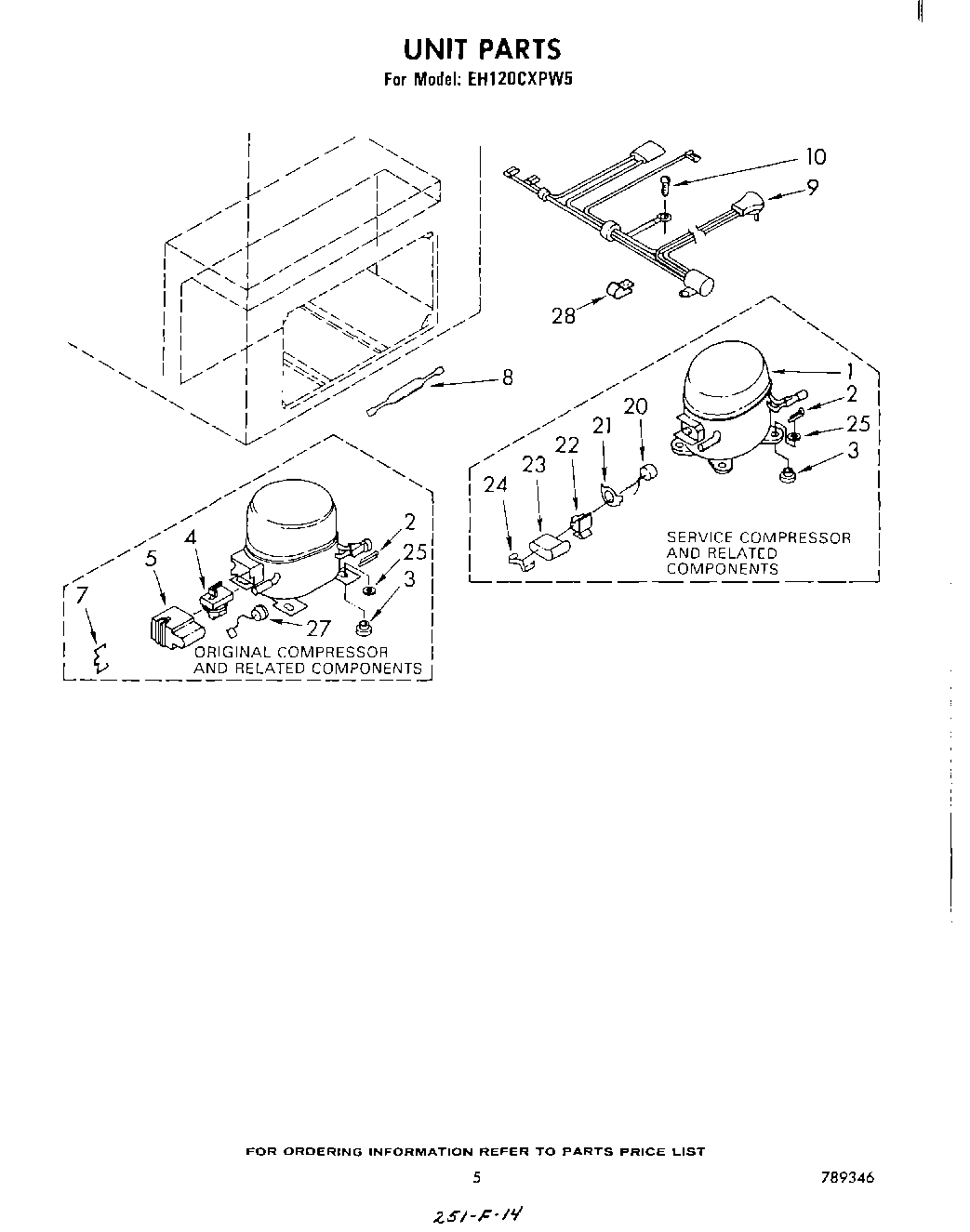

04 - SECTION
Common parts from model Whirlpool EH120CXPW5 CHEST FREEZER
1
``O`` Ring WPL 753610 Contact Us For Availability
1
Compressor (Service Replacement) (Items No.20 WPL 482736 Contact Us For Availability
2
Plug, Hole WPL 534927 Contact Us For Availability
2
Clip, Compressor Mounting (4) WPL 596798 Contact Us For Availability
4
Relay (Used W/Original Compressor) WPL 938385 Contact Us For Availability
5
Plug, Button WPL 681494 Contact Us For Availability
5
Cover, Terminal (Used W/Original Compressor) WPL 1105015 Contact Us For Availability
7
Clip (32) (Replacement Clips Included W/Items WPL 596788 Contact Us For Availability
7
Screw WPL 595022 Contact Us For Availability
7
Clamp (Used W/Original Compressor) WPL 938384 Contact Us For Availability
8
Door WPL 556069 Contact Us For Availability
8
Drier WPL 728583 Contact Us For Availability
9
Screw WPL 681318 Contact Us For Availability
9
Harness, Wiring WPL 586691 Contact Us For Availability
10
Screw WPL 681362 Contact Us For Availability
10
Gasket, Handle WPL 727809 Contact Us For Availability
10
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
11
Box, Strike WPL 556612 Contact Us For Availability
11
Clip, Lock WPL 983465 Contact Us For Availability
12
Tube, Drain WPL 556624 Contact Us For Availability
13
Basket WPL 730212 Contact Us For Availability
13
Plate, Lock WPL 728115 Contact Us For Availability
14
Plug, Drain WPL 576342 Contact Us For Availability
14
Hook, Lock WPL 728222 Contact Us For Availability
15
Ferrule, Drain WPL 576343 Contact Us For Availability
15
Screw, No. 10 x 5/8 WPL 681569 Contact Us For Availability
16
Cover, Drain WPL 576341 Contact Us For Availability
17
Adapter, Hose WPL 596259 Contact Us For Availability
17
Lock Assembly WPL 586331 Contact Us For Availability
18
Knob, Control WPL 554577 Contact Us For Availability
19
Rod Holder (2) WPL 556013 Contact Us For Availability
19
Handle WPL 728290 Contact Us For Availability
20
Panel, Door Exterior WPL 728291 Contact Us For Availability
20
Overload (Used W/Service Compressor) WPL 941778 Contact Us For Availability
21
Screw WPL 681672 Contact Us For Availability
21
Spring, Overload (Used W/Service Compressor) WPL 549086 Contact Us For Availability
22
Corner, Front (2) WPL 728585 Contact Us For Availability
22
Relay (Used W/Service Compressor) WPL 989646 Contact Us For Availability
23
Corner (Right Rear) WPL 702459 Contact Us For Availability
23
Cover, Terminal (Used W/Service Compressor) WPL 549336 Contact Us For Availability
24
Corner (Left Rear) WPL 702460 Contact Us For Availability
24
Bar, L.H. Torsion WPL 728034 Contact Us For Availability
24
Strap, Cover (Used W/Service Compressor) WPL 549342 Contact Us For Availability
25
Collar, End (2) WPL 728412 Contact Us For Availability
25
Bar, R.H. Torsion WPL 728035 Contact Us For Availability
25
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
26
Collar (2) (Front & Rear) WPL 728413 Contact Us For Availability
26
Hinge, L.H. WPL 753874 Contact Us For Availability
26
Hinge, R.H. WPL 753875 Contact Us For Availability
27
Access Valve (5/8``) WPL 978029 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Grommet (2) WPL 728362 Contact Us For Availability
27
Access Valve (1/2``) WPL 978028 Contact Us For Availability
27
Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability
27
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
27
Overload (Used W/Original Compressor) WPL 753611 Contact Us For Availability
28
Gasket, Door WPL 592944 Contact Us For Availability
28
Clip WPL 653035 Contact Us For Availability
29
Panel, Door Interior WPL 730117 Contact Us For Availability
× ![]()
