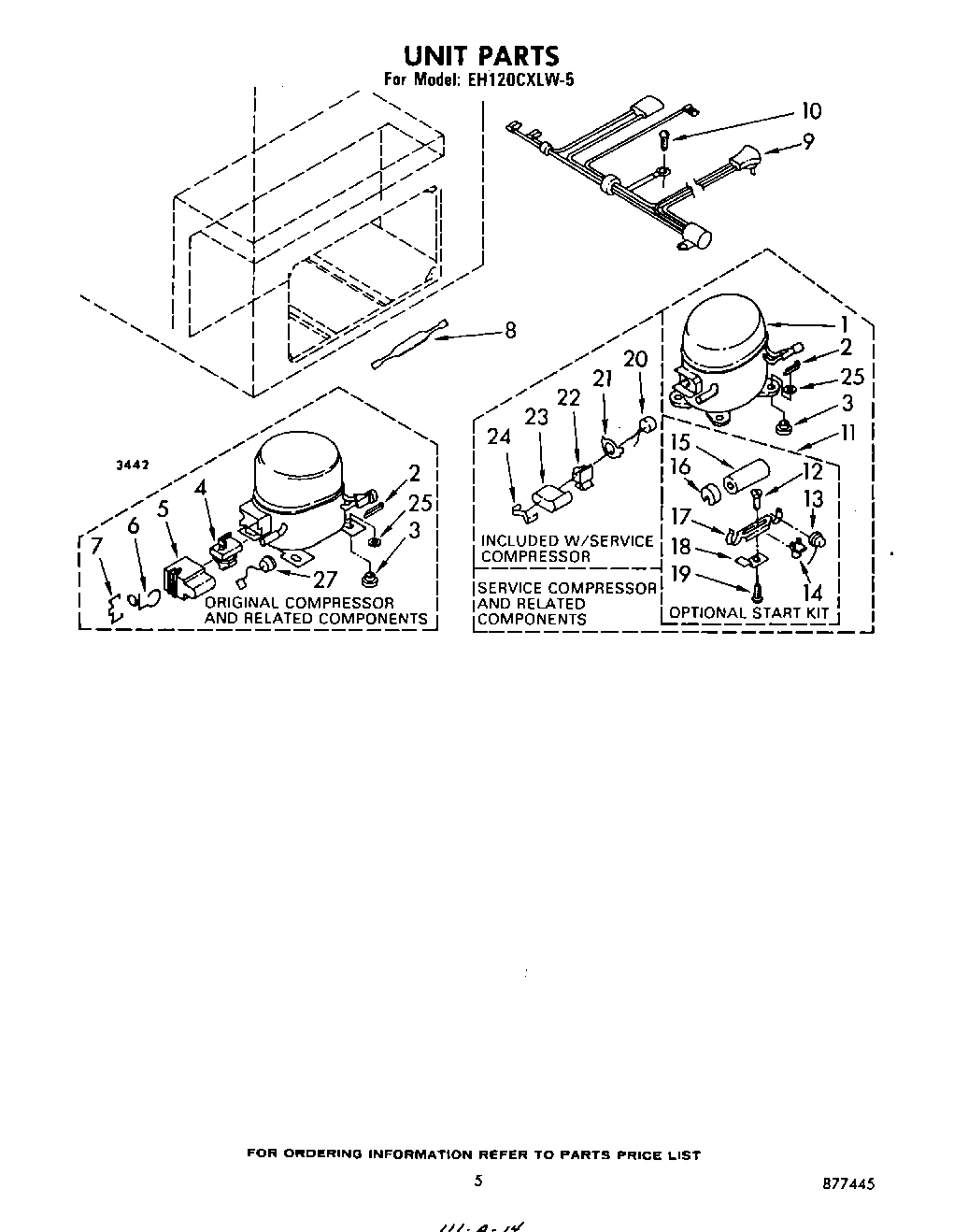

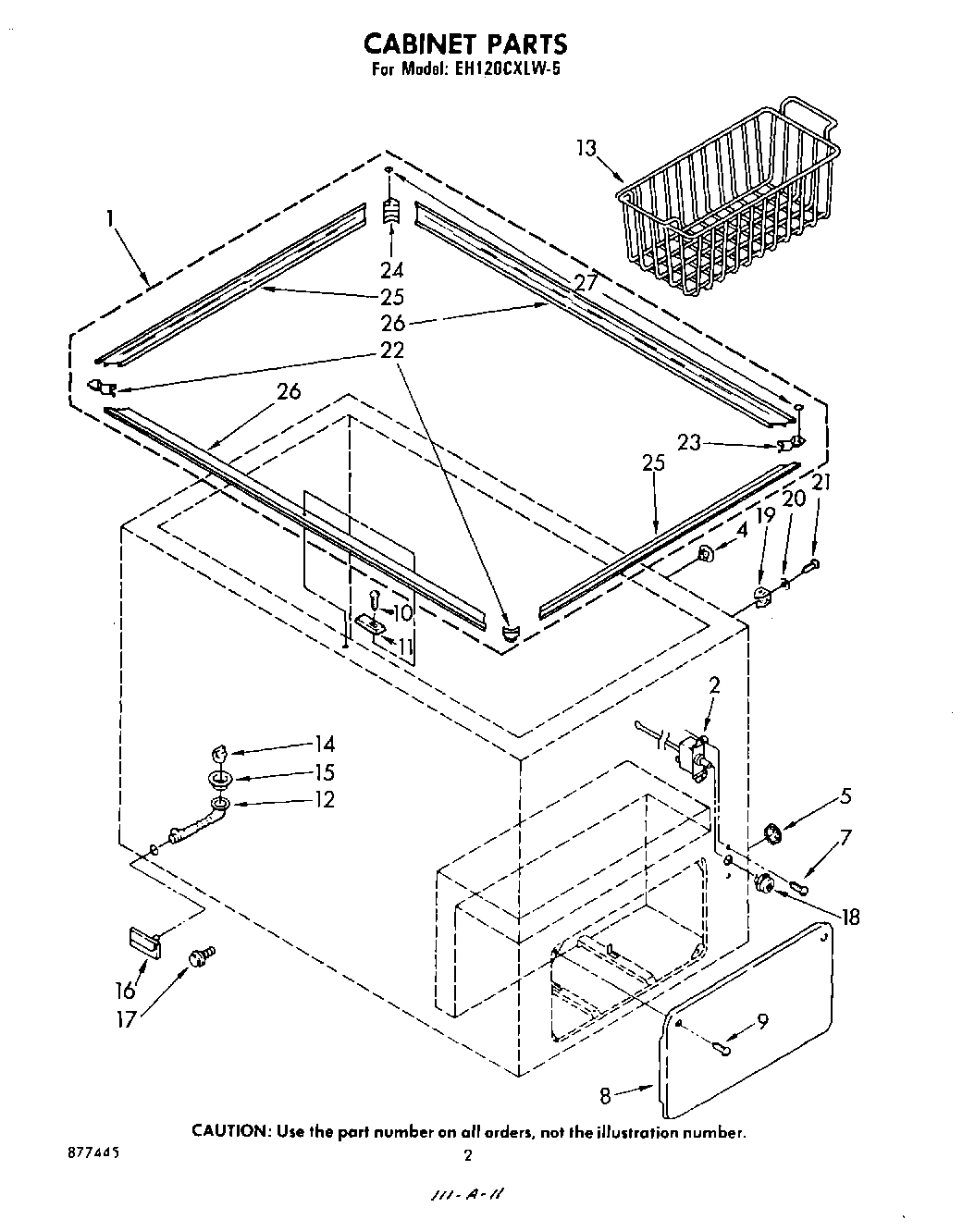

Model Whirlpool EH120CXLW5 CHEST FREEZER – Common Parts & Diagrams

xLeveler, Enamel (12 Oz. Spray Can)
xLeveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
View on Model
1
Collar Kit (Items 22, 23, 24, 25, 26 & 27 Are
Collar Kit (Items 22, 23, 24, 25, 26 & 27 Are WPL 702344 Contact Us For Availability
View on Model
1
Compressor (Service Replacement) (Items No.20
Compressor (Service Replacement) (Items No.20 WPL 702215 Contact Us For Availability
View on Model
2
Control, Cold
Control, Cold WPL 592855 Contact Us For Availability
View on Model
2
Clip, Compressor Mounting (4)
Clip, Compressor Mounting (4) WPL 596514 Contact Us For Availability
View on Model
4
Plug Button (2)
Plug Button (2) WPL 482584 Contact Us For Availability
View on Model
4
Relay (Used W/Original Compressor)
Relay (Used W/Original Compressor) WPL 753612 Contact Us For Availability
View on Model
5
Plug, Button
Plug, Button WPL 681494 Contact Us For Availability
View on Model
5
Cover, Relay & Overload Assembly (Used W/Orig
Cover, Relay & Overload Assembly (Used W/Orig WPL 753597 Contact Us For Availability
View on Model
6
Clip (Used W/Original Compressor)
Clip (Used W/Original Compressor) WPL 727046 Contact Us For Availability
View on Model
7
Screw
Screw WPL 595022 Contact Us For Availability
View on Model
7
Clamp (Used W/Original Compressor)
Clamp (Used W/Original Compressor) WPL 753598 Contact Us For Availability
View on Model
8
Door
Door WPL 556069 Contact Us For Availability
View on Model
9
Screw
Screw WPL 681318 Contact Us For Availability
View on Model
9
Harness, Wiring
Harness, Wiring WPL 586691 Contact Us For Availability
View on Model
10
Screw
Screw WPL 681362 Contact Us For Availability
View on Model
10
Screw, 8-32 x 5/8
Screw, 8-32 x 5/8 WPL 595325 Contact Us For Availability
View on Model
11
Box, Strike
Box, Strike WPL 556612 Contact Us For Availability
View on Model
11
Start Kit (Used W/Service Compressor 702215)
Start Kit (Used W/Service Compressor 702215) WPL 482278 Contact Us For Availability
View on Model
12
Tube, Drain
Tube, Drain WPL 556624 Contact Us For Availability
View on Model
12
Screw (2) (Used On Start Kit 482278)
Screw (2) (Used On Start Kit 482278) WPL 487631 Contact Us For Availability
View on Model
13
Basket
Basket WPL 753696 Contact Us For Availability
View on Model
13
Overload (Used On Start Kit 482278)
Overload (Used On Start Kit 482278) WPL 482280 Contact Us For Availability
View on Model
14
Plug, Drain
Plug, Drain WPL 576342 Contact Us For Availability
View on Model
14
Relay (Used On Start Kit 482278)
Relay (Used On Start Kit 482278) WPL 482279 Contact Us For Availability
View on Model
15
Ferrule, Drain
Ferrule, Drain WPL 576343 Contact Us For Availability
View on Model
16
Cover, Drain
Cover, Drain WPL 576341 Contact Us For Availability
View on Model
16
Cap, Capacitor (Used On Start Kit 482278)
Cap, Capacitor (Used On Start Kit 482278) WPL 482157 Contact Us For Availability
View on Model
17
Adapter, Hose
Adapter, Hose WPL 596259 Contact Us For Availability
View on Model
17
Support, Bracket (Used On Start Kit 482278)
Support, Bracket (Used On Start Kit 482278) WPL 482158 Contact Us For Availability
View on Model
18
Knob, Control
Knob, Control WPL 554577 Contact Us For Availability
View on Model
18
Bracket, Mounting (Used On Start Kit 482278)
Bracket, Mounting (Used On Start Kit 482278) WPL 549939 Contact Us For Availability
View on Model
19
Rod Holder (2)
Rod Holder (2) WPL 556013 Contact Us For Availability
View on Model
19
Screw (Used On Start Kit 482278)
Screw (Used On Start Kit 482278) WPL 488487 Contact Us For Availability
View on Model
20
Overload (Used On Service Compressor 702215)
Overload (Used On Service Compressor 702215) WPL 753342 Contact Us For Availability
View on Model
21
Screw
Screw WPL 681646 Contact Us For Availability
View on Model
21
Spring, Overload (Used On Service Compressor
Spring, Overload (Used On Service Compressor WPL 560851 Contact Us For Availability
View on Model
22
Corner, Front (2)
Corner, Front (2) WPL 753953 Contact Us For Availability
View on Model
22
Relay (Used On Service Compressor 702215)
Relay (Used On Service Compressor 702215) WPL 989647 Contact Us For Availability
View on Model
23
Corner (Right Rear)
Corner (Right Rear) WPL 702339 Contact Us For Availability
View on Model
23
Cover, Terminal (Used On Service Compressor 7
Cover, Terminal (Used On Service Compressor 7 WPL 560849 Contact Us For Availability
View on Model
24
Bar, L.H. Torsion
Bar, L.H. Torsion WPL 728034 Contact Us For Availability
View on Model
24
Corner (Left Rear)
Corner (Left Rear) WPL 702338 Contact Us For Availability
View on Model
24
Strap, Cover (Used On Service Compressor 7022
Strap, Cover (Used On Service Compressor 7022 WPL 560850 Contact Us For Availability
View on Model
25
Bar, R.H. Torsion
Bar, R.H. Torsion WPL 728035 Contact Us For Availability
View on Model
25
Collar, End (2)
Collar, End (2) WPL 753661 Contact Us For Availability
View on Model
25
Washer, Compressor Mounting (4)
Washer, Compressor Mounting (4) WPL 680975 Contact Us For Availability
View on Model
26
Hinge, L.H.
Hinge, L.H. WPL 753874 Contact Us For Availability
View on Model
26
Hinge, R.H.
Hinge, R.H. WPL 753875 Contact Us For Availability
View on Model
26
Collar (2) (Front & Rear)
Collar (2) (Front & Rear) WPL 753662 Contact Us For Availability
View on Model
27
Access Valve (5/8``)
Access Valve (5/8``) WPL 978029 Contact Us For Availability
View on Model
27
Cover, Hinge Rod (2)
Cover, Hinge Rod (2) WPL 566219 Contact Us For Availability
View on Model
27
Book, How To Freeze
Book, How To Freeze WPL 656493 Contact Us For Availability
View on Model
27
Energy Guide
Energy Guide WPL 728014 Contact Us For Availability
View on Model
27
Use & Care Guide
Use & Care Guide WPL 728129 Contact Us For Availability
View on Model
27
Grommet (2)
Grommet (2) WPL 728362 Contact Us For Availability
View on Model
27
Tech Sheet
Tech Sheet WPL 753557 Contact Us For Availability
View on Model
27
Blend, Thinner (1 Gal.)
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
View on Model
27
List, Parts
List, Parts WPL 877445 Contact Us For Availability
View on Model
27
Access Valve (1/2``)
Access Valve (1/2``) WPL 978028 Contact Us For Availability
View on Model
27
Kit, Insulation (Door Only)
Kit, Insulation (Door Only) WPL 978650 Contact Us For Availability
View on Model
27
Overload
Overload WPL 753611 Contact Us For Availability
View on Model
28
Gasket, Door
Gasket, Door WPL 592944 Contact Us For Availability
View on Model
29
Panel, Door Interior
Panel, Door Interior WPL 753999 Contact Us For Availability
View on Model
