Model Whirlpool EH105FXRQ01 CHEST FREEZER – Common Parts & Diagrams

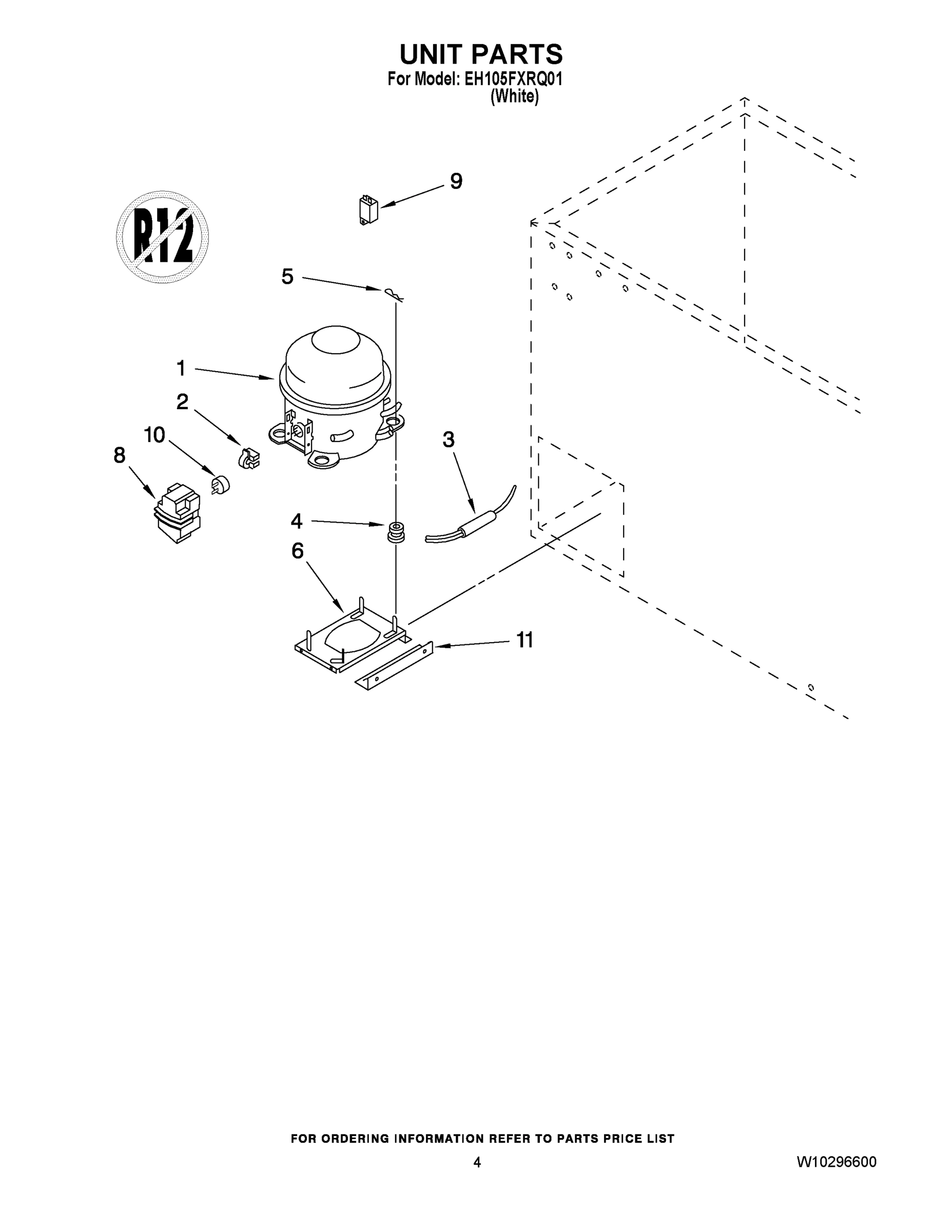

03 - UNIT PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)

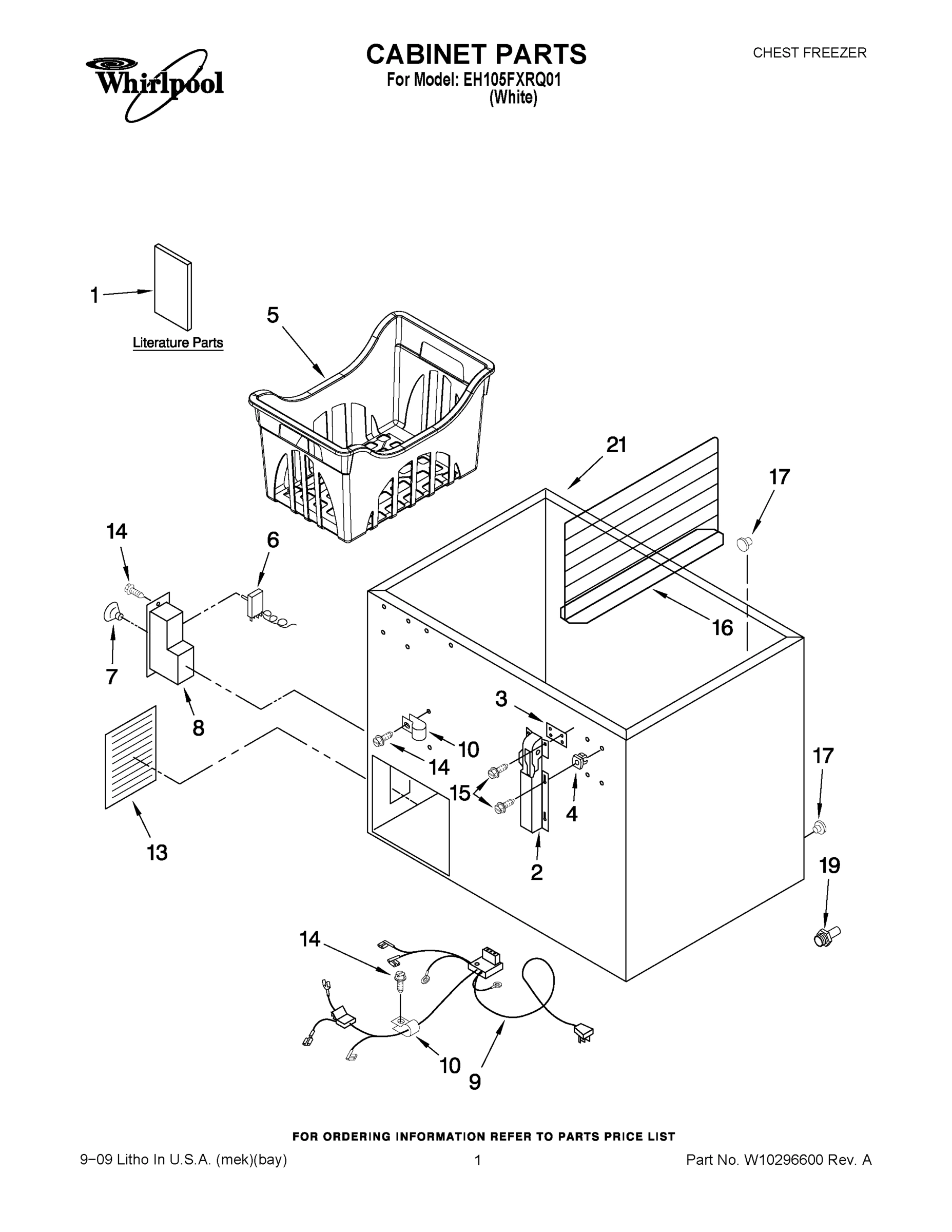

01 - CABINET PARTS

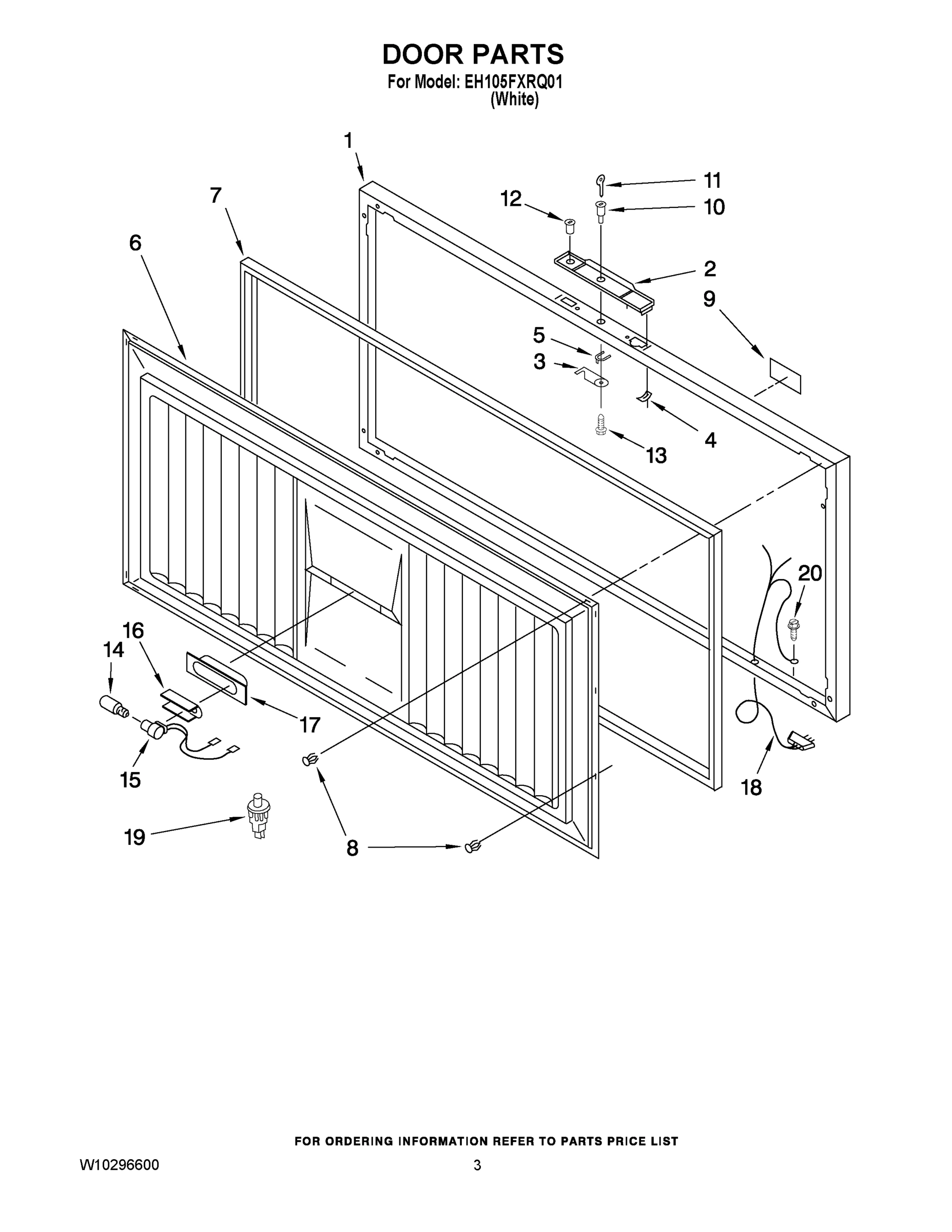

02 - DOOR PARTS
Common parts from model Whirlpool EH105FXRQ01 CHEST FREEZER
1
EXTERIOR DOOR PANEL (INCLUDES INSULATION) WPL 68001576 Contact Us For Availability
2
Relay WPL 4356738 Contact Us For Availability
2
Hinge Assembly WPL 4356752 Contact Us For Availability
2
HANDLE WPL 68001700 Contact Us For Availability
3
HOOK BOLT WPL W10296583 Contact Us For Availability
5
BASKET, UPPER WPL 8210312 Contact Us For Availability
5
BASKET, LOWER WPL W10295028 Contact Us For Availability
5
Clip, Spring WPL 4356493 Contact Us For Availability
6
INTERIOR DOOR PANEL WPL W10295026 Contact Us For Availability
7
Gasket WPL 4356651 Contact Us For Availability
7
Knob, Thermostat WPL 4356769 Contact Us For Availability
8
Plastic, Mounting Clip WPL 4356703 Contact Us For Availability
9
EXTERNAL, WIRING HARNESS WPL 8210325 Contact Us For Availability
10
Overload WPL 8210241 Contact Us For Availability
11
Key WPL 4356304 Contact Us For Availability
12
SIGNAL LIGHT WPL W10295029 Contact Us For Availability
13
Access Panel WPL 4356622 Contact Us For Availability
15
SOCKET WPL 4356874 Contact Us For Availability
16
Divider (Optional) WPL 4356731 Contact Us For Availability
16
Heat Shield WPL 4356704 Contact Us For Availability
17
Drain Plug WPL 4356456 Contact Us For Availability
18
WIRE HARNESS WPL 8210316 Contact Us For Availability
21
CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability
× ![]()
