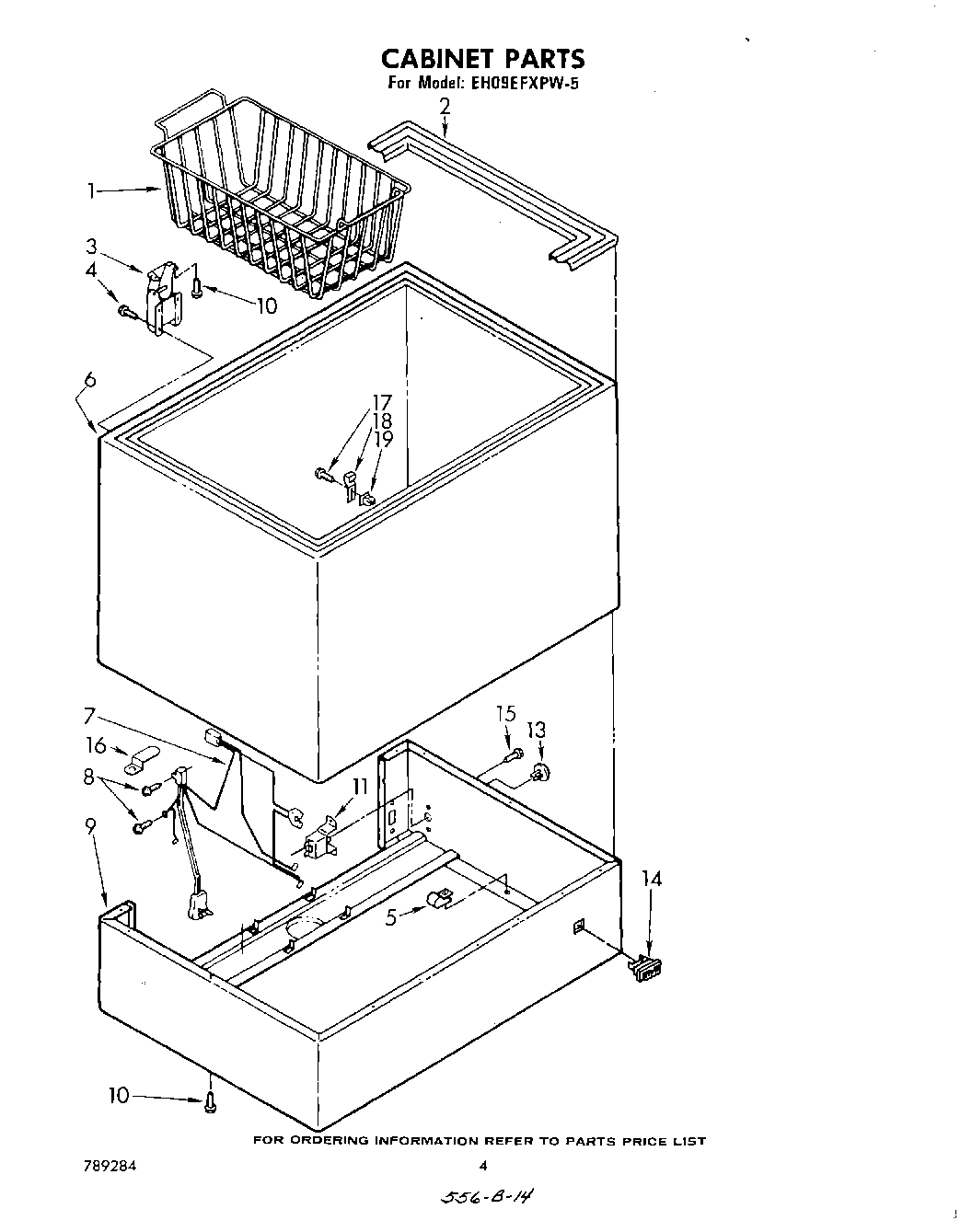

Model Whirlpool EH09EFXPW5 CHEST FREEZER – Common Parts & Diagrams

1
Basket
Basket WPL 730213 Contact Us For Availability
View on Model
2
Collar Breaker
Collar Breaker WPL 589411 Contact Us For Availability
View on Model
3
Hinge
Hinge WPL 589099 Contact Us For Availability
View on Model
4
Screw (6)
Screw (6) WPL 681574 Contact Us For Availability
View on Model
5
Clamp, Wire
Clamp, Wire WPL 596171 Contact Us For Availability
View on Model
6
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI39246A5 Contact Us For Availability
View on Model
7
Harness, Wiring
Harness, Wiring WPL 589824 Contact Us For Availability
View on Model
8
Washer (4)
Washer (4) WPL 680975 Contact Us For Availability
View on Model
8
Screw
Screw WPL 595325 Contact Us For Availability
View on Model
9
Base
Base WPL 589822 Contact Us For Availability
View on Model
10
Gasket, Handle
Gasket, Handle WPL 727809 Contact Us For Availability
View on Model
10
Screw (12)
Screw (12) WPL 681668 Contact Us For Availability
View on Model
11
Handle, Snap-In
Handle, Snap-In WPL 730079 Contact Us For Availability
View on Model
11
Control
Control WPL 727194 Contact Us For Availability
View on Model
12
Clip, Lock
Clip, Lock WPL 586335 Contact Us For Availability
View on Model
13
Strap, Cover (Used W/Service Compressor)
Strap, Cover (Used W/Service Compressor) WPL 549342 Contact Us For Availability
View on Model
13
Knob, Control
Knob, Control WPL 554577 Contact Us For Availability
View on Model
14
Cover (Used W/Service Compressor)
Cover (Used W/Service Compressor) WPL 549336 Contact Us For Availability
View on Model
14
Light, Indicator
Light, Indicator WPL 556230 Contact Us For Availability
View on Model
15
Relay (Used W/Service Compressor)
Relay (Used W/Service Compressor) WPL 989646 Contact Us For Availability
View on Model
15
Screw
Screw WPL 595022 Contact Us For Availability
View on Model
16
Spring, Overload (Used W/Service Compressor)
Spring, Overload (Used W/Service Compressor) WPL 549086 Contact Us For Availability
View on Model
16
Clip, Plug Holding
Clip, Plug Holding WPL 653035 Contact Us For Availability
View on Model
17
Overload (Used W/Service Compressor)
Overload (Used W/Service Compressor) WPL 941778 Contact Us For Availability
View on Model
18
Plug, Hole
Plug, Hole WPL 534927 Contact Us For Availability
View on Model
18
Strike, Lock
Strike, Lock WPL 727274 Contact Us For Availability
View on Model
19
Decal (Estate Series)
Decal (Estate Series) WPL 730080 Contact Us For Availability
View on Model
19
Grommet
Grommet WPL 842339 Contact Us For Availability
View on Model
28
Cover, Terminal (Used W/Original Compressor)
Cover, Terminal (Used W/Original Compressor) WPL 1105015 Contact Us For Availability
View on Model
29
Clamp, Cover (W/Original Compressor)
Clamp, Cover (W/Original Compressor) WPL 938384 Contact Us For Availability
View on Model
31
Relay (W/Original Compressor)
Relay (W/Original Compressor) WPL 938385 Contact Us For Availability
View on Model
32
Overload (W/Original Compressor)
Overload (W/Original Compressor) WPL 753611 Contact Us For Availability
View on Model
33
Screw
Screw WPL 680483 Contact Us For Availability
View on Model
34
Lock
Lock WPL 727243 Contact Us For Availability
View on Model
35
Hook, Lock
Hook, Lock WPL 727300 Contact Us For Availability
View on Model
36
Shroud, Lock
Shroud, Lock WPL 727701 Contact Us For Availability
View on Model
37
``O`` Ring
``O`` Ring WPL 753610 Contact Us For Availability
View on Model
38
VAL
VAL WPL 978029 Contact Us For Availability
View on Model
38
Leveler, Enamel (12 Oz. Spray Can)
Leveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
View on Model
38
Kit, Insulation (Door Only)
Kit, Insulation (Door Only) WPL 588599 Contact Us For Availability
View on Model
38
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
