Model Whirlpool EH090FXSW10 CHEST FREEZER – Common Parts & Diagrams
02 - SECTION

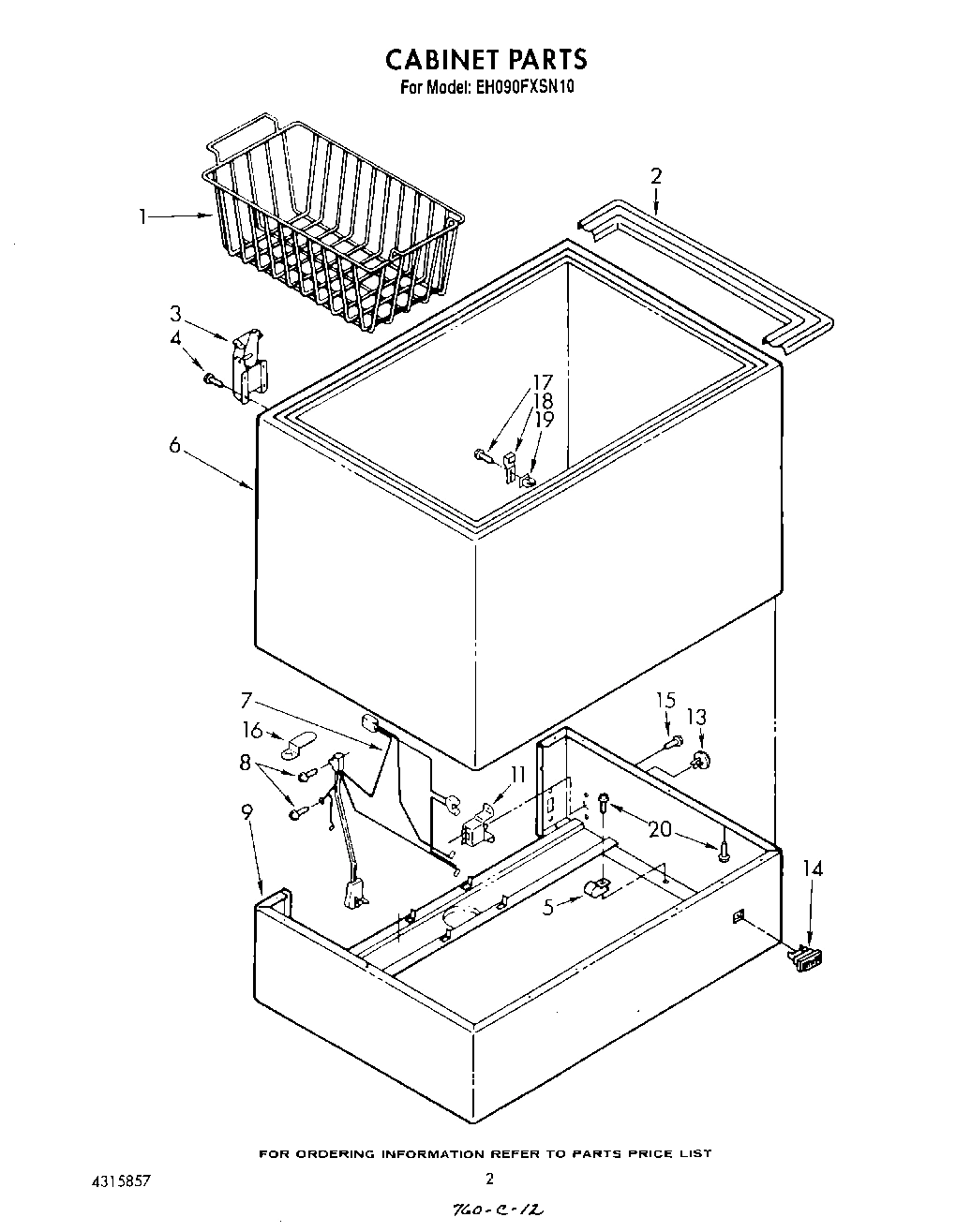

01 - SECTION
03 - SECTION
Common parts from model Whirlpool EH090FXSW10 CHEST FREEZER
1
Door WPL 727339 Contact Us For Availability
2
Panel WPL 727221 Contact Us For Availability
4
Clip (44) WPL 596787 Contact Us For Availability
5
Drier WPL 728582 Contact Us For Availability
6
Compressor (Includes Items 13, 14, 15 & 17) ( WPL 482997 Contact Us For Availability
7
Clip (4) WPL 596798 Contact Us For Availability
10
Gasket, Handle WPL 727809 Contact Us For Availability
11
Control WPL 589929 Contact Us For Availability
11
Handle, Snap-In WPL 730714 Contact Us For Availability
12
Clip, Lock WPL 983465 Contact Us For Availability
13
Knob, Control WPL 727020 Contact Us For Availability
14
Light, Indicator WPL 556230 Contact Us For Availability
14
Cover, Terminal WPL 1105015 Contact Us For Availability
15
Screw WPL 595022 Contact Us For Availability
16
Clip, Plug Holding WPL 653035 Contact Us For Availability
17
Screw WPL 681196 Contact Us For Availability
18
Strike, Lock WPL 727274 Contact Us For Availability
19
Grommet WPL 842339 Contact Us For Availability
20
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
20
Leveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
20
Kit, Insulation (Door Only) WPL 588599 Contact Us For Availability
20
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
20
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
28
Cover, Terminal WPL 1108115 Contact Us For Availability
29
Strap WPL 938384 Contact Us For Availability
31
Relay WPL 938385 Contact Us For Availability
32
Overload WPL 753611 Contact Us For Availability
33
Screw WPL 680483 Contact Us For Availability
34
Lock WPL 727243 Contact Us For Availability
35
Hook, Lock WPL 727300 Contact Us For Availability
37
``O`` Ring WPL 753610 Contact Us For Availability
39
Plug, Hole (2) WPL 989197 Contact Us For Availability
× ![]()
