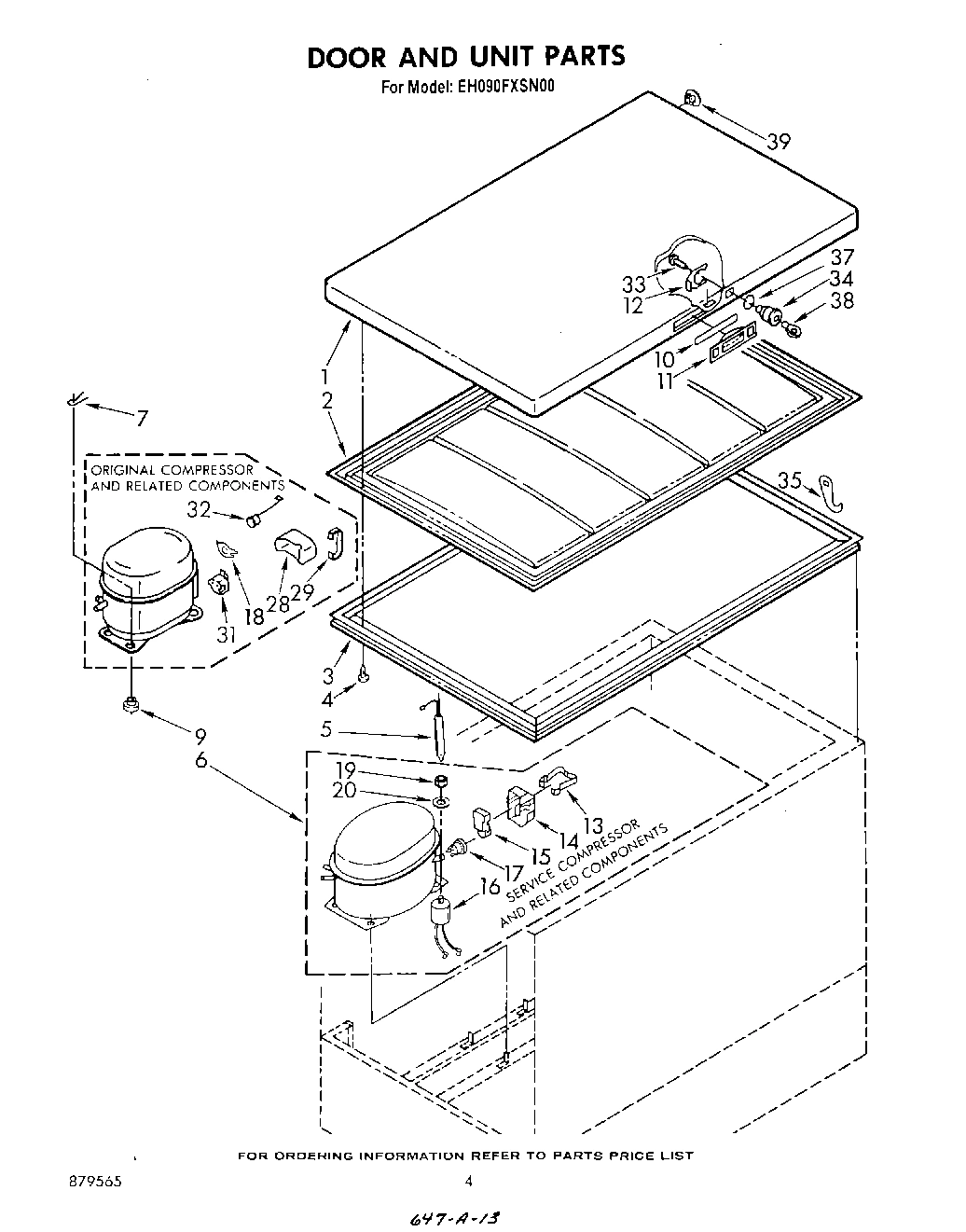

Model Whirlpool EH090FXSN00 CHEST FREEZER – Common Parts & Diagrams

1
Door
Door WPL 727339 Contact Us For Availability
View on Model
2
Panel
Panel WPL 727221 Contact Us For Availability
View on Model
4
Clip (44)
Clip (44) WPL 596787 Contact Us For Availability
View on Model
5
Drier
Drier WPL 728582 Contact Us For Availability
View on Model
6
compressor (includes items 13, 14, 15, 16, 17
compressor (includes items 13, 14, 15, 16, 17 WPL 482980 Contact Us For Availability
View on Model
7
Clip (4)
Clip (4) WPL 596798 Contact Us For Availability
View on Model
10
Gasket, Handle
Gasket, Handle WPL 727809 Contact Us For Availability
View on Model
11
Handle, Snap-In
Handle, Snap-In WPL 730714 Contact Us For Availability
View on Model
12
Clip, Lock
Clip, Lock WPL 983465 Contact Us For Availability
View on Model
13
Strap, Cover (Used W/Service Compressor)
Strap, Cover (Used W/Service Compressor) WPL 938384 Contact Us For Availability
View on Model
14
Cover, Terminal (Used On Service Compressor)
Cover, Terminal (Used On Service Compressor) WPL 1105015 Contact Us For Availability
View on Model
15
Relay (Used W/Service Compressor)
Relay (Used W/Service Compressor) WPL 1100806 Contact Us For Availability
View on Model
16
Capacitor (Used W/Service Compressor)
Capacitor (Used W/Service Compressor) WPL 482996 Contact Us For Availability
View on Model
17
Screw
Screw WPL 681196 Contact Us For Availability
View on Model
17
Overload (Used W/Service Compressor)
Overload (Used W/Service Compressor) WPL 1100807 Contact Us For Availability
View on Model
18
Strike, Lock
Strike, Lock WPL 727274 Contact Us For Availability
View on Model
18
Overload, Spring (Used W/Original Compressor)
Overload, Spring (Used W/Original Compressor) WPL 1108266 Contact Us For Availability
View on Model
19
Grommet
Grommet WPL 842339 Contact Us For Availability
View on Model
19
Nut
Nut WPL 489142 Contact Us For Availability
View on Model
20
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
20
Leveler, Enamel (12 Oz. Spray Can)
Leveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
View on Model
20
Kit, Insulation (Door Only)
Kit, Insulation (Door Only) WPL 588599 Contact Us For Availability
View on Model
20
Blend, Thinner (1 Gal.)
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
View on Model
20
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
20
Enamel, Almond (1 Qt. Uncut)
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
View on Model
20
Washer
Washer WPL 489143 Contact Us For Availability
View on Model
28
Cover, Overload & Relay (W/Original Compresso
Cover, Overload & Relay (W/Original Compresso WPL 1108264 Contact Us For Availability
View on Model
29
Clamp, Cover (W/Original Compressor)
Clamp, Cover (W/Original Compressor) WPL 1108265 Contact Us For Availability
View on Model
32
Overload (Used W/Original Compressor)
Overload (Used W/Original Compressor) WPL 1108281 Contact Us For Availability
View on Model
33
Screw
Screw WPL 680483 Contact Us For Availability
View on Model
34
Lock
Lock WPL 727243 Contact Us For Availability
View on Model
35
Hook, Lock
Hook, Lock WPL 727300 Contact Us For Availability
View on Model
37
``O`` Ring
``O`` Ring WPL 753610 Contact Us For Availability
View on Model
39
Plug, Hole (2)
Plug, Hole (2) WPL 989197 Contact Us For Availability
View on Model
