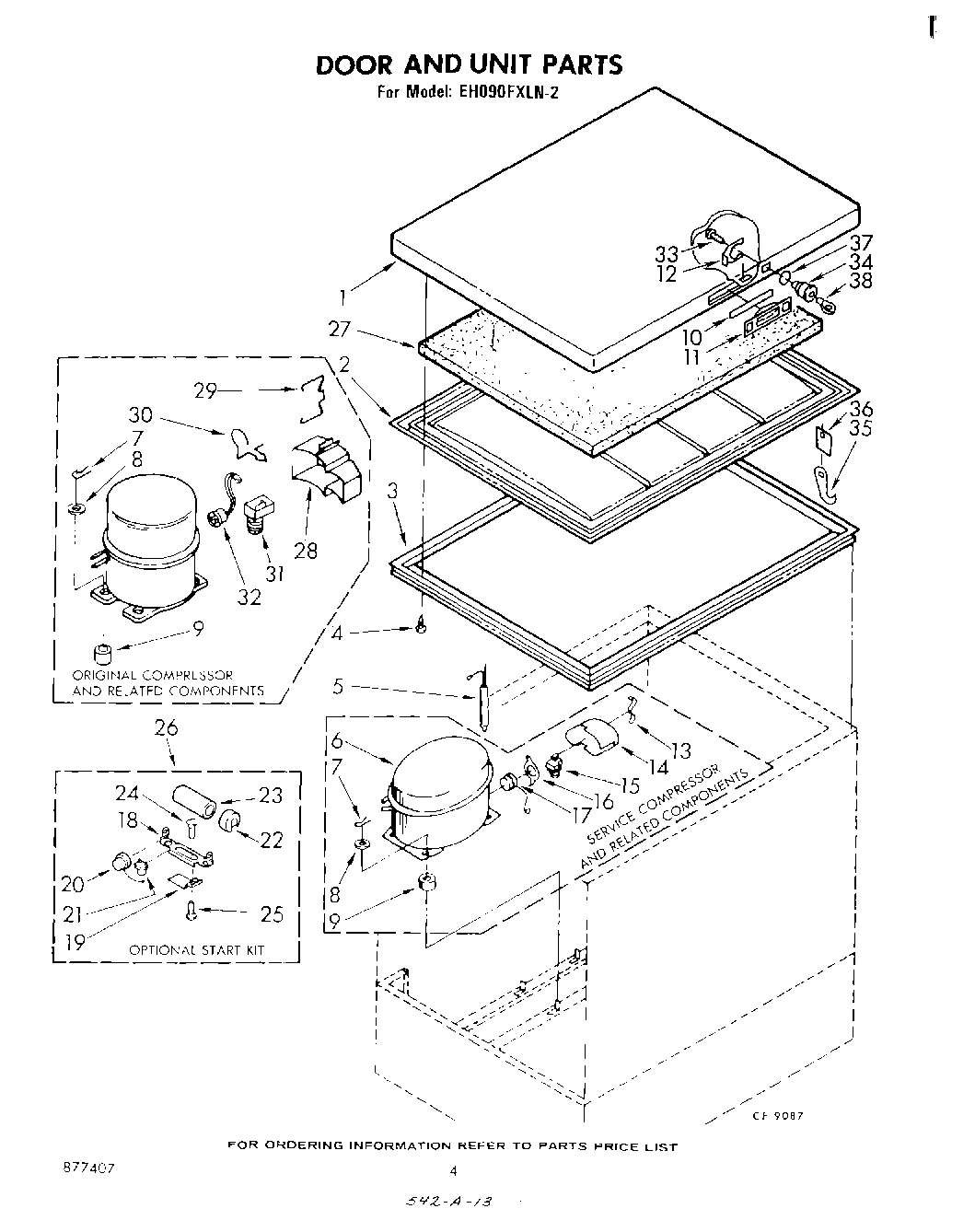

Model Whirlpool EH090FXLN2 CHEST FREEZER – Common Parts & Diagrams

1
Door
Door WPL 727339 Contact Us For Availability
View on Model
2
Panel
Panel WPL 727703 Contact Us For Availability
View on Model
4
Clip (44)
Clip (44) WPL 596693 Contact Us For Availability
View on Model
6
Compressor (Includes Items 13, 14, 15, 16 & 1
Compressor (Includes Items 13, 14, 15, 16 & 1 WPL 702219 Contact Us For Availability
View on Model
7
clip (4)
clip (4) WPL 596712 Contact Us For Availability
View on Model
8
Washer (4)
Washer (4) WPL 680975 Contact Us For Availability
View on Model
9
Grommet (4)
Grommet (4) WPL 596355 Contact Us For Availability
View on Model
10
Gasket, Handle
Gasket, Handle WPL 589208 Contact Us For Availability
View on Model
11
Handle, Snap-In
Handle, Snap-In WPL 589376 Contact Us For Availability
View on Model
12
Clip, Lock
Clip, Lock WPL 586335 Contact Us For Availability
View on Model
13
strap, cover (used w/service compressor)
strap, cover (used w/service compressor) WPL 560850 Contact Us For Availability
View on Model
14
cover (used w/service compressor)
cover (used w/service compressor) WPL 560849 Contact Us For Availability
View on Model
15
relay (used w/service compressor)
relay (used w/service compressor) WPL 727308 Contact Us For Availability
View on Model
16
Clip, Plug Holding
Clip, Plug Holding WPL 653035 Contact Us For Availability
View on Model
16
spring, overload (used w/service compressor)
spring, overload (used w/service compressor) WPL 560851 Contact Us For Availability
View on Model
17
overload (used w/service compressor)
overload (used w/service compressor) WPL 727309 Contact Us For Availability
View on Model
18
Strike, Lock
Strike, Lock WPL 727274 Contact Us For Availability
View on Model
18
Bracket, Capacitor (Used On Start Kit 482278)
Bracket, Capacitor (Used On Start Kit 482278) WPL 482158 Contact Us For Availability
View on Model
19
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
19
Leveler, Enamel (12 Oz. Spray Can)
Leveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
View on Model
19
book, how
book, how WPL 656493 Contact Us For Availability
View on Model
19
energy guide
energy guide WPL 727585 Contact Us For Availability
View on Model
19
tech sheet
tech sheet WPL 727586 Contact Us For Availability
View on Model
19
Use & Care Guide
Use & Care Guide WPL 727697 Contact Us For Availability
View on Model
19
Blend, Thinner (1 Gal.)
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
View on Model
19
Grommet
Grommet WPL 842339 Contact Us For Availability
View on Model
19
list, parts
list, parts WPL 877407 Contact Us For Availability
View on Model
19
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
19
Enamel, Almond (1 Qt. Uncut)
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
View on Model
19
Bracket, Support (Used On Start Kit 482278)
Bracket, Support (Used On Start Kit 482278) WPL 549939 Contact Us For Availability
View on Model
20
Overload (Used On Start Kit 482278)
Overload (Used On Start Kit 482278) WPL 482280 Contact Us For Availability
View on Model
21
Relay (Used On Start Kit 482278)
Relay (Used On Start Kit 482278) WPL 482279 Contact Us For Availability
View on Model
22
Cap, Capacitor (Used On Start Kit 482278)
Cap, Capacitor (Used On Start Kit 482278) WPL 482157 Contact Us For Availability
View on Model
24
Screw (2) (Used On Start Kit 482278)
Screw (2) (Used On Start Kit 482278) WPL 487631 Contact Us For Availability
View on Model
25
Screw (Used On Start Kit 482278)
Screw (Used On Start Kit 482278) WPL 488487 Contact Us For Availability
View on Model
26
Start Kit
Start Kit WPL 482278 Contact Us For Availability
View on Model
27
Kit, Insulation (Door Only)
Kit, Insulation (Door Only) WPL 588599 Contact Us For Availability
View on Model
28
Cover, Overload & Relay (W/Original Compresso
Cover, Overload & Relay (W/Original Compresso WPL 727044 Contact Us For Availability
View on Model
29
Clamp, Cover (W/Original Compressor)
Clamp, Cover (W/Original Compressor) WPL 727045 Contact Us For Availability
View on Model
30
Clip (Used W/Original Compressor)
Clip (Used W/Original Compressor) WPL 727046 Contact Us For Availability
View on Model
31
Relay (W/Original Compressor)
Relay (W/Original Compressor) WPL 727598 Contact Us For Availability
View on Model
32
Overload (W/Original Compressor)
Overload (W/Original Compressor) WPL 727599 Contact Us For Availability
View on Model
33
Screw
Screw WPL 680483 Contact Us For Availability
View on Model
34
Lock
Lock WPL 727243 Contact Us For Availability
View on Model
35
Hook, Lock
Hook, Lock WPL 727300 Contact Us For Availability
View on Model
36
Shroud, Lock
Shroud, Lock WPL 727438 Contact Us For Availability
View on Model
37
``O`` Ring
``O`` Ring WPL 753610 Contact Us For Availability
View on Model
