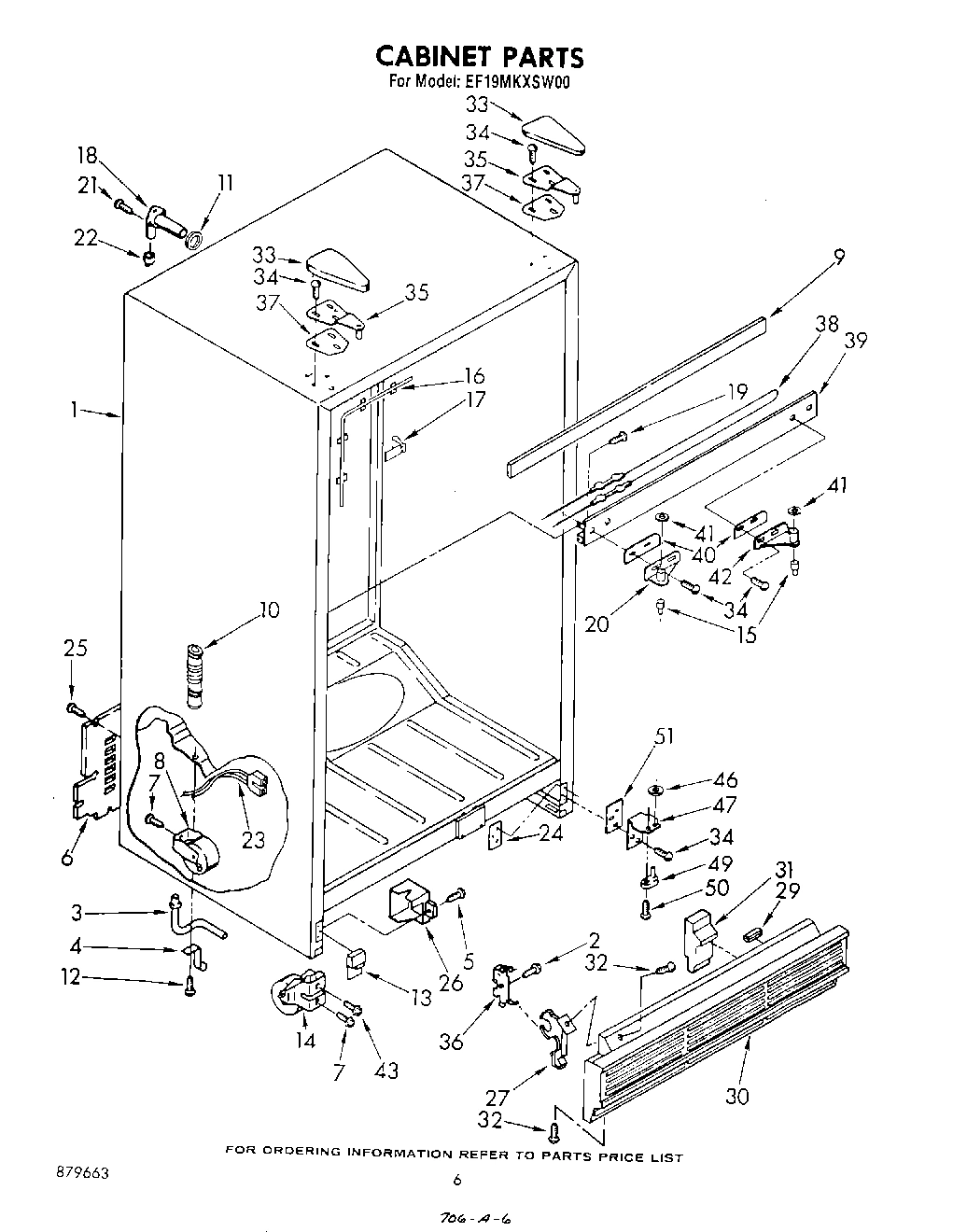

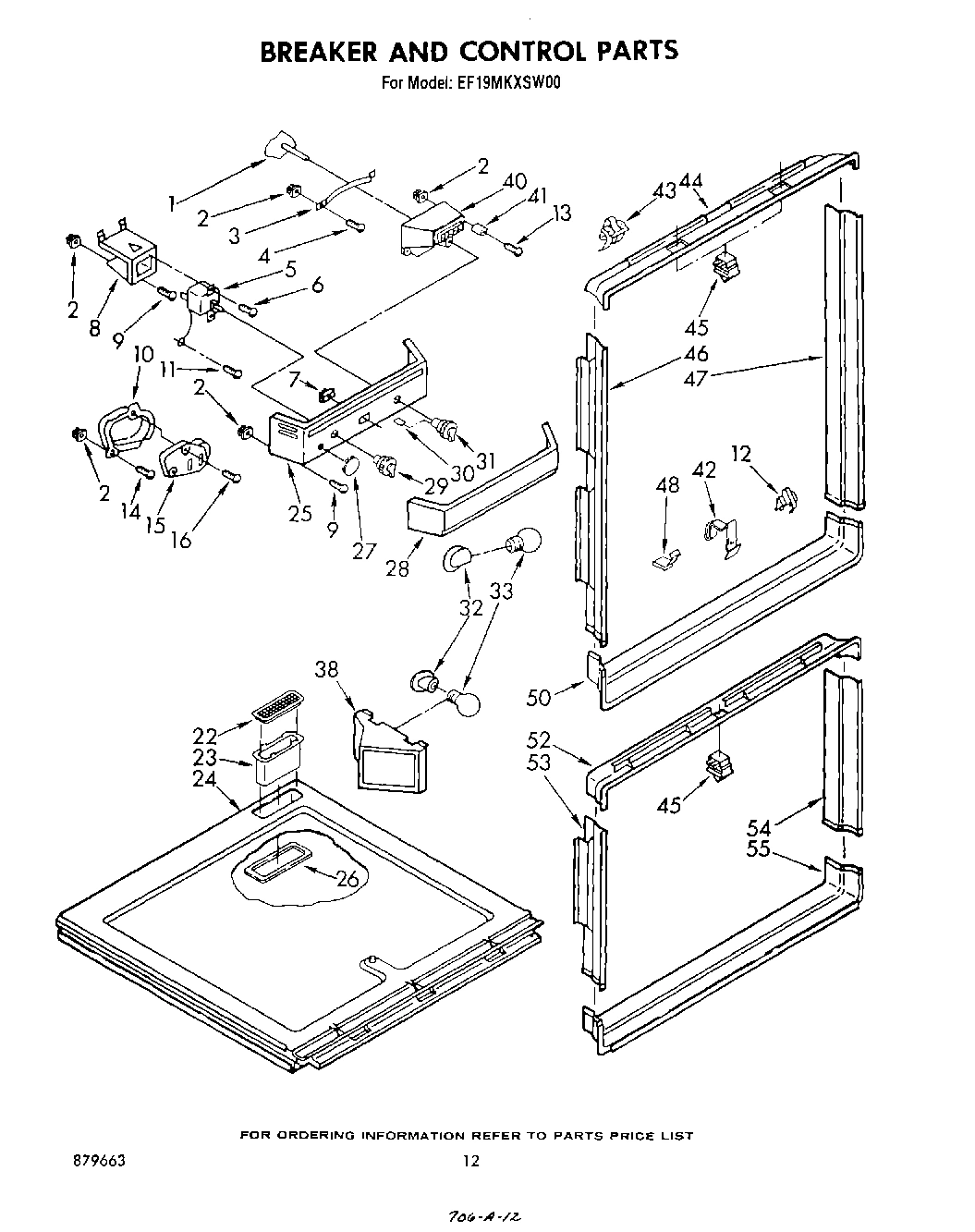

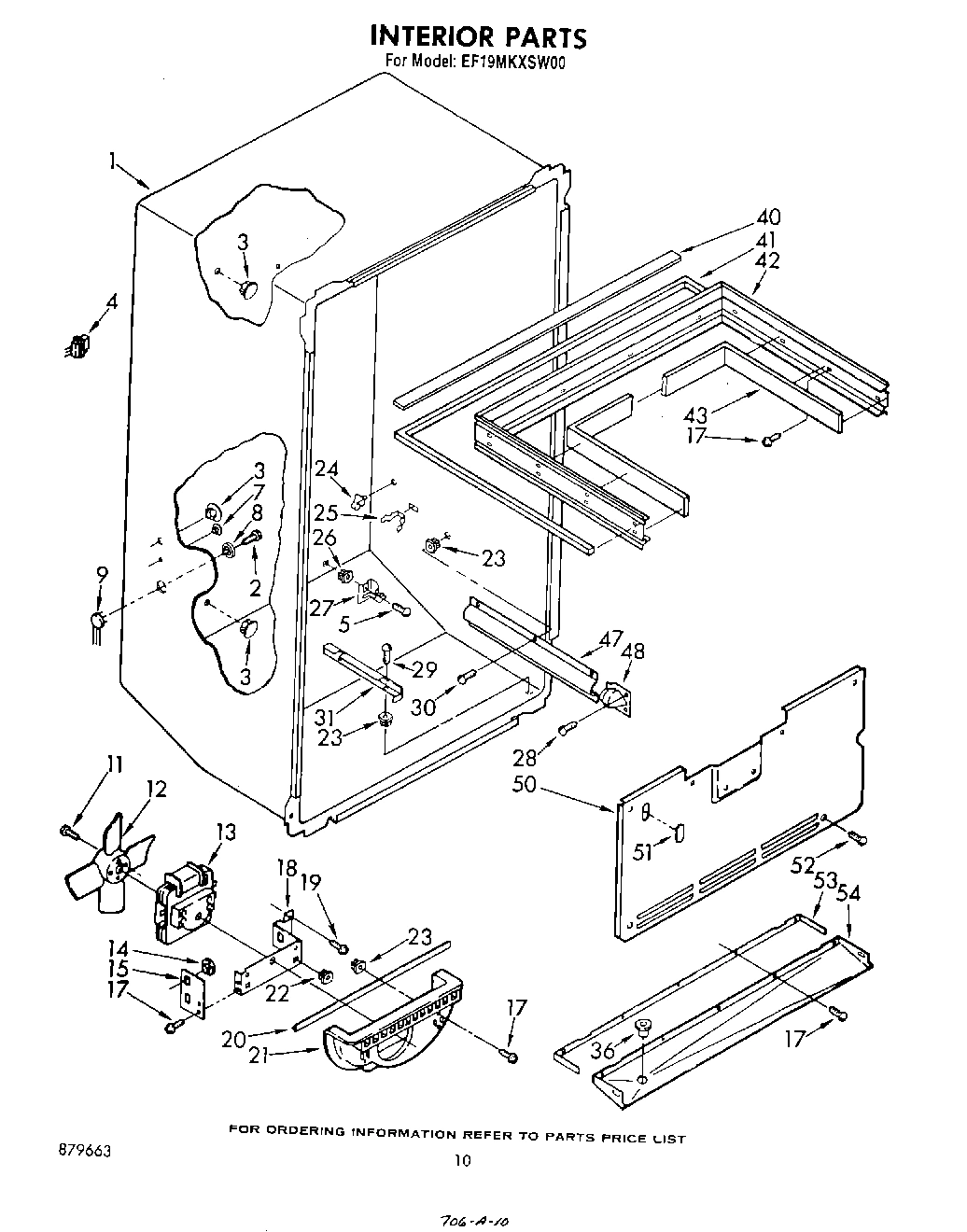

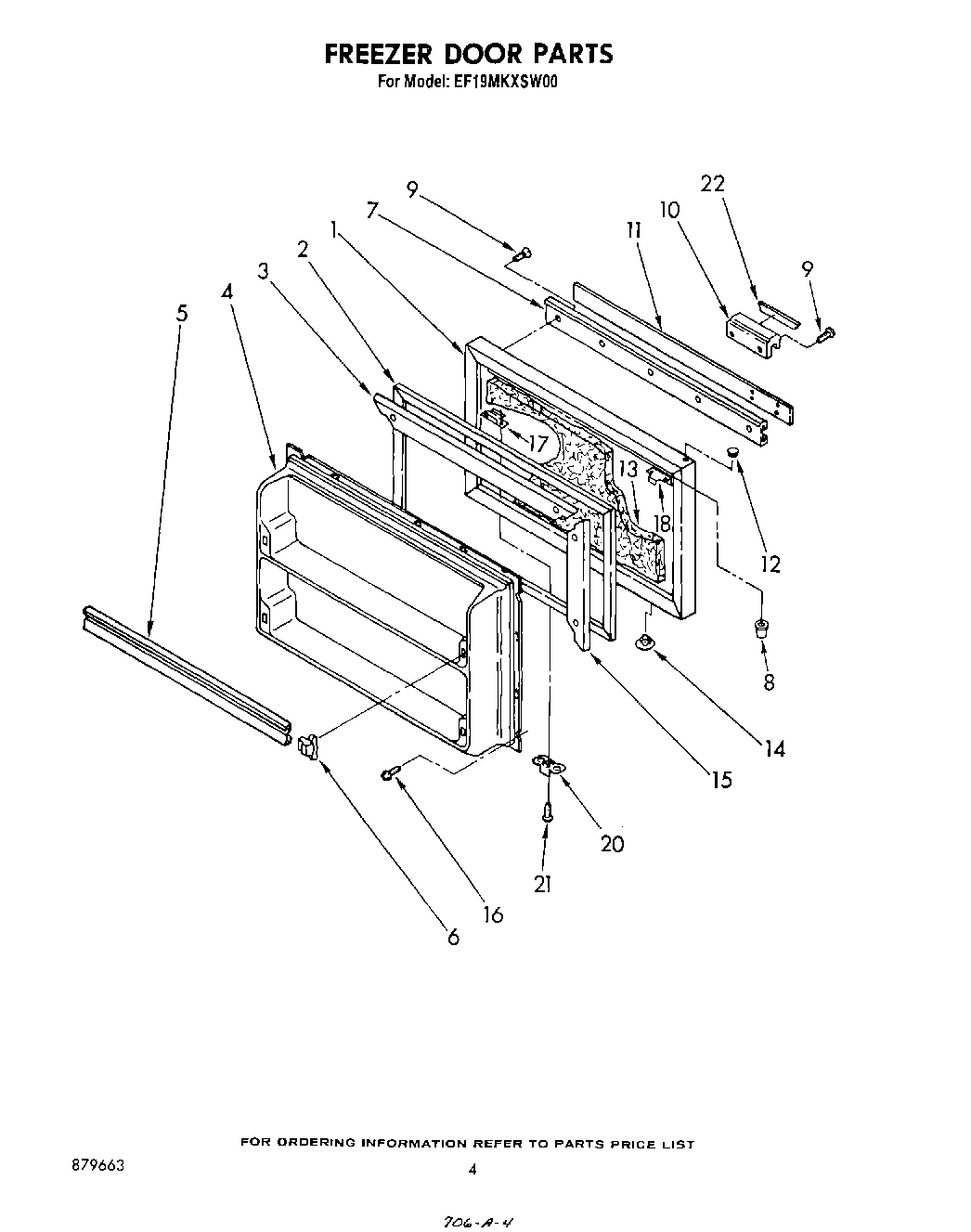

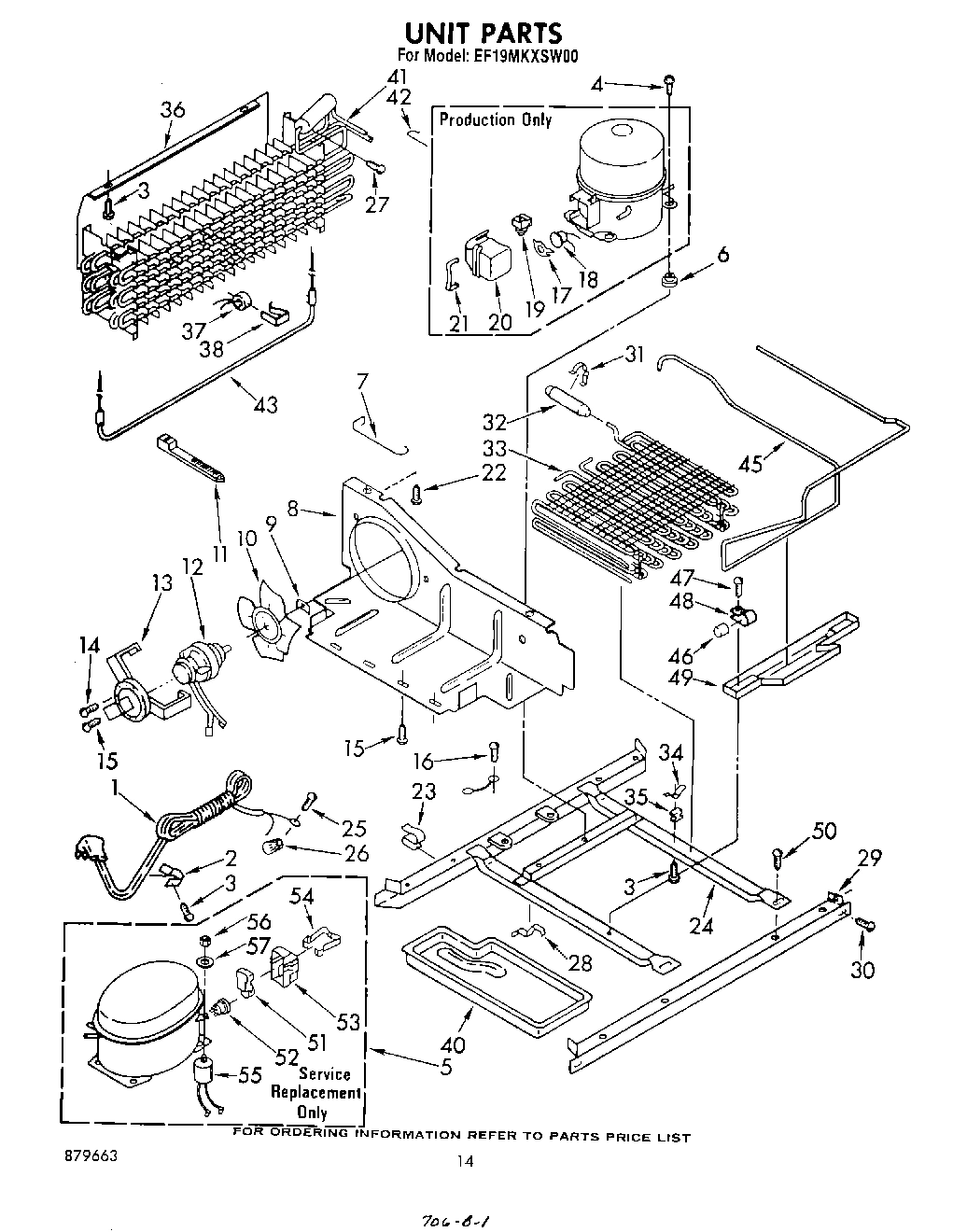

Model Whirlpool EF19MKXSW00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 261890 WPL 261890 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1109076 WPL LIT1109076 Contact Us For Availability

WPL LIT1109078 WPL LIT1109078 Contact Us For Availability

WPL LIT879663 WPL LIT879663 Contact Us For Availability

WPL LIT945560 WPL LIT945560 Contact Us For Availability

1

Support, Center Ladder (2) WPL 520959 Contact Us For Availability

1

Damper, Air WPL 984658 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI146266A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI146267A Contact Us For Availability

1

Cord, Service WPL 850626 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (White) WPL 1110337 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Golden Ha WPL 1110338 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Almond) WPL 1110339 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Toast) WPL 1110340 Contact Us For Availability

1

Door, Freezer (Also Order Item 13) (Platinum) WPL 1110341 Contact Us For Availability

2

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Ladder (Center) WPL 936230 Contact Us For Availability

2

Gasket, Freezer Door WPL 986016 Contact Us For Availability

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

Shelf, Cantilever (3) WPL 1109029 Contact Us For Availability

3

Retainer, Air Damper WPL 836493 Contact Us For Availability

3

Extension, Drain Fitting WPL 841646 Contact Us For Availability

3

Plug, Hole (5) WPL 519890 Contact Us For Availability

3

Retainer, Gasket Top & Bottom WPL 836118 Contact Us For Availability

4

Interior Door Panel (R.H.) WPL 1101508 Contact Us For Availability

4

Clip, Drain Extension WPL 841648 Contact Us For Availability

4

Wiring, Liner (Defrost Timer) WPL 481782 Contact Us For Availability

4

Panel, Interior Door WPL 1101494 Contact Us For Availability

5

WP4317800 Whirlpool Refrigerator Thermostat Backorder WPL WP4317800 $113.21

5

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

5

Front Cover, Meat Pan WPL 1111948 Contact Us For Availability

5

Compressor (Includes Items 51, 52, 53, 54, 55 WPL 482981 Contact Us For Availability

5

Trim, Door Shelf (2) WPL 1109059 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

WP839904 Whirlpool Refrigerator Endcap Trim Backorder WPL WP839904 $3.70

6

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

6

Cover, Meat Pan WPL 1109038 Contact Us For Availability

6

Cover, Unit Compartment WPL 850459 Contact Us For Availability

7

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Plug, Hole (2) WPL 659598 Contact Us For Availability

7

Guard, Fan WPL 850156 Contact Us For Availability

7

Trim, Handle Door WPL 936666 Contact Us For Availability

8

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

8

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

8

Bracket, Thermostat Mounting WPL 848446 Contact Us For Availability

8

Cap, Receptacle WPL 850738 Contact Us For Availability

8

Baffle, Air WPL 850764 Contact Us For Availability

8

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

Seal, Strip Center Rail WPL 987506 Contact Us For Availability

9

Wiring, Liner (Ice Maker) WPL 481658 Contact Us For Availability

9

Screw, 8.18 x 3/4 WPL 489145 Contact Us For Availability

Stud, Saddle (L.S.) WPL 1100113 Contact Us For Availability

Container, Defrost Timer WPL 983079 Contact Us For Availability

Drain Fitting Liner WPL 839861 Contact Us For Availability

Blade, Fan WPL 989524 Contact Us For Availability

Handle, Door WPL 936664 Contact Us For Availability

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Strap WPL 851095 Contact Us For Availability

Insert, Trim Handle WPL 1111957 Contact Us For Availability

Insert, Trim Handle (For Platinum Model Only) WPL 1111963 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

Blade, Fan WPL 992920 Contact Us For Availability

Shelf, Freezer WPL 986809 Contact Us For Availability

Clip, Breaker Liner (3) WPL 848478 Contact Us For Availability

Hole Plug (Toast) WPL 1100188 Contact Us For Availability

Hole Plug (Platinum) WPL 1100189 Contact Us For Availability

Plug, Hole (Almond) WPL 989196 Contact Us For Availability

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $84.04

Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability

Trim, Shelf Front WPL 985070 Contact Us For Availability

Filler, Corner WPL 1109396 Contact Us For Availability

Bracket, Fan Motor WPL 548695 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

Basket, Freezer WPL 985382 Contact Us For Availability

Plug, Hole (2) WPL 534927 Contact Us For Availability

Roller, Front (2) WPL 981127 Contact Us For Availability

Grommet, Fan Mounting (3) WPL 548268 Contact Us For Availability

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Ladder, Shelf (Side) (2) WPL 934267 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Timer, Defrost WPL 943428 Contact Us For Availability

Pin, Hinge WPL 992547 Contact Us For Availability

Bracket, Fan Mounting WPL 548263 Contact Us For Availability

Retainer, Gasket (Side) (2) WPL 986015 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Screw, 8 x 1-3/8 (2) WPL 488678 Contact Us For Availability

Heater, Stile WPL 1114265 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

Clip, Heater (2) WPL 935663 Contact Us For Availability

Overload Spring WPL 943494 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Anchor (3) WPL 983604 Contact Us For Availability

Bracket, Fan Mounting (Single) WPL 548264 Contact Us For Availability

Protector, Overload WPL 943492 Contact Us For Availability

19

Pan Crisper (2) WPL 944037 Contact Us For Availability

19

Screw (Repair) (4) WPL 487470 Contact Us For Availability

19

Relay, Starting WPL 945431 Contact Us For Availability

Shelf, Cantilever (Meat Pan) WPL 936770 Contact Us For Availability

Hinge, Center (L.H.) WPL 992542 Contact Us For Availability

Gasket, Sealing WPL 986018 Contact Us For Availability

Case, Relay WPL 943496 Contact Us For Availability

Bracket, Door Stop WPL 944036 Contact Us For Availability

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

Screw (Repair) WPL 488132 Contact Us For Availability

Scroll Fan WPL 986017 Contact Us For Availability

Spring, Relay Case WPL 943497 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

Grommet, Screw (2) WPL 538449 Contact Us For Availability

Trim, Shelf Front WPL 935223 Contact Us For Availability

Grid, Insert WPL 987018 Contact Us For Availability

Screw, 8-32 x 1/2 (5) WPL 489050 Contact Us For Availability

Insert, Handle WPL 1111956 Contact Us For Availability

Insert, Handle (Black) (For Platinum Model On WPL 1111962 Contact Us For Availability

Front Cover, Crisper WPL 1111946 Contact Us For Availability

Grommet WPL 842339 Contact Us For Availability

Insert, Air Return WPL 987019 Contact Us For Availability

Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

Overlay, Pan WPL 984749 Contact Us For Availability

Separator, Compartment WPL 986026 Contact Us For Availability

Tap Plate, Hinge WPL 836162 Contact Us For Availability

Stud, Support (2) WPL 839213 Contact Us For Availability

Frame, Unit Mounting WPL 945457 Contact Us For Availability

Stud, Shelf (2) WPL 529758 Contact Us For Availability

Panel, Control WPL 1111938 Contact Us For Availability

Speed Clip, Light Lens (3) WPL 533998 Contact Us For Availability

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

Stud, Crisper Support (Rear) WPL 836412 Contact Us For Availability

Gasket WPL 991223 Contact Us For Availability

Box, Junction WPL 549947 Contact Us For Availability

Grommet WPL 944454 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

27

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

27

Stud, Saddle (R.S.) WPL 1100114 Contact Us For Availability

27

Support, Evaporator (2) WPL 842436 Contact Us For Availability

28

Pan, Meat WPL 849020 Contact Us For Availability

28

Shield, Light WPL 983910 Contact Us For Availability

28

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Reflector, Cantilever Shelf WPL 991328 Contact Us For Availability

Knob, Thermostat WPL 836482 Contact Us For Availability

Bumper, Grille (2) WPL 546131 Contact Us For Availability

Rail, Unit Mounting WPL 548662 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Trim, Freezer Basket WPL 991320 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

Grille WPL 1106236 Contact Us For Availability

Crisper Gasket, Rear WPL 943298 Contact Us For Availability

Knob, Air Diffuser (Includes Illus. 30) WPL 837445 Contact Us For Availability

Insert, Air Baffle Grille WPL 836372 Contact Us For Availability

Slide, Basket (R.S) WPL 986382 Contact Us For Availability

Slide, Basket (Left Side) WPL 986383 Contact Us For Availability

Clamp, Drier WPL 548508 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Crisper Gasket, Front WPL 942028 Contact Us For Availability

Screw, (4) WPL 489173 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Glass, Cantilever Shelf WPL 1109030 Contact Us For Availability

Hinge Cover (Toast) WPL 1100172 Contact Us For Availability

Cover, Hinge (2) (Golden Harvest) WPL 989896 Contact Us For Availability

Condenser & Precooler Assembly WPL 943480 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WPL 943188 WPL 943188 Contact Us For Availability

Stud, Shelf (2) WPL 536475 Contact Us For Availability

Screw, 12-14 x 3/4 (Repair) WPL 488949 Contact Us For Availability

Clamp, Mounting (4) WPL 548738 Contact Us For Availability

35

Cover, Crisper Pan (2) WPL 1109035 Contact Us For Availability

35

Hinge, Top (2) WPL 842035 Contact Us For Availability

35

Grommet, Mounting (4) WPL 943447 Contact Us For Availability

Stud, Shelf (2) WPL 836423 Contact Us For Availability

Clip, Grille (2) WPL 989068 Contact Us For Availability

Fitting, Drain Pan WPL 986661 Contact Us For Availability

Baffle, Air Evaporator WPL 851763 Contact Us For Availability

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

Screw, 8-32 x 1-1/4 (3) WPL 488960 Contact Us For Availability

Screw (Repair) WPL 488980 Contact Us For Availability

Shim, Top Hinge (.030) WPL 836151 Contact Us For Availability

Support, Cover WPL 848562 Contact Us For Availability

Shield, Light (Freezer Compartment) WPL 848158 Contact Us For Availability

Heater, Mullion WPL 989256 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

Post, Support Cover WPL 836410 Contact Us For Availability

Center Rail (Toast) WPL 1100303 Contact Us For Availability

Center Rail (Platinum) WPL 1100304 Contact Us For Availability

Center Rail & Bracket Assembly (White) WPL 836067 Contact Us For Availability

Center Rail & Bracket Assembly (Golden Harves WPL 989909 Contact Us For Availability

Center Rail & Bracket Assembly (Almond) WPL 989911 Contact Us For Availability

Tray, Evaporating WPL 842041 Contact Us For Availability

Housing, Humidity Control WPL 942234 Contact Us For Availability

Diffuser Assembly, Air WPL 986021 Contact Us For Availability

Shim, Ce WPL 836155 Contact Us For Availability

Gasket, Sealing WPL 991925 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Slide Control WPL 942235 Contact Us For Availability

Gasket, Sealing WPL 991280 Contact Us For Availability

Evaporator WPL 945542 Contact Us For Availability

Seal, Control WPL 942236 Contact Us For Availability

Breaker Clip Wrap WPL 939139 Contact Us For Availability

WPL 992544 WPL 992544 Contact Us For Availability

Track, Compartment Separator WPL 986024 Contact Us For Availability

Clip, Heater (2) WPL 989306 Contact Us For Availability

WPL 1110332 WPL 1110332 Contact Us For Availability

WPL 1110333 WPL 1110333 Contact Us For Availability

Screw, 6-19 x 7/16 (2) WPL 489041 Contact Us For Availability

Clip, Breaker Retainer WPL 836090 Contact Us For Availability

WPL 488681 WPL 488681 Contact Us For Availability

Gasket, Sealing (2) WPL 982907 Contact Us For Availability

Heater, Defrost WPL 851765 Contact Us For Availability

44

WPL 1101512 WPL 1101512 Contact Us For Availability

44

Breaker, Refrigerator Trim (Top) WPL 940920 Contact Us For Availability

45

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

45

Exchanger, Heat WPL 945545 Contact Us For Availability

46

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

46

Refrigerator Trim (L.S.) WPL 986001 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Breaker, Refrigerator Trim (R.S.) WPL 986000 Contact Us For Availability

WPL 836159 WPL 836159 Contact Us For Availability

Cover, Tube WPL 981085 Contact Us For Availability

48

Clip, Breaker Mullion (8) WPL 534365 Contact Us For Availability

48

Cover, Tub Entry WPL 839826 Contact Us For Availability

48

Clamp, Tube (2) WPL 510716 Contact Us For Availability

49

WPL 654366 WPL 654366 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

WPL 488714 WPL 488714 Contact Us For Availability

Breaker, Mullion Trim (Refrigerator) WPL 992534 Contact Us For Availability

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

Cover, Evaporator WPL 946122 Contact Us For Availability

51

WPL 836196 WPL 836196 Contact Us For Availability

51

Plug, Hole WPL 659776 Contact Us For Availability

51

Relay WPL 1100806 Contact Us For Availability

52

Breaker, Mullion Trim (Freezer) WPL 841643 Contact Us For Availability

52

Overload WPL 1105077 Contact Us For Availability

53

Breaker, Freezer Trim (L.S.) WPL 985998 Contact Us For Availability

53

Gasket, Drain Pan WPL 986660 Contact Us For Availability

53

Cover, Terminal WPL 1105015 Contact Us For Availability

54

Breaker, Freezer Trim (R.S.) WPL 985997 Contact Us For Availability

54

Pan, Drain WPL 986659 Contact Us For Availability

54

Strap WPL 938384 Contact Us For Availability

55

Breaker, Freezer Trim (Bottom) WPL 839829 Contact Us For Availability

55

Capacitor WPL 482996 Contact Us For Availability

56

Nut WPL 489142 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 479502 WPL 479502 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut WPL 261891 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 489143 WPL 489143 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
