Model Whirlpool EEV201XA0 VERTICAL FREEZER – Common Parts & Diagrams

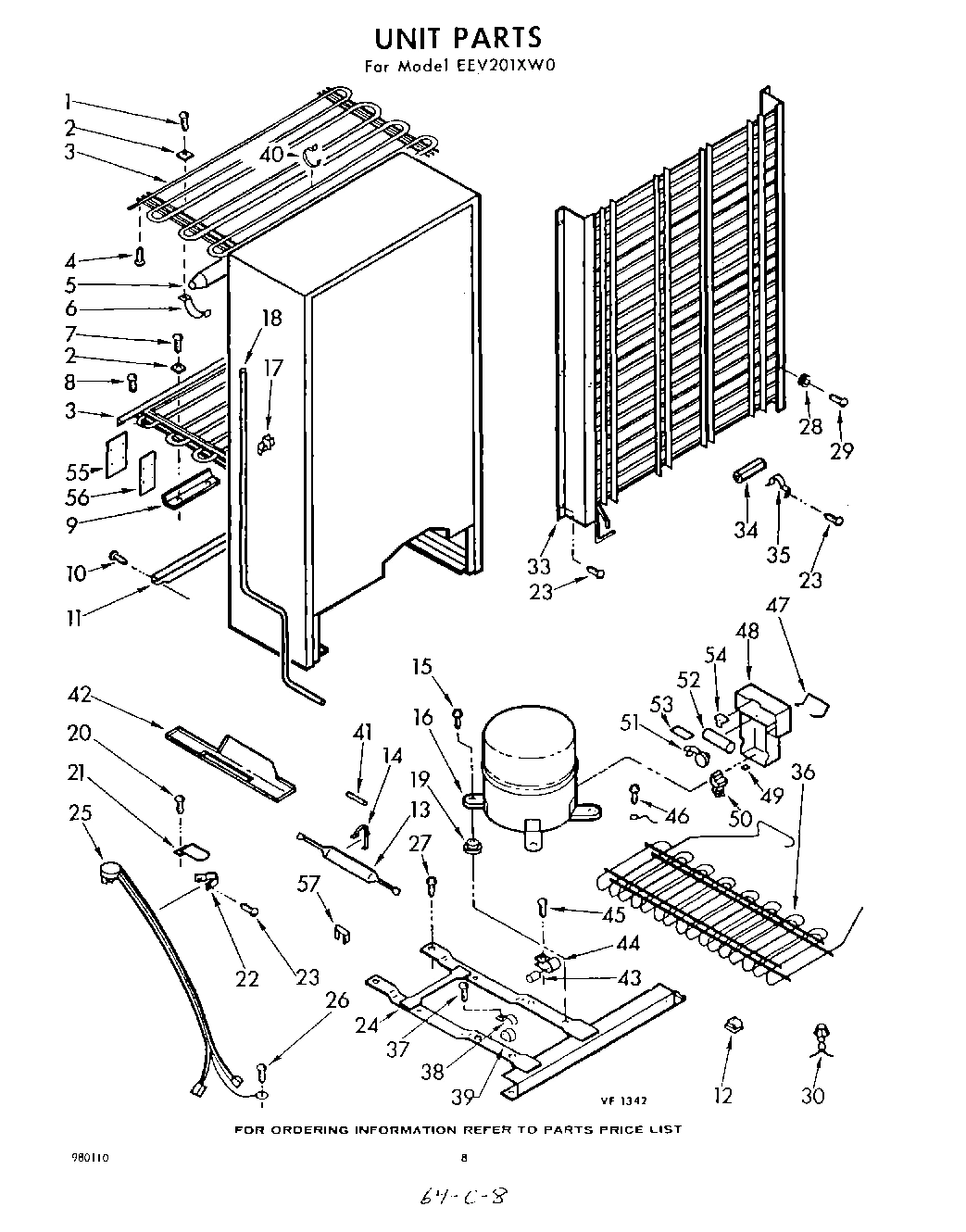

05 - UNIT

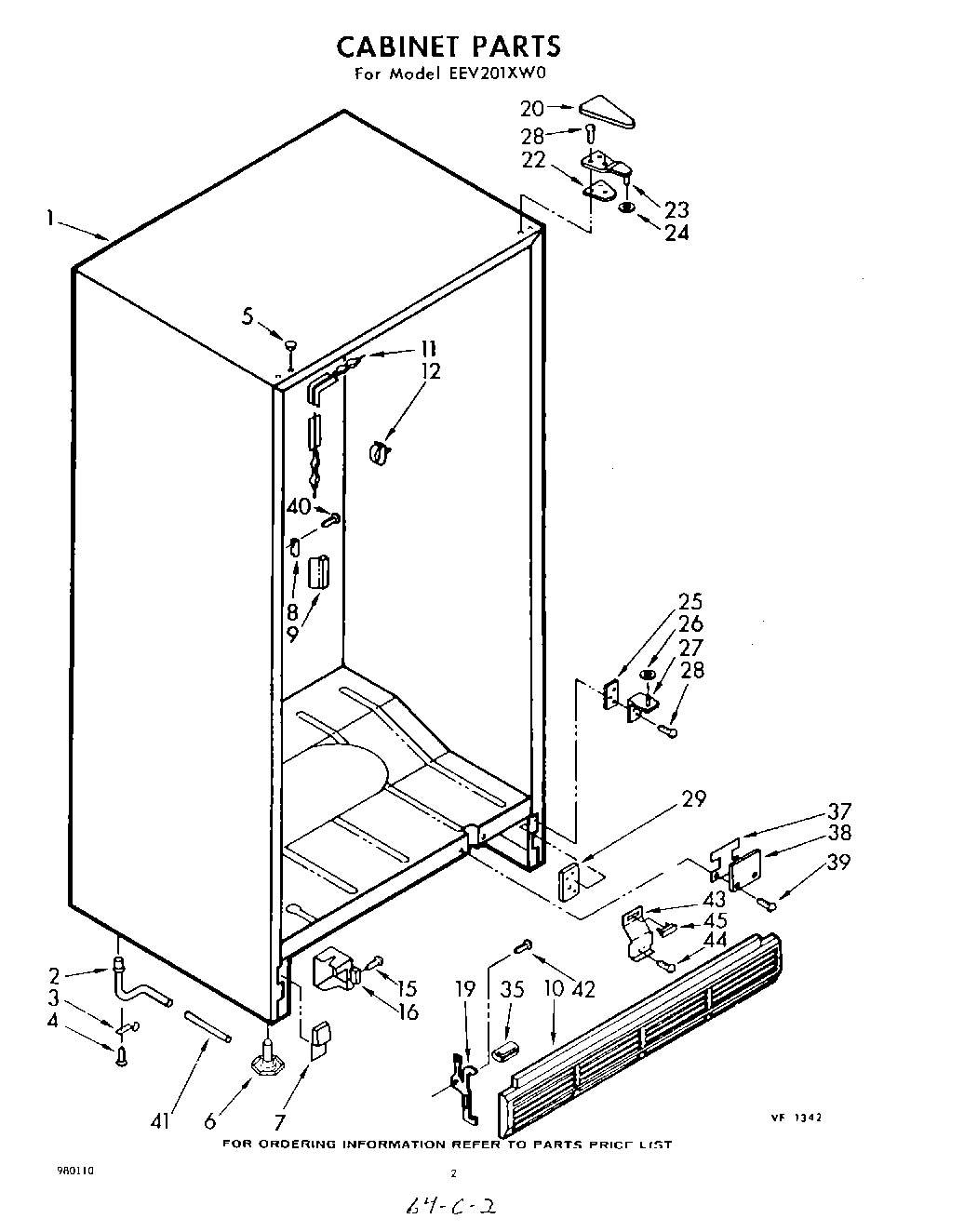

02 - CABINET
04 - DOOR , LIT/OPTIONAL
03 - LINER
Common parts from model Whirlpool EEV201XA0 VERTICAL FREEZER
1
Cabinet (Not A Serviceable Part) WPL ARI39166A7 Contact Us For Availability
1
Retainer, Gasket (2) WPL 836118 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI39167A7 Contact Us For Availability
2
Extension, Fitting WPL 842257 Contact Us For Availability
2
PANEL, INTERIOR DOOR WPL 981943 Contact Us For Availability
2
Grommet WPL 842339 Contact Us For Availability
3
Clip, Drain WPL 841648 Contact Us For Availability
3
Plug, Hole WPL 519890 Contact Us For Availability
4
SCREW WPL 488845 Contact Us For Availability
5
Plug, Hole (3) (White) WPL 842031 Contact Us For Availability
5
PLUG, HOLE (3) (AVOCADO) WPL 842033 Contact Us For Availability
5
PLUG, HOLE (3) (GOLD) WPL 842034 Contact Us For Availability
5
Trim, Shelf (5) WPL 984900 Contact Us For Availability
5
Spacer (3) WPL 838186 Contact Us For Availability
6
Leveler (2) WPL 836392 Contact Us For Availability
6
PANEL, EXTERIOR DOOR (WHITE) WPL 984662 Contact Us For Availability
6
PANEL, EXTERIOR DOOR (AVOCADO) WPL 984664 Contact Us For Availability
6
PANEL, EXTERIOR DOOR (GOLD) WPL 984665 Contact Us For Availability
6
Stud, Shelf (8) WPL 513002 Contact Us For Availability
7
Filler, Grille WPL 839178 Contact Us For Availability
7
Stud, Hook (8) WPL 517151 Contact Us For Availability
8
STRIKE, LOCK WPL 839803 Contact Us For Availability
8
Retainer, Side (2) WPL 836120 Contact Us For Availability
8
Switch, Light WPL 549191 Contact Us For Availability
9
Cover, Strike Lock WPL 839865 Contact Us For Availability
10
GRILLE, EXTERIOR WPL 981918 Contact Us For Availability
10
Plug, Hole (2) WPL 534927 Contact Us For Availability
10
Cap, Drain WPL 842259 Contact Us For Availability
11
HEATER, STILE WPL 851506 Contact Us For Availability
11
Drain Ferrule WPL 842258 Contact Us For Availability
12
Fastener, Wire WPL 851039 Contact Us For Availability
12
Basket, Slide Out WPL 842200 Contact Us For Availability
13
Escutcheon, Nameplate WPL 837577 Contact Us For Availability
13
Strap, Ground WPL 547603 Contact Us For Availability
14
Clamp, Drier WPL 547637 Contact Us For Availability
14
CLIP, TUBULAR WPL 659677 Contact Us For Availability
15
Screw (4) WPL 488400 Contact Us For Availability
15
HANDLE, TOP WPL 982947 Contact Us For Availability
15
SCREW WPL 488590 Contact Us For Availability
16
COMPRESSOR (ORIGINAL NO. 462550) WPL 462546 Contact Us For Availability
16
Box, Junction WPL 549947 Contact Us For Availability
16
Clip, Lock WPL 983465 Contact Us For Availability
17
CLAMP, HEAT EXCHANGE WPL 836398 Contact Us For Availability
17
Knob, Thermostat WPL 981928 Contact Us For Availability
18
EXCHANGER, HEAT WPL 482181 Contact Us For Availability
18
INSERT, NAMEPLATE WPL 842211 Contact Us For Availability
19
Grommet (4) WPL 547283 Contact Us For Availability
19
Support, Grille WPL 844614 Contact Us For Availability
19
Breaker, Top WPL 839830 Contact Us For Availability
20
Screw, 6-32 x 1/2 WPL 486899 Contact Us For Availability
20
COVER, HINGE (AVOCADO) WPL 842011 Contact Us For Availability
20
COVER, HINGE (GOLD) WPL 842014 Contact Us For Availability
20
CLIP, TUBULAR WPL 659676 Contact Us For Availability
20
Breaker, L.S. WPL 839831 Contact Us For Availability
21
Clip, Holding WPL 653035 Contact Us For Availability
21
Handle, Center WPL 982978 Contact Us For Availability
21
CLIP (5) WPL 836090 Contact Us For Availability
22
CLIP WPL 594193 Contact Us For Availability
22
Shim, Hinge WPL 836151 Contact Us For Availability
22
CLIP (15) WPL 845807 Contact Us For Availability
23
Hinge Assembly, Top WPL 842038 Contact Us For Availability
23
Lock Assembly WPL 983464 Contact Us For Availability
24
Frame WPL 548654 Contact Us For Availability
24
Breaker, R.S. WPL 836635 Contact Us For Availability
25
Cord, Service WPL 850626 Contact Us For Availability
25
Shim, Hinge WPL 836196 Contact Us For Availability
25
Breaker, Bottom WPL 839829 Contact Us For Availability
26
End, Handle WPL 982948 Contact Us For Availability
26
Cover, Insulation WPL 836553 Contact Us For Availability
27
WPL 799344 WPL 799344 Contact Us For Availability
27
Screw, WPL 488454 Contact Us For Availability
27
Hinge (Bottom) WPL 836686 Contact Us For Availability
27
Leveler, Enamel (12 Oz. Spray Can) WPL 206925 Contact Us For Availability
27
Screw WPL 488818 Contact Us For Availability
27
Lacquer, Bright Aluminum (12 Oz. Spray Can) WPL 511881 Contact Us For Availability
27
BOOKLET, FREEZER WPL 656493 Contact Us For Availability
27
KIT, BRUSH TOUCH-UP (AVOCADO) (BASE) WPL 72021 Contact Us For Availability
27
KIT, BRUSH TOUCH-UP (AVOCADO) (HI-LITE) WPL 72025 Contact Us For Availability
27
KIT, BRUSH TOUCH-UP (HARVEST GOLD) (BASE) WPL 72094 Contact Us For Availability
27
KIT, BRUSH TOUCH-UP (HARVEST GOLD) (HI-LITE) WPL 72095 Contact Us For Availability
27
ENAMEL, AVOCADO (BASE COAT) (1 QT. UNCUT) WPL 798954 Contact Us For Availability
27
ENAMEL, AVOCADO (HI-LITE) (SHADED AREA) (1 PT WPL 798955 Contact Us For Availability
27
WPL 799340 WPL 799340 Contact Us For Availability
27
WPL 799351 WPL 799351 Contact Us For Availability
27
WPL 799832 WPL 799832 Contact Us For Availability
27
WPL 799833 WPL 799833 Contact Us For Availability
27
WPL 833503 WPL 833503 Contact Us For Availability
27
WPL 833504 WPL 833504 Contact Us For Availability
27
WPL 980110 WPL 980110 Contact Us For Availability
27
WPL 984937 WPL 984937 Contact Us For Availability
28
Bumper, Rubber WPL 204349 Contact Us For Availability
28
ESCUTCHEON, THERMOSTAT WPL 984917 Contact Us For Availability
29
Tap Plate WPL 836162 Contact Us For Availability
29
CLIP, SPEED WPL 533998 Contact Us For Availability
30
Connector Wire WPL 227991 Contact Us For Availability
30
Track, Shelf (R.S.) WPL 653669 Contact Us For Availability
30
Track, Shelf (L.S.) WPL 653670 Contact Us For Availability
33
CONDENSER (INCLUDES ILLUS. 23, 34, 35) WPL 851111 Contact Us For Availability
33
Shield, Light WPL 848158 Contact Us For Availability
34
DAMPENER WPL 513938 Contact Us For Availability
34
Cover, Tube Entry WPL 839826 Contact Us For Availability
35
Clip WPL 515268 Contact Us For Availability
35
Bumper WPL 546131 Contact Us For Availability
35
Screw, 8 x 1/2 WPL 486214 Contact Us For Availability
36
Precooler WPL 851113 Contact Us For Availability
36
Cover, Tube WPL 839827 Contact Us For Availability
37
BRACKET WPL 512733 Contact Us For Availability
38
Clamp (4) WPL 531086 Contact Us For Availability
38
PLATE, SERIAL WPL 658195 Contact Us For Availability
38
Container, Switch WPL 845051 Contact Us For Availability
39
Grommet (4) WPL 513646 Contact Us For Availability
39
Gasket, Container WPL 845052 Contact Us For Availability
40
CLIP, RETAINER (2) WPL 547208 Contact Us For Availability
40
Bracket & Switch Assembly WPL 845049 Contact Us For Availability
41
Sleeve, Restrictor WPL 510446 Contact Us For Availability
41
Drain Hose WPL 842260 Contact Us For Availability
42
PAN, DRIP WPL 549187 Contact Us For Availability
42
ESCUTCHEON, POWER SAVER WPL 849288 Contact Us For Availability
43
Dampener (2) WPL 510769 Contact Us For Availability
43
Bracket, Pilot Light WPL 842250 Contact Us For Availability
44
Clamp, Tube (2) WPL 510716 Contact Us For Availability
44
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
45
Light, Pilot WPL 530584 Contact Us For Availability
45
PILOT LIGHT (ALTERNATE) WPL 531158 Contact Us For Availability
47
Spring, Relay Case WPL 531318 Contact Us For Availability
48
CASE, RELAY WPL 549946 Contact Us For Availability
49
Bumper WPL 547272 Contact Us For Availability
50
RELAY, STARTING WPL 548836 Contact Us For Availability
51
OVERLOAD WPL 850842 Contact Us For Availability
52
CAPACITOR WPL 531129 Contact Us For Availability
53
PAD, RUBBER WPL 513992 Contact Us For Availability
54
CLIP, CAPACITOR WPL 513720 Contact Us For Availability
55
Plate, Thermostat WPL 851289 Contact Us For Availability
56
SHIM, THERMOSTAT WPL 851290 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
Clip, Tube WPL 851332 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
