Model Whirlpool ED26SSXLWR0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
07 - REFRIGERATOR DOOR

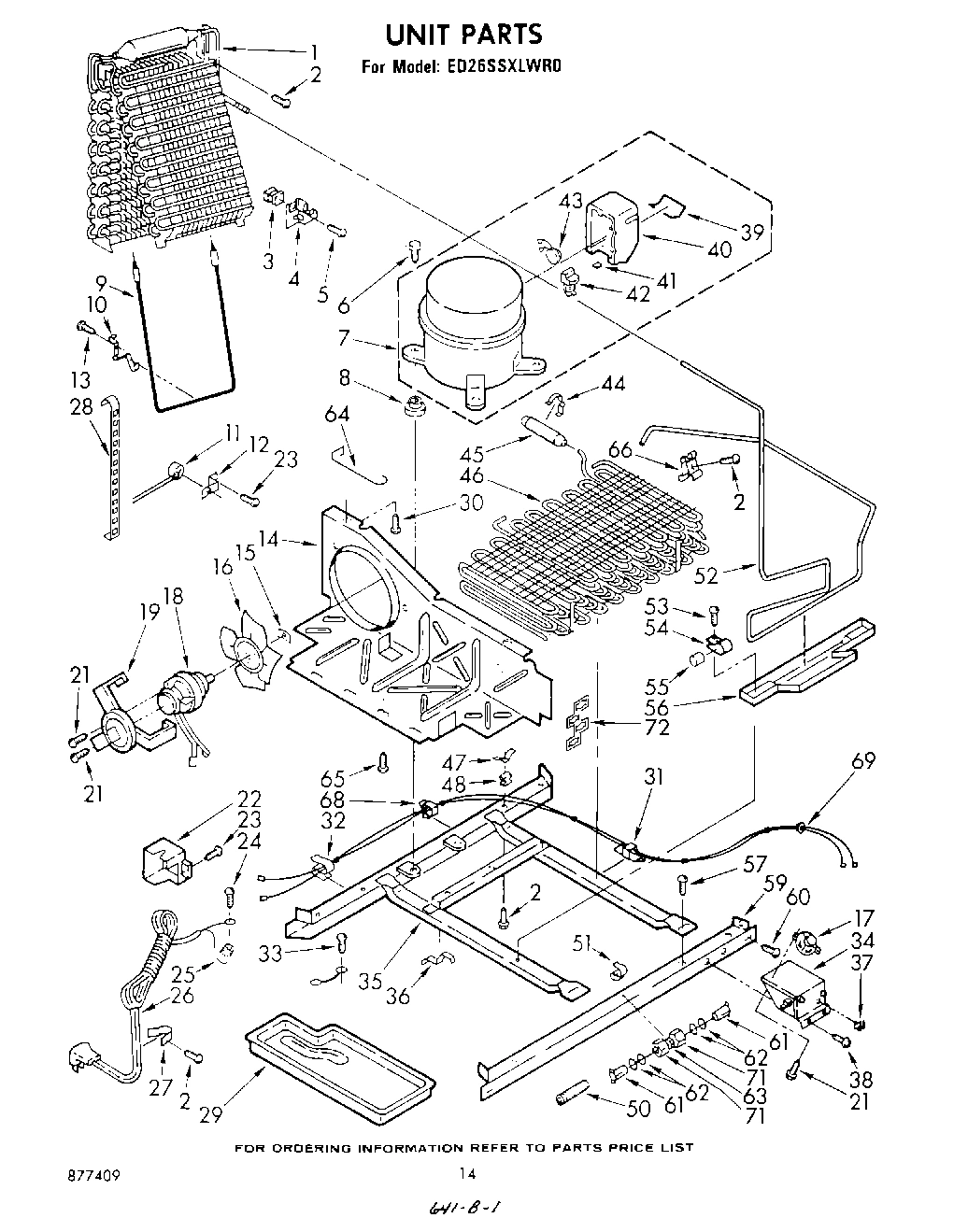

09 - UNIT

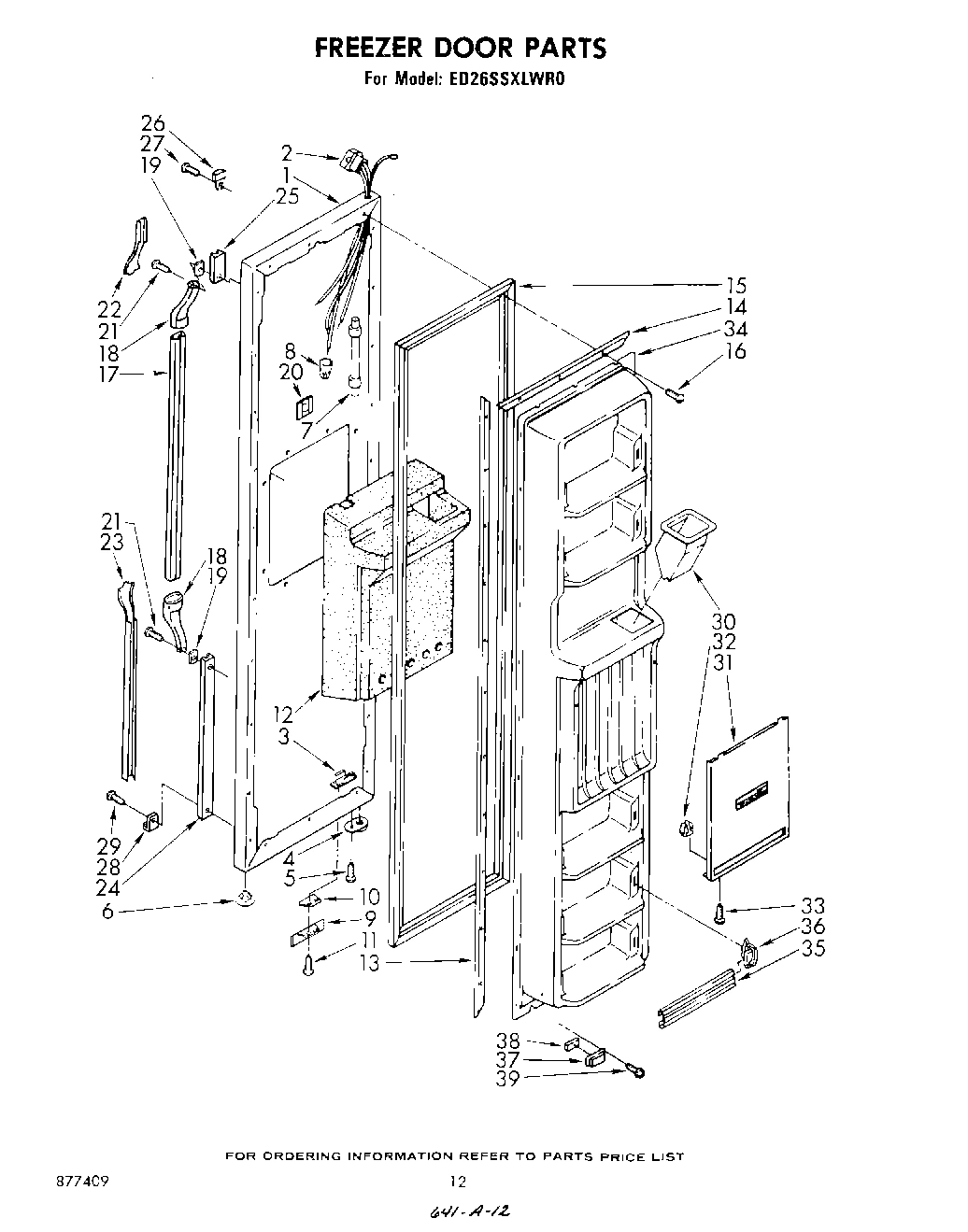

08 - FREEZER DOOR

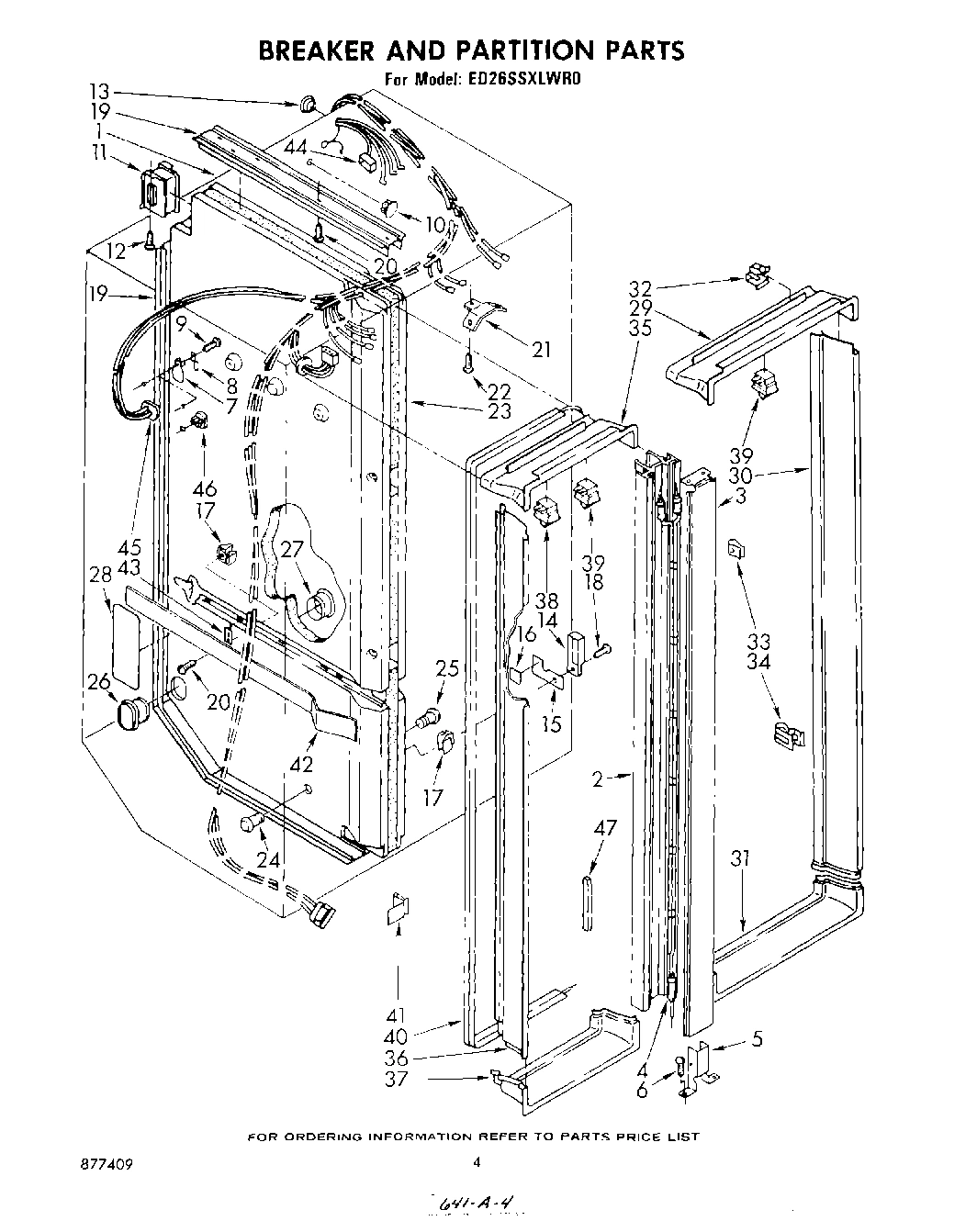

03 - BREAKER AND PARTITION

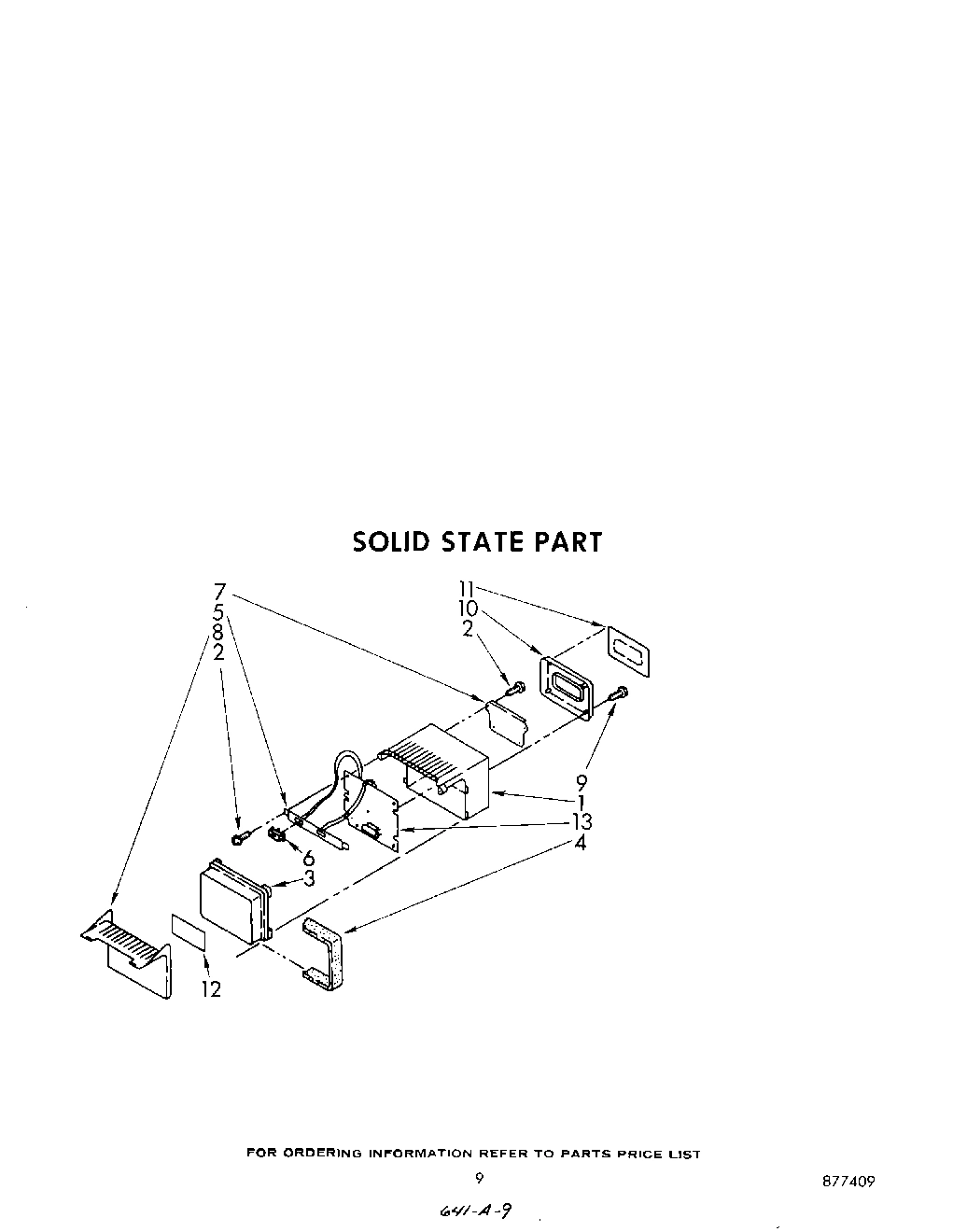

06 - SOLID STATE

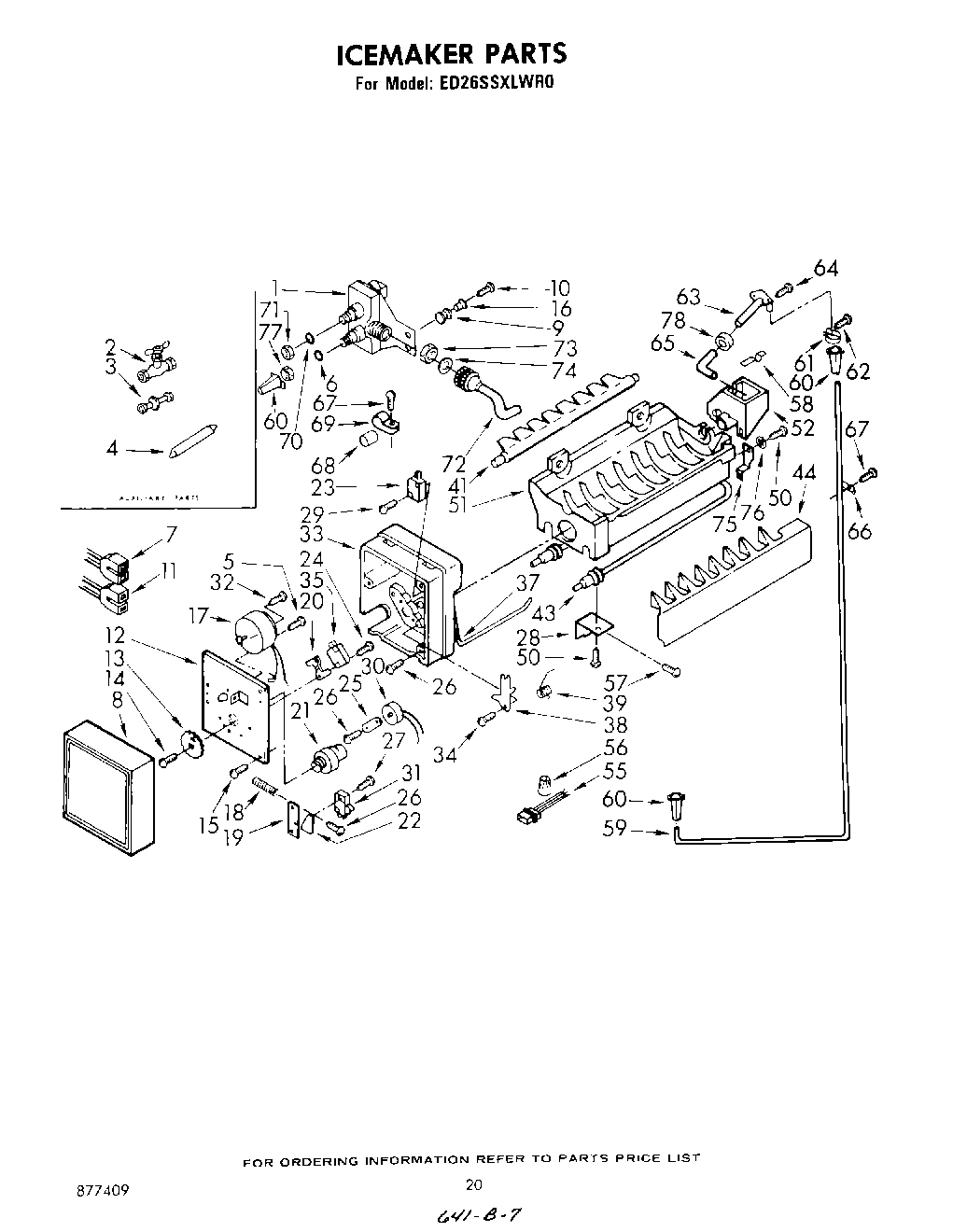

12 - ICEMAKER

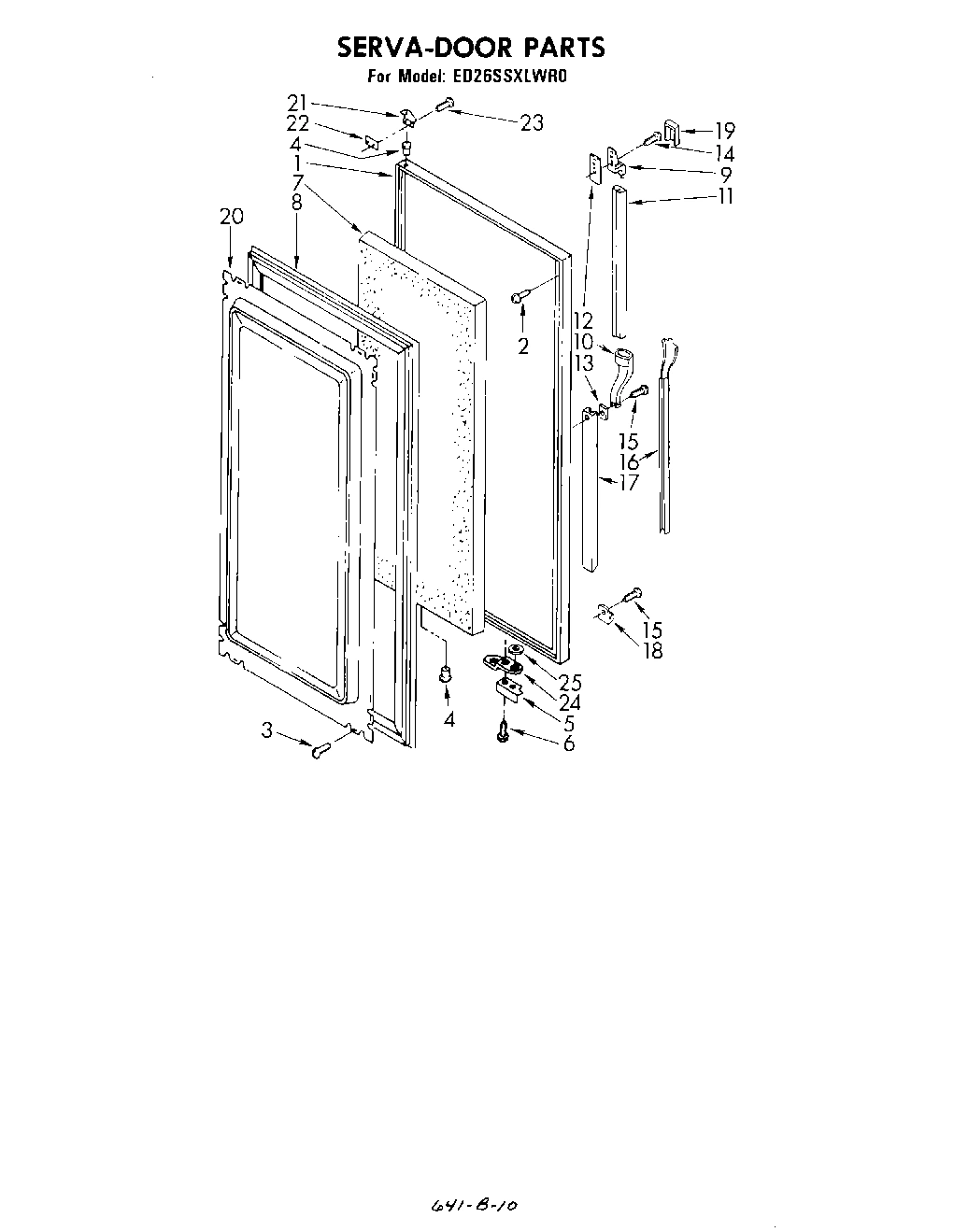

14 - SERVA DOOR

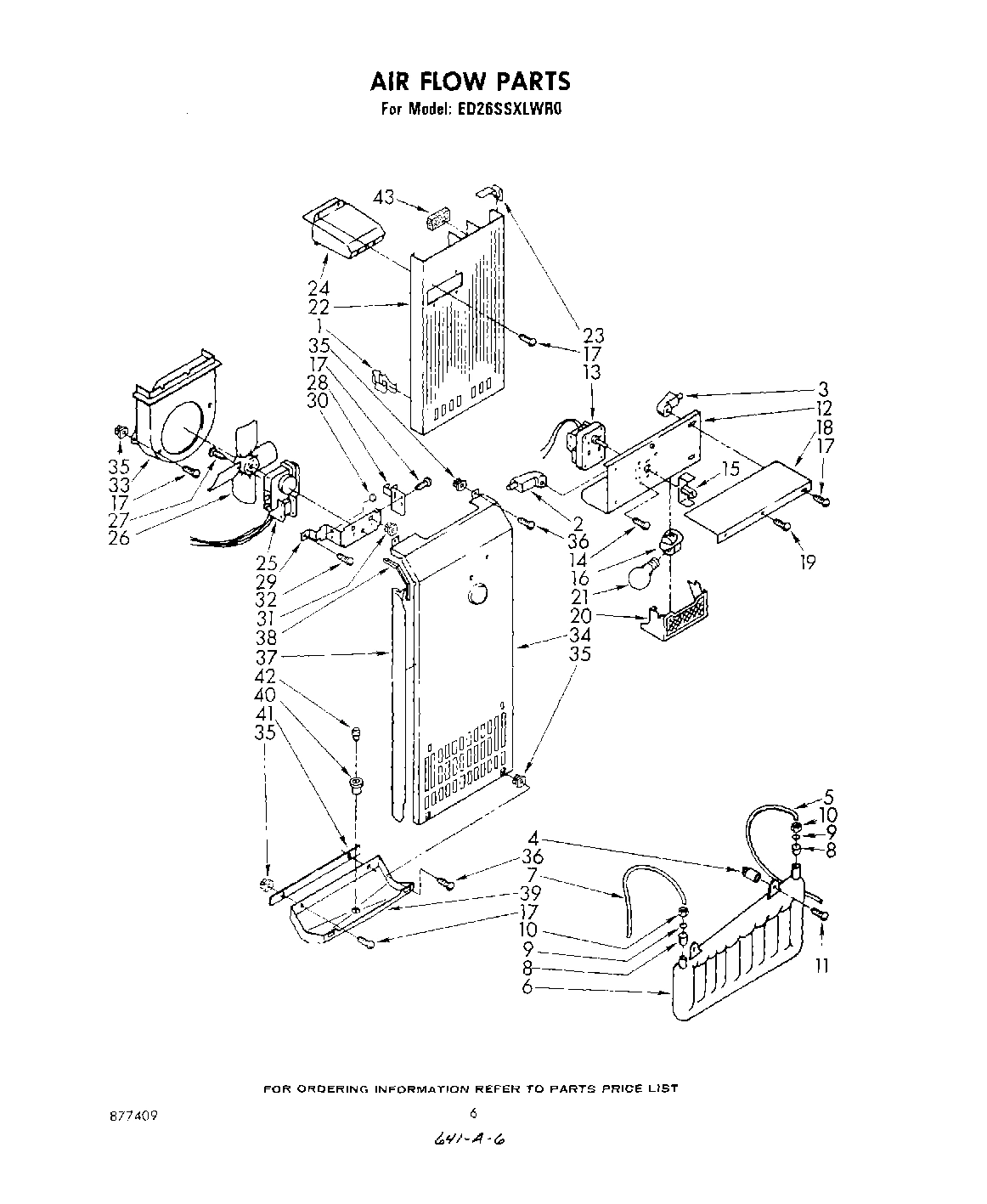

04 - AIR FLOW

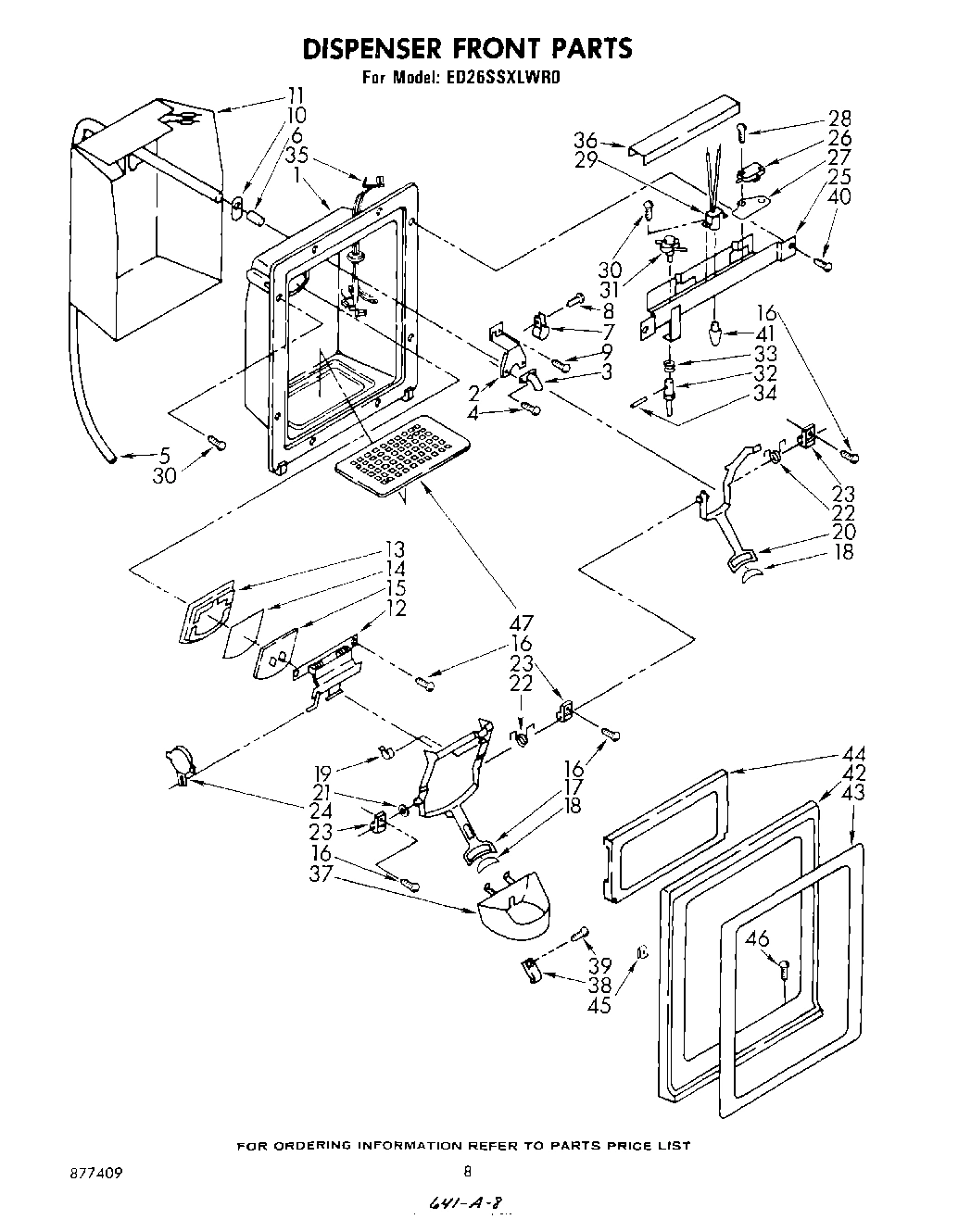

05 - DISPENSER FRONT

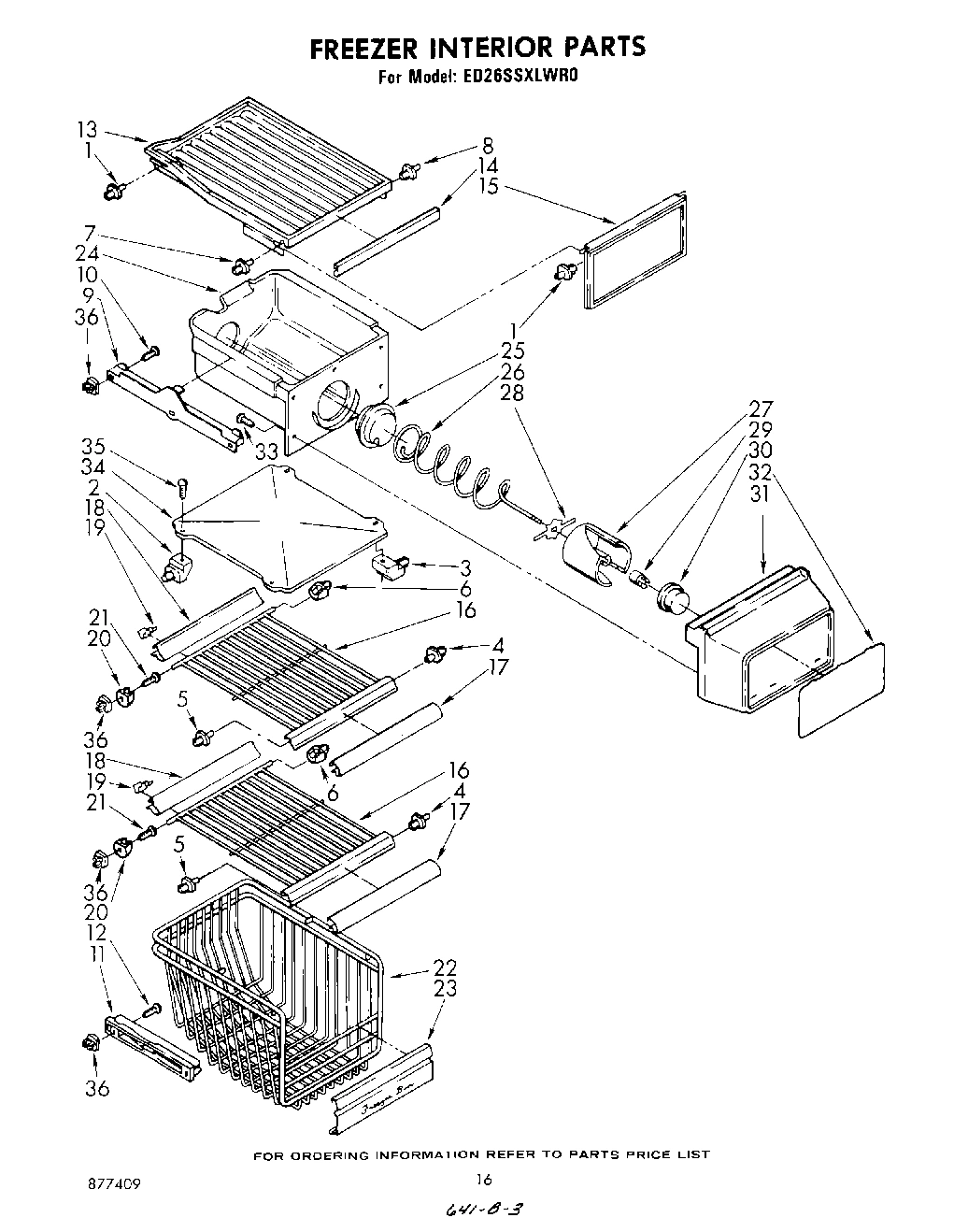

10 - FREEZER INTERIOR

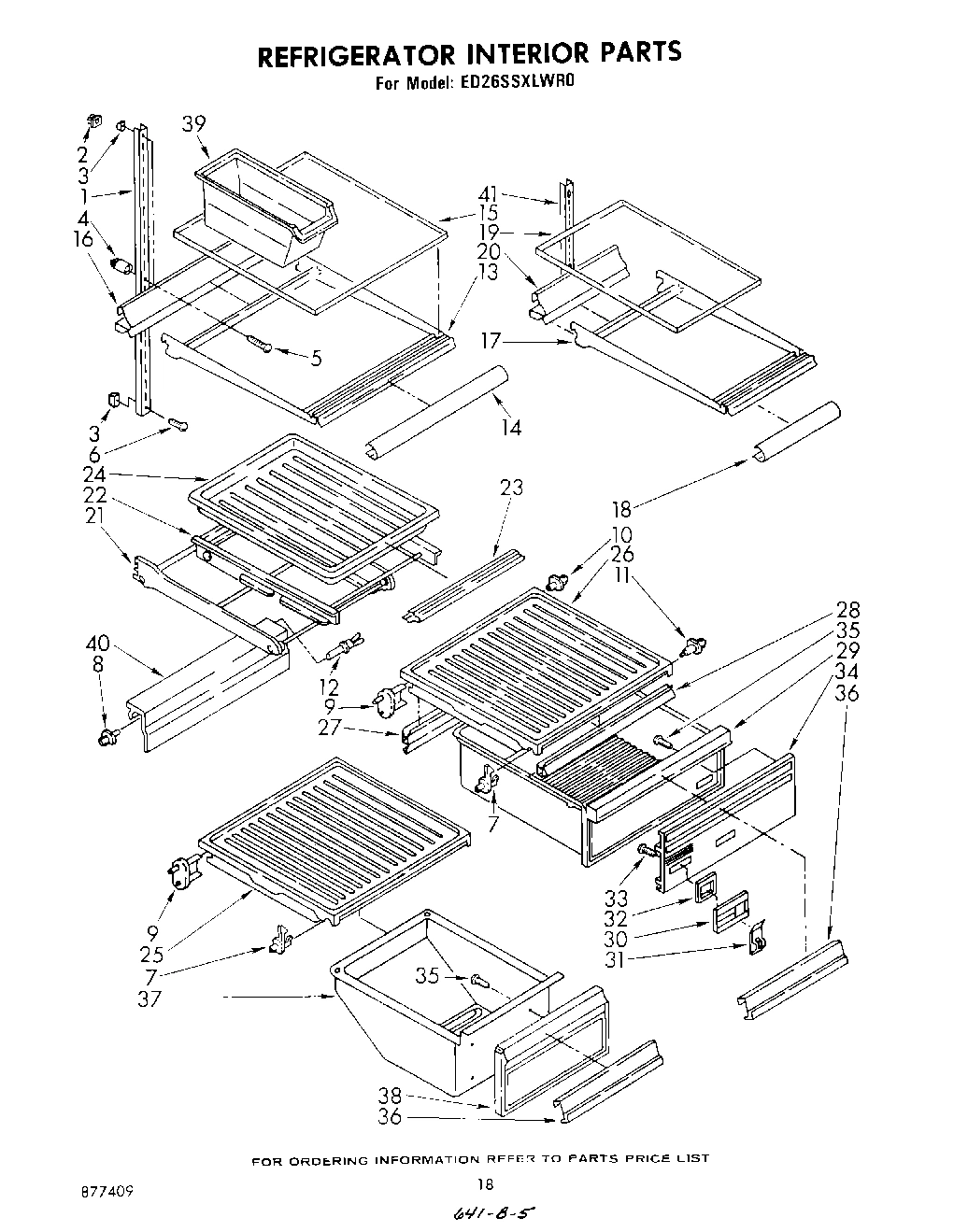

11 - REFRIGERATOR INTERIOR, LIT/OPTIONAL

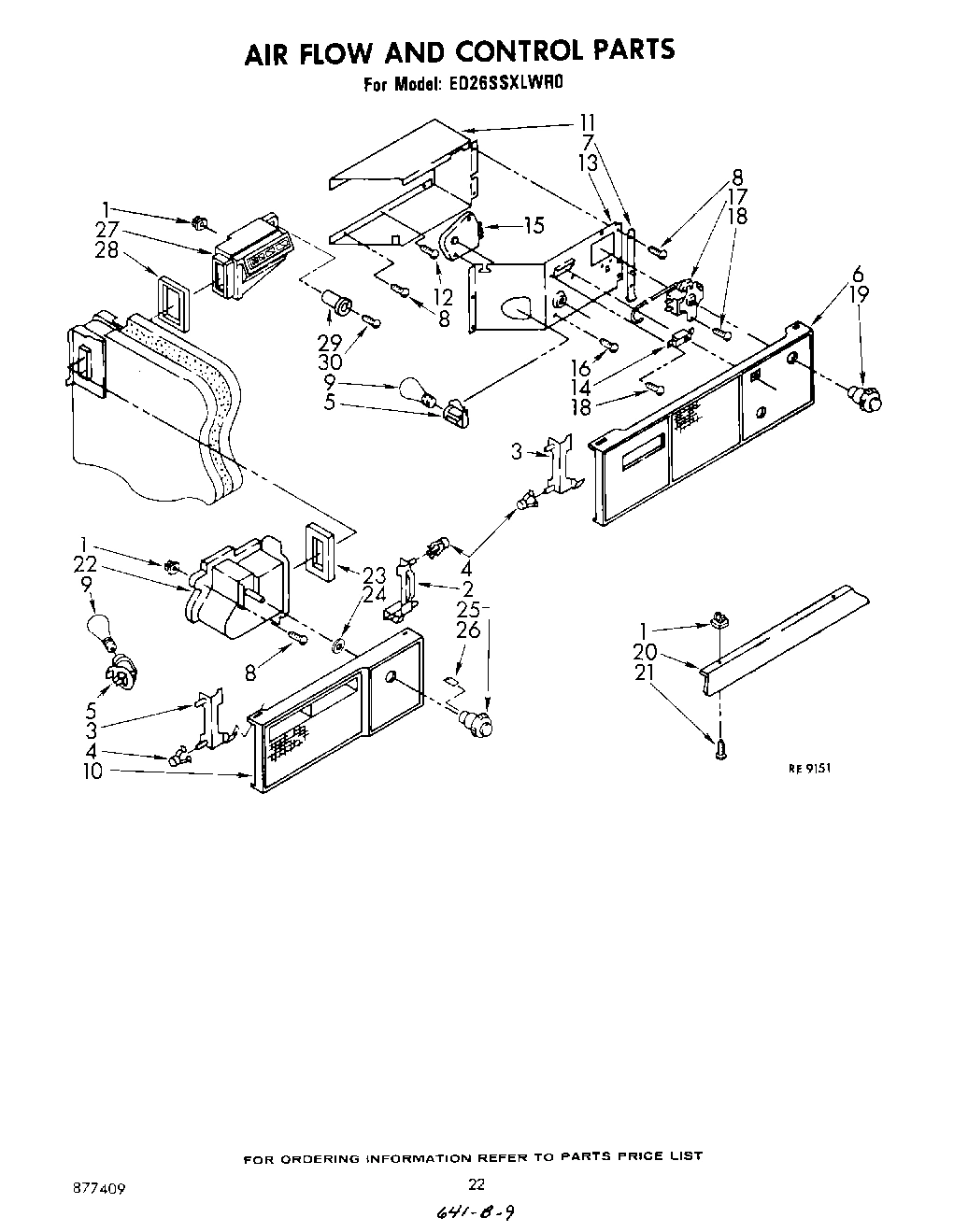

13 - AIR FLOW AND CONTROL
Common parts from model Whirlpool ED26SSXLWR0 SIDE BY SIDE REFRIGERATOR
WPL 261886 WPL 261886 Contact Us For Availability
WPL 261888 WPL 261888 Contact Us For Availability
WPL 261890 WPL 261890 Contact Us For Availability
WPL 285365 WPL 285365 Contact Us For Availability
WPL 285366 WPL 285366 Contact Us For Availability
WPL 350941 WPL 350941 Contact Us For Availability
1
Exterior Door Panel (Toast) WPL 1101465 Contact Us For Availability
1
Exterior Door Panel (Platinum) WPL 1101466 Contact Us For Availability
1
Exterior Door Panel (White) WPL 941967 Contact Us For Availability
1
Exterior Door Panel (Coffee) WPL 941968 Contact Us For Availability
1
Exterior Door Panel (Golden Harvest) WPL 941969 Contact Us For Availability
1
Exterior Door Panel (New Avocado) WPL 941970 Contact Us For Availability
1
Exterior Door Panel (Almond) WPL 941971 Contact Us For Availability
1
Evaporator WPL 851348 Contact Us For Availability
1
Exterior Door Panel Freezer (Toast) WPL 1101467 Contact Us For Availability
1
Exterior Door Panel Freezer (Platinum) WPL 1101468 Contact Us For Availability
1
Exterior Door Panel Freezer (White) WPL 941975 Contact Us For Availability
1
Exterior Door Panel Freezer (Coffee) WPL 941976 Contact Us For Availability
1
Exterior Door Panel Freezer (Golden Harvest) WPL 941977 Contact Us For Availability
1
Exterior Door Panel Freezer (New Avocado) WPL 941978 Contact Us For Availability
1
Exterior Door Panel Freezer (Almond) WPL 941979 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28263A9 Contact Us For Availability
1
Grommet WPL 842339 Contact Us For Availability
1
Housing WPL 939179 Contact Us For Availability
1
Panel, Servadoor (Toast) WPL 1101445 Contact Us For Availability
1
Panel, Servadoor (Platinum) WPL 1101446 Contact Us For Availability
1
Panel, Servadoor (White) WPL 940466 Contact Us For Availability
1
Panel, Servadoor (Coffee) WPL 940467 Contact Us For Availability
1
Panel, Servadoor (Golden Harvest) WPL 940468 Contact Us For Availability
1
Panel, Servadoor (New Avocado) WPL 940469 Contact Us For Availability
1
Panel, Servadoor (Almond) WPL 940470 Contact Us For Availability
1
Housing, Dispenser WPL 938565 Contact Us For Availability
1
Shelf, Stud WPL 521516 Contact Us For Availability
1
Shelf Ladder WPL 936653 Contact Us For Availability
2
Plug, Crossover WPL 851373 Contact Us For Availability
2
Break Mullion, Frame WPL 935613 Contact Us For Availability
2
Valve, Shut-Off WPL 541157 Contact Us For Availability
2
Support, Stud WPL 983660 Contact Us For Availability
2
Bracket, Water Fitting WPL 987049 Contact Us For Availability
2
Retainer, Stud WPL 836374 Contact Us For Availability
2
Screw Anchor WPL 983604 Contact Us For Availability
2
Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability
3
Shim, Bottom Hinge WPL 986169 Contact Us For Availability
3
Grommet, Screw WPL 944454 Contact Us For Availability
3
Tap Plate WPL 988402 Contact Us For Availability
3
Mullion, Front (Toast) WPL 1101403 Contact Us For Availability
3
Mullion, Front (Platinum) WPL 1101404 Contact Us For Availability
3
Mullion, Front (White) WPL 935614 Contact Us For Availability
3
Mullion, Front (Coffee) WPL 935615 Contact Us For Availability
3
Mullion, Front (Golden Harvest) WPL 935616 Contact Us For Availability
3
Mullion, Front (New Avocado) WPL 935617 Contact Us For Availability
3
Mullion, Front (Almond) WPL 935618 Contact Us For Availability
3
Insulation, Control Box WPL 939192 Contact Us For Availability
3
Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability
3
Support, Stud WPL 992720 Contact Us For Availability
3
Retainer, Stud WPL 988774 Contact Us For Availability
3
Support, Light Lens (L.S.) WPL 842356 Contact Us For Availability
4
Hinge, Bottom WPL 987914 Contact Us For Availability
4
Support, Evaporator WPL 842436 Contact Us For Availability
4
Heater, Mullion WPL 935620 Contact Us For Availability
4
Gasket, Control Box Insulation WPL 939993 Contact Us For Availability
4
Filter Kit WPL 978488 Contact Us For Availability
4
Sleeve, Hinge Pivot WPL 986157 Contact Us For Availability
4
Grommet WPL 843436 Contact Us For Availability
4
Shelf, Stud WPL 936957 Contact Us For Availability
4
Screw, Grommet WPL 512923 Contact Us For Availability
4
Clip, Tubular WPL 843945 Contact Us For Availability
5
Bracket, Door Stop WPL 988417 Contact Us For Availability
5
Mullion, Bracket WPL 935619 Contact Us For Availability
5
Switch & Sensor Bracket WPL 939186 Contact Us For Availability
5
Screw (Use W/Motor 627106) WPL 488622 Contact Us For Availability
5
Bracket, Door Stop WPL 991331 Contact Us For Availability
5
Shelf, Stud WPL 529758 Contact Us For Availability
6
Hole Plug WPL 534927 Contact Us For Availability
6
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
6
Switch WPL 939187 Contact Us For Availability
6
Screw, 8 x 7/16 WPL 488956 Contact Us For Availability
6
Screw (Repair) WPL 488977 Contact Us For Availability
6
Shelf, Saddle (R.S.) WPL 937516 Contact Us For Availability
6
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
6
Screw (Repair) WPL 488980 Contact Us For Availability
6
Light Lens WPL 943218 Contact Us For Availability
7
Compressor Kit (Includes Items 39, 40, 41, 42 WPL 876640 Contact Us For Availability
7
Tube, Door Wiring WPL 991415 Contact Us For Availability
7
Screw Grommet WPL 538532 Contact Us For Availability
7
Filter WPL 939190 Contact Us For Availability
7
Wiring, Water Valve WPL 548734 Contact Us For Availability
7
Insulation, Servadoor WPL 986434 Contact Us For Availability
7
Shelf, Stud WPL 536410 Contact Us For Availability
7
Shelf, Stud WPL 984779 Contact Us For Availability
7
Support, Light Lens WPL 984552 Contact Us For Availability
8
Grommet (4) WPL 547283 Contact Us For Availability
8
Support Clip WPL 538533 Contact Us For Availability
8
Cover, Housing WPL 946141 Contact Us For Availability
8
Cover WPL 627356 Contact Us For Availability
8
Gasket, Serva-Door WPL 944468 Contact Us For Availability
8
Gasket, Servadoor (For Platinum Model Only) WPL 991745 Contact Us For Availability
8
Stud, Shelf WPL 991924 Contact Us For Availability
8
Stud, Shelf WPL 937513 Contact Us For Availability
9
Stud, Shelf WPL 937521 Contact Us For Availability
9
End, Cap Handle WPL 935105 Contact Us For Availability
9
Heater, Defrost WPL 989607 Contact Us For Availability
9
Bracket, Door Stop WPL 988420 Contact Us For Availability
9
``O`` Ring Seal WPL 488819 Contact Us For Availability
9
Grommet (2) WPL 510723 Contact Us For Availability
9
Screw, 8-18 x 3/4 WPL 488316 Contact Us For Availability
9
Slide, Freezer Bin WPL 982321 Contact Us For Availability
10
Stud WPL 936591 Contact Us For Availability
10
Door Gasket, Magnetic (For Platinum Model Onl WPL 939341 Contact Us For Availability
10
Door Gasket, Magnetic WPL 944457 Contact Us For Availability
10
Centercap, Handle WPL 935103 Contact Us For Availability
10
Clamp, Evaporator WPL 938023 Contact Us For Availability
10
Shim WPL 988421 Contact Us For Availability
10
Hole, Plug WPL 519890 Contact Us For Availability
10
Escutcheon WPL 939195 Contact Us For Availability
10
Nut, Compression WPL 488795 Contact Us For Availability
10
Grommet WPL 987048 Contact Us For Availability
10
Screw, 8 x 1 WPL 487979 Contact Us For Availability
10
Light Lens, Freezer WPL 985539 Contact Us For Availability
11
Shelf, Stud WPL 208500 Contact Us For Availability
11
Screw, 89 x 5/8 WPL 488549 Contact Us For Availability
11
Control Connector & Gasket Assembly WPL 848433 Contact Us For Availability
11
Insert, Escutcheon (Toast) WPL 1101471 Contact Us For Availability
11
Insert, Escutcheon (Platinum) WPL 1101472 Contact Us For Availability
11
Insert, Escutcheon (White, Coffee) WPL 945213 Contact Us For Availability
11
Insert, Escutcheon (Avocado) WPL 945214 Contact Us For Availability
11
Insert, Escutcheon (Golden Harvest) WPL 945215 Contact Us For Availability
11
Insert, Escutcheon (Almond) WPL 945216 Contact Us For Availability
11
Wiring, Dispensing Valve WPL 850564 Contact Us For Availability
11
Center, Handle (Toast) WPL 1101441 Contact Us For Availability
11
Center, Handle (Platinum) WPL 1101442 Contact Us For Availability
11
Handle, Center (New Avocado) WPL 936732 Contact Us For Availability
11
Handle, Center (Golden Harvest) WPL 936733 Contact Us For Availability
11
Handle, Center (White, Coffee) WPL 945152 Contact Us For Availability
11
Handle, Center (Almond) WPL 945154 Contact Us For Availability
11
Screw, 8 x 1-1/2 WPL 488775 Contact Us For Availability
11
Heater, Ice Dispenser WPL 938107 Contact Us For Availability
11
Track, Shelf (R.S.) WPL 837554 Contact Us For Availability
11
Track, Shelf (L.S.) WPL 837557 Contact Us For Availability
11
Box, Control WPL 984550 Contact Us For Availability
12
Retainer, Gasket Top & Bottom WPL 836121 Contact Us For Availability
12
Shim, Handle End WPL 935076 Contact Us For Availability
12
Clamp WPL 850664 Contact Us For Availability
12
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
12
Insulation, Dispenser WPL 983679 Contact Us For Availability
12
Label System, Sentinel Cover WPL 940763 Contact Us For Availability
12
Plate, Mounting WPL 625833 Contact Us For Availability
12
Bracket, Ice Dispenser WPL 989716 Contact Us For Availability
12
Ice Door Mechanism WPL 938669 Contact Us For Availability
12
Shelf Stud WPL 521878 Contact Us For Availability
13
Gasket, Ice Door WPL 983691 Contact Us For Availability
13
Retainer, Gasket Side WPL 982887 Contact Us For Availability
13
Shim, Handle Center WPL 935075 Contact Us For Availability
13
Grommet, Wiring WPL 851020 Contact Us For Availability
13
Control Board Assembly WPL 939181 Contact Us For Availability
13
Gear WPL 625914 Contact Us For Availability
13
Motor, Ice Dispenser WPL 851152 Contact Us For Availability
13
Shelf, Solid WPL 935839 Contact Us For Availability
13
Solid Shelf (For Platinum Model Only) WPL 983356 Contact Us For Availability
13
Shelf, Cantilever WPL 936787 Contact Us For Availability
13
Control Box Front WPL 934045 Contact Us For Availability
14
Impact, Shield WPL 987121 Contact Us For Availability
14
Gasket, Seal WPL 944458 Contact Us For Availability
14
Baffle, Air WPL 851167 Contact Us For Availability
14
Retainer, Gasket Top & Bottom WPL 983643 Contact Us For Availability
14
Escutcheon Meat WPL 984101 Contact Us For Availability
14
Screw WPL 488957 Contact Us For Availability
14
Screw, 8-32 x 7/16 WPL 489008 Contact Us For Availability
14
Trim, Shelf WPL 986437 Contact Us For Availability
15
Door, Ice WPL 983690 Contact Us For Availability
15
Reinforcement Strip, Top & Bottom (2) WPL 986164 Contact Us For Availability
15
Door Gasket, Magnetic (For Platinum Model Onl WPL 939342 Contact Us For Availability
15
Door Gasket, Magnetic WPL 944470 Contact Us For Availability
15
Slide Meat Pan, Cold Control WPL 984102 Contact Us For Availability
15
Screw, 8-32 x 1/2 WPL 488844 Contact Us For Availability
15
Frontice, Compartment (For Platinum Model Onl WPL 1101426 Contact Us For Availability
15
Frontice, Compartment WPL 935840 Contact Us For Availability
15
Glass, Cantilever Shelf WPL 944369 Contact Us For Availability
15
Defrost Timer, 10 Hours WPL 943435 Contact Us For Availability
16
Reinforcement Strip, Side WPL 986163 Contact Us For Availability
16
Blade, Fan WPL 989524 Contact Us For Availability
16
Insert, Handle WPL 935885 Contact Us For Availability
16
Pad, Foam WPL 992358 Contact Us For Availability
16
Spacer (2) WPL 510906 Contact Us For Availability
16
Shelf, Freezer WPL 943996 Contact Us For Availability
16
Reflector, Cantilever WPL 849028 Contact Us For Availability
17
Lever, Ice Dispenser WPL 987075 Contact Us For Availability
17
Expansion Clip WPL 537095 Contact Us For Availability
17
Speaker WPL 939254 Contact Us For Availability
17
Handle, Center (Toast) WPL 1101439 Contact Us For Availability
17
Handle, Center (Platinum) WPL 1101440 Contact Us For Availability
17
Handle, Center (New Avocado) WPL 935098 Contact Us For Availability
17
Handle, Center (Golden Harvest) WPL 935099 Contact Us For Availability
17
Handle, Center (White, Coffee) WPL 945157 Contact Us For Availability
17
Handle, Center (Almond) WPL 945159 Contact Us For Availability
17
Retainer, Insert WPL 935875 Contact Us For Availability
17
Motor WPL 625846 Contact Us For Availability
17
Motor (Alternate) WPL 627106 Contact Us For Availability
17
Trim Shelf, Front WPL 985542 Contact Us For Availability
17
Shelf, Cantilever WPL 945065 Contact Us For Availability
18
Shim, Door Closer WPL 987179 Contact Us For Availability
18
End Cap, Retainer WPL 935106 Contact Us For Availability
18
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
18
Spring WPL 627163 Contact Us For Availability
18
Cover, Ice Dispenser WPL 989715 Contact Us For Availability
18
Pad, Lever WPL 983693 Contact Us For Availability
18
Reflector, Shelf WPL 935496 Contact Us For Availability
18
Trim, Shelf Front WPL 945141 Contact Us For Availability
19
Bracket, Motor WPL 548695 Contact Us For Availability
19
Track, Divider (Back & Bottom) WPL 946147 Contact Us For Availability
19
Track, Divider (Top) WPL 988458 Contact Us For Availability
19
Plate, Valve WPL 625836 Contact Us For Availability
19
Cover, End Cap WPL 936711 Contact Us For Availability
19
Bearing, Clip WPL 987917 Contact Us For Availability
19
Clip, Reflector WPL 939348 Contact Us For Availability
19
Glass, Cantilever Shelf WPL 945140 Contact Us For Availability
19
Knob, Temperature WPL 836482 Contact Us For Availability
20
Spacer, Holding Switch WPL 625834 Contact Us For Availability
20
Center, Handle (Toast) WPL 1101437 Contact Us For Availability
20
Center, Handle (Platinum) WPL 1101438 Contact Us For Availability
20
Handle, Center (New Avocado) WPL 935095 Contact Us For Availability
20
Handle, Center (Golden Harvest) WPL 935096 Contact Us For Availability
20
Handle, Center (White, Coffee) WPL 945144 Contact Us For Availability
20
Handle, Center (Almond) WPL 945146 Contact Us For Availability
20
Screw Anchor WPL 941242 Contact Us For Availability
20
Interior Panel (Servadoor) (For Platinum Mode WPL 1101457 Contact Us For Availability
20
Interior Panel (Servadoor) WPL 944469 Contact Us For Availability
20
Light Lens, Dispenser WPL 983359 Contact Us For Availability
20
Shelf Stud, Saddle L.S. WPL 836492 Contact Us For Availability
20
Reflector, Cantilever Shelf WPL 945139 Contact Us For Availability
20
Baffle, Liner Top WPL 983369 Contact Us For Availability
21
Retainer Bracket, Divider WPL 935666 Contact Us For Availability
21
Cam WPL 625913 Contact Us For Availability
21
Hinge, Top WPL 987911 Contact Us For Availability
21
Washer WPL 488307 Contact Us For Availability
21
Frame, Cantilever Shelf WPL 936793 Contact Us For Availability
22
Spring, Lever WPL 983696 Contact Us For Availability
22
Insert, Handle WPL 941955 Contact Us For Availability
22
Box, Junction WPL 850482 Contact Us For Availability
22
Insulator WPL 625835 Contact Us For Availability
22
Shim, Hinge Top WPL 986168 Contact Us For Availability
22
Duct, Air WPL 983651 Contact Us For Availability
22
Basket, Freezer WPL 935499 Contact Us For Availability
22
Rollout Shelf, Cantilever WPL 985518 Contact Us For Availability
22
Air Scoop Assembly WPL 841269 Contact Us For Availability
23
Divider, Mullion WPL 941204 Contact Us For Availability
23
Switch, S.P.D.T. (2) WPL 625851 Contact Us For Availability
23
Screw, 8-32 x 5/8 WPL 488927 Contact Us For Availability
23
Baffle, Air WPL 946697 Contact Us For Availability
23
Bearing, Lever WPL 983697 Contact Us For Availability
23
Trim, Freezer Basket WPL 985546 Contact Us For Availability
23
Trim, Shelf Front WPL 849021 Contact Us For Availability
23
Gasket, Air Scoop WPL 844871 Contact Us For Availability
24
Ice Container WPL 983667 Contact Us For Availability
24
Retainer, Hole Insert WPL 843888 Contact Us For Availability
24
Screw, 4-40 x 1 WPL 488361 Contact Us For Availability
24
Ground, Clip WPL 941766 Contact Us For Availability
24
Air Deflector WPL 983652 Contact Us For Availability
24
Bin, Rollout Plastic WPL 935417 Contact Us For Availability
24
Retainer, Damper WPL 938439 Contact Us For Availability
25
RETAINER INSERT (TOP) (Top) WPL 941954 Contact Us For Availability
25
Insert, Hole WPL 843887 Contact Us For Availability
25
Clamp, Thermostat WPL 625829 Contact Us For Availability
25
Washer WPL 488306 Contact Us For Availability
25
Bracket, Control WPL 983983 Contact Us For Availability
25
Pan Slide & Cover WPL 935119 Contact Us For Availability
25
Control Knob WPL 837445 Contact Us For Availability
26
End Cap WPL 941259 Contact Us For Availability
26
Cord, Service WPL 850626 Contact Us For Availability
26
Insert, Air Return WPL 982921 Contact Us For Availability
26
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
26
Blade, Fan WPL 839859 Contact Us For Availability
26
Switch WPL 841336 Contact Us For Availability
26
Conveyor, Ice Container WPL 983669 Contact Us For Availability
26
Pan Slide & Cover (For Platinum Model Only) WPL 1101202 Contact Us For Availability
26
Pan Slide & Cover (Crisper) WPL 935120 Contact Us For Availability
26
Knob, Retainer WPL 837444 Contact Us For Availability
27
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
27
Retainer, Insert WPL 982920 Contact Us For Availability
27
Insulation, Switch WPL 984683 Contact Us For Availability
27
Drum, Ice Dispenser WPL 983670 Contact Us For Availability
27
Crisper Gasket Rear WPL 982588 Contact Us For Availability
27
Air Diffuser Assembly WPL 946145 Contact Us For Availability
28
Shield, Evaporator (4) WPL 989200 Contact Us For Availability
28
Shield, Divider WPL 987054 Contact Us For Availability
28
Screw, 4-40 x 3/4 WPL 488362 Contact Us For Availability
28
Fan, Bracket Double WPL 548263 Contact Us For Availability
28
Drum, Drive Bar WPL 983671 Contact Us For Availability
28
Crisper Gasket Front WPL 982587 Contact Us For Availability
28
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
29
Tray, Evaporator WPL 982899 Contact Us For Availability
29
Screw, 6-32 x 1/2 WPL 488915 Contact Us For Availability
29
Breaker Trim, Top Refrigerator WPL 992042 Contact Us For Availability
29
Screw, 4-24 x 3/4 WPL 488360 Contact Us For Availability
29
Fan Bracket, Single WPL 938224 Contact Us For Availability
29
Lamp Holder WPL 987265 Contact Us For Availability
29
Collar, Conveyor WPL 983672 Contact Us For Availability
29
Pan Crisper WPL 943112 Contact Us For Availability
30
WPL 939955 WPL 939955 Contact Us For Availability
30
WPL 939956 WPL 939956 Contact Us For Availability
30
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
30
Chute, Ice WPL 944472 Contact Us For Availability
30
Ice Chute (For Platinum Model Onl WPL 987188 Contact Us For Availability
30
Breaker Trim, (R.S.) Refrigerator WPL 935115 Contact Us For Availability
30
Thermostat WPL 627047 Contact Us For Availability
30
Thermostat (Alternate) WPL 627206 Contact Us For Availability
30
Fan, Grommet WPL 548268 Contact Us For Availability
30
Bearing, Conveyor WPL 983673 Contact Us For Availability
30
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
30
Housing, Humidity Control WPL 942234 Contact Us For Availability
31
WPL 939988 WPL 939988 Contact Us For Availability
31
End Cap Cover WPL 987873 Contact Us For Availability
31
Wire, Clip (2) WPL 940078 Contact Us For Availability
31
WPL 985550 WPL 985550 Contact Us For Availability
31
Breaker Trim, Bottom Refrigerator WPL 992044 Contact Us For Availability
31
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
31
Screw Grommet WPL 538449 Contact Us For Availability
31
Light Switch WPL 851386 Contact Us For Availability
31
Front Cover, Ice Dispenser WPL 935842 Contact Us For Availability
31
Front Cover, Ice Dispenser (For Platinum Mode WPL 983674 Contact Us For Availability
31
Slide, Humidity Control WPL 942235 Contact Us For Availability
32
WPL 982904 WPL 982904 Contact Us For Availability
32
Connector, Edge WPL 939248 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
32
Breaker Retainer WPL 836090 Contact Us For Availability
32
Screw, Ground WPL 488542 Contact Us For Availability
32
Plunger, Extension WPL 983985 Contact Us For Availability
32
Overlay, Front Cover WPL 983677 Contact Us For Availability
32
Seal, Humidity Control WPL 942236 Contact Us For Availability
33
WPL 841646 WPL 841646 Contact Us For Availability
33
Key, Lock Plug WPL 939958 Contact Us For Availability
33
Breaker Trim, Clip WPL 838849 Contact Us For Availability
33
Support WPL 625827 Contact Us For Availability
33
Scroll Fan WPL 983650 Contact Us For Availability
33
Spring, Plunger WPL 983986 Contact Us For Availability
33
Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability
34
WPL 841648 WPL 841648 Contact Us For Availability
34
Control Box Assembly (See Assembly) WPL ARI28264A8 Contact Us For Availability
34
Alarm Assembly WPL 939250 Contact Us For Availability
34
WPL 1101428 WPL 1101428 Contact Us For Availability
34
WPL 945133 WPL 945133 Contact Us For Availability
34
Breaker Trim, Bottom Clip WPL 937668 Contact Us For Availability
34
Screw, Shoulder WPL 627199 Contact Us For Availability
34
Cover, Evaporator WPL 939729 Contact Us For Availability
34
Retainer, Pin WPL 983987 Contact Us For Availability
34
Baffle, Ice Container WPL 989718 Contact Us For Availability
34
Front Cover, Crisper (For Platinum Model Only WPL 1100399 Contact Us For Availability
34
Front Cover, Crisper WPL 943114 Contact Us For Availability
35
Escutcheon, Switch & Sensor WPL 939984 Contact Us For Availability
35
Frame Assembly WPL 851125 Contact Us For Availability
35
WPL 935969 WPL 935969 Contact Us For Availability
35
Breaker Trim, Top Freezer WPL 992047 Contact Us For Availability
35
Switch, S.P.T. WPL 627720 Contact Us For Availability
35
Grommet WPL 848445 Contact Us For Availability
35
Wiring, Assembly Door WPL 851384 Contact Us For Availability
36
WPL 836372 WPL 836372 Contact Us For Availability
36
Switch WPL 943518 Contact Us For Availability
36
Clip (2) WPL 548744 Contact Us For Availability
36
Breaker Trim, Freezer (L.S.) WPL 935643 Contact Us For Availability
36
Shield, Wiring WPL 984494 Contact Us For Availability
36
Overlay, Front Cover WPL 984750 Contact Us For Availability
37
Guide, Ice WPL 985866 Contact Us For Availability
37
WPL 851174 WPL 851174 Contact Us For Availability
37
WPL 944473 WPL 944473 Contact Us For Availability
37
Interior D WPL 1101479 Contact Us For Availability
37
WPL 944460 WPL 944460 Contact Us For Availability
37
Wire Clip WPL 940071 Contact Us For Availability
37
Breaker Trim, Freezer (Bottom) WPL 939829 Contact Us For Availability
37
Arm, Shut-Off WPL 627484 Contact Us For Availability
37
Gasket, Evaporator Cover WPL 983649 Contact Us For Availability
37
Pan (Meat) WPL 840037 Contact Us For Availability
38
WPL 939206 WPL 939206 Contact Us For Availability
38
WPL 986453 WPL 986453 Contact Us For Availability
38
Lever, Arm WPL 625830 Contact Us For Availability
38
Gasket, Cover Top WPL 987178 Contact Us For Availability
38
Glass Top WPL 986088 Contact Us For Availability
38
Front Cover, Meat (For Platinum Model Only) WPL 1101201 Contact Us For Availability
38
Front Cover, Meat Pan WPL 943121 Contact Us For Availability
39
WPL 851648 WPL 851648 Contact Us For Availability
39
WPL 488895 WPL 488895 Contact Us For Availability
39
WPL 1101480 WPL 1101480 Contact Us For Availability
39
WPL 945212 WPL 945212 Contact Us For Availability
39
Spring, Case WPL 531318 Contact Us For Availability
39
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
39
Pan, Drain WPL 934121 Contact Us For Availability
39
Screw, 4-24 x 3/8 WPL 488892 Contact Us For Availability
40
WPL 482553 WPL 482553 Contact Us For Availability
40
WPL 986455 WPL 986455 Contact Us For Availability
40
Case, Relay WPL 549945 Contact Us For Availability
40
Heater, Stile WPL 934475 Contact Us For Availability
40
Fitting, Drain Pan WPL 836088 Contact Us For Availability
40
Light Lens, Lower WPL 988364 Contact Us For Availability
41
WPL 876029 WPL 876029 Contact Us For Availability
41
WPL 479502 WPL 479502 Contact Us For Availability
41
WPL 799344 WPL 799344 Contact Us For Availability
41
WPL 489085 WPL 489085 Contact Us For Availability
41
WPL 936954 WPL 936954 Contact Us For Availability
41
Bumper WPL 547272 Contact Us For Availability
41
Stil WPL 937205 Contact Us For Availability
41
Gasket, Drain Pan WPL 934130 Contact Us For Availability
41
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
41
Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability
41
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
41
Enamal, WPL 285367 Contact Us For Availability
41
WPL 285368 WPL 285368 Contact Us For Availability
41
WPL 511881 WPL 511881 Contact Us For Availability
41
WPL 542639 WPL 542639 Contact Us For Availability
41
WPL 72108 WPL 72108 Contact Us For Availability
41
WPL 72112 WPL 72112 Contact Us For Availability
41
WPL 799340 WPL 799340 Contact Us For Availability
41
WPL 799351 WPL 799351 Contact Us For Availability
41
WPL 799832 WPL 799832 Contact Us For Availability
41
WPL 799833 WPL 799833 Contact Us For Availability
41
WPL 877409 WPL 877409 Contact Us For Availability
41
WPL 940100 WPL 940100 Contact Us For Availability
41
WPL 944014 WPL 944014 Contact Us For Availability
41
WPL 944015 WPL 944015 Contact Us For Availability
41
WPL 945063 WPL 945063 Contact Us For Availability
41
WPL 946878 WPL 946878 Contact Us For Availability
41
WPL 978883 WPL 978883 Contact Us For Availability
42
WPL 989068 WPL 989068 Contact Us For Availability
42
WPL 986454 WPL 986454 Contact Us For Availability
42
Relay (Service Compressor) WPL 482793 Contact Us For Availability
42
WPL 935634 WPL 935634 Contact Us For Availability
42
Cap, Drain WPL 842259 Contact Us For Availability
42
Front Cover, Housing WPL 983903 Contact Us For Availability
43
WPL 1101453 WPL 1101453 Contact Us For Availability
43
WPL 944463 WPL 944463 Contact Us For Availability
43
Overload (Service Compressor) WPL 938087 Contact Us For Availability
43
Overload (Original Compressor) WPL 941639 Contact Us For Availability
43
WPL 983605 WPL 983605 Contact Us For Availability
43
Heater, Mold WPL 625843 Contact Us For Availability
43
Gasket, Baffle WPL 946695 Contact Us For Availability
43
Insert, Front Housing (Toast) WPL 1101389 Contact Us For Availability
43
Insert, Front Housing (Platinum) WPL 1101390 Contact Us For Availability
43
Insert, Front Housing (Almond) WPL 945032 Contact Us For Availability
43
Insert, Front Housing (White & Coffee) WPL 983905 Contact Us For Availability
43
Insert, Front Housing (Avocado) WPL 985802 Contact Us For Availability
43
Insert, Front Housing (Golden Harvest) WPL 985803 Contact Us For Availability
44
WPL 1101454 WPL 1101454 Contact Us For Availability
44
WPL 944464 WPL 944464 Contact Us For Availability
44
Clamp WPL 548508 Contact Us For Availability
44
WPL 481782 WPL 481782 Contact Us For Availability
44
Stripper, Ice WPL 627168 Contact Us For Availability
44
Cover, Housing WPL 945223 Contact Us For Availability
45
WPL 1101455 WPL 1101455 Contact Us For Availability
45
WPL 944465 WPL 944465 Contact Us For Availability
45
WPL 481658 WPL 481658 Contact Us For Availability
45
Speed Nut WPL 488885 Contact Us For Availability
46
WPL 986448 WPL 986448 Contact Us For Availability
46
Condenser & Precooler Assembly WPL 851123 Contact Us For Availability
47
Grille, Overflow WPL 983900 Contact Us For Availability
47
WPL 988746 WPL 988746 Contact Us For Availability
47
Clamp (4) WPL 548738 Contact Us For Availability
47
WPL 941706 WPL 941706 Contact Us For Availability
48
Grommet (4) WPL 548737 Contact Us For Availability
49
WPL 940084 WPL 940084 Contact Us For Availability
50
WPL 983804 WPL 983804 Contact Us For Availability
50
Spring, Tube Forming WPL 983659 Contact Us For Availability
50
Screw, 8-16 x 3/8 WPL 488896 Contact Us For Availability
51
Clip, Water Tube (3) WPL 934011 Contact Us For Availability
51
Mold & Heater Assembly (Includes Illus. 43) WPL 627170 Contact Us For Availability
52
Exchanger, Heat WPL 941628 Contact Us For Availability
52
Bearing & Inlet WPL 625707 Contact Us For Availability
53
WPL 840847 WPL 840847 Contact Us For Availability
55
WPL 945147 WPL 945147 Contact Us For Availability
55
WPL 986449 WPL 986449 Contact Us For Availability
55
Dampener (2) WPL 510769 Contact Us For Availability
55
Wire Harness WPL 627357 Contact Us For Availability
56
Connector Wire WPL 227991 Contact Us For Availability
56
Pan, Drip WPL 989269 Contact Us For Availability
57
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
58
Clip WPL 652604 Contact Us For Availability
59
Rail, Front WPL 851177 Contact Us For Availability
64
Gu WPL 851165 Contact Us For Availability
65
WPL 488624 WPL 488624 Contact Us For Availability
65
Tube, Water Inlet WPL 983656 Contact Us For Availability
66
WPL 510414 WPL 510414 Contact Us For Availability
66
Clamp, Tube (3) WPL 836472 Contact Us For Availability
69
Clamp Tube WPL 510716 Contact Us For Availability
69
WPL 939246 WPL 939246 Contact Us For Availability
70
Ring, ``O`` WPL 488794 Contact Us For Availability
72
WPL 978029 WPL 978029 Contact Us For Availability
72
WPL 978028 WPL 978028 Contact Us For Availability
72
WPL 987210 WPL 987210 Contact Us For Availability
72
Tube, Inlet WPL 836200 Contact Us For Availability
73
Nut, Valve WPL 537588 Contact Us For Availability
75
Bracket, Shut-Off Arm WPL 627409 Contact Us For Availability
76
Fas WPL 627435 Contact Us For Availability
× ![]()
