Model Whirlpool ED26MK1LWR1 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
Common parts from model Whirlpool ED26MK1LWR1 SIDE BY SIDE REFRIGERATOR

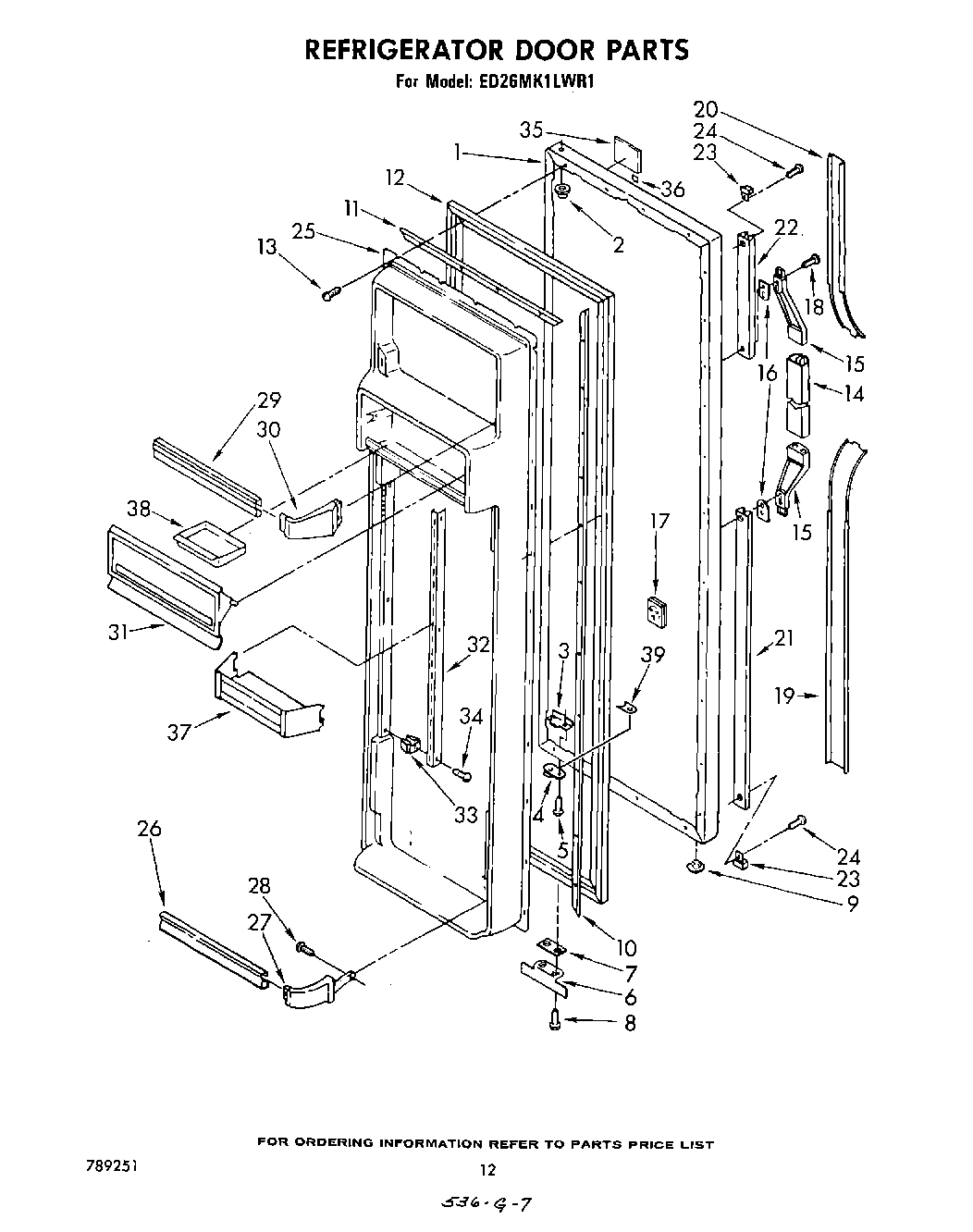

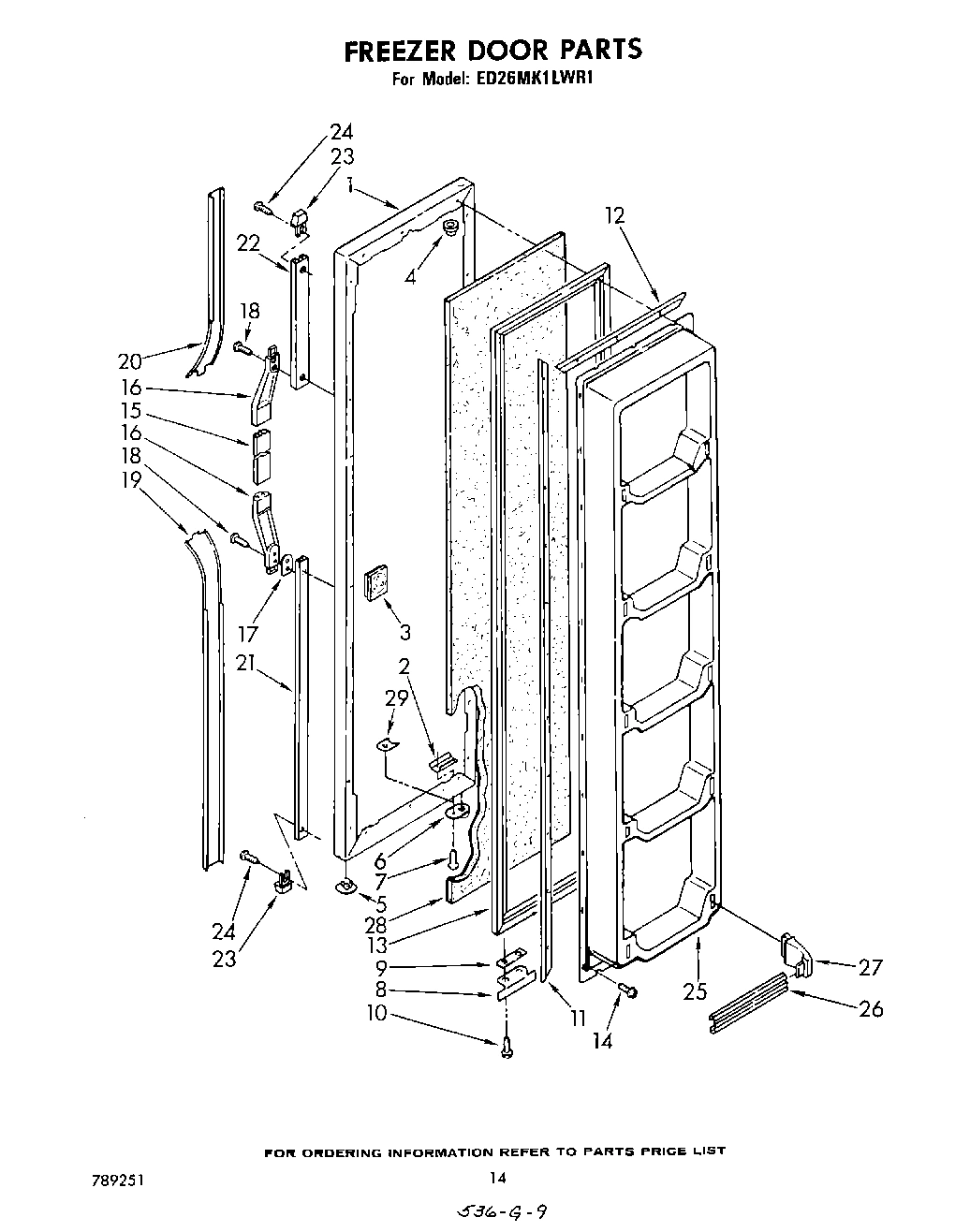

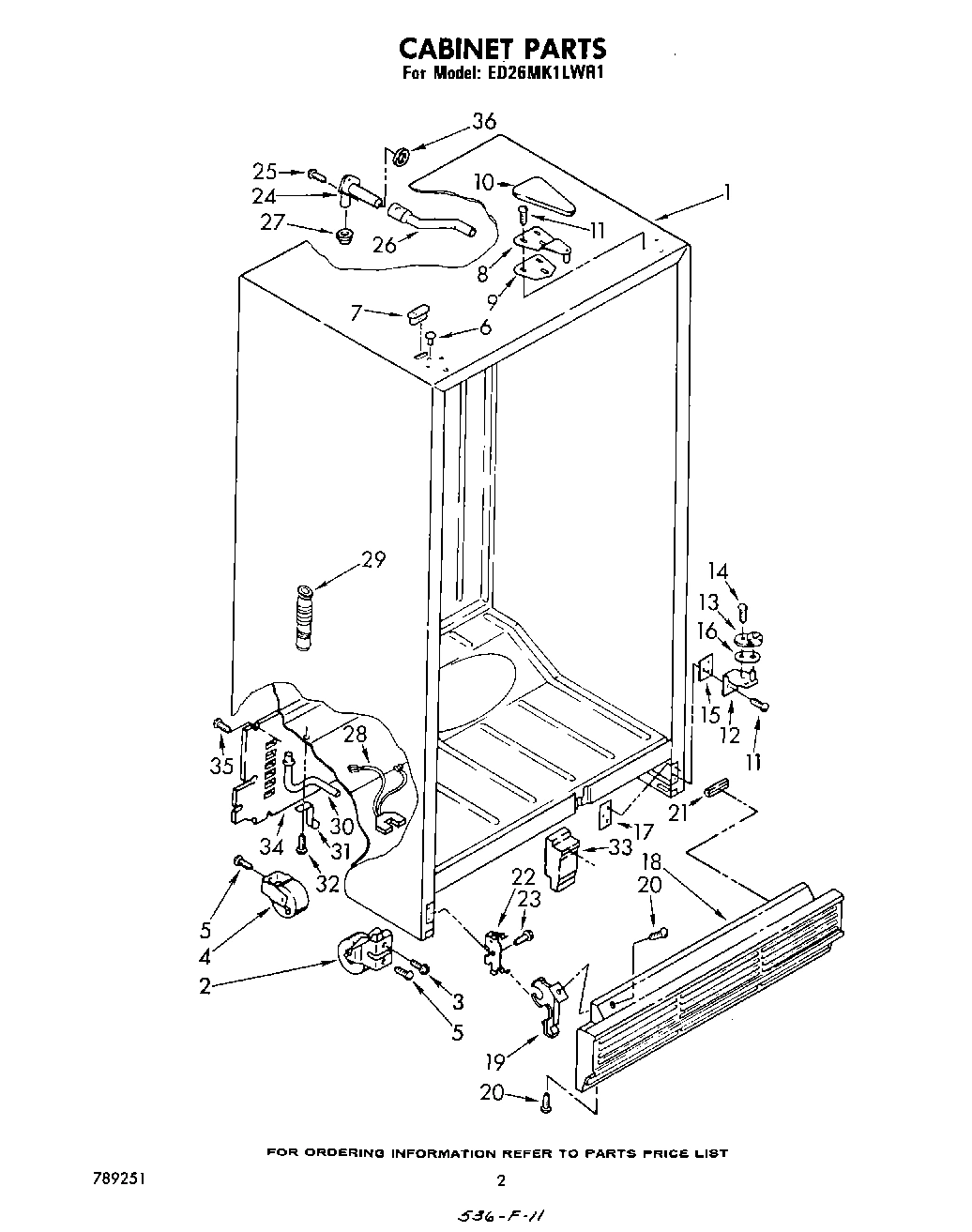

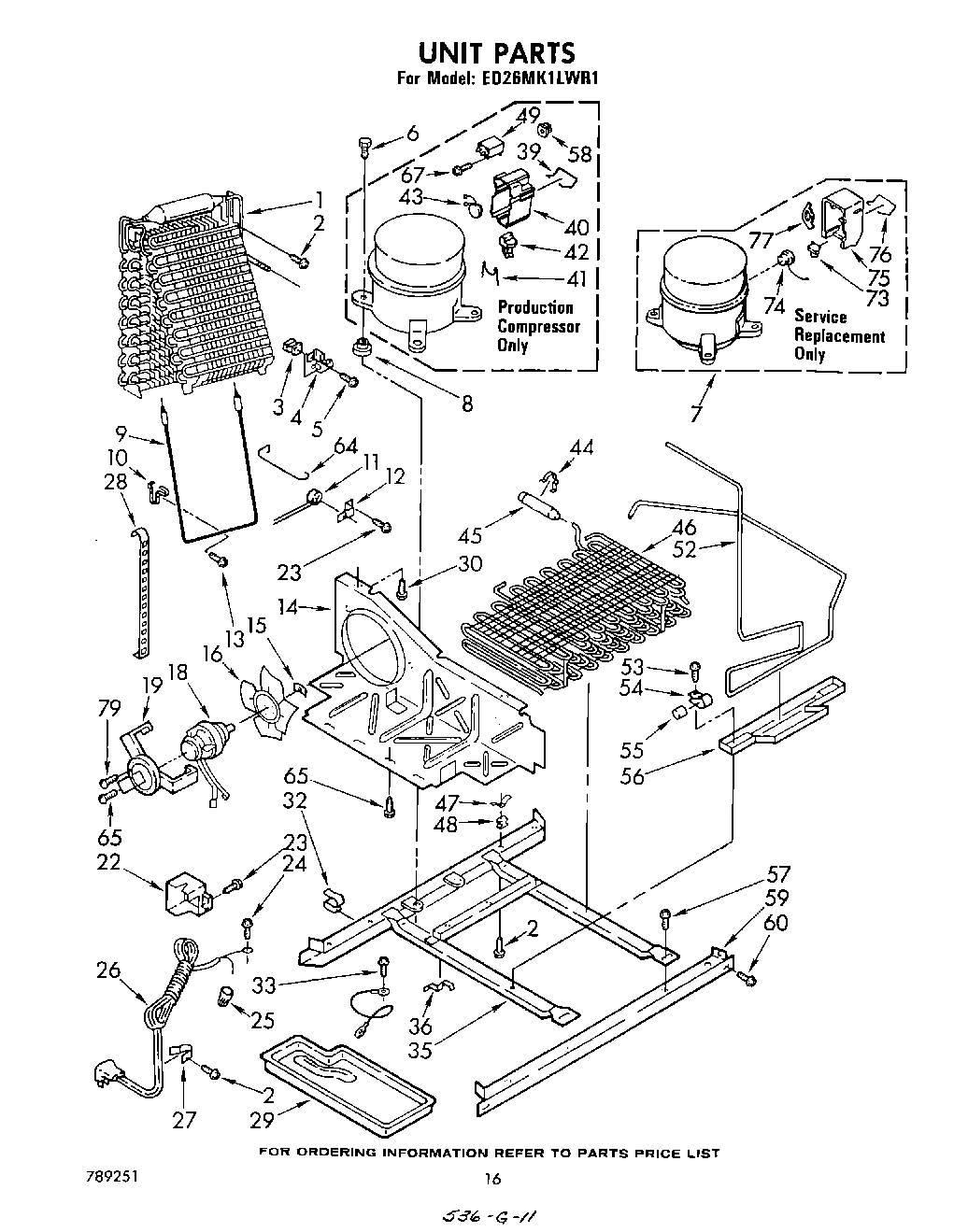

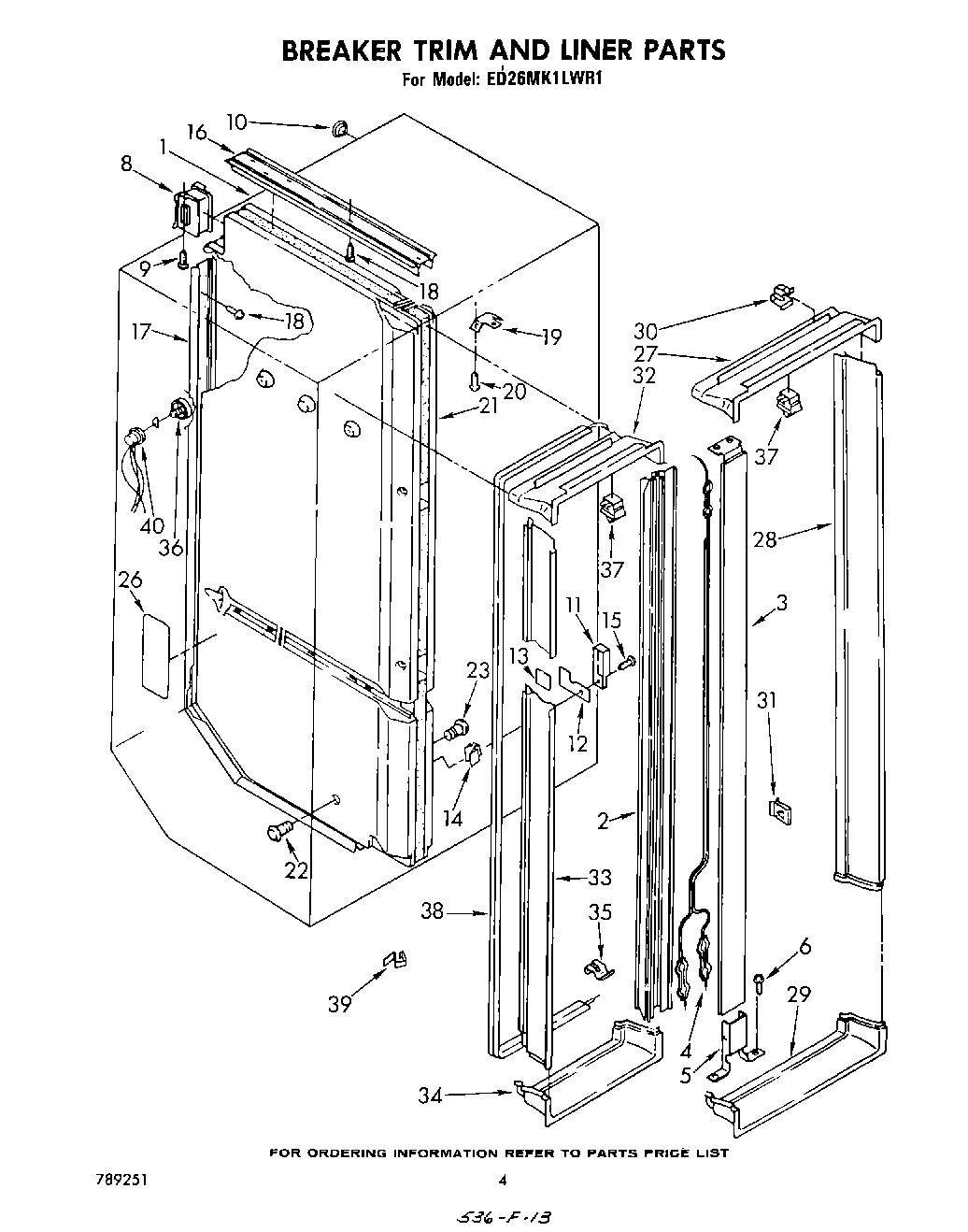

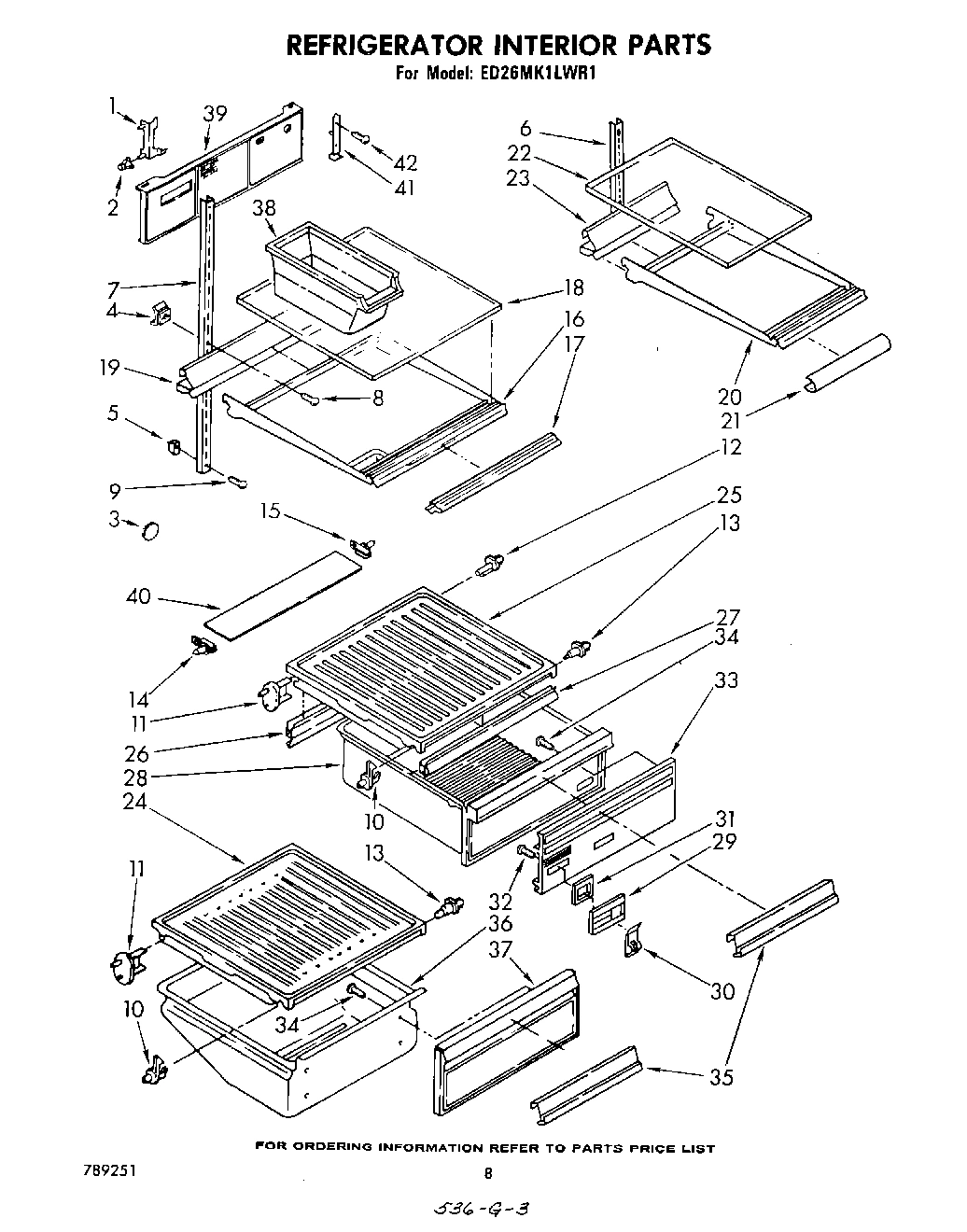

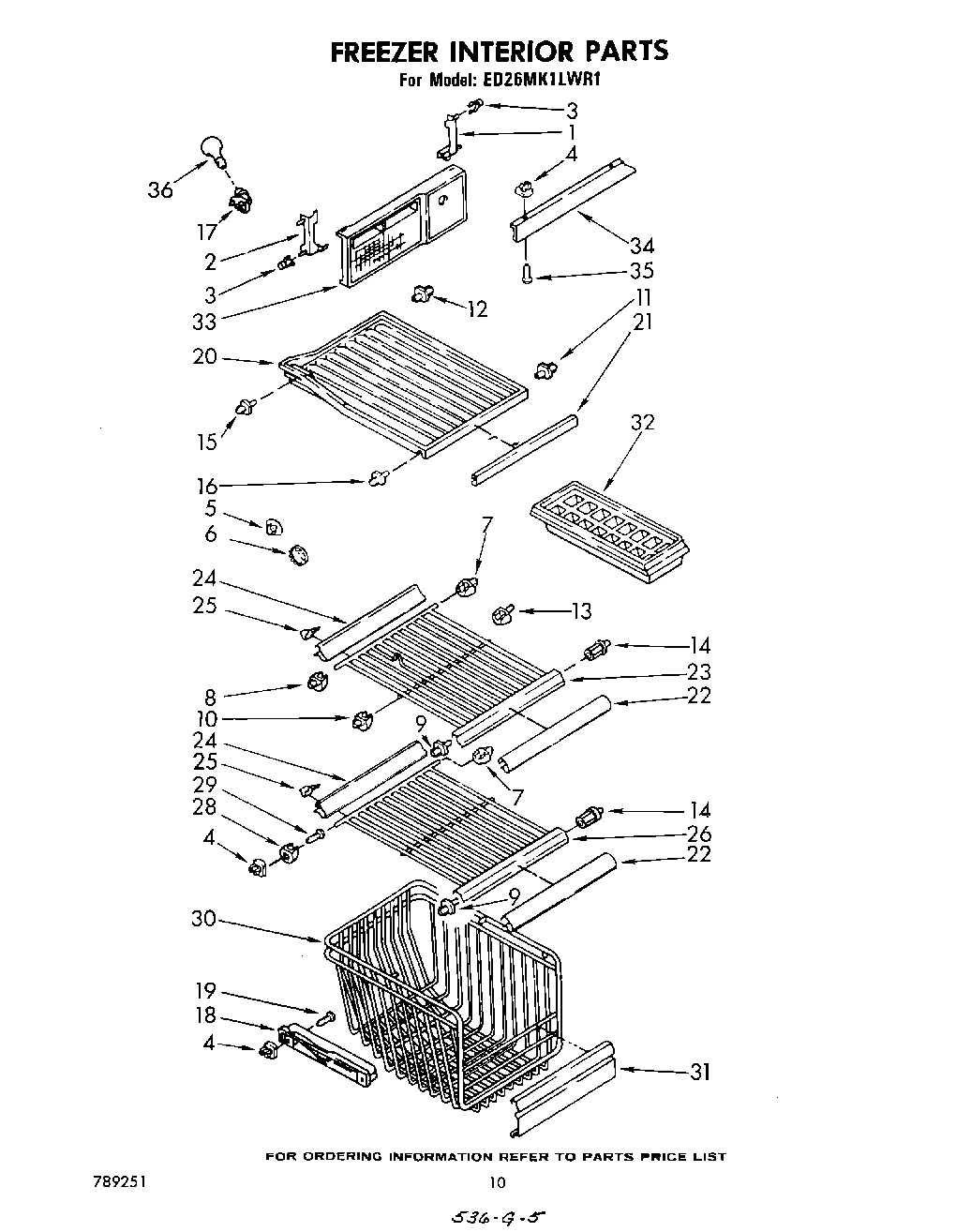

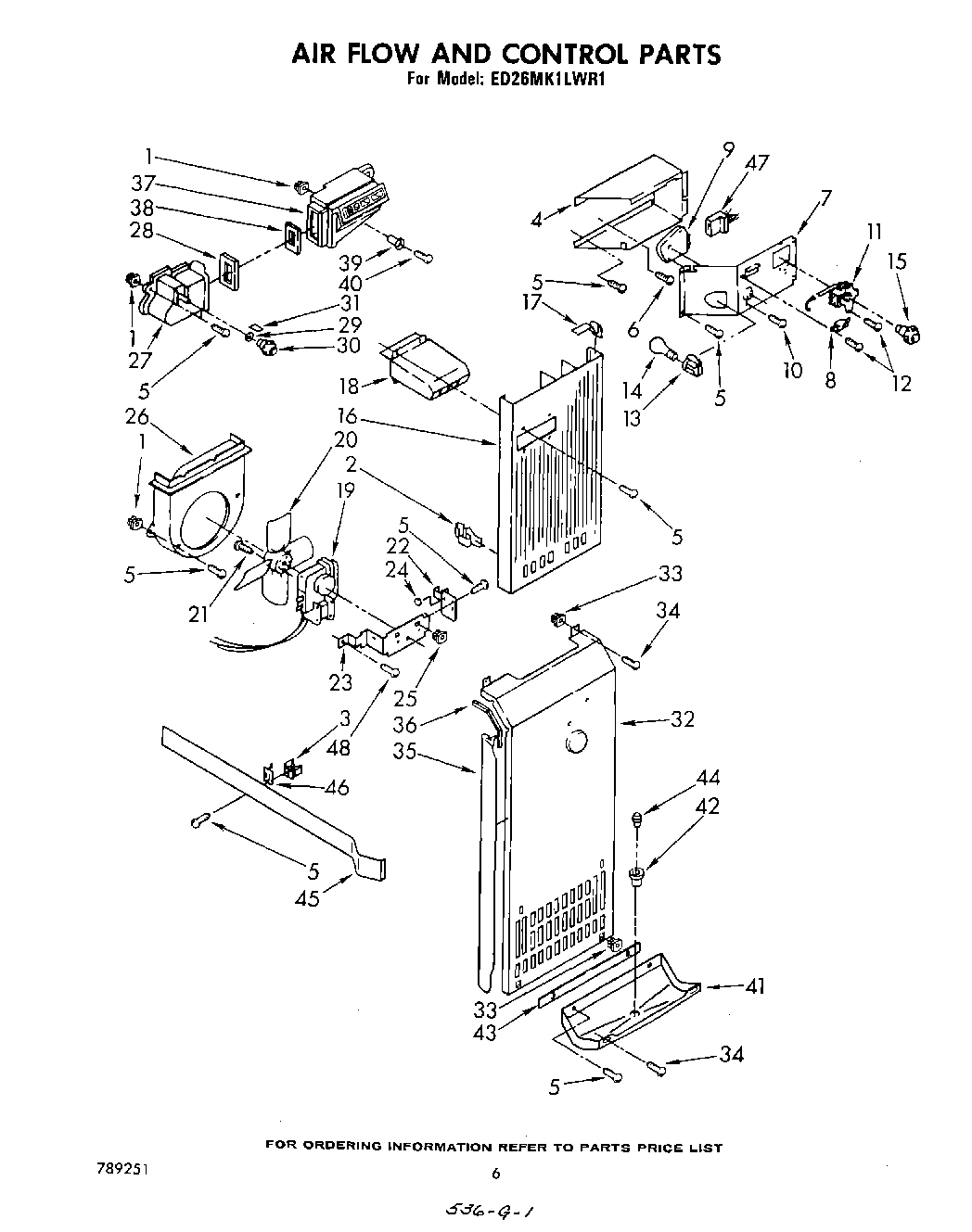

1
Freezer, Door Panel (Also Order Item 28) (Toa WPL 1101411 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 28) (Pla WPL 1101412 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 28) (Whi WPL 941902 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 28) (Cof WPL 941903 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 28) (Gol WPL 941904 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 28) (Alm WPL 941906 Contact Us For Availability
1
Evaporator WPL 1105040 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28251A8 Contact Us For Availability
1
Support, Light L.S. WPL 842356 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI28250A2 Contact Us For Availability
1
Grommet WPL 842339 Contact Us For Availability
1
Refrigerator, Door Panel (Toast) WPL 1101409 Contact Us For Availability
1
Refrigerator Door Panel (Platinum) WPL 1101410 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 941292 Contact Us For Availability
1
Refrigerator Door Panel (Coffee) WPL 941293 Contact Us For Availability
1
Refrigerator, Door Panel (Golden Harvest) WPL 941294 Contact Us For Availability
1
Refrigerator, Door Panel (Almond) WPL 941296 Contact Us For Availability
2
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
2
Breaker Frame, Mullion WPL 935613 Contact Us For Availability
2
Clip, Tubular WPL 843945 Contact Us For Availability
2
Roller, Front (2) WPL 981127 Contact Us For Availability
3
Tap Plate WPL 988402 Contact Us For Availability
3
Grommet, Screw WPL 944454 Contact Us For Availability
3
Mullion, Front (Toast) WPL 1101403 Contact Us For Availability
3
Mullion, Front (Platinum) WPL 1101404 Contact Us For Availability
3
Mullion, Front (White) WPL 935614 Contact Us For Availability
3
Mullion, Front (Coffee) WPL 935615 Contact Us For Availability
3
Mullion, Front (Golden Harvest) WPL 935616 Contact Us For Availability
3
Mullion, Front (Almond) WPL 935618 Contact Us For Availability
3
Hole, Plug WPL 659598 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
4
Support, Evaporator WPL 842436 Contact Us For Availability
4
Heater, Mullion WPL 935620 Contact Us For Availability
4
Screw Anchor WPL 983604 Contact Us For Availability
4
Box, Control WPL 984550 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (4) WPL 488454 Contact Us For Availability
5
Bracket, Mullion WPL 935619 Contact Us For Availability
6
Bracket, Door Stop WPL 988420 Contact Us For Availability
6
Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability
6
Shelf, Ladder (2) WPL 945063 Contact Us For Availability
6
Hole, Plug (Toast) WPL 1101314 Contact Us For Availability
6
Hole, Plug (Platinum) WPL 1101315 Contact Us For Availability
6
Hole, Plug (White) WPL 849391 Contact Us For Availability
6
Hole Plug (Coffee) WPL 989955 Contact Us For Availability
6
Hole, Plug (Golden Harvest) WPL 989957 Contact Us For Availability
6
Hole Plug (Almond) WPL 989958 Contact Us For Availability
7
Shim WPL 988421 Contact Us For Availability
7
Compress Kit (Includes Items 73, 74, 75, 76 & WPL 482614 Contact Us For Availability
7
Shelfladder (2) WPL 934264 Contact Us For Availability
7
Hole Plug (Toast) WPL 1101316 Contact Us For Availability
7
Hole Plug (Platinum) WPL 1101317 Contact Us For Availability
7
Hole Plug (White) WPL 992770 Contact Us For Availability
7
Hole Plug (Coffee) WPL 992771 Contact Us For Availability
7
Hole Plug (Golden Harvest) WPL 992773 Contact Us For Availability
7
Hole Plug (Almond) WPL 992774 Contact Us For Availability
7
Control Box Front WPL 934045 Contact Us For Availability
8
Screw, 89 x 1/2 WPL 488549 Contact Us For Availability
8
Control Connector & Gasket Assembly WPL 848433 Contact Us For Availability
8
Hinge, Top WPL 842039 Contact Us For Availability
9
Hole Plug WPL 534927 Contact Us For Availability
9
Heater, Defrost WPL 989607 Contact Us For Availability
9
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
9
Screw (Repair) WPL 488980 Contact Us For Availability
9
Shim, Hinge Top WPL 992854 Contact Us For Availability
9
Defrost Timer, 10 Hr. WPL 943435 Contact Us For Availability
10
Retainer, Gasket Side (2) WPL 982887 Contact Us For Availability
10
Clamp, Heater WPL 938023 Contact Us For Availability
10
Grommet, Wiring WPL 851020 Contact Us For Availability
10
Shelf, Stud WPL 984779 Contact Us For Availability
10
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
10
Hinge, Cover (Coffee) WPL 989895 Contact Us For Availability
10
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
11
Shelf Stud WPL 937521 Contact Us For Availability
11
Escutcheon Meat WPL 984101 Contact Us For Availability
11
Screw (Repair) WPL 488949 Contact Us For Availability
11
Retainer, Gasket Top & Bottom (2) WPL 836121 Contact Us For Availability
12
Shelf Stud WPL 936591 Contact Us For Availability
12
Retainer, Gasket Top & Bottom (2) WPL 983643 Contact Us For Availability
12
Clamp WPL 850664 Contact Us For Availability
12
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
12
Slide, Meat Pan WPL 984102 Contact Us For Availability
12
Hinge Bottom (R.H) WPL 986763 Contact Us For Availability
12
Hinge Bottom (L.H) WPL 986764 Contact Us For Availability
12
Door Gasket, Magnetic (For Platinum Model Onl WPL 939341 Contact Us For Availability
12
Door Gasket, Magnetic WPL 944457 Contact Us For Availability
13
Shelf, Stud WPL 208500 Contact Us For Availability
13
Door Gasket, Magnetic (For Platinum Model Onl WPL 939342 Contact Us For Availability
13
Door Gasket, Magnetic WPL 944470 Contact Us For Availability
13
Pad, Foam WPL 992358 Contact Us For Availability
14
Handle, Center (Toast) WPL 1101369 Contact Us For Availability
14
Handle, Center (Platinum) WPL 1101370 Contact Us For Availability
14
Handle, Center (Golden Harvest) WPL 935093 Contact Us For Availability
14
Handle, Center (White & Coffee) WPL 944376 Contact Us For Availability
14
Handle, Center (Almond) WPL 944377 Contact Us For Availability
14
Baffle, Air WPL 851167 Contact Us For Availability
14
Stud Light Lens (L.S.) WPL 935982 Contact Us For Availability
15
Center End Cap (2) WPL 935103 Contact Us For Availability
15
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
15
Stud, Light Lens (R.S.) WPL 935243 Contact Us For Availability
15
Shim, Bottom Hinge WPL 836196 Contact Us For Availability
15
Knob, Temperature Control WPL 836482 Contact Us For Availability
16
Shim, Door Closer WPL 987179 Contact Us For Availability
16
Shim, Center Handle WPL 935075 Contact Us For Availability
16
BLADE-FAN WPL 531580 Contact Us For Availability
16
Track, Divider (Top) WPL 988458 Contact Us For Availability
16
Shelf, Cantilever WPL 936787 Contact Us For Availability
16
Duct, Air WPL 983651 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Track, Divider (Back & Bottom) WPL 1103303 Contact Us For Availability
17
Trim Shelf Cantilever WPL 849021 Contact Us For Availability
17
Tap Plate WPL 836162 Contact Us For Availability
17
Baffle, Air WPL 946697 Contact Us For Availability
18
Glass, Cantilever Shelf WPL 944369 Contact Us For Availability
18
Grille, Exterior (Toast) WPL 1101407 Contact Us For Availability
18
Grille, Exterior (Platinum) WPL 1101408 Contact Us For Availability
18
Grille, Exterior (White) WPL 944263 Contact Us For Availability
18
Grille, Exterior (Coffee) WPL 944264 Contact Us For Availability
18
Grille, Exterior (Golden Harvest) WPL 944265 Contact Us For Availability
18
Grille, Exterior (Almond) WPL 944267 Contact Us For Availability
18
Air Deflector Freezer WPL 983652 Contact Us For Availability
19
Insert, Handle WPL 941263 Contact Us For Availability
19
Bracket WPL 548695 Contact Us For Availability
19
Retainer Bracket, Divider WPL 935666 Contact Us For Availability
19
Reflector, Cantilever Shelf WPL 849028 Contact Us For Availability
20
Insert, Handle WPL 941298 Contact Us For Availability
20
Shelf Cantilever, Half WPL 945065 Contact Us For Availability
20
Screw, 8-22 x 5/16 WPL 489085 Contact Us For Availability
20
Blade, Fan WPL 839859 Contact Us For Availability
21
Retainer Insert WPL 941262 Contact Us For Availability
21
Divider, Mullion WPL 1103360 Contact Us For Availability
21
Trim Shelf Front, Half WPL 945141 Contact Us For Availability
21
Bumper, Grille WPL 546131 Contact Us For Availability
22
Retainer Insert WPL 941297 Contact Us For Availability
22
Box, Junction WPL 850482 Contact Us For Availability
22
Retainer, Hole Insert WPL 843888 Contact Us For Availability
22
Glass Cantilever Shelf, Half WPL 945140 Contact Us For Availability
22
Clip, Grille WPL 989068 Contact Us For Availability
22
Fan, Bracket Double WPL 548263 Contact Us For Availability
23
End Cap WPL 941259 Contact Us For Availability
23
Insert, Hole WPL 843887 Contact Us For Availability
23
Reflector Cantilever Shelf, Half WPL 945139 Contact Us For Availability
23
Fan Bracket, Single WPL 938224 Contact Us For Availability
24
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
24
Pan Slide & Cover (For Platinum Model Only) WPL 1101202 Contact Us For Availability
24
Pan Slide & Cover WPL 935119 Contact Us For Availability
24
Fan, Grommet WPL 548268 Contact Us For Availability
25
Interior Panel (For Platinum Model Only) WPL 1101416 Contact Us For Availability
25
Panel, Interior WPL 945848 Contact Us For Availability
25
Wire Connector WPL 227991 Contact Us For Availability
25
Pan Slide & Cover WPL 935120 Contact Us For Availability
25
Screw Grommet WPL 538449 Contact Us For Availability
25
Interior Panel WPL 945130 Contact Us For Availability
25
Interior Panel (For Platinum Model Only) WPL 988620 Contact Us For Availability
26
Trim, Door Shelf (5) WPL 935819 Contact Us For Availability
26
Cord, Service WPL 850626 Contact Us For Availability
26
Shield, Divider WPL 987054 Contact Us For Availability
26
Crisper Gasket Rear WPL 982588 Contact Us For Availability
26
Water Inlet Tube WPL 983656 Contact Us For Availability
26
Scroll Fan WPL 983650 Contact Us For Availability
26
Trim, Door Shelf WPL 987779 Contact Us For Availability
27
Breaker, Trim Top Refrigerator WPL 992041 Contact Us For Availability
27
Crisper Gasket Front WPL 982587 Contact Us For Availability
27
Air Scoop Assembly WPL 841269 Contact Us For Availability
27
Support, Trim (For Platinum Model Only) WPL 849223 Contact Us For Availability
27
Support, Trim WPL 944359 Contact Us For Availability
28
Shield, Evaporator WPL 989200 Contact Us For Availability
28
Breaker, Trim Refrigerator Side WPL 935637 Contact Us For Availability
28
Pan Crisper WPL 943112 Contact Us For Availability
28
Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability
28
Gasket, Air Scoop WPL 844871 Contact Us For Availability
29
Tray, Evaporator WPL 982899 Contact Us For Availability
29
Breaker, Trim Refrigerator Bottom WPL 992044 Contact Us For Availability
29
Housing, Humidity Control WPL 942234 Contact Us For Availability
29
Drain Fitting, Lin WPL 982904 Contact Us For Availability
29
Retainer, Damper WPL 938439 Contact Us For Availability
29
Trim, Door Shelf WPL 985526 Contact Us For Availability
30
Breaker Retainer WPL 836090 Contact Us For Availability
30
Slide, Humidity Control WPL 942235 Contact Us For Availability
30
WPL 841646 WPL 841646 Contact Us For Availability
30
Control Knob WPL 837445 Contact Us For Availability
31
Breaker Trim, Clip WPL 838849 Contact Us For Availability
31
Seal, Humidity Control WPL 942236 Contact Us For Availability
31
WPL 841648 WPL 841648 Contact Us For Availability
31
Knob, Retainer WPL 837444 Contact Us For Availability
31
Compartment D WPL 935322 Contact Us For Availability
32
WPL 488978 WPL 488978 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
32
Trim, Freezer Breaker (Top) WPL 992046 Contact Us For Availability
32
Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability
32
Evaporator, Cover WPL 1101038 Contact Us For Availability
32
WPL 983804 WPL 983804 Contact Us For Availability
33
WPL 537095 WPL 537095 Contact Us For Availability
33
Breaker, Trim Freezer Side WPL 935643 Contact Us For Availability
33
Front Cover, Crisper (For Platinum Model Only WPL 1100399 Contact Us For Availability
33
Front Cover, Crisper WPL 943114 Contact Us For Availability
33
WPL 836372 WPL 836372 Contact Us For Availability
33
Grommet WPL 848445 Contact Us For Availability
34
Breaker Trim, Freezer (Bottom) WPL 939829 Contact Us For Availability
34
Screw (Repair) WPL 488132 Contact Us For Availability
34
WPL 851174 WPL 851174 Contact Us For Availability
35
Frame Assembly WPL 945484 Contact Us For Availability
35
Breaker, Trim Clip Bottom WPL 937668 Contact Us For Availability
35
Overlay, Pan Front WPL 984750 Contact Us For Availability
35
Gasket, Evaporator Cover WPL 983649 Contact Us For Availability
35
WPL 945116 WPL 945116 Contact Us For Availability
36
Clip (2) WPL 548744 Contact Us For Availability
36
Receptacle Cap WPL 850738 Contact Us For Availability
36
Pan, Meats WPL 840037 Contact Us For Availability
36
Gasket, Evaporator Cover Top WPL 987178 Contact Us For Availability
36
WPL 991259 WPL 991259 Contact Us For Availability
37
Front Cover, Meat (For Platinum Model Only) WPL 1101201 Contact Us For Availability
37
Front Cover, Meat Pan WPL 943121 Contact Us For Availability
37
Air Diffuser Assembly WPL 946145 Contact Us For Availability
37
WPL 945131 WPL 945131 Contact Us For Availability
37
WPL 985528 WPL 985528 Contact Us For Availability
38
Heater, Stile WPL 934475 Contact Us For Availability
38
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
39
Spring WPL 943322 Contact Us For Availability
39
Retainer Clip, Heater WPL 937205 Contact Us For Availability
39
Light Lens, Refrigerator WPL 943218 Contact Us For Availability
40
Case, Relay WPL 1105055 Contact Us For Availability
40
Wiring Assembly Ice Maker WPL 481658 Contact Us For Availability
40
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
40
Light Lens, Crisper WPL 935898 Contact Us For Availability
41
Overload Spring WPL 943320 Contact Us For Availability
41
Support Light Lens, Refrigerator WPL 984552 Contact Us For Availability
41
Pan, Drain WPL 934121 Contact Us For Availability
42
Relay WPL 1101014 Contact Us For Availability
42
Fitting, Drain Pan WPL 836088 Contact Us For Availability
43
Overload WPL 1105018 Contact Us For Availability
43
Gasket, Drain Pan WPL 934130 Contact Us For Availability
44
Clamp WPL 548508 Contact Us For Availability
44
Cap, Drain WPL 842259 Contact Us For Availability
45
Cover, Heat Exchanger WPL 1103312 Contact Us For Availability
46
Condenser & Precooler Assembly WPL 945525 Contact Us For Availability
46
Heat Exchanger, Clip WPL 983605 Contact Us For Availability
47
Clamp (4) WPL 548738 Contact Us For Availability
47
Wiring Assembly (Defrost Timer) WPL 481782 Contact Us For Availability
48
Grommet (4) WPL 943447 Contact Us For Availability
52
Exchanger, Heat WPL 1105019 Contact Us For Availability
54
Clamp (2) WPL 510716 Contact Us For Availability
55
Dampener (2) WPL 510769 Contact Us For Availability
56
Pan, Drip WPL 945572 Contact Us For Availability
58
Screw Grommet WPL 509812 Contact Us For Availability
59
Rail, Front WPL 851177 Contact Us For Availability
64
Guard, Fan WPL 851165 Contact Us For Availability
73
Relay WPL 989509 Contact Us For Availability
74
Overload WPL 989518 Contact Us For Availability
75
Cover WPL 549505 Contact Us For Availability
76
Strap WPL 549342 Contact Us For Availability
77
Overload Spring WPL 549086 Contact Us For Availability
79
WPL 978029 WPL 978029 Contact Us For Availability
79
WPL 876029 WPL 876029 Contact Us For Availability
79
WPL 479502 WPL 479502 Contact Us For Availability
79
WPL 488868 WPL 488868 Contact Us For Availability
79
Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability
79
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
79
Enamal, Toa WPL 285367 Contact Us For Availability
79
WPL 285368 WPL 285368 Contact Us For Availability
79
WPL 542639 WPL 542639 Contact Us For Availability
79
WPL 72108 WPL 72108 Contact Us For Availability
79
WPL 72112 WPL 72112 Contact Us For Availability
79
WPL 799832 WPL 799832 Contact Us For Availability
79
WPL 799833 WPL 799833 Contact Us For Availability
79
WPL 799908 WPL 799908 Contact Us For Availability
79
WPL 978028 WPL 978028 Contact Us For Availability
79
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
