Model Whirlpool ED22ZMXPWR0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
07 - SHELF
05 - FREEZER DOOR

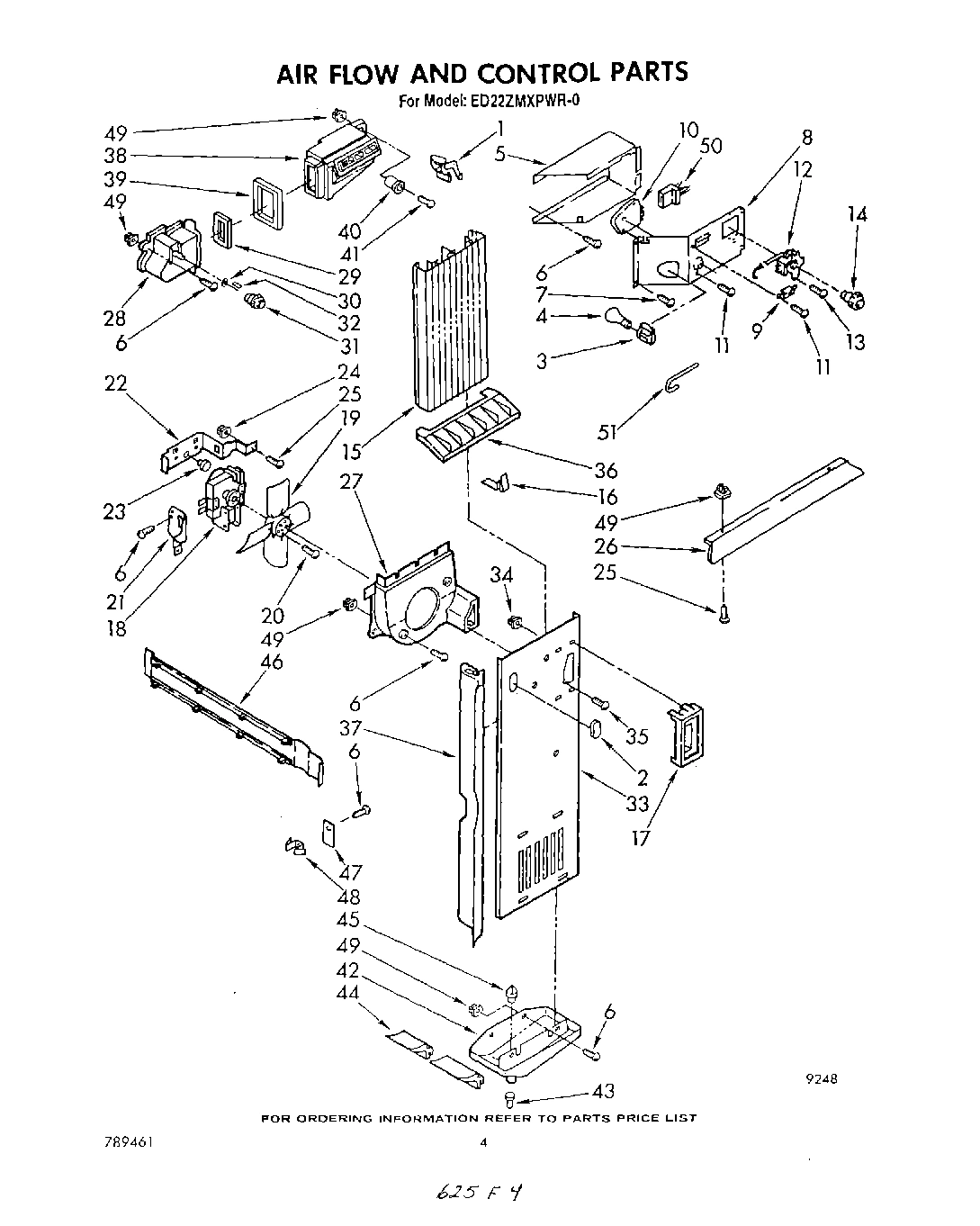

03 - AIRFLOW AND CONTROL

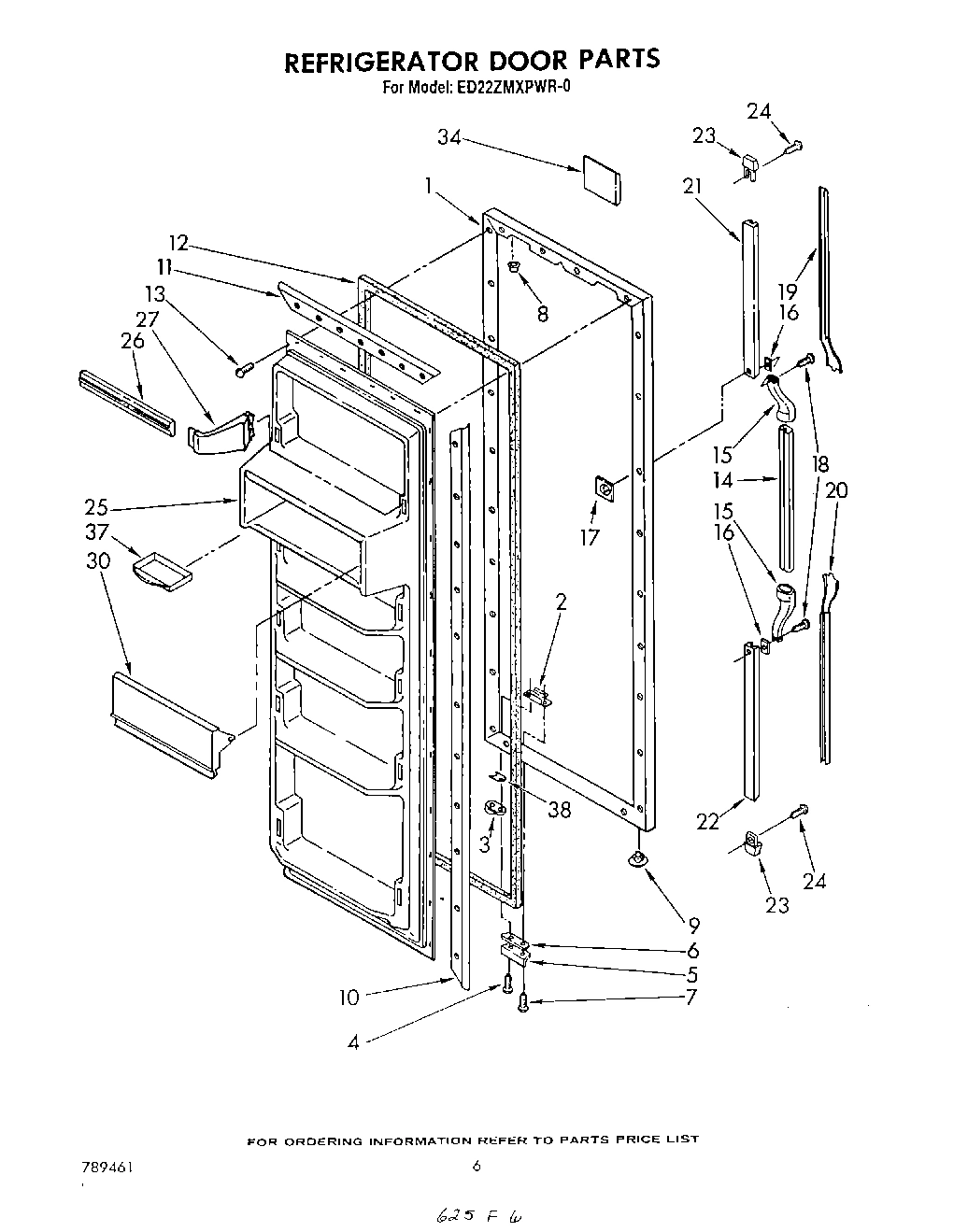

04 - REFRIGERATOR DOOR

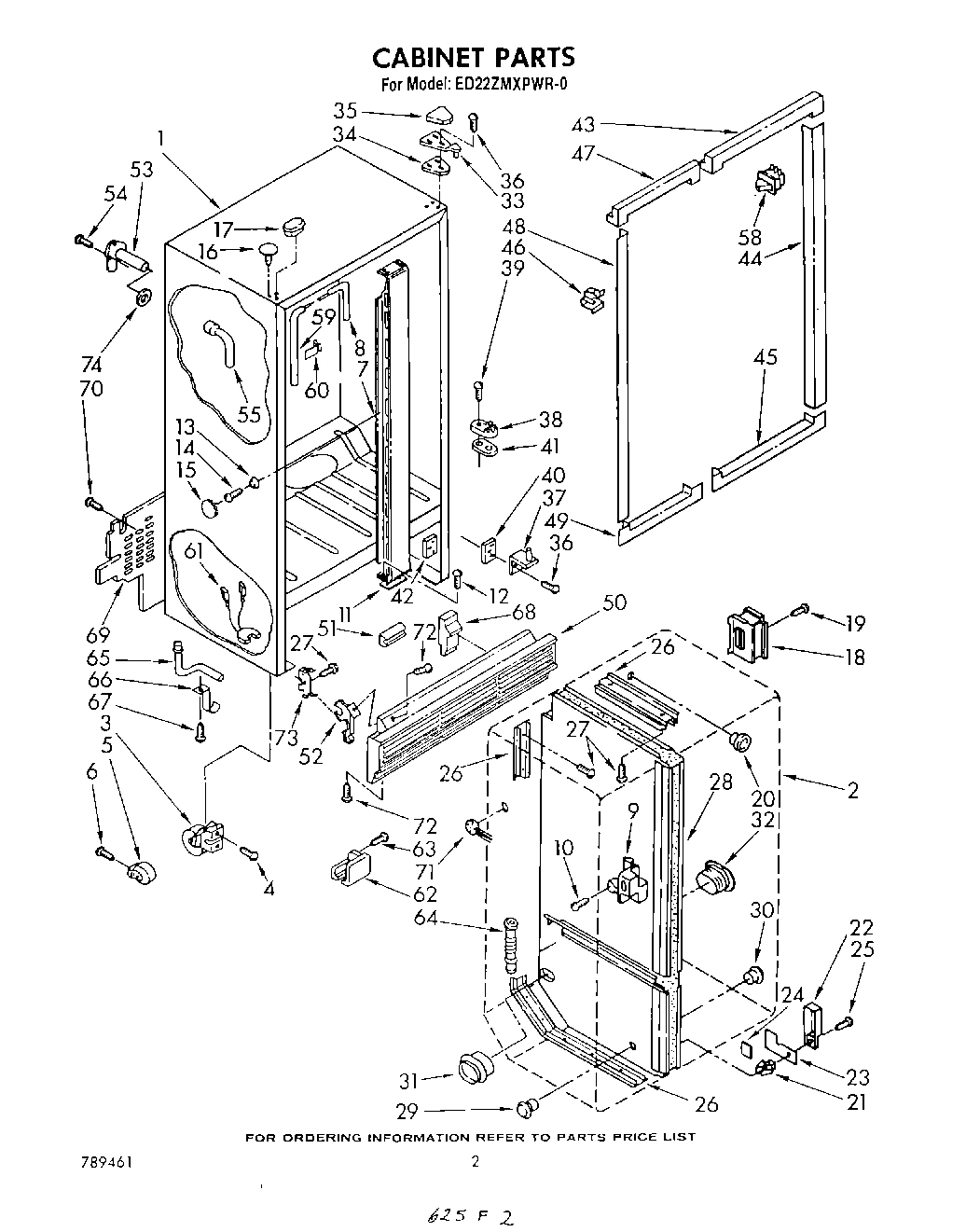

02 - CABINET

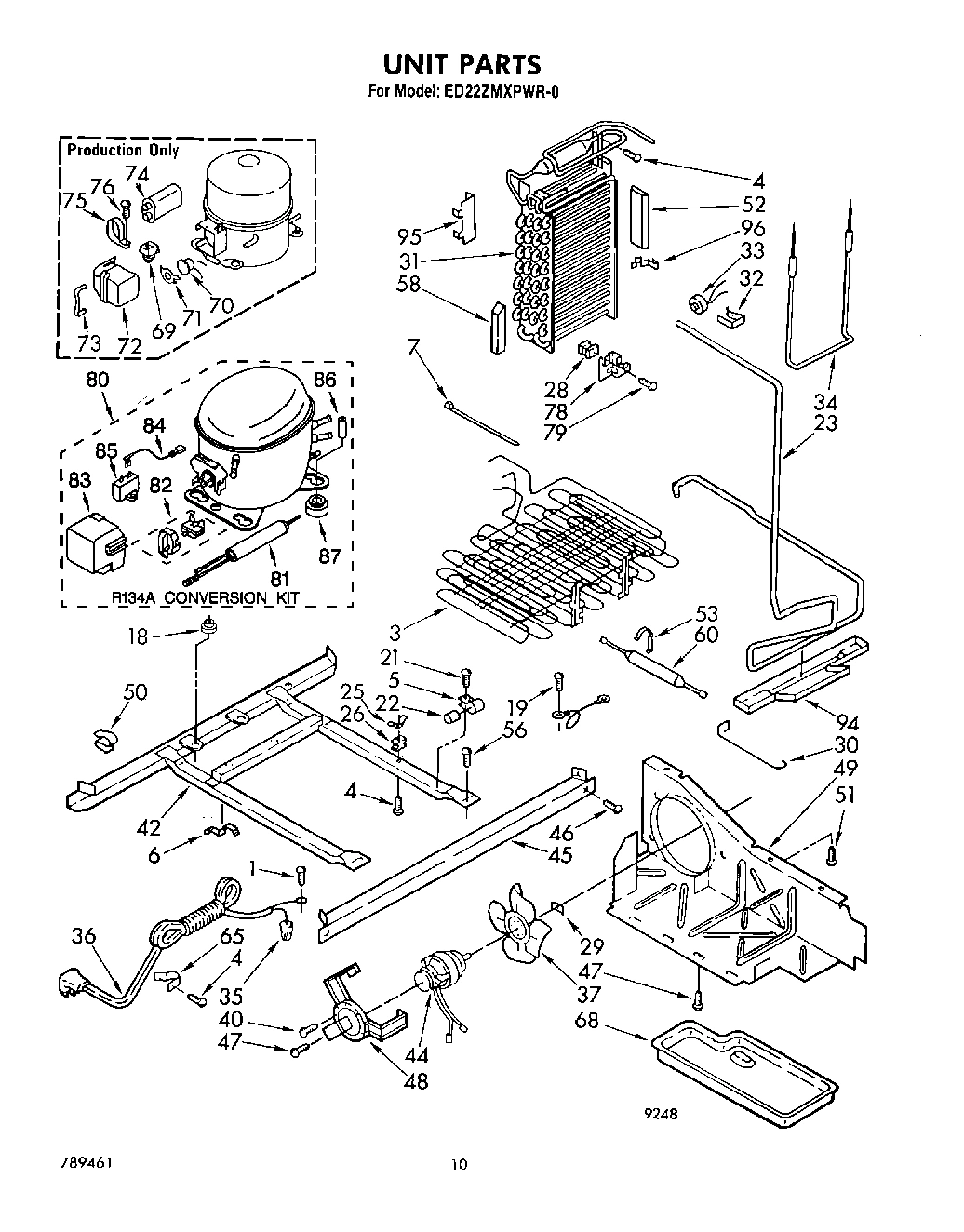

06 - UNIT

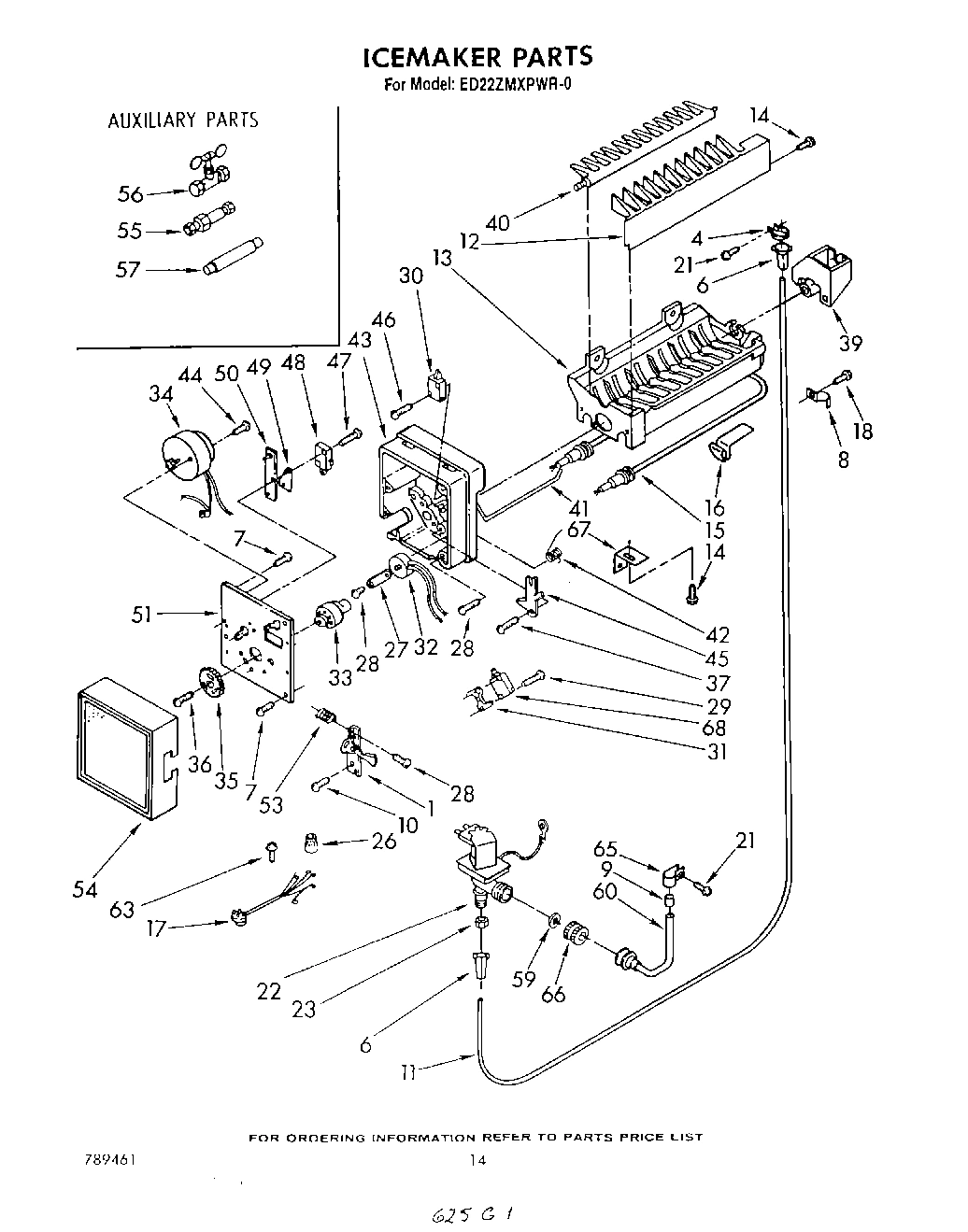

08 - ICE MAKER , LIT/OPTIONAL
Common parts from model Whirlpool ED22ZMXPWR0 SIDE BY SIDE REFRIGERATOR
WPL LIT1105009 WPL LIT1105009 Contact Us For Availability
WPL LIT1110265 WPL LIT1110265 Contact Us For Availability
WPL LIT1110267 WPL LIT1110267 Contact Us For Availability
WPL LIT789461 WPL LIT789461 Contact Us For Availability
1
Freezer, Door Panel (Toast) WPL 1101365 Contact Us For Availability
1
Freezer Door Panel (Platinum) WPL 1101366 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 941254 Contact Us For Availability
1
Freezer, Door Panel (Golden Harvest) WPL 941256 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 941258 Contact Us For Availability
1
Screw, Ground WPL 488474 Contact Us For Availability
1
Refrigerator, Door Panel (Toast) WPL 1101363 Contact Us For Availability
1
Refrigerator, Door Panel (Platinum) WPL 1101364 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 941246 Contact Us For Availability
1
Refrigerator, Door Panel (Golden Harvest) WPL 941248 Contact Us For Availability
1
Refrigerator, Door Panel (Almond) WPL 941250 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI27204A9 Contact Us For Availability
1
Lever & Plate Assembly WPL 627248 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Hole Plug WPL 835649 Contact Us For Availability
2
Liner (Not A Serviceable Part) WPL ARI27205A6 Contact Us For Availability
3
Roller, Front WPL 981127 Contact Us For Availability
3
Condenser & Precooler WPL 943480 Contact Us For Availability
4
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
5
Bracket, Door Stop WPL 988420 Contact Us For Availability
5
Box, Control WPL 984550 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
7
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
7
Center Rail, Mullion (Toast) WPL 1101361 Contact Us For Availability
7
Center Rail, Mullion (Platinum) WPL 1101362 Contact Us For Availability
7
Center Rail Mullion (White) WPL 985974 Contact Us For Availability
7
Center Rail Mullion (Golden Harvest) WPL 989921 Contact Us For Availability
7
Center Rail Mullion (Almond) WPL 989923 Contact Us For Availability
7
Strap WPL 851095 Contact Us For Availability
8
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
8
Control Box Front WPL 934045 Contact Us For Availability
8
Heater, Mullion WPL 936199 Contact Us For Availability
8
Clamp, Tube (3) WPL 836472 Contact Us For Availability
9
Hole Plug WPL 534927 Contact Us For Availability
9
Stabilizer, Mullion WPL 849367 Contact Us For Availability
10
Screw (Repair) WPL 488930 Contact Us For Availability
10
Retainer Side, Gasket WPL 836120 Contact Us For Availability
10
Defrost Timer WPL 943435 Contact Us For Availability
10
Screw, 4-40 x 1/4 WPL 488622 Contact Us For Availability
11
Retainer Top & Bottom Gasket WPL 836121 Contact Us For Availability
11
Spacer WPL 983592 Contact Us For Availability
12
Retainer, Top & Bottom Gasket WPL 836122 Contact Us For Availability
12
Stripper, Ice WPL 625840 Contact Us For Availability
13
Shelf, Stud WPL 208500 Contact Us For Availability
13
Spacer Screw, Stabilizer WPL 849368 Contact Us For Availability
13
Mold & Heater Assembly (Includes Illus. 15) WPL 625856 Contact Us For Availability
14
Handle, Center WPL 1108897 Contact Us For Availability
14
Knob, Temperature Control WPL 836482 Contact Us For Availability
14
Screw, 8 x 7/8 WPL 488318 Contact Us For Availability
15
Center End Cap (2) WPL 935103 Contact Us For Availability
15
Air Duct WPL 848484 Contact Us For Availability
15
Hole Cover WPL 848414 Contact Us For Availability
15
Heater, Mold WPL 625843 Contact Us For Availability
16
Shim, Handle Center (2) WPL 935075 Contact Us For Availability
16
Baffle, Air WPL 987954 Contact Us For Availability
16
Hole, Plug (Toast) WPL 1101314 Contact Us For Availability
16
Hole, Plug (Platinum) WPL 1101315 Contact Us For Availability
16
Hole, Plug (White) WPL 849391 Contact Us For Availability
16
Hole, Plug (Golden Harvest) WPL 989957 Contact Us For Availability
16
Hole Plug (Almond) WPL 989958 Contact Us For Availability
16
Clip WPL 652604 Contact Us For Availability
17
Screw Anchor WPL 941242 Contact Us For Availability
17
Grille, Freezer WPL 835740 Contact Us For Availability
17
Hole Plug (Toast) WPL 1101316 Contact Us For Availability
17
Hole Plug (Platinum) WPL 1101317 Contact Us For Availability
17
Hole Plug (White) WPL 992770 Contact Us For Availability
17
Hole Plug (Golden Harvest) WPL 992773 Contact Us For Availability
17
Hole Plug (Almond) WPL 992774 Contact Us For Availability
17
Harness, Wiring WPL 627357 Contact Us For Availability
18
Control Connector & Gasket Assembly WPL 848433 Contact Us For Availability
19
Blade, Fan WPL 992920 Contact Us For Availability
19
Insert, Handle (Top) WPL 1110260 Contact Us For Availability
20
Insert, Handle (Bottom) WPL 1110261 Contact Us For Availability
20
Grommet, Wiring WPL 851020 Contact Us For Availability
21
Retainer Insert (Top) WPL 941260 Contact Us For Availability
21
Fan, Bracket Double WPL 548263 Contact Us For Availability
21
Expansion Clip WPL 537095 Contact Us For Availability
22
Retainer Insert (Bottom) WPL 941262 Contact Us For Availability
22
Fan, Bracket Single WPL 548264 Contact Us For Availability
22
Escutcheon Meat WPL 985468 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
23
End Cap WPL 941259 Contact Us For Availability
23
Fan, Grommet WPL 548268 Contact Us For Availability
23
Slide, Meat Control WPL 984102 Contact Us For Availability
23
Exchanger, Heat WPL 1100809 Contact Us For Availability
24
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
24
Screw Grommet WPL 538449 Contact Us For Availability
24
Pad, Foam WPL 992358 Contact Us For Availability
25
Interior Door Panel WPL 482664 Contact Us For Availability
25
Panel, Interior WPL 1104203 Contact Us For Availability
25
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
26
Trim, Door Shelf WPL 1110263 Contact Us For Availability
26
Baffle, Liner Top WPL 836216 Contact Us For Availability
26
Trim, Interior Door (Top) WPL 1110259 Contact Us For Availability
26
Track Divider (Back & Bottom) WPL 946146 Contact Us For Availability
26
Track, Divider (Top) WPL 988455 Contact Us For Availability
26
Grommet (4) WPL 943447 Contact Us For Availability
26
Connector Wire WPL 227991 Contact Us For Availability
27
Scroll Fan WPL 991285 Contact Us For Availability
27
Clamp, Thermostat WPL 625829 Contact Us For Availability
28
Air Scoop Assembly WPL 841269 Contact Us For Availability
28
Divider, Mullion WPL 1105810 Contact Us For Availability
28
Grommet WPL 944454 Contact Us For Availability
28
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
29
Gasket, Air Scoop WPL 844871 Contact Us For Availability
29
Retainer, Hole Insert WPL 843888 Contact Us For Availability
30
Retainer, Damper WPL 938439 Contact Us For Availability
30
Compartment, Door Utility WPL 1108721 Contact Us For Availability
30
Insert, Hole WPL 843887 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
30
Switch, S.P.D.T. WPL 625851 Contact Us For Availability
31
Spacer, Holding Switch WPL 625834 Contact Us For Availability
31
Control Knob WPL 837445 Contact Us For Availability
31
Insert, Air Return WPL 982921 Contact Us For Availability
31
Evaporator WPL 1101078 Contact Us For Availability
32
Knob, Retainer WPL 837444 Contact Us For Availability
32
Retainer, Insert WPL 982920 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
32
Thermostat WPL 625844 Contact Us For Availability
33
Cover, Evaporator WPL 849496 Contact Us For Availability
33
Hinge, Top WPL 842039 Contact Us For Availability
33
Cam WPL 625913 Contact Us For Availability
34
Screw, Grommet WPL 981616 Contact Us For Availability
34
Nameplate (For Platinum Model Only) WPL 1110077 Contact Us For Availability
34
Nameplate WPL 945116 Contact Us For Availability
34
Shim, Hinge Top WPL 836192 Contact Us For Availability
34
Motor WPL 625846 Contact Us For Availability
35
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
35
WPL 989896 WPL 989896 Contact Us For Availability
35
Gear WPL 625914 Contact Us For Availability
36
End Cap, Evaporator WPL 836144 Contact Us For Availability
36
WPL 488949 WPL 488949 Contact Us For Availability
36
Cord, Service WPL 850626 Contact Us For Availability
36
Screw WPL 488957 Contact Us For Availability
37
Gasket, Evaporator Cover WPL 844844 Contact Us For Availability
37
WPL 986763 WPL 986763 Contact Us For Availability
37
WPL 986764 WPL 986764 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
37
Screw, Shoulder WPL 627199 Contact Us For Availability
38
Air Diffuser Assembly WPL 946145 Contact Us For Availability
39
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
39
Bearing & Inlet WPL 625707 Contact Us For Availability
40
WPL 836196 WPL 836196 Contact Us For Availability
40
Ejector WPL 627375 Contact Us For Availability
41
WPL 987179 WPL 987179 Contact Us For Availability
41
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
41
Arm, Shut-Off WPL 627003 Contact Us For Availability
42
Drain Pan WPL 842404 Contact Us For Availability
42
WPL 836162 WPL 836162 Contact Us For Availability
42
Frame WPL 945463 Contact Us For Availability
42
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
43
Fitting, Drain Pan WPL 841770 Contact Us For Availability
43
WPL 848475 WPL 848475 Contact Us For Availability
43
Support WPL 625827 Contact Us For Availability
44
Gasket, Drain Pan WPL 845564 Contact Us For Availability
44
WPL 848476 WPL 848476 Contact Us For Availability
44
Screw (Use W/Motor 625846) WPL 488361 Contact Us For Availability
45
Cap, Drain WPL 842259 Contact Us For Availability
45
WPL 848477 WPL 848477 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
45
Lever, Arm WPL 625830 Contact Us For Availability
46
Cover, Heat Exchanger WPL 848482 Contact Us For Availability
46
WPL 836090 WPL 836090 Contact Us For Availability
46
Screw, 4-24 x 3/4 (2) WPL 488360 Contact Us For Availability
47
Heat Exchanger, Clip WPL 983605 Contact Us For Availability
47
WPL 848479 WPL 848479 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
Screw, 4-40 X 3/4 (2) WPL 488362 Contact Us For Availability
48
WPL 848480 WPL 848480 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
48
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
49
Grommet WPL 842339 Contact Us For Availability
49
WPL 848481 WPL 848481 Contact Us For Availability
49
Baffle, Air WPL 850391 Contact Us For Availability
49
Insulator, Switch WPL 627680 Contact Us For Availability
50
Wiring Cabinet (Defrost Timer) WPL 481782 Contact Us For Availability
50
WPL 1100307 WPL 1100307 Contact Us For Availability
50
WPL 1100308 WPL 1100308 Contact Us For Availability
50
WPL 944233 WPL 944233 Contact Us For Availability
50
WPL 944235 WPL 944235 Contact Us For Availability
50
WPL 944237 WPL 944237 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
50
Plate, Valve Switch WPL 627024 Contact Us For Availability
51
WPL 546131 WPL 546131 Contact Us For Availability
51
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
51
Plate, Mounting WPL 627740 Contact Us For Availability
52
Baffle, Air WPL 849335 Contact Us For Availability
53
Clamp, Drier WPL 548508 Contact Us For Availability
53
Spring WPL 627163 Contact Us For Availability
54
Overlay, Front Cover WPL 988255 Contact Us For Availability
54
Cover WPL 1100705 Contact Us For Availability
55
Pan WPL 1110254 Contact Us For Availability
55
WPL 849909 WPL 849909 Contact Us For Availability
55
Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
56
Valve, Shut-Off WPL 541157 Contact Us For Availability
57
Filter Kit WPL 978488 Contact Us For Availability
58
Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability
59
WPL 989660 WPL 989660 Contact Us For Availability
60
Light Lens, Refrigerator WPL 943218 Contact Us For Availability
60
WPL 935663 WPL 935663 Contact Us For Availability
60
Tube, Inlet Valve WPL 627854 Contact Us For Availability
61
Light Lens, Crisper WPL 938572 Contact Us For Availability
61
WPL 548734 WPL 548734 Contact Us For Availability
62
Support Light Lens, Refrigerator WPL 984552 Contact Us For Availability
62
WPL 549947 WPL 549947 Contact Us For Availability
63
Screw, 8-32 x 1/4 (Ground) WPL 488542 Contact Us For Availability
64
Light Lens, Freezer WPL 985456 Contact Us For Availability
64
WPL 836068 WPL 836068 Contact Us For Availability
65
WPL 841646 WPL 841646 Contact Us For Availability
65
Clamp Tube WPL 510716 Contact Us For Availability
66
Trim, Ice Pan WPL 837142 Contact Us For Availability
66
WPL 841648 WPL 841648 Contact Us For Availability
66
Nut, Valve WPL 537588 Contact Us For Availability
68
WPL 876029 WPL 876029 Contact Us For Availability
68
WPL 479502 WPL 479502 Contact Us For Availability
68
WPL 799344 WPL 799344 Contact Us For Availability
68
WPL 836372 WPL 836372 Contact Us For Availability
68
Tray, Evaporator WPL 849331 Contact Us For Availability
68
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
68
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
68
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
68
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
68
WPL 285367 WPL 285367 Contact Us For Availability
68
WPL 285368 WPL 285368 Contact Us For Availability
68
WPL 350941 WPL 350941 Contact Us For Availability
68
WPL 542639 WPL 542639 Contact Us For Availability
68
WPL 627848 WPL 627848 Contact Us For Availability
68
WPL 799832 WPL 799832 Contact Us For Availability
68
WPL 799833 WPL 799833 Contact Us For Availability
68
WPL 799908 WPL 799908 Contact Us For Availability
68
WPL 978883 WPL 978883 Contact Us For Availability
69
WPL 850457 WPL 850457 Contact Us For Availability
69
Relay WPL 945535 Contact Us For Availability
70
Overload WPL 1101187 Contact Us For Availability
71
WPL 481658 WPL 481658 Contact Us For Availability
71
Overload Spring WPL 943494 Contact Us For Availability
72
WPL 489085 WPL 489085 Contact Us For Availability
72
Terminal Cover WPL 943496 Contact Us For Availability
73
WPL 989068 WPL 989068 Contact Us For Availability
73
Terminal Cover Strap WPL 943497 Contact Us For Availability
74
Running Capacitor WPL 1101183 Contact Us For Availability
75
Clamp, Capacitor WPL 1101184 Contact Us For Availability
78
Support, Evaporator WPL 842436 Contact Us For Availability
80
Compressor (Includes Items 81, 82, 83, 84, 85 WPL 4388009 Contact Us For Availability
86
Sleeve WPL 4387559 Contact Us For Availability
94
Pan, Drip WPL 945572 Contact Us For Availability
95
Heat Shield WPL 850568 Contact Us For Availability
96
WPL 978029 WPL 978029 Contact Us For Availability
96
Clamp, Heater (4) WPL 549419 Contact Us For Availability
96
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
