Model Whirlpool ED22RKXXW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - FREEZER LINER
08 - UNIT

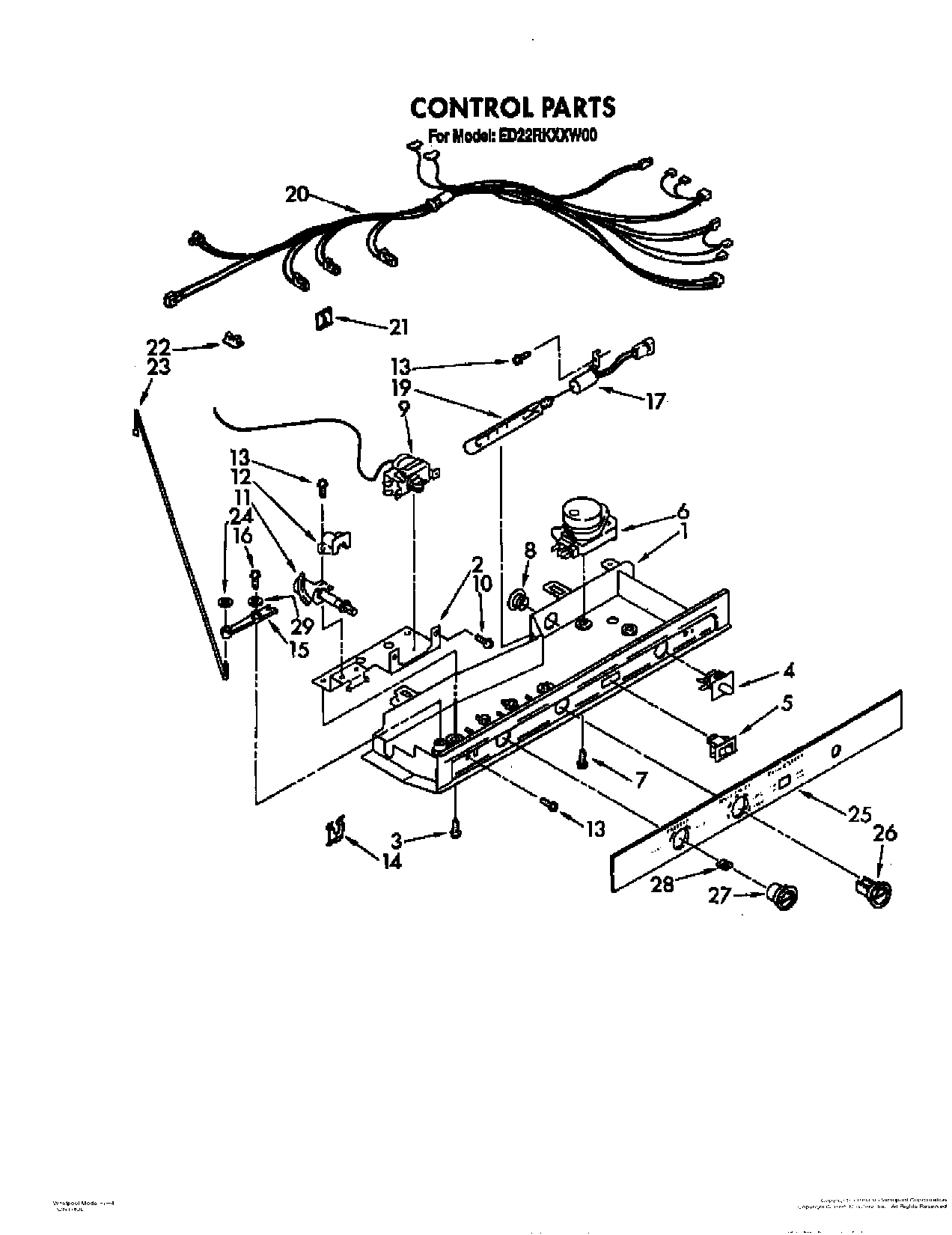

10 - CONTROL, LIT/OPTIONAL

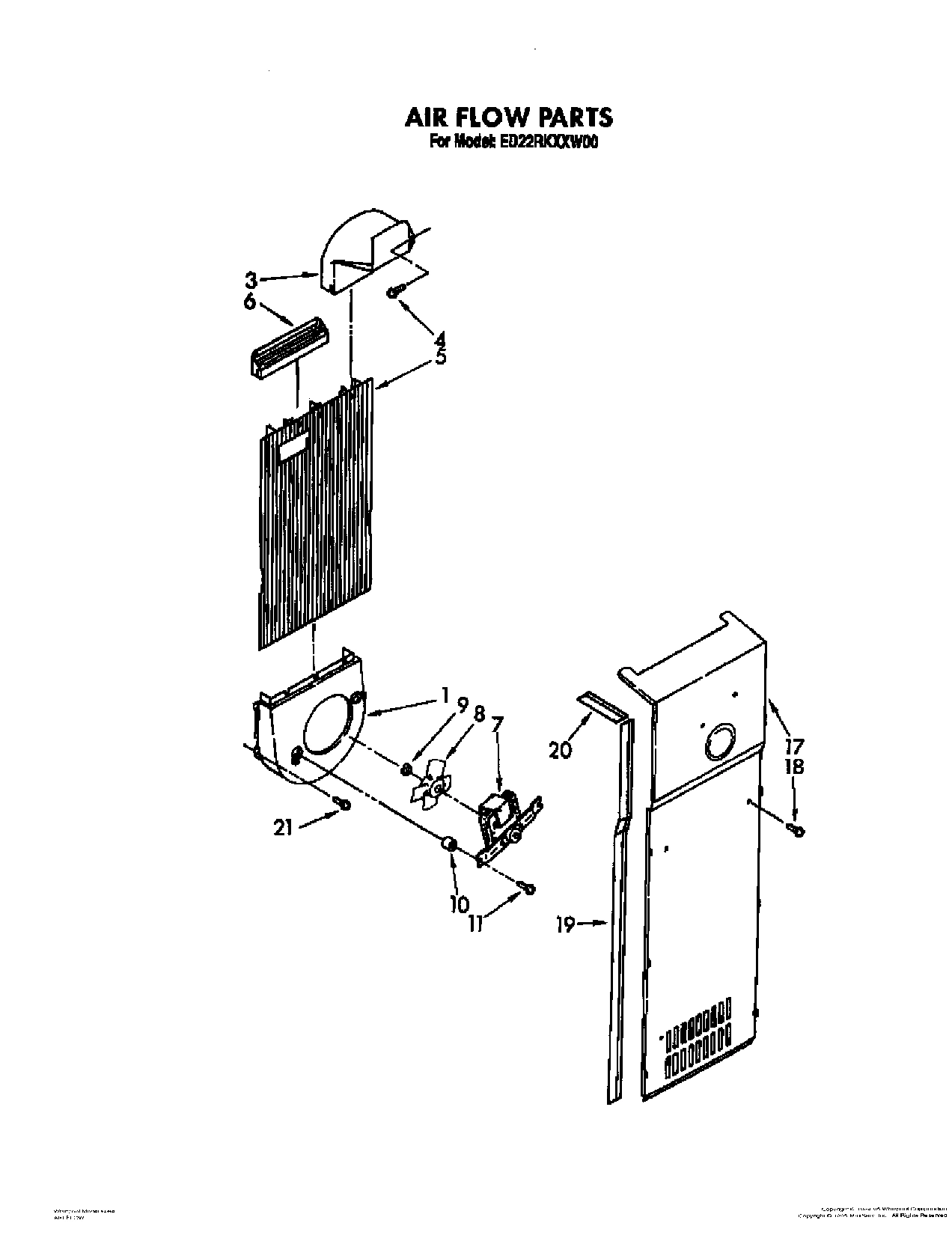

09 - AIR FLOW

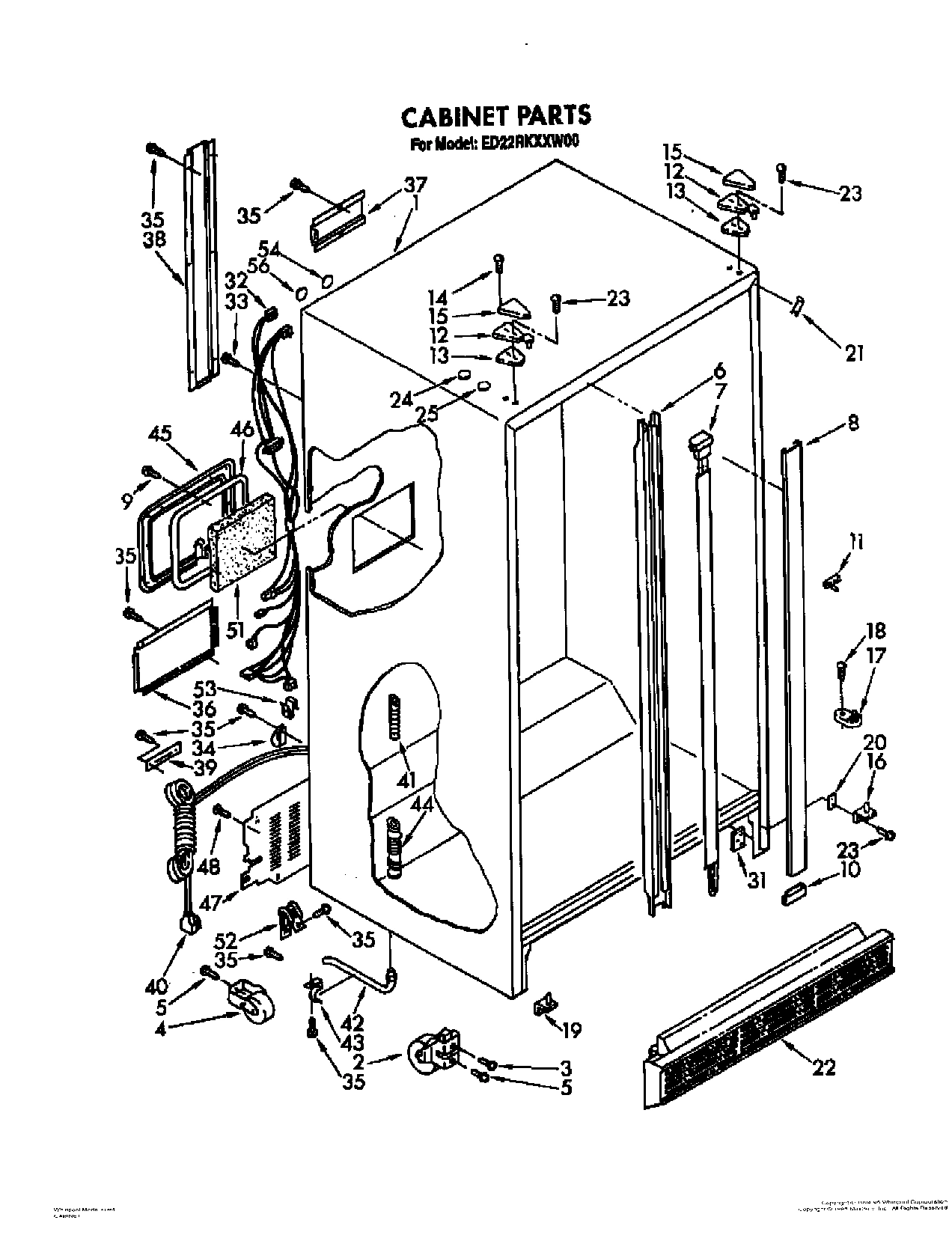

02 - CABINET

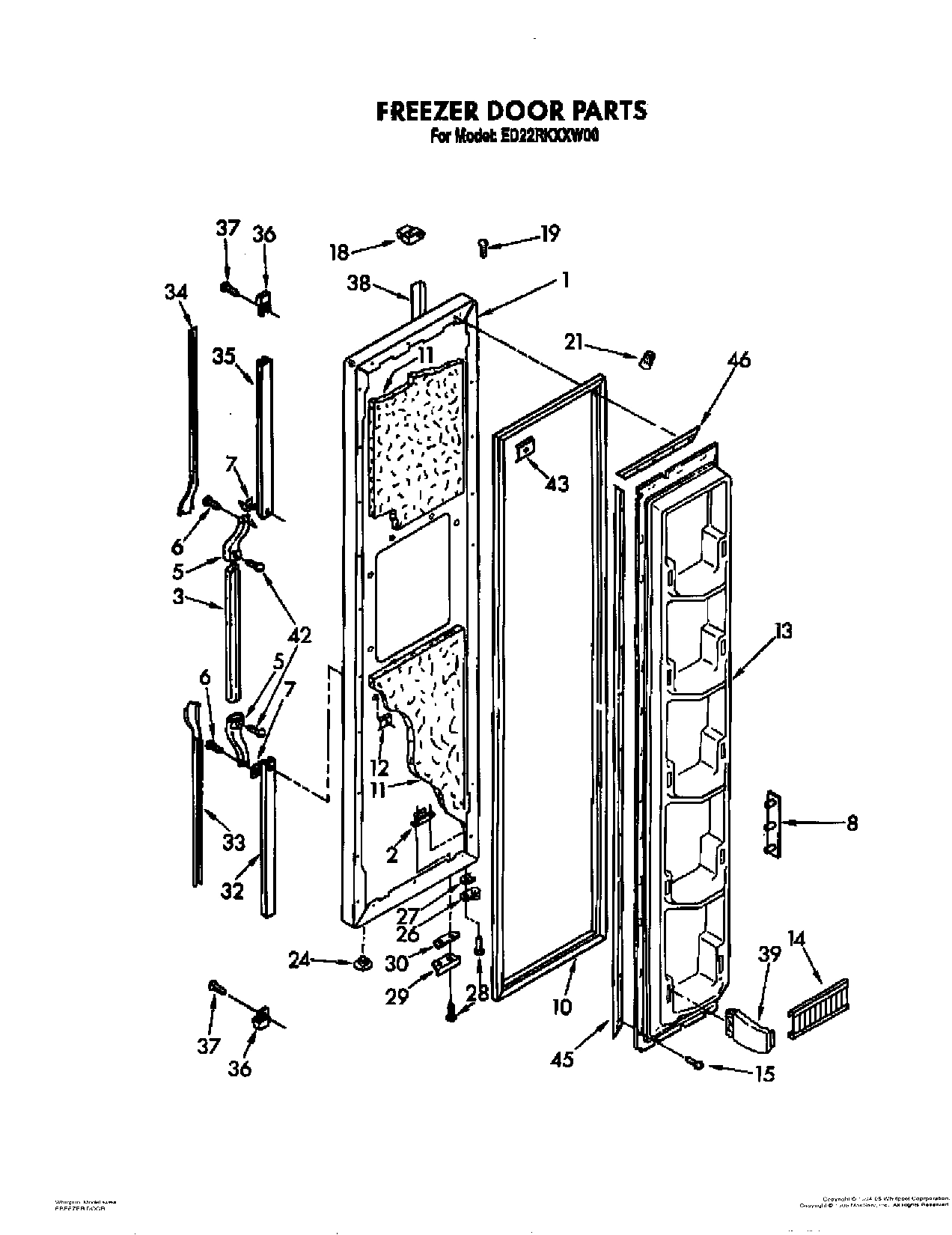

07 - FREEZER DOOR

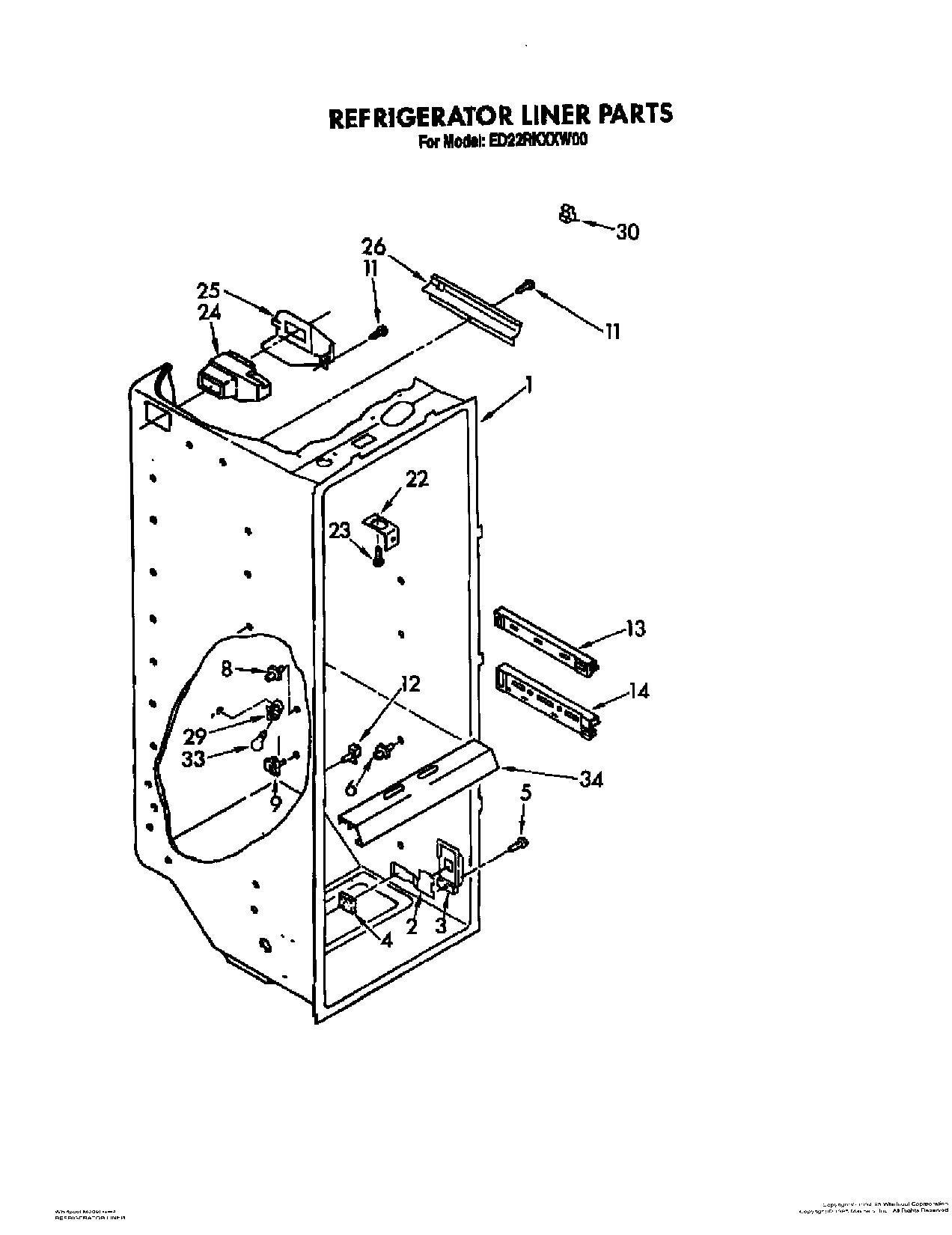

03 - REFRIGERATOR LINER

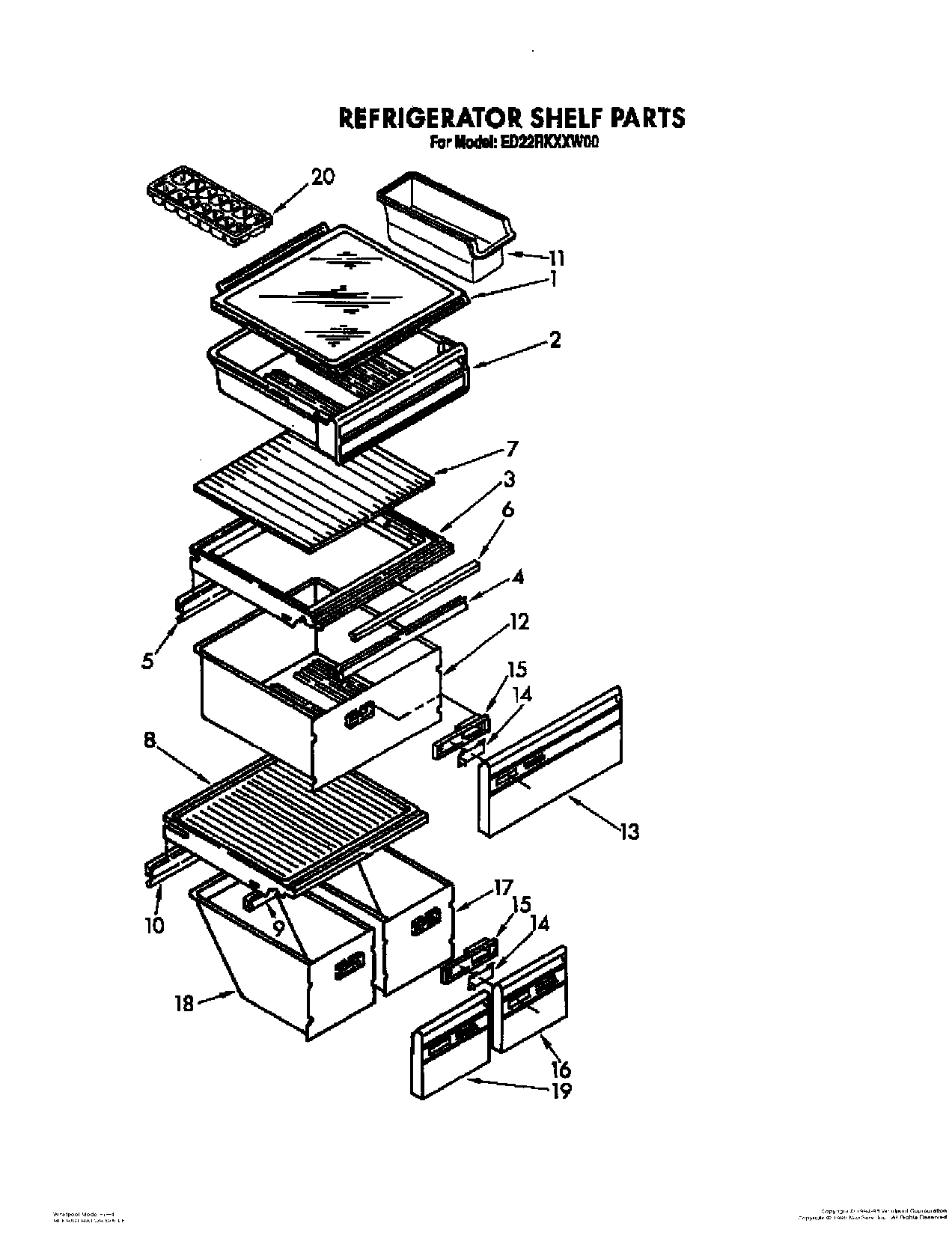

04 - REFRIGERATOR SHELF

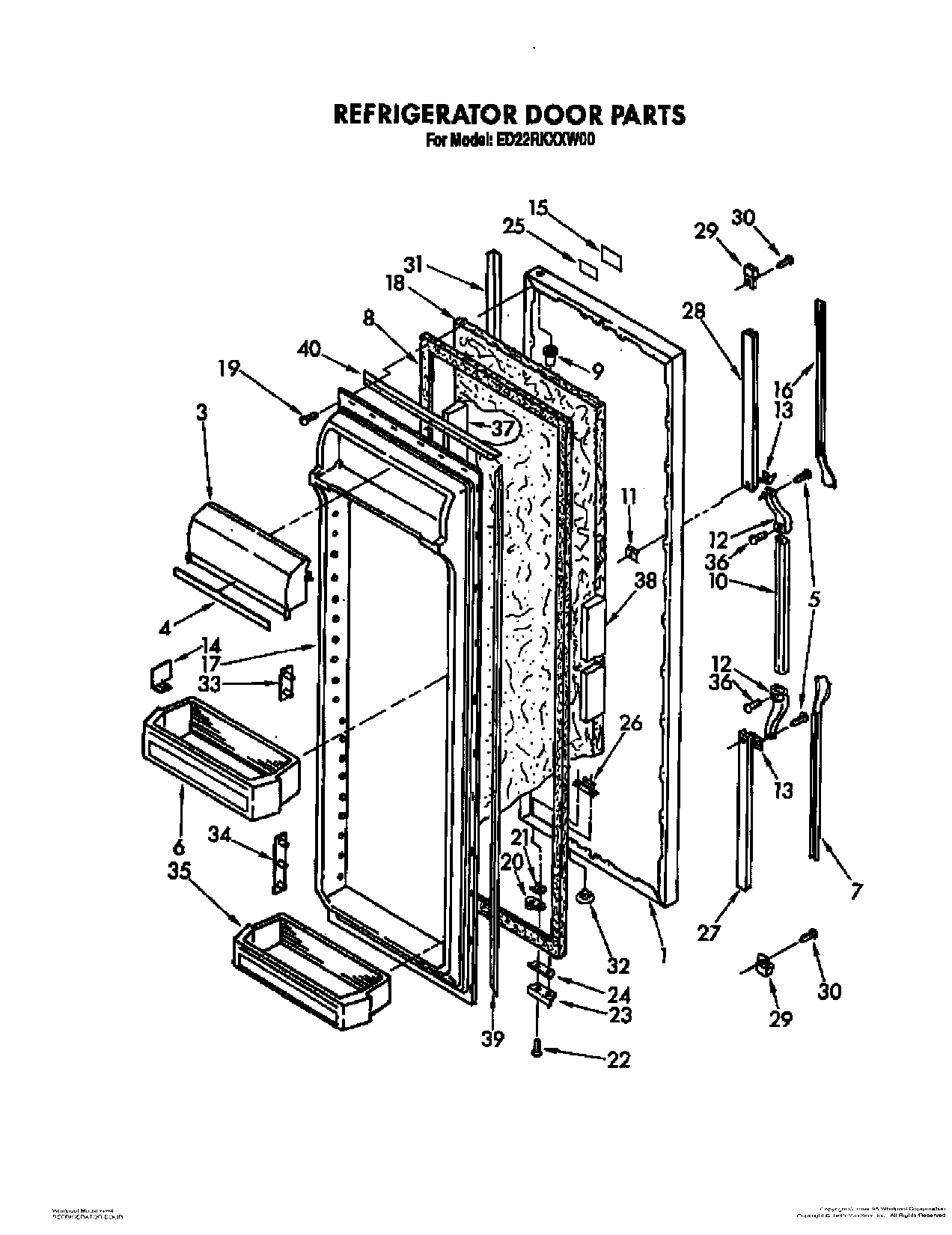

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED22RKXXW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2149924 WPL LIT2149924 Contact Us For Availability
WPL LIT2157014 WPL LIT2157014 Contact Us For Availability
WPL LIT2157016 WPL LIT2157016 Contact Us For Availability
WPL LIT4361058 WPL LIT4361058 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Control Box WPL 1129413 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI26990A4 Contact Us For Availability
1
Freezer Door Panel (Also Order Item 11) WPL 4362017 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26991A7 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 1124826 Contact Us For Availability
1
Refrigerator Door (Also Order Item 18) WPL 1115273 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Snack Bin WPL 1124829 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Compartment WPL 2148847 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Trim, Compartment Door WPL 1118208 Contact Us For Availability
5
Air Duct Freezer WPL 1108434 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
6
Shelf Bin (2) WPL 1124846 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Mullion Rail WPL 2155015 Contact Us For Availability
6
Trim, Crisper Cover WPL 1119190 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Insert, Handle WPL 1119361 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Front Mullion Rail WPL 1123966 Contact Us For Availability
8
Cover, Meat Pan WPL 1124812 Contact Us For Availability
9
Stud (4) WPL 1115290 No Longer Available
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Filler Bottom Mullion WPL 1118361 Contact Us For Availability
10
Handle, Center WPL 1124713 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
12
Hinge, Top WPL 1123514 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
13
Front, Crisper Pan WPL 1124825 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Trim, Door Shelf WPL 2157023 Contact Us For Availability
14
Slide, Humidity Control WPL 1124819 Contact Us For Availability
14
Divider, Bin WPL 2152335 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Housing, Humidity Control WPL 1124820 Contact Us For Availability
15
Nameplate WPL 2148544 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Insert, Handle WPL 1119367 Contact Us For Availability
16
Front, Meat Pan WPL 1124817 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
17
Meat Pan WPL 1114690 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
Meat Pan WPL 1114691 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Front, Meat Pan WPL 1124814 Contact Us For Availability
20
Control Box Harness WPL 2149750 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Shim .030 WPL 836196 Contact Us For Availability
21
Wire Connector WPL 227991 Contact Us For Availability
21
Filler, Wrapper WPL 1110708 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille WPL 1125663 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Bracket, Door Stop WPL 988420 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Hole Plug WPL 849391 Contact Us For Availability
24
Shim WPL 988421 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148238 Contact Us For Availability
25
Hole Plug WPL 1115352 Contact Us For Availability
25
Tape WPL 991259 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
29
KIT, FOAM SLAB (30 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
30
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Trim, Door WPL 1119061 Contact Us For Availability
32
Cabinet Harness WPL 2149746 Contact Us For Availability
32
Hole Plug (2) WPL 534927 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Pin Plate (8) WPL 1116986 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
35
Shelf Bin (2) WPL 1124847 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
36
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
44
Fitting, Drain WPL 942768 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
47
Cover, Unit WPL 1105617 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
54
Hole Seal WPL 1129056 Contact Us For Availability
56
Hole Seal WPL 1120224 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
