Model Whirlpool ED22MKXRMR2 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

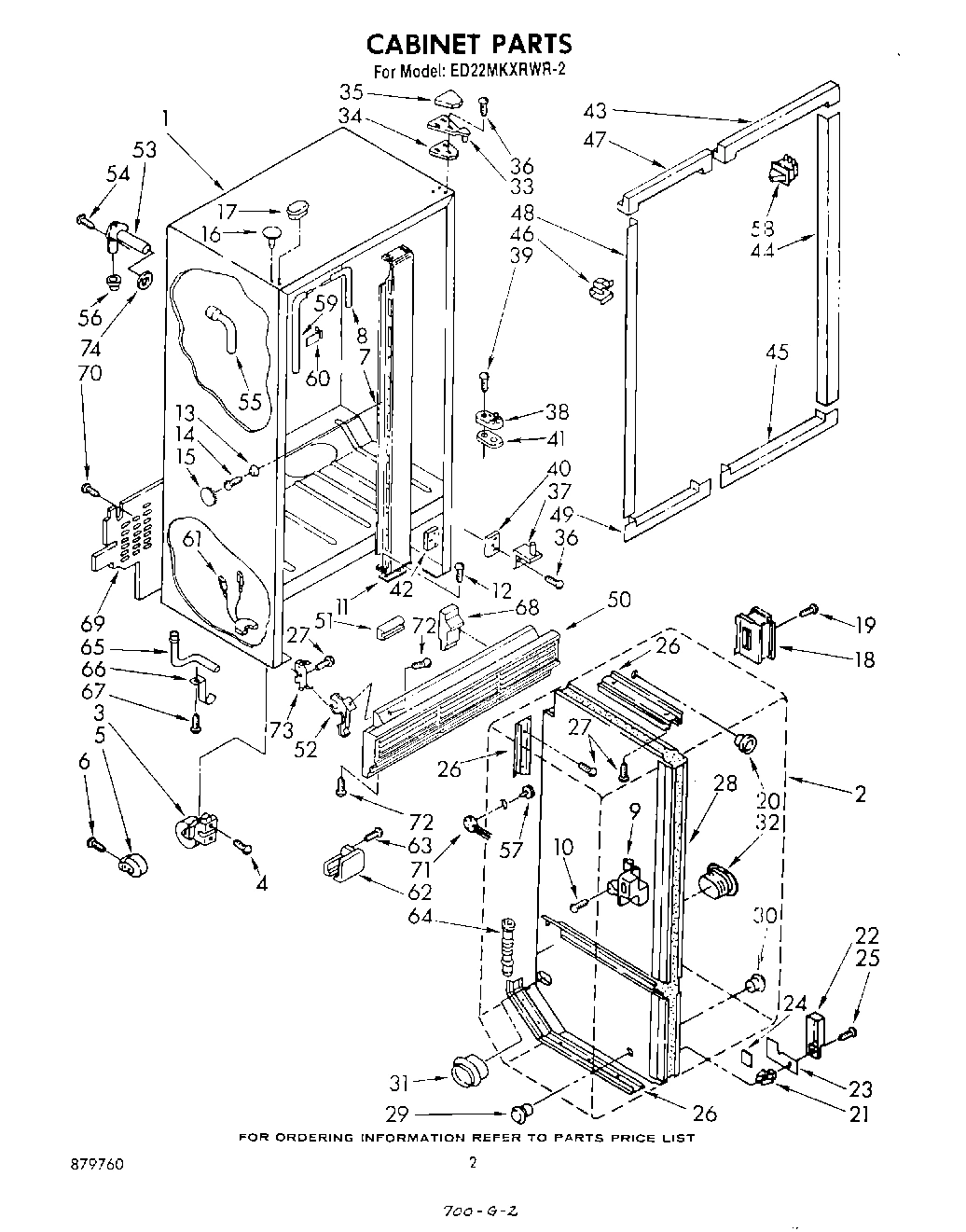

02 - CABINET

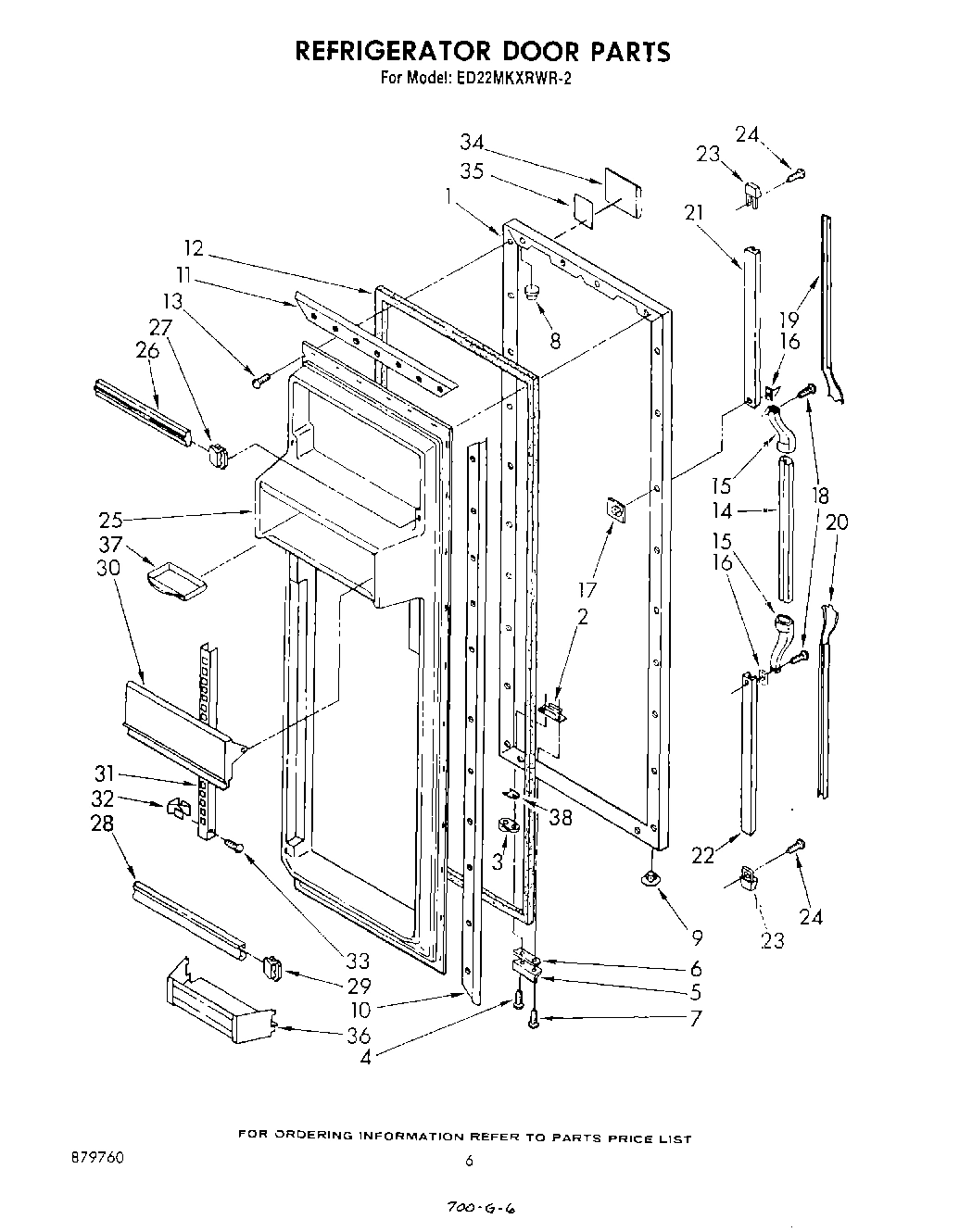

04 - REFRIGERATOR DOOR

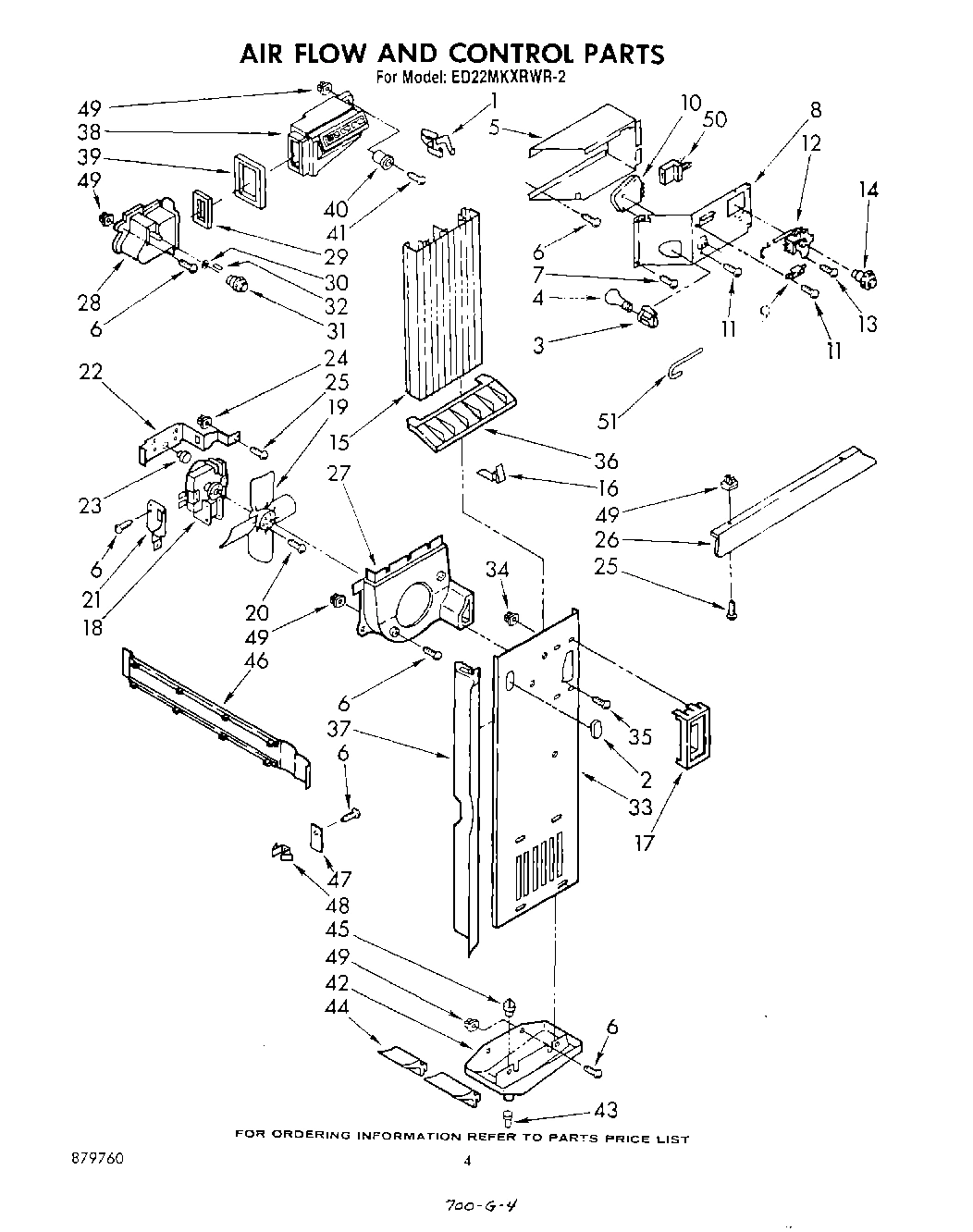

03 - AIRFLOW AND CONTROL

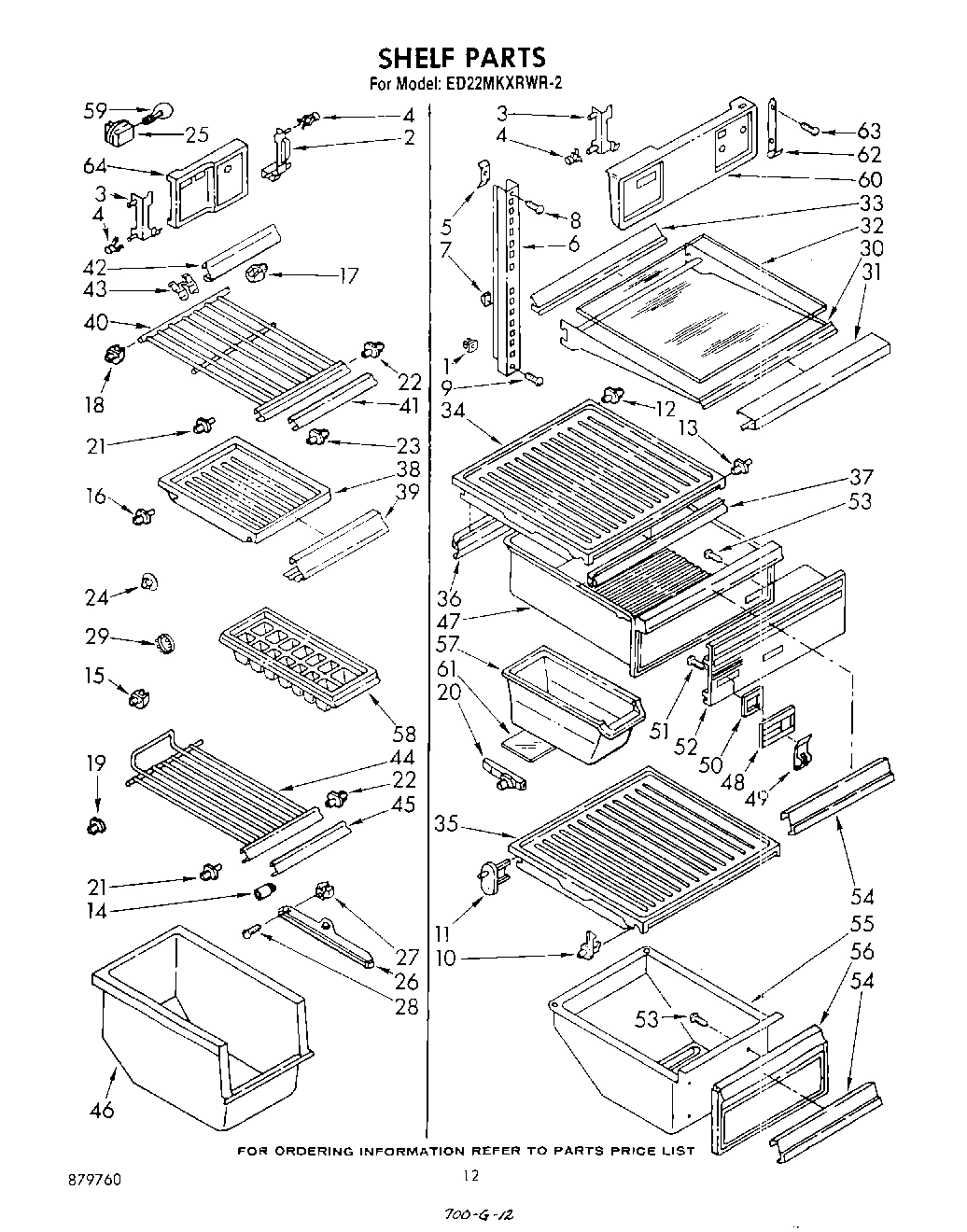

07 - SHELF, LIT/OPTIONAL

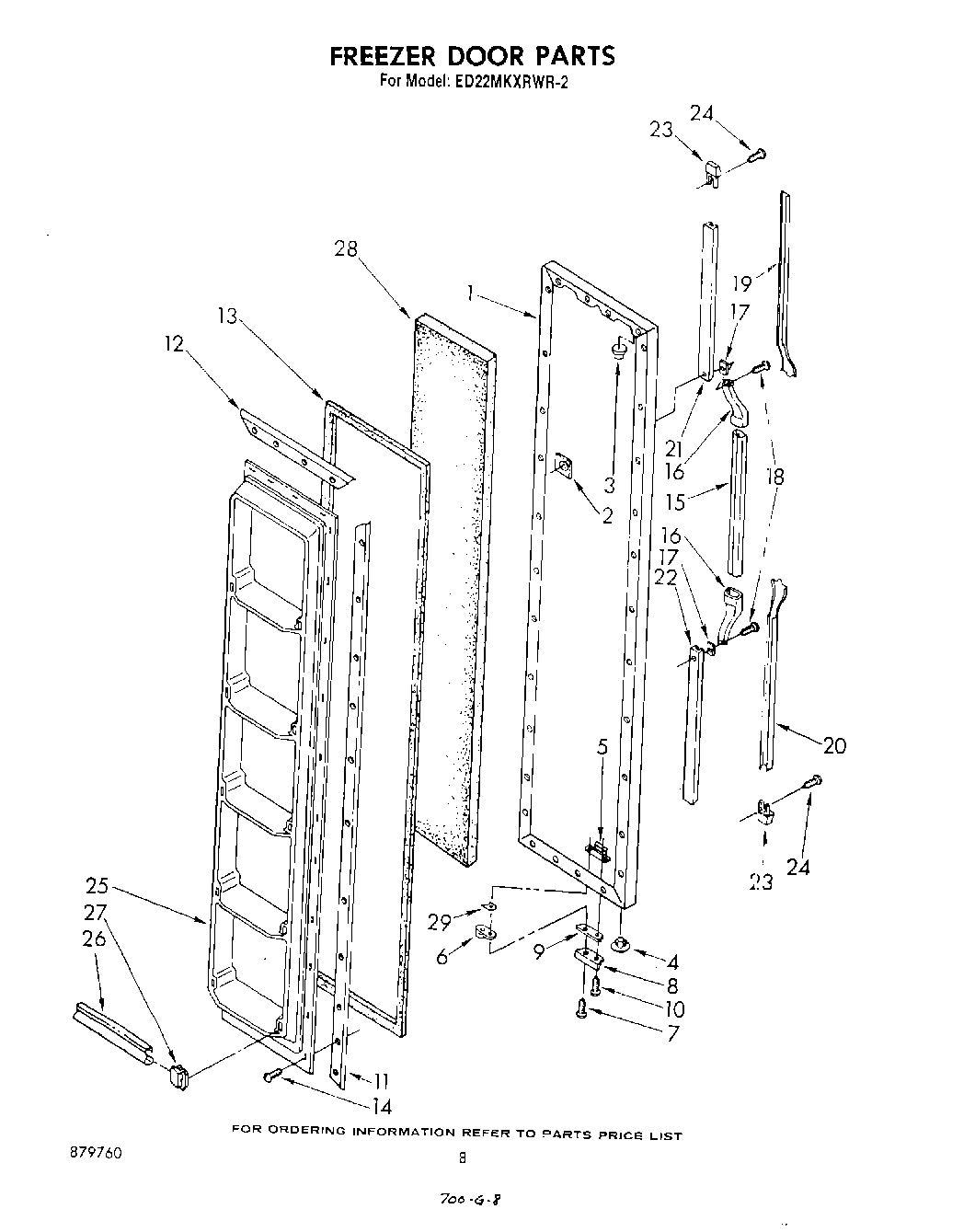

05 - FREEZER DOOR

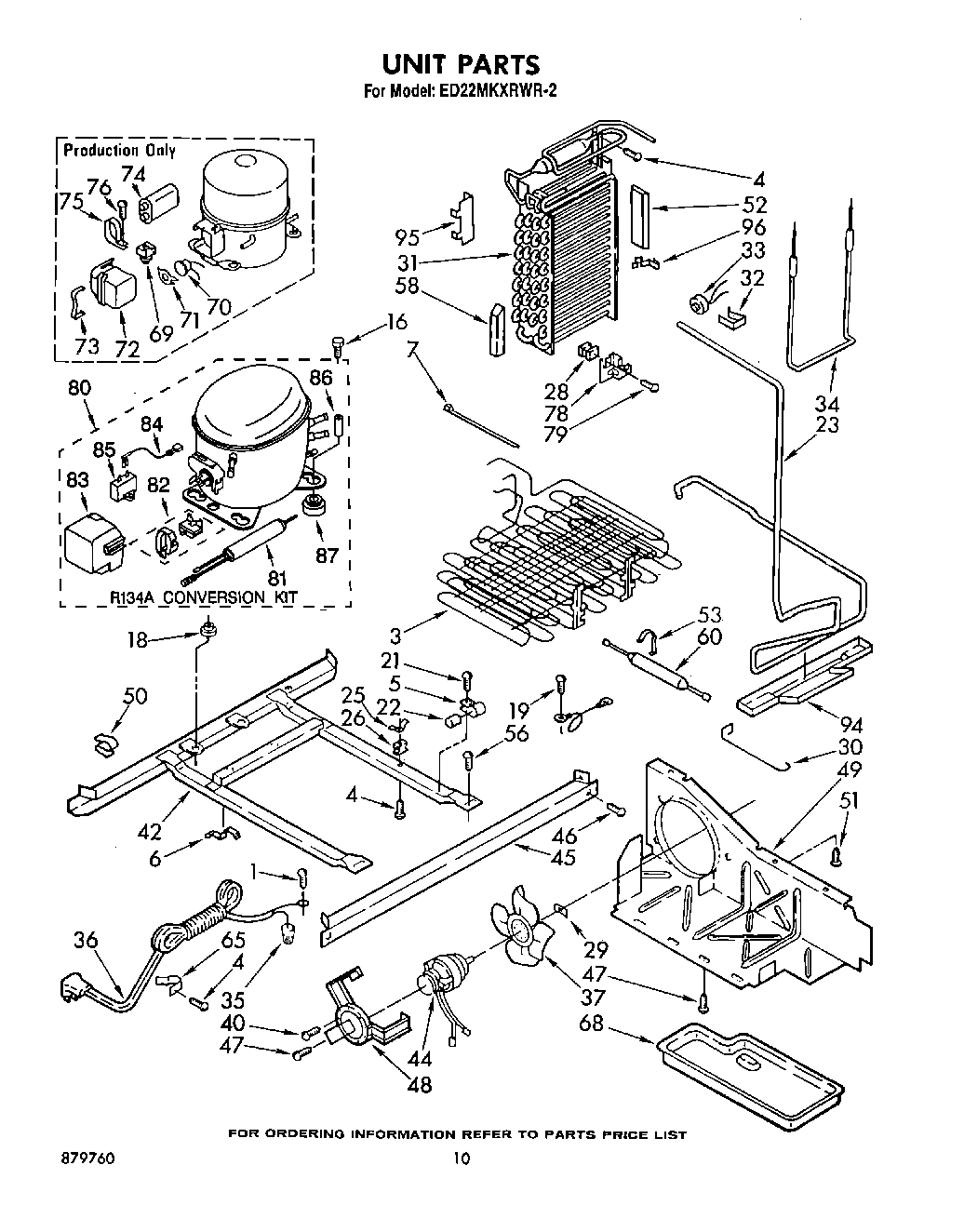

06 - UNIT
Common parts from model Whirlpool ED22MKXRMR2 SIDE BY SIDE REFRIGERATOR
WPL LIT1105009 WPL LIT1105009 Contact Us For Availability
WPL LIT1109121 WPL LIT1109121 Contact Us For Availability
WPL LIT1116105 WPL LIT1116105 Contact Us For Availability
WPL LIT879760 WPL LIT879760 Contact Us For Availability
1
Refrigerator, Door Panel (Toast) WPL 1101363 Contact Us For Availability
1
Refrigerator, Door Panel (Platinum) WPL 1101364 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 941246 Contact Us For Availability
1
Refrigerator, Door Panel (Golden Harvest) WPL 941248 Contact Us For Availability
1
Refrigerator, Door Panel (Almond) WPL 941250 Contact Us For Availability
1
Screw, Ground WPL 488474 Contact Us For Availability
1
Grommet WPL 842339 Contact Us For Availability
1
Freezer, Door Panel (Toast) WPL 1101365 Contact Us For Availability
1
Freezer Door Panel (Platinum) (Also Order Ite WPL 1101366 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 941254 Contact Us For Availability
1
Freezer, Door Panel (Golden Harvest) WPL 941256 Contact Us For Availability
1
Freezer, Door Panel (Almond) WPL 941258 Contact Us For Availability
2
Screw Anchor WPL 941242 Contact Us For Availability
2
Hole, Plug WPL 659776 Contact Us For Availability
2
Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability
3
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
3
Support, Light Lens (L.S.) WPL 842356 Contact Us For Availability
3
Condenser & Precooler WPL 943480 Contact Us For Availability
4
Hole Plug (White) WPL 534927 Contact Us For Availability
4
Clip, Tubular WPL 843945 Contact Us For Availability
4
Hole Plug (Toast) WPL 1100196 Contact Us For Availability
4
Hole Plug (Platinum) WPL 1100197 Contact Us For Availability
4
Hole Plug (Almond) WPL 989197 Contact Us For Availability
4
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
5
Tap Plate WPL 988402 Contact Us For Availability
5
Box, Control WPL 984550 Contact Us For Availability
5
Screw Anchor WPL 983604 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
6
Shelf, Ladder WPL 934264 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
7
Strap WPL 851095 Contact Us For Availability
8
Bracket, Door Stop WPL 988420 Contact Us For Availability
8
Control Box Front WPL 934045 Contact Us For Availability
8
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
9
Shim WPL 988421 Contact Us For Availability
9
Screw, 10-32 x 1-1/4 WPL 488960 Contact Us For Availability
9
Screw (Repair) WPL 488980 Contact Us For Availability
10
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
10
Defrost Timer WPL 943435 Contact Us For Availability
10
Shelf, Stud WPL 984779 Contact Us For Availability
10
Screw (Repair) WPL 488930 Contact Us For Availability
11
Shelf Stud WPL 937521 Contact Us For Availability
11
Retainer Side, Gasket WPL 836120 Contact Us For Availability
11
Retainer Top & Bottom Gasket WPL 836121 Contact Us For Availability
12
Stud WPL 936591 Contact Us For Availability
12
Retainer, Top & Bottom Gasket WPL 836122 Contact Us For Availability
13
Shelf, Stud WPL 208500 Contact Us For Availability
14
Knob, Temperature Control WPL 836482 Contact Us For Availability
14
Grommet WPL 533881 Contact Us For Availability
15
Handle, Center WPL 1108897 Contact Us For Availability
15
Handle Center (For Platinum Model Only) WPL 1111552 Contact Us For Availability
15
Air Duct WPL 848484 Contact Us For Availability
15
Shelf Support WPL 210518 Contact Us For Availability
16
Center End Cap (2) WPL 935103 Contact Us For Availability
16
Baffle, Air WPL 987954 Contact Us For Availability
16
Shelf, Stud WPL 529758 Contact Us For Availability
17
Shim, Handle Center WPL 935075 Contact Us For Availability
17
Grille, Freezer WPL 835740 Contact Us For Availability
17
Shelf Stud Saddle (R.S.) WPL 937516 Contact Us For Availability
18
Shelf Stud, Saddle (L.S.) WPL 523264 Contact Us For Availability
19
Blade, Fan WPL 992920 Contact Us For Availability
19
Insert, Handle (Top) (White) WPL 1108898 Contact Us For Availability
19
Insert, Handle (Top) (Golden Harvest) WPL 1108899 Contact Us For Availability
19
Insert, Handle (Top) (Almond) WPL 1108900 Contact Us For Availability
19
Insert, Handle (Top) (Toast) WPL 1108901 Contact Us For Availability
19
Insert, Handle (Top) (Platinum) WPL 1108902 Contact Us For Availability
19
Stud, Retainer WPL 512900 Contact Us For Availability
20
Insert, Handle (Bottom) (White) WPL 1108903 Contact Us For Availability
20
Insert, Handle (Bottom) (Golden Harvest) WPL 1108904 Contact Us For Availability
20
Insert, Handle (Bottom) (Almond) WPL 1108905 Contact Us For Availability
20
Insert, Handle (Bottom) (Toast) WPL 1108906 Contact Us For Availability
20
Insert, Handle (Bottom) (Platinum) WPL 1108907 Contact Us For Availability
20
Stud, Light Lens (R.S.) WPL 935243 Contact Us For Availability
20
Stud Light Lens (L.S.) WPL 935982 Contact Us For Availability
21
Retainer Insert WPL 941260 Contact Us For Availability
21
Fan, Bracket Double WPL 548263 Contact Us For Availability
21
Shelf Stud WPL 521878 Contact Us For Availability
22
Retainer Insert WPL 941262 Contact Us For Availability
22
Fan, Bracket Single WPL 548264 Contact Us For Availability
22
Shelf, Stud WPL 936957 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
23
End Cap WPL 941259 Contact Us For Availability
23
Fan, Grommet WPL 548268 Contact Us For Availability
23
Shelf, Stud WPL 937513 Contact Us For Availability
23
Exchanger, Heat WPL 1100809 Contact Us For Availability
24
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
24
Screw Grommet WPL 538449 Contact Us For Availability
24
Hole, Plug WPL 659598 Contact Us For Availability
25
Interior Door, Panel WPL 988671 Contact Us For Availability
25
Interior Door Pa WPL 482664 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
26
Trim, Interior Door (Top) WPL 1108786 Contact Us For Availability
26
Baffle, Liner Top WPL 836216 Contact Us For Availability
26
Slide, Freezer Bin WPL 982321 Contact Us For Availability
26
WPL 1108909 WPL 1108909 Contact Us For Availability
26
Grommet (4) WPL 943447 Contact Us For Availability
27
Expansion Clip WPL 537095 Contact Us For Availability
27
Scroll Fan WPL 991285 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
Trim, Interior Door (Bottom) WPL 1108787 Contact Us For Availability
28
Air Scoop Assembly WPL 841269 Contact Us For Availability
28
Screw, 8 x 1 WPL 487979 Contact Us For Availability
28
Grommet WPL 944454 Contact Us For Availability
29
Retainer Door Trim WPL 988709 Contact Us For Availability
29
Gasket, Air Scoop WPL 844871 Contact Us For Availability
29
Hole, Plug WPL 519890 Contact Us For Availability
30
Insert, Hole WPL 843887 Contact Us For Availability
30
Com WPL 1108788 Contact Us For Availability
30
Retainer, Damper WPL 938439 Contact Us For Availability
30
Shelf, Cantilever WPL 936787 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
31
Insert, Air Return WPL 982921 Contact Us For Availability
31
WPL 983804 WPL 983804 Contact Us For Availability
31
Control Knob WPL 837445 Contact Us For Availability
31
Trim, Shelf WPL 849021 Contact Us For Availability
31
Evaporator WPL 1101078 Contact Us For Availability
32
Retainer, Insert WPL 982920 Contact Us For Availability
32
Knob, Retainer WPL 837444 Contact Us For Availability
32
Glass, Cantilever Shelf WPL 1108782 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
33
Hinge, Top WPL 842039 Contact Us For Availability
33
Cover, Evaporator WPL 849496 Contact Us For Availability
33
Reflector, Cantilever WPL 849028 Contact Us For Availability
34
Shim, Hinge Top WPL 836192 Contact Us For Availability
34
WPL 945116 WPL 945116 Contact Us For Availability
34
Screw, Grommet WPL 981616 Contact Us For Availability
34
Pan Slide & Cover WPL 1108778 Contact Us For Availability
35
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
35
WPL 989896 WPL 989896 Contact Us For Availability
35
WPL 991259 WPL 991259 Contact Us For Availability
35
Pan Slide & Cover WPL 1101202 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
WPL 488949 WPL 488949 Contact Us For Availability
36
WPL 1108789 WPL 1108789 Contact Us For Availability
36
End Cap, Evaporator WPL 836144 Contact Us For Availability
36
Crisper Basket, Rear WPL 982588 Contact Us For Availability
36
Cord, Service WPL 850626 Contact Us For Availability
37
WPL 986763 WPL 986763 Contact Us For Availability
37
WPL 986764 WPL 986764 Contact Us For Availability
37
Gasket, Evaporator Cover WPL 844844 Contact Us For Availability
37
Crisper Gasket Front WPL 982587 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
38
Air Diffuser Assembly WPL 946145 Contact Us For Availability
38
Solid Shelf WPL 848947 Contact Us For Availability
39
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
39
Solid Shelf Trim WPL 985522 Contact Us For Availability
40
WPL 836196 WPL 836196 Contact Us For Availability
40
Shelf, Freezer WPL 981500 Contact Us For Availability
41
WPL 987179 WPL 987179 Contact Us For Availability
42
WPL 836162 WPL 836162 Contact Us For Availability
42
Drain Pan WPL 842404 Contact Us For Availability
42
Shelf Reflector WPL 935420 Contact Us For Availability
42
Frame WPL 945463 Contact Us For Availability
43
WPL 936908 WPL 936908 Contact Us For Availability
43
Fitting, Drain Pan WPL 841770 Contact Us For Availability
43
Clip, Reflector WPL 939348 Contact Us For Availability
44
WPL 935114 WPL 935114 Contact Us For Availability
44
Gasket, Drain Pan WPL 845564 Contact Us For Availability
44
Shelf, Ice Cube Pan WPL 986975 Contact Us For Availability
45
WPL 848477 WPL 848477 Contact Us For Availability
45
Cap, Drain WPL 842259 Contact Us For Availability
45
Shelf Trim, Ice Pan WPL 985590 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
46
WPL 836090 WPL 836090 Contact Us For Availability
46
Cover, Heat Exchanger WPL 848482 Contact Us For Availability
46
Freezer Bin, Plastic WPL 1108784 Contact Us For Availability
47
WPL 983253 WPL 983253 Contact Us For Availability
47
Heat Exchanger, Clip WPL 983605 Contact Us For Availability
47
Pan Crisper WPL 943112 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
48
WPL 1115719 WPL 1115719 Contact Us For Availability
48
Housing, Humidity Control WPL 942234 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
WPL 848481 WPL 848481 Contact Us For Availability
49
Slide, Humidity Control WPL 942235 Contact Us For Availability
49
Baffle, Air WPL 850391 Contact Us For Availability
50
WPL 1100307 WPL 1100307 Contact Us For Availability
50
WPL 1100308 WPL 1100308 Contact Us For Availability
50
WPL 944233 WPL 944233 Contact Us For Availability
50
WPL 944235 WPL 944235 Contact Us For Availability
50
WPL 944237 WPL 944237 Contact Us For Availability
50
Wiring Cabinet (Defrost Timer) WPL 481782 Contact Us For Availability
50
Seal, Humidity Control WPL 942236 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
51
WPL 546131 WPL 546131 Contact Us For Availability
51
Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability
51
Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability
52
Front Cover, Crisper WPL 1108777 Contact Us For Availability
52
Baffle, Air WPL 849335 Contact Us For Availability
53
Screw (Repair) WPL 488132 Contact Us For Availability
53
Clamp, Drier WPL 548508 Contact Us For Availability
54
Overlay, Front Cover WPL 984750 Contact Us For Availability
55
WPL 849909 WPL 849909 Contact Us For Availability
55
Pan WPL 840037 Contact Us For Availability
56
Front Cover, Meat Pan WPL 1108780 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
57
WPL 850738 WPL 850738 Contact Us For Availability
58
Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability
59
WPL 989660 WPL 989660 Contact Us For Availability
60
WPL 935663 WPL 935663 Contact Us For Availability
60
WPL 943218 WPL 943218 Contact Us For Availability
61
WPL 548734 WPL 548734 Contact Us For Availability
61
WPL 935418 WPL 935418 Contact Us For Availability
62
WPL 549947 WPL 549947 Contact Us For Availability
62
WPL 984552 WPL 984552 Contact Us For Availability
64
WPL 479502 WPL 479502 Contact Us For Availability
64
WPL 836068 WPL 836068 Contact Us For Availability
64
WPL 261890 WPL 261890 Contact Us For Availability
64
WPL 261891 WPL 261891 Contact Us For Availability
64
WPL 285365 WPL 285365 Contact Us For Availability
64
WPL 285366 WPL 285366 Contact Us For Availability
64
WPL 285367 WPL 285367 Contact Us For Availability
64
WPL 285368 WPL 285368 Contact Us For Availability
64
WPL 350941 WPL 350941 Contact Us For Availability
64
WPL 542639 WPL 542639 Contact Us For Availability
64
WPL 72112 WPL 72112 Contact Us For Availability
64
WPL 799832 WPL 799832 Contact Us For Availability
64
WPL 799833 WPL 799833 Contact Us For Availability
64
WPL 799908 WPL 799908 Contact Us For Availability
64
WPL 978883 WPL 978883 Contact Us For Availability
64
WPL 985456 WPL 985456 Contact Us For Availability
65
WPL 841646 WPL 841646 Contact Us For Availability
66
WPL 841648 WPL 841648 Contact Us For Availability
68
WPL 836372 WPL 836372 Contact Us For Availability
68
Tray, Evaporator WPL 849331 Contact Us For Availability
69
WPL 850457 WPL 850457 Contact Us For Availability
69
Relay WPL 945535 Contact Us For Availability
70
Overload WPL 1101187 Contact Us For Availability
71
WPL 481658 WPL 481658 Contact Us For Availability
71
Overload Spring WPL 943494 Contact Us For Availability
72
WPL 489085 WPL 489085 Contact Us For Availability
72
Terminal Cover WPL 943496 Contact Us For Availability
73
WPL 989068 WPL 989068 Contact Us For Availability
73
Terminal Cover Strap WPL 943497 Contact Us For Availability
74
Running Capacitor WPL 1101183 Contact Us For Availability
75
Clamp, Capacitor WPL 1101184 Contact Us For Availability
78
Support, Evaporator WPL 842436 Contact Us For Availability
80
Compressor (Includes Items 81, 82, 83, 84, 85 WPL 4388009 Contact Us For Availability
86
Sleeve WPL 4387559 Contact Us For Availability
94
Pan, Drip WPL 945572 Contact Us For Availability
95
Heat Shield WPL 850568 Contact Us For Availability
96
WPL 978029 WPL 978029 Contact Us For Availability
96
Clamp, Heater (4) WPL 549419 Contact Us For Availability
96
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
