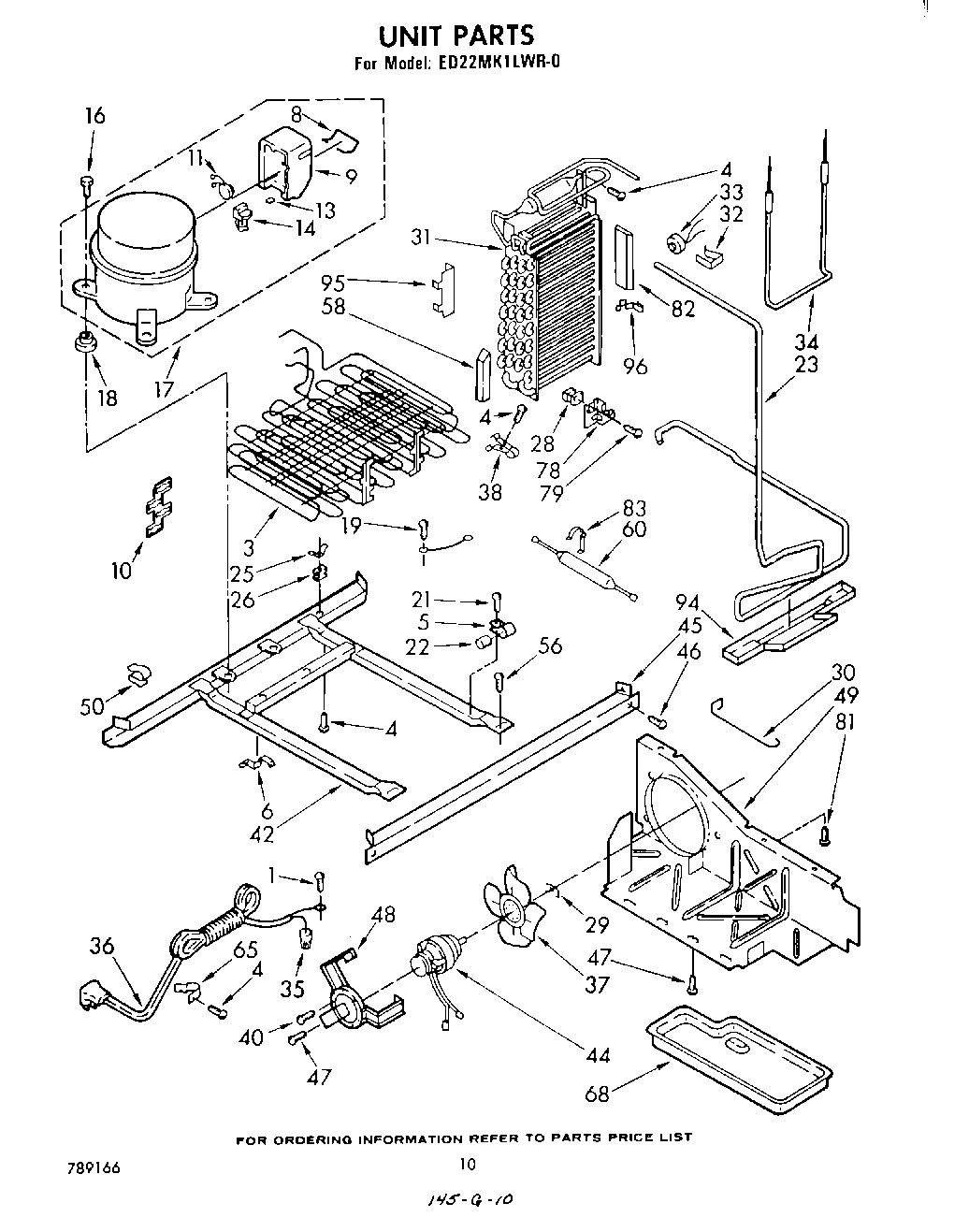

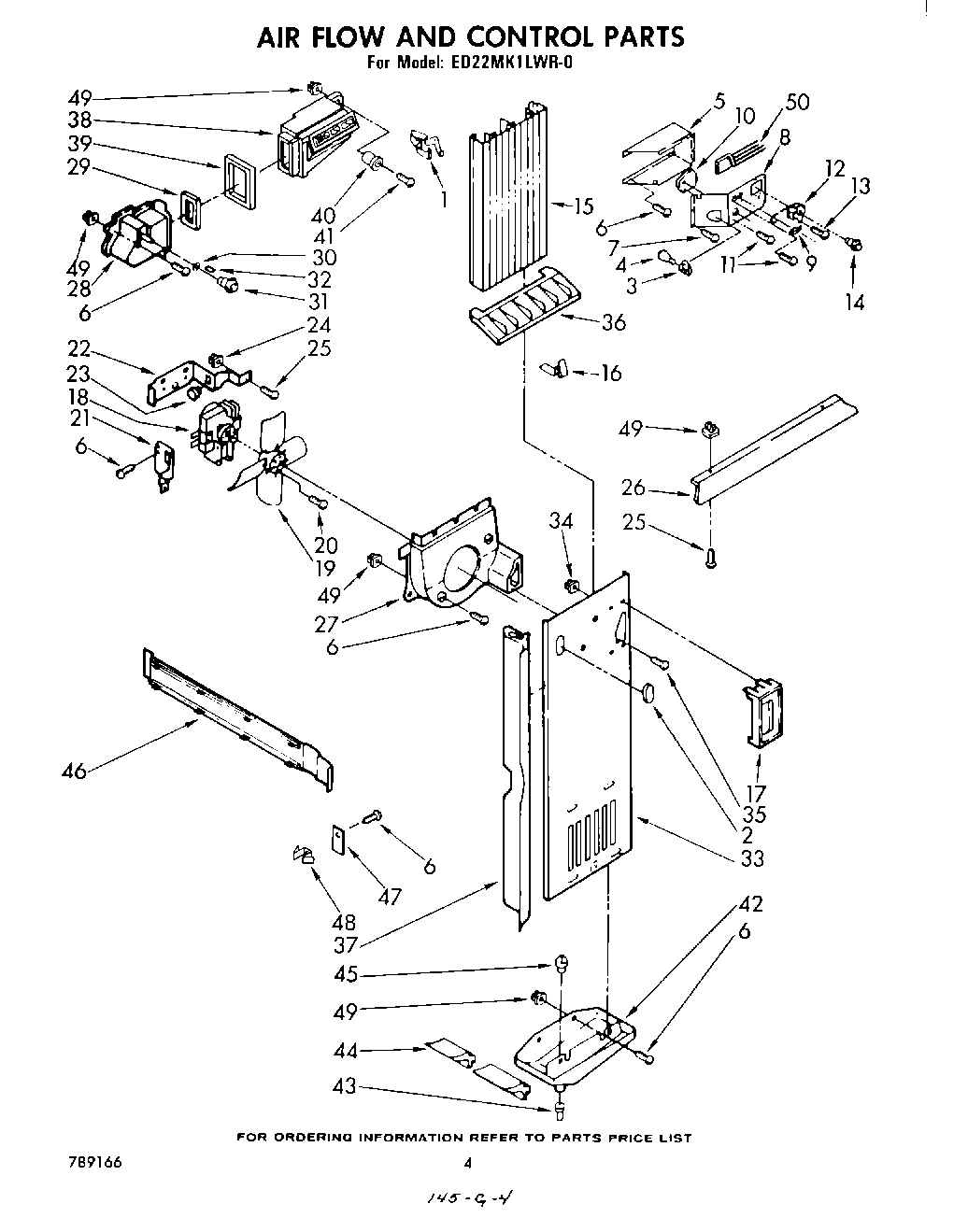

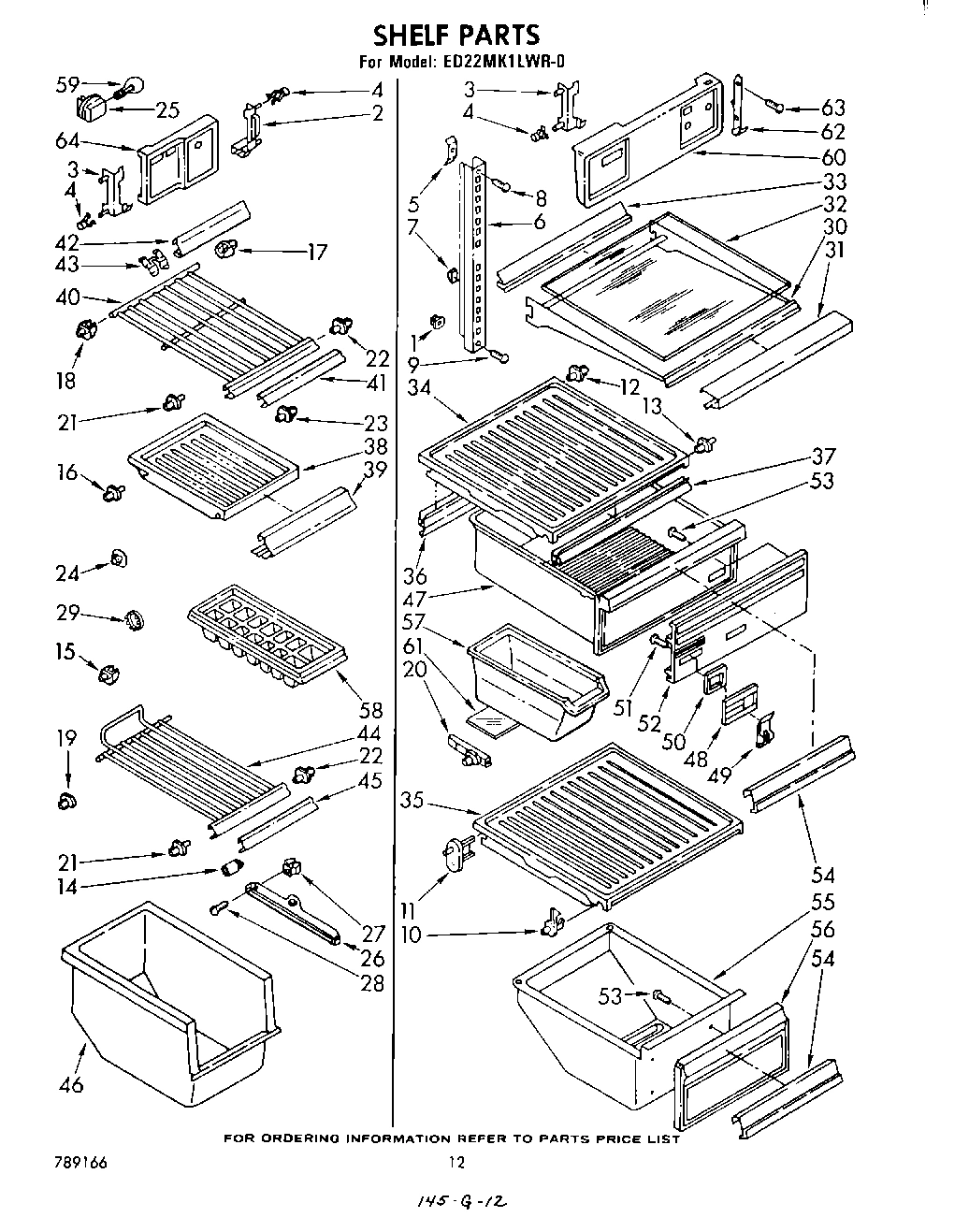

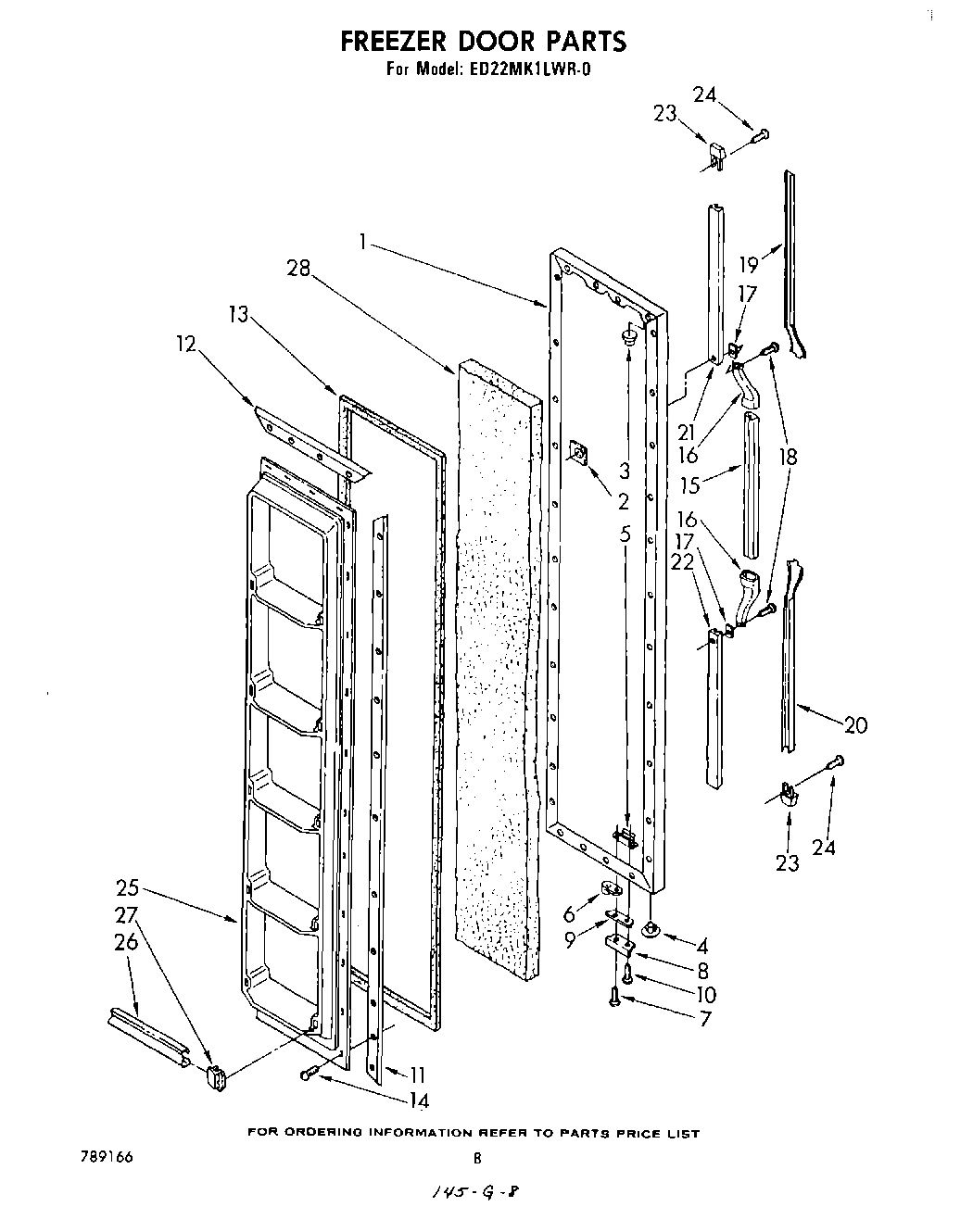

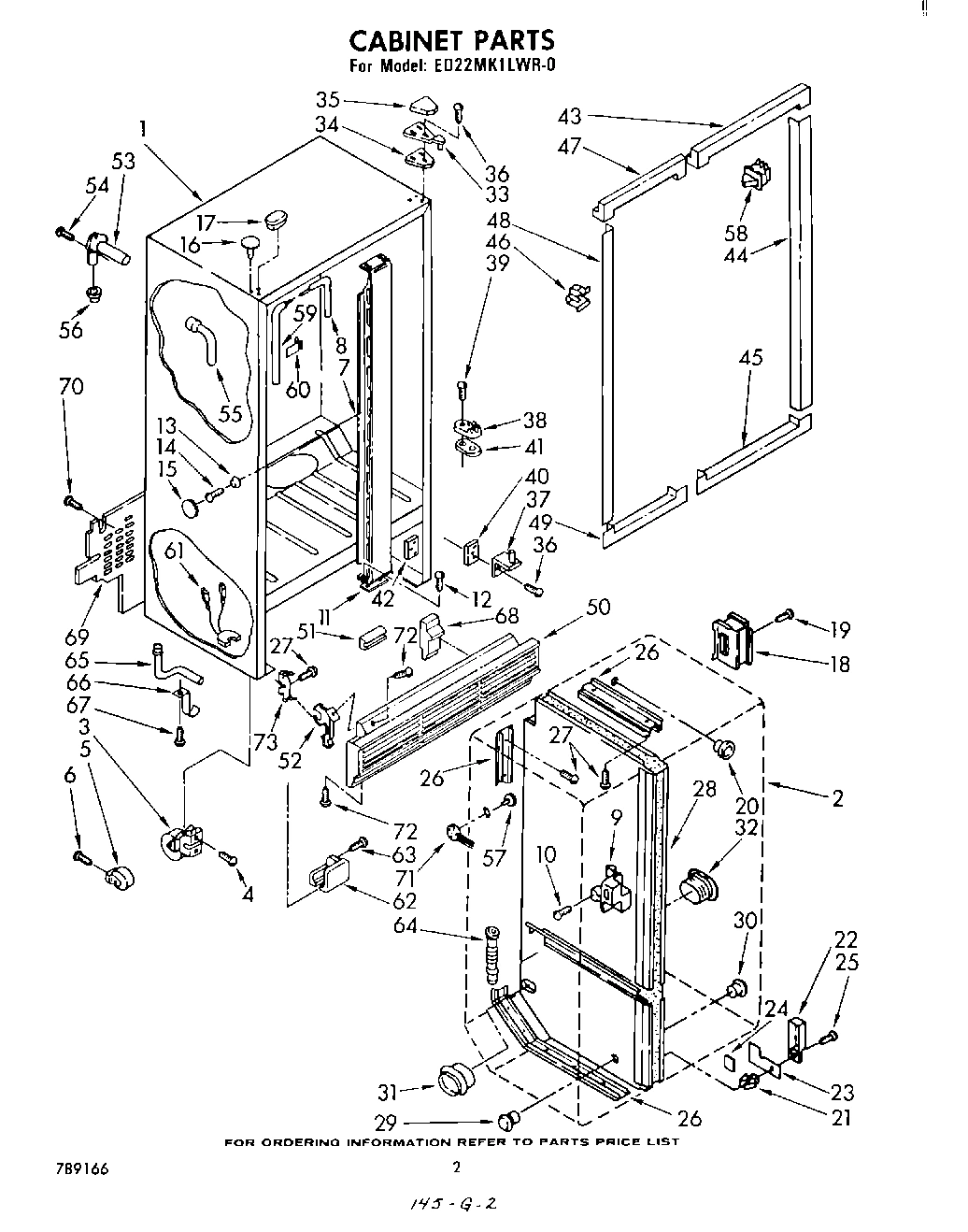

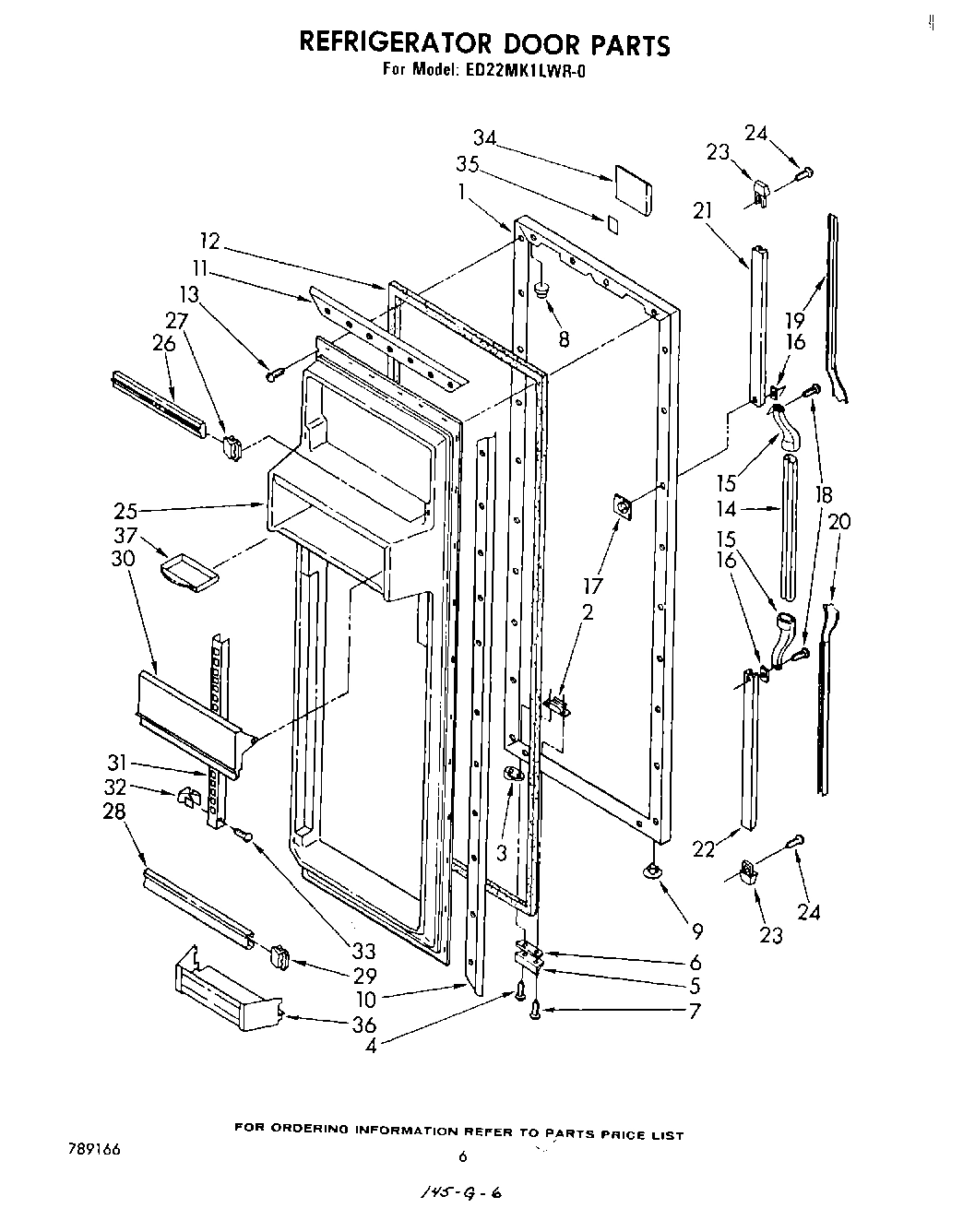

Model Whirlpool ED22MK1LWR0 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

Refrigerator, Door Panel (Toast) WPL 1101363 Contact Us For Availability

1

Refrigerator, Door Panel (Platinum) WPL 1101364 Contact Us For Availability

1

Refrigerator, Door Panel (White) WPL 941246 Contact Us For Availability

1

Refrigerator, Door Panel (Coffee) WPL 941247 Contact Us For Availability

1

Refrigerator, Door Panel (Golden Harvest) WPL 941248 Contact Us For Availability

1

Refrigerator Door Panel (New Avocado) WPL 941249 Contact Us For Availability

1

Refrigerator, Door Panel (Almond) WPL 941250 Contact Us For Availability

1

Grommet WPL 842339 Contact Us For Availability

1

Freezer, Door Panel (Toast) WPL 1101365 Contact Us For Availability

1

Freezer Door Panel (Platinum) WPL 1101366 Contact Us For Availability

1

Freezer, Door Panel (White) WPL 941254 Contact Us For Availability

1

Freezer, Door Panel (Coffee) WPL 941255 Contact Us For Availability

1

Freezer, Door Panel (Golden Harvest) WPL 941256 Contact Us For Availability

1

Freezer Door Panel (New Avocado) WPL 941257 Contact Us For Availability

1

Freezer, Door Panel (Almond) WPL 941258 Contact Us For Availability

2

Screw Anchor WPL 941242 Contact Us For Availability

2

Hole, Plug WPL 659776 Contact Us For Availability

2

Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability

3

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

3

Condenser & Precooler WPL 851123 Contact Us For Availability

3

Support, Light Lens (L.S.) WPL 842356 Contact Us For Availability

4

Hole Plug WPL 534927 Contact Us For Availability

4

Clip, Tubular WPL 843945 Contact Us For Availability

5

Tap Plate WPL 988402 Contact Us For Availability

5

Clamp (2) WPL 510716 Contact Us For Availability

5

Box, Control WPL 984550 Contact Us For Availability

5

Screw Anchor WPL 983604 Contact Us For Availability

6

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

6

Clip (2) WPL 548744 Contact Us For Availability

6

Shelf, Ladder WPL 934264 Contact Us For Availability

7

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

7

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

8

Bracket, Door Stop WPL 988420 Contact Us For Availability

8

Spring, Case WPL 531318 Contact Us For Availability

8

Control Box Front WPL 934045 Contact Us For Availability

8

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

9

Shim WPL 988421 Contact Us For Availability

9

Case, Relay WPL 549945 Contact Us For Availability

9

Screw, 10-32 x 1-1/4 WPL 488960 Contact Us For Availability

9

Screw (Repair) WPL 488980 Contact Us For Availability

Screw, 8 x 5/8 WPL 488549 Contact Us For Availability

Spacer Condenser (4) WPL 987210 Contact Us For Availability

Defrost Timer WPL 943435 Contact Us For Availability

Screw (Repair) WPL 488930 Contact Us For Availability

Shelf, Stud WPL 984779 Contact Us For Availability

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

Shelf Stud WPL 937521 Contact Us For Availability

Retainer Side, Gasket WPL 836120 Contact Us For Availability

Retainer Top & Bottom Gasket WPL 836121 Contact Us For Availability

Overload WPL 941583 Contact Us For Availability

Overload (Service Compressor Only) WPL 941639 Contact Us For Availability

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $125.61

WP819470 Whirlpool Refrigerator Thermostat In Stock WPL WP819470 $62.70

Stud WPL 936591 Contact Us For Availability

Retainer, Top & Bottom Gasket WPL 836122 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $132.43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Shelf, Stud WPL 208500 Contact Us For Availability

Bumper WPL 547272 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Relay WPL 938263 Contact Us For Availability

Knob, Temperature Control WPL 836482 Contact Us For Availability

Grommet WPL 533881 Contact Us For Availability

Handle, Center (Toast) WPL 1101369 Contact Us For Availability

Handle, Center (Platinum) WPL 1101370 Contact Us For Availability

Handle, Center (New Avocado) WPL 935092 Contact Us For Availability

Handle, Center (Golden Harvest) WPL 935093 Contact Us For Availability

Handle, Center (White & Coffee) WPL 944376 Contact Us For Availability

Handle, Center (Almond) WPL 944377 Contact Us For Availability

Air Duct WPL 848484 Contact Us For Availability

Shelf Support WPL 210518 Contact Us For Availability

Center End Cap (2) WPL 935103 Contact Us For Availability

Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability

Baffle, Air WPL 987954 Contact Us For Availability

Shelf, Stud WPL 529758 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 992773 Contact Us For Availability

Hole Plug (Almond) WPL 992774 Contact Us For Availability

Shim, Handle Center WPL 935075 Contact Us For Availability

Compressor (Includes Items 8, 9, 11, 13 & 14) WPL 876639 Contact Us For Availability

Grille, Freezer WPL 835740 Contact Us For Availability

Shelf Stud Saddle (R.S.) WPL 937516 Contact Us For Availability

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $88.24

Control Connector & Gasket Assembly WPL 848433 Contact Us For Availability

Grommet (4) WPL 547283 Contact Us For Availability

Shelf Stud, Saddle (L.S.) WPL 523264 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Insert, Handle WPL 941261 Contact Us For Availability

Blade, Fan WPL 839859 Contact Us For Availability

Stud, Retainer WPL 512900 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Grommet, Wiring WPL 851020 Contact Us For Availability

Insert, Handle WPL 941263 Contact Us For Availability

Stud, Light Lens (R.S.) WPL 935243 Contact Us For Availability

Stud Light Lens (L.S.) WPL 935982 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Retainer Insert WPL 941260 Contact Us For Availability

Fan, Bracket Double WPL 548263 Contact Us For Availability

Shelf Stud WPL 521878 Contact Us For Availability

Escutcheon Meat WPL 984101 Contact Us For Availability

Retainer Insert WPL 941262 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Fan, Bracket Single WPL 548264 Contact Us For Availability

Shelf, Stud WPL 936957 Contact Us For Availability

Slide, Meat Control WPL 984102 Contact Us For Availability

End Cap WPL 941259 Contact Us For Availability

Exchanger, Heat WPL 941683 Contact Us For Availability

Fan, Grommet WPL 548268 Contact Us For Availability

Shelf, Stud WPL 937513 Contact Us For Availability

Pad, Foam WPL 992358 Contact Us For Availability

Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability

Screw Grommet WPL 538449 Contact Us For Availability

Hole, Plug WPL 659598 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

Interior Door, Panel WPL 944372 Contact Us For Availability

Interior, Door Panel (For Platinum Model Only WPL 988671 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Interior Door Panel (For Platinum Model Only) WPL 482664 Contact Us For Availability

Interior Door Panel WPL 944379 Contact Us For Availability

Track Divider (Back & Bottom) WPL 946146 Contact Us For Availability

Track, Divider (Top) WPL 988455 Contact Us For Availability

Trim, Interior Door (Top) WPL 988746 Contact Us For Availability

Grommet (4) WPL 548737 Contact Us For Availability

Baffle, Liner Top WPL 836216 Contact Us For Availability

Trim, Door Shelf WPL 991496 Contact Us For Availability

Slide, Freezer Bin WPL 982321 Contact Us For Availability

27

WP839904 Whirlpool Refrigerator Endcap Trim In Stock WPL WP839904 $3.70

27

Expansion Clip WPL 537095 Contact Us For Availability

27

Scroll Fan WPL 991285 Contact Us For Availability

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Divider, Mullion WPL 935415 Contact Us For Availability

Trim, Interior D WPL 988747 Contact Us For Availability

Grommet WPL 944454 Contact Us For Availability

Air Scoop Assembly WPL 841269 Contact Us For Availability

Screw, 8 x 1 WPL 487979 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Retainer, H WPL 843888 Contact Us For Availability

WPL 943138 WPL 943138 Contact Us For Availability

WPL 988709 WPL 988709 Contact Us For Availability

Gasket, Air Scoop WPL 844871 Contact Us For Availability

Hole, Plug WPL 519890 Contact Us For Availability

WPL 843887 WPL 843887 Contact Us For Availability

WPL 935352 WPL 935352 Contact Us For Availability

Guard, Fan WPL 850156 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Shelf, Cantilever WPL 936787 Contact Us For Availability

WPL 982921 WPL 982921 Contact Us For Availability

WPL 983804 WPL 983804 Contact Us For Availability

Evaporator WPL 850383 Contact Us For Availability

Control Knob WPL 837445 Contact Us For Availability

Trim, Shelf WPL 849021 Contact Us For Availability

WPL 982920 WPL 982920 Contact Us For Availability

Clamp WPL 513584 Contact Us For Availability

Knob, Retainer WPL 837444 Contact Us For Availability

Glass Cantilever WPL 944369 Contact Us For Availability

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

WPL 842039 WPL 842039 Contact Us For Availability

Cover, Evaporator WPL 849496 Contact Us For Availability

Reflector, Cantilever WPL 849028 Contact Us For Availability

WP549433 Whirlpool Refrigerator Heater Backorder WPL WP549433 $73.76

WPL 836192 WPL 836192 Contact Us For Availability

WPL 945116 WPL 945116 Contact Us For Availability

Screw, Grommet WPL 981616 Contact Us For Availability

Pan Slide & Cover WPL 935120 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WPL 1100172 WPL 1100172 Contact Us For Availability

WPL 989895 WPL 989895 Contact Us For Availability

WPL 989896 WPL 989896 Contact Us For Availability

WPL 989897 WPL 989897 Contact Us For Availability

WPL 991259 WPL 991259 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

Pan Slide & Cover (For Platinum Model Only) WPL 1101202 Contact Us For Availability

Pan Slide & Cover WPL 935119 Contact Us For Availability

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WPL 488949 WPL 488949 Contact Us For Availability

WPL 944373 WPL 944373 Contact Us For Availability

WPL 988680 WPL 988680 Contact Us For Availability

Cord, Service WPL 850626 Contact Us For Availability

End Cap, Evaporator WPL 836144 Contact Us For Availability

Crisper Basket, Rear WPL 982588 Contact Us For Availability

WPL 986763 WPL 986763 Contact Us For Availability

WPL 986764 WPL 986764 Contact Us For Availability

Blade, Fan WPL 989524 Contact Us For Availability

Gasket, Evaporator Cover WPL 844844 Contact Us For Availability

Crisper Gasket Front WPL 982587 Contact Us For Availability

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Tube Clip WPL 510414 Contact Us For Availability

Air Diffuser Assembly WPL 946145 Contact Us For Availability

Solid Shelf (For Platinum Model Only) WPL 848947 Contact Us For Availability

Solid Shelf WPL 935422 Contact Us For Availability

39

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

39

Gasket, Air Diffuser WPL 842394 Contact Us For Availability

39

Solid Shelf Trim WPL 985522 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

WPL 836196 WPL 836196 Contact Us For Availability

Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability

Shelf, Freezer WPL 981500 Contact Us For Availability

41

WPL 987179 WPL 987179 Contact Us For Availability

WPL 836162 WPL 836162 Contact Us For Availability

Frame WPL 936079 Contact Us For Availability

Drain Pan WPL 842404 Contact Us For Availability

Shelf Reflector WPL 935420 Contact Us For Availability

43

WPL 848475 WPL 848475 Contact Us For Availability

43

Fitting, Drain Pan WPL 841770 Contact Us For Availability

43

Clip, Reflector WPL 939348 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WPL 848476 WPL 848476 Contact Us For Availability

Gasket, Drain Pan WPL 845564 Contact Us For Availability

Shelf, Ice Cube Pan WPL 986975 Contact Us For Availability

WPL 848477 WPL 848477 Contact Us For Availability

Rail, Front WPL 548662 Contact Us For Availability

Cap, Drain WPL 842259 Contact Us For Availability

Shelf Trim, Ice Pan WPL 985590 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WPL 836090 WPL 836090 Contact Us For Availability

Cover, Heat Exchanger WPL 848482 Contact Us For Availability

Freezer Bin, Plastic (For Platinum Model Only WPL 1101372 Contact Us For Availability

Freezer Bin, Plastic WPL 944370 Contact Us For Availability

WPL 848479 WPL 848479 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Heat Exchanger, Clip WPL 983605 Contact Us For Availability

Pan Crisper WPL 943112 Contact Us For Availability

48

WPL 848480 WPL 848480 Contact Us For Availability

48

Bracket, Fan Motor WPL 548695 Contact Us For Availability

48

Housing, Humidity Control WPL 942234 Contact Us For Availability

49

WPL 848481 WPL 848481 Contact Us For Availability

49

Baffle, Air WPL 850391 Contact Us For Availability

49

Slide, Humidity Control WPL 942235 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 479502 WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL 1100307 WPL 1100307 Contact Us For Availability

WPL 1100308 WPL 1100308 Contact Us For Availability

WPL 944233 WPL 944233 Contact Us For Availability

WPL 944234 WPL 944234 Contact Us For Availability

WPL 944235 WPL 944235 Contact Us For Availability

WPL 944236 WPL 944236 Contact Us For Availability

WPL 944237 WPL 944237 Contact Us For Availability

Clip, Wire (2) WPL 548745 Contact Us For Availability

Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability

Enamel, Coffee (1 Qt. Uncut) WPL 261887 Contact Us For Availability

Enamel, New Avocado (13 Oz. Spray Can) WPL 261888 Contact Us For Availability

Enamel, New Avocado (1 Qt. Uncut) WPL 261889 Contact Us For Availability

Enamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

Pa WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 481782 WPL 481782 Contact Us For Availability

WPL 484310 WPL 484310 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 789166 WPL 789166 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799351 WPL 799351 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 944005 WPL 944005 Contact Us For Availability

WPL 946610 WPL 946610 Contact Us For Availability

WPL 946939 WPL 946939 Contact Us For Availability

WPL 946940 WPL 946940 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Seal, Humidity Control WPL 942236 Contact Us For Availability

51

WPL 546131 WPL 546131 Contact Us For Availability

51

Screw, 6-19 x 7/16 WPL 489041 Contact Us For Availability

52

WP944224 Whirlpool Refrigerator Support Backorder WPL WP944224 $3.70

52

Front Cover WPL 1100399 Contact Us For Availability

52

WPL 943114 WPL 943114 Contact Us For Availability

53

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

53

WPL 488132 WPL 488132 Contact Us For Availability

54

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

54

WPL 984750 WPL 984750 Contact Us For Availability

55

WPL 849909 WPL 849909 Contact Us For Availability

55

WPL 840037 WPL 840037 Contact Us For Availability

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

WPL 1101201 WPL 1101201 Contact Us For Availability

WPL 943121 WPL 943121 Contact Us For Availability

57

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

57

WPL 850738 WPL 850738 Contact Us For Availability

58

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

58

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

58

Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability

59

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

59

WPL 989660 WPL 989660 Contact Us For Availability

60

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

60

WPL 935663 WPL 935663 Contact Us For Availability

60

WPL 943218 WPL 943218 Contact Us For Availability

61

WPL 548734 WPL 548734 Contact Us For Availability

61

WPL 935418 WPL 935418 Contact Us For Availability

62

WPL 549947 WPL 549947 Contact Us For Availability

62

WPL 984552 WPL 984552 Contact Us For Availability

63

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

63

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

64

WPL 836068 WPL 836068 Contact Us For Availability

64

WPL 985456 WPL 985456 Contact Us For Availability

65

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

65

WPL 841646 WPL 841646 Contact Us For Availability

66

WPL 841648 WPL 841648 Contact Us For Availability

68

WPL 836372 WPL 836372 Contact Us For Availability

68

Tray, Evaporator WPL 849331 Contact Us For Availability

69

WPL 850457 WPL 850457 Contact Us For Availability

70

NLA:SCREW Backorder WPL WPW10141645 $3.70

71

WPL 481658 WPL 481658 Contact Us For Availability

72

WPL 489085 WPL 489085 Contact Us For Availability

73

WPL 989068 WPL 989068 Contact Us For Availability

78

Support, Evaporator WPL 842436 Contact Us For Availability

81

Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability

82

Baffle, Air WPL 849335 Contact Us For Availability

83

Clamp, Drier WPL 548508 Contact Us For Availability

94

Pan, Drip WPL 989269 Contact Us For Availability

95

Heat Shield WPL 850568 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clamp, Heater (4) WPL 549419 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
