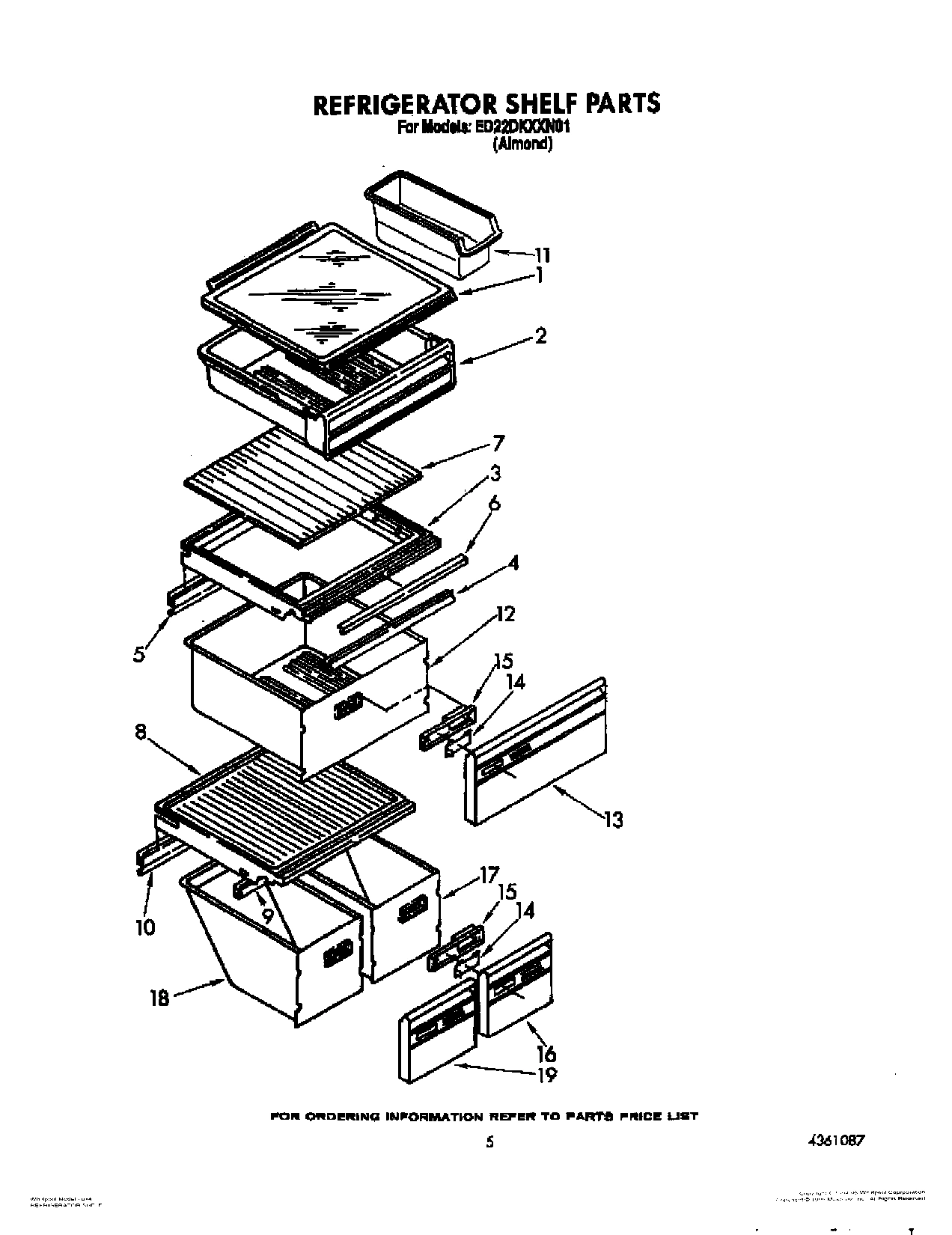

Model Whirlpool ED22DKXXW01 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

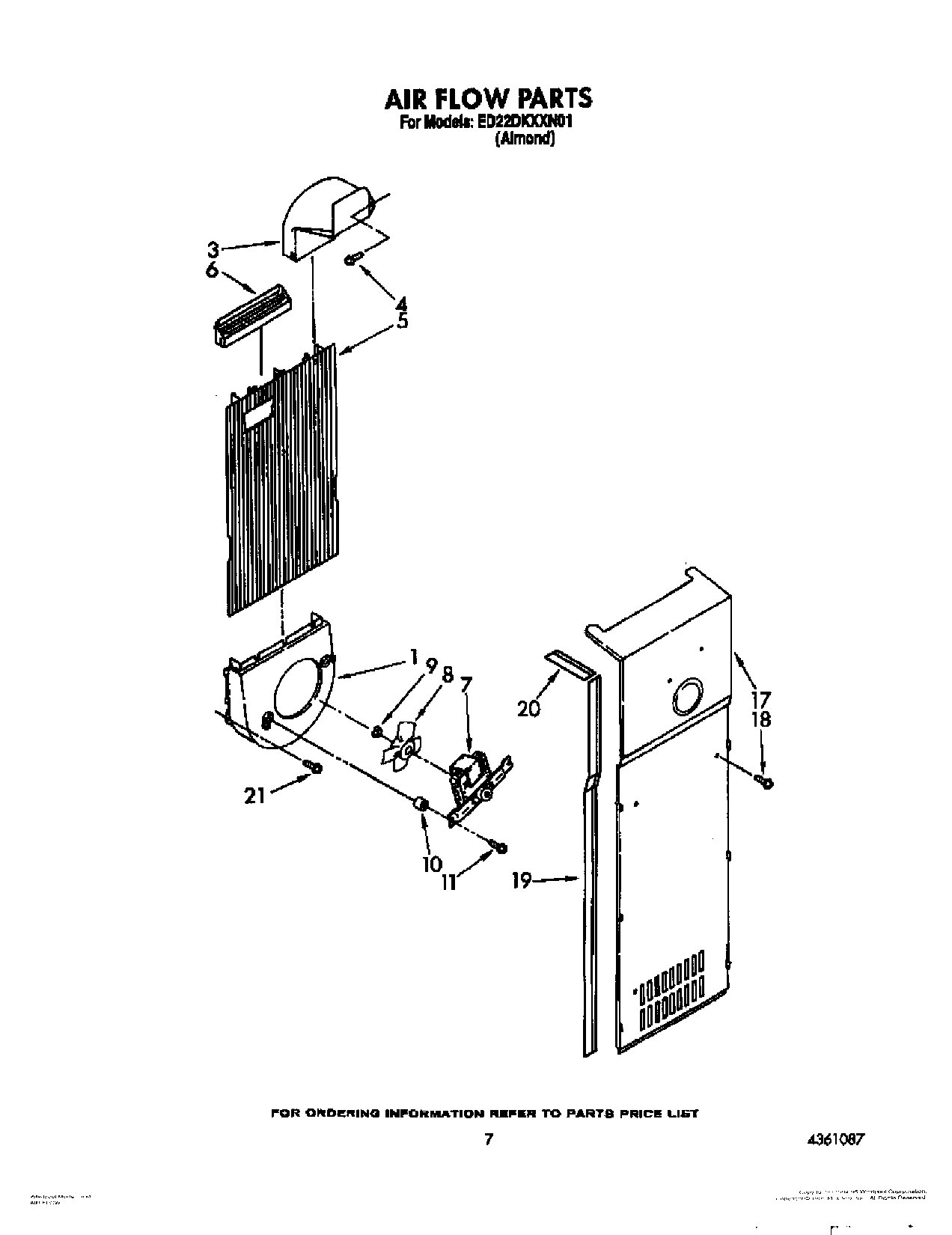

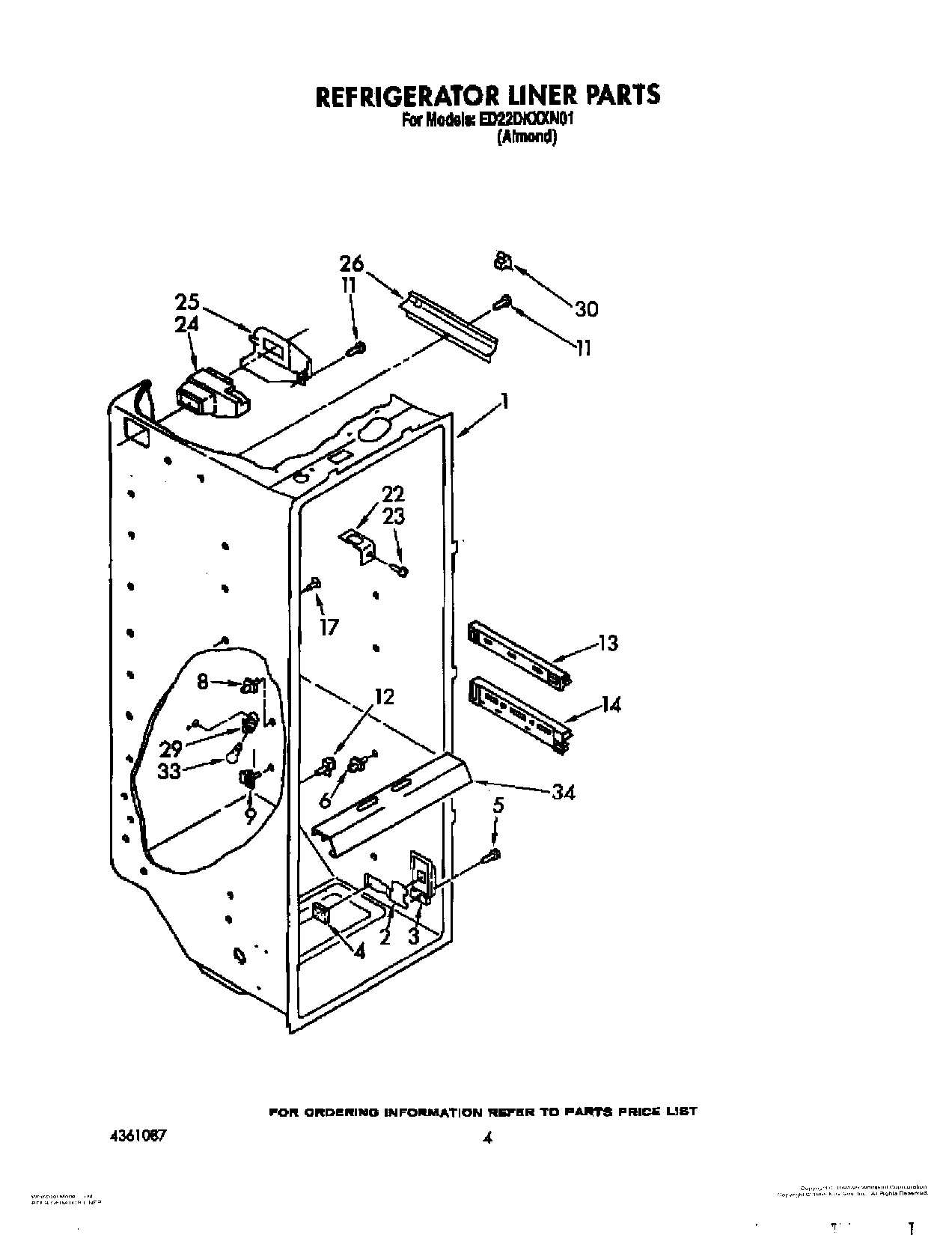

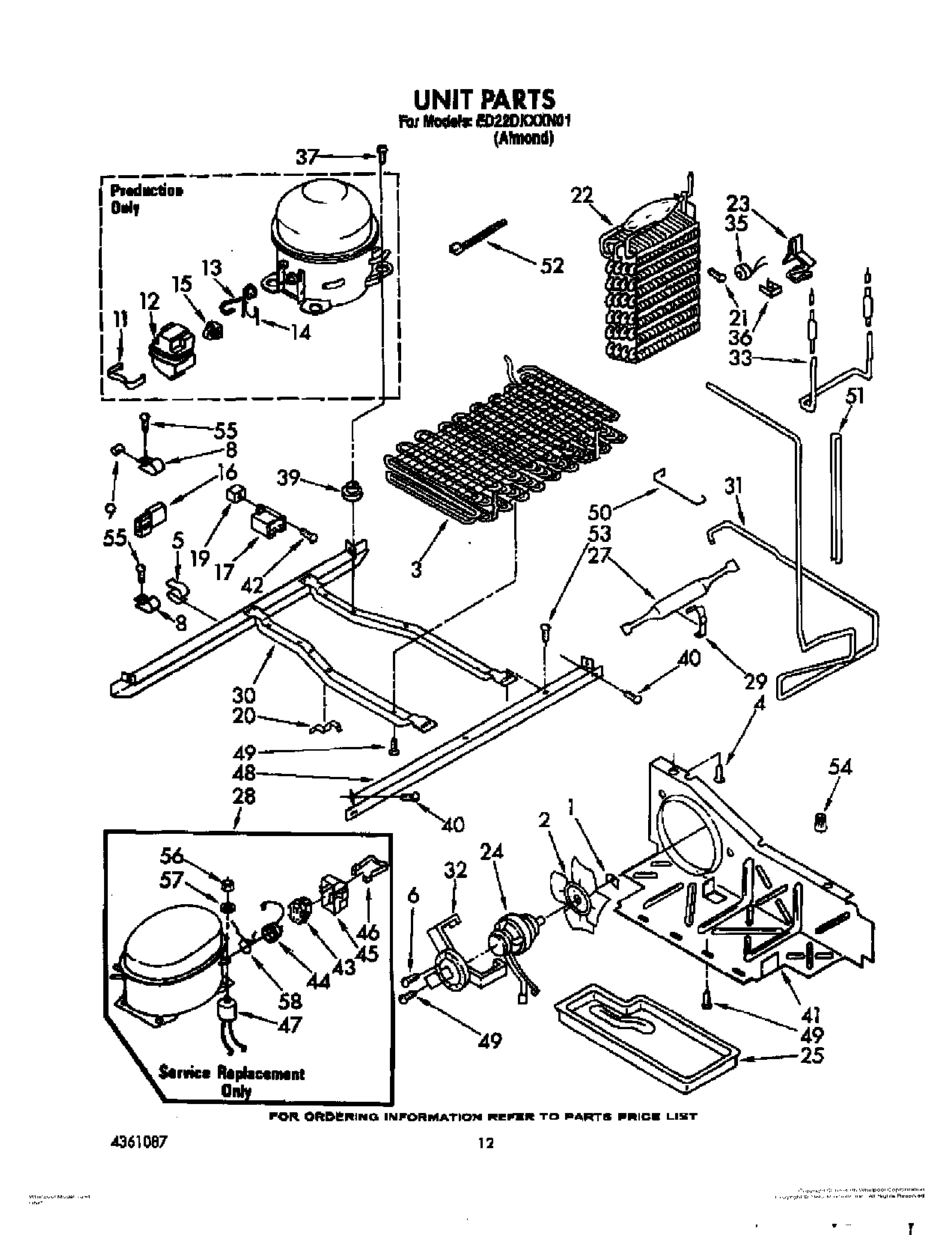

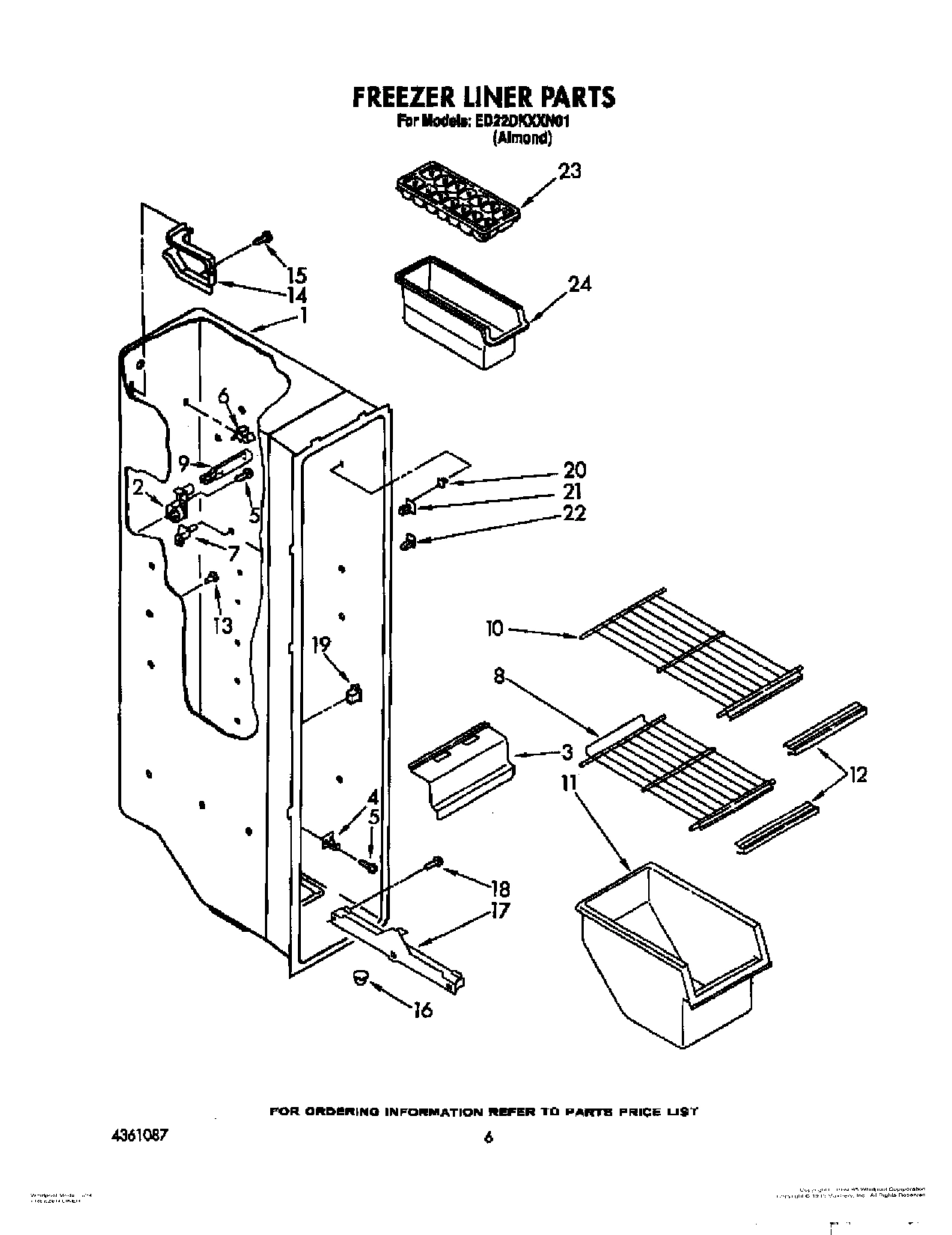

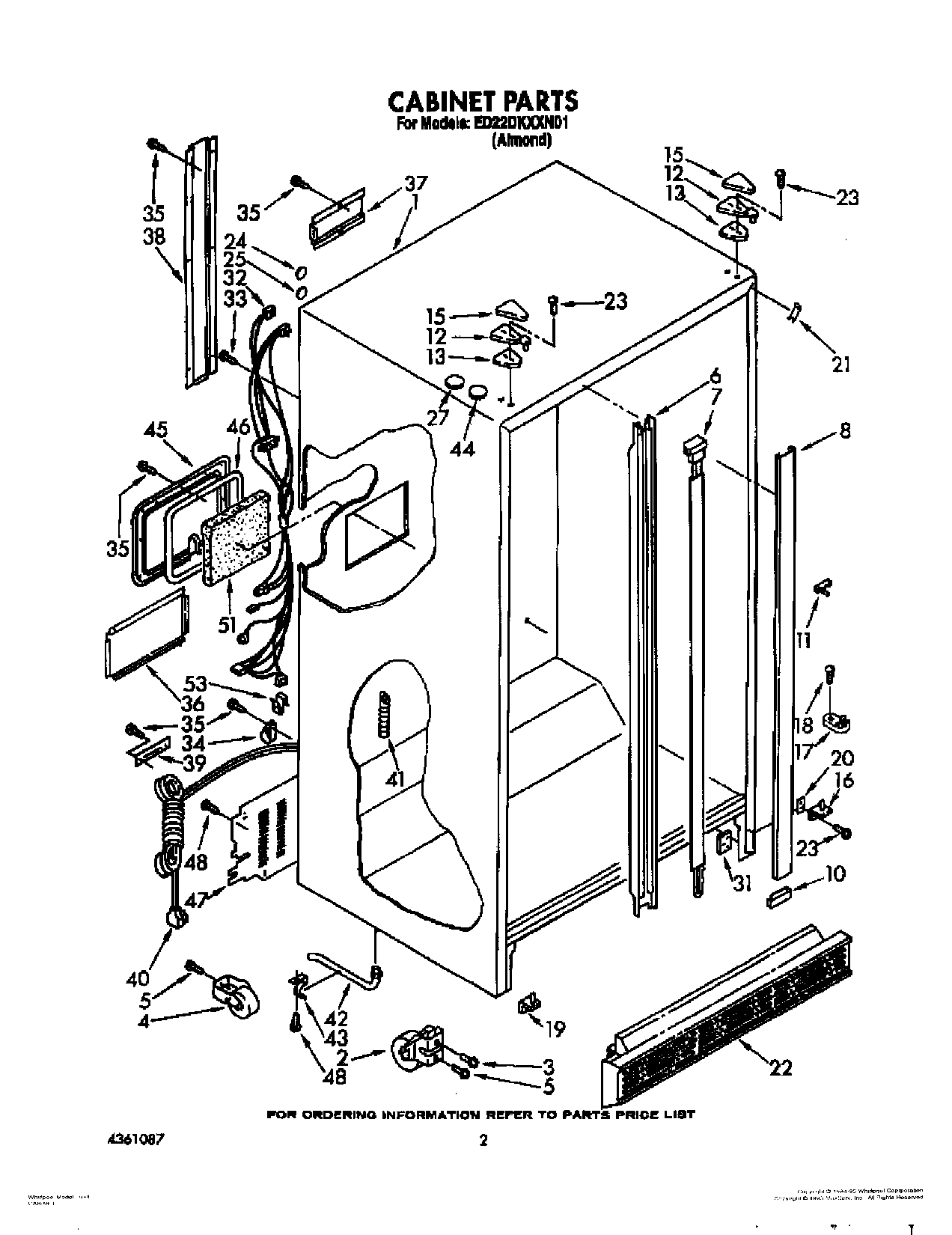

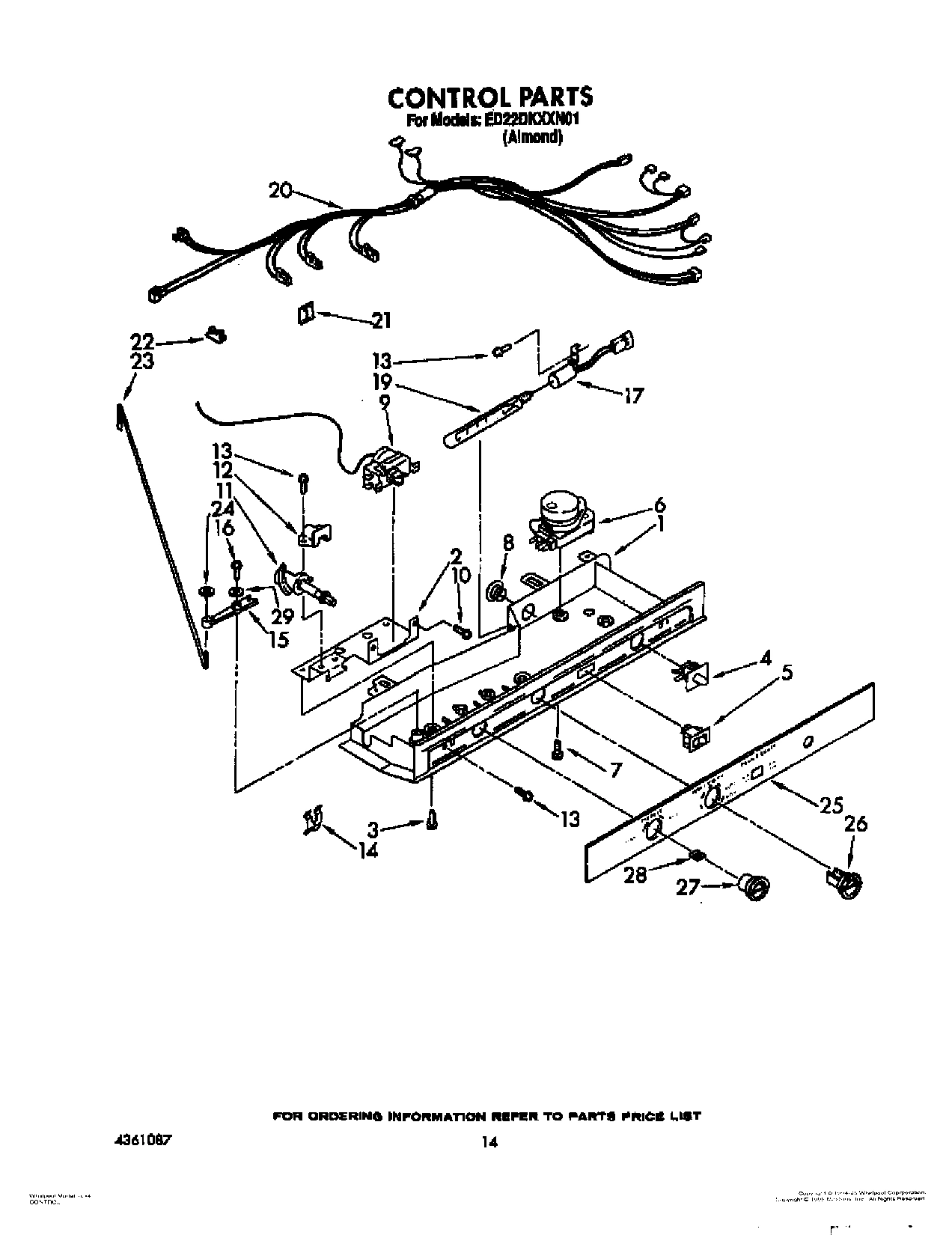

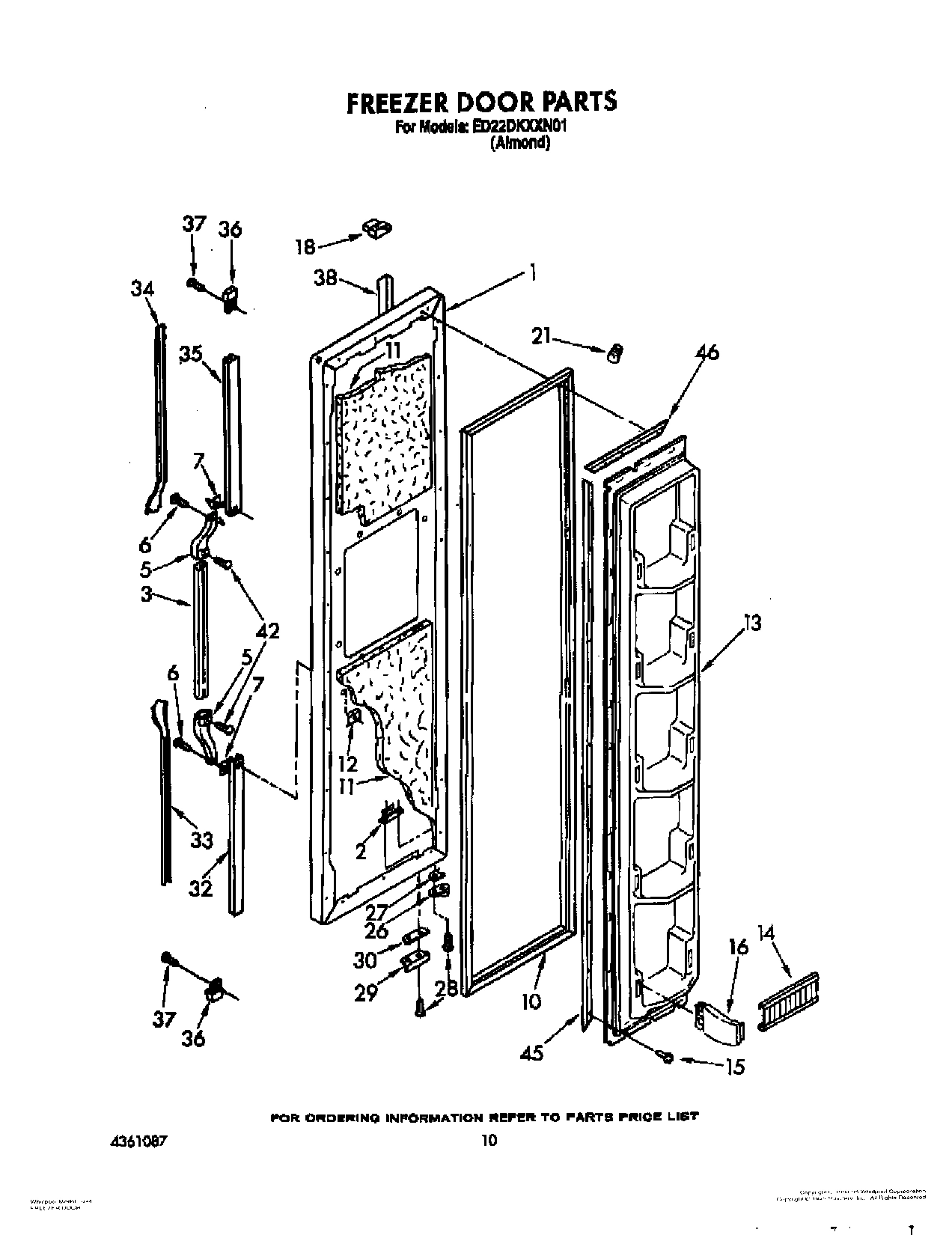

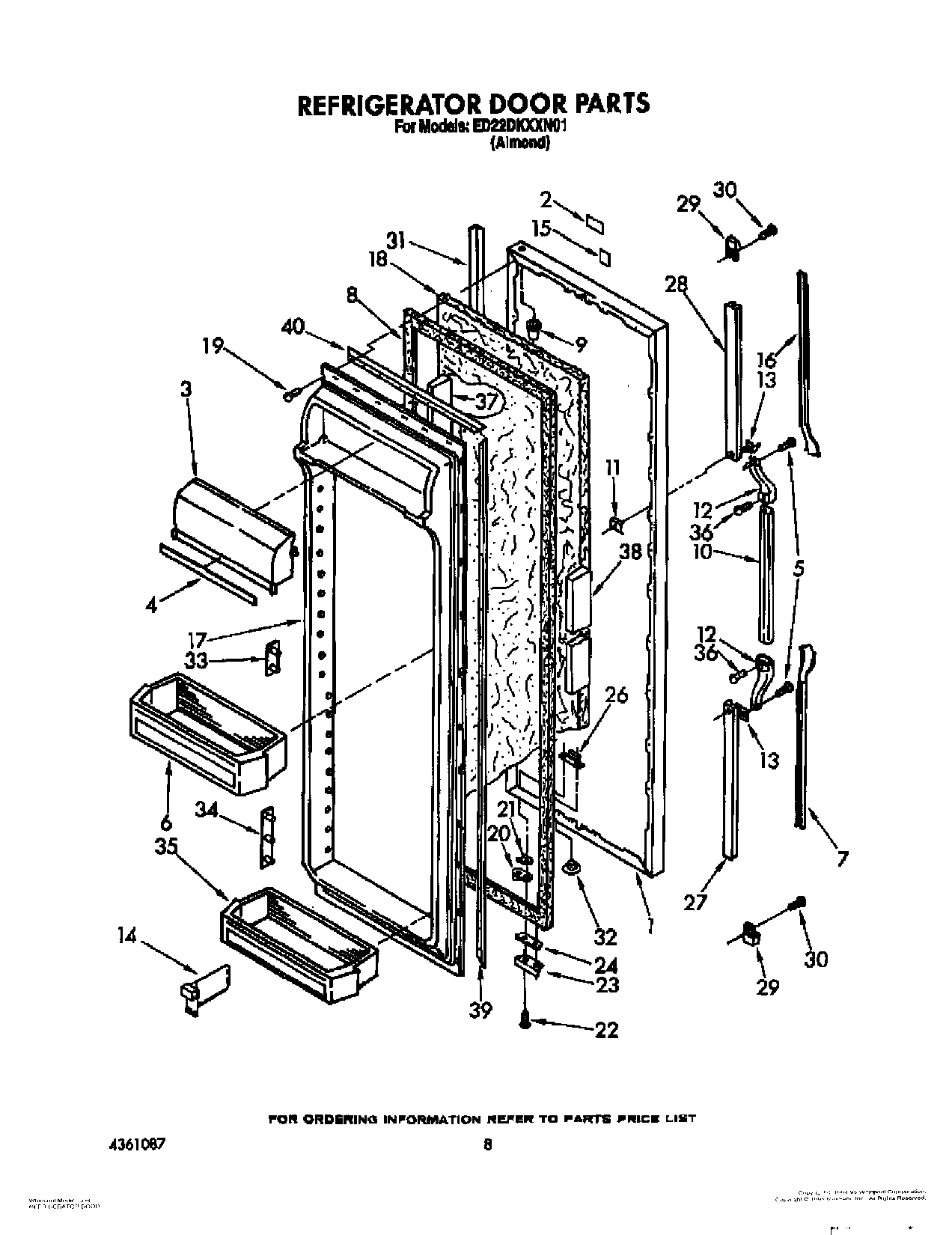

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 1129413 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI145260A Contact Us For Availability

1

Fan Scroll WPL 1127163 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI145261A Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI145262A Contact Us For Availability

1

Refrigerator Door (Almond (Also Order Item 18 WPL 1115276 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2152011 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability

2

Socket Assembly WPL 1108630 Contact Us For Availability

2

Nameplate WPL 1111555 Contact Us For Availability

3

Condenser Assembly WPL 1105640 Contact Us For Availability

3

Screw (2) WPL 489190 Contact Us For Availability

3

Screw WPL 489333 Contact Us For Availability

3

Air Scoop WPL 1110798 Contact Us For Availability

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Lens, Light WPL 1108445 Contact Us For Availability

3

Door, Compartment WPL 2148702 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Screw WPL 488624 Contact Us For Availability

4

Pad, Foam WPL 992358 Contact Us For Availability

4

Evaporator, Support WPL 1108436 Contact Us For Availability

4

Trim, Compartment Door WPL 1110717 Contact Us For Availability

5

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

5

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

5

Switch, Lighted Power Miser WPL 1106601 Contact Us For Availability

5

Screw, WPL 488454 Contact Us For Availability

5

Air Duct Freezer WPL 1108434 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

6

Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability

6

Mullion Rail WPL 2155015 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Shelf Bin (2) WPL 1121334 Contact Us For Availability

7

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

Glass, Crisper Cover WPL 1114687 Contact Us For Availability

7

Heater, Mullion WPL 1106997 Contact Us For Availability

7

Fan Motor WPL 2149964 Contact Us For Availability

7

Insert, Handle (Almond) WPL 1119363 Contact Us For Availability

8

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $125.61

8

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

8

Blade, Fan WPL 992920 Contact Us For Availability

8

Tube Clamp WPL 510716 Contact Us For Availability

8

Hole Plug WPL 944795 Contact Us For Availability

8

Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability

8

Shelf WPL 1114609 Contact Us For Availability

9

Stud (4) WPL 1115290 No Longer Available

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Dampener WPL 510769 Contact Us For Availability

9

Ring, Compression WPL 992953 Contact Us For Availability

9

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability

Fan Grommet (2) WPL 1114354 Contact Us For Availability

Shelf WPL 1114608 Contact Us For Availability

Handle, Center WPL 1118417 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Spring, Relay Case WPL 943322 Contact Us For Availability

Cam Assembly WPL 1110566 Contact Us For Availability

Clip, Ground WPL 1110607 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Bin, Freezer WPL 2148194 Contact Us For Availability

Screw Anchor (2) WPL 941242 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2148279 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2148279 $101.98

Case, Relay WPL 1105055 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

Trim Shelf WPL 1110782 Contact Us For Availability

End Cap, Center Handle WPL 1119359 Contact Us For Availability

Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability

Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Front, Crisper Pan WPL 1114684 Contact Us For Availability

Overload WPL 1118862 Contact Us For Availability

Grommet WPL 1110779 Contact Us For Availability

Shim WPL 935075 Contact Us For Availability

Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability

Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability

Slide, Humidity Control WPL 1110541 Contact Us For Availability

Overload Spring WPL 943320 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

Cover, Wiring WPL 1129915 Contact Us For Availability

Divider, Bin WPL 2152336 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Pivot Arm WPL 1110559 Contact Us For Availability

Housing, Humidity Control WPL 1110542 Contact Us For Availability

Relay (Order Overload To Obtain Relay Key No. WPL ARI145263A Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

Front, Meat Pan WPL 1114693 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability

Fitting, Drain WPL 942768 Contact Us For Availability

Insert, Handle (Almond) WPL 1119369 Contact Us For Availability

WP1114631 Whirlpool Refrigerator Shelf Suppor Backorder WPL WP1114631 $4.32

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Meat Pan WPL 1114690 Contact Us For Availability

Light Socket WPL 1110690 Contact Us For Availability

Cover, Evaporator WPL 1127168 Contact Us For Availability

Slide, Freezer Bin WPL 1115383 Contact Us For Availability

Panel, Interior Door WPL 1129278 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Meat Pan WPL 1114691 Contact Us For Availability

screw WPL 487979 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $27.52

NLA:SCREW Backorder WPL WPW10141645 $3.70

Front, Meat Pan WPL 1114694 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability

Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

Control Box Harness WPL 2149750 Contact Us For Availability

Spacer, Hinge WPL 1129868 Contact Us For Availability

Shim .030 WPL 836196 Contact Us For Availability

Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability

Stud WPL 946355 Contact Us For Availability

21

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

21

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

21

Stud, R.S. Front WPL 946356 Contact Us For Availability

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Evaporator WPL 1106987 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

Grille WPL 1129001 Contact Us For Availability

Stud, L.S. Rear WPL 1106982 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Clamp (4) WPL 1108431 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Bracket, Door Stop WPL 1115906 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $35.08

Fastener, Push-On WPL 489285 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Shim WPL 988421 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

Tray, Evaporator WPL 1105524 Contact Us For Availability

Escutcheon, Control Box WPL 2148230 Contact Us For Availability

Hole Seal WPL 1120224 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

Tap Plate WPL 988402 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP1104787 Whirlpool Refrigerator Shim Backorder WPL WP1104787 $3.70

Knob, Air Control WPL 1110562 Contact Us For Availability

Hole Plug WPL 989958 Contact Us For Availability

Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482982 Contact Us For Availability

28

Knob, Retainer WPL 837444 Contact Us For Availability

28

Retainer, Insert WPL 1119366 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

Clamp, Dryer WPL 1127590 Contact Us For Availability

End Cap (2) WPL 2156220 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability

31

Exchanger, Heat WPL 1106990 Contact Us For Availability

31

Tap Plate (2) WPL 2147310 Contact Us For Availability

31

Trim, Door WPL 1119061 Contact Us For Availability

32

Fan, Motor Bracket WPL 548695 Contact Us For Availability

32

Cabinet Harness WPL 2149746 Contact Us For Availability

32

Hole Plug (2) WPL 534927 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

Heater, Defrost WPL 2154542 Contact Us For Availability

Pin Plate (6) WPL 1118048 Contact Us For Availability

34

Clamp WPL 937357 Contact Us For Availability

34

Light Lens WPL 1115330 Contact Us For Availability

34

Pin Plate (8) WPL 1116986 Contact Us For Availability

35

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $43.87

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

Shelf Bin (2) WPL 1121335 Contact Us For Availability

36

Clamp WPL 513584 Contact Us For Availability

36

Cover, Wiring WPL 1129193 Contact Us For Availability

36

Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability

37

Wiring Shield, Short WPL 1108440 Contact Us For Availability

37

Door Dike, Hinge Side WPL 1115379 Contact Us For Availability

38

Wiring Shield, Long WPL 1108441 Contact Us For Availability

38

Door Dike, Handle Side WPL 1119055 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Tube Clamp (2) WPL 1105607 Contact Us For Availability

39

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

Cord, Service WPL 937360 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

Timeless Black Decor Panel WPL 4210353 Contact Us For Availability

Black Handle Insert WPL 4210377 Contact Us For Availability

woodgrain handle insert WPL 4210445 Contact Us For Availability

41

Baffle, Air WPL 1105530 Contact Us For Availability

41

Drain Ferrule WPL 842258 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

WP2262181 Whirlpool Refrigerator Start Relay Backorder WPL WP2262181 $53.03

44

Overload WPL 483054 Contact Us For Availability

44

Hole Plug WPL 1115354 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

45

Cover, Plug WPL 1108443 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Strap WPL 938384 Contact Us For Availability

Sealing Gasket WPL 1115321 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

47

Cover, Unit WPL 1105617 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

50

Guard, Fan WPL 1105614 Contact Us For Availability

51

Insulation WPL 1118236 Contact Us For Availability

52

Strap WPL 851095 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

53

Clip, Wire WPL 548745 Contact Us For Availability

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

Nut WPL 489142 Contact Us For Availability

57

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
