Model Whirlpool ED22DKXXW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
03 - REFRIGERATOR LINER

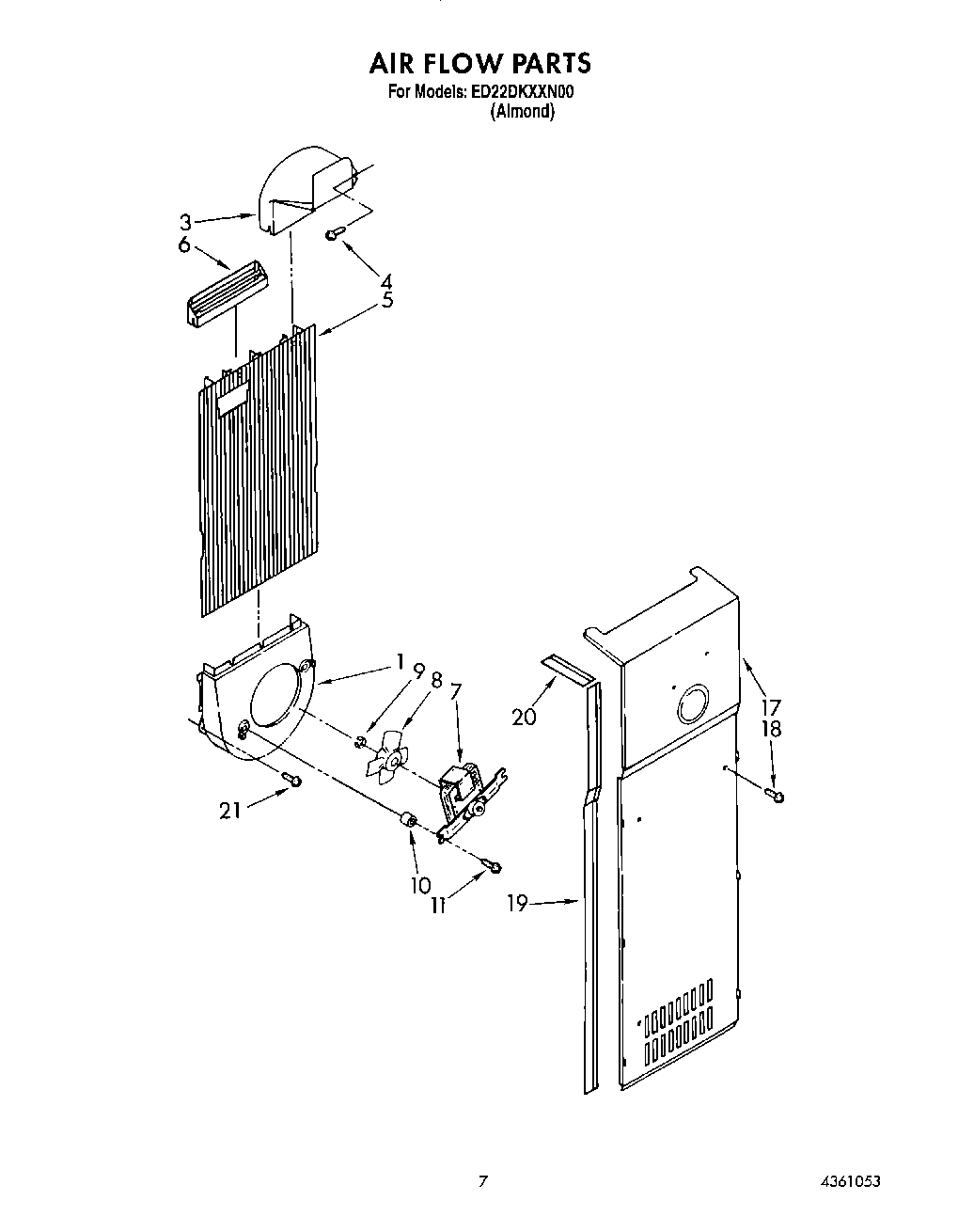

06 - AIR FLOW

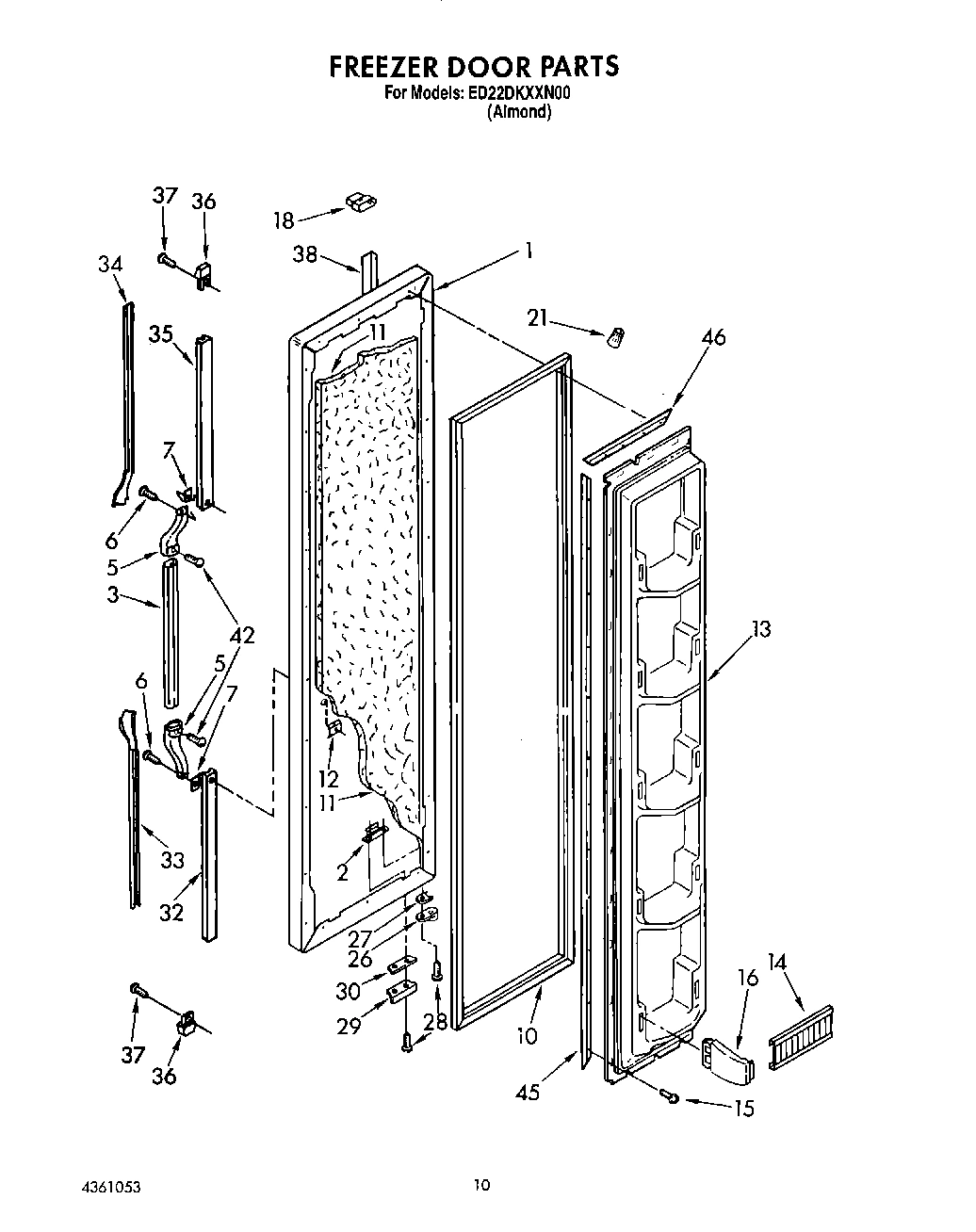

08 - FREEZER DOOR, LIT/OPTIONAL

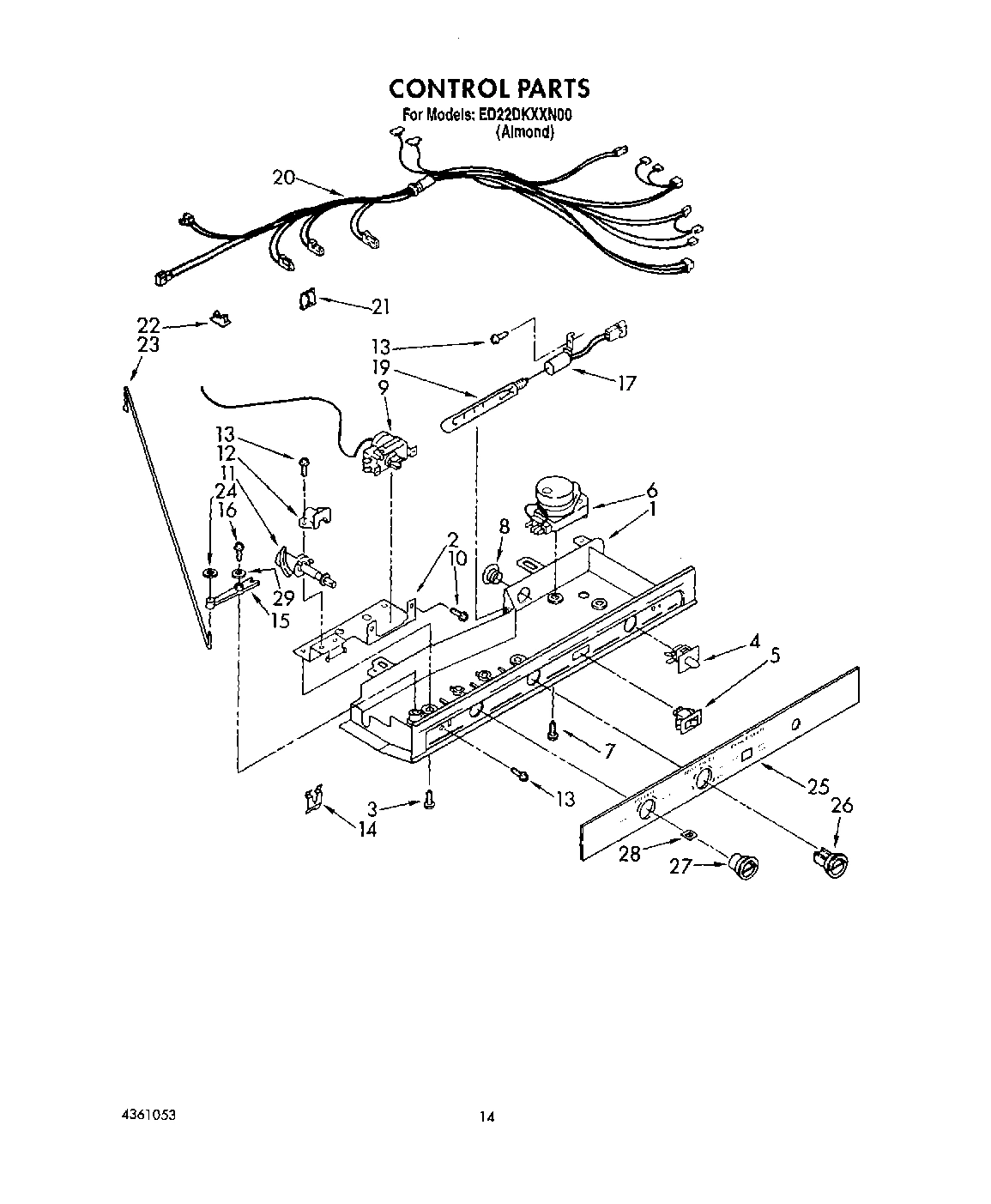

10 - CONTROL

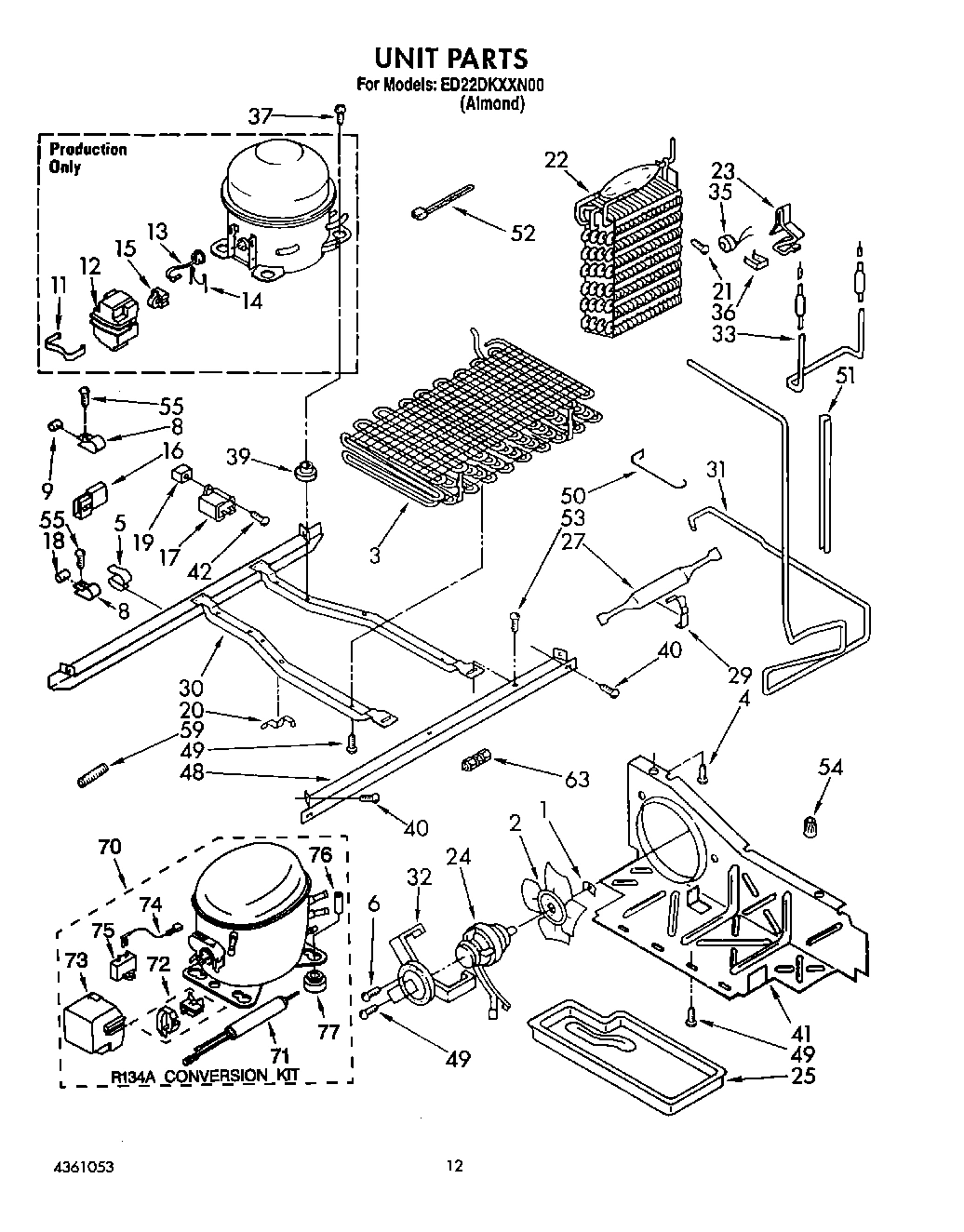

09 - UNIT

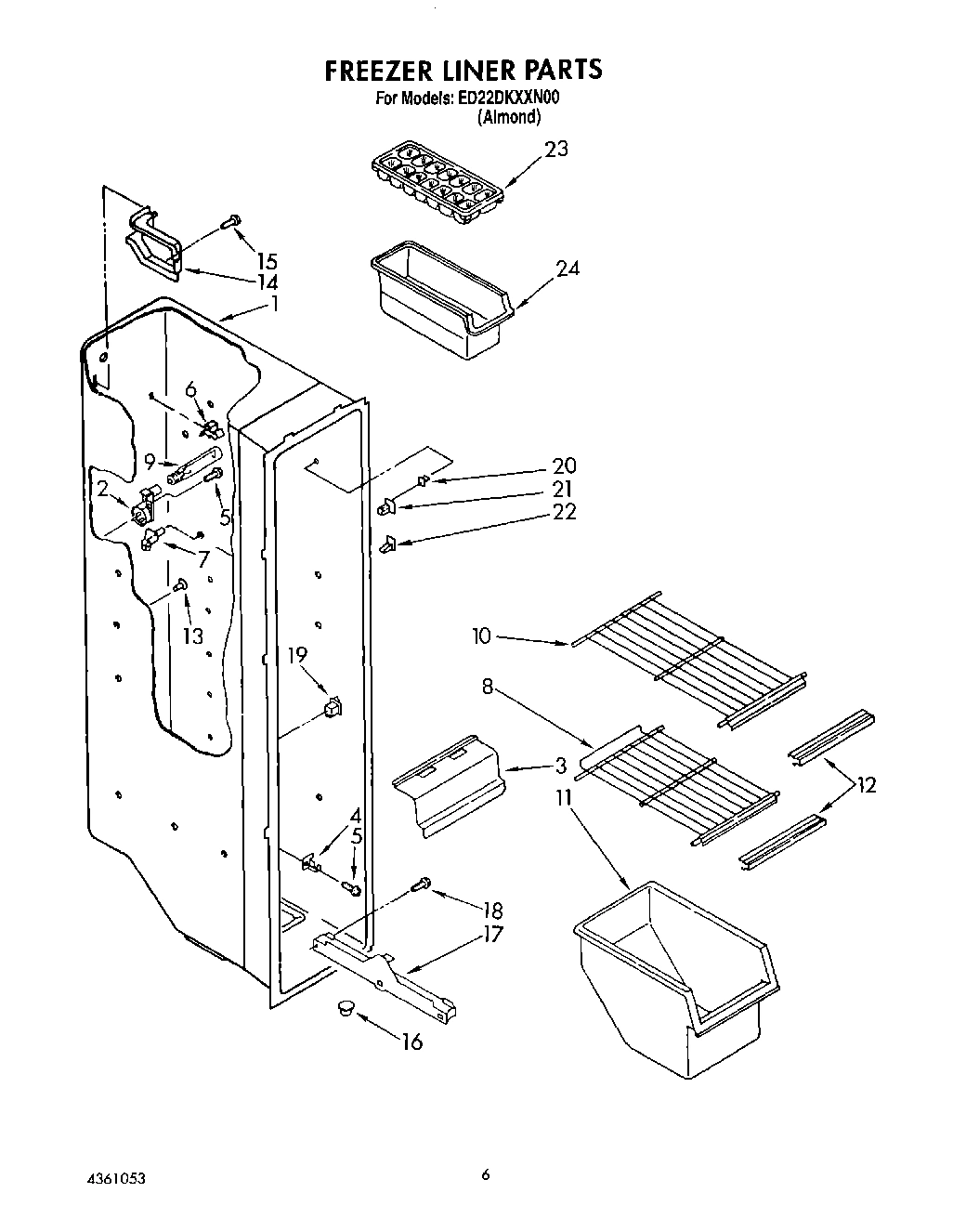

05 - FREEZER LINER

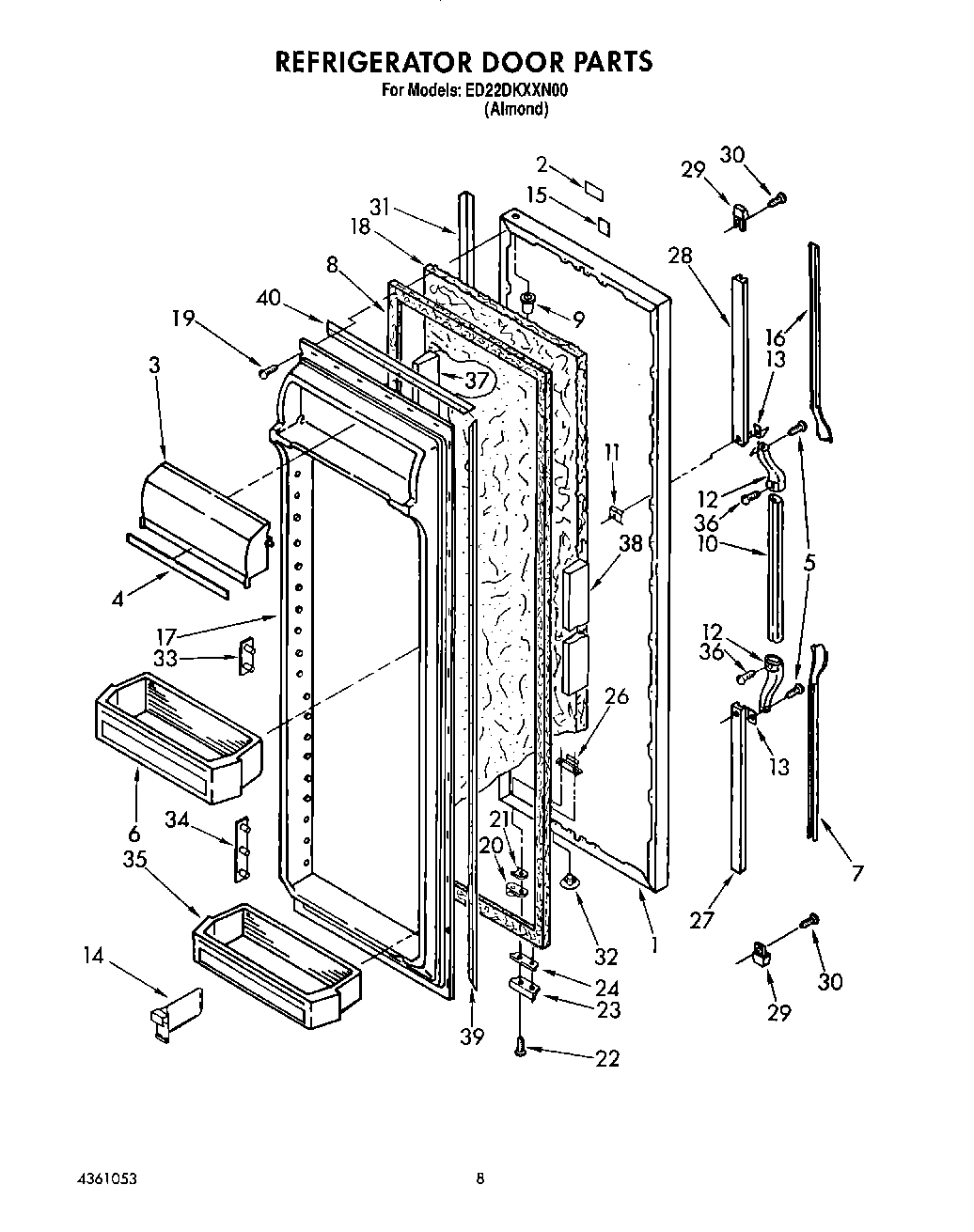

07 - REFRIGERATOR DOOR

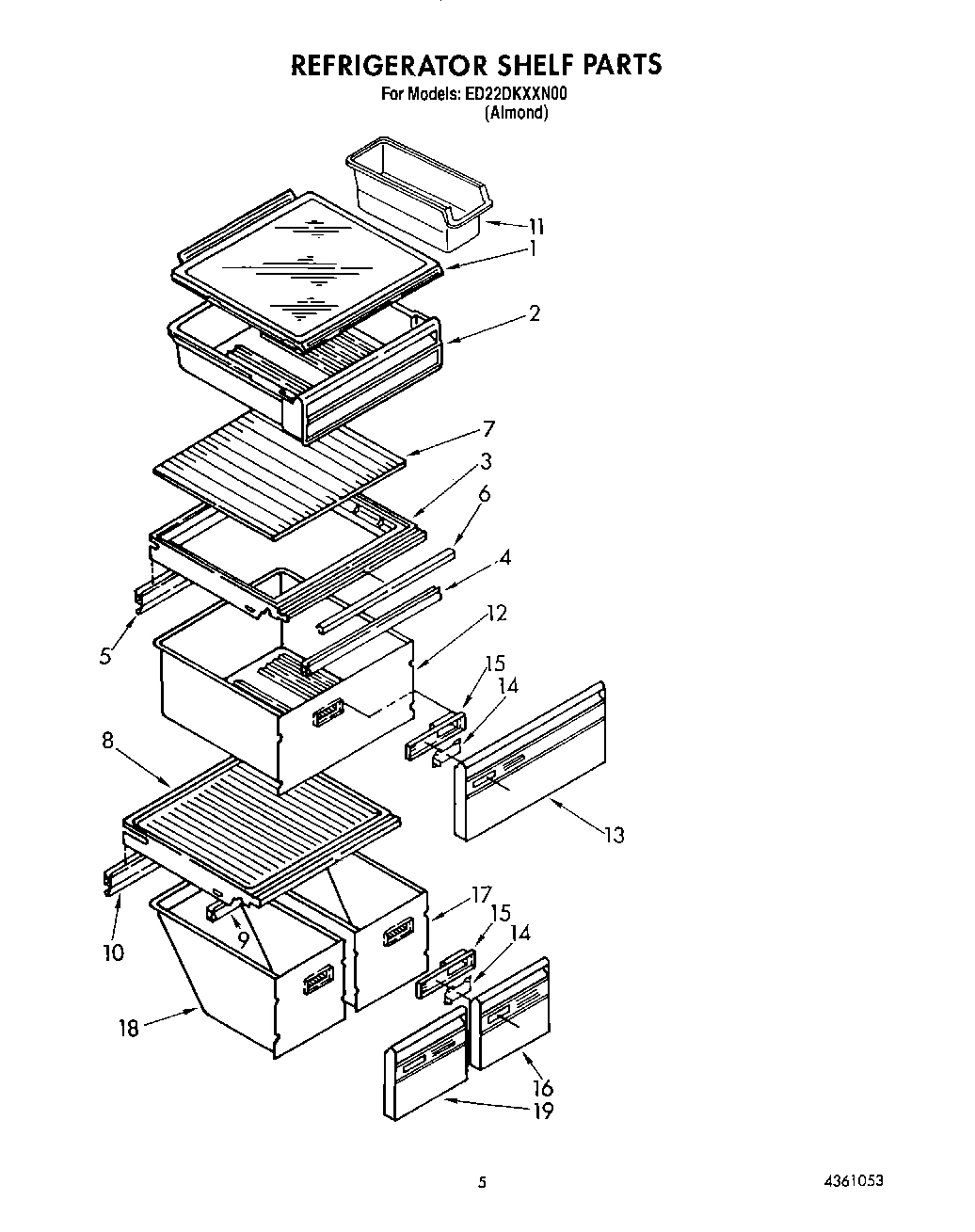

04 - REFRIGERATOR SHELF
Common parts from model Whirlpool ED22DKXXW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2149924 WPL LIT2149924 Contact Us For Availability
WPL LIT2157014 WPL LIT2157014 Contact Us For Availability
WPL LIT2157016 WPL LIT2157016 Contact Us For Availability
WPL LIT4361053 WPL LIT4361053 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 4362016 Contact Us For Availability
1
Control Box WPL 1129413 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145259A Contact Us For Availability
1
Refrigerator Door (Almond (Also Order Item 18 WPL 1115276 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) (Includes 1 WPL 1127158 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Socket Assembly WPL 1108630 Contact Us For Availability
2
Nameplate WPL 1111555 Contact Us For Availability
2
Snack Bin WPL 2148694 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Lens, Light WPL 1108445 Contact Us For Availability
3
Door, Compartment WPL 2148702 Contact Us For Availability
4
Screw WPL 488624 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Trim, Compartment Door WPL 1110717 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
5
Air Duct Freezer WPL 1108434 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Shelf Bin (2) WPL 1121334 Contact Us For Availability
6
Trim, Crisper Cover WPL 1110795 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
7
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Shelf WPL 1114609 Contact Us For Availability
8
Cover, Meat Pan WPL 1118198 Contact Us For Availability
9
Stud (4) WPL 1115290 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
9
Gasket (Front) WPL 1115292 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
10
Handle, Center WPL 1118417 Contact Us For Availability
10
Shelf WPL 1114608 Contact Us For Availability
10
Gasket (Rear) WPL 1121384 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Screw Anchor (2) WPL 941242 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Bin, Freezer WPL 2148194 Contact Us For Availability
12
End Cap, Center Handle WPL 1119359 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Trim Shelf WPL 1110782 Contact Us For Availability
13
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
13
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Shim WPL 935075 Contact Us For Availability
13
Panel, Interior Door WPL 1129241 Contact Us For Availability
13
Overload WPL 945586 Contact Us For Availability
13
Grommet WPL 1110779 Contact Us For Availability
13
Front, Crisper Pan WPL 1114684 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Trim, Door Shelf WPL 2148200 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Cover, Wiring WPL 1129915 Contact Us For Availability
14
Divider, Bin WPL 2152336 Contact Us For Availability
14
Slide, Humidity Control WPL 1110541 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay WPL 945507 Contact Us For Availability
15
Tape Strip WPL 991259 Contact Us For Availability
15
Housing, Humidity Control WPL 1110542 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Fitting, Drain WPL 942768 Contact Us For Availability
16
Front, Meat Pan WPL 1114693 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Slide, Freezer Bin WPL 1115383 Contact Us For Availability
17
Panel, Interior Door WPL 1129278 Contact Us For Availability
17
Meat Pan WPL 1114690 Contact Us For Availability
18
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
18
Connector, Plug WPL 936183 Contact Us For Availability
18
screw WPL 487979 Contact Us For Availability
18
Meat Pan WPL 1114691 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Front, Meat Pan WPL 1114694 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Control Box Harness WPL 2149750 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Evaporator WPL 1106987 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Bracket, Door Stop WPL 1115906 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Clamp (4) WPL 1108431 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Shim WPL 988421 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148230 Contact Us For Availability
25
Tray, Evaporator WPL 1105524 Contact Us For Availability
26
Tap Plate WPL 988402 Contact Us For Availability
27
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Retainer, Insert WPL 1119366 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
End Cap (2) WPL 2156220 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
30
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
31
Trim, Door WPL 1119061 Contact Us For Availability
31
Exchanger, Heat WPL 1106990 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
32
Hole Plug (2) WPL 534927 Contact Us For Availability
33
Heater, Defrost WPL 2154542 Contact Us For Availability
33
Pin Plate (6) WPL 1118048 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
34
Pin Plate (8) WPL 1116986 Contact Us For Availability
35
Shelf Bin (2) WPL 1121335 Contact Us For Availability
36
Screw, 6-20 x 3/8 (4) WPL 489022 Contact Us For Availability
36
Clamp WPL 513584 Contact Us For Availability
37
Door Dike, Hinge Side WPL 1115379 Contact Us For Availability
38
Door Dike, Handle Side WPL 1119055 Contact Us For Availability
39
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
40
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
41
Baffle, Air WPL 1105530 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
50
Guard, Fan WPL 1105614 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring, Tube Forming WPL 983659 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388006 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
