Model Whirlpool ED20ZKXYG01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

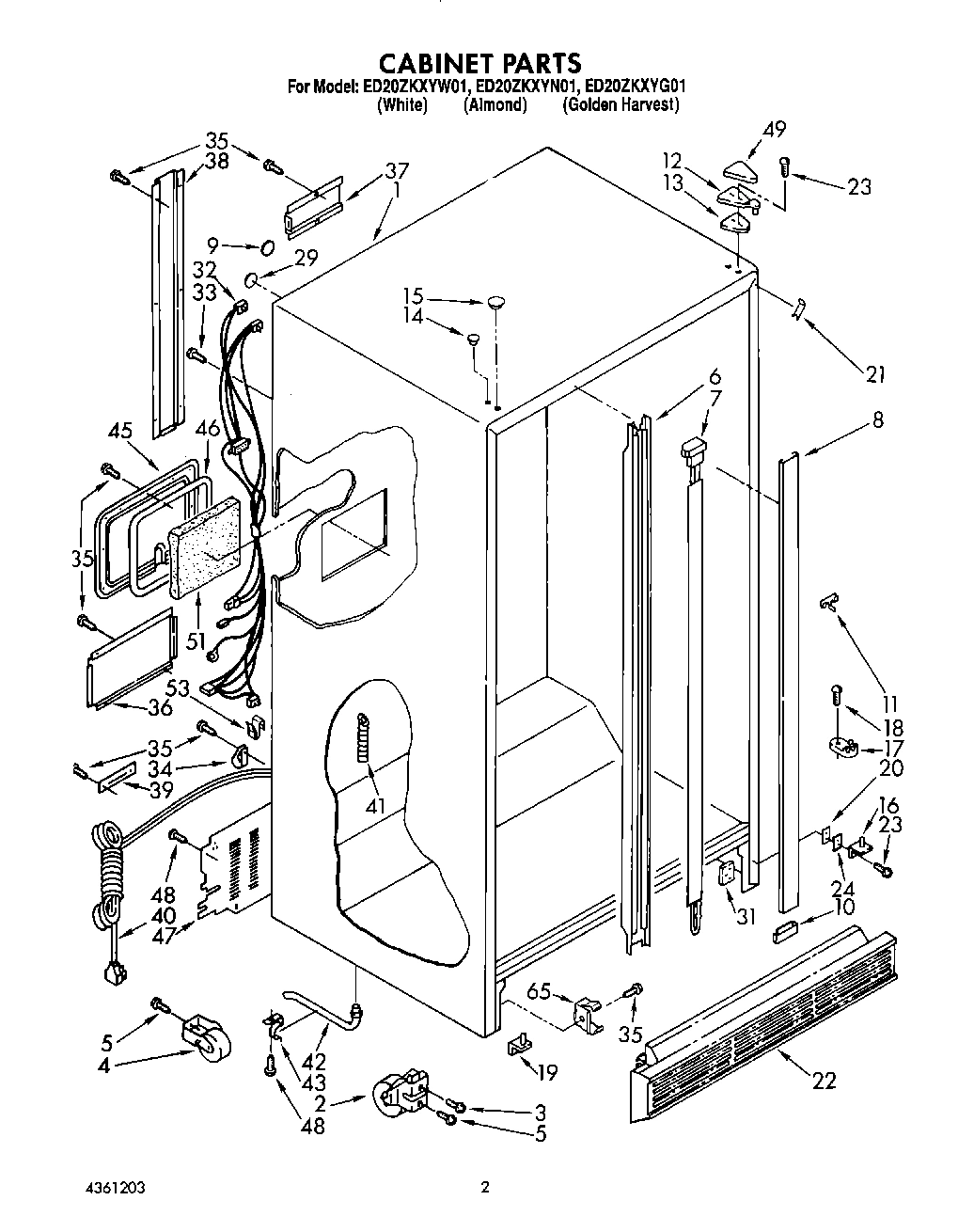

02 - CABINET

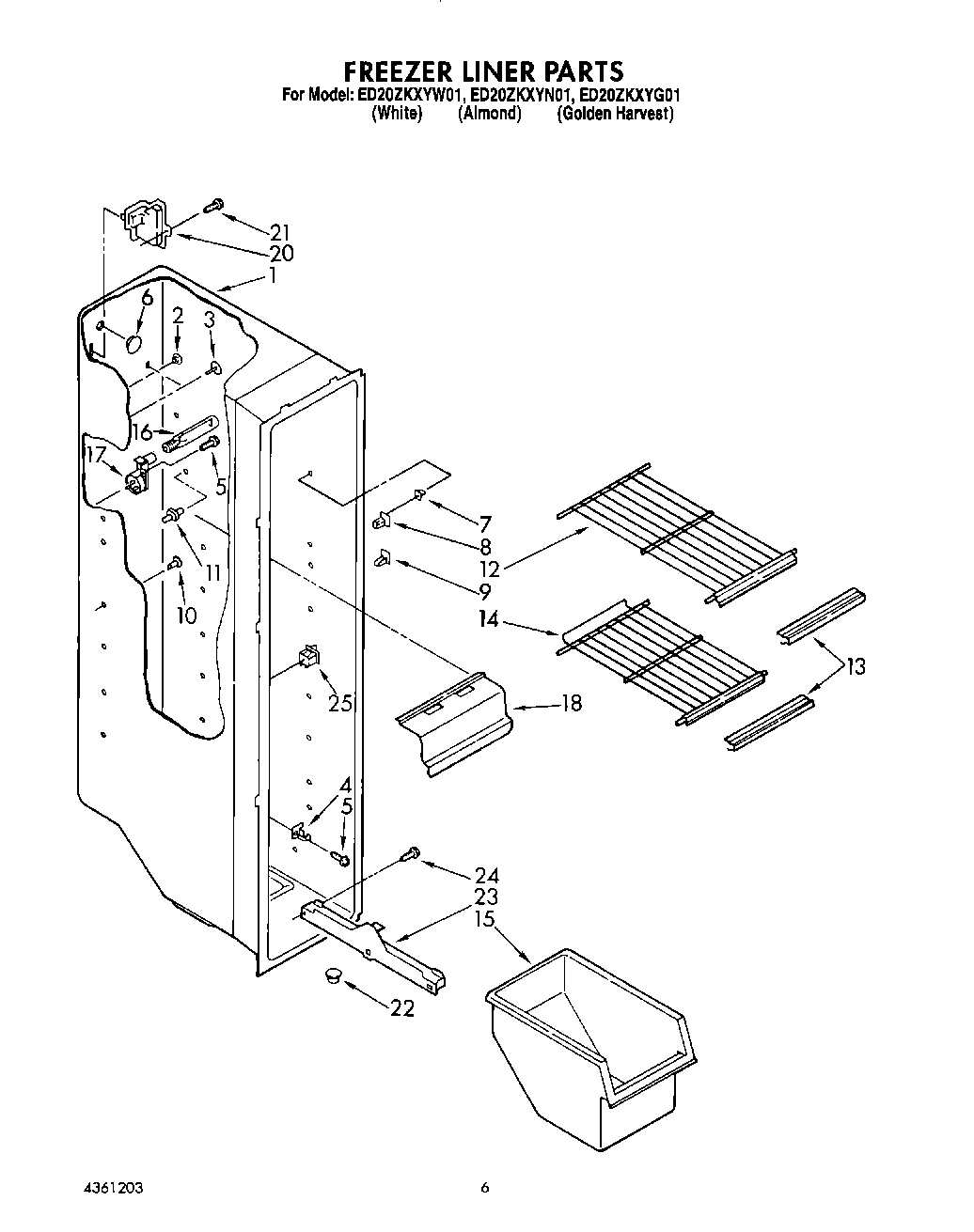

04 - FREEZER LINER
06 - REFRIGERATOR DOOR
05 - FREEZER DOOR
07 - UNIT
08 - AIR FLOW
03 - REFRIGERATOR LINER
09 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool ED20ZKXYG01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2148111 WPL LIT2148111 Contact Us For Availability
WPL LIT2154910 WPL LIT2154910 Contact Us For Availability
WPL LIT2160008 WPL LIT2160008 Contact Us For Availability
WPL LIT4361203 WPL LIT4361203 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26124A1 Contact Us For Availability
1
Refrigerator Door (White) WPL 1106923 Contact Us For Availability
1
Refrigerator Door (Golden Harvest) WPL 1108464 Contact Us For Availability
1
Refrigerator Door (Almond) (Also Order Item 2 WPL 1108465 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1106922 Contact Us For Availability
1
Freezer, Door Panel (Golden Harvest) WPL 1108469 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 1108470 Contact Us For Availability
1
Strap WPL 851095 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26123A3 Contact Us For Availability
1
Control Box WPL 2152113 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Hole Plug WPL 944795 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
2
Hole Plug (Golden Harvest) WPL 989879 Contact Us For Availability
2
Capacitor, Run WPL 2154565 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Tap Plate WPL 988402 Contact Us For Availability
3
Condenser WPL 1127573 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
5
Air Duct Freezer WPL 2157549 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Fan Motor WPL 2149964 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
8
Strap, Cover WPL 938384 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Bracket, Door Stop WPL 1115906 Contact Us For Availability
9
Cover WPL 1108115 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Shim WPL 988421 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Overload WPL 2154781 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
13
Shelf, Cantilever WPL 1118497 Contact Us For Availability
14
Shelf (3) WPL 1106980 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Housing Plug WPL 1118850 Contact Us For Availability
16
Trim, Cover WPL 1110795 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
17
Socket Assembly WPL 1108630 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
18
Lens, Light WPL 1108445 Contact Us For Availability
18
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
19
Handle WPL 987009 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Cover, Wiring WPL 1129915 Contact Us For Availability
20
Insert, Handle (Golden Harvest) WPL 1108722 Contact Us For Availability
20
Insert, Handle (White) WPL 2148102 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2148103 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Pan, Meat WPL 2148192 Contact Us For Availability
20
Control Box Harness WPL 2154835 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
22
Fitting, Drain WPL 942768 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
22
Dampener WPL 510769 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Slide, Freezer Bin (2) (R.S.) WPL 1115383 Contact Us For Availability
23
End Cap (2) WPL 987006 Contact Us For Availability
23
Exchanger, Heat WPL 1127577 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Screw, 2 Each (L.S.) WPL 487979 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2148180 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148232 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Interior Door Panel Also Order Item 15 (3) WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2148181 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
31
Evaporator WPL 1106987 Contact Us For Availability
32
Door, Compartment WPL 2148218 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
34
Heater, Defrost WPL 2154542 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
Nameplate WPL 2152334 Contact Us For Availability
37
Blade, Fan WPL 1108179 Contact Us For Availability
37
Trim, Door Shelf WPL 2148182 Contact Us For Availability
38
Tape Strip WPL 991259 Contact Us For Availability
42
Frame WPL 1127942 Contact Us For Availability
43
Trim, Door Compartment WPL 1110717 Contact Us For Availability
45
Rail, Front WPL 2149717 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Hinge Cover (Golden WPL 989896 Contact Us For Availability
49
Air, Baffle WPL 1127938 Contact Us For Availability
51
WPL 1118236 WPL 1118236 Contact Us For Availability
53
WPL 548745 WPL 548745 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
83
Clamp, Dryer WPL 1127590 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 1108431 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
