Model Whirlpool ED20ZKXYG00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

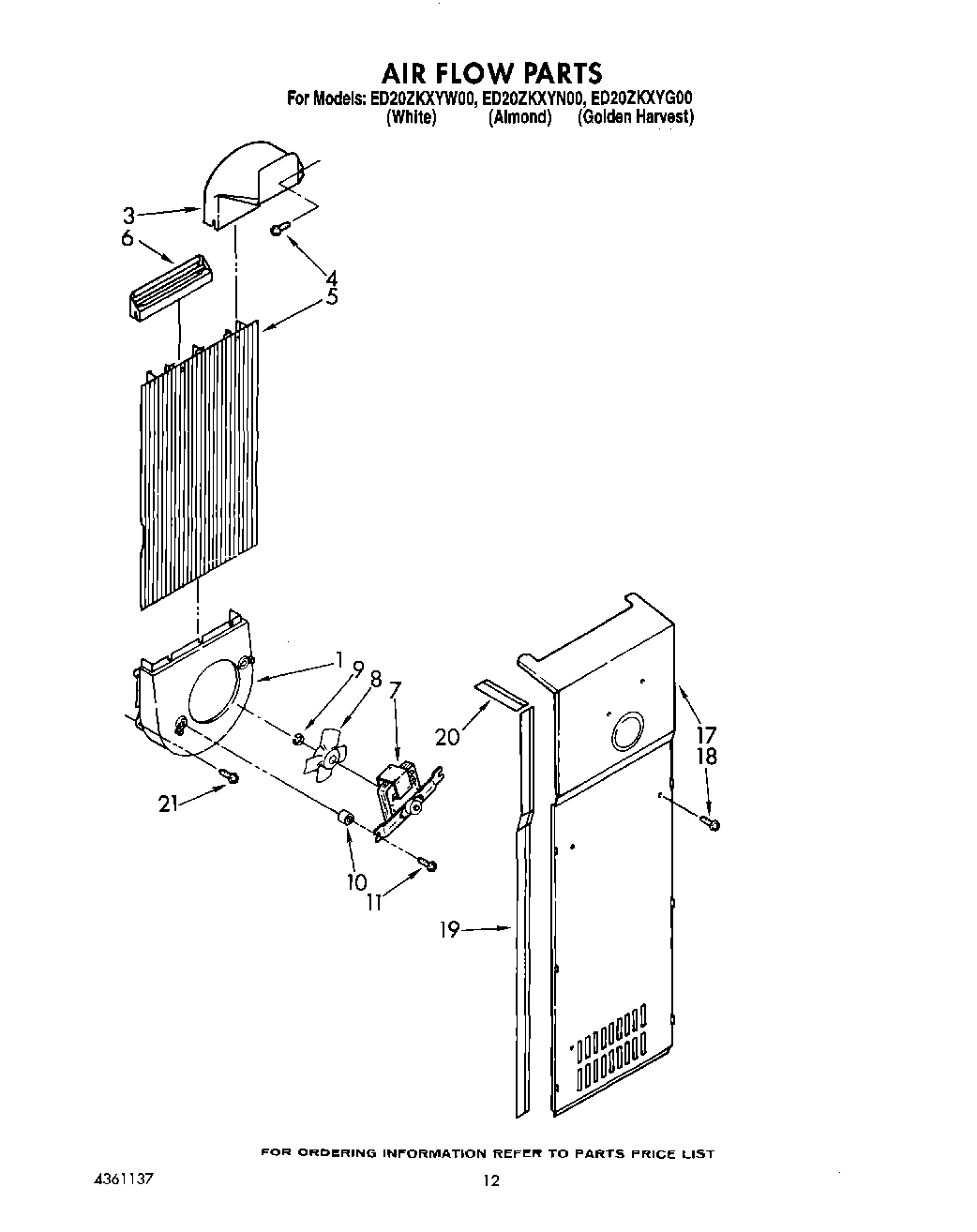

08 - AIR FLOW

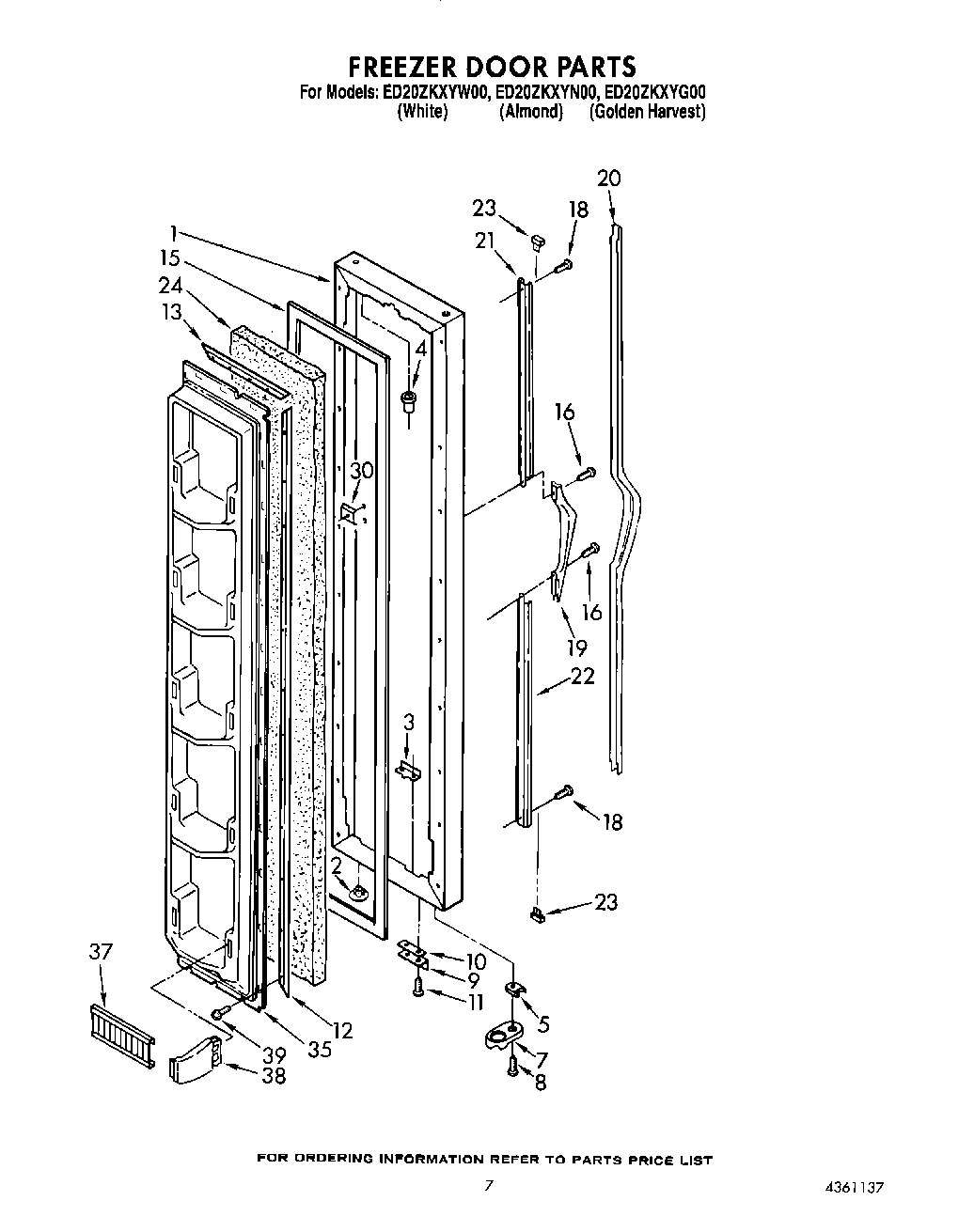

05 - FREEZER DOOR

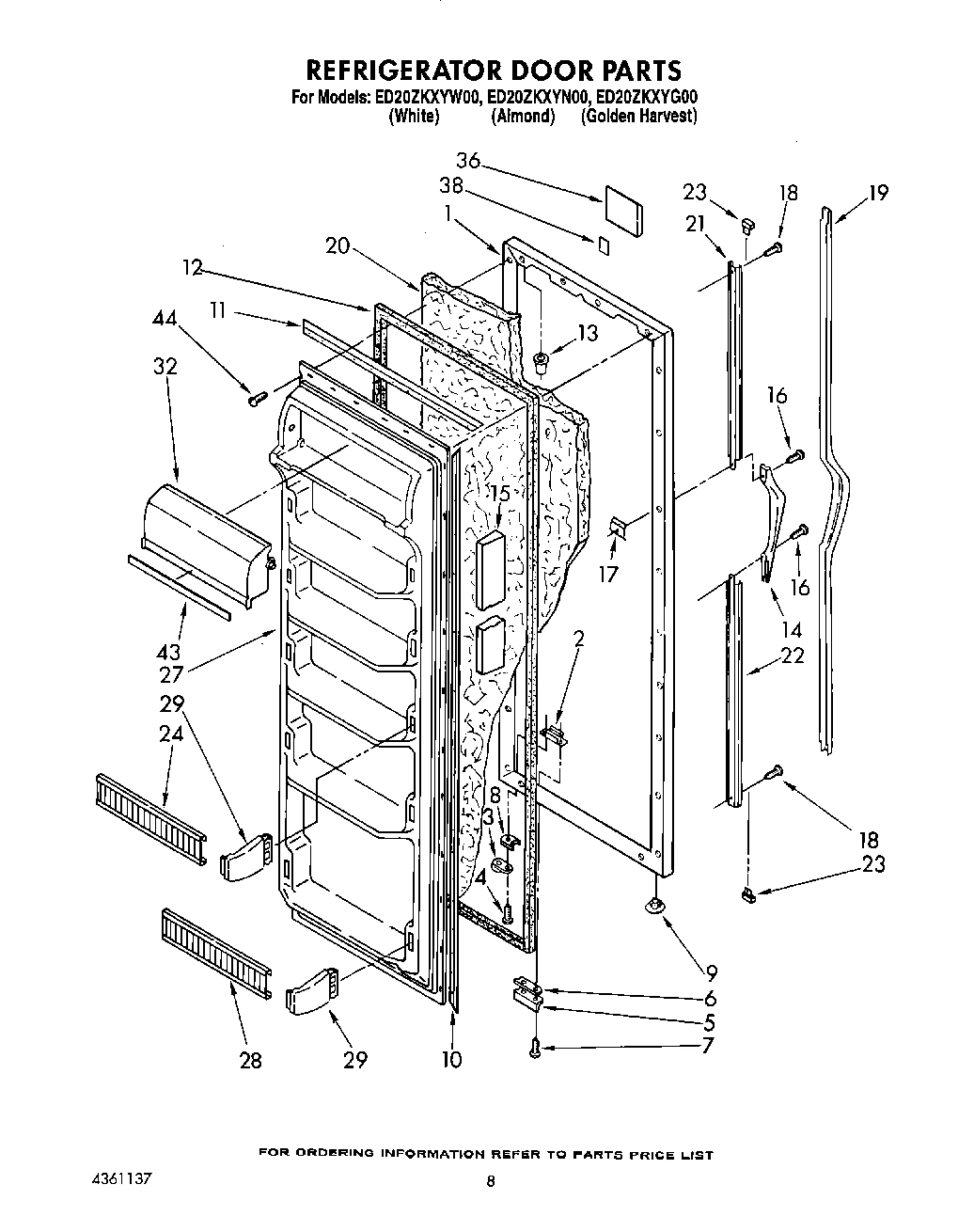

06 - REFRIGERATOR DOOR

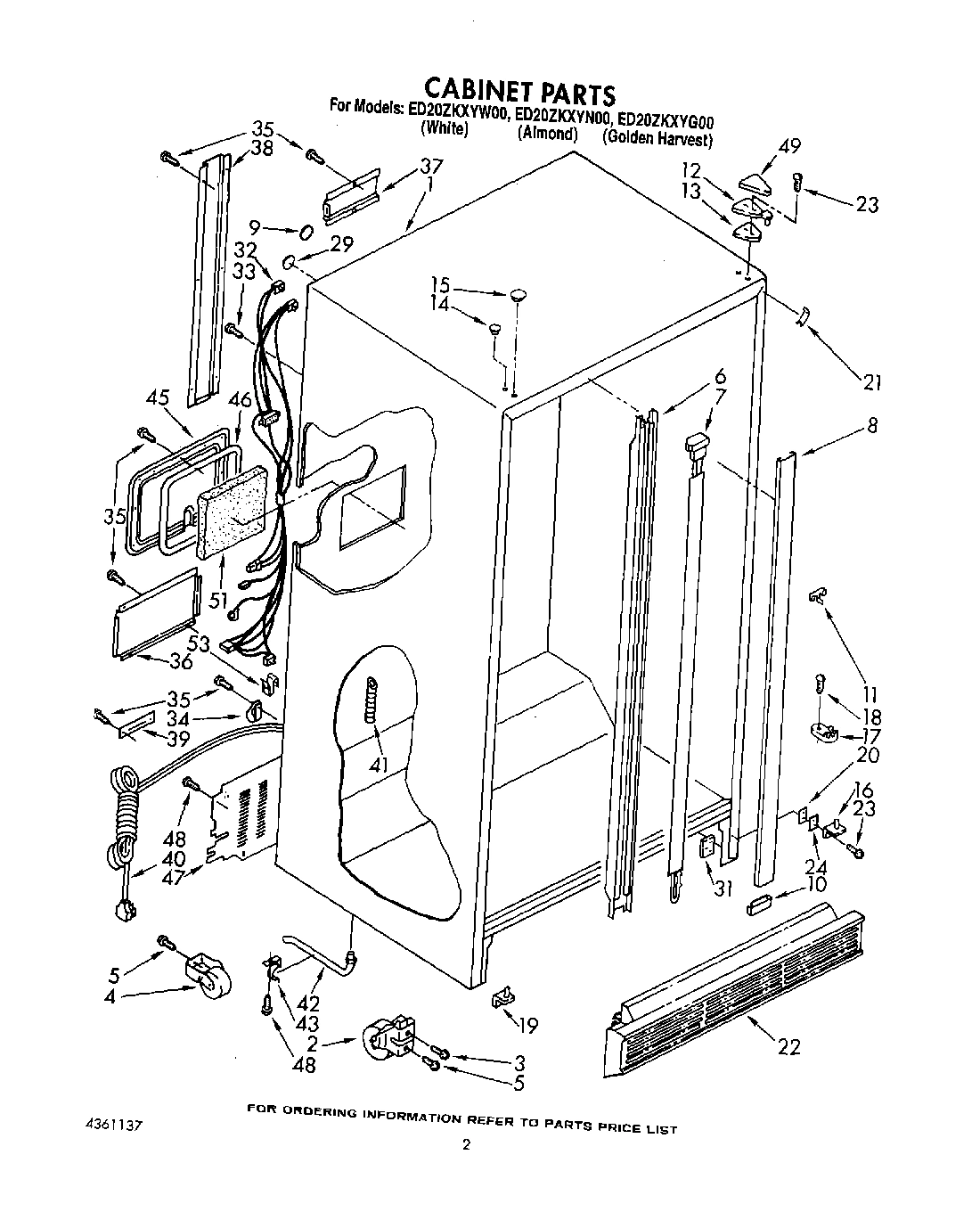

02 - CABINET

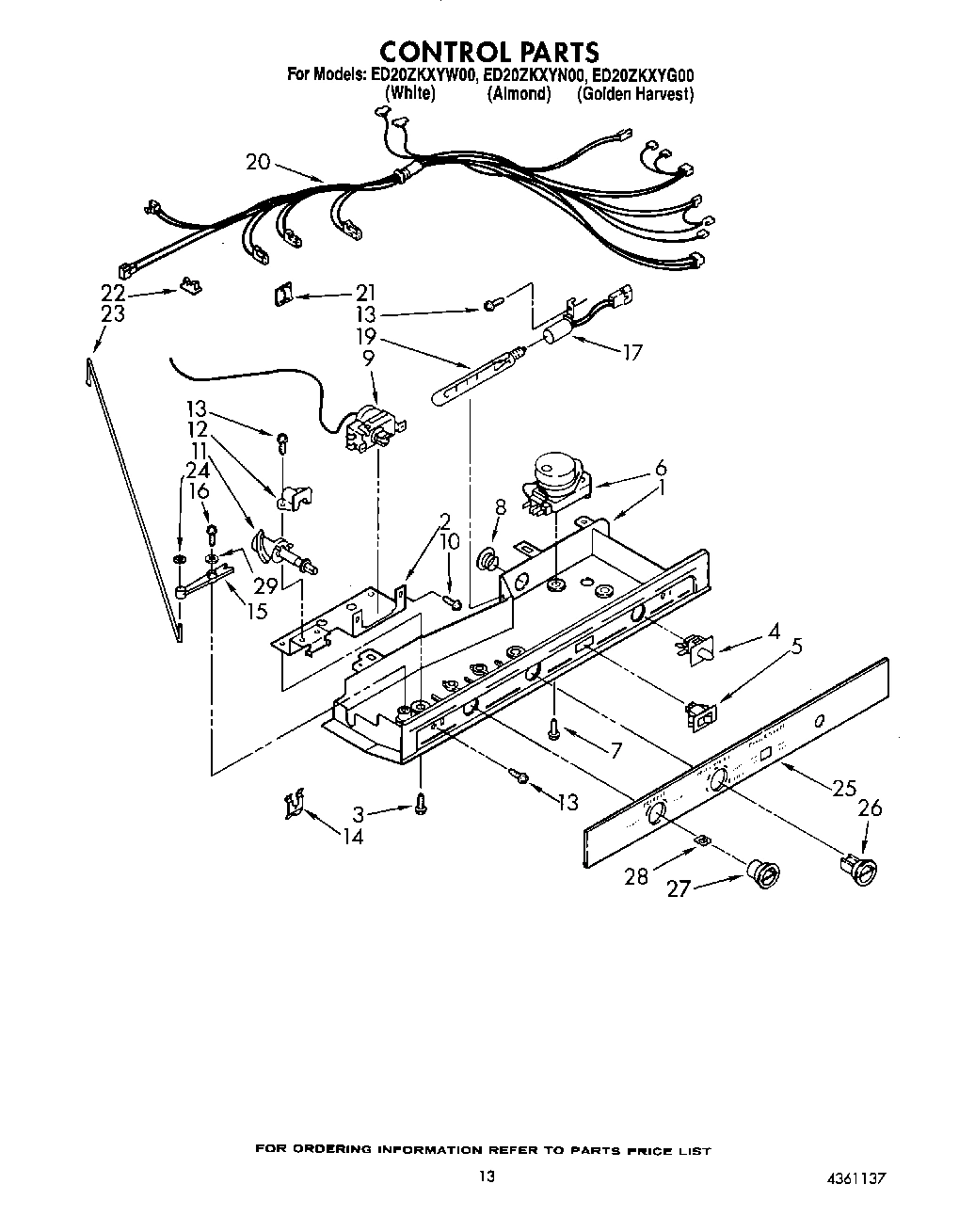

09 - CONTROL, LIT/OPTIONAL

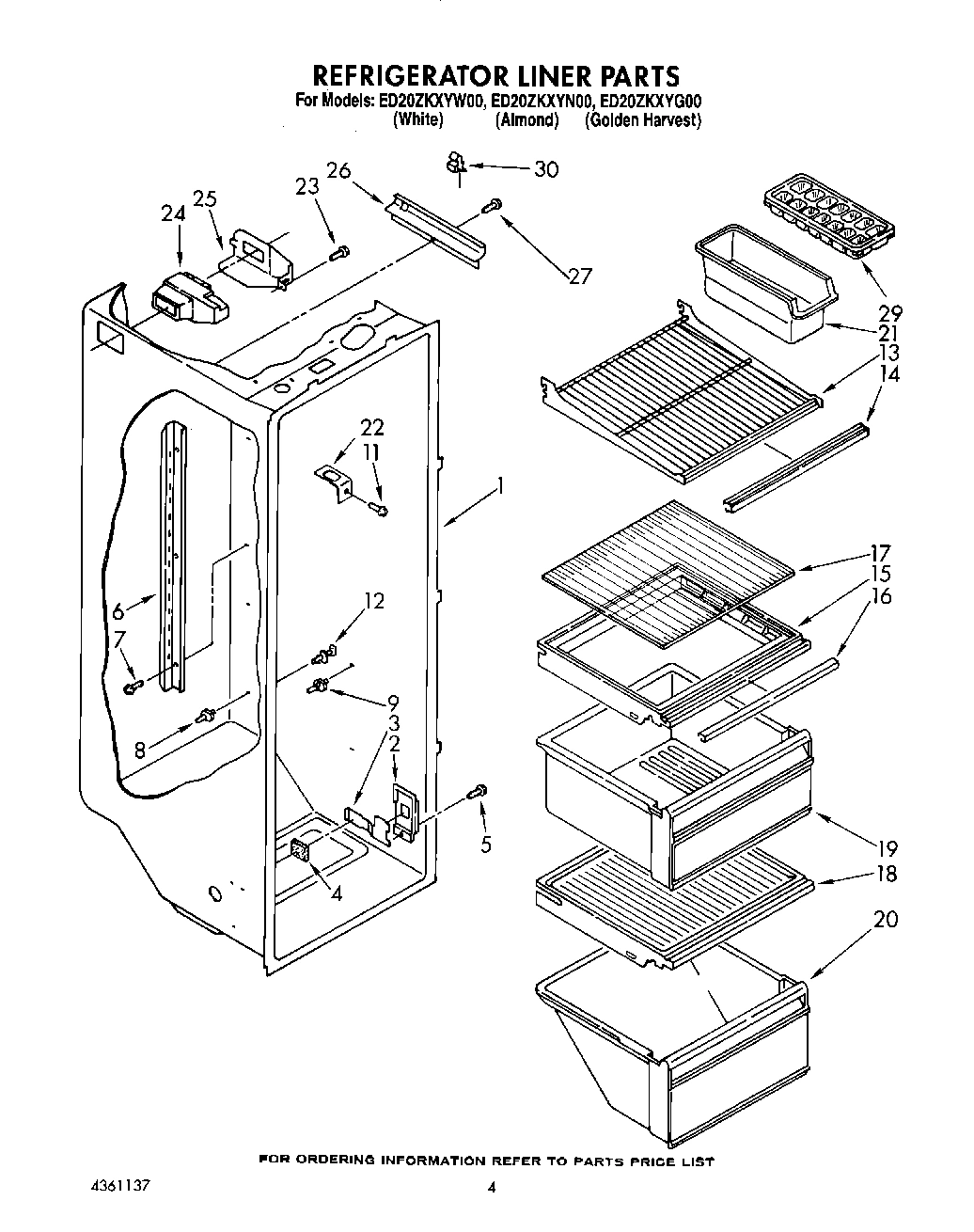

03 - REFRIGERATOR LINER

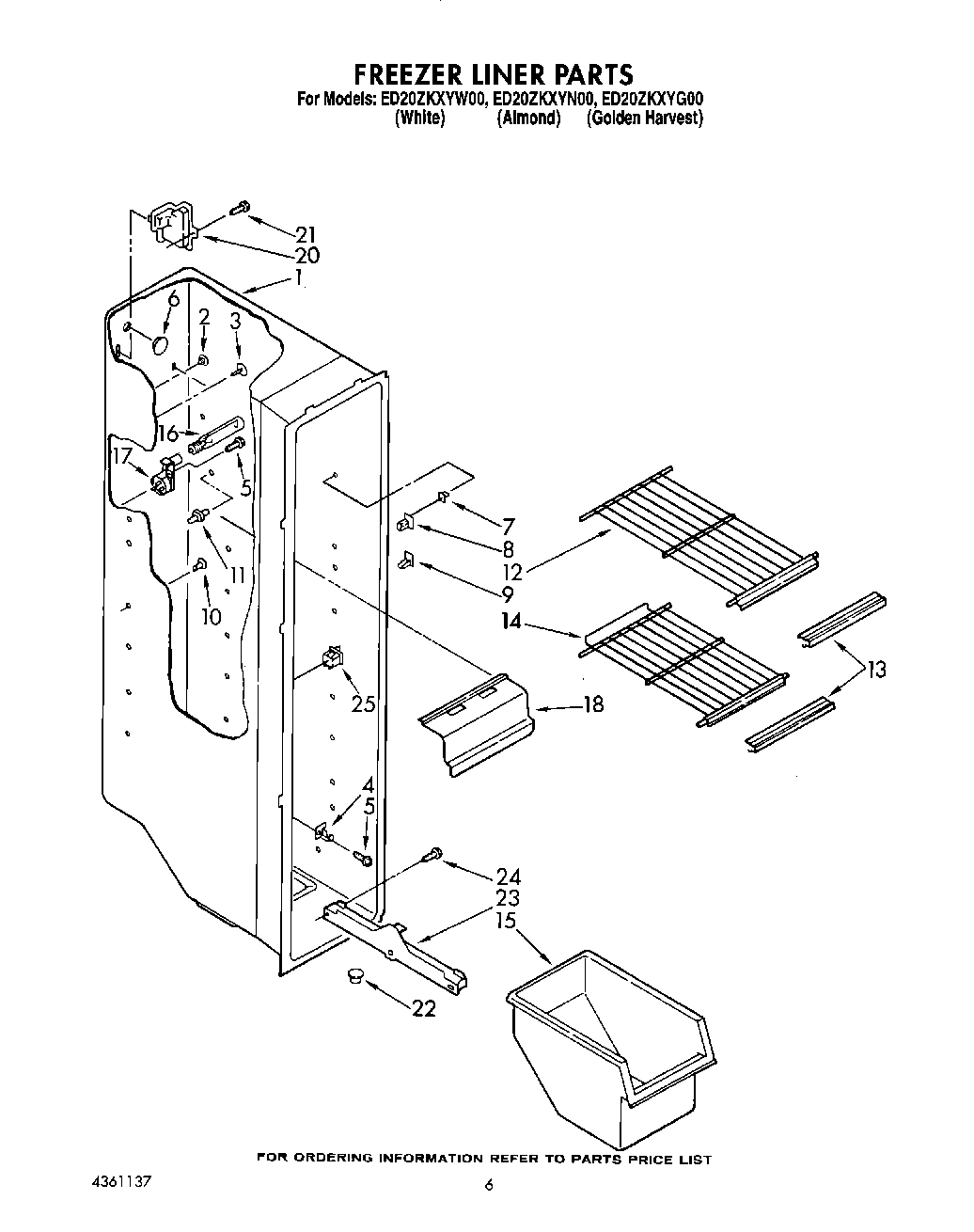

04 - FREEZER LINER

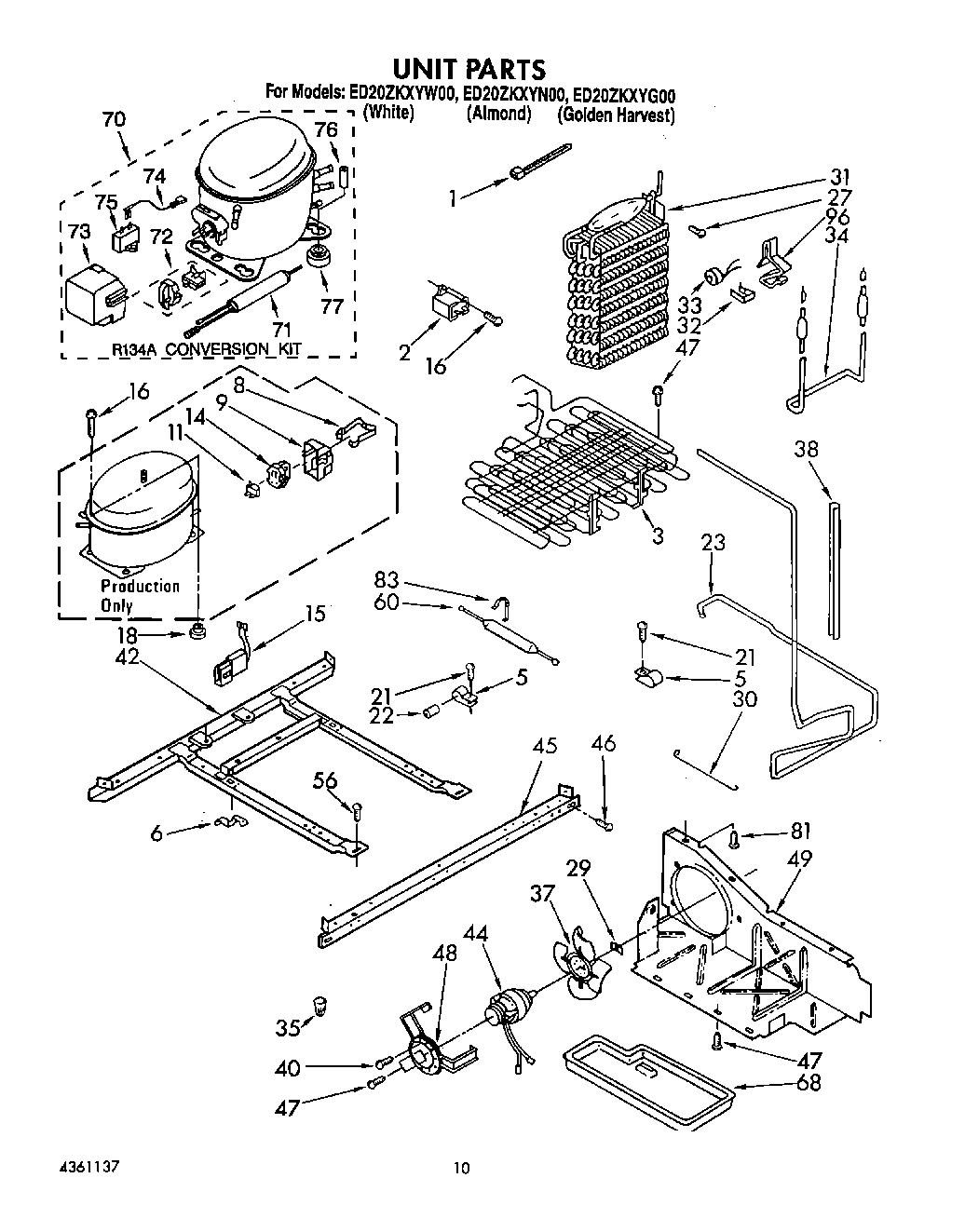

07 - UNIT
Common parts from model Whirlpool ED20ZKXYG00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2148111 WPL LIT2148111 Contact Us For Availability
WPL LIT2149920 WPL LIT2149920 Contact Us For Availability
WPL LIT2160008 WPL LIT2160008 Contact Us For Availability
WPL LIT4361137 WPL LIT4361137 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI26119A4 Contact Us For Availability
1
Control Box WPL 1129413 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26120A8 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26121A3 Contact Us For Availability
1
Strap WPL 851095 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Hole Plug WPL 944795 Contact Us For Availability
2
Capacitor, Run WPL 2154565 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser WPL 1127573 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
6
Mullion Rail WPL 2155015 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Golden Harvest) WPL 1123968 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
8
Strap, Cover WPL 938384 Contact Us For Availability
9
Hole Seal WPL 1120224 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Cover WPL 1108115 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Filler Bottom Mullion (Golden Harvest) WPL 1118363 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Overload WPL 2154781 Contact Us For Availability
12
Hinge, Top (2) WPL 1123514 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Shelf, Cantilever WPL 1118497 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
14
Handle WPL 987009 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole, Plug (Golden Harvest) WPL 989957 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Shelf (3) WPL 1106980 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Reinforcement, Shelf WPL 2152266 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Golden Harvest) WPL 1115353 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Housing Plug WPL 1118850 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Trim, Cover WPL 1110795 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Socket Assembly WPL 1108630 Contact Us For Availability
18
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
18
Lens, Light WPL 1108445 Contact Us For Availability
19
Insert, Handle (Golden Harvest) WPL 1108722 Contact Us For Availability
19
Insert, Handle (White) WPL 2148102 Contact Us For Availability
19
Insert, Handle (Almond) WPL 2148103 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 2149748 Contact Us For Availability
20
Pan, Meat WPL 2148192 Contact Us For Availability
20
Cover, Wiring WPL 1129915 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Golden Harvest) WPL 1110710 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Fitting, Drain WPL 942768 Contact Us For Availability
22
Dampener WPL 510769 Contact Us For Availability
23
End Cap WPL 987006 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Slide, Freezer Bin (2) (R.S.) WPL 1115383 Contact Us For Availability
23
Exchanger, Heat WPL 1127577 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2148180 Contact Us For Availability
24
Shim WPL 836196 Contact Us For Availability
24
Screw, 2 Each (L.S.) WPL 487979 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148232 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
27
Interior Door Panel Also Order Item 15 (3) WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2148181 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Hole Seal WPL 1129056 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Evaporator WPL 1106987 Contact Us For Availability
32
Door, Compartment WPL 2148218 Contact Us For Availability
32
Cabinet Harness WPL 2149746 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Heater, Defrost WPL 2154542 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
Nameplate WPL 2152334 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Blade, Fan WPL 1108179 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
38
Tape Strip WPL 991259 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Drain Ferrule WPL 2155556 Contact Us For Availability
42
Frame WPL 1127942 Contact Us For Availability
43
Trim, Door Compartment WPL 1110717 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
45
Rail, Front WPL 2149717 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
47
Cover, Unit WPL 1105531 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Hinge Cover (Golden WPL 989896 Contact Us For Availability
49
Air, Baffle WPL 1127938 Contact Us For Availability
51
WPL 1118236 WPL 1118236 Contact Us For Availability
53
WPL 548745 WPL 548745 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
83
Clamp, Dryer WPL 1127590 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 1108431 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
