Model Whirlpool ED20ZKXWW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER DOOR
08 - AIR FLOW

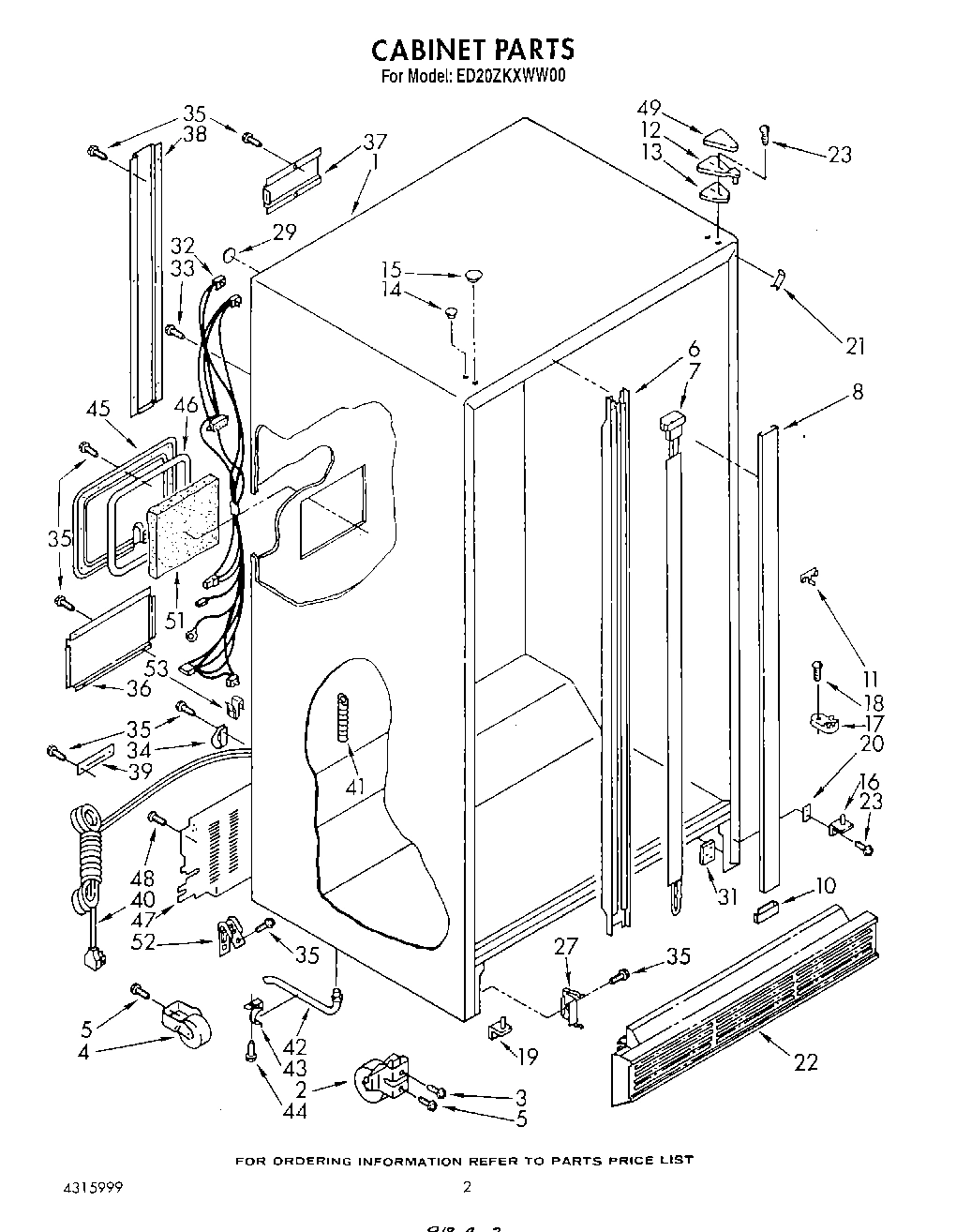

02 - CABINET

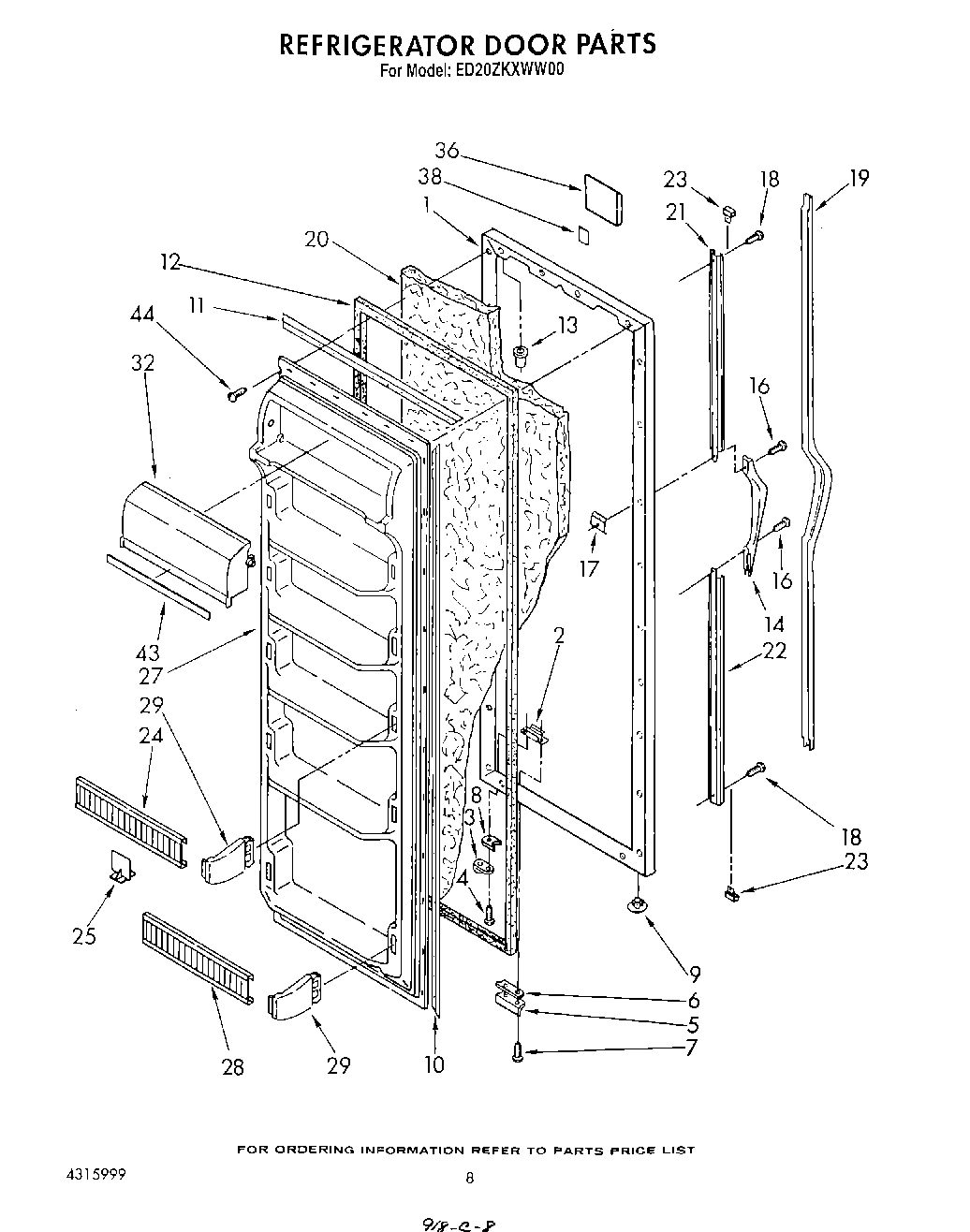

05 - REFRIGERATOR DOOR

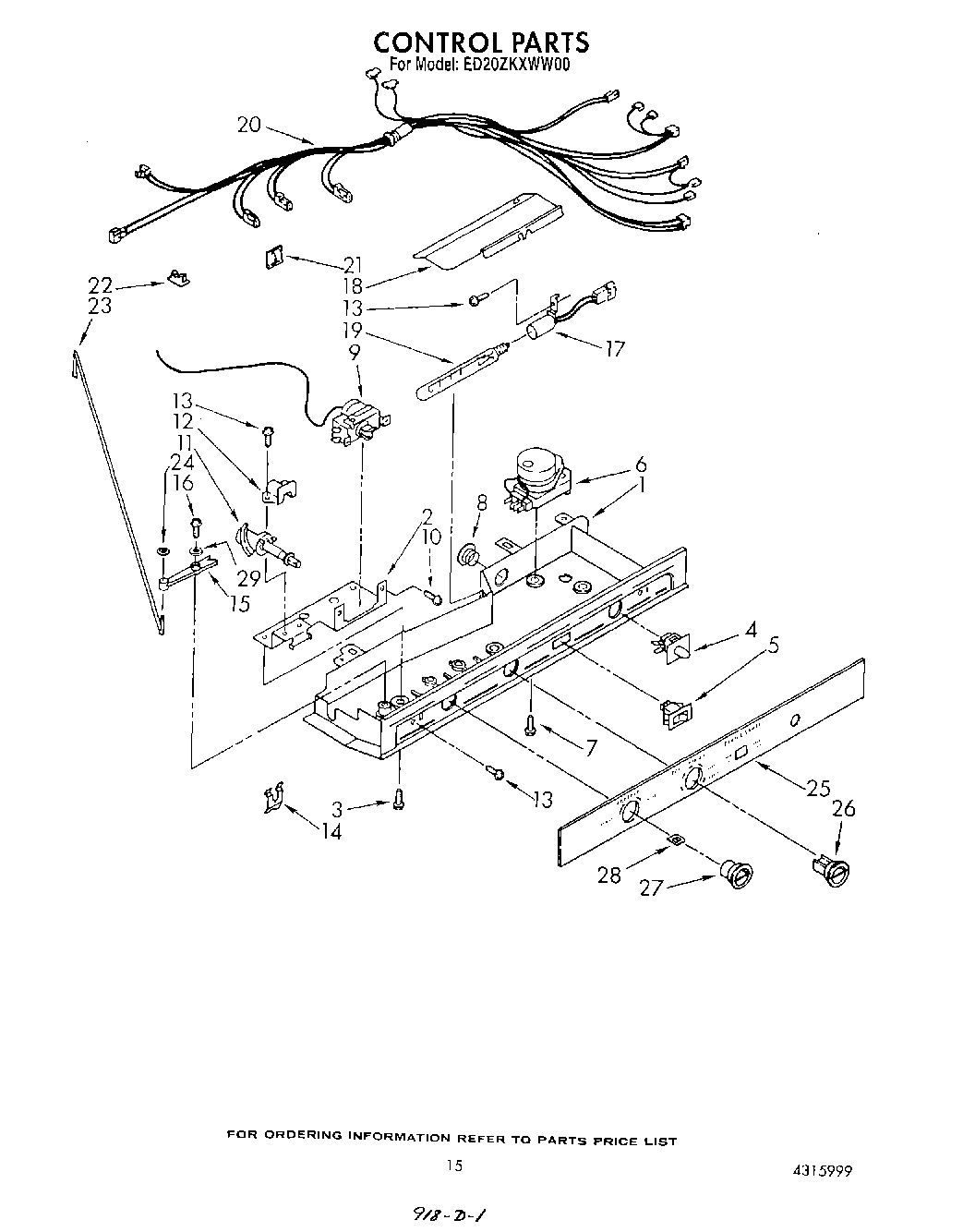

09 - CONTROL , LIT/OPTIONAL

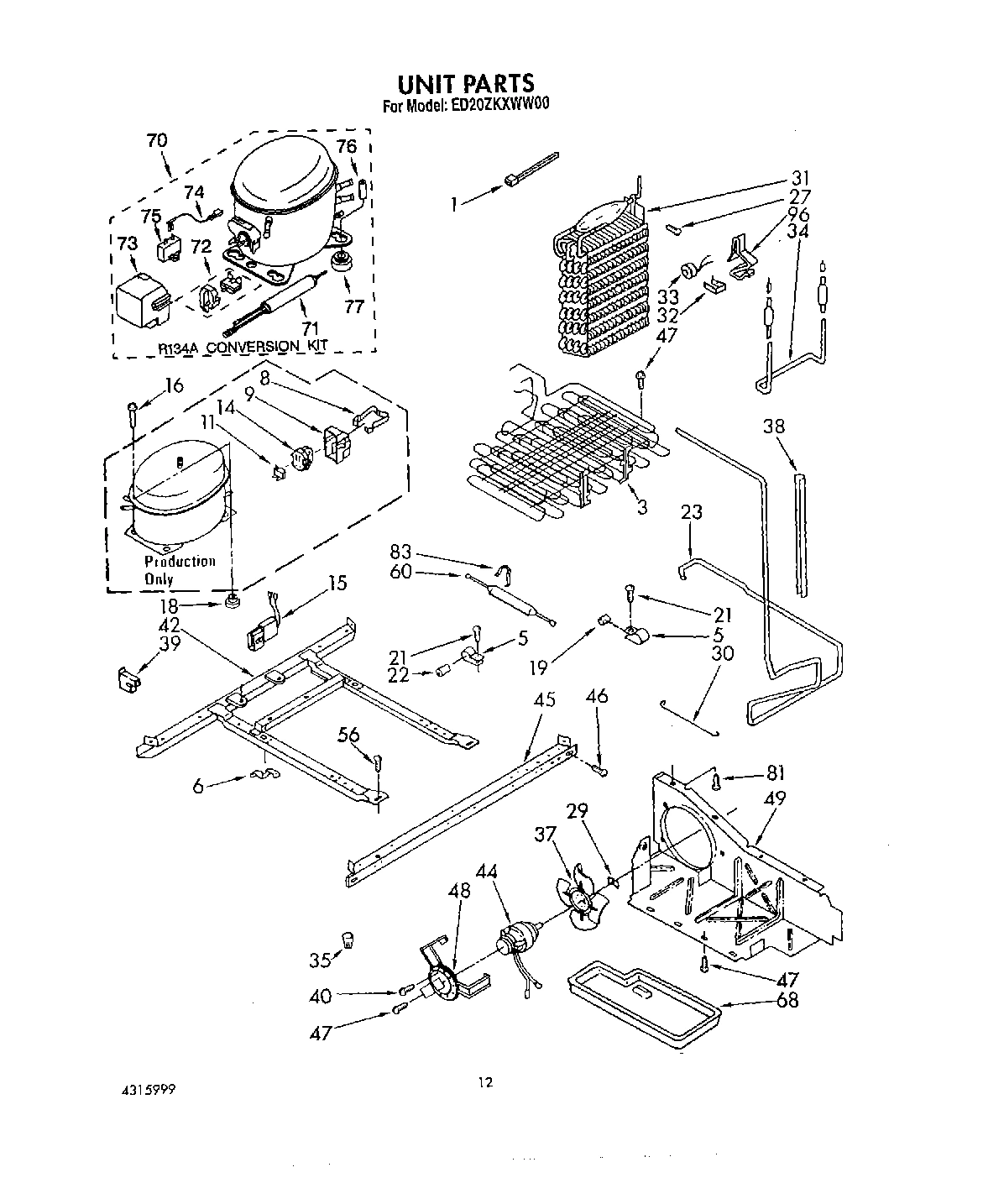

07 - UNIT

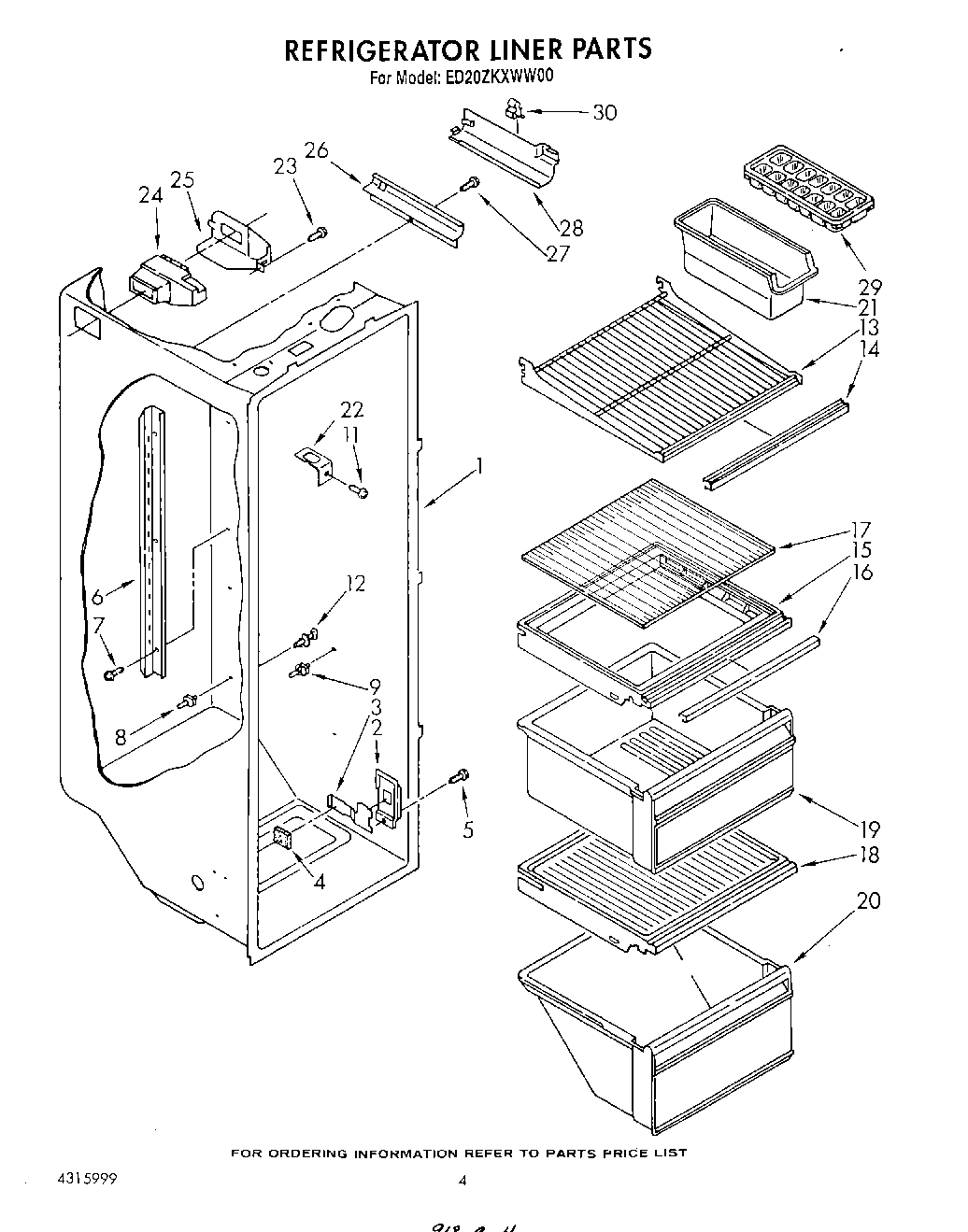

03 - REFRIGERATOR LINER

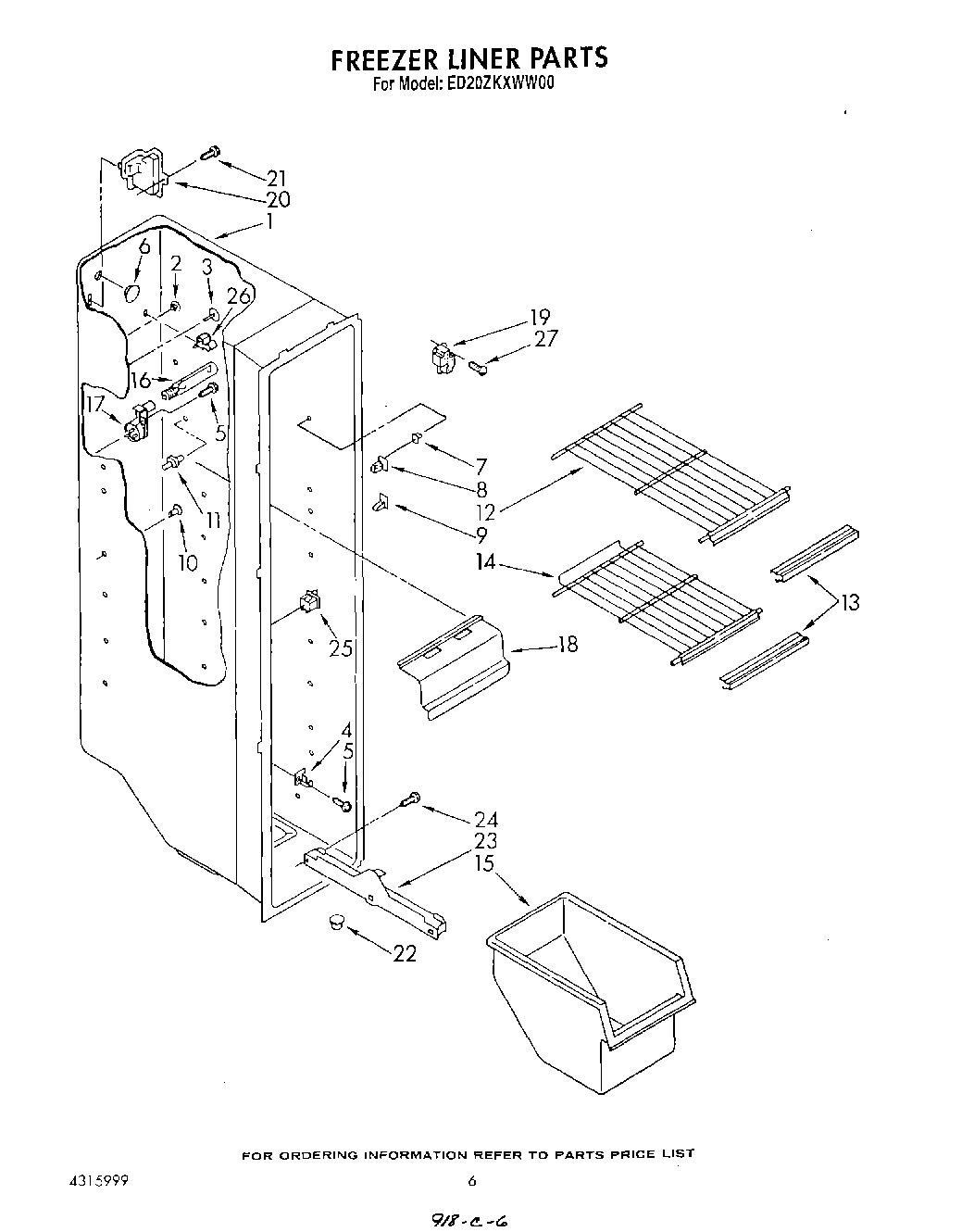

04 - FREEZER LINER
Common parts from model Whirlpool ED20ZKXWW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1124806 WPL LIT1124806 Contact Us For Availability
WPL LIT1127820 WPL LIT1127820 Contact Us For Availability
WPL LIT2148111 WPL LIT2148111 Contact Us For Availability
WPL LIT4315999 WPL LIT4315999 Contact Us For Availability
1
Refrigerator Door (White) WPL 1106923 Contact Us For Availability
1
Refrigerator Door (Golden Harvest) WPL 1108464 Contact Us For Availability
1
Refrigerator Door (Almond) (Also Order Item 2 WPL 1108465 Contact Us For Availability
1
Control Box WPL 1123962 Contact Us For Availability
1
Strap WPL 851095 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26108A3 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI26109A7 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Hole Plug WPL 944795 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Condenser WPL 1127573 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
5
Bracket, Door Stop WPL 1115906 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
6
Mullion Rail WPL 1118354 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
7
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Golden Harvest) WPL 1123968 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Strap, Cover WPL 938384 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
9
Hole Plug WPL 534927 Contact Us For Availability
9
Cover WPL 1108115 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Filler Bottom Mullion (Golden Harvest) WPL 1118363 Contact Us For Availability
10
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Overload WPL 1127582 Contact Us For Availability
12
Hinge, Top (2) WPL 1123514 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Shelf, Cantilever WPL 1118497 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole, Plug (Golden Harvest) WPL 989957 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Handle WPL 987009 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Shelf (2) WPL 1106980 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Golden Harvest) WPL 1115353 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Housing Plug WPL 1118850 Contact Us For Availability
15
Freezer Bin WPL 2148096 Contact Us For Availability
16
Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability
16
Trim, Cover WPL 1110795 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Socket Assembly WPL 1108630 Contact Us For Availability
18
Screw (2) WPL 489296 Contact Us For Availability
18
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
18
Heat Shield WPL 1123924 Contact Us For Availability
18
Lens, Light WPL 1108445 Contact Us For Availability
19
Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability
19
Insert, Handle (Golden Harvest) WPL 1108722 Contact Us For Availability
19
Insert, Handle (White) WPL 2148102 Contact Us For Availability
19
Insert, Handle (Almond) WPL 2148103 Contact Us For Availability
19
Terminal Block WPL 942842 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Control Box Harness WPL 1127774 Contact Us For Availability
20
Pan, Meat WPL 2148091 Contact Us For Availability
20
Cover, Wiring WPL 1129915 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Golden Harvest) WPL 1110710 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Dampener WPL 510769 Contact Us For Availability
22
Fitting, Drain WPL 942768 Contact Us For Availability
23
Screw (Repair) WPL 489297 Contact Us For Availability
23
Screw WPL 489327 Contact Us For Availability
23
End Cap WPL 987006 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
Exchanger, Heat WPL 1127577 Contact Us For Availability
23
Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (2) WPL 2148180 Contact Us For Availability
24
Screw (4) WPL 487979 Contact Us For Availability
25
Divider WPL 1114380 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148232 Contact Us For Availability
26
Cover, Conduit WPL 1123925 Contact Us For Availability
27
Interior, Door Panel WPL 1124961 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Trim, Door Shelf (2) WPL 2148181 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Cover, Wiring WPL 1123920 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Hole Seal 8 x 1/2 WPL 1129056 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Evaporator WPL 1106987 Contact Us For Availability
32
Cabinet Harness WPL 1123739 Contact Us For Availability
32
Door, Compartment WPL 2148218 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
34
Clamp WPL 937357 Contact Us For Availability
34
Heater, Defrost WPL 1106969 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
Cover, Wiring WPL 1108442 Contact Us For Availability
36
Nameplate WPL 945114 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
38
Tape Strip WPL 991259 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
39
Receptacle, Housing WPL 1103840 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
42
Frame WPL 1105534 Contact Us For Availability
43
Trim, Door Compartment WPL 1110717 Contact Us For Availability
44
Screw WPL 488978 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
45
Rail, Front WPL 1127936 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
47
Cover, Unit WPL 2147330 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
WPL 989896 WPL 989896 Contact Us For Availability
49
Air, Baffle WPL 1127938 Contact Us For Availability
51
WPL 1118236 WPL 1118236 Contact Us For Availability
53
WPL 548745 WPL 548745 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
83
Clamp, Dryer WPL 1127590 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 1108431 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
