Model Whirlpool ED20SKXXW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

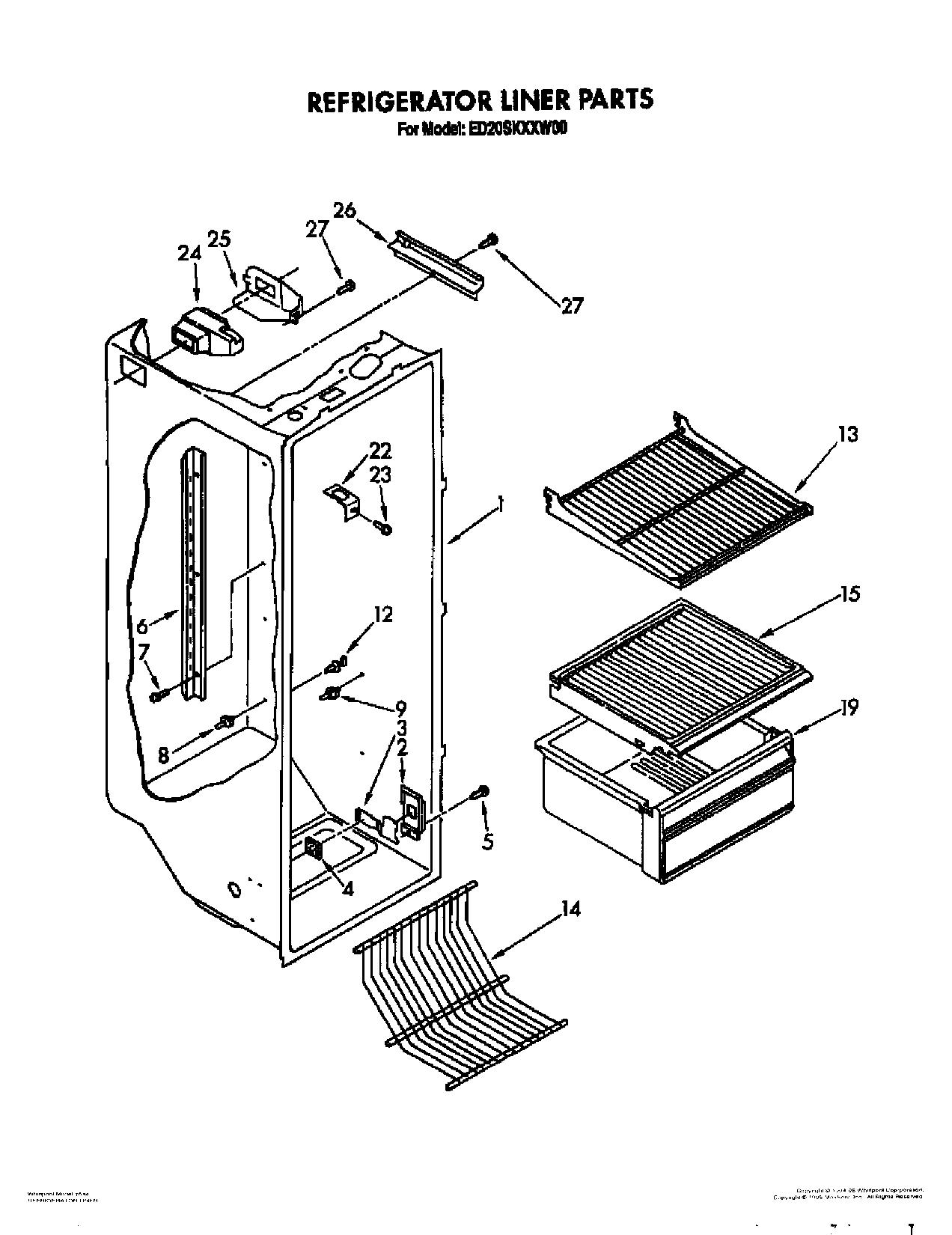

03 - REFRIGERATOR LINER

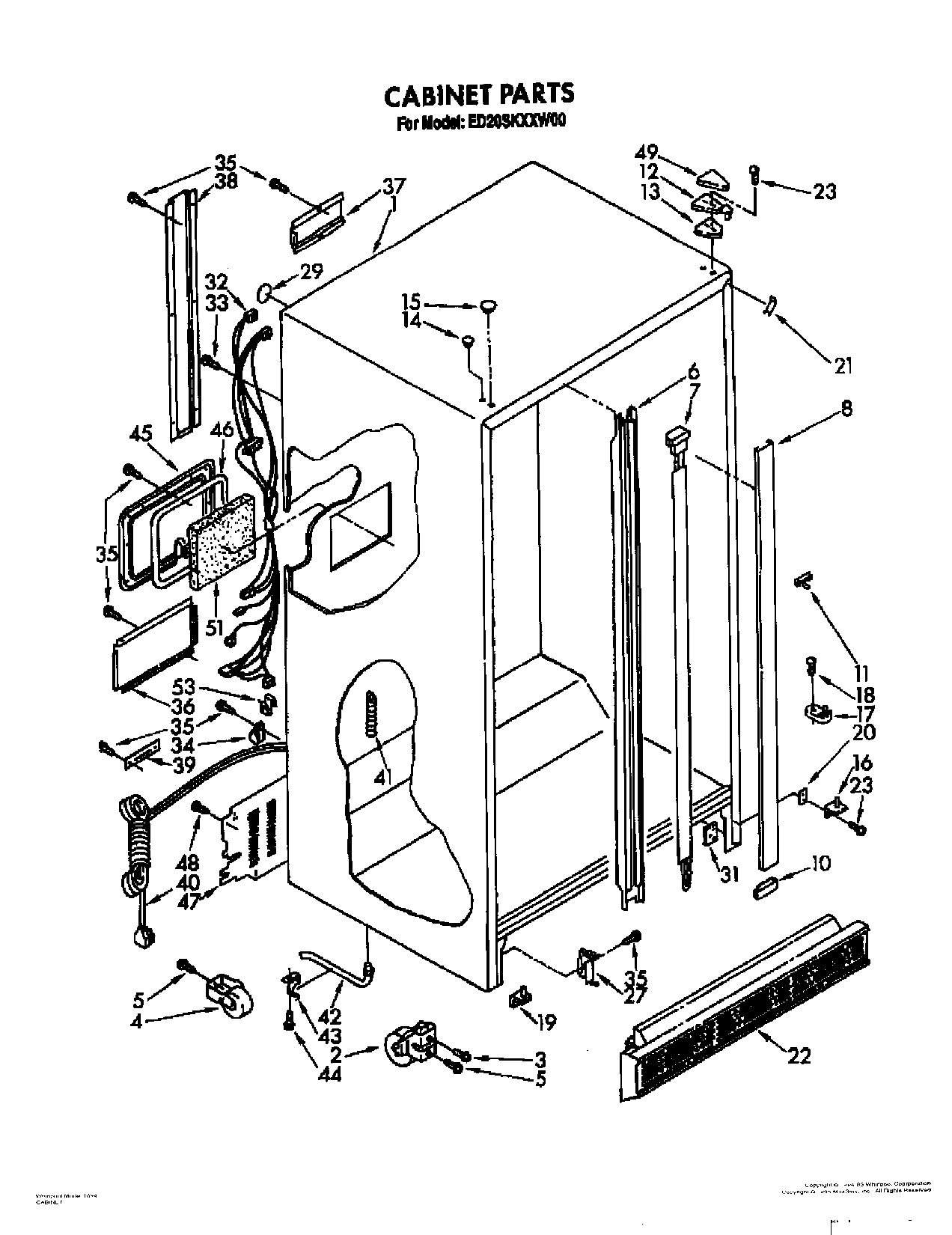

02 - CABINET

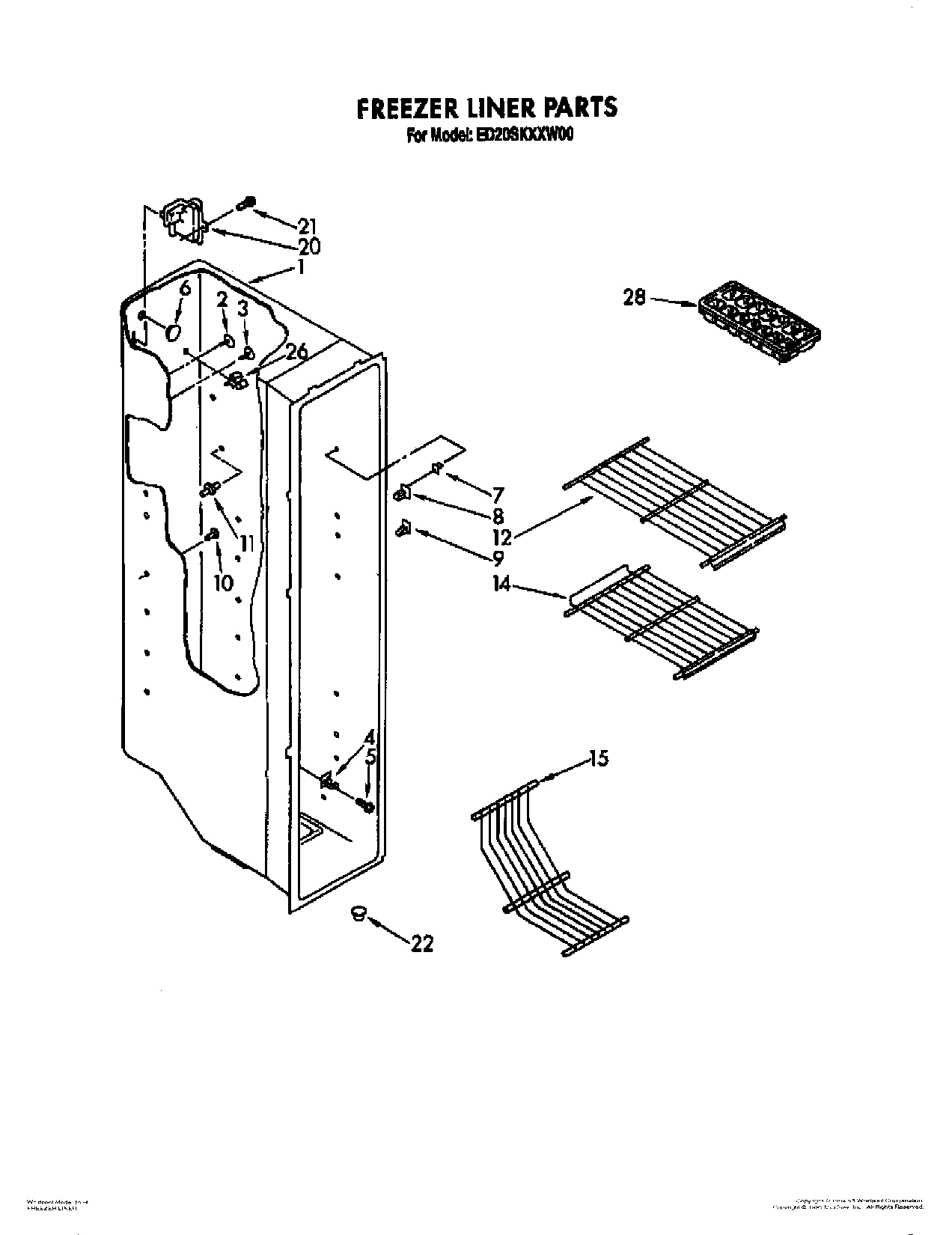

04 - FREEZER LINER

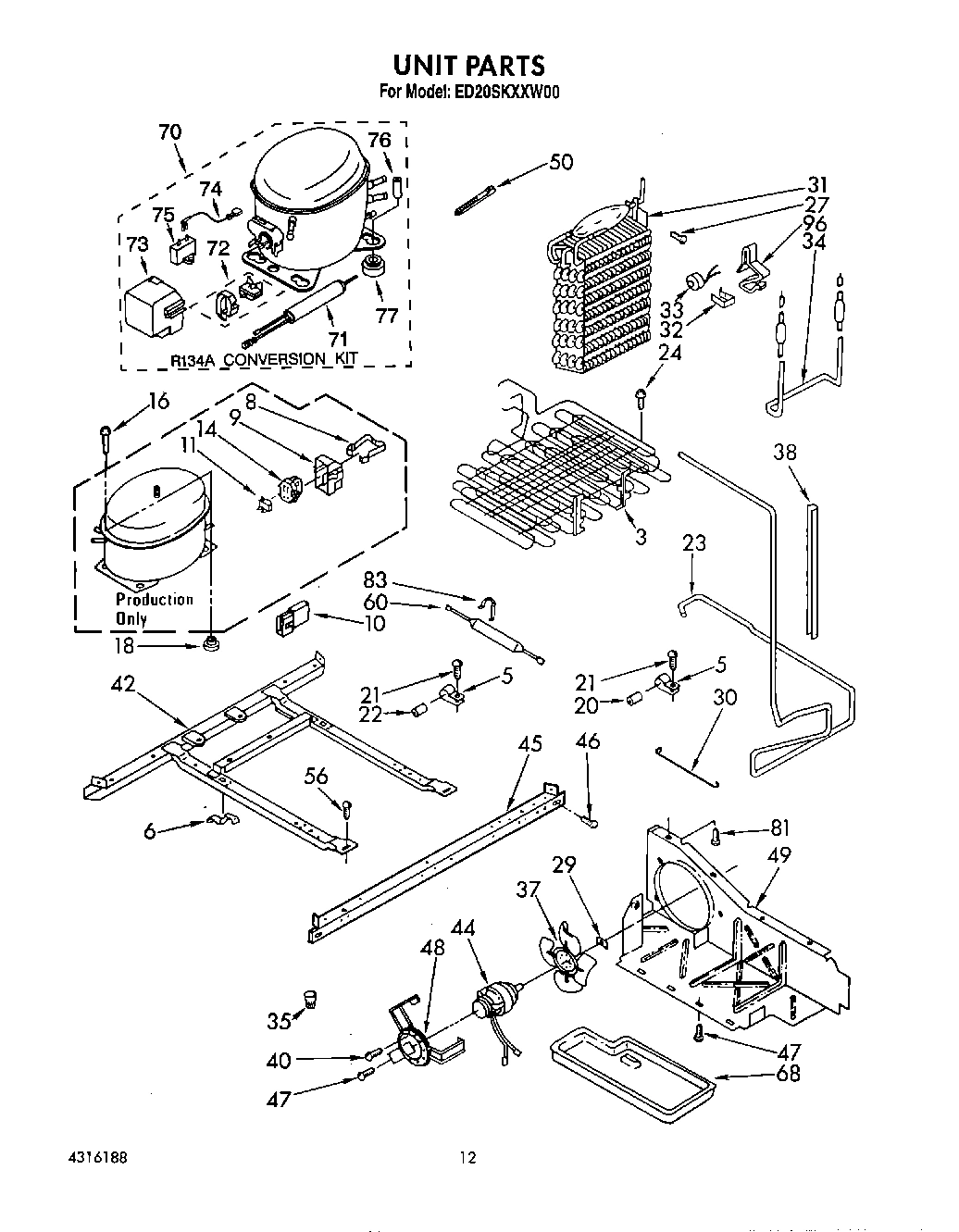

07 - UNIT

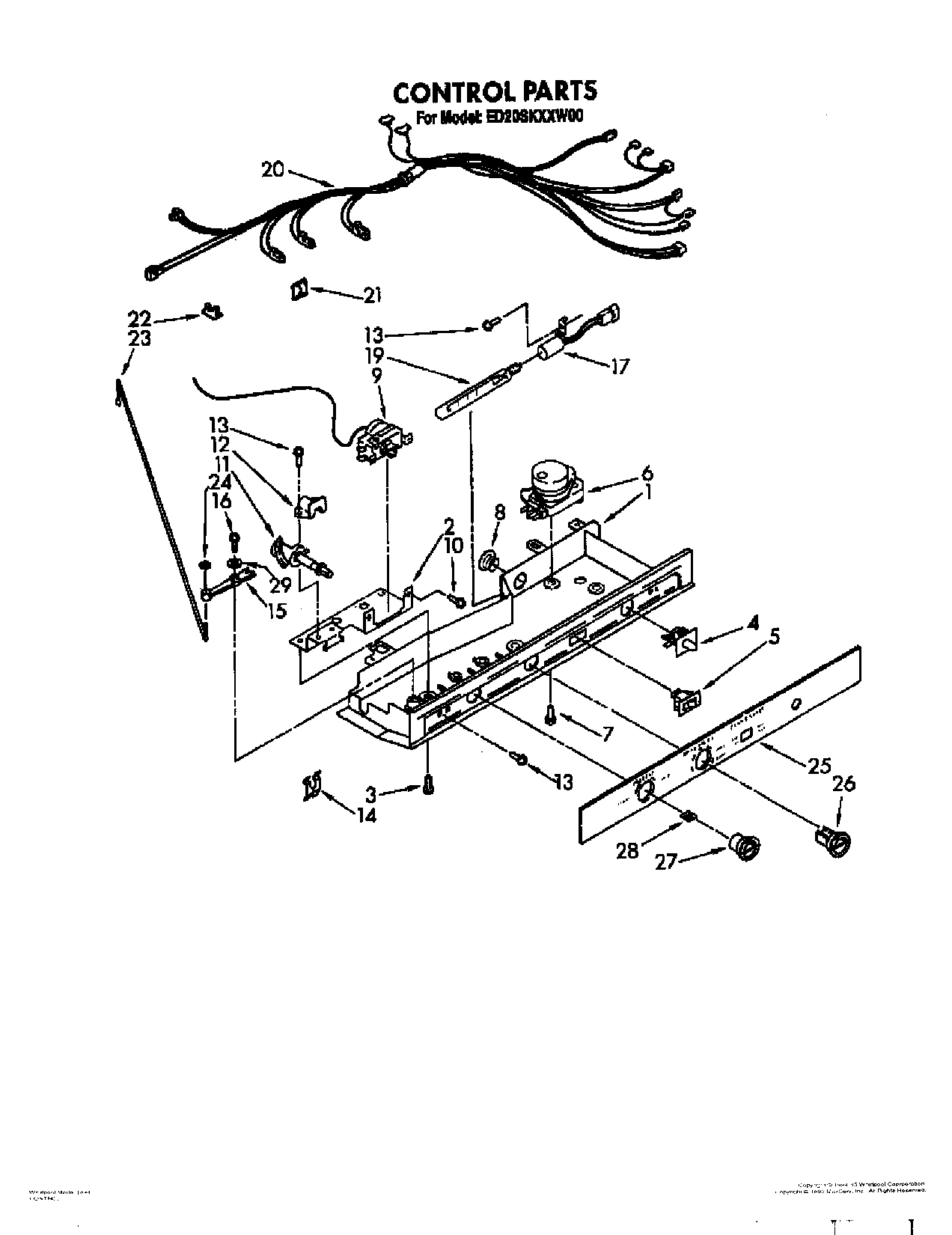

09 - CONTROL, LIT/OPTIONAL

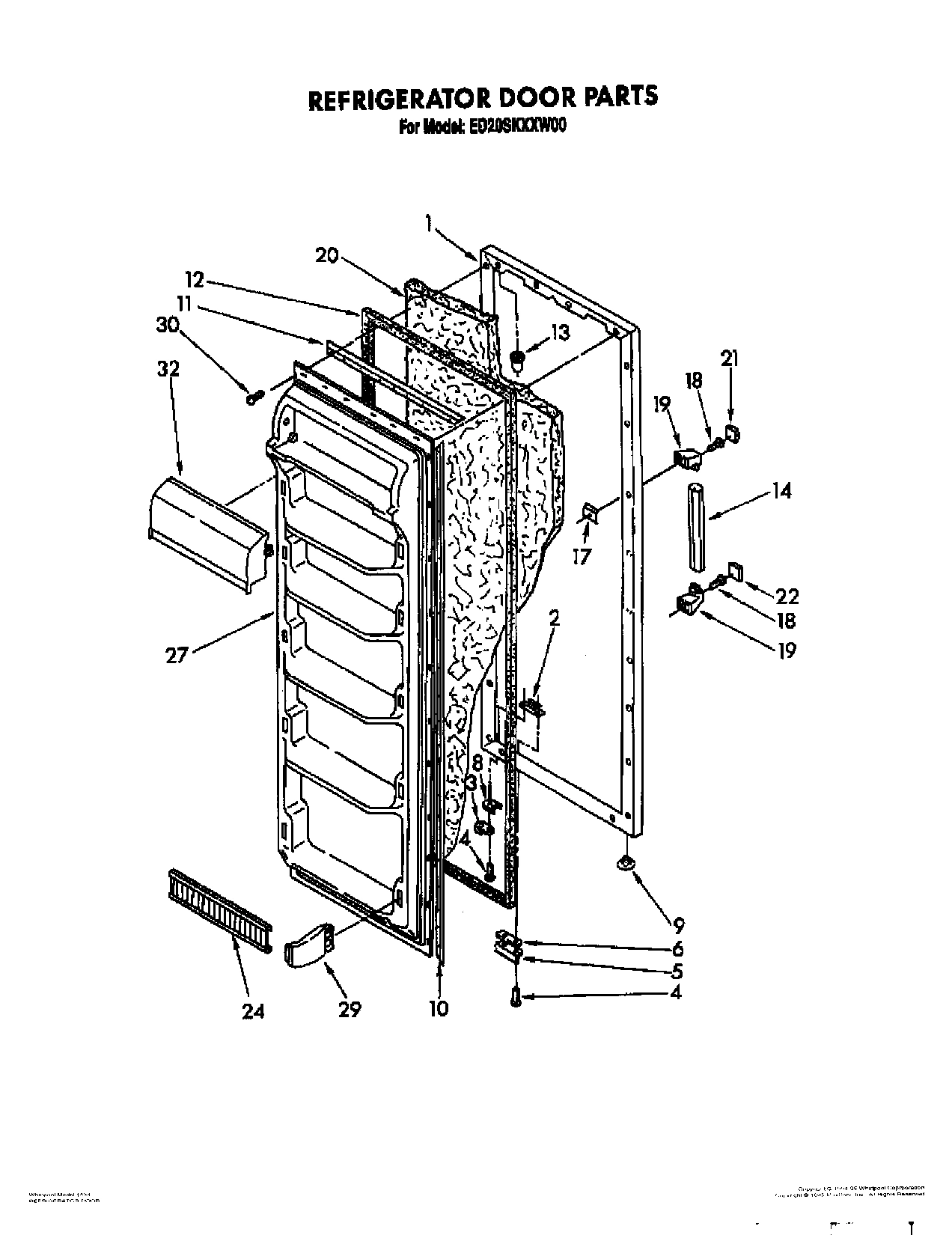

05 - REFRIGERATOR DOOR

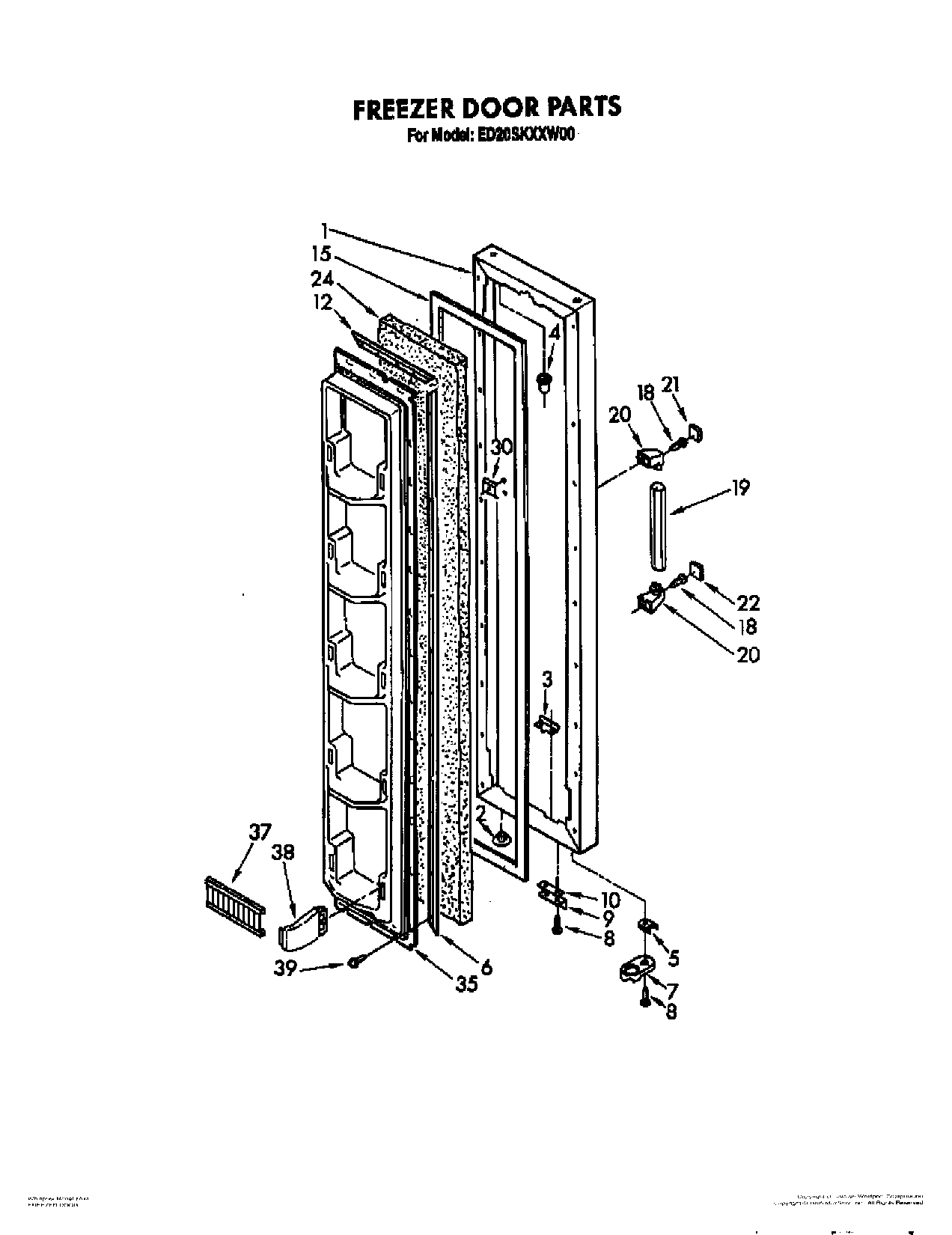

06 - FREEZER DOOR

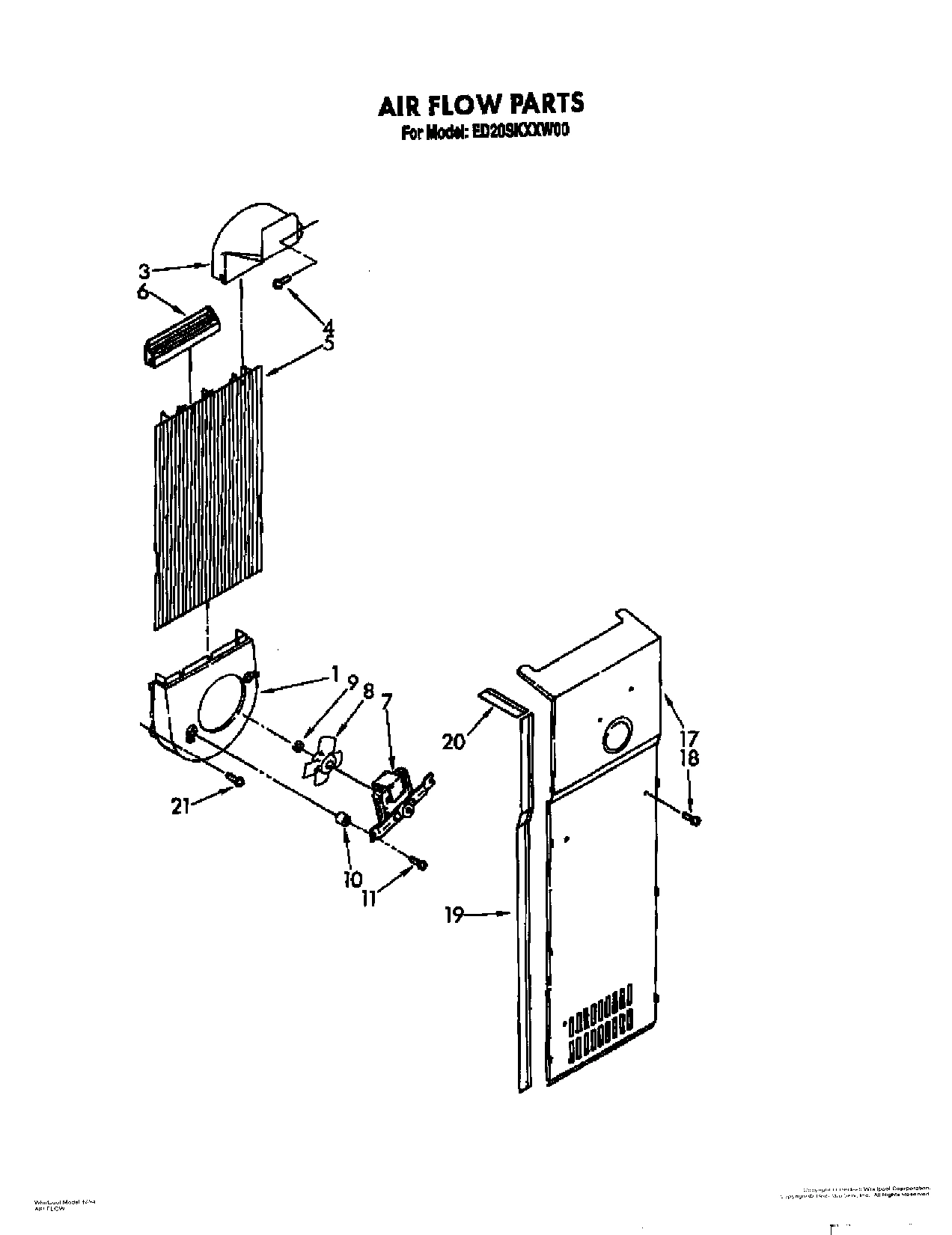

08 - AIR FLOW
Common parts from model Whirlpool ED20SKXXW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2148294 WPL LIT2148294 Contact Us For Availability
WPL LIT2148935 WPL LIT2148935 Contact Us For Availability
WPL LIT2149921 WPL LIT2149921 Contact Us For Availability
WPL LIT4316188 WPL LIT4316188 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25850A8 Contact Us For Availability
1
Control Box WPL 1129413 Contact Us For Availability
1
Refrigerator Door (Also Order Item 20) WPL 2148286 Contact Us For Availability
1
Freezer, Door Panel (Also Order Item 24) WPL 2148288 Contact Us For Availability
1
Fan Scroll WPL 1127163 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Hole Plug WPL 944795 Contact Us For Availability
2
Hole Plug WPL 534927 Contact Us For Availability
3
Condenser WPL 1127573 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Tap Plate WPL 988402 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
5
Air Duct Freezer WPL 1108434 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
6
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Fan Motor WPL 1127165 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
8
Strap, Cover WPL 938384 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Cover WPL 1108115 Contact Us For Availability
9
Bracket, Door Stop WPL 1115906 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Grommet (16) WPL 1110779 Contact Us For Availability
10
Housing Plug WPL 1118850 Contact Us For Availability
10
Shim WPL 988421 Contact Us For Availability
10
Fan Grommet (2) WPL 1114354 Contact Us For Availability
11
Overload WPL 1127582 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
11
Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability
11
Screw (2) WPL 489168 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
14
Shelf (2) WPL 1106980 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Trivet WPL 2148400 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Cover, Evaporator WPL 1127168 Contact Us For Availability
18
Screw, 8-15 x 1-5/8 (2) WPL 488987 Contact Us For Availability
19
Handle WPL 1124592 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
20
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
20
Cover, Wiring WPL 1129915 Contact Us For Availability
20
Control Box Harness WPL 2149748 Contact Us For Availability
20
End Cap (2) WPL 1124591 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
21
Insert, Cover (Top) WPL 2148292 Contact Us For Availability
21
Insert, Cover (Top) WPL 1124593 Contact Us For Availability
22
Fitting, Drain WPL 942768 Contact Us For Availability
22
Dampener WPL 510769 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insert, Cover (Bottom) WPL 934724 Contact Us For Availability
23
Exchanger, Heat WPL 1127577 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Trim, Door Shelf (5) WPL 2148290 Contact Us For Availability
25
Escutcheon, Control Box WPL 2148231 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Panel, Interior Door WPL 1129249 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Retainer, Door Trim (10) WPL 1110713 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
31
Evaporator WPL 1106987 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
32
Compartment Door WPL 2148289 Contact Us For Availability
34
Heater, Defrost WPL 2154542 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
36
Cover, Wiring WPL 1129193 Contact Us For Availability
37
Wiring Shield, Short WPL 1108440 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
37
Trim, Door Shelf (5) WPL 2148291 Contact Us For Availability
38
Wiring Shield, Long WPL 1108441 Contact Us For Availability
39
Tube Clamp (2) WPL 1105607 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Drain Ferrule WPL 842258 Contact Us For Availability
42
Frame WPL 1127942 Contact Us For Availability
44
Screw WPL 488978 Contact Us For Availability
45
Cover, Plug WPL 1108443 Contact Us For Availability
45
Rail, Front WPL 2149717 Contact Us For Availability
46
Sealing Gasket WPL 1115321 Contact Us For Availability
47
Cover, Unit WPL 2147330 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Air, Baffle WPL 1127938 Contact Us For Availability
50
Strap WPL 851095 Contact Us For Availability
51
Insulation WPL 1118236 Contact Us For Availability
53
Clip, Wire WPL 548745 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 488624 Contact Us For Availability
83
Clamp, Dryer WPL 1127590 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 1108431 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
