Model Whirlpool ED20PKXAW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

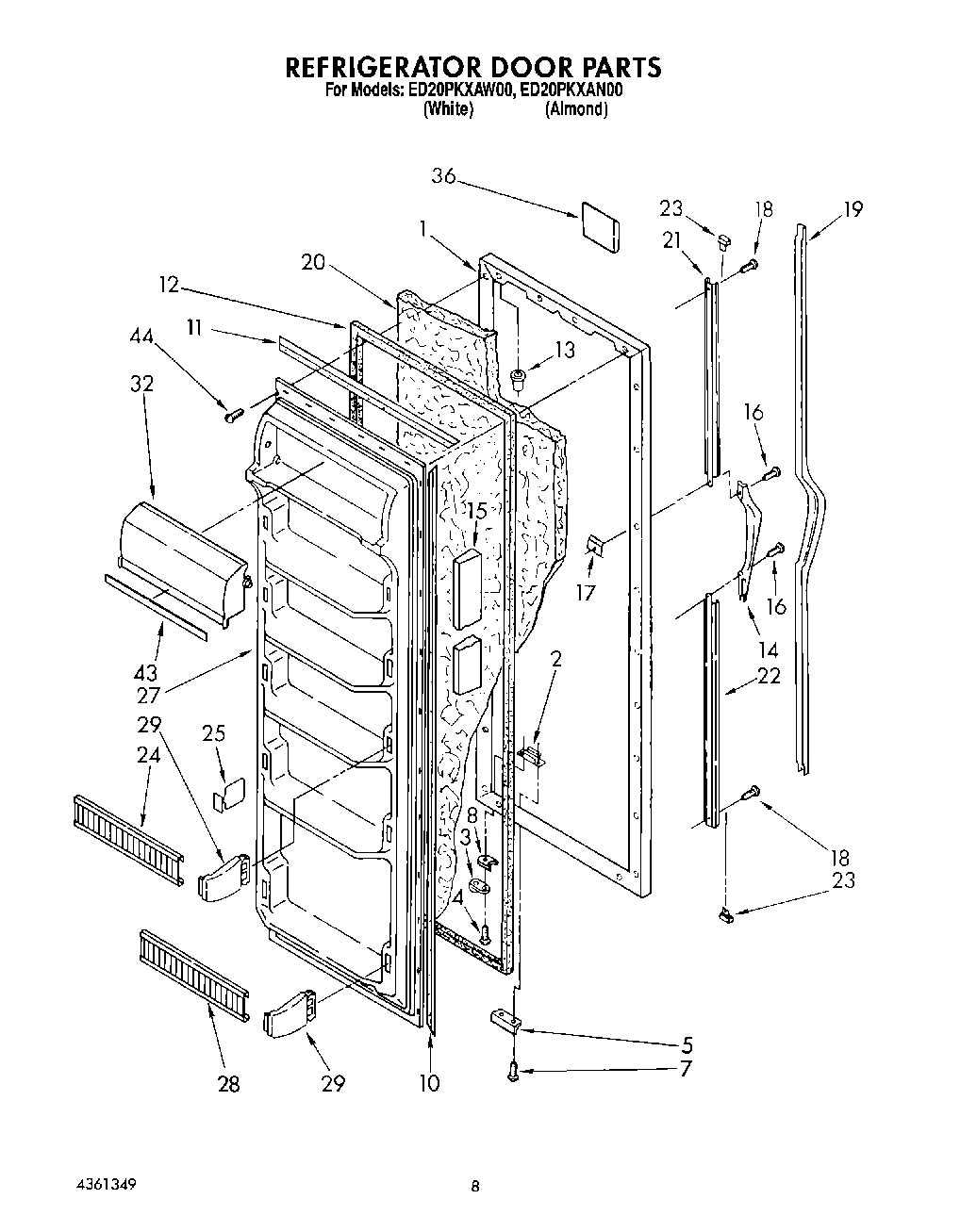

06 - REFRIGERATOR DOOR

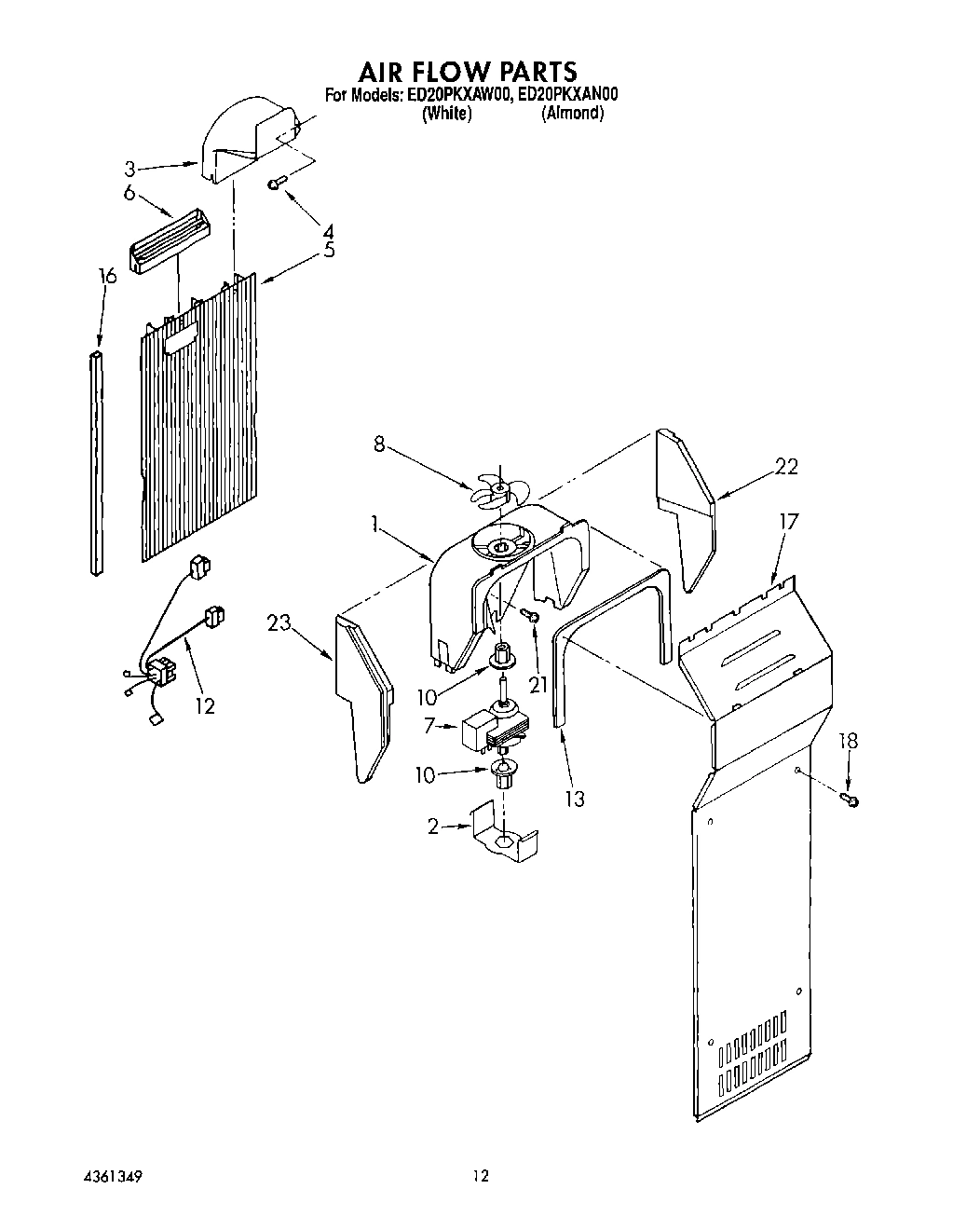

08 - AIR FLOW
02 - CABINET
04 - FREEZER LINER
03 - REFRIGERATOR LINER
09 - CONTROL, LIT/OPTIONAL
05 - FREEZER DOOR
07 - UNIT
Common parts from model Whirlpool ED20PKXAW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155531 WPL LIT2155531 Contact Us For Availability
WPL LIT2155745 WPL LIT2155745 Contact Us For Availability
WPL LIT2162708 WPL LIT2162708 Contact Us For Availability
WPL LIT4361349 WPL LIT4361349 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25776A6 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25775A8 Contact Us For Availability
1
Control Box WPL 2155518 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1106922 Contact Us For Availability
1
Freezer, Door Panel (Almond (Also Order Item WPL 1108470 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Divider WPL 1114380 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
3
Tap Plate WPL 988402 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
5
Reflector WPL 1114306 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Defrost Timer WPL 2154984 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Heat Sheild, Drain Pan WPL 2149293 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Bracket, Door Stop WPL 1115906 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Glass, Shelf WPL 2148108 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Shelf WPL 1106979 Contact Us For Availability
12
Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
13
Shelf, Cantilever WPL 2148087 Contact Us For Availability
13
Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Shelf (Large 2) WPL 1106980 Contact Us For Availability
14
Shelf (Small 1) WPL 2155603 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161329 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Bin, Freezer WPL 2148194 Contact Us For Availability
15
Relay (SeeOverload) WPL ARI25777A6 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability
16
Trim, Cover WPL 1110795 Contact Us For Availability
17
Glass, Shelf WPL 1114687 Contact Us For Availability
17
Screw, 10-32 x 23/32 WPL 489327 Contact Us For Availability
18
Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability
19
hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability
19
Handle WPL 987009 Contact Us For Availability
20
Spacer, Hinge WPL 836196 Contact Us For Availability
20
Cover, Wiring WPL 2152644 Contact Us For Availability
20
Pan, Meat WPL 2148192 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Insert, Handle (White) WPL 2148102 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2148103 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
21
Clip, Heat Shield WPL 2155547 Contact Us For Availability
22
Grille WPL 1129001 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
23
Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
23
End Cap (2) WPL 987006 Contact Us For Availability
24
Foam Insulation WPL 876029 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
26
Screw, WPL 488454 Contact Us For Availability
26
Support Clip WPL 2155021 Contact Us For Availability
26
Cover, Conduit WPL 2150330 Contact Us For Availability
26
Harness, Intermediate WPL 2153994 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
30
Unit Mounting Frame WPL 1127942 Contact Us For Availability
32
Bracket, Fan Motor WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2162079 Contact Us For Availability
35
Panel, Interior Door WPL 1129241 Contact Us For Availability
37
Trim, Door Shelf WPL 2148200 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI25774A9 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
53
Cover, Unit WPL 2161316 Contact Us For Availability
59
Clip, Wire And Water Tube WPL 2155658 Contact Us For Availability
60
Clip (2) WPL 2161330 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
77
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
77
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
