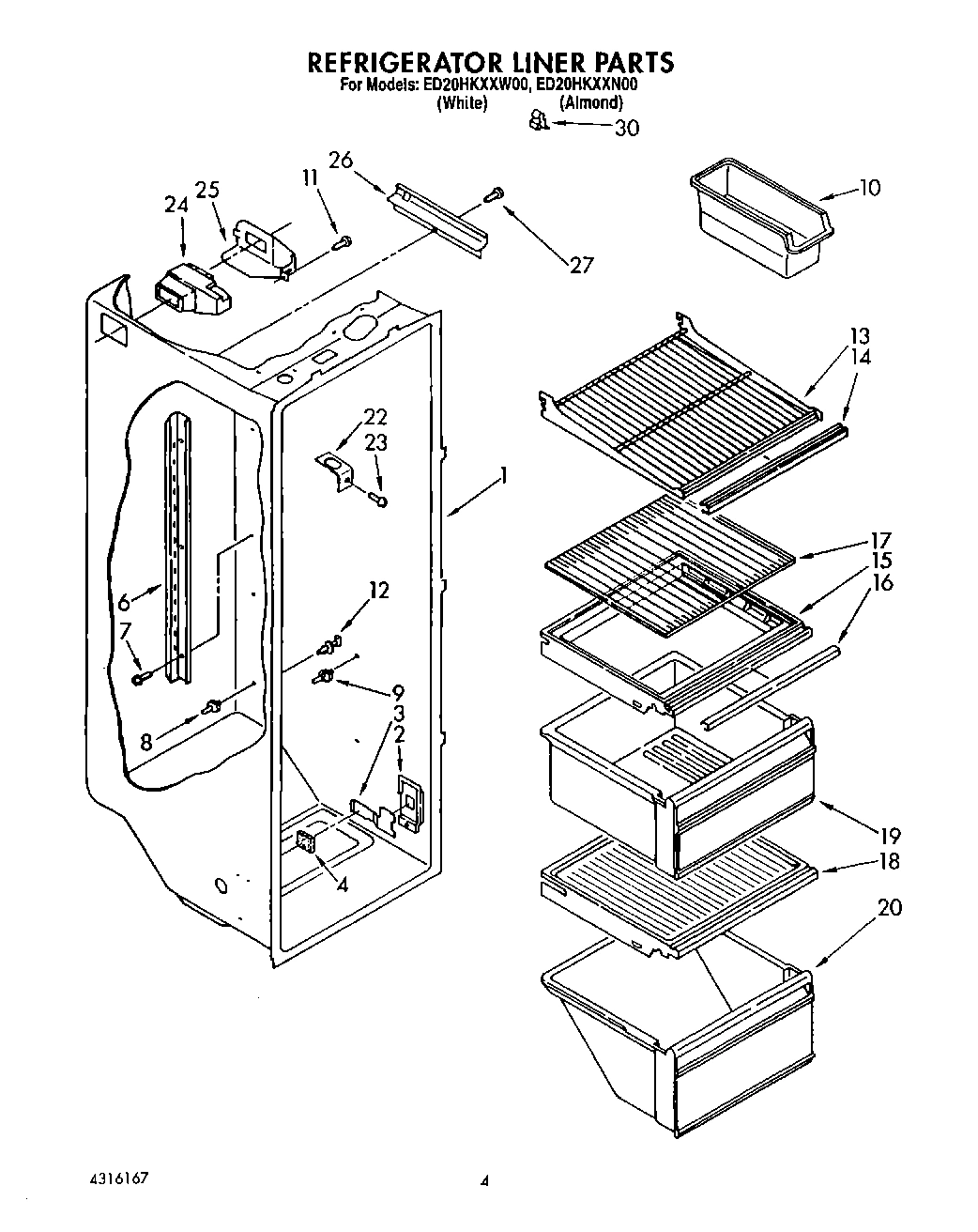

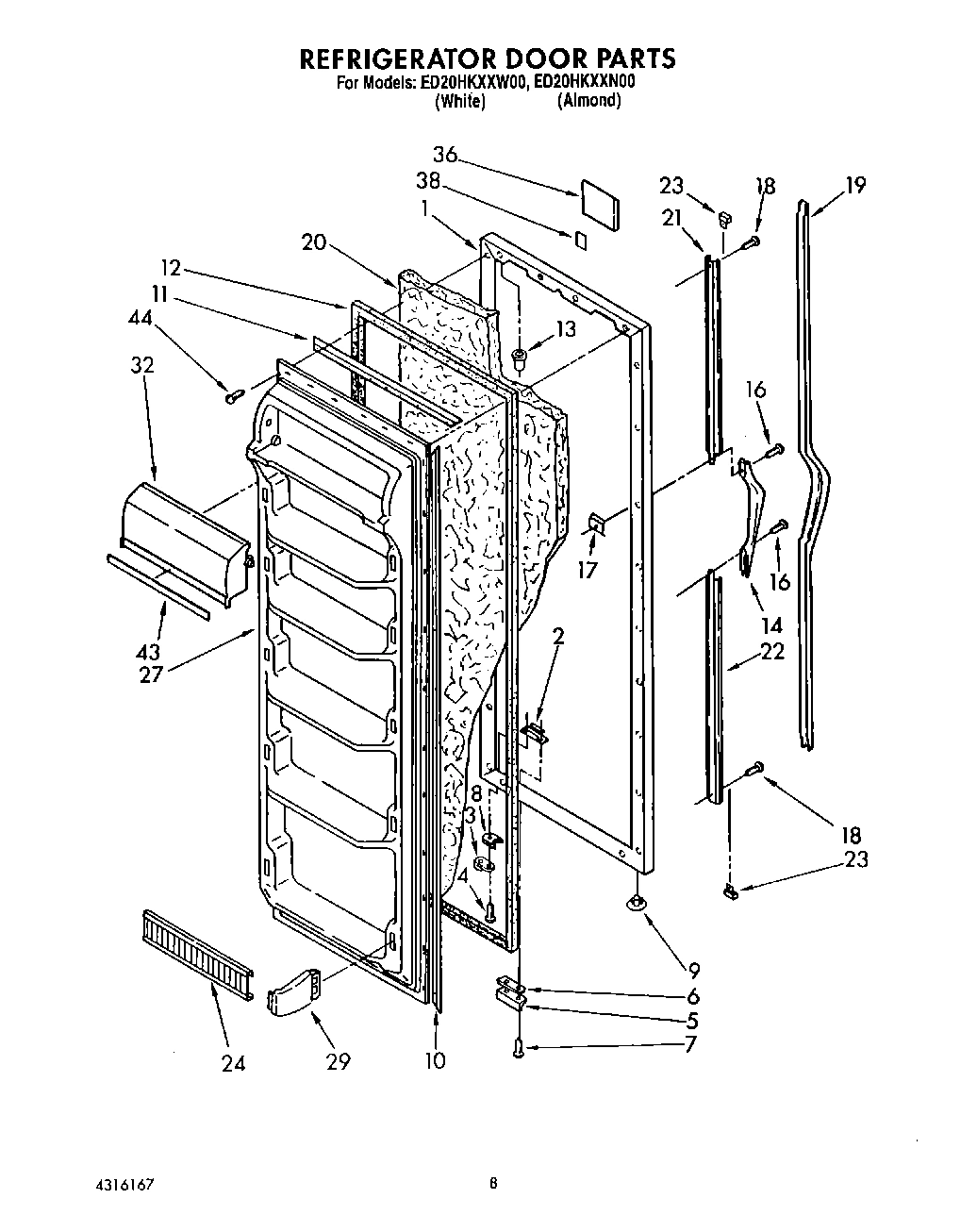

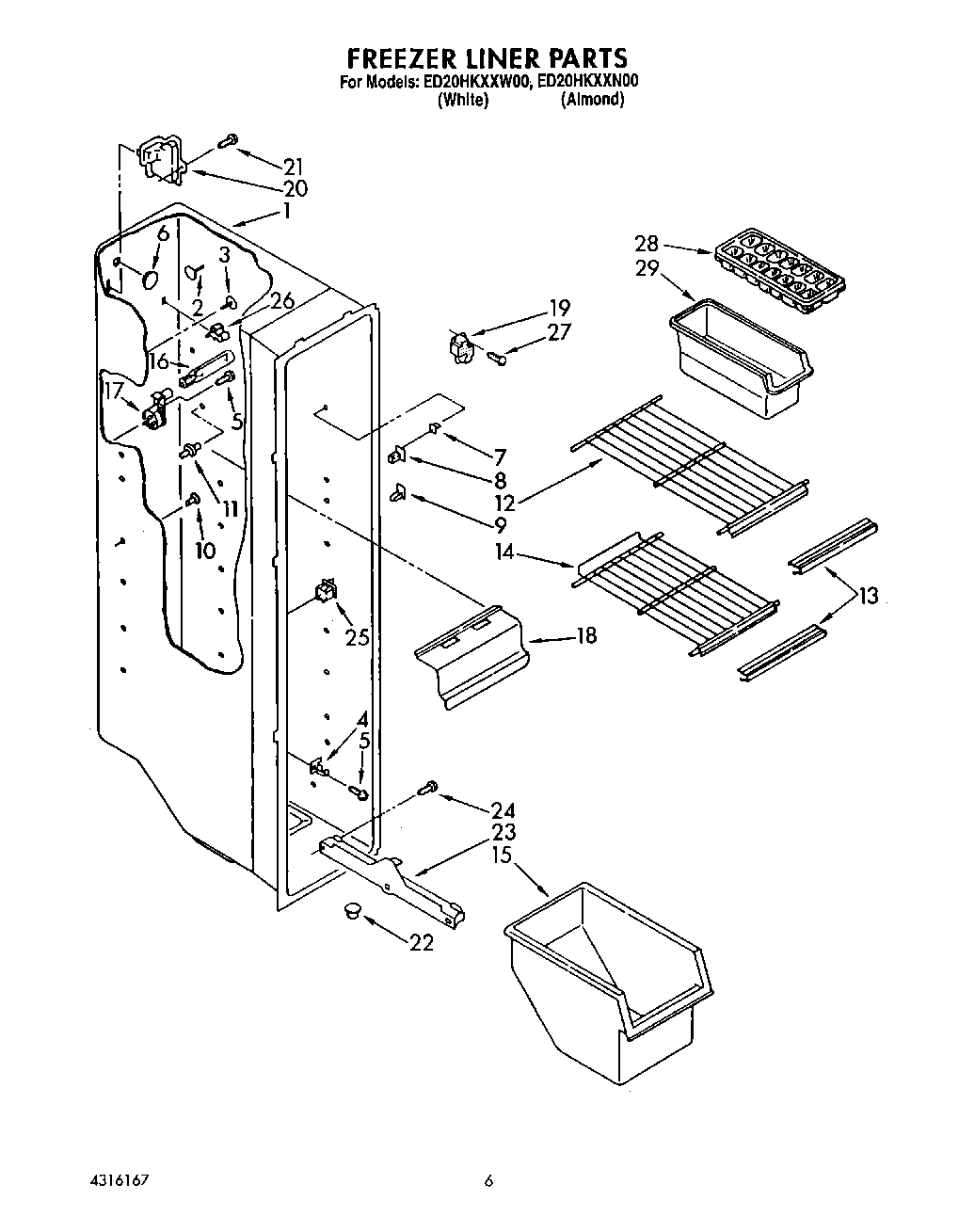

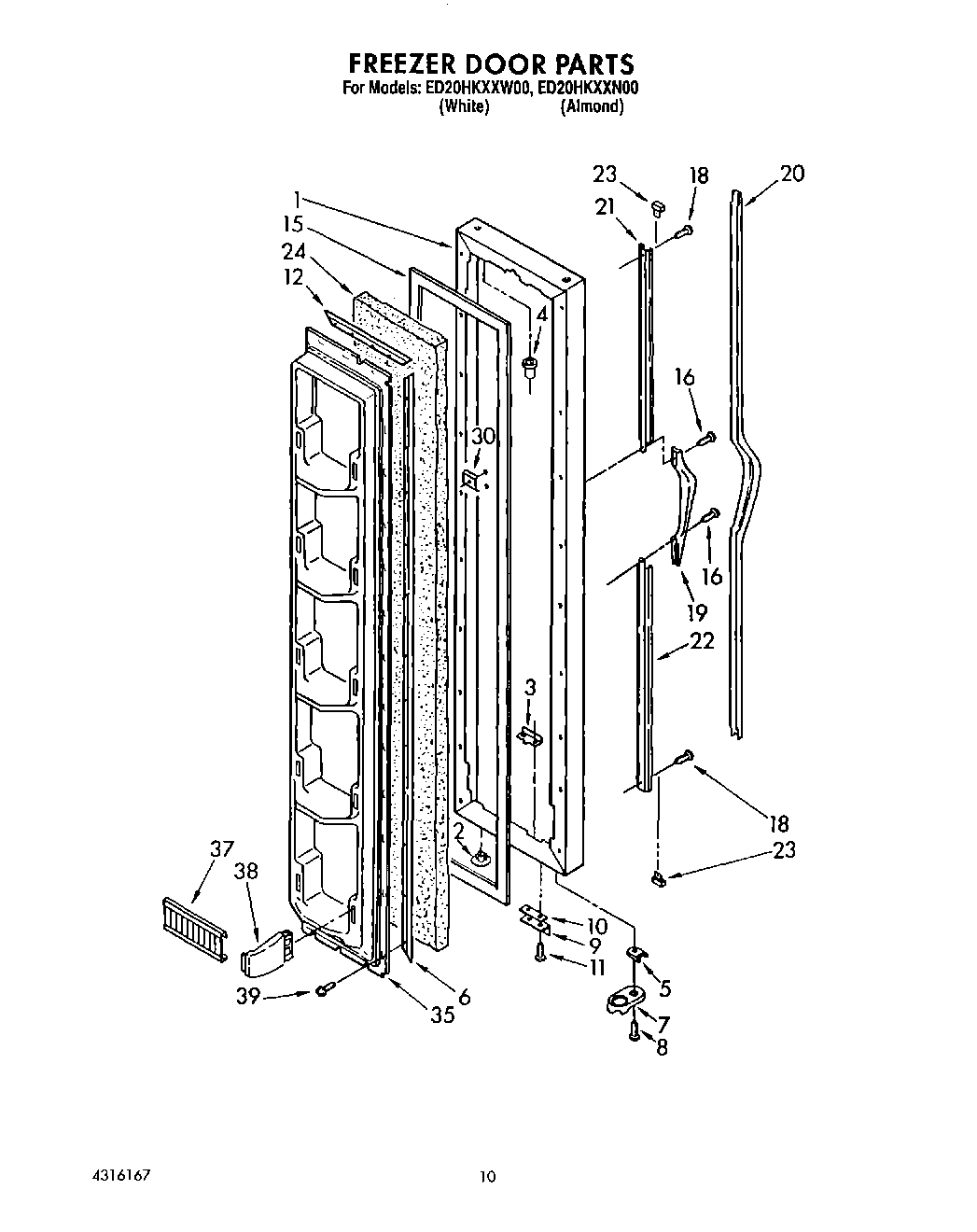

Model Whirlpool ED20HKXXN00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI25756A3 Contact Us For Availability

1

Freezer, Door Panel (White) WPL 1106922 Contact Us For Availability

1

Freezer, Door Panel (Almond (Also Order Item WPL 1108470 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI25758A4 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI25757A4 Contact Us For Availability

1

Refrigerator Door (White) WPL 1106923 Contact Us For Availability

1

Refrigerator Door (Almond) (Also Order Item 2 WPL 1108465 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2152011 Contact Us For Availability

2

Hole Plug (Almond) WPL 989197 Contact Us For Availability

2

Tap Plate WPL 988402 Contact Us For Availability

2

Hole Plug WPL 944795 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability

3

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Condenser WPL 1127573 Contact Us For Availability

4

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

4

Evaporator, Support WPL 1108436 Contact Us For Availability

4

Pad, Foam WPL 992358 Contact Us For Availability

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

Bracket, Door Stop WPL 1115906 Contact Us For Availability

5

Clamp (2) WPL 510716 Contact Us For Availability

6

Mullion Rail WPL 1118354 Contact Us For Availability

6

Shim WPL 988421 Contact Us For Availability

6

Hole Plug WPL 655411 Contact Us For Availability

6

Ladder, Shelf (2) WPL 1108433 Contact Us For Availability

6

Clip (2) WPL 548744 Contact Us For Availability

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

7

Heater, Mullion WPL 1106997 Contact Us For Availability

7

Screw, 8 x 5/8 WPL 488549 Contact Us For Availability

7

Support, Stud (16) WPL 946355 Contact Us For Availability

7

Grommet WPL 509812 Contact Us For Availability

8

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.05

8

WP1104787 Whirlpool Refrigerator Shim Backorder WPL WP1104787 $3.70

8

Blade, Fan WPL 992920 Contact Us For Availability

8

Front Mullion Rail (White) WPL 1123966 Contact Us For Availability

8

Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability

8

Stud (5) WPL 946356 Contact Us For Availability

9

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $4.34

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

9

Hole Plug WPL 534927 Contact Us For Availability

9

Stud (5) WPL 1106982 Contact Us For Availability

9

Cover WPL 1108115 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability

Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

Grommet (16) WPL 1110779 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

11

Clip, Ground WPL 1110607 Contact Us For Availability

11

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

11

Overload WPL 1108114 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $119.63

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Hinge, Top (2) WPL 1123514 Contact Us For Availability

Gasket Retainer, Top & Bottom WPL 1117767 Contact Us For Availability

Shelf (1) WPL 1106979 Contact Us For Availability

Shim, Hinge (2) WPL 1123515 Contact Us For Availability

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

Trim Shelf WPL 1110782 Contact Us For Availability

Shelf, Cantilever WPL 1118497 Contact Us For Availability

Hole, Plug (White) WPL 849391 Contact Us For Availability

Hole Plug (Almond) WPL 989958 Contact Us For Availability

Handle WPL 987009 Contact Us For Availability

Shelf (2) WPL 1106980 Contact Us For Availability

Trim, Shelf (3) WPL 1114302 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $132.43

WP1126289 Whirlpool Refrigerator Cover Backorder WPL WP1126289 $68.02

Pivot Arm WPL 1110559 Contact Us For Availability

Hole Plug (White) WPL 1115352 Contact Us For Availability

Hole Plug (Almond) WPL 1115354 Contact Us For Availability

Bin, Freezer WPL 2148194 Contact Us For Availability

16

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $26.21

16

Hinge Bottom (R.H.) WPL 2151619 Contact Us For Availability

16

Trim, Cover WPL 1110795 Contact Us For Availability

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Glass, Shelf WPL 1114687 Contact Us For Availability

Socket Assembly WPL 1108630 Contact Us For Availability

Compressor (Includes Items 51, 52, 53, 54, 55 WPL 482981 Contact Us For Availability

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2148298 Whirlpool Refrigerator Deli Drawer Backorder WPL WP2148298 $93.36

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability

Lens, Light WPL 1108445 Contact Us For Availability

WP2148279 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2148279 $97.12

hinge Bottom (L.H.) WPL 2151620 Contact Us For Availability

Insert, Handle WPL 1111550 Contact Us For Availability

Terminal Block WPL 942842 Contact Us For Availability

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

Spacer, Hinge WPL 1129868 Contact Us For Availability

Cover, Wiring WPL 1129915 Contact Us For Availability

Pan, Meat WPL 2148192 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

Insert Retainer (Top) WPL 987008 Contact Us For Availability

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Grille WPL 1129001 Contact Us For Availability

Insert Retainer (Bottom) WPL 987010 Contact Us For Availability

Fitting, Drain WPL 942768 Contact Us For Availability

Dampener WPL 510769 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Screw WPL 489327 Contact Us For Availability

End Cap WPL 987006 Contact Us For Availability

Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability

Exchanger, Heat WPL 1127577 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Fastener, Push-On WPL 489285 Contact Us For Availability

Screw (4) WPL 487979 Contact Us For Availability

Trim, Door Shelf (5) WPL 2148197 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

26

Cover, Conduit WPL 2150330 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Panel, Interior Door WPL 1129249 Contact Us For Availability

28

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Retainer, Door Trim (10) WPL 1110713 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPOR WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

30

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

30

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

31

Tap Plate (2) WPL 2147310 Contact Us For Availability

31

Evaporator WPL 1106987 Contact Us For Availability

32

Cabinet Harness WPL 2149746 Contact Us For Availability

32

Door, Compartment WPL 2148218 Contact Us For Availability

32

Clamp WPL 513584 Contact Us For Availability

33

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

33

WP4387499 Whirlpool Refrigerator Bimetallic D In Stock WPL WP4387499 $41.78

34

Clamp WPL 937357 Contact Us For Availability

34

Heater, Defrost WPL 2149910 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

Panel, Interior Door WPL 1129241 Contact Us For Availability

35

Wire Connector WPL 227991 Contact Us For Availability

36

Cover, Wiring WPL 1129193 Contact Us For Availability

36

Nameplate WPL 944380 Contact Us For Availability

37

Wiring Shield, Short WPL 1108440 Contact Us For Availability

37

Trim, Door Shelf (5) WPL 2148200 Contact Us For Availability

37

Blade, Fan WPL 989524 Contact Us For Availability

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

WP2196100 Whirlpool Shelf Retainer Bar Suppor Backorder WPL WP2196100 $3.70

Wiring Shield, Long WPL 1108441 Contact Us For Availability

Tape Strip WPL 991259 Contact Us For Availability

39

Tube Clamp (2) WPL 1105607 Contact Us For Availability

40

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

40

Cord, Service WPL 937360 Contact Us For Availability

41

Drain Ferrule WPL 842258 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Frame WPL 1127942 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

Trim, Door Compartment WPL 1110717 Contact Us For Availability

44

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

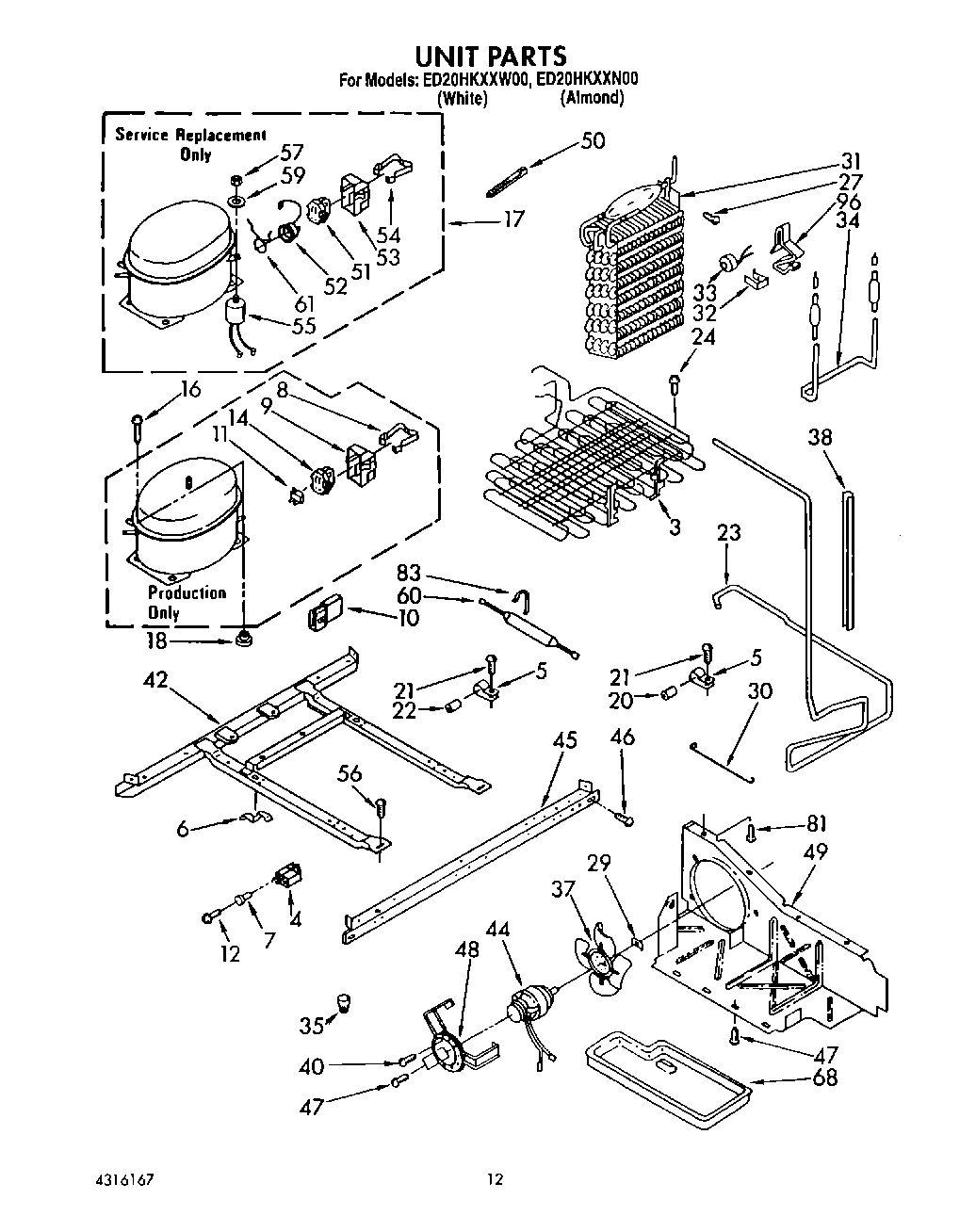

44

Screw WPL 488978 Contact Us For Availability

45

Cover, Plug WPL 1108443 Contact Us For Availability

45

Rail, Front WPL 2149717 Contact Us For Availability

46

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

46

Sealing Gasket WPL 1115321 Contact Us For Availability

47

Cover, Unit WPL 2147330 Contact Us For Availability

47

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

48

Bracket, Fan Motor WPL 548695 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Air, Baffle WPL 1127938 Contact Us For Availability

50

Hole Seal WPL 1120224 Contact Us For Availability

50

Strap WPL 851095 Contact Us For Availability

51

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

51

Insulation WPL 1118236 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

52

Overload WPL 483037 Contact Us For Availability

53

Clip, Wire WPL 548745 Contact Us For Availability

53

Cover, Terminal WPL 1105015 Contact Us For Availability

54

Terminal Strap WPL 938384 Contact Us For Availability

55

Capacitor WPL 482996 Contact Us For Availability

56

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

57

Nut WPL 489142 Contact Us For Availability

59

Washer WPL 489143 Contact Us For Availability

60

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

61

Overload Spring WPL 1114190 Contact Us For Availability

68

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

81

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

83

Clamp, Dryer WPL 1127590 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clamp (4) WPL 1108431 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
