Model Whirlpool ED20GKXWW00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT1127820 WPL LIT1127820 Contact Us For Availability

WPL LIT2148445 WPL LIT2148445 Contact Us For Availability

WPL LIT2148483 WPL LIT2148483 Contact Us For Availability

WPL LIT4316089 WPL LIT4316089 Contact Us For Availability

1

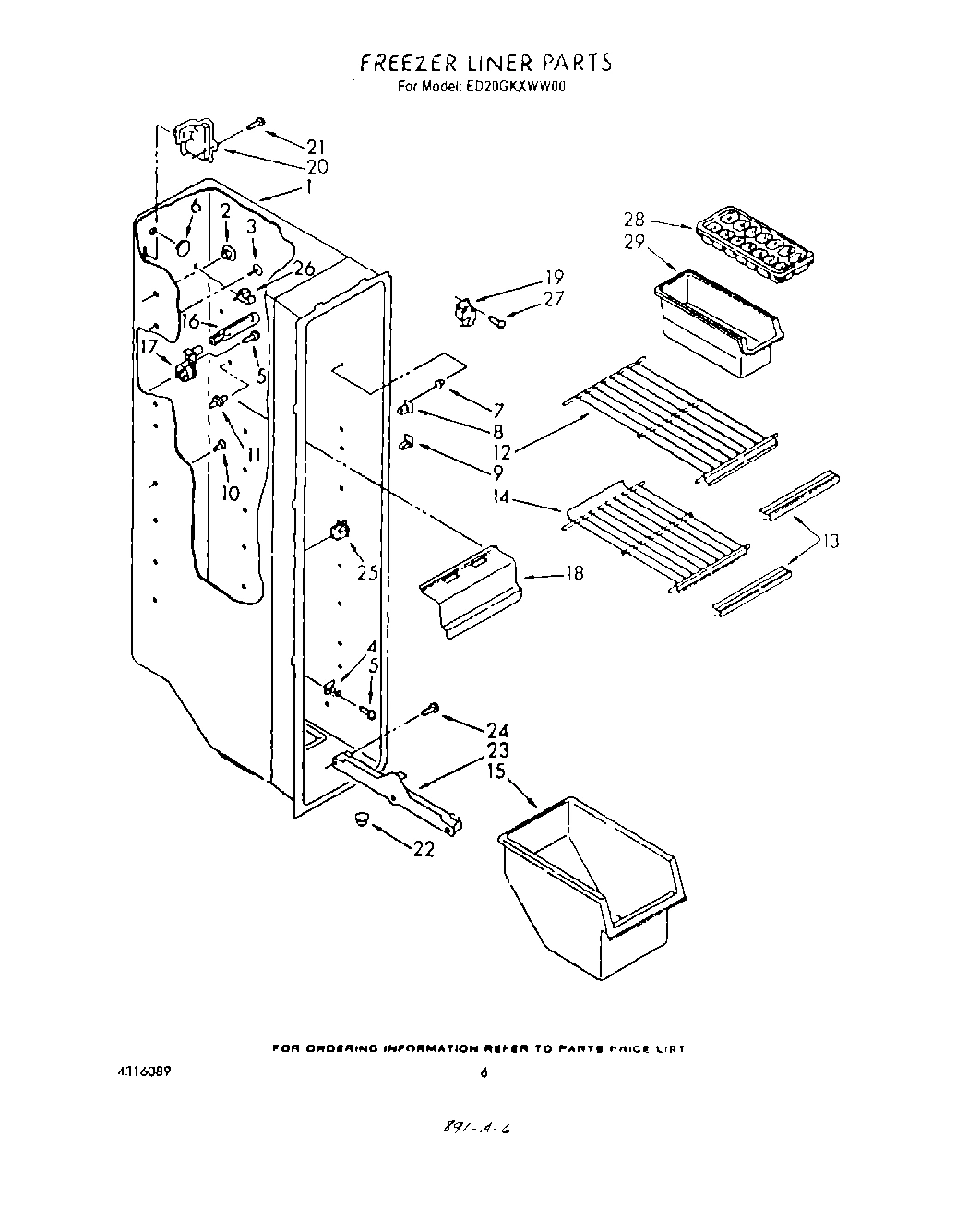

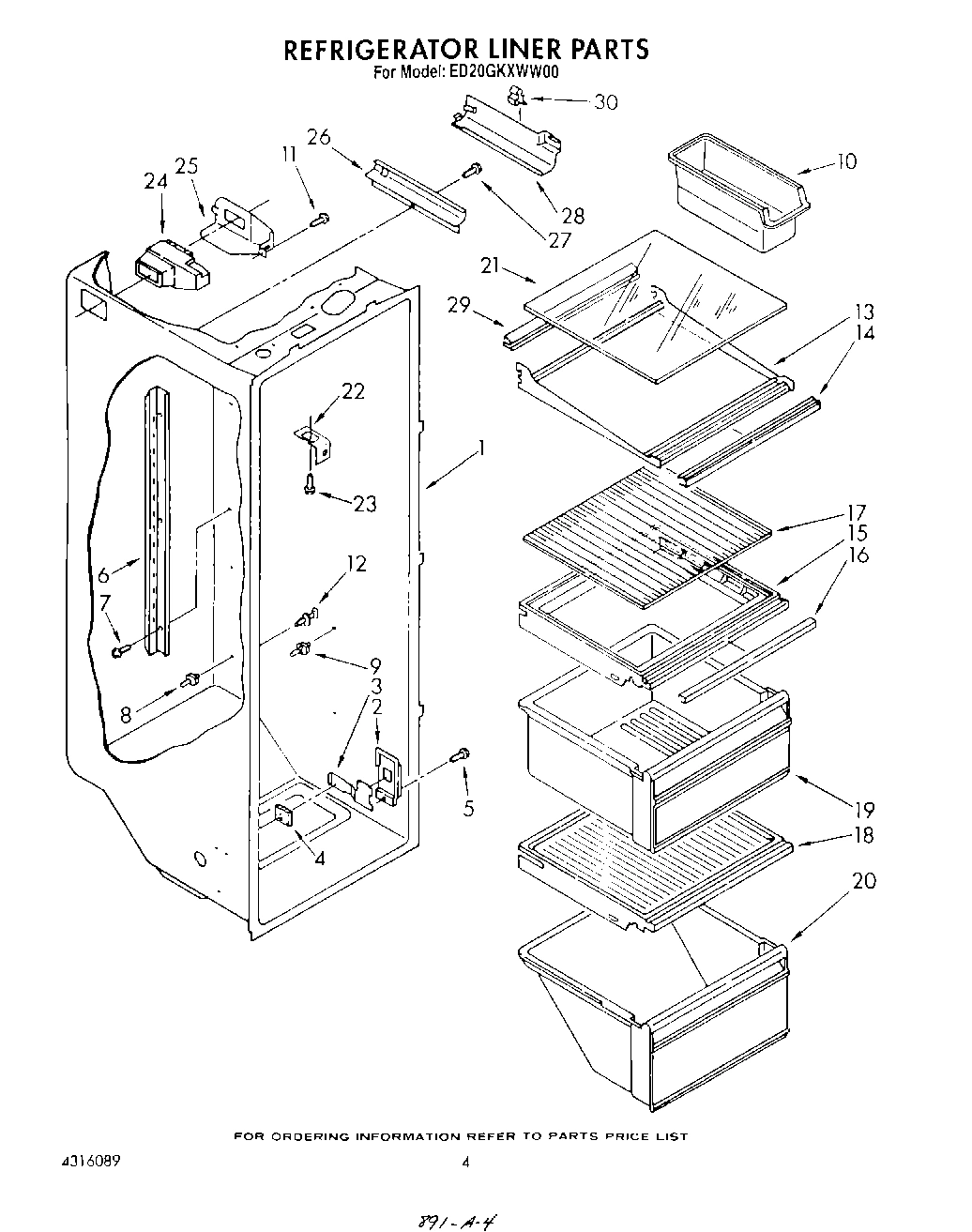

Liner (Not A Serviceable Part) WPL ARI25730A2 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI25731A8 Contact Us For Availability

1

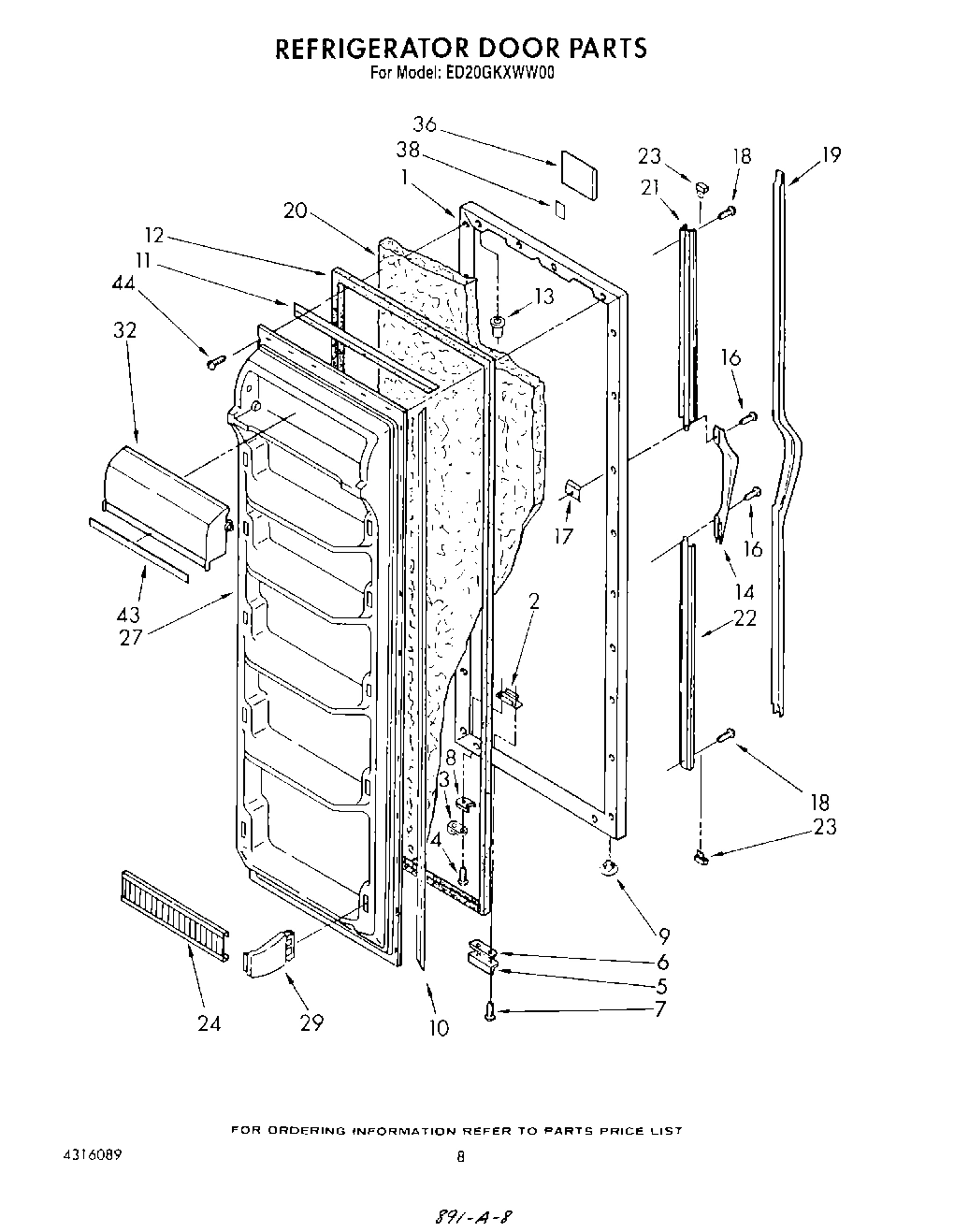

Refrigerator Door (White) WPL 1106923 Contact Us For Availability

1

Refrigerator Door (Almond) (Also Order Item 2 WPL 1108465 Contact Us For Availability

1

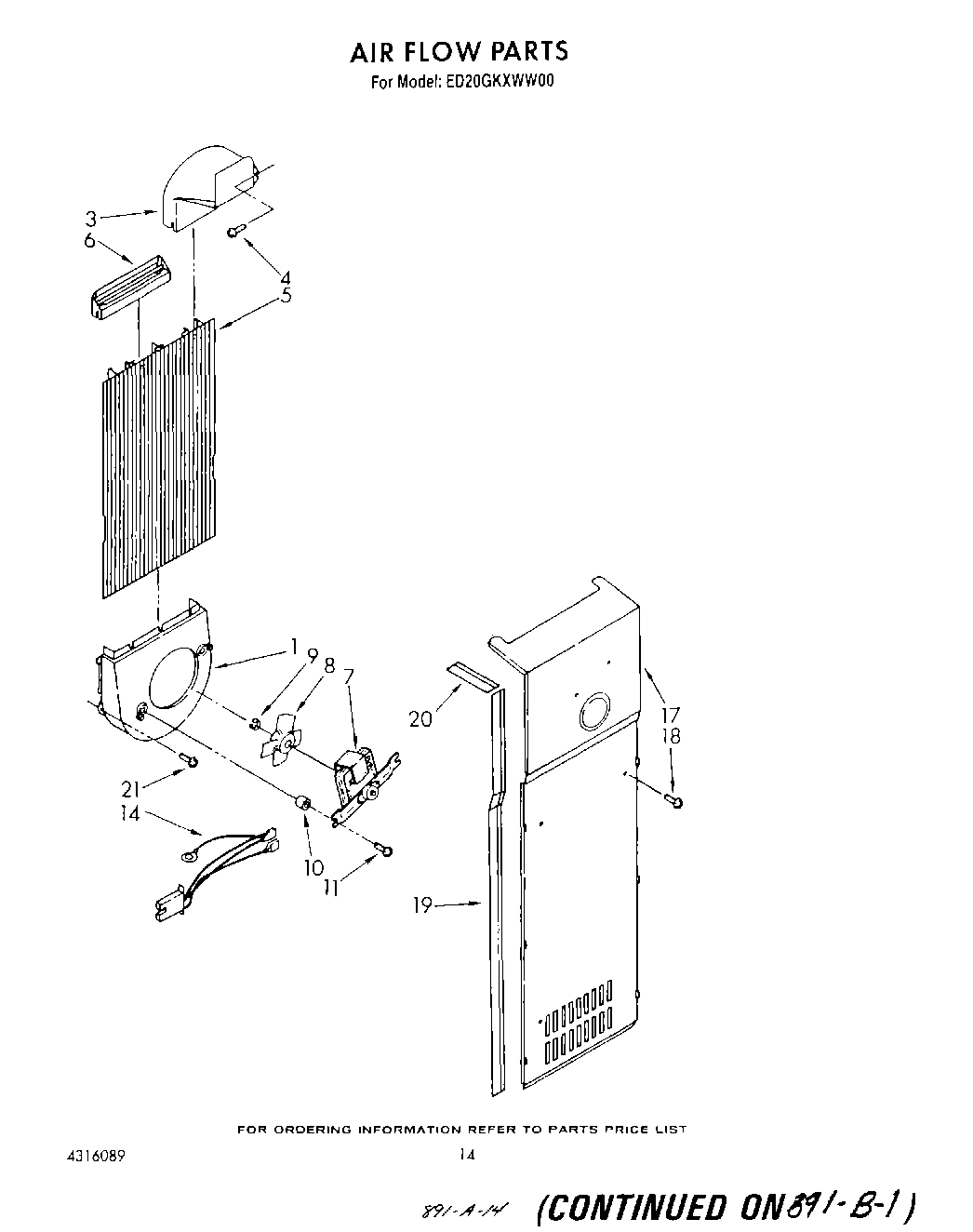

Fan Scroll WPL 1127163 Contact Us For Availability

1

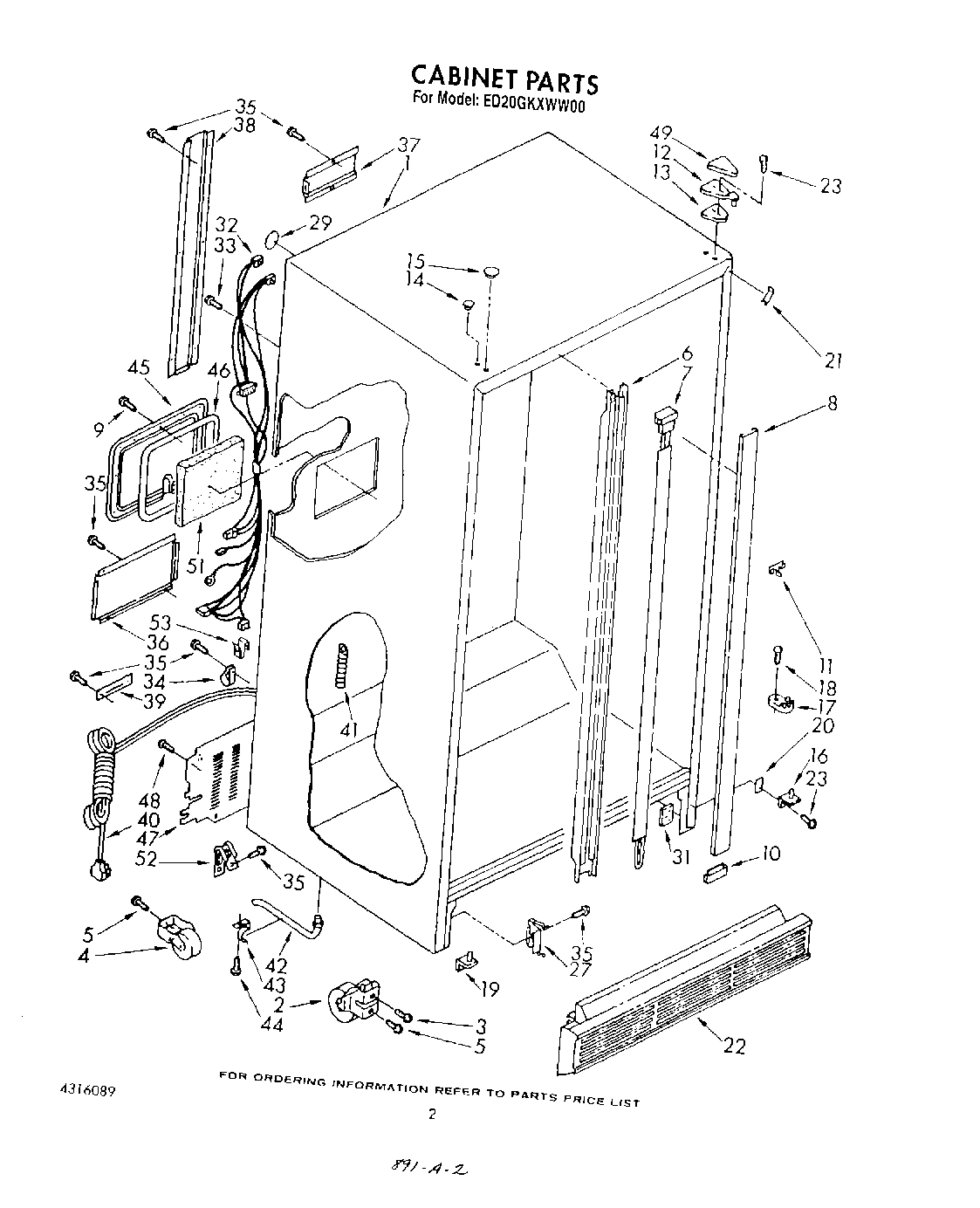

Cabinet (Not A Serviceable Part) WPL ARI25729A8 Contact Us For Availability

1

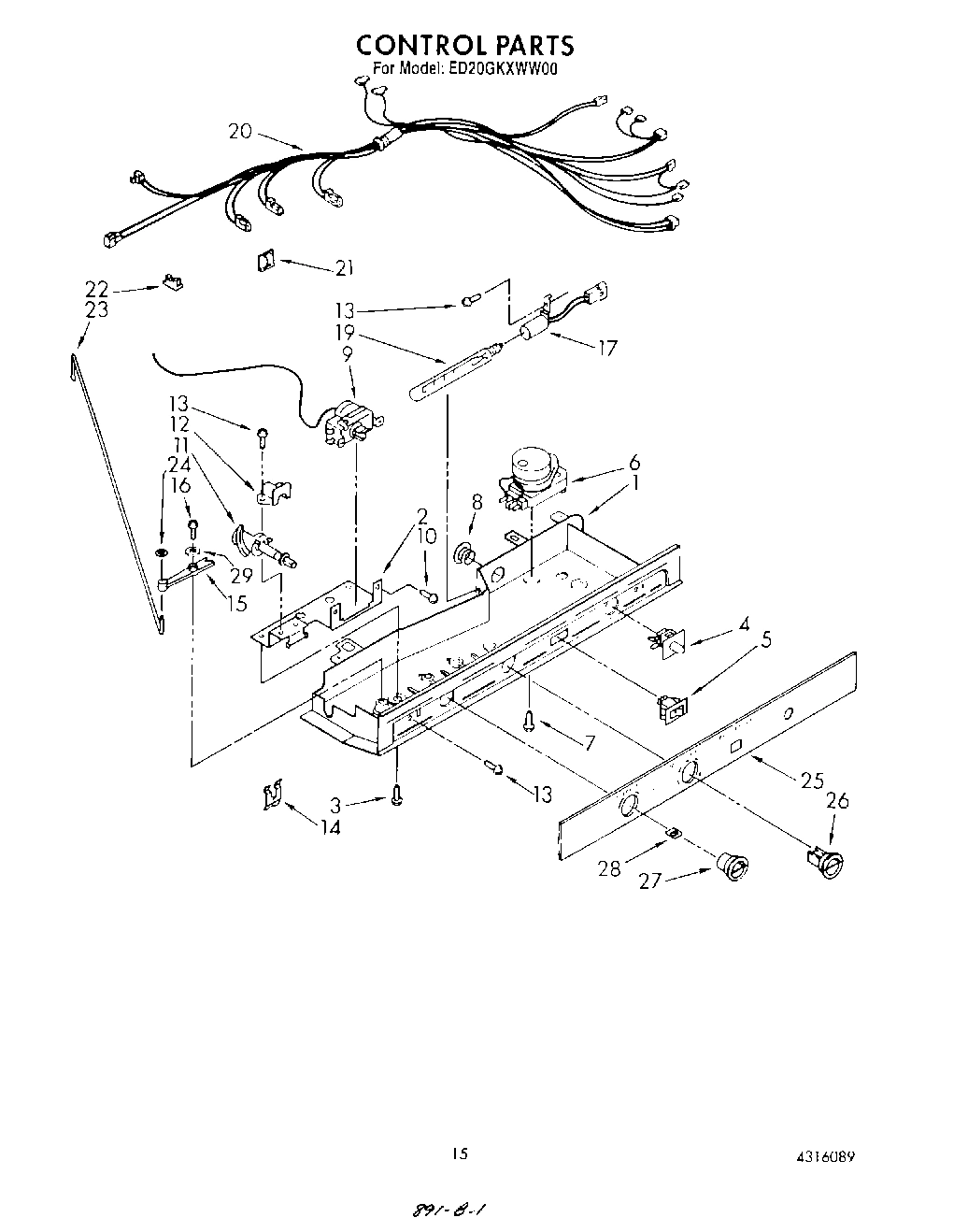

Control Box WPL 1123962 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability

2

Hole Plug WPL 944795 Contact Us For Availability

2

Tap Plate WPL 988402 Contact Us For Availability

2

Front Roller (2) WPL 981128 Contact Us For Availability

3

4318165 Whirlpool Refrigerator Door Closure C In Stock WPL 4318165 $9.42

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Slide, Meat Pan Control WPL 984102 Contact Us For Availability

3

Air Scoop WPL 1110798 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 488681 Contact Us For Availability

3

Screw (2) WPL 489190 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Pad, Foam WPL 992358 Contact Us For Availability

4

Evaporator, Support WPL 1108436 Contact Us For Availability

5

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

5

Bracket, Door Stop WPL 1115906 Contact Us For Availability

5

Air Duct Freezer WPL 1108434 Contact Us For Availability

5

Switch, Lighted Power Miser WPL 1106601 Contact Us For Availability

6

Ladder, Shelf (2) WPL 1108433 Contact Us For Availability

6

Hole Plug WPL 655411 Contact Us For Availability

6

Shim WPL 988421 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Mullion Rail WPL 1118354 Contact Us For Availability

6

Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

7

Support, Stud (16) WPL 946355 Contact Us For Availability

7

Screw, 8 x 5/8 WPL 488549 Contact Us For Availability

7

Fan Motor WPL 1127165 Contact Us For Availability

7

Heater, Mullion WPL 1106997 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1104787 Whirlpool Refrigerator Shim Backorder WPL WP1104787 $3.70

8

Blade, Fan WPL 992920 Contact Us For Availability

8

Stud (5) WPL 946356 Contact Us For Availability

8

Front Mullion Rail (White) WPL 1123966 Contact Us For Availability

8

Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability

9

WP2149540 Whirlpool Shelf Support In Stock WPL WP2149540 $10.97

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

9

Stud (5) WPL 1106982 Contact Us For Availability

9

Hole Plug WPL 534927 Contact Us For Availability

9

Ring, Compression WPL 992953 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet (16) WPL 1110779 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

Fan Grommet (2) WPL 1114354 Contact Us For Availability

Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability

Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $11.60

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Clip, Ground WPL 1110607 Contact Us For Availability

Cam Assembly WPL 1110566 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $125.61

Shelf WPL 1106979 Contact Us For Availability

Hinge, Top (2) WPL 1123514 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Shim, Hinge (2) WPL 1123515 Contact Us For Availability

Shelf, Cantilever WPL 2148087 Contact Us For Availability

Trim Shelf WPL 1110782 Contact Us For Availability

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

Trim, Shelf (3) WPL 1114302 Contact Us For Availability

Shelf (2) WPL 1106980 Contact Us For Availability

Handle WPL 987009 Contact Us For Availability

Fan Motor, Harness WPL 1114721 Contact Us For Availability

Hole, Plug (White) WPL 849391 Contact Us For Availability

Hole Plug (Almond) WPL 989958 Contact Us For Availability

Retainer, Damper WPL 938439 Contact Us For Availability

WP1126289 Whirlpool Refrigerator Cover In Stock WPL WP1126289 $71.42

Pivot Arm WPL 1110559 Contact Us For Availability

Bin, Freezer WPL 2148194 Contact Us For Availability

Hole Plug (White) WPL 1115352 Contact Us For Availability

Hole Plug (Almond) WPL 1115354 Contact Us For Availability

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

Trim, Cover WPL 1110795 Contact Us For Availability

16

Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Glass, Shelf WPL 1114687 Contact Us For Availability

Socket Assembly WPL 1108630 Contact Us For Availability

Cover, Evaporator WPL 1127168 Contact Us For Availability

Light Socket WPL 1110690 Contact Us For Availability

WP2148298 Whirlpool Refrigerator Deli Drawer In Stock WPL WP2148298 $98.03

Lens, Light WPL 1108445 Contact Us For Availability

Screw, 10-32 x 5/8 WPL 489075 Contact Us For Availability

Screw (2) WPL 489296 Contact Us For Availability

WP2148279 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2148279 $101.98

WP548049 Whirlpool Refrigerator Light Bulb Backorder WPL WP548049 $27.52

Terminal Block WPL 942842 Contact Us For Availability

Insert, Handle WPL 1111550 Contact Us For Availability

Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability

Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability

Pan, Meat WPL 2148192 Contact Us For Availability

Cover, Wiring WPL 1129915 Contact Us For Availability

Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability

Spacer, Hinge WPL 1129868 Contact Us For Availability

Control Box Harness WPL 1127774 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

Glass, Shelf WPL 2148108 Contact Us For Availability

Insert Retainer (Top) WPL 987008 Contact Us For Availability

Filler, Wrapper (White) WPL 1110708 Contact Us For Availability

Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Fitting, Drain WPL 942768 Contact Us For Availability

Insert Retainer (Bottom) WPL 987010 Contact Us For Availability

Grille WPL 1129001 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability

End Cap WPL 987006 Contact Us For Availability

Screw (Repair) WPL 489297 Contact Us For Availability

Screw WPL 489327 Contact Us For Availability

Connecting Rod WPL 1123959 Contact Us For Availability

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Fastener, Push-On WPL 489285 Contact Us For Availability

Screw (4) WPL 487979 Contact Us For Availability

Trim, Door Shelf (5) WPL 2148197 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

25

Escutcheon, Control Box WPL 2148231 Contact Us For Availability

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

26

Cover, Conduit WPL 1123925 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

Panel, Interior Door WPL 1129249 Contact Us For Availability

Knob, Air Control WPL 1110562 Contact Us For Availability

28

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

28

Cover, Wiring WPL 1123920 Contact Us For Availability

28

Knob, Retainer WPL 837444 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Retainer, Door Trim (10) WPL 1110713 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Reflector, Shelf WPL 1114306 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

Transformer (115-230 Volt) WPL 515393 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORAT WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

31

Tap Plate (2) WPL 2147310 Contact Us For Availability

32

Door, Compartment WPL 2148218 Contact Us For Availability

32

Cabinet Harness WPL 1123739 Contact Us For Availability

33

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

34

Clamp WPL 937357 Contact Us For Availability

35

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

36

Nameplate WPL 945114 Contact Us For Availability

36

Cover, Wiring WPL 1108442 Contact Us For Availability

37

Wiring Shield, Short WPL 1108440 Contact Us For Availability

38

Tape Strip WPL 991259 Contact Us For Availability

38

Wiring Shield, Long WPL 1108441 Contact Us For Availability

39

Tube Clamp (2) WPL 1105607 Contact Us For Availability

40

Cord, Service WPL 937360 Contact Us For Availability

41

Drain Ferrule WPL 842258 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Frame WPL 1127942 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

43

Trim, Door Compartment WPL 1110717 Contact Us For Availability

44

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

Screw WPL 488978 Contact Us For Availability

45

Rail, Front WPL 2149717 Contact Us For Availability

45

Cover, Plug WPL 1108443 Contact Us For Availability

46

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

46

Sealing Gasket WPL 1115321 Contact Us For Availability

47

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

47

Cover, Unit WPL 2147330 Contact Us For Availability

48

NLA:SCREW Backorder WPL WPW10141645 $3.70

48

Bracket, Fan Motor WPL 548695 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

Air, Baffle WPL 1127938 Contact Us For Availability

50

Strap WPL 851095 Contact Us For Availability

51

Insulation WPL 1118236 Contact Us For Availability

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

Clip, Wire WPL 548745 Contact Us For Availability

60

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

68

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

70

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

70

Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability

72

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

73

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

74

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

76

Sleeve WPL 4387559 Contact Us For Availability

77

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

81

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

83

Clamp, Dryer WPL 1127590 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clamp (4) WPL 1108431 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
