Model Whirlpool ED20AKXSW03 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

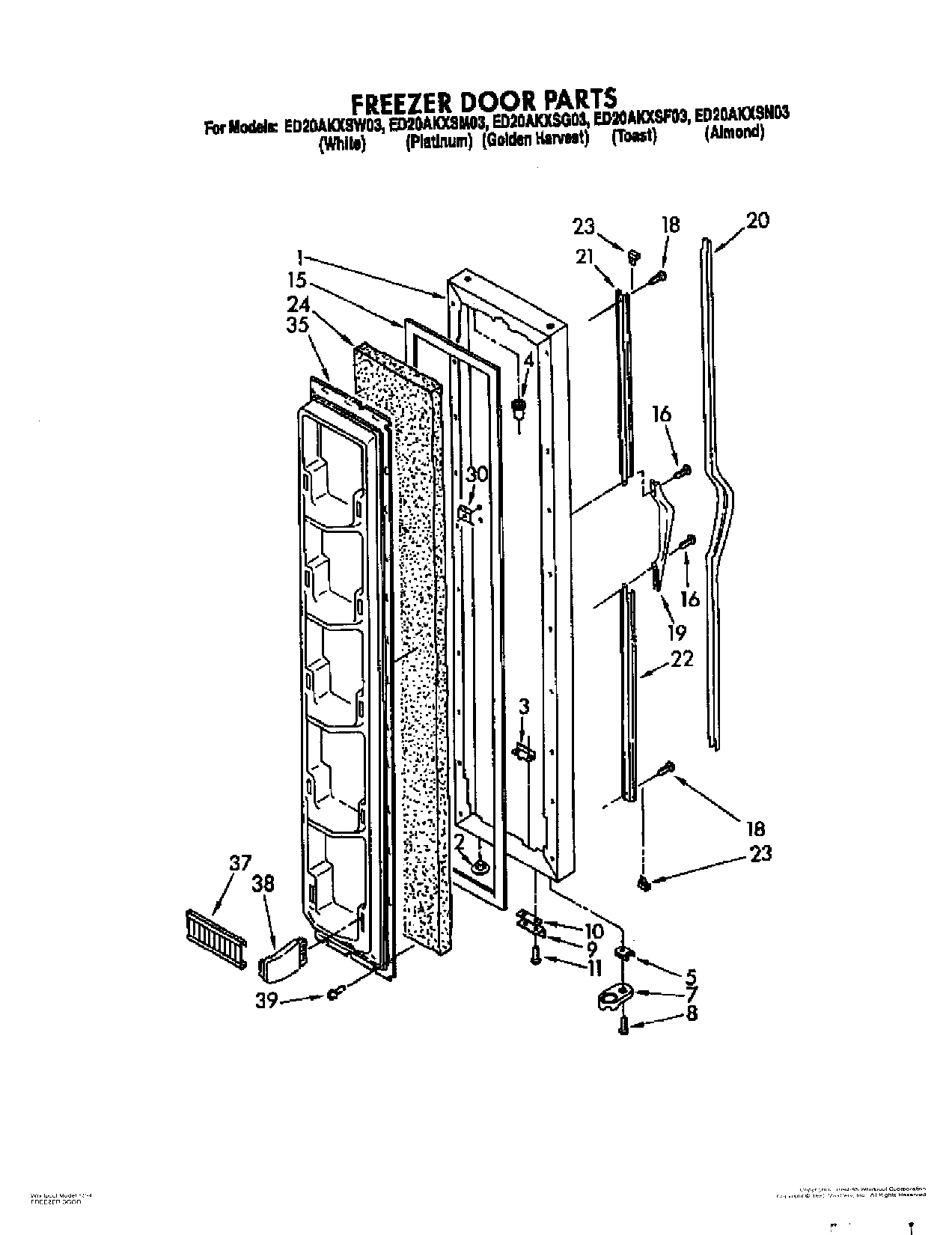

06 - FREEZER DOOR

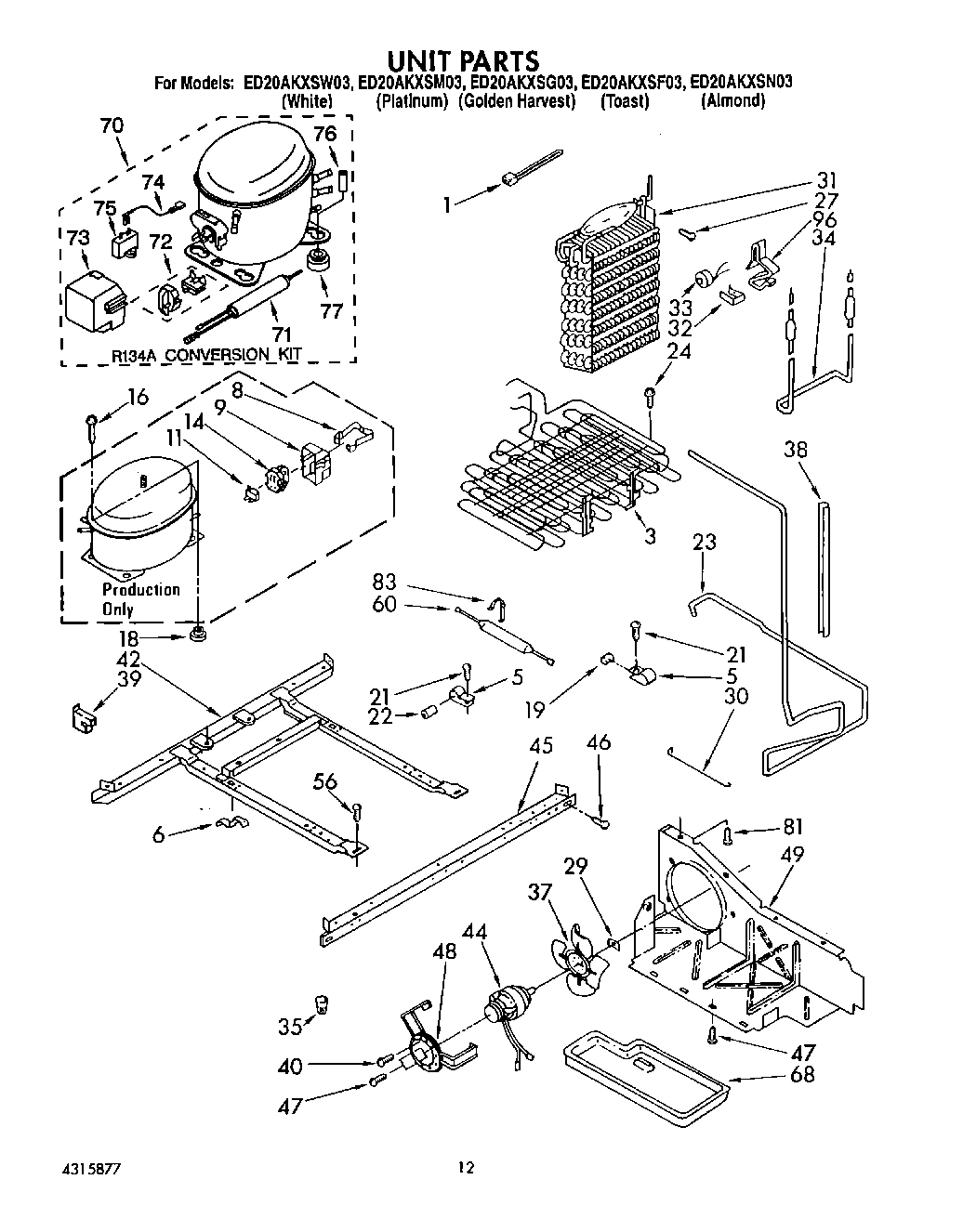

07 - UNIT
03 - REFRIGERATOR LINER
04 - FREEZER LINER
05 - REFRIGERATOR DOOR
08 - AIR FLOW
02 - CABINET
09 - CONTROL, LIT/OPTIONAL
Common parts from model Whirlpool ED20AKXSW03 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT1114039 WPL LIT1114039 Contact Us For Availability
WPL LIT1124899 WPL LIT1124899 Contact Us For Availability
WPL LIT1127586 WPL LIT1127586 Contact Us For Availability
WPL LIT4315877 WPL LIT4315877 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25717A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI25718A8 Contact Us For Availability
1
Refrigerator Door (White) WPL 1106923 Contact Us For Availability
1
Refrigerator Door (Golden Harvest) WPL 1108464 Contact Us For Availability
1
Refrigerator Door (Almond) WPL 1108465 Contact Us For Availability
1
Refrigerator Door (Toast) WPL 1108466 Contact Us For Availability
1
Refrigerator Door (Platinum) WPL 1108467 Contact Us For Availability
1
Fan Scroll WPL 1108414 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI25716A9 Contact Us For Availability
1
Control Box WPL 1123962 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Hole Plug (2) WPL 944795 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Front Roller (2) WPL 981128 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Air Scoop WPL 1110798 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Screw (2) WPL 489190 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
4
Evaporator, Support WPL 1108436 Contact Us For Availability
5
Screw, (4) 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
5
Bracket, Door Stop WPL 1115906 Contact Us For Availability
5
Air Duct Freezer WPL 1108434 Contact Us For Availability
6
Ladder, Shelf (2) WPL 1108433 Contact Us For Availability
6
Hole Plug WPL 655411 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
6
Diffuser Air Duct WPL 1118245 Contact Us For Availability
6
Mullion Rail WPL 1118354 Contact Us For Availability
6
Defrost Timer, (10 Hr.) WPL 1127570 Contact Us For Availability
7
Support, Stud (16) WPL 946355 Contact Us For Availability
7
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
7
Heater, Mullion WPL 1106997 Contact Us For Availability
8
Blade, Fan WPL 992920 Contact Us For Availability
8
Stud (5) WPL 946356 Contact Us For Availability
8
Front Mullion Rail (White) WPL 1123966 Contact Us For Availability
8
Front Mullion Rail (Golden Harvest) WPL 1123968 Contact Us For Availability
8
Front Mullion Rail (Almond) WPL 1123969 Contact Us For Availability
8
Front Mullion Rail (Toast) WPL 1123970 Contact Us For Availability
8
Front Mullion Rail (Platinum) WPL 1123971 Contact Us For Availability
9
Stud, Front (4) WPL 1115290 No Longer Available
9
Stud (5) WPL 1106982 Contact Us For Availability
9
Hole Plug WPL 534927 Contact Us For Availability
9
Ring, Compression WPL 992953 Contact Us For Availability
10
Grommet (14) WPL 1110779 Contact Us For Availability
10
Fan Grommet (3) WPL 548268 Contact Us For Availability
10
Filler Bottom Mullion (White) WPL 1118361 Contact Us For Availability
10
Filler Bottom Mullion (Almond) WPL 1118362 Contact Us For Availability
10
Filler Bottom Mullion (Golden Harvest) WPL 1118363 Contact Us For Availability
10
Filler Bottom Mullion (Toast) WPL 1118364 Contact Us For Availability
10
Filler Bottom Mullion (Platinum) WPL 1118365 Contact Us For Availability
11
Fan, Bracket Double WPL 548263 Contact Us For Availability
11
Clip, Ground WPL 1110607 Contact Us For Availability
11
Cam Assembly WPL 1110566 Contact Us For Availability
12
Shelf (2) WPL 1106979 Contact Us For Availability
12
Fan, Bracket Single WPL 548264 Contact Us For Availability
12
Hinge, Top (2) WPL 1123514 Contact Us For Availability
13
Shim, Hinge (2) WPL 1123515 Contact Us For Availability
13
Shelf, Cantilever WPL 1114301 Contact Us For Availability
13
Trim Shelf WPL 1110782 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Screw Grommet WPL 538449 Contact Us For Availability
14
Trim, Shelf (3) WPL 1114302 Contact Us For Availability
14
Shelf (3) WPL 1106980 Contact Us For Availability
14
Handle WPL 987009 Contact Us For Availability
14
Fan Motor, Harness WPL 1110749 Contact Us For Availability
14
Hole, Plug (Toast) WPL 1101314 Contact Us For Availability
14
Hole, Plug (Platinum) WPL 1101315 Contact Us For Availability
14
Hole, Plug (White) WPL 849391 Contact Us For Availability
14
Hole, Plug (Golden Harvest) WPL 989957 Contact Us For Availability
14
Hole Plug (Almond) WPL 989958 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Freezer Bin WPL 1110783 Contact Us For Availability
15
Hole Plug (White) WPL 1115352 Contact Us For Availability
15
Hole Plug (Golden Harvest) WPL 1115353 Contact Us For Availability
15
Hole Plug (Almond) WPL 1115354 Contact Us For Availability
15
Hole Plug (Toast) WPL 1115355 Contact Us For Availability
15
Hole Plug (Platinum) WPL 1115356 Contact Us For Availability
16
Trim, Cover WPL 1110795 Contact Us For Availability
16
Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability
17
Glass, Shelf WPL 1110794 Contact Us For Availability
17
Socket Assembly WPL 1108630 Contact Us For Availability
17
Cover, Evaporator WPL 1108435 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
18
Lens, Light WPL 1108445 Contact Us For Availability
18
Screw, 10-32 x 5/8 WPL 489248 Contact Us For Availability
18
Screw (2) WPL 489296 Contact Us For Availability
18
Heat Shield WPL 1123924 Contact Us For Availability
19
Terminal Block WPL 942842 Contact Us For Availability
19
Insert, Handle WPL 1108722 Contact Us For Availability
19
Insert, Handle (Black) (For Platinum Model On WPL 1111550 Contact Us For Availability
19
Gasket, Evaporator Cover (2) WPL 1110675 Contact Us For Availability
19
Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability
20
Meat Pan WPL 1110791 Contact Us For Availability
20
Cover, Wiring WPL 1114643 Contact Us For Availability
20
Gasket, Evaporator Cover Top (2) WPL 1110676 Contact Us For Availability
20
Spacer, Hinge WPL 1105474 Contact Us For Availability
20
Control Box Harness WPL 1123450 Contact Us For Availability
21
Insert Retainer (Top) WPL 987008 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Golden Harvest) WPL 1110710 Contact Us For Availability
21
Filler, Wrapper (Toast) WPL 1110711 Contact Us For Availability
21
Filler, Wrapper (Platinum) WPL 1110712 Contact Us For Availability
22
Fitting, Drain WPL 942768 Contact Us For Availability
22
Insert Retainer (Bottom) WPL 987010 Contact Us For Availability
22
Grille WPL 1106806 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Slide, Freezer Bin (2) WPL 1115383 Contact Us For Availability
23
End Cap WPL 987006 Contact Us For Availability
23
Screw (Repair) WPL 489297 Contact Us For Availability
23
Connecting Rod WPL 1123959 Contact Us For Availability
24
Foam Insulation WPL 876029 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Screw (4) WPL 487979 Contact Us For Availability
25
S WPL 489173 Contact Us For Availability
25
Escutcheon, Control Box WPL 1123998 Contact Us For Availability
26
Cover, Conduit WPL 1123925 Contact Us For Availability
26
WPL 546131 WPL 546131 Contact Us For Availability
27
Interior, Door Panel WPL 1108461 Contact Us For Availability
27
WPL 2147227 WPL 2147227 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
28
Cover, Wiring WPL 1123920 Contact Us For Availability
28
Trim, Door Shelf WPL 1110714 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Retainer, Door Trim WPL 1110713 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
WPL 799344 WPL 799344 Contact Us For Availability
29
WPL 1114614 WPL 1114614 Contact Us For Availability
29
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
29
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
29
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
29
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
29
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
29
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
29
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
29
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
29
CEMENT, ALUM WPL 542639 Contact Us For Availability
29
WPL 72112 WPL 72112 Contact Us For Availability
29
WPL 799340 WPL 799340 Contact Us For Availability
29
WPL 799833 WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
31
WPL 836162 WPL 836162 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
32
Compartment Door WPL 1110716 Contact Us For Availability
32
WPL 1123739 WPL 1123739 Contact Us For Availability
34
Heater, Defrost WPL 1106969 Contact Us For Availability
34
WPL 937357 WPL 937357 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
Nameplate WPL 945118 Contact Us For Availability
36
WPL 1108442 WPL 1108442 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
37
WPL 1108440 WPL 1108440 Contact Us For Availability
38
Tape Strip WPL 991259 Contact Us For Availability
38
WPL 1108441 WPL 1108441 Contact Us For Availability
39
Receptacle, Housing WPL 943647 Contact Us For Availability
39
WPL 1105607 WPL 1105607 Contact Us For Availability
40
WPL 937360 WPL 937360 Contact Us For Availability
41
WPL 842258 WPL 842258 Contact Us For Availability
42
Frame WPL 1105534 Contact Us For Availability
43
Trim, Door Compartment WPL 1110717 Contact Us For Availability
44
WPL 488978 WPL 488978 Contact Us For Availability
45
Rail, Front WPL 1105525 Contact Us For Availability
45
WPL 1108443 WPL 1108443 Contact Us For Availability
46
WPL 1115321 WPL 1115321 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
WPL 1105531 WPL 1105531 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
Baffle, Air WPL 1105529 Contact Us For Availability
49
WPL 1100172 WPL 1100172 Contact Us For Availability
49
WPL 989896 WPL 989896 Contact Us For Availability
51
WPL 1118236 WPL 1118236 Contact Us For Availability
53
WPL 548745 WPL 548745 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
83
Clamp, Drier WPL 548508 Contact Us For Availability
96
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
96
Clamp (4) WPL 1108431 Contact Us For Availability
96
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
