Model Whirlpool ED19VKXRWR0 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
04 - FREEZER DOOR
02 - CABINET

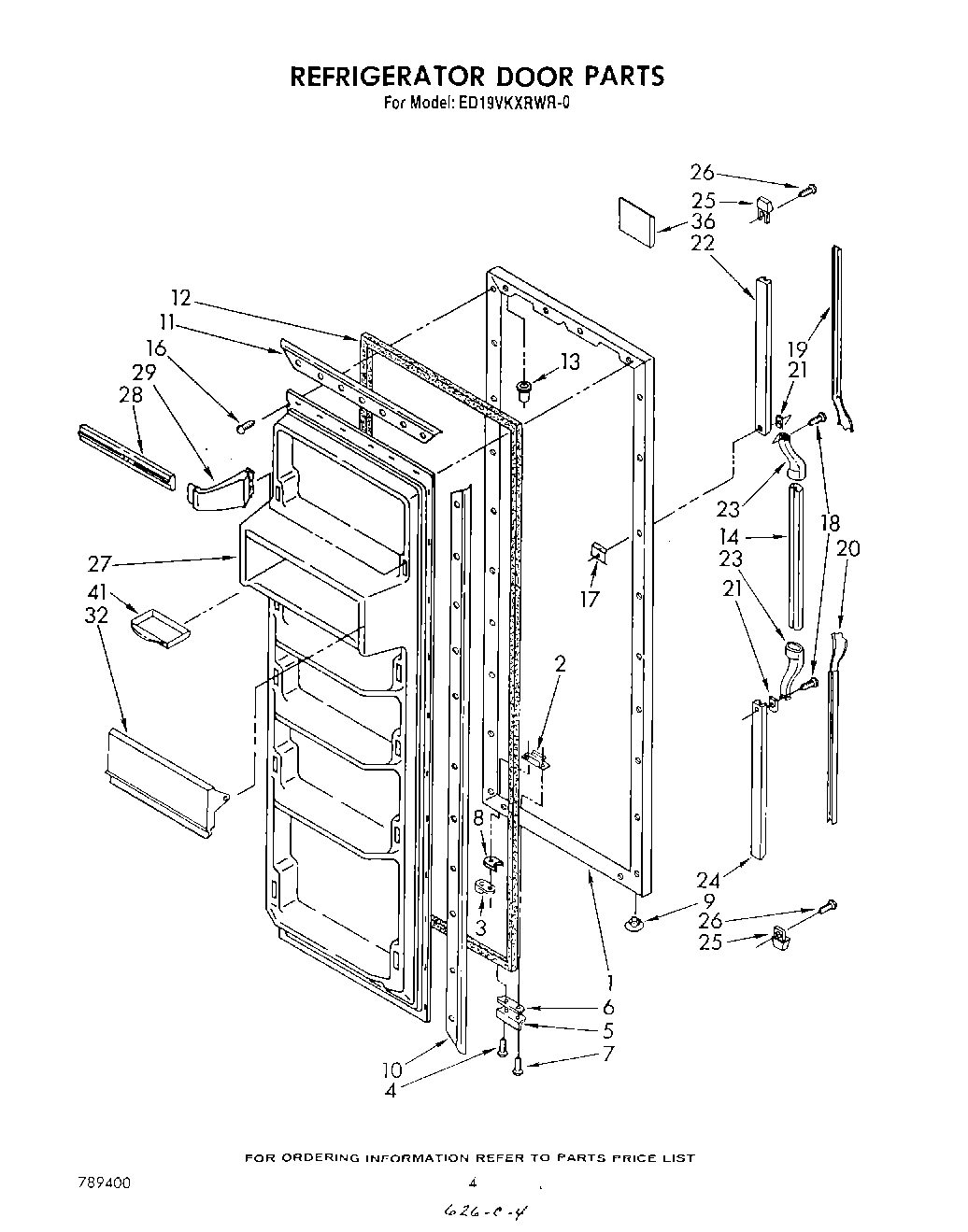

03 - REFRIGERATOR DOOR

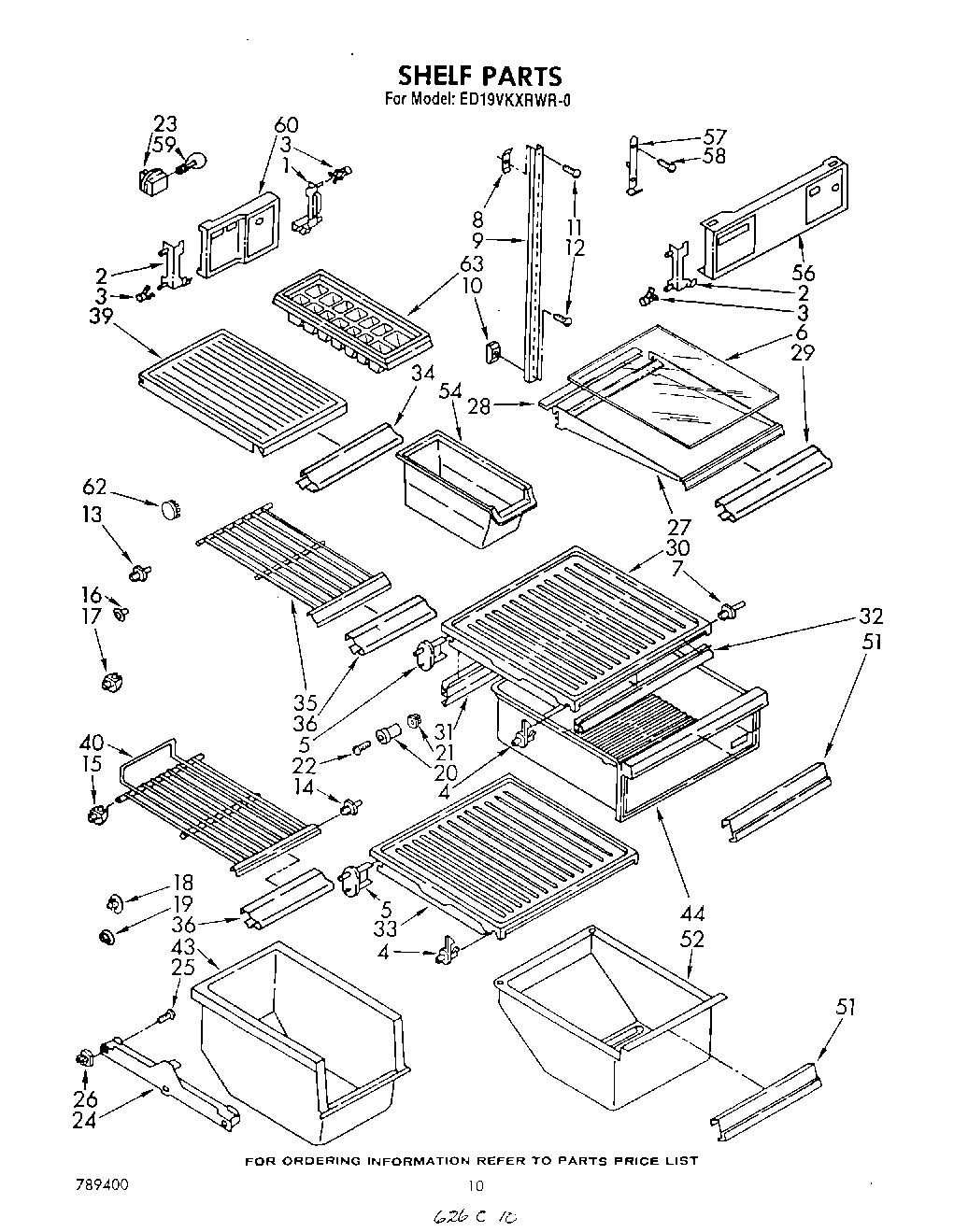

06 - SHELF

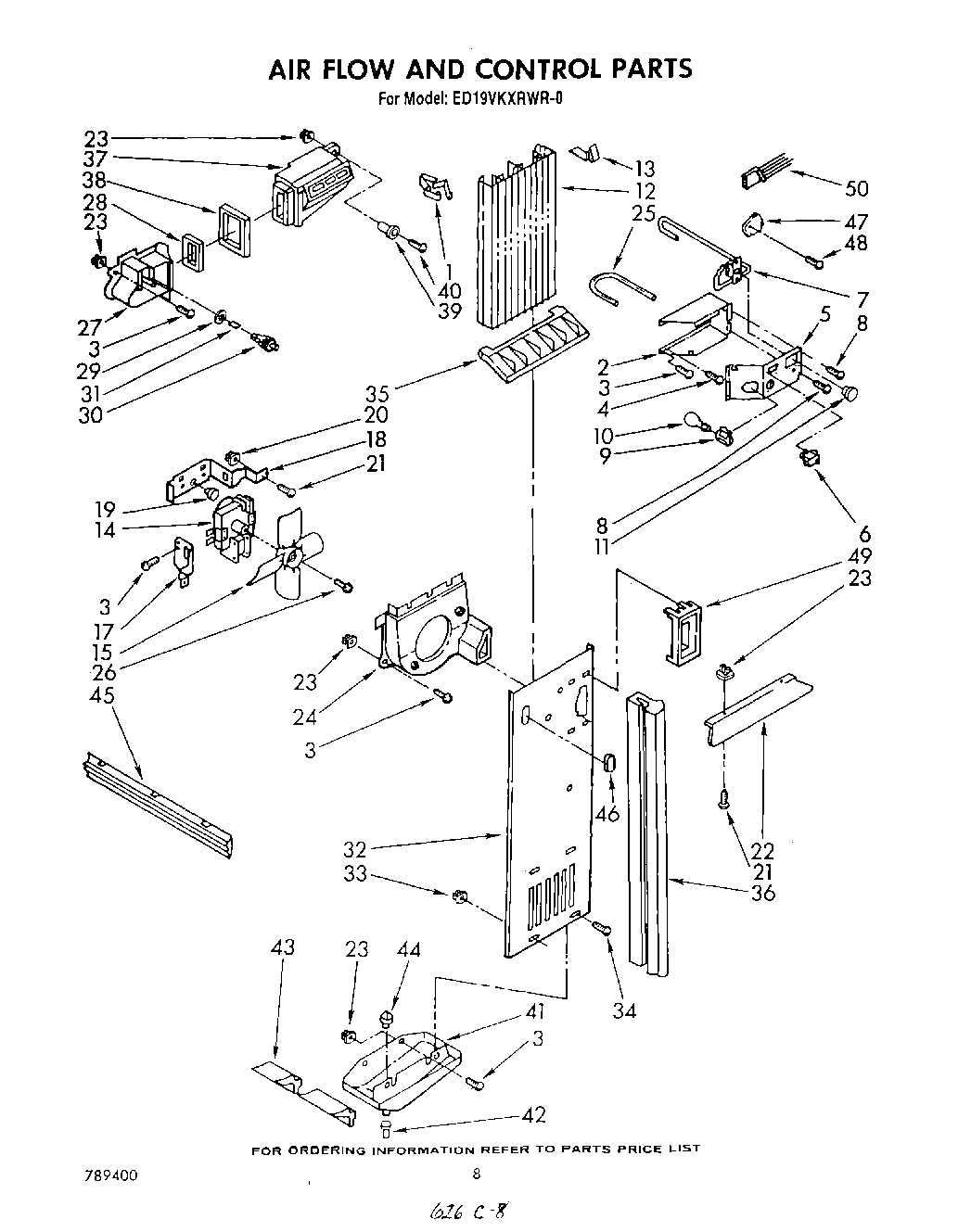

05 - AIRFLOW AND CONTROL

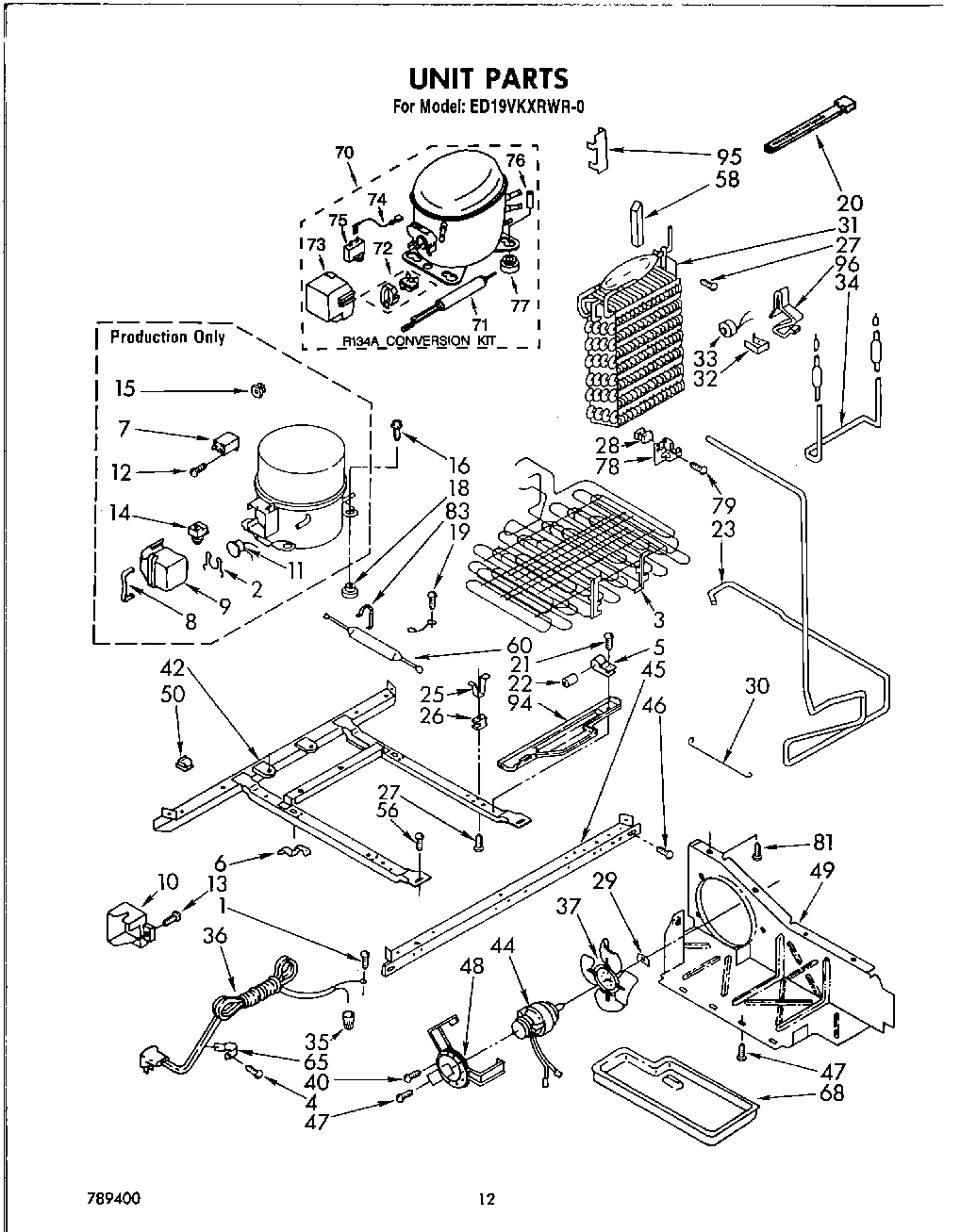

07 - UNIT , LIT/OPTIONAL
Common parts from model Whirlpool ED19VKXRWR0 SIDE BY SIDE REFRIGERATOR
WPL 677813 WPL 677813 Contact Us For Availability
WPL 677818 WPL 677818 Contact Us For Availability
WPL 677821 WPL 677821 Contact Us For Availability
WPL 677967 WPL 677967 Contact Us For Availability
WPL 677971 WPL 677971 Contact Us For Availability
WPL LIT1108767 WPL LIT1108767 Contact Us For Availability
WPL LIT1109007 WPL LIT1109007 Contact Us For Availability
WPL LIT789400 WPL LIT789400 Contact Us For Availability
WPL LIT945511 WPL LIT945511 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI25705A6 Contact Us For Availability
1
Refrigerator, Door Panel (Toast) WPL 1101363 Contact Us For Availability
1
Refrigerator, Door Panel (Platinum) WPL 1101364 Contact Us For Availability
1
Refrigerator, Door Panel (White) WPL 941246 Contact Us For Availability
1
Refrigerator, Door Panel (Golden Harvest) WPL 941248 Contact Us For Availability
1
Refrigerator, Door Panel (Almond) WPL 941250 Contact Us For Availability
1
Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability
1
Screw, Ground WPL 488474 Contact Us For Availability
2
Roller, Front WPL 981127 Contact Us For Availability
2
Tap Plate WPL 988402 Contact Us For Availability
2
Support, Light Lens (L.S.) WPL 842356 Contact Us For Availability
2
Box, Control WPL 984550 Contact Us For Availability
2
Overload Spring WPL 943320 Contact Us For Availability
3
Screw, 5/16-24 x 1 WPL 488681 Contact Us For Availability
3
Clip, Tubular WPL 843945 Contact Us For Availability
3
Condenser WPL 943480 Contact Us For Availability
4
Shelf Stud (2) WPL 652675 Contact Us For Availability
5
Bracket, Door Stop WPL 988420 Contact Us For Availability
5
Shelf Stud (2) WPL 845986 Contact Us For Availability
5
Control Box Front WPL 934045 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
6
Center, Mullion Rail (Toast) WPL 1100362 Contact Us For Availability
6
Center, Mullion Rail (Platinum) WPL 1100363 Contact Us For Availability
6
Center, Mullion Rail (White) WPL 985979 Contact Us For Availability
6
Center, Mullion Rail (Golden Harvest) WPL 989925 Contact Us For Availability
6
Center, Mullion Rail (Almond) WPL 989927 Contact Us For Availability
6
Shim WPL 988421 Contact Us For Availability
6
Shelf, Glass WPL 1109001 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
7
Shelf Stud (2) WPL 536475 Contact Us For Availability
7
Heater, Mullion WPL 851874 Contact Us For Availability
7
Screw, 8 x 5/8 WPL 488549 Contact Us For Availability
8
Retainer, Clip WPL 510291 Contact Us For Availability
8
Screw Anchor WPL 512923 Contact Us For Availability
8
Strap, Cover WPL 943322 Contact Us For Availability
9
Hole Plug WPL 534927 Contact Us For Availability
9
Shelf, Ladder WPL 934264 Contact Us For Availability
9
Cover WPL 1105055 Contact Us For Availability
10
Mullion, Stabilizer WPL 836080 Contact Us For Availability
10
Retainer, Side WPL 836120 Contact Us For Availability
10
Box, Junction WPL 549947 Contact Us For Availability
11
Screw, 8 x 3/4 WPL 488280 Contact Us For Availability
11
Retainer, Top & Bottom WPL 836121 Contact Us For Availability
11
Knob, Temperature WPL 836482 Contact Us For Availability
11
Overload WPL 945585 Contact Us For Availability
12
Grommet, Wiring WPL 851020 Contact Us For Availability
12
Screw, 8-32 x 1-1/4 WPL 488960 Contact Us For Availability
12
Screw (Repair) WPL 488980 Contact Us For Availability
12
Duct, Air WPL 842399 Contact Us For Availability
13
Escutcheon Meat WPL 985468 Contact Us For Availability
13
Cap, Hinge Sleeve WPL 509929 Contact Us For Availability
13
Shelf, Stud WPL 529758 Contact Us For Availability
13
Baffle, Air WPL 987954 Contact Us For Availability
14
Slide Meat WPL 984102 Contact Us For Availability
14
Handle, Center WPL 1108897 Contact Us For Availability
14
Handle, Center (For Platinum Model Only) WPL 1108914 Contact Us For Availability
14
Shelf Stud WPL 521878 Contact Us For Availability
14
Relay WPL 945507 Contact Us For Availability
15
Blade, Fan WPL 992920 Contact Us For Availability
15
Pad, Foam WPL 992358 Contact Us For Availability
15
Shelf Support WPL 210518 Contact Us For Availability
15
Screw Grommet WPL 509812 Contact Us For Availability
16
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
16
Grommet WPL 533881 Contact Us For Availability
17
Screw Anchor (2) WPL 941242 Contact Us For Availability
17
Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability
17
Shelf Stud, Saddle (L.S.) WPL 523264 Contact Us For Availability
17
Fan, Bracket Double WPL 548263 Contact Us For Availability
18
Retainer, Hole WPL 843888 Contact Us For Availability
18
Hole, Plug WPL 519890 Contact Us For Availability
18
Fan, Bracket Single WPL 548264 Contact Us For Availability
19
Insert, Hole WPL 843887 Contact Us For Availability
19
Insert, Handle (Top) (White) WPL 1108898 Contact Us For Availability
19
Insert, Handle (Top) (Golden Harvest) WPL 1108899 Contact Us For Availability
19
Insert, Handle (Top) (Almond) WPL 1108900 Contact Us For Availability
19
Insert, Handle (Top) (Toast) WPL 1108901 Contact Us For Availability
19
Insert, Handle (Top) (Platinum) WPL 1108902 Contact Us For Availability
19
Stud, Retainer WPL 512900 Contact Us For Availability
19
Fan Mounting Grommet WPL 548268 Contact Us For Availability
20
Gasket, Divider WPL 842435 Contact Us For Availability
20
Insert, Handle (Bottom) (White) WPL 1108903 Contact Us For Availability
20
Insert, Handle (Bottom) (Golden Harvest) WPL 1108904 Contact Us For Availability
20
Insert, Handle (Bottom) (Almond) WPL 1108905 Contact Us For Availability
20
Insert, Handle (Bottom) (Toast) WPL 1108906 Contact Us For Availability
20
Insert, Handle (Bottom) (Platinum) WPL 1108907 Contact Us For Availability
20
Stud, Shelf WPL 658944 Contact Us For Availability
20
Screw Grommet WPL 538449 Contact Us For Availability
20
Strap WPL 851095 Contact Us For Availability
21
Mullion, Stabilizer Divider WPL 836079 Contact Us For Availability
21
Shim, End Cap (2) WPL 935075 Contact Us For Availability
22
Insert Retainer (Top) WPL 941260 Contact Us For Availability
22
Screw, 8-15 x 1-1/4 WPL 487559 Contact Us For Availability
22
Baffle, Liner Top WPL 836216 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
23
Hinge, Top WPL 842039 Contact Us For Availability
23
Grommet WPL 842339 Contact Us For Availability
23
Center End Cap (2) WPL 935103 Contact Us For Availability
23
Exchanger, Heat WPL 945503 Contact Us For Availability
24
Shim, Hinge WPL 836192 Contact Us For Availability
24
Insert Retainer (Bottom) WPL 941262 Contact Us For Availability
24
Slide, Freezer Bin WPL 982321 Contact Us For Availability
24
Scroll Fan WPL 991285 Contact Us For Availability
25
Hinge Cover (Toast) WPL 1100172 Contact Us For Availability
25
Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability
25
End Cap (2) WPL 941259 Contact Us For Availability
25
Screw, 8 x 1 (4) WPL 487979 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
26
Receptacle Cap WPL 850738 Contact Us For Availability
26
Screw, 10-32 x 5/8 (2) WPL 489075 Contact Us For Availability
26
Grommet WPL 943447 Contact Us For Availability
27
Divider Mullion Assembly WPL 985463 Contact Us For Availability
27
Insert Door, Panel WPL 981428 Contact Us For Availability
27
Shelf Cantilever WPL 936796 Contact Us For Availability
27
Air, Scoop Assembly (Includes Illus. 28) WPL 841269 Contact Us For Availability
28
Screw (Repair) WPL 488949 Contact Us For Availability
28
Trim, Door Shelf (5) WPL 1108762 Contact Us For Availability
28
Retainer, Glass Shelf WPL 936838 Contact Us For Availability
28
Gasket, Air Scoop WPL 844871 Contact Us For Availability
28
Grommet WPL 944454 Contact Us For Availability
29
Hinge Bottom (R.H) WPL 986763 Contact Us For Availability
29
Hinge Bottom (L.H) WPL 986764 Contact Us For Availability
29
Trim Shelf WPL 935337 Contact Us For Availability
29
Retainer, Damper WPL 938439 Contact Us For Availability
30
Pan Slide & Cover WPL 1110034 Contact Us For Availability
30
Control Knob Assembly WPL 837445 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
31
Screw (Repair) WPL 488913 Contact Us For Availability
31
Crisper Gasket Rear WPL 987420 Contact Us For Availability
31
Knob, Retainer WPL 837444 Contact Us For Availability
31
Evaporator WPL 945577 Contact Us For Availability
32
Shim, Hinge Bottom WPL 836196 Contact Us For Availability
32
Compartment Door WPL 1109004 Contact Us For Availability
32
Crisper Gasket Front WPL 987419 Contact Us For Availability
32
Cover, Evaporator WPL 984466 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
33
Tap Plate (2) WPL 836162 Contact Us For Availability
33
Pan Slide & Cover WPL 983817 Contact Us For Availability
33
Grommet WPL 848445 Contact Us For Availability
34
Trim, Breaker (Top) WPL 843335 Contact Us For Availability
34
Trim Solid Shelf WPL 841025 Contact Us For Availability
35
Trim, Breaker (R.S.) WPL 842178 Contact Us For Availability
35
Shelf, Freezer WPL 992342 Contact Us For Availability
35
End Cap, Cover WPL 836144 Contact Us For Availability
35
Wire Connector WPL 227991 Contact Us For Availability
36
Trim, Breaker (Bottom) WPL 836446 Contact Us For Availability
36
Nameplate WPL 945120 Contact Us For Availability
36
Trim, Shelf WPL 849263 Contact Us For Availability
36
Gasket, Evaporator WPL 841606 Contact Us For Availability
36
Cord, Service WPL 850626 Contact Us For Availability
37
Trim, Door Shelf WPL 1108763 Contact Us For Availability
37
Trim, Breaker (L.S.) WPL 836213 Contact Us For Availability
37
Air Diffuser Assembly WPL 946145 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
38
Breaker Trim Clip WPL 836090 Contact Us For Availability
38
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
39
Breaker, Clip WPL 849479 Contact Us For Availability
39
Solid Shelf WPL 837202 Contact Us For Availability
40
Breaker Trim, Top Freezer WPL 843334 Contact Us For Availability
40
Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability
40
Shelf, Ice Cube Pan WPL 992343 Contact Us For Availability
40
Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability
41
Breaker Trim, (R.S.) Freezer WPL 836108 Contact Us For Availability
41
Drain Pan Assembly WPL 842404 Contact Us For Availability
42
WPL 836174 WPL 836174 Contact Us For Availability
42
Fitting, Drain Pan WPL 841770 Contact Us For Availability
42
Frame WPL 945457 Contact Us For Availability
43
WPL 836447 WPL 836447 Contact Us For Availability
43
Bin, Freezer WPL 1109002 Contact Us For Availability
43
Gasket, Drain Pan WPL 845564 Contact Us For Availability
44
WPL 1100307 WPL 1100307 Contact Us For Availability
44
WPL 1100308 WPL 1100308 Contact Us For Availability
44
WPL 944233 WPL 944233 Contact Us For Availability
44
WPL 944235 WPL 944235 Contact Us For Availability
44
WPL 944237 WPL 944237 Contact Us For Availability
44
Pan, Crisper WPL 1108999 Contact Us For Availability
44
Cap, Drain WPL 842259 Contact Us For Availability
45
WPL 546131 WPL 546131 Contact Us For Availability
45
Cover, Heat Exchanger WPL 836514 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
46
Grommet, Inlet Tube WPL 659776 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
WPL 548734 WPL 548734 Contact Us For Availability
47
Defrost Timer, 10 Hr. WPL 943435 Contact Us For Availability
48
Bracket, Fan Motor WPL 548695 Contact Us For Availability
49
WPL 934447 WPL 934447 Contact Us For Availability
49
Grille WPL 835740 Contact Us For Availability
49
Baffle, Air WPL 850764 Contact Us For Availability
50
WPL 935663 WPL 935663 Contact Us For Availability
50
Wiring Defrost Timer WPL 481782 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
51
WPL 836068 WPL 836068 Contact Us For Availability
51
Overlay, Pan WPL 988255 Contact Us For Availability
52
WPL 841646 WPL 841646 Contact Us For Availability
52
Pan, Meat WPL 1108997 Contact Us For Availability
53
WPL 841648 WPL 841648 Contact Us For Availability
54
WPL 488978 WPL 488978 Contact Us For Availability
55
WPL 836372 WPL 836372 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
56
WPL 850457 WPL 850457 Contact Us For Availability
56
Light Lens, Refrigerator WPL 943218 Contact Us For Availability
57
Support, Light Lens WPL 984552 Contact Us For Availability
58
Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability
59
WPL ARI25706A9 WPL ARI25706A9 Contact Us For Availability
60
WPL 836077 WPL 836077 Contact Us For Availability
60
Light Lens, Freezer WPL 985456 Contact Us For Availability
61
WPL 653113 WPL 653113 Contact Us For Availability
62
Hole, Plug WPL 659598 Contact Us For Availability
64
WPL 481658 WPL 481658 Contact Us For Availability
65
WPL 489085 WPL 489085 Contact Us For Availability
66
WPL 989068 WPL 989068 Contact Us For Availability
68
Tray, Evaporating WPL 842041 Contact Us For Availability
70
Compressor (Includes Items 71, 72, 73, 74, 75 WPL 4388005 Contact Us For Availability
76
Sleeve WPL 4387559 Contact Us For Availability
78
Support, Evaporator WPL 842436 Contact Us For Availability
81
Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability
83
Clamp, Drier WPL 548508 Contact Us For Availability
94
Pan, Drip WPL 945572 Contact Us For Availability
95
Shield, Heat (2) WPL 549435 Contact Us For Availability
96
WPL 978029 WPL 978029 Contact Us For Availability
96
WPL 876029 WPL 876029 Contact Us For Availability
96
WPL 479502 WPL 479502 Contact Us For Availability
96
Enamel, Coffee (13 Oz. Spray Can) WPL 261886 Contact Us For Availability
96
Enamel, Coffee (1 Qt. WPL 261887 Contact Us For Availability
96
WPL 261890 WPL 261890 Contact Us For Availability
96
WPL 261891 WPL 261891 Contact Us For Availability
96
WPL 285365 WPL 285365 Contact Us For Availability
96
WPL 285366 WPL 285366 Contact Us For Availability
96
WPL 285367 WPL 285367 Contact Us For Availability
96
WPL 285368 WPL 285368 Contact Us For Availability
96
WPL 350941 WPL 350941 Contact Us For Availability
96
WPL 515393 WPL 515393 Contact Us For Availability
96
WPL 542639 WPL 542639 Contact Us For Availability
96
WPL 549419 WPL 549419 Contact Us For Availability
96
WPL 72108 WPL 72108 Contact Us For Availability
96
WPL 72112 WPL 72112 Contact Us For Availability
96
WPL 799340 WPL 799340 Contact Us For Availability
96
WPL 799832 WPL 799832 Contact Us For Availability
96
WPL 799833 WPL 799833 Contact Us For Availability
96
WPL 799908 WPL 799908 Contact Us For Availability
96
WPL 978028 WPL 978028 Contact Us For Availability
96
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
