Model Whirlpool ED19SKXRWR0 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1114013 WPL LIT1114013 Contact Us For Availability

WPL LIT1115484 WPL LIT1115484 Contact Us For Availability

WPL LIT1116314 WPL LIT1116314 Contact Us For Availability

WPL LIT879778 WPL LIT879778 Contact Us For Availability

1

Screw, Ground WPL 488474 Contact Us For Availability

1

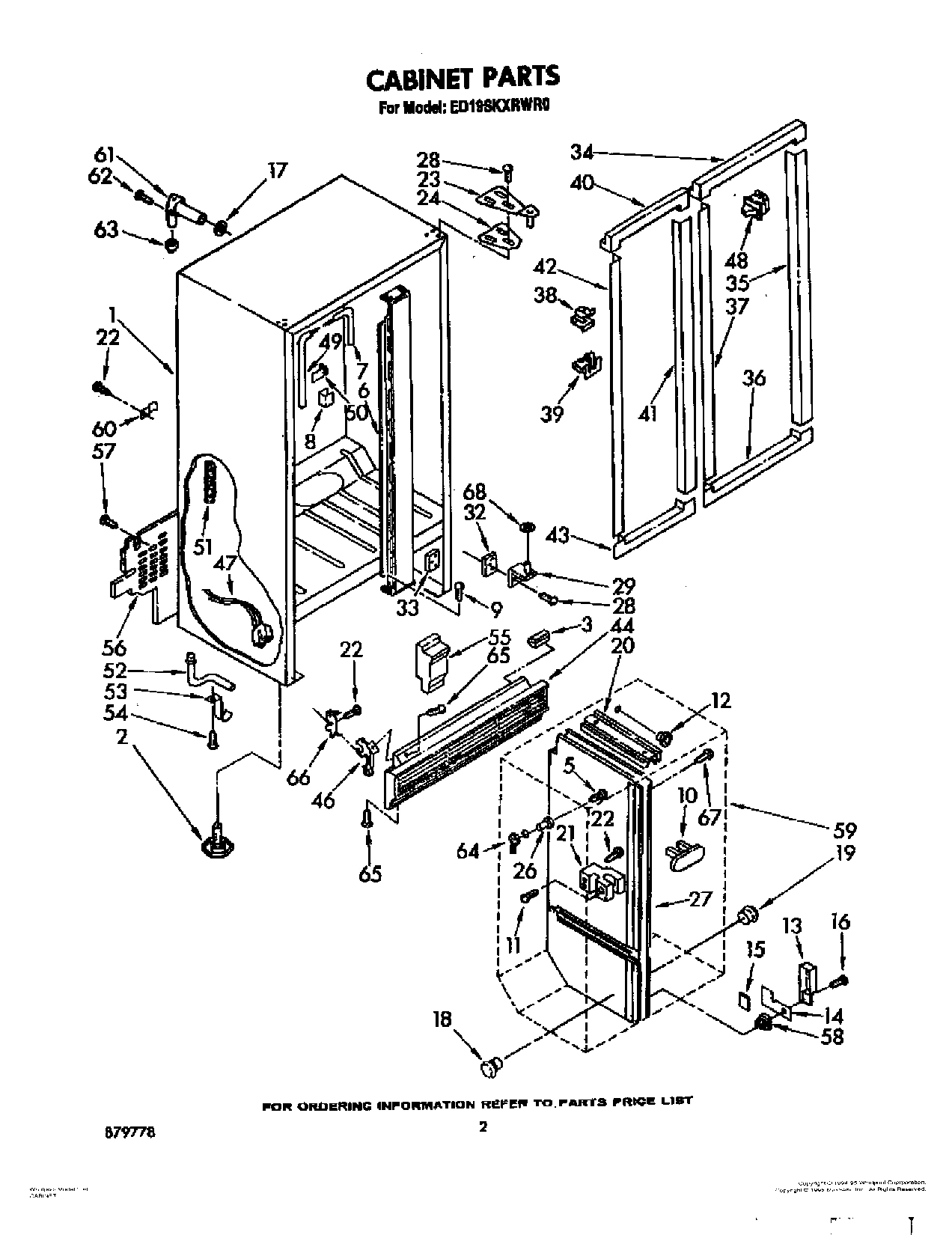

Cabinet (Not A Serviceable Part) WPL ARI25689A7 Contact Us For Availability

1

Support, Light Lens (R.S.) WPL 842355 Contact Us For Availability

1

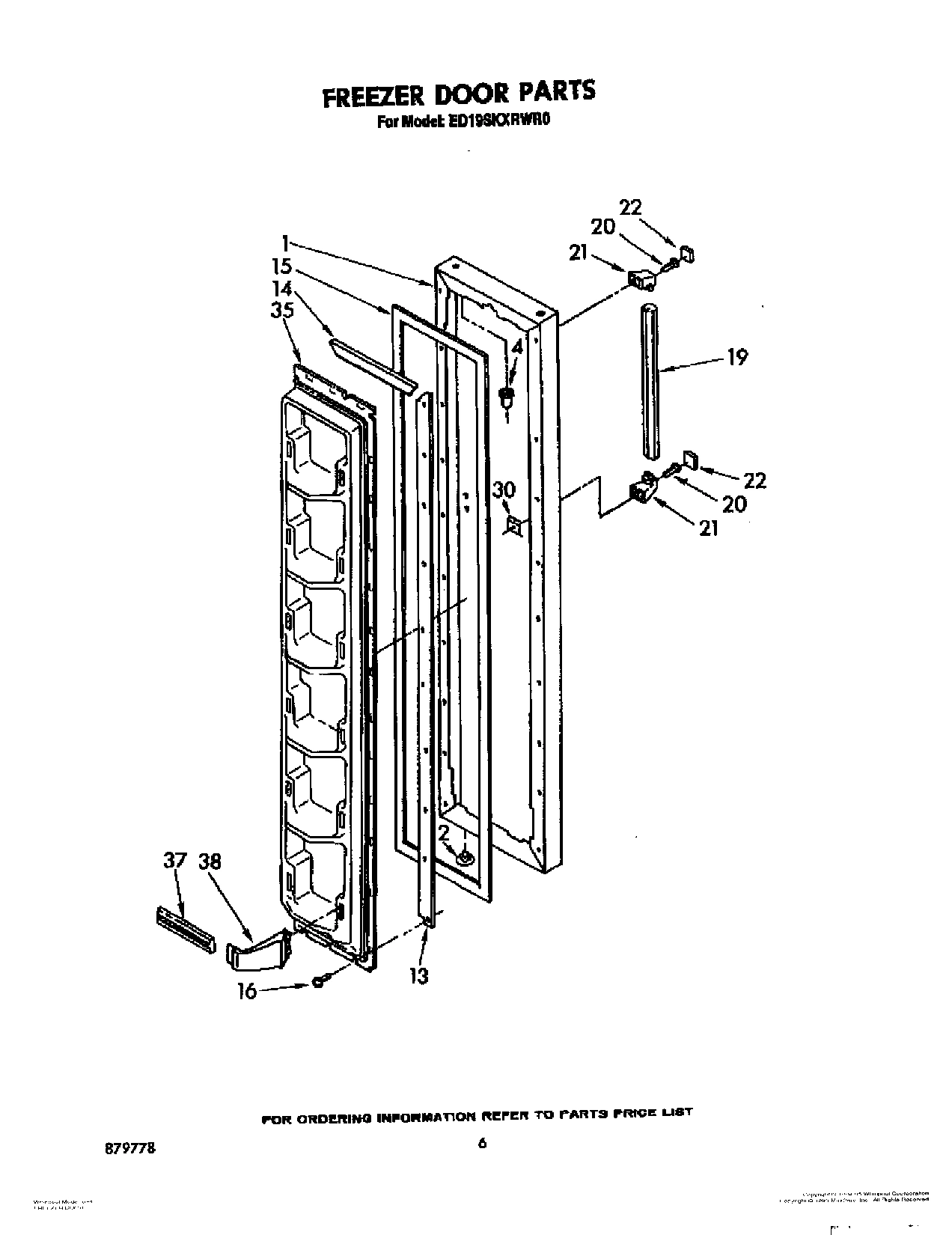

Freezer, Door Panel (White) WPL 1110116 Contact Us For Availability

2

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

2

Leveler, Cabinet WPL 836392 Contact Us For Availability

2

Support, Light Lens (L.S.) WPL 842356 Contact Us For Availability

2

Hole Plug WPL 534927 Contact Us For Availability

3

Condenser WPL 943480 Contact Us For Availability

3

Bumper, Grille WPL 546131 Contact Us For Availability

3

Clip, Tubular WPL 843945 Contact Us For Availability

4

Shelf Stud (2) WPL 652675 Contact Us For Availability

4

Cap, Hinge Sleeve WPL 509929 Contact Us For Availability

5

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

5

Clamp (2) WPL 510716 Contact Us For Availability

5

Shelf Stud (2) WPL 845986 Contact Us For Availability

6

Clip (2) WPL 548744 Contact Us For Availability

6

Center, Mullion Rail (White) WPL 985979 Contact Us For Availability

7

Shelf Stud (2) WPL 536475 Contact Us For Availability

7

Running Capacitor WPL 1105212 Contact Us For Availability

7

Heater, Mullion WPL 851874 Contact Us For Availability

8

Bracket, Mounting WPL 1105220 Contact Us For Availability

8

Retainer, Clip WPL 510291 Contact Us For Availability

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

Capacitor, Wiring WPL 1105190 Contact Us For Availability

9

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

10

Box, Junction WPL 549947 Contact Us For Availability

10

Mullion, Stabilizer WPL 836080 Contact Us For Availability

11

Grommet WPL 514357 Contact Us For Availability

11

Screw, 8 x 3/4 WPL 488280 Contact Us For Availability

12

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

12

Grommet, Wiring WPL 851020 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Escutcheon Meat WPL 985468 Contact Us For Availability

Shelf, Stud WPL 529758 Contact Us For Availability

Retainer, Gasket (Side) (2) WPL 836120 Contact Us For Availability

14

Slide Meat WPL 984102 Contact Us For Availability

14

Shelf Stud WPL 521878 Contact Us For Availability

14

Retainer, Gasket Top & Bottom (2) WPL 836122 Contact Us For Availability

2188405A Whirlpool Refrigerator Door Gasket Backorder WPL 2188405A $132.43

Blade, Fan WPL 992920 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Pad, Foam WPL 992358 Contact Us For Availability

Shelf Support WPL 210518 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Screw (4) WPL 489139 Contact Us For Availability

Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability

Grommet WPL 533881 Contact Us For Availability

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

Fan, Bracket Double WPL 548263 Contact Us For Availability

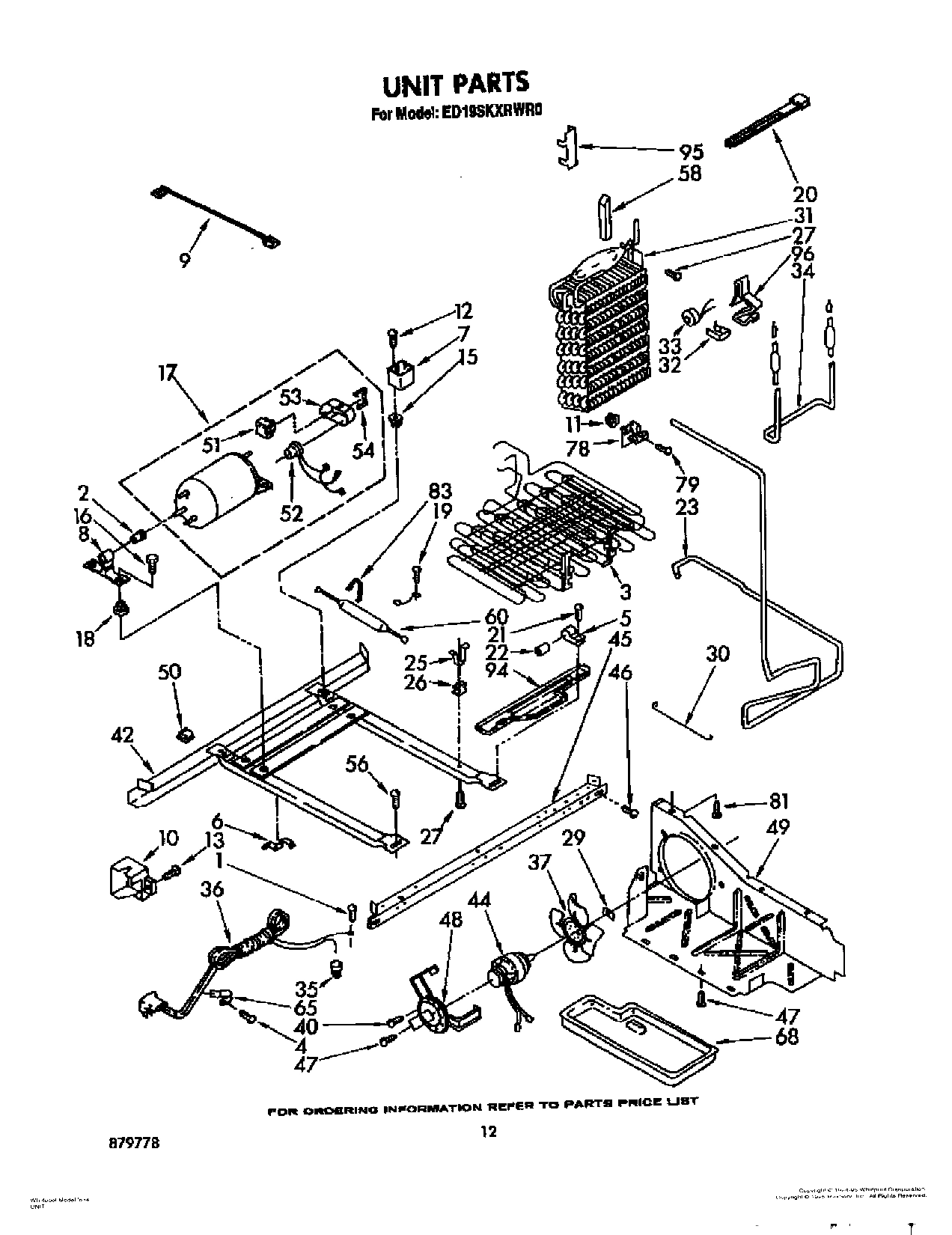

Compressor (Includes Items 51, 52, 53, 54) (A WPL 819194 Contact Us For Availability

Shelf Stud Saddle (R.S.) WPL 523263 Contact Us For Availability

Shelf Stud, Saddle (L.S.) WPL 523264 Contact Us For Availability

Fan, Bracket Single WPL 548264 Contact Us For Availability

Grommet (4) WPL 1105200 Contact Us For Availability

Retainer, Hole WPL 843888 Contact Us For Availability

Hole, Plug WPL 519890 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

Fan Mounting Grommet WPL 548268 Contact Us For Availability

Insert, Hole WPL 843887 Contact Us For Availability

Stud, Retainer WPL 512900 Contact Us For Availability

Handle WPL 1110069 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

Gasket, Divider WPL 842435 Contact Us For Availability

Stud, Shelf WPL 658944 Contact Us For Availability

Screw, 8-15 x 1-5/8 (2) WPL 488987 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Screw Grommet WPL 538449 Contact Us For Availability

Mullion, Stabilizer Divider WPL 836079 Contact Us For Availability

End, Door Handle (2) WPL 1106767 Contact Us For Availability

Baffle, Liner Top WPL 836216 Contact Us For Availability

Dampener (2) WPL 510769 Contact Us For Availability

Screw, 8-15 x 1-1/4 WPL 487559 Contact Us For Availability

Cover, End Door Handle (2) WPL 1110070 Contact Us For Availability

23

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

23

Heat, Exchanger WPL 1105201 Contact Us For Availability

23

Hinge, Top WPL 842039 Contact Us For Availability

24

Scroll Fan WPL 991285 Contact Us For Availability

24

Shim, Hinge WPL 836151 Contact Us For Availability

25

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

25

Clamp (4) WPL 548738 Contact Us For Availability

26

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

26

Grommet WPL 943447 Contact Us For Availability

26

Receptacle Cap WPL 850738 Contact Us For Availability

27

Air, Scoop Assembly (Includes Illus. 28) WPL 841269 Contact Us For Availability

27

Divider Mullion Assembly WPL 935299 Contact Us For Availability

27

Wire, Shelf (3) WPL 992341 Contact Us For Availability

28

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

28

Gasket, Air Scoop WPL 844871 Contact Us For Availability

28

Screw (Repair) WPL 488949 Contact Us For Availability

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

Retainer, Damper WPL 938439 Contact Us For Availability

Hinge Bottom R.H. WPL 836686 Contact Us For Availability

Hinge Bottom L.H. WPL 836687 Contact Us For Availability

30

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

30

Control Knob Assembly WPL 837445 Contact Us For Availability

30

Guard, Fan WPL 850156 Contact Us For Availability

31

Knob, Retainer WPL 837444 Contact Us For Availability

31

Evaporator WPL 945577 Contact Us For Availability

32

Cover, Evaporator WPL 984466 Contact Us For Availability

32

Clamp WPL 513584 Contact Us For Availability

32

Shim, Hinge Bottom WPL 836196 Contact Us For Availability

WP4387489 Whirlpool Refrigerator Bi-Metal Def Backorder WPL WP4387489 $32.15

Grommet WPL 848445 Contact Us For Availability

Tap Plate (2) WPL 836162 Contact Us For Availability

Pan Slide & Cover WPL 983817 Contact Us For Availability

34

WP549433 Whirlpool Refrigerator Heater Backorder WPL WP549433 $70.25

34

Breaker Trim, Top WPL 836445 Contact Us For Availability

End Cap, Cover WPL 836144 Contact Us For Availability

Wire Connector WPL 227991 Contact Us For Availability

Breaker Trim (R.S.) WPL 1115703 Contact Us For Availability

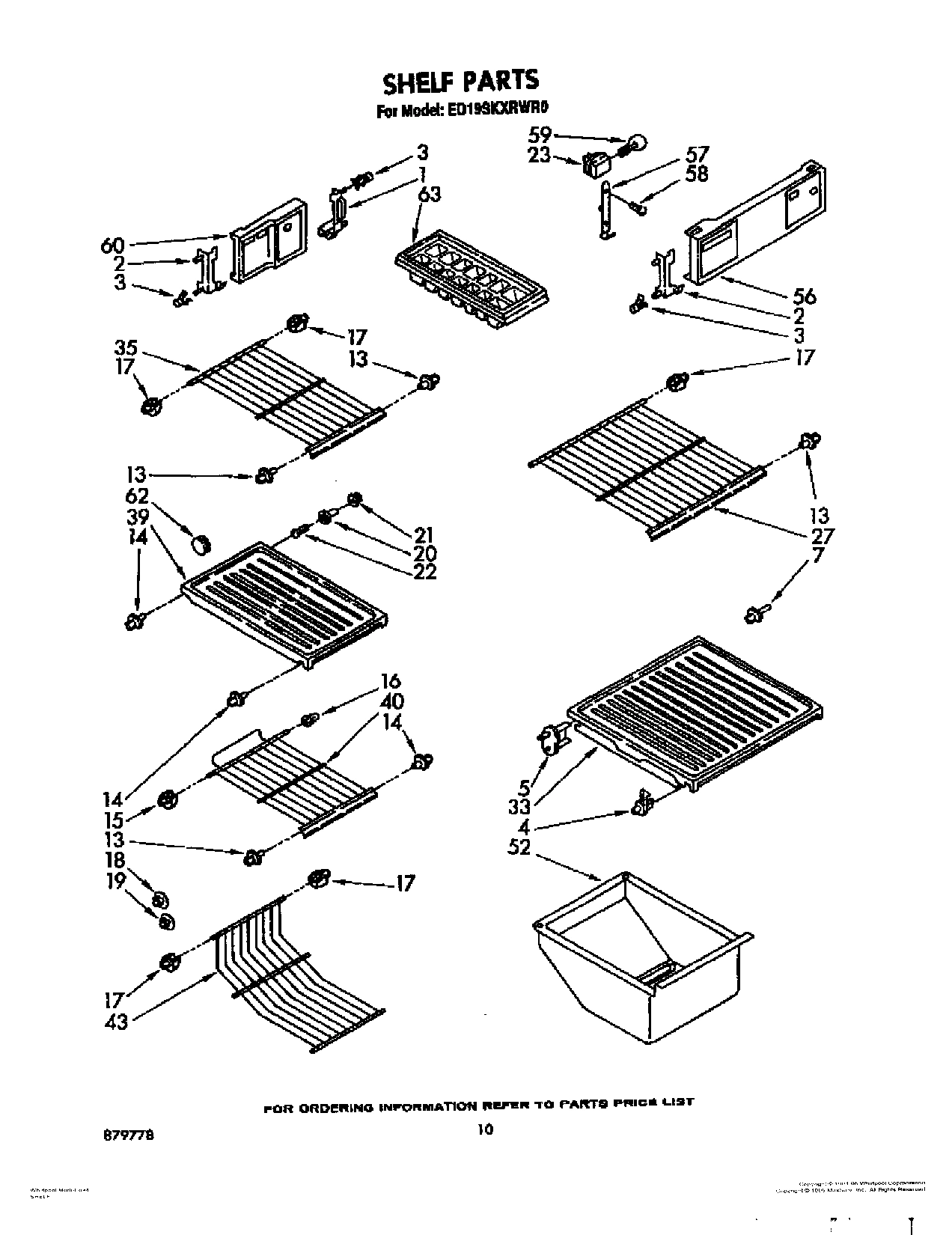

Shelf, Freezer WPL 992342 Contact Us For Availability

Interior, Door Panel WPL 937457 Contact Us For Availability

36

Gasket, Evaporator WPL 841606 Contact Us For Availability

36

Cord, Service WPL 850626 Contact Us For Availability

36

Trim, Breaker (Bottom) WPL 836446 Contact Us For Availability

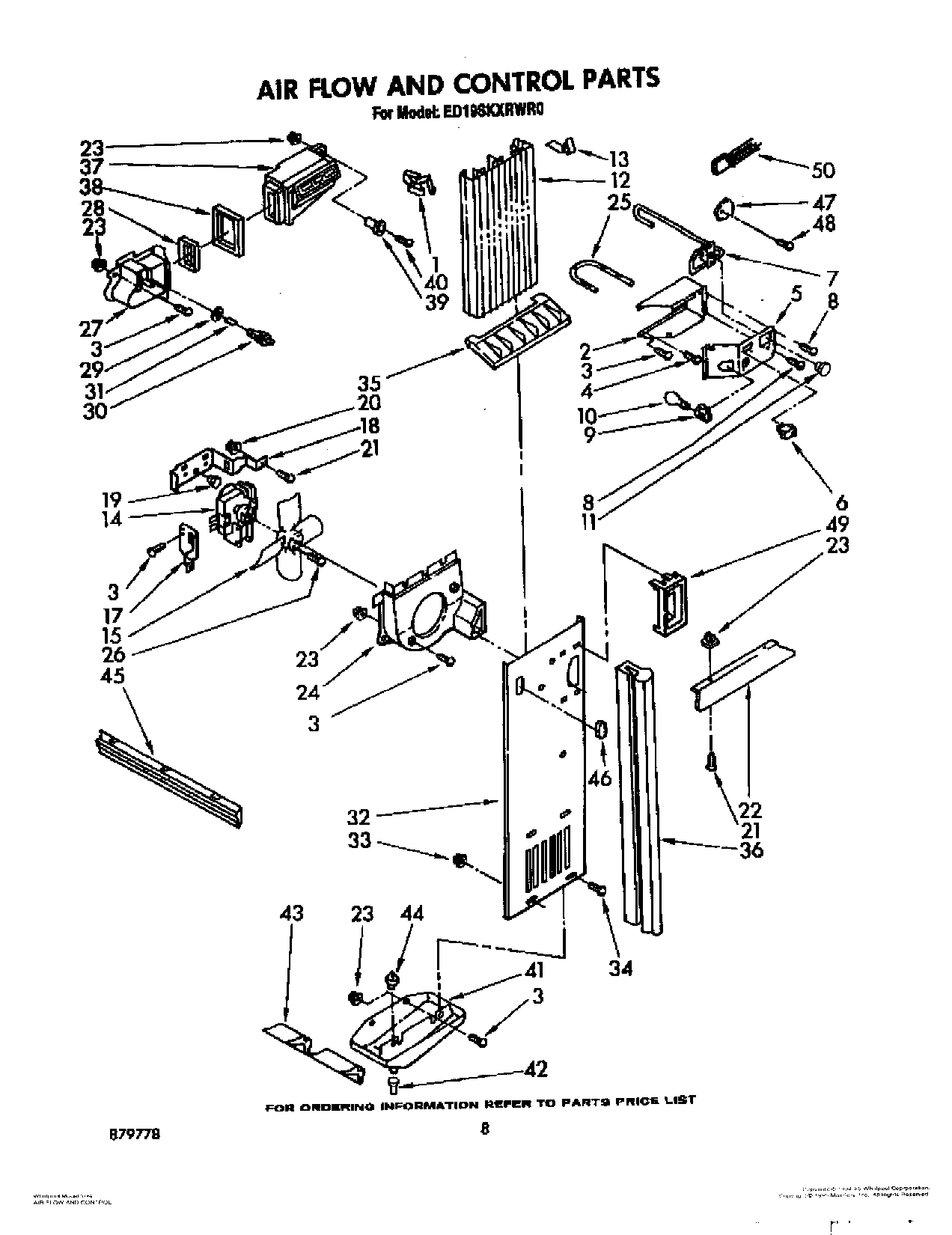

Air Diffuser Assembly WPL 946145 Contact Us For Availability

Blade, Fan WPL 989524 Contact Us For Availability

Trim, Breaker (L.S.) WPL 836213 Contact Us For Availability

Trim, Door Shelf (5) WPL 935307 Contact Us For Availability

38

WP986540 Whirlpool Refrigerator Endcap Trim In Stock WPL WP986540 $3.70

38

Gasket, Air Diffuser WPL 842394 Contact Us For Availability

38

Breaker Trim Clip WPL 836090 Contact Us For Availability

39

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

39

Breaker, Clip WPL 849479 Contact Us For Availability

39

Solid Shelf WPL 837202 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

Breaker, Trim Top (Freezer) WPL 836444 Contact Us For Availability

Shelf, Ice Cube Pan WPL 992343 Contact Us For Availability

41

Drain Pan Assembly WPL 842404 Contact Us For Availability

41

Breaker Trim, (R.S.) Freezer WPL 836108 Contact Us For Availability

42

Fitting, Drain Pan WPL 841770 Contact Us For Availability

42

Frame WPL 1105198 Contact Us For Availability

42

Breaker Trim (L.S.) Freezer WPL 836174 Contact Us For Availability

43

Gasket, Drain Pan WPL 845564 Contact Us For Availability

43

Breaker Trim (Bottom) Freezer WPL 836447 Contact Us For Availability

43

Trivet WPL 837149 Contact Us For Availability

44

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

Cap, Drain WPL 842259 Contact Us For Availability

44

Exterior Grille WPL 1106236 Contact Us For Availability

45

Cover, Heat Exchanger WPL 836514 Contact Us For Availability

45

Rail, Front WPL 941697 Contact Us For Availability

46

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

46

WP944224 Whirlpool Refrigerator Support In Stock WPL WP944224 $3.70

46

Grommet, Inlet Tube WPL 659776 Contact Us For Availability

47

Defrost Timer, 10 Hr. WPL 943435 Contact Us For Availability

47

Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability

48

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

48

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $2.51

48

Bracket, Fan Motor WPL 548695 Contact Us For Availability

49

Grille WPL 835740 Contact Us For Availability

49

Baffle, Air WPL 850764 Contact Us For Availability

49

Heater, Stile WPL 934447 Contact Us For Availability

50

Wiring Defrost Timer WPL 481782 Contact Us For Availability

50

Clip, Wire (2) WPL 548745 Contact Us For Availability

50

Clip, Stile Heater WPL 935663 Contact Us For Availability

51

Start Relay WPL 1105209 Contact Us For Availability

51

Drain Fitting, Liner WPL 836068 Contact Us For Availability

52

Overload WPL 1105210 Contact Us For Availability

52

Extension, Drain Fitting WPL 841646 Contact Us For Availability

52

Pan, Meat WPL 1110106 Contact Us For Availability

53

Terminal Cover WPL 1105221 Contact Us For Availability

53

Clip, Drain WPL 841648 Contact Us For Availability

54

Terminal Strap WPL 1105222 Contact Us For Availability

54

Screw, 8-15 x 3/8 WPL 488978 Contact Us For Availability

55

Insert, Baffle WPL 836372 Contact Us For Availability

56

Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability

56

Cover, Unit Compartment WPL 850457 Contact Us For Availability

56

Light Lens, Refrigerator WPL 943218 Contact Us For Availability

57

Support, Light Lens WPL 984552 Contact Us For Availability

58

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

58

Grommet WPL 842339 Contact Us For Availability

58

Baffle, Air Evaporator (2) WPL 652985 Contact Us For Availability

59

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

59

L WPL ARI25690A9 Contact Us For Availability

60

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

60

WPL 836077 WPL 836077 Contact Us For Availability

60

Light Lens, Freezer WPL 985456 Contact Us For Availability

61

WPL 653113 WPL 653113 Contact Us For Availability

62

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

62

Hole, Plug WPL 659598 Contact Us For Availability

63

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

63

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

64

WPL 481658 WPL 481658 Contact Us For Availability

65

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

65

WPL 489173 WPL 489173 Contact Us For Availability

66

WPL 989068 WPL 989068 Contact Us For Availability

68

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

68

Tray, Evaporating WPL 842041 Contact Us For Availability

78

Support, Evaporator WPL 842436 Contact Us For Availability

81

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

83

Clamp, Drier WPL 548508 Contact Us For Availability

94

Pan, Drip WPL 945572 Contact Us For Availability

95

Shield, Heat (2) WPL 549435 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Transformer (115-2 WPL 515393 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 549419 WPL 549419 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 799908 WPL 799908 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability
