Model Electrolux ECWS243CASA WALL OVEN, ELECTRIC, SINGLE, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET

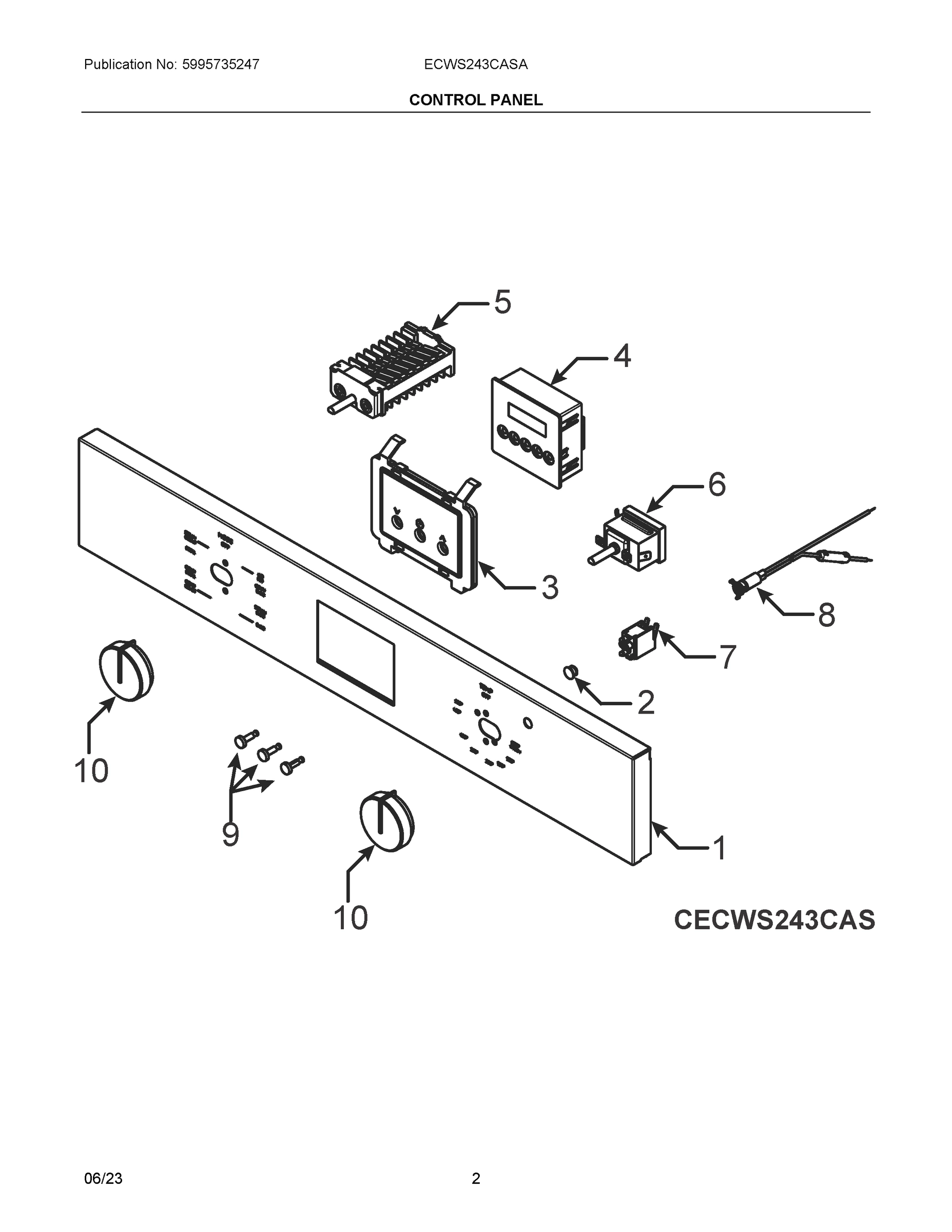

02 - CONTROL PANEL
03 - BODY
04 - DOOR
05 - WIRING DIAGRAM
Common parts from model Electrolux ECWS243CASA WALL OVEN, ELECTRIC, SINGLE, 24 INCH
1
PANEL, SIDE, RH WCI 4055548632 Contact Us For Availability
2
PANEL, SIDE, LH WCI 4055548590 Contact Us For Availability
2
HANDLE, OVEN DOOR, STAINLESS WCI 5304533570 Contact Us For Availability
3
LENS ASSEMBLY, BLACK, CONTROL WCI 5304533565 Contact Us For Availability
3
PANEL, OVEN, BOTTOM WCI 4055548582 Contact Us For Availability
3
SPACER, HANDLE, STAINLESS WCI 140075719025 Contact Us For Availability
4
PANEL, OVEN BACK WCI 4055549341 Contact Us For Availability
4
SCREW, PH TX20, M4 X 35, BLACK, HANDLE MTG. WCI 5304533571 Contact Us For Availability
5
SWITCH ASSEMBLY, OVEN SELECTOR WCI 5304533566 Contact Us For Availability
5
PANEL, OVEN, TOP WCI 4055548624 Contact Us For Availability
5
PAD, HANDLE SPACER WCI 140100688013 Contact Us For Availability
6
THERMOSTAT, TEMPERATURE, OVEN WCI 5304533567 Contact Us For Availability
6
SPACER, DOOR, INNER WCI 140126193014 Contact Us For Availability
7
GLASS, DOOR, MIDDLE WCI 4055577151 Contact Us For Availability
8
LAMP, SIGNAL, 250V 200/200 WCI 140174296016 Contact Us For Availability
8
GLASS, INNER, OVEN SIDE WCI 4055549143 Contact Us For Availability
8A
LAMP, SIGNAL, 250V 600/200 WCI 140174296024 Contact Us For Availability
9
BUTTON, CONTROL WCI 3425573452 Contact Us For Availability
10
KNOB ASSEMBLY, CHROME WCI 140159332026 Contact Us For Availability
11
NUT, FAN BLADE WCI 4055549481 Contact Us For Availability
13
COVER, CONVECTION FAN WCI 4055548855 Contact Us For Availability
14
COVER, ELEMENT LATCH WCI 4055549440 Contact Us For Availability
15
LATCH, ELEMENT SUPPORT WCI 4055549432 Contact Us For Availability
16
COVER, BAKE ELEMENT WCI 4055549465 Contact Us For Availability
17
ELEMENT, OVEN BAKE WCI 5304533559 Contact Us For Availability
18
ELEMENT, GRILL BOOST, BROIL WCI 5304533560 Contact Us For Availability
19
CLIP, ELEMENT MTG. WCI 4055548723 Contact Us For Availability
20
CLIP, SIDE RAILS WCI 5614852019 Contact Us For Availability
21
FAN ASSEMBLY, COOLING WCI 5304533561 Contact Us For Availability
22A
THERMOSTAT, CUTOUT, 145 DEG. WCI 140064215019 Contact Us For Availability
23
TERMINAL BLOCK WCI 5304533568 Contact Us For Availability
24
SEAL, OVEN DOOR WCI 4055548574 Contact Us For Availability
25
CHANNEL, BODY SIDE, LH FRONT WCI 140233526015 Contact Us For Availability
27
END CAP, CONTROL SUPPORT, LH WCI 4055548517 Contact Us For Availability
28
END CAP, CONTROL SUPPORT, RH WCI 4055548525 Contact Us For Availability
30
RACK, OVEN SHELF WCI 4055549770 Contact Us For Availability
31
SIDE RAIL, OVEN RACK, LH WCI 140109276026 Contact Us For Availability
32
SIDE RAIL, OVEN RACK, RH WCI 140109276018 Contact Us For Availability
33
HARNESS ASSEMBLY, BOX & CABLE WCI 5304533573 Contact Us For Availability
NI
KIT, CABINET INSTALL WCI 140071555019 Contact Us For Availability
NI
BUMPER, STOP, BLACK WCI 4055470712 Contact Us For Availability
NI
SCREW, T20, 4.2 X 13MM, BLACK, ZINC PLATED WCI 5304533830 Contact Us For Availability
× ![]()
